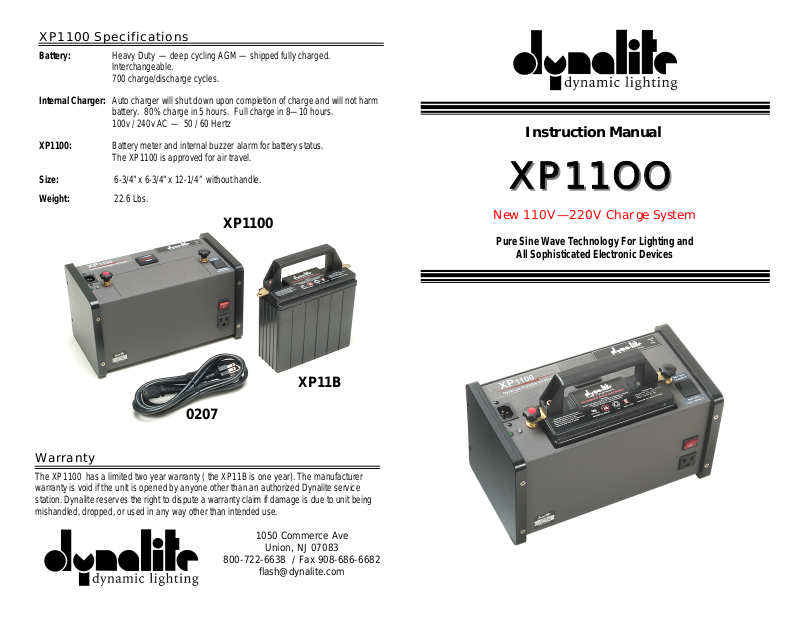

XP1100 Specifications
Battery: Heavy Duty — deep cycling AGM — shipped fully charged.
Interchangeable.
700 charge/discharge cycles.
Internal Charger: Auto charger will shut down upon completion of charge and will not harm
battery. 80% charge in 5 hours. Full charge in 8—10 hours.
100v / 240v AC —
XP1100: Battery meter and internal buzzer alarm for battery status.
The XP1100 is approved for air travel.
50 / 60 Hertz
Instruction Manual
Size: 6-3/4” x 6-3/4” x 12-1/4” without handle.
Weight: 22.6 Lbs.
XP1100
0207
Warranty
XP11B
XP11OO
XP11OO
Portable AC Power Supply
New 110V—220V Charge System
Pure Sine Wave Technology For Lighting and
All Sophisticated Electronic Devices
The XP1100 has a limited two year warranty ( the XP11B is one year). The manufacturer
warranty is void if the unit is opened by anyone other than an authorized Dynalite service
station. Dynalite reserves the right to dispute a warranty claim if damage is due to unit being
mishandled, dropped, or used in any way other than intended use.
1050 Commerce Ave
Union, NJ 07083
800-722-6638 / Fax 908-686-6682
flash@dynalite.com
XP1100 Attributes
XP1100 Maintenance and Use
Your XP1100 will provide dependable battery powered 110 V AC for your location assignments or any time AC is not available. The XP1100 is a 1100-watt pure sine wave inverter
that is safe enough to use with all your delicate electronic equipment ( power packs, digital
cameras, computers, etc.). The XP1100, with its capacity to power up to 1100 watts, can
easily power our MP1000w/s power packs for up to 200 full power flashes, while maintaining
your fast AC recycle times. You also have the ability to use your modeling lights when
needed (of course, this reduces the number of flashes available).
Important Safeguards
Please take a moment to read and understand all instructions for your safety and to ensure
years of trouble free use of your equipment.
Do Not operate while unit is being charged.
Do Not operate with HMI and high output tungsten continuous light sources.
Charge your XP1100 only from a properly grounded 100 / 240 V outlet.
Avoid spills and exposure to moisture. Never use directly on wet floors, near swimming
pools or other sources of water.
Do not operate the equipment with a damaged cord or if the equipment has been
dropped or damaged. Your equipment should be checked by an authorized service
station before using again.
Charge Inlet
(100 v / 240 v)
Battery
Meter
Battery and Charging Operation
Your XP1100 uses a sealed heavy duty AGM (Absorbed Glass Mat) battery for safety and
trouble free use. Recharging the battery takes 5 hours maximum to full capacity — with a
fully discharged battery.
1. Plug the supplied AC cord (same as your power pack AC cord) into the front inlet located in the
lower left.
2. The Battery Disconnect switch can be in either position. 3. Then plug the other
end of the cord into a grounded 100—240 V AC wall outlet. Your Red and Green status
indicating lights will provide you with the battery charge status as follows:
Green + Red Lights On — Unit is charging.
2 Green Lights On — Charge is complete and is in the Storage / Float mode. In this mode the
charger will maintain the battery at full charge.
No Lights On — then battery is not properly connected or plugged into AC power source.
Changing Battery
1. Place Battery Disconnect switch (black on top of unit) to off position — rock switch to bottom.
2. Unscrew the two terminal connectors on either side of the battery handle.
3. Lift battery straight out of the unit. Insert replacement battery straight through the hinged
compartment panel.
4. Replace the two terminal connectors.
5. Switch the Battery Disconnect switch back to the on position — rock switch to top position.
Note: Terminal connecters and battery lugs are color coded for proper polarity.
Battery Meter
Use the battery meter as a guide to monitor the state of charge as you use the unit. Because of
inherent inaccuracies of battery meters, the unit also has an internal buzzer alarm to indicate the
end of your battery charge. When the buzzer sounds continuously for 5 seconds, the battery is
at the end of its capacity and should be recharged.
Positive
Lug
Charge
Indicator
Lights
AC Power
Outlet
(110 v)
Negative
Lug
Battery
Disconnect
(Disconnect in
bottom position)
Output
ON / OFF
Low Power
Full Power
To Use
Plug in your AC device and turn on both the Battery Disconnect and AC Output switches.
Storage
When not in use, turn off the output on-off switch. For extended storage, store your XP1100
without the battery in the unit.
Transport And Shipping
It is advisable whenever shipping your XP1100, to ship in a heavy duty air transit style case.
The XP1100 is
air shippable in accordance with IATA Special Provision A67.
