Multifunctional Speaker Line
Englisch
Philosophy
Professional sound reinforcement requires maximum perfomance and high sound pressure levels for a wide variety of
touring and installation applications. Universal loudspeaker
functionality is therefore most important to meet the ever
changing demands without effort.
Both acoustically and mechanically, VariLine enclosures have
been uncompromisingly designed and optimized for multifunctional application. Innovative circuits provide maximum
reliability and protection of all loudspeaker components.
Engineered & made in Germany. VariLine loudspeakers feature premium components only: lightweight high power neodymium transducers, rotable CAD optimized CD horns, all-electronic protection circuits and passive true-phase crossovers
provide outstanding reliability and linear reproduction even in
highly critical applications. Comprehensive mounting and
rigging accessories facilitate professional handling and secure,
easy installation of VariLine loudspeakers. Visually attractive
yet low-key, these enclosures are highly recommended for
demanding ambiences.
Cabinet Design
VariLine enclosures are made from extremely rugged multiply birch
wood and two-pot finished to withstand touring and handling stress.
The front is protected by a sturdy powder-coated steel grille lined with
high quality acoustic foam and, the company logo is 90° rotatable for
horizontal use. 12“ and 15“ models feature asymmetric enclosures to
facilitate the use as floor monitors and cluster arrangement.
Transducer
VariLine loudspeakers are equipped with extremely low-distortion
state-of-the-art drivers only to provide linear response, wide dynamic
range and high power handling. The 6“, 12“ and 15“ transducers feature neodymium magnets significantly contributing to the light weight
of VariLine enclosures.
Horn
The large format VariLine constant directivity HF horns have been
optimized with advanced CAD software resulting in exemplary low distortion and directivity way down beyond the MB range. For horizontal
applications, they are rotatable by 90°. The smaller enclosures are
equipped with Electro-Voice DH3 titanium dome drivers, the VL 122
and larger models feature Electro-Voice ND6 neodymium drivers with
3“ voice coils and 1.4“ exits. These advantageous horn/driver configurations provide crisp and powerful high-resolution HF reproduction.
Crossover
VariLine crossovers use selected high-quality components only for
signal processing and the innovative DYNACORD protection circuits:
the all-electronic VOICE COIL TRACKING PROTECTION and halogen protectors prevent thermal overload. For maximum dynamics,
VariLine loudspeakers can be driven by extremely powerful amplifiers
without voice coil damage - even when operating errors occur.
Thermal overload triggers a 'soft' power reduction without the
switching noise of conventional protection circuits. Additionally, 12“
and 15“ models feature selectable bi-amp operation .
Drive
With DYNACORD PowerH amplifiers and IRIS-Net, VariLine systems
can be networked providing comprehensive remote control and permanent supervision. Fully configured presets are available for a variety of system setups containing loudspeaker monitoring and linear
phase FIR (Finite Impulse Response) filtering while others presets
provide FIR floor monitor optimizing. Even very large systems require
one mouse click only for impedance sweep measuring and loudspeaker
connection testing.
Of course, IRIS-Net-controlled systems are also user-configurable.
Presets are available for conventional digital controllers as well and,
EASE and Ulysses data files facilitate demanding simulations quickly
and precisely.
Flying brackets
Flying brackets are optional accessories for precise loudspeaker
aiming at the listening areas. In installation applications, the bracket
can be equipped with truss clamps for flying while an adapter enables
stand mounting. A TV spigot enables easy changing from truss to
stand mounting while additional adapters provide maximum flexibility
for a comprehensive range of applications (see pp. 15).
Installation hardware
A wide range of installation hardware is available for VariLine fullrange cabinets providing classic three-point eyebolt flying, wall or ceiling
bracket mounting and, even more convenient, three-level adjustable
mounting (see pp. 15).
VL 62
Highest quality speech and music
Applications
Theatre front fill
Multimedia
Satellite and delay systems
VL 262
VL 62 and VL 262
The models VL 62 and VL262 are very compact 2-way fullrange high power cabinets for a wide variety of mobile and
installation applications. High sensitivity (94dB/97dB @ 1W/1m)
and power handling makes them stand out in their class.
Extremely low distortion DND 6130-16 neodymium drivers
handle lows and mids while a 90° x 40° HPT94 constant directivity horn radiates the highs. It is driven by the brilliantly c lean
Electro-Voice DH3 and easily 90° rotatable for horizontal
applications. Recessed SPEAKON connectors enable positioning close to walls, and two lateral M10 inserts are provided for mounting the FB... pivot bracket. MB and MB UMH
brackets can be attached to the top or bottom via M10 inserts
while four M6 inserts are provided on the back for other wall
mount brackets.
A rugged, water-repellent cover is available as accessory.
VL 62
VL 262
VL 122, VL 152 and VL 212
The 12“ and 15“ VariLine models are high power 2-way cabinets
exclusively equipped with high-quality neodymium components. These lightweight champs feature impressively high
power handling for superior sound pressure levels.
Large format HF horns coupled to Electro-Voice ND6 drivers
provide balanced directivity well below the crossover frequency
and clear, detailed HF reproduction. In horizontal applications –
VL 122
especially when used as monitor and in high-quality installations – mid and high frequency radiation can be optimized by
horn rotation. The 12“ and 15“ models are switchable from fullrange mode to bi-amp operation. Their asymmetrical enclosure design is ideal for floor monitor use and cluster arrangements.
For the range of mounting and flying hardware refer to page 15.
VL 152
VL 212
VL 152 with MB 152 UMH
Highest quality speech and music
VL 122
Applications
High power monitoring
Front and side fill
Club systems with subwoofers
Delay systems
VL 152
VL 212

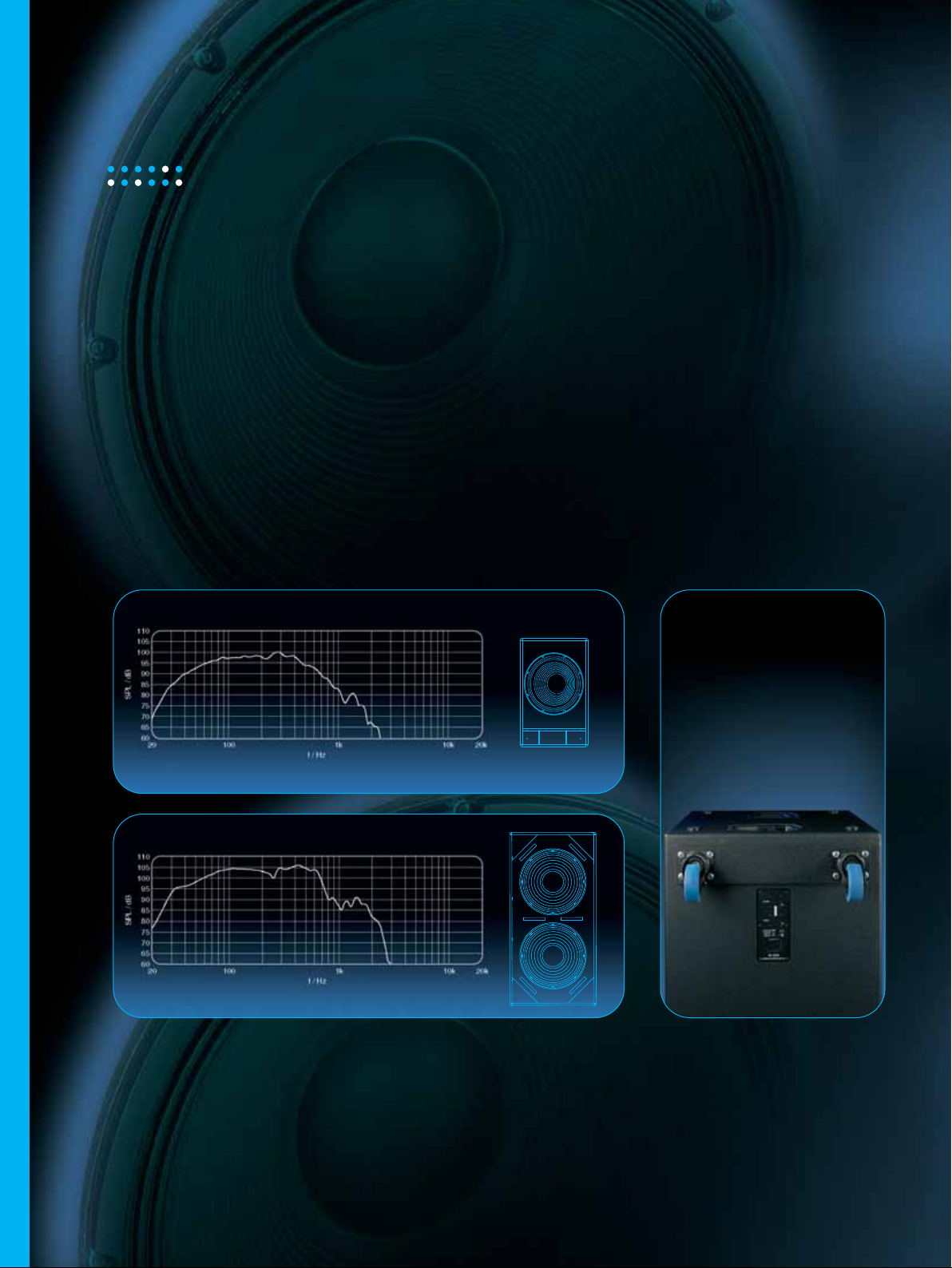

SUB 18 and SUB 28
The vented SUB 18 and SUB 28 direct radiators have been
designed for subwoofer use in active multiway systems. The
superior transient response of the classic bass reflex construction is also well suited for medium to large bass arrays.
The premium 700W RMS long excursion woofers feature extremely low THD, and the reliable, all-electronic Voice Coil
Tracking Protection prevents thermal overload of the 100mm
sandwich voice coils.
For maximum dynamics, the SUB models can be driven b y
extremely powerful amplifiers; thermal overload triggers a v ir tually inaudible 'soft' power reduction. The 18mm multiply birch
wood enclosures feature a rugged two-pot structured finish.
SUB 18
The woofers are damage and weather protected by a sturdy
powder-coated steel grille lined with high quality acoustic
foam. Wheel kits with four 100mm factory assembled 'Blue
Wheels' are optionally available. These are mounted to the
back to provide easy and convenient transport .
The SUB 28 is switchable from 1 x 4 ohms to 2 x 8 ohms mode
where woofer Ais connected to the Speakon pins 1+/1- and B
to pins 2+/2-.
When driven by DYNACORD CL, LX or Power-H series amplifiers a single 4-conductor loudspeaker cable is required to
feed both woofers from amplifier channel A (channel B output is also present at channel Apins 2+/2- ).
WK 500 # D113150 for SUB 18
WK 600 # D113149 for SUB 28
SUB 28
SUB 18
SUB 28

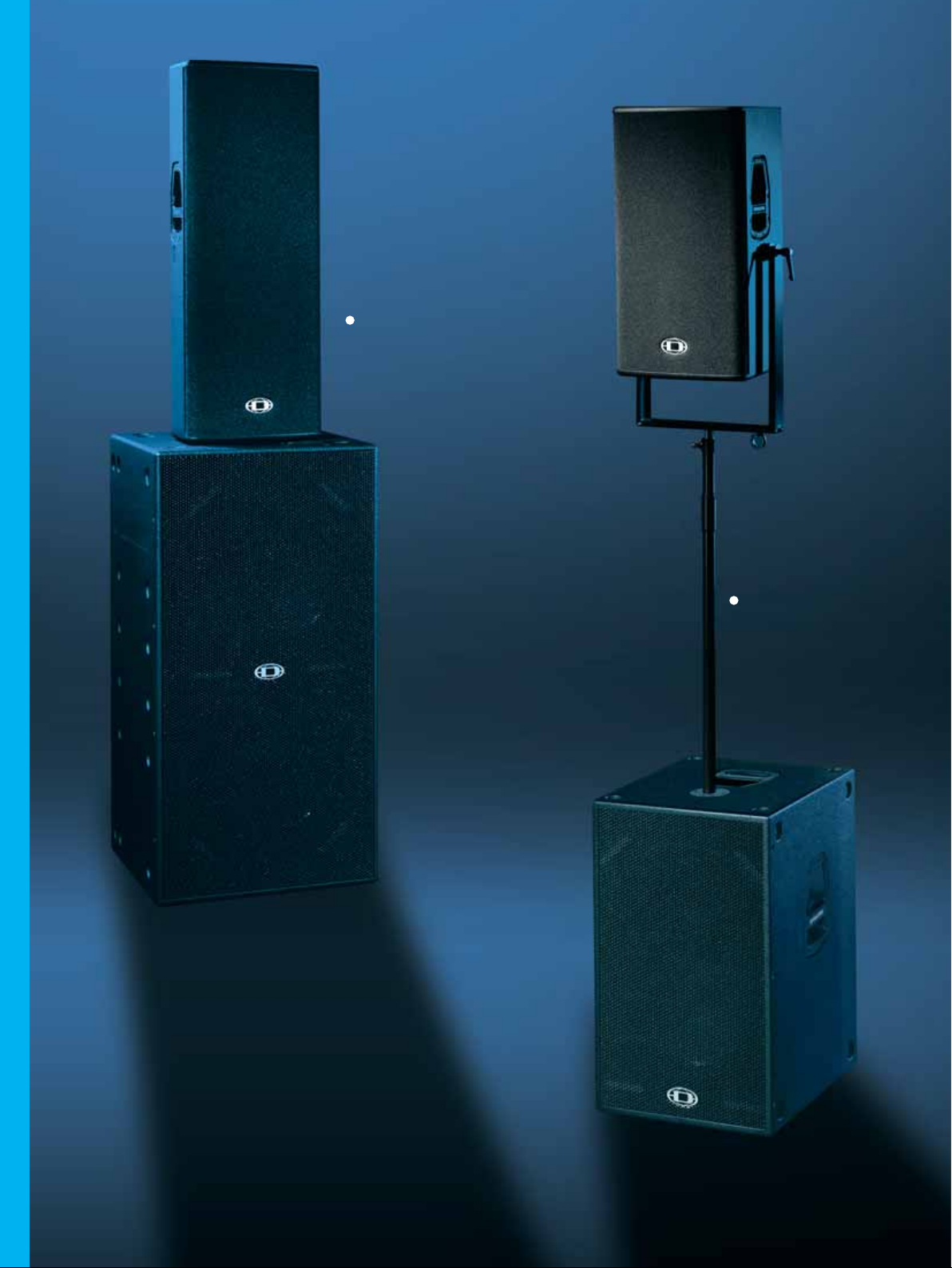

VL 212 with SUB 28
VL 122 with SUB 18

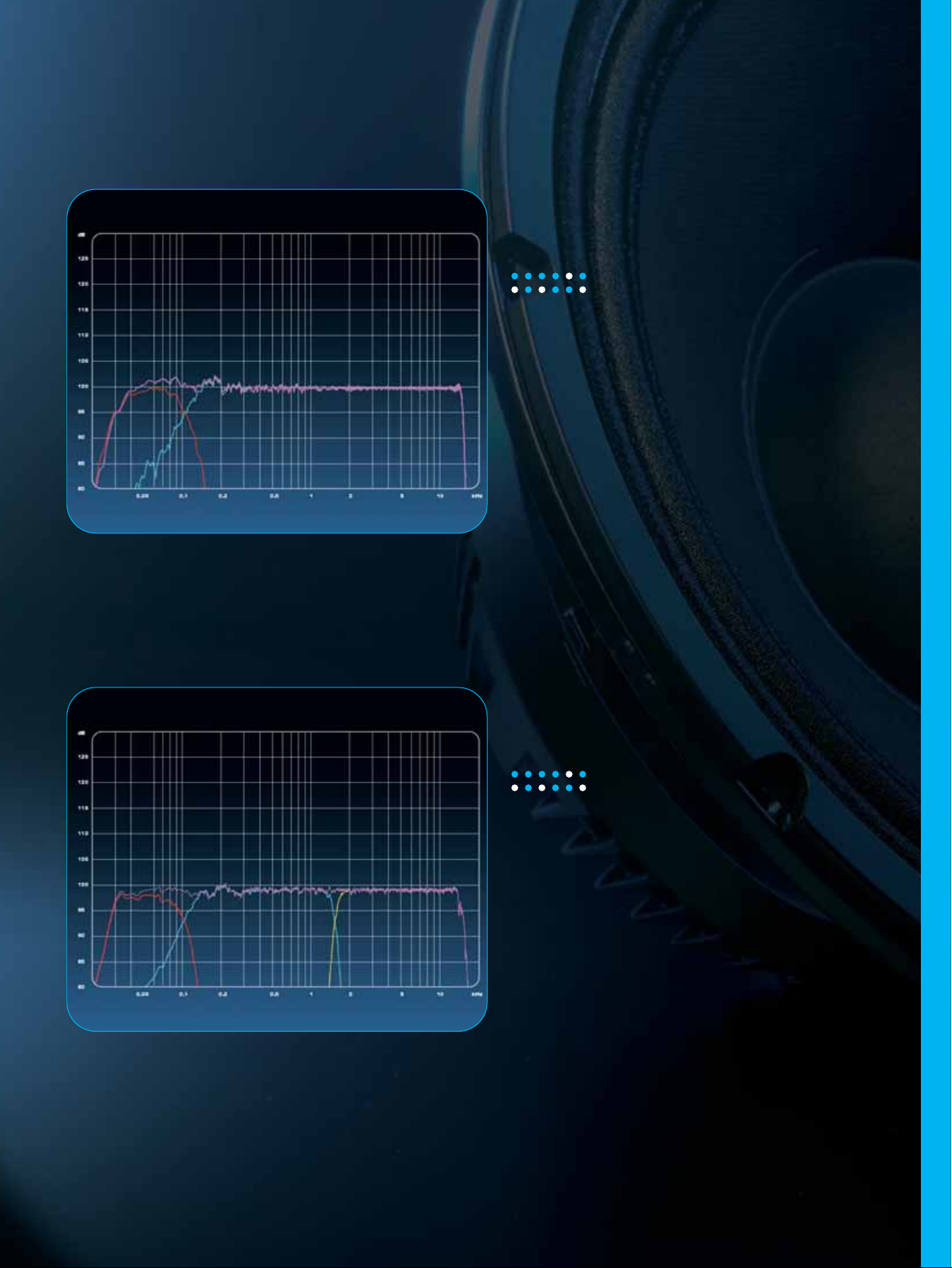

VL 122 / SUB 18 with FIR-Filter
VL 122 and SUB 18
Active high power 2 or 3-way combination for small to medium
bistro and club sound reincorcement. With FB-VL122 flying
brackets, the satellites can be conveniently pole-mounted on
the subwoofers and precisely aimed at the target areas. Highperformance CL and LX series amplifiers and the DSP 244
controller and / or Power-H amplifiers with RCM 26 module are
recommended as drive units.
VL 212 / SUB 28 with FIR-Filter
VL 212 and SUB 28
Active high power 2 or 3-way combination with maximum lomid sound pressure levels for medium FOH applications.
Individual all-electronic Voice-Coil-Tracking Protections prevent thermal overload of the transducers permitting the use of
the high-performance DYNACORD Power-H series H 2500
and H 5000 amplifiers for maximum dynamics.

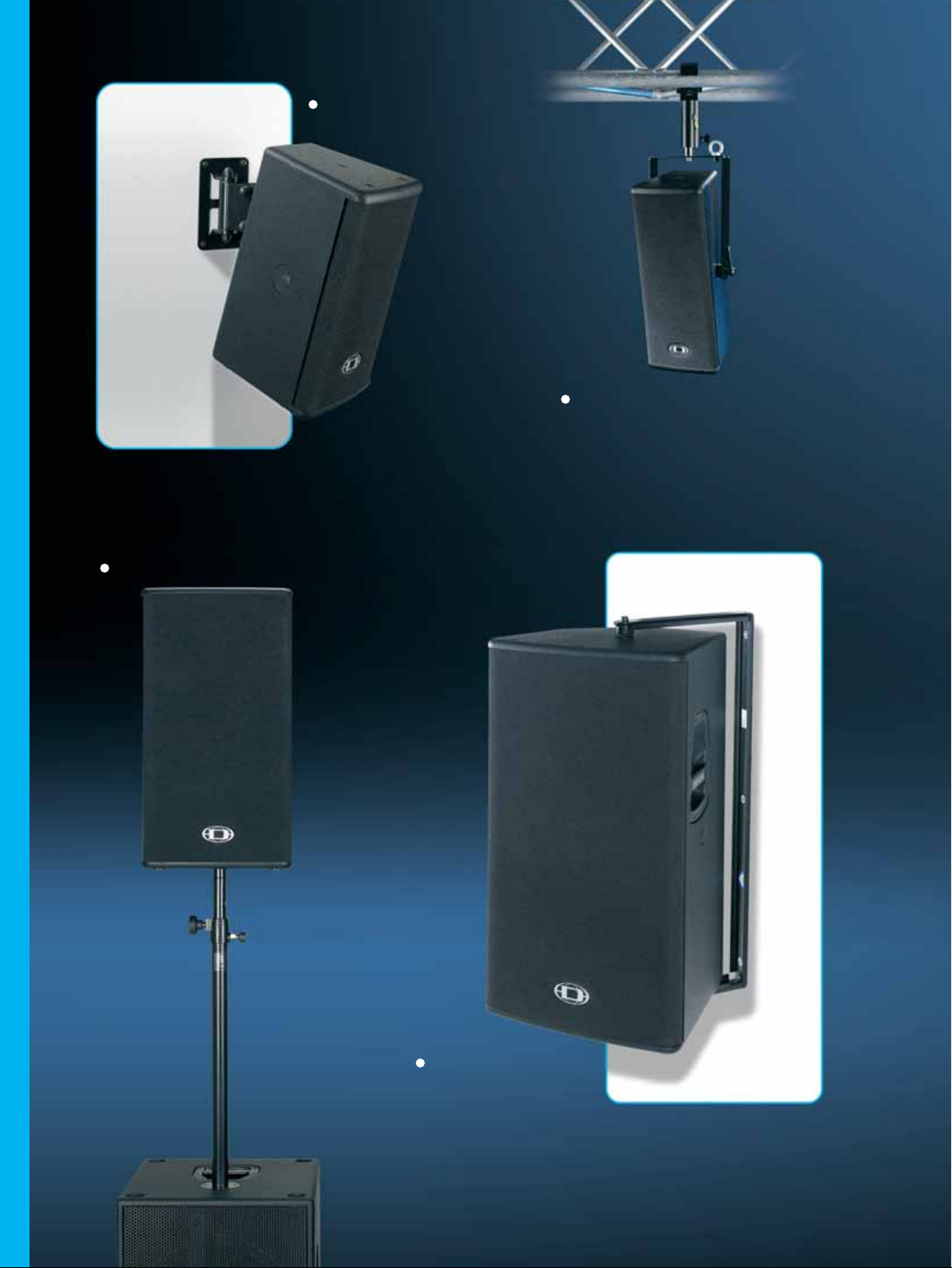

VL 62 with WMK-10
VL 262 with FB-VL 262, FB-TV and TC-TV
VL 122 with PCL 1500 and SUB 18
VL 152 with MB 152 UMH
Accessories
Cabinet
Order #
VL 62
D113127
VL 262
D113101
VL 122
D113103
VL 152
D113104
VL 212
D113133
Cabinet
Order #
Dust-
Cover
SH-VL 62
D113145
SH-VL 262
D113117
SH-VL 122
D113118
SH-VL 152
D113119
SH-VL 212
D113147
FB > fix Truss
Truss Clamp
EyeboltKit 3pcs
EBK M10
D113155
EBK M10
D113155
EBK M10
D113155
EBK M10
D113155
EBK M10
D113155
Wall-
Mount
WMK-10
D113137
WMK-10
U-Mount
Bracket
MB 62
D113138
---
D113137
---
---
---
---
---
MB VL 212
D113153
FB > fix Stand
Stand Adapter
UMH-Mount
Bracket
---
MB 262 UMH
D113113
MB 122 UMH
D113114
MB 152 UMH
D113115
---
FB > variable FB-TV
Truss / Stand
Tilt- Rotor
Angle Plate
---
TMA
D112815
TMA
D112815
TMA
D112815
---
Bracket
> Truss
---
TC-02
D112808
RMA
D112807
RMA
D112807
RMA
D112807
---
FB >
Truss Stand
TC-02
D112808
TC-02
D112808
TC-02
D112808
---
FB >
VL 62
D113127
VL 262
D113101
VL 122
D113103
VL 152
D113104
VL 212
D113133
FB-VL 62
D113140
FB-VL 262
D113101
FB-VL 122
D113111
FB-VL 152
D113112
FB-VL 212
D113152
TC-02
D112808
TC-02
D112808
TC-02
D112808
TC-02
D112808
TC-02
D112808
FB-VL 62
D113140
FB-VL 262
D113110
FB-VL 122
D113111
FB-VL 152
D113112
FB-VL 212
D113152
PCL M10
D113116
PCL M10
D113116
PCL M10
D113116
PCL M10
D113116
PCL M10
D113116
FB-VL 62
D113140
FB-VL 262
D113110
FB-VL 122
D113111
FB-VL 152
D113112
FB-VL 212
D113152
FB-TV
D113142
FB-TV
D113142
FB-TV
D113142
FB-TV
D113142
FB-TV
D113142
TC-TV
D112941
TC-TV
D112941
TC-TV
D112941
TC-TV
D112941
TC-TV
D112941
PM-TV
D112942
PM-TV
D112942
PM-TV
D112942
PM-TV
D112942
PM-TV
D112942
Type / Name VL62 VL262 VL122 VL152 VL212 Sub18 Sub28
Order-# D113127 D113101 D113103 D113104 D113133 D113129 D113130
Cabinet Full-Range Full-Range Full-Range Full-Range Full-Range Subwoofer Subwoofer
Configuration passive 2-Way passive 2-Way passive 2-Way passive 2-Way passive 2-Way Vented Direct Vented Direct
or Biamped Mode or Biamped Mode or Biamped Mode Radiator Radiator
Nominal Impedance 16 ohms 8 ohms 8 ohms 8 ohms 4 ohms 8 ohms 4 ohms**
Rated Power RMS 150 watts 300 watts 400 watts 500 watts 800 watts 700 watts 1400 watts
Program Power 300 watts 600 watts 800 watts 1000 watts 1600 watts 1400 watts 2800 watts
Peak Power 600 watts 1200 watts 1600 watts 2000 watts 3200 watts 2800 watts 5600 watts
SPL 2,83 V/1m 94 dB* 97 dB 99 dB 100 dB 105 dB 98 dB 104 dB
max. SPL 1m
(calc. with Peak) 122 dB 125 dB 131 dB 133 dB 137 dB 132 dB 138 dB
Freq. Range (-10 dB) 90Hz - 20Hz 90Hz - 20Hz 60Hz - 20Hz 50Hz - 20Hz 80Hz - 20Hz 35Hz - 700Hz 35Hz - 700Hz
Coverage Angle nom. 90° x 40° 90° x 40° 90° x 45° 90° x 45° 90° x 45° --- ---
Passive
X-Over Frequency 2,2 kHz 2,2 kHz 1,5 kHz 1,5 kHz 1,5 kHz Hi-Cut Hi-Cut
VCT Protections Halogen Halogen yes yes yes yes yes
Components HIGH Ev DH 3 Ev DH 3 Ev ND6-8 Ev ND6-8 Ev ND6-8 --- ---
Order-# D353078 D353078 D361493 D361493 D361493 --- ---
Components LOW DND 6130-16 2x DND 6130-16 DND 12350 DND 15400 2x DND 12350 LFS 18700 2x LFS 18700
Order-# D366420 D366420 D366559 D366303 D366559 D366304 D366304
Connectors SPEAKON 2x NL 4MPR 2x NL 4MPR 2x NL 4MPR 2x NL 4MPR 2x NL 4MPR 2x NL 4MPR 2x NL 4MPR
Pin Wiring
Normal/Fullrange 1+/1- 1+/1- 1+/1- 1+/1- 1+/1- 1+/1- 1+/1Pin Wiring Biamped HF --- --- 2+/2- 2+/2- 2+/2- --- Speaker A 1+/1Pin Wiring Biamped LF --- --- 1+/1- 1+/1- 1+/1- --- Speaker B 2+/2-
Dimensions
(WxHxD) mm 217x 379x 230 217x 543x 230 385x 715x 374 441x 780x 407 385x 1035x 374 505x 805x 570 605x 1205x 675
Net Weight 8 kg 10 kg 24 kg 26 kg 34 kg 49 kg 82 kg
Enclosure Material Birch Plywood Birch Plywood
Finish Black 2-Component Structure Paint Black 2-Component Structure Paint
Grille Powder Coated Steel, Acoustic Foam Powder Coated Steel
Warranty 36 months 36 months 36 months 36 months 36 months 36 months 36 months
* 4,0 V = 1W @ 16 ohms **switchable 1x 4 ohms / 2x 8 ohms
Americas Bosch Communications Systems
12000 Portland Ave South
Burnsville, MN 55337, USA
USA: Phone: 1-800-392-3497
Fax: 1-800-955-6831
Canada: Phone: 1-866-505-5551
Fax: 1-866-336-8467
Latin America: Phone: 1-952-887-5532
Fax: 1-952-736-4212
© EVI Audio GmbH · Art.Nr. D164579 · Printed in Germany (DOPF/DR) · 5.000/06/08 · www.boschcommunications.com · Subject to change without prior notice!
Europe, Africa & Middle-East Germany: Bosch Communications Systems
Asia & Pacific Rim Japan: EVI Audio Japan Ltd.
EVI Audio GmbH
Hirschberger Ring 45
D-94315 Straubing, Germany
Phone: +49 9421 706-0
Fax: +49 9421 706-265
5-3-8 Funabashi, Setagaya-Ku
Tokyo, Japan 156-0055
Phone: +81 3-5316-5020
Fax: +81 3-5316-5031
France: EVI Audio France S.A.
Parc de Courcerin
Allée Lech Walesa
F 77185 Lognes, France
Phone: +33 1-6480-0090
Fax: +33 1-6006-5103
China: Telex EVI Audio (Shanghai) Ltd.
Room 2210-2215
Tower B, Far East International Plaza
No. 317, Xianxia Road
Shanghai, China, PC: 200051
Phone: +86 (21) 6235-1677
Fax: +86 (21) 6235-1676
Hong Kong: Telex EVI Audio (HK) Ltd.
Unit 5,1/F,Topsail Plaza
11 On Shum Street
Shek Mun,Shatin HK
Phone: +852 2351-3628
Fax: +852 2351-3329
Singapore: Telex Pte. Ltd.
3015A Ubi Road 1, 05-10
Kampong Ubi Industrial Estate
Singapore 408705
Phone: +65 6746-8760
Fax: +65 6746-1206
Loading...
