Page 1
00P6H8020ZXSEC6
Integrated High Speed Dome Camera
Outdoor
Installation Guide
Version 3.6
Page 2
Installation Guide
1
Preface
Information given in this manual was current when published. The company reserves the
right to revise and improve its products. All specifications are subject to change without
notice.
Notice
This manual provides installation information for the outdoor integrated high
speed dome. To work with the dome cameras, any installer or technician
must have the following minimum qualifications:
• A basic knowledge of CCTV systems and components
• A basic knowledge of electrical wiring and low-voltage electrical
hookups
• A basic knowledge of network system setting
• Have read this manual completely
Copyright
Under copyright laws, the contents of this installation guide may not be copied,
photocopied, translated, reproduced or reduced to any electronic medium or
machine-readable format, in whole or in part, without prior written permission
of the company.
Important Information
Before proceeding, please read and observe all instructions and warnings in
this manual. Retain this manual with the original bill of sale for future
reference and, if necessary, warranty service. When unpacking your unit,
check for missing or damaged items. If any item is missing, or if damage is
evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your
dealer for assistance.
Regulation
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
Page 3
Installation Guide
2
This symbol on the product or on its packaging indicates
that this product shall not be treated as household waste in
accordance with Directive 2002/96/EC. Instead it shall be
handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By proper
waste handling of this product you ensure that it has no
negative consequences for the environment and human
health, which could otherwise be caused if this product is
thrown into the garbage bin. The recycling of materials will
help to conserve natural resources.
For more details information about recycling of this product,
please contact your local city office, your household waste
disposal service or the shop where you purchased the
product.
Compliance is evidenced by written declaration from our
suppliers, assuring that any potential trace contamination
levels of restricted substances are below the maximum
level set by EU Directive 2002/95/EC, or are exempted due
to their application.
Page 4
Installation Guide
3
Warnings and Cautions
• Handle the camera carefully
Do not abuse the camera. Avoid striking, shaking, etc. The camera could
be damaged by improper handing or storage.
• Installing electricity wiring carefully
Ask qualified personnel of electrical wiring for the installation. Please note
that input electricity to the unit is at tolerance of DC12V/AC24V ± 10%.
The camera is capable of surge protection; ensure AC power model unit
grounded appropriately against damage of heavy current or electric
shock.
• Do not disassemble the camera
To prevent electric shock, do not remove screws or covers. There are no
user serviceable parts inside. Ask a qualified service person for servicing.
• Do not block cooling holes on the bracket
This camera has a cooling fan inside. Blocking the cooling holes leads to
build up of heat the camera and may cause malfunction.
• Do not operate the camera beyond the specified temperature,
humidity or power source ratings
Use the camera under conditions where temperature is between -45°C ~
50°C (-49°F ~ 122°F), and relative humidity is below 90%.
• Do not use strong or abrasive detergents when cleaning the camera
body
Use a dry cloth to clean the camera when it is dirty. In case the dirt is hard
to remove, use a mild detergent and wipe the camera gently.
• Never face the camera towards the sun
Do not aim the camera at bright objects. Whether the camera is in use or
not, never aim it at the sun or other extremely bright objects. Otherwise,
the camera may be smeared or damaged.
Page 5
Installation Guide
4
Table of Contents
1. Introduction................................................................................................................6
2. Standard Package Contents .....................................................................................7
3. Camera Setups and Cable Connections..................................................................9
3.1 Preparations for Dome Camera Setups .......................................................................... 9
3.2 Dome Camera Setups ................................................................................................... 12

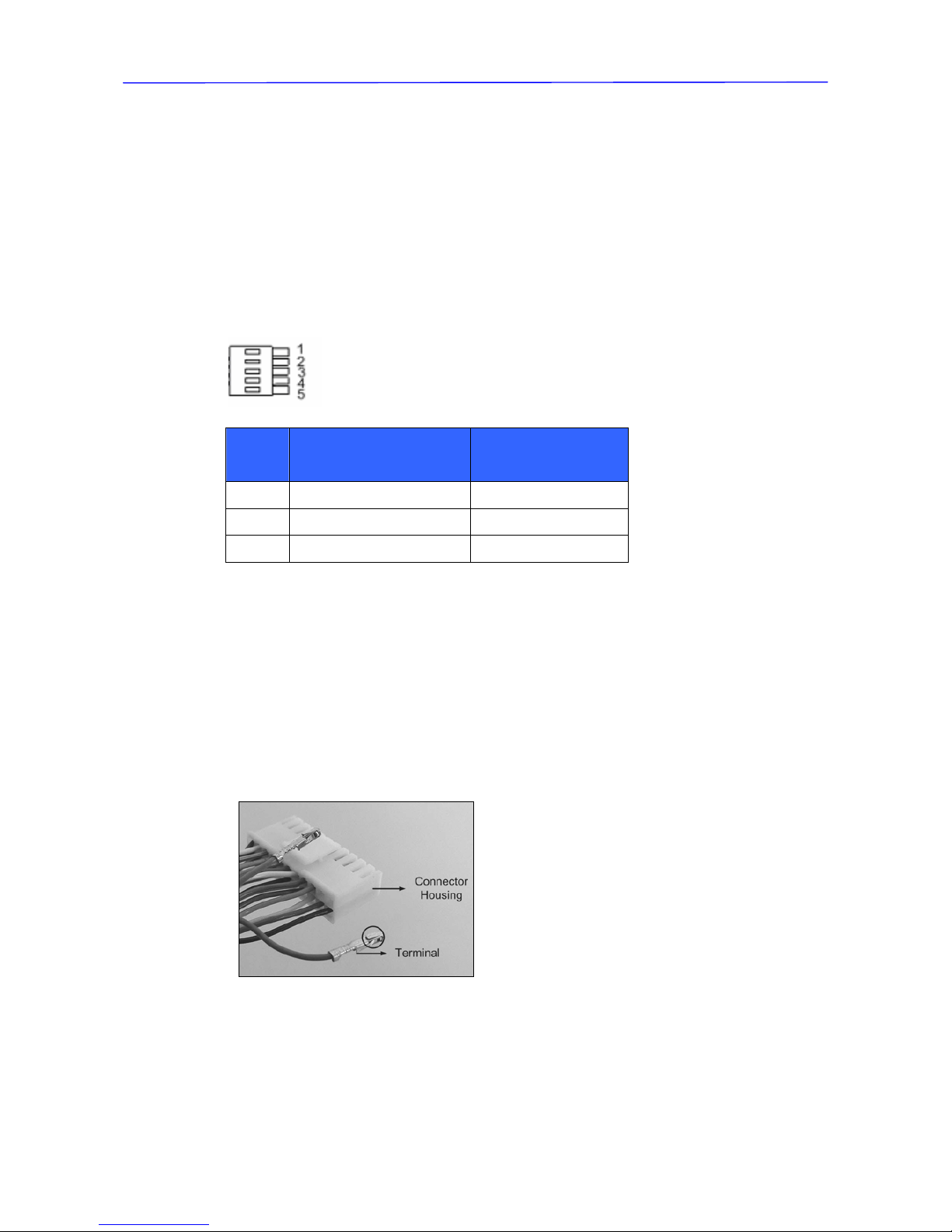

3.2.1 Switch/Connector Definition ........................................................................... 12
3.2.2 Communication Switch Setting....................................................................... 13
3.2.3 ID Setting........................................................................................................ 14
3.2.4 Camera Control Protocol Setting.................................................................... 15
3.3 Cables and Connections ............................................................................................... 16
3.3.1 Cable Requirements....................................................................................... 16
3.3.2 22-Pin Data Cable .......................................................................................... 16
Analog Model .......................................................................................16
Network Model .....................................................................................17
3.3.3 22-Pin Connector Definition............................................................................ 17
Analog Model .......................................................................................18
Network Model .....................................................................................18
3.3.4 RS-485 Connector Definition.......................................................................... 19

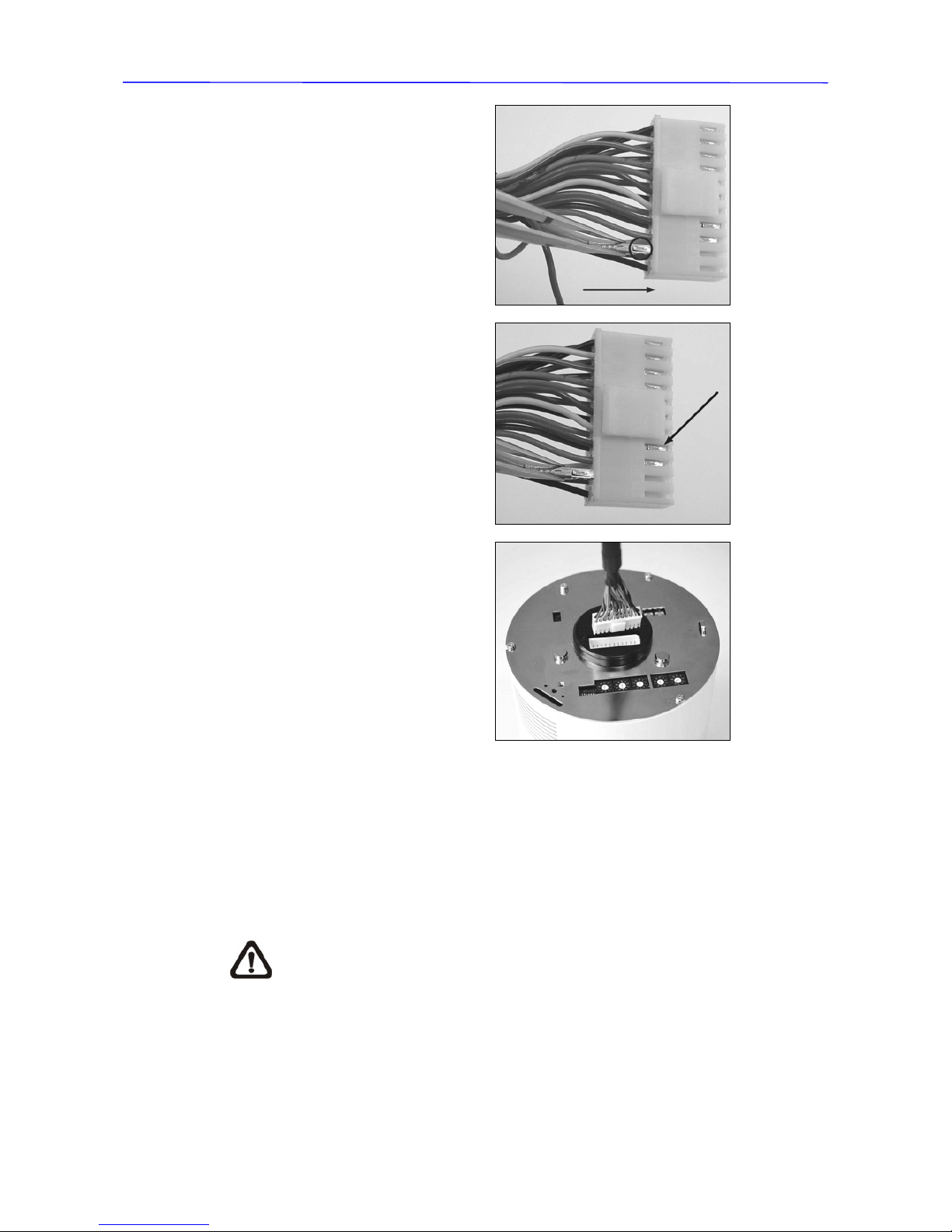

3.3.5 Cable Wiring and Connection......................................................................... 19

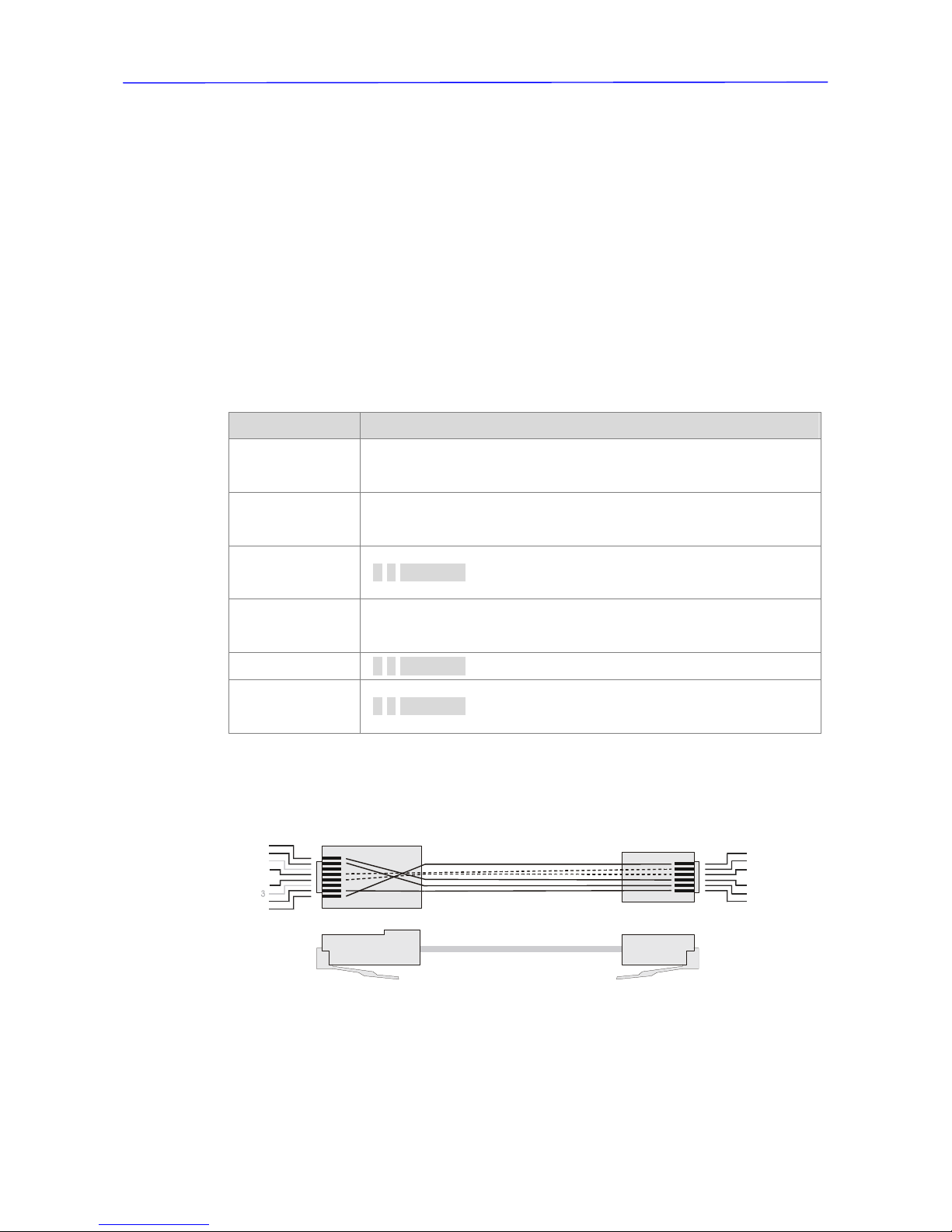

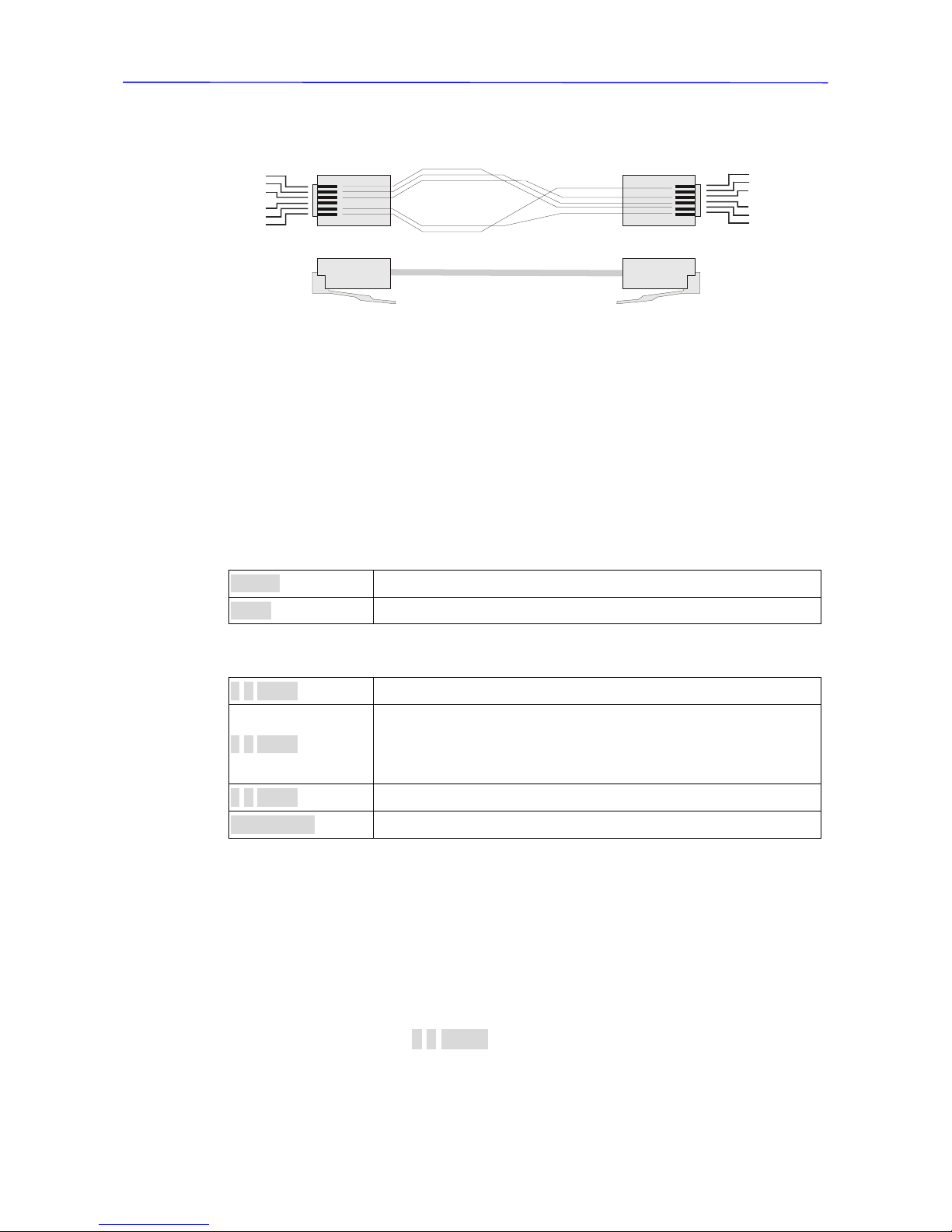

3.3.6 Ethernet Cable Connection ............................................................................ 20
4. Dome Camera Installation.......................................................................................21

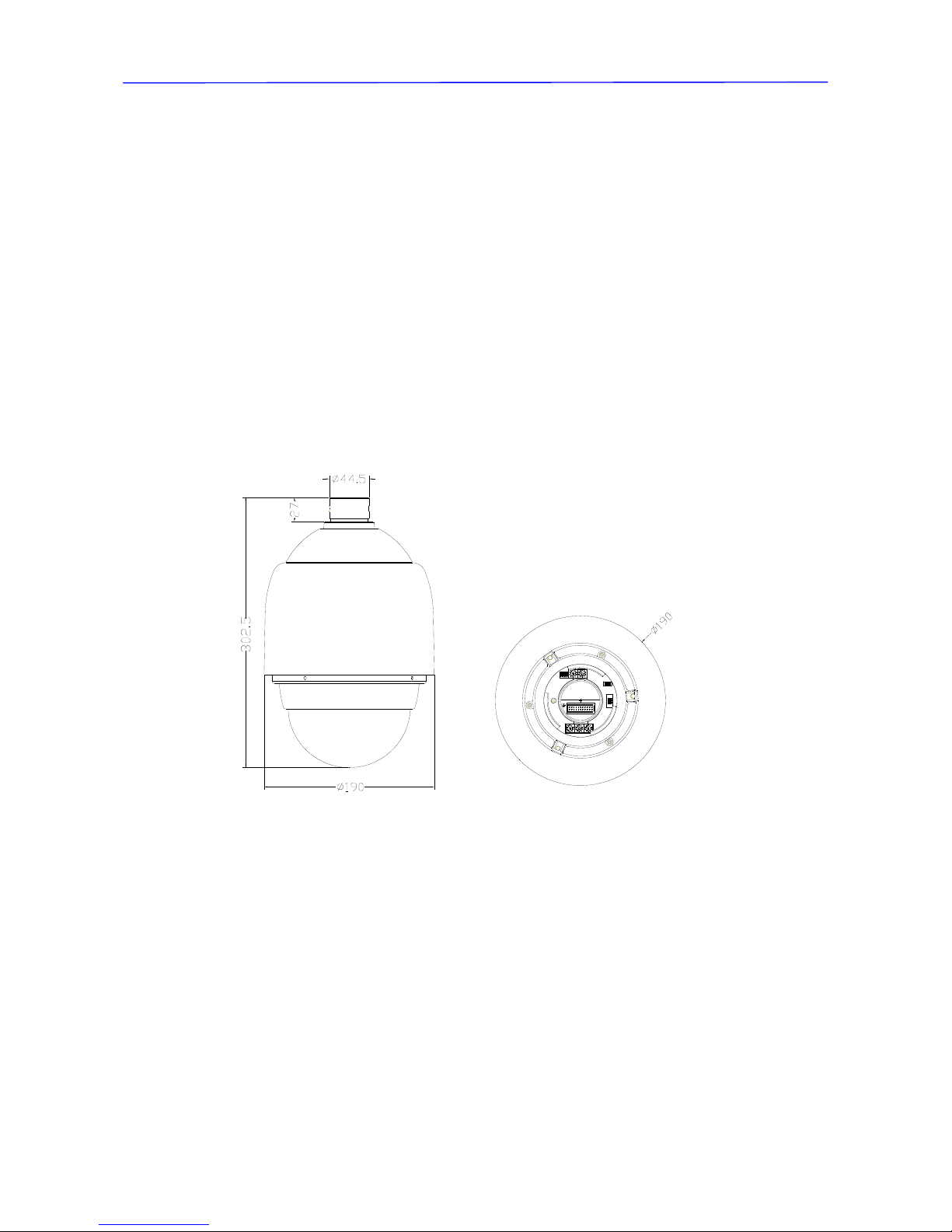

4.1 Dome Dimensions......................................................................................................... 21

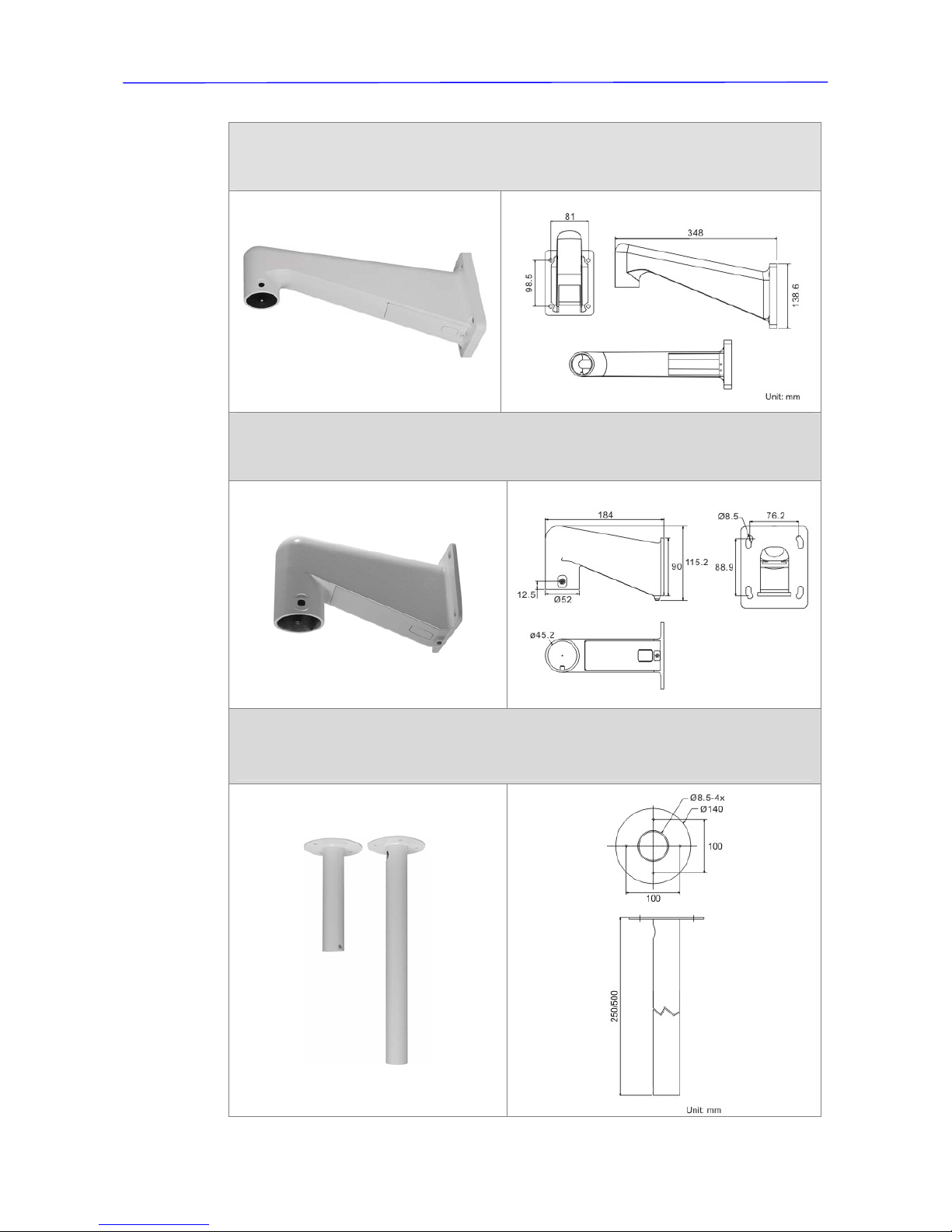

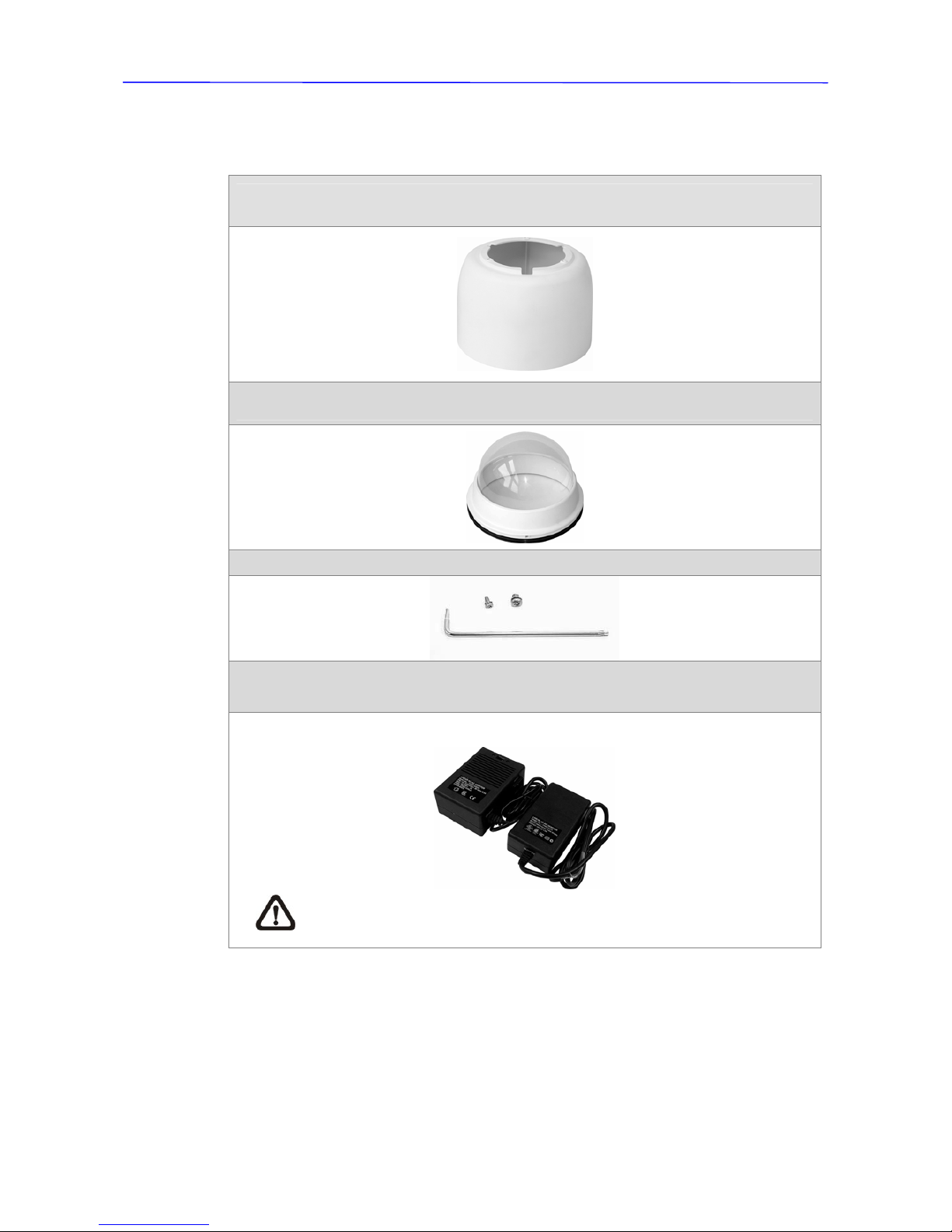

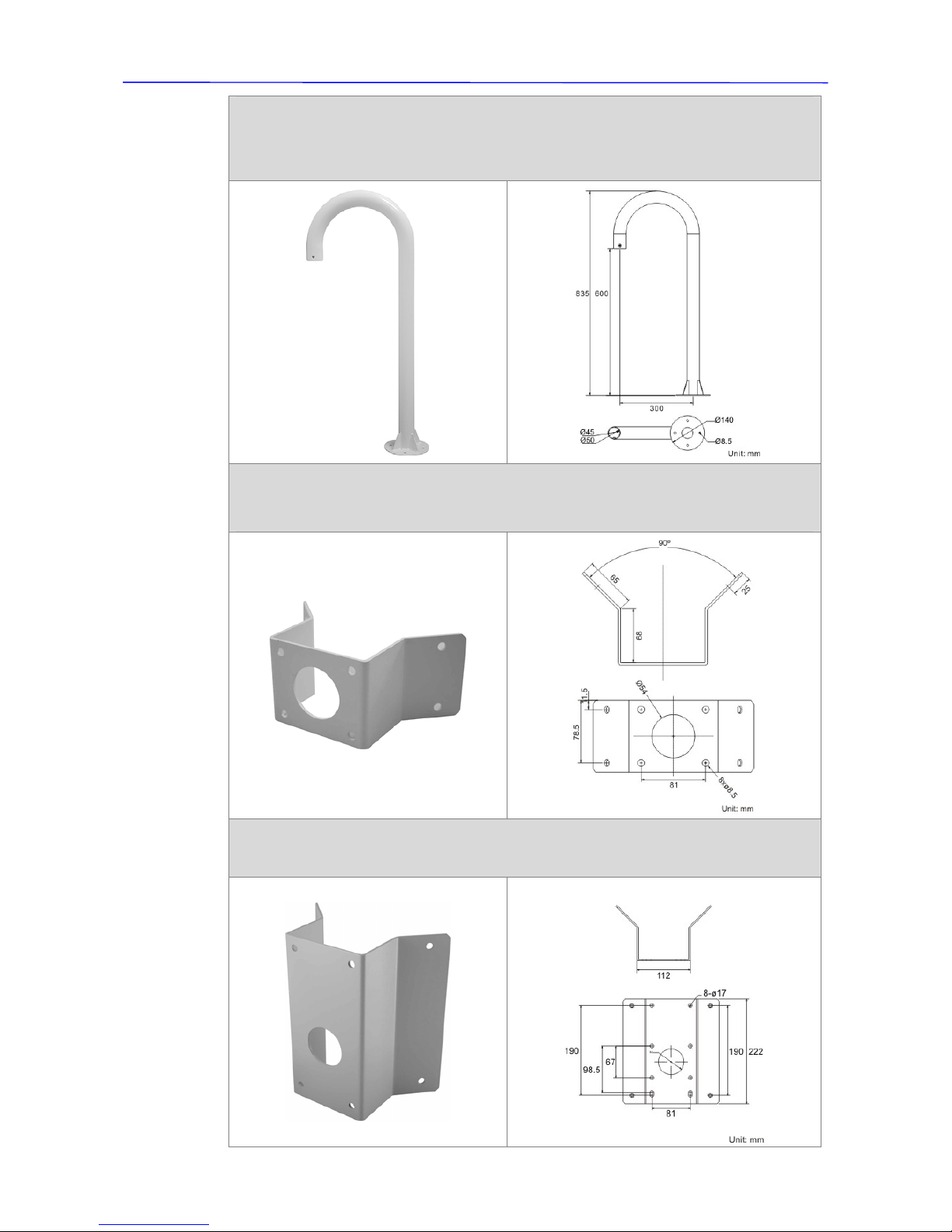

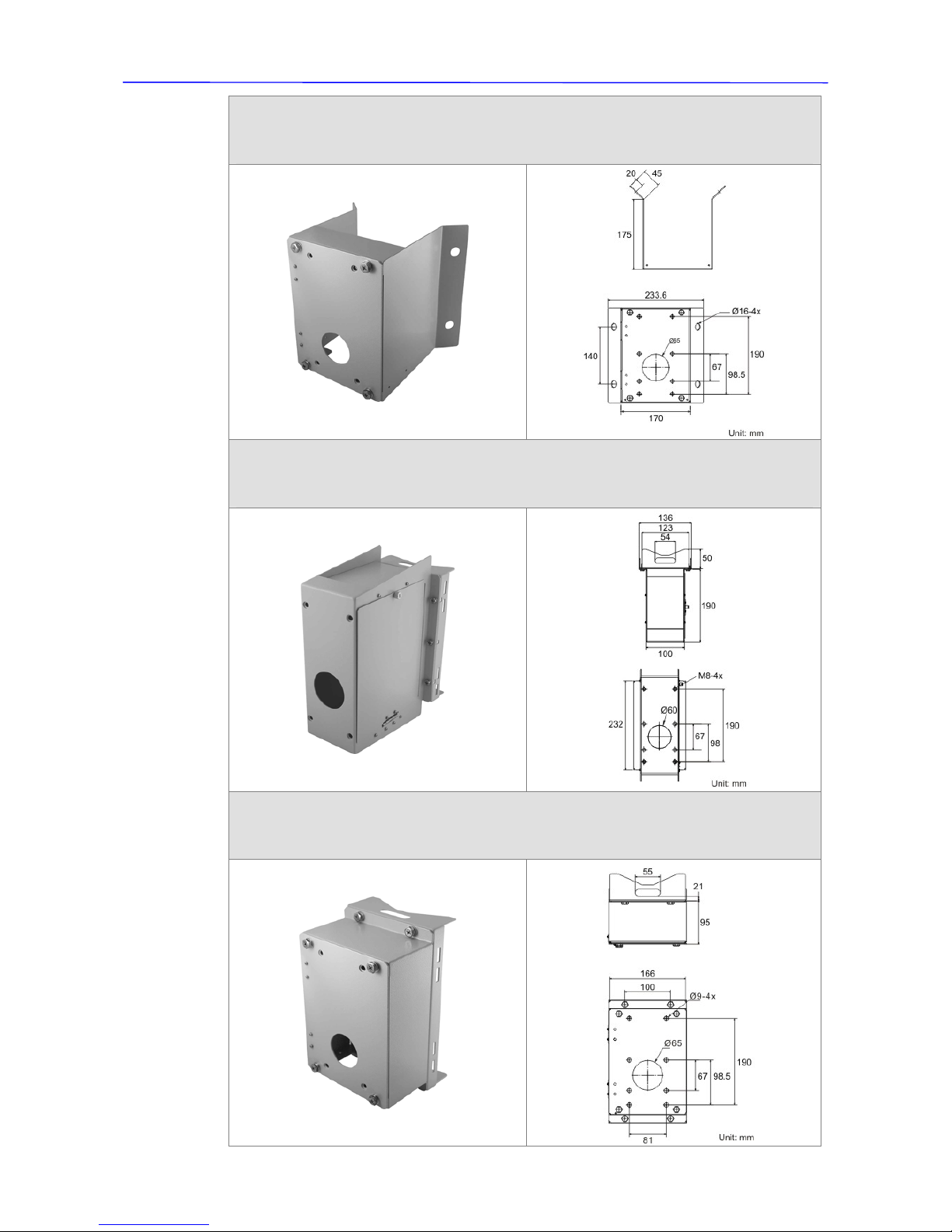

4.2 Optional Accessories..................................................................................................... 22

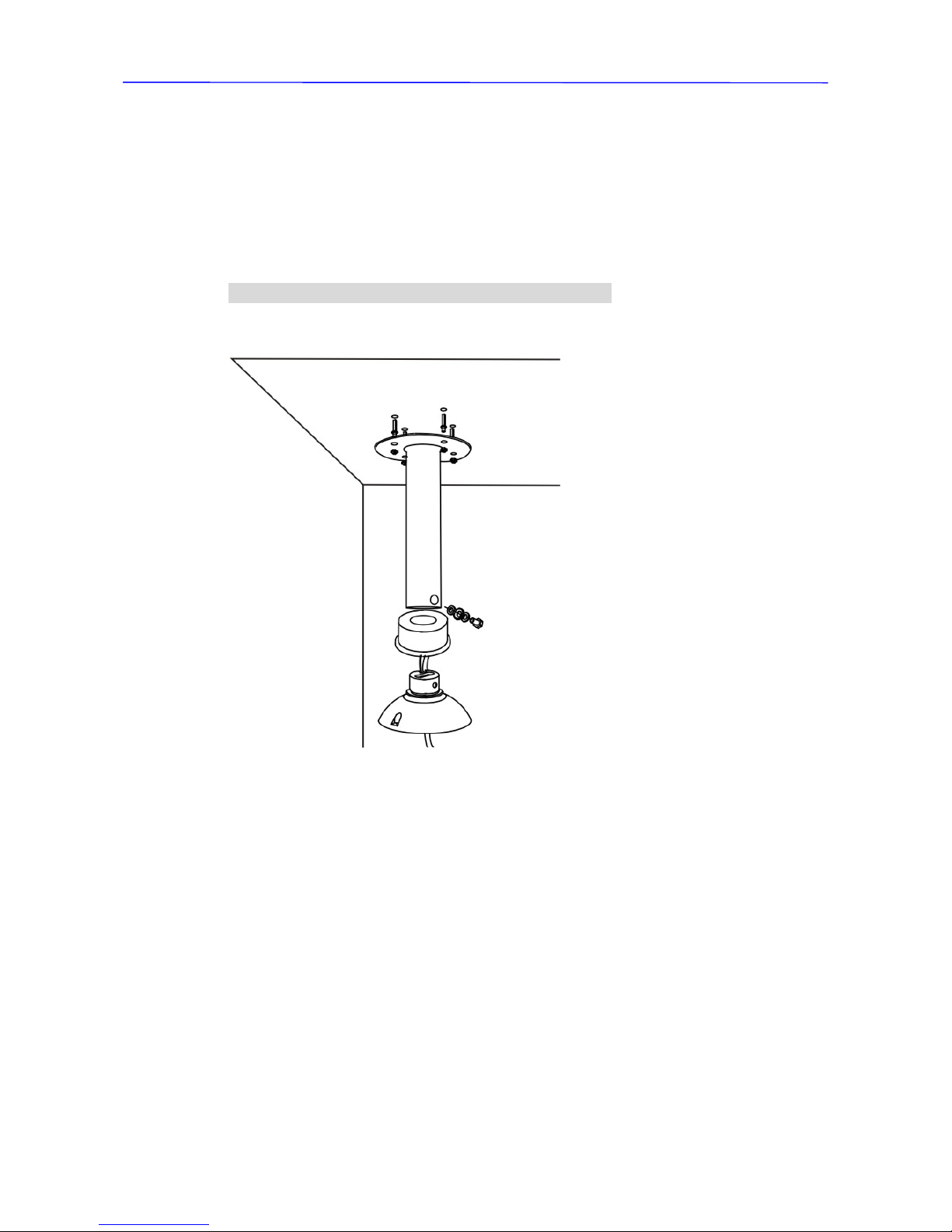

4.3 Ceiling Mounting with Straight Tube.............................................................................. 29

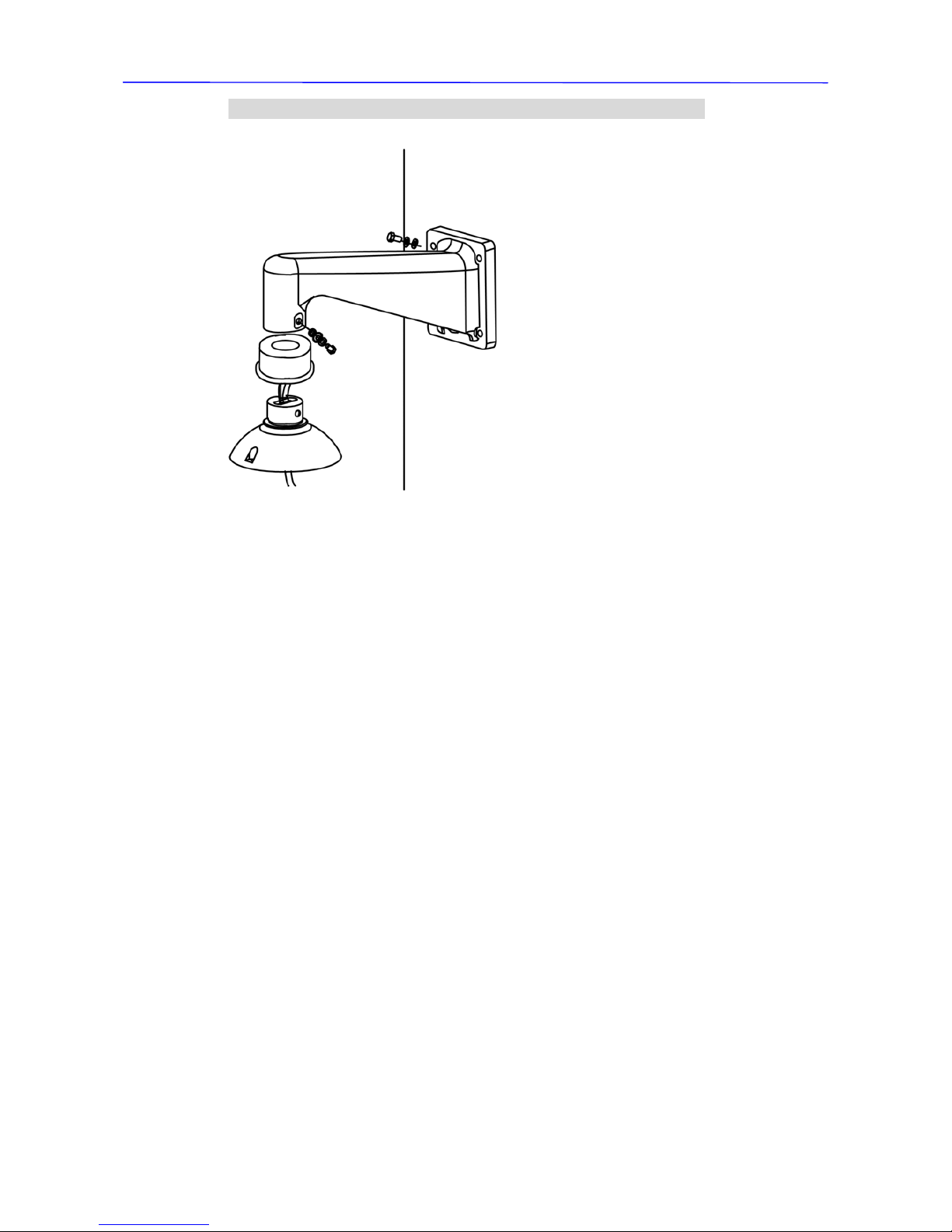

4.4 Wall Mount .................................................................................................................... 31

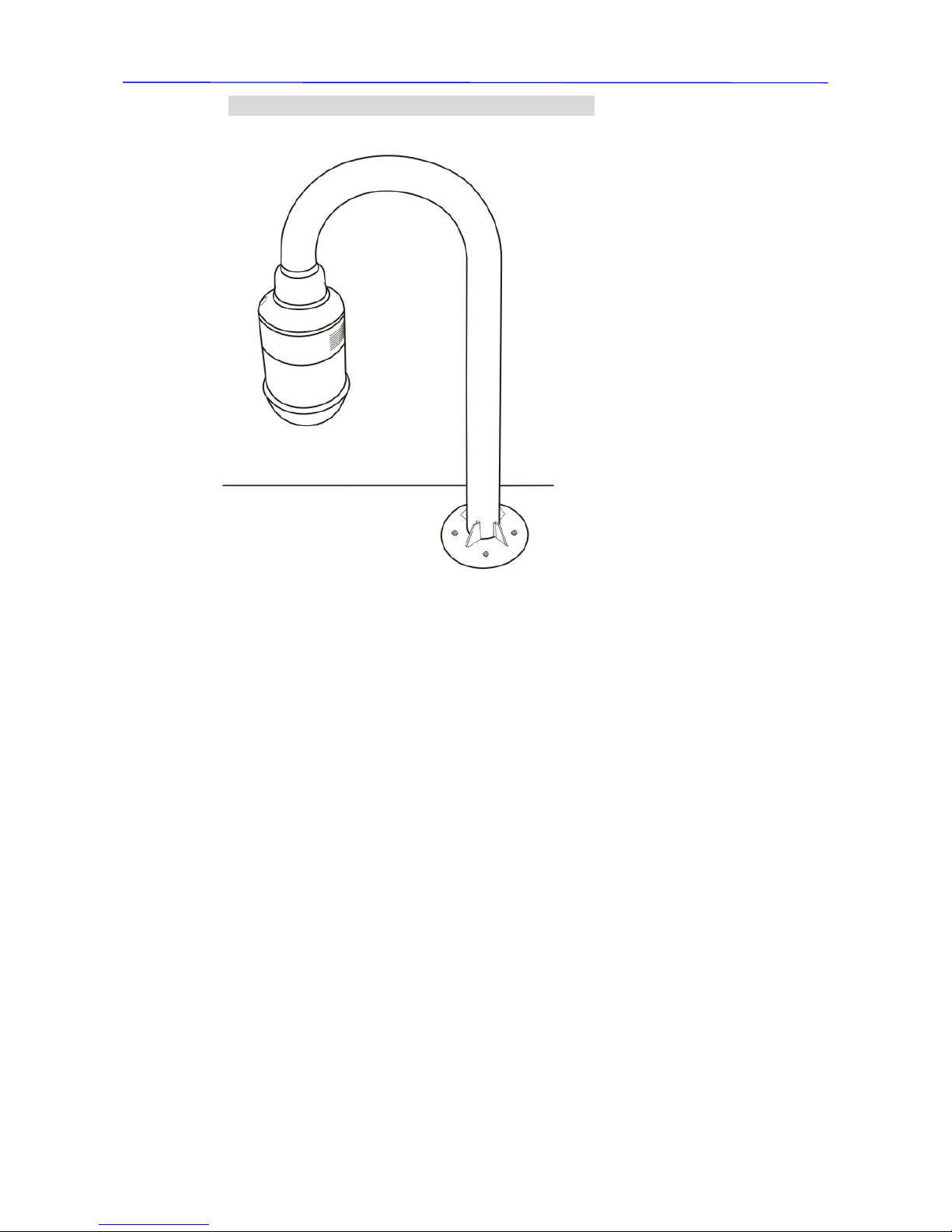

4.4.1 Swan Tube...................................................................................................... 31

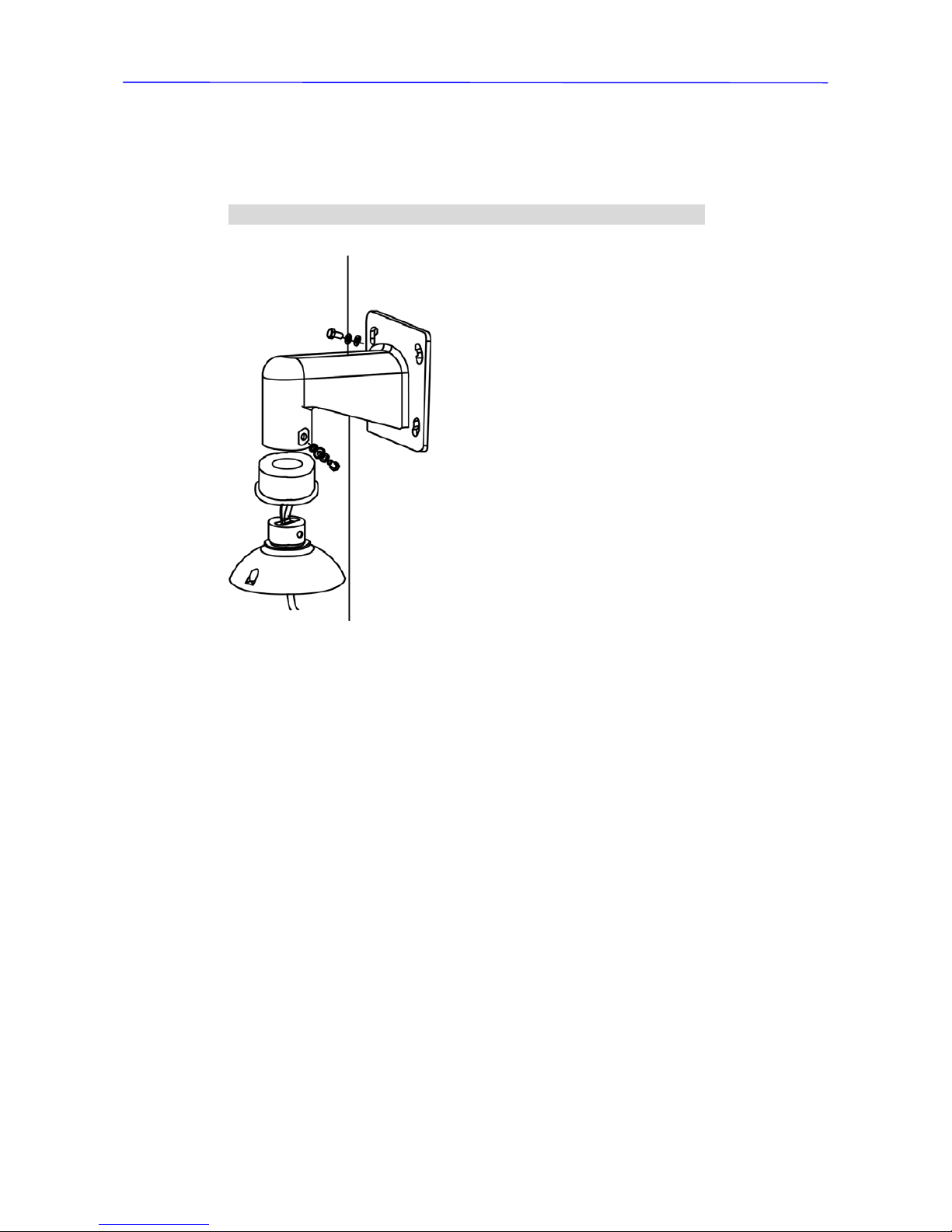

4.4.2 Compact Pendent Mount................................................................................ 32
4.4.3 Standard Pendent Mount ................................................................................ 34
4.4.4 Wall Box Mounting.......................................................................................... 36

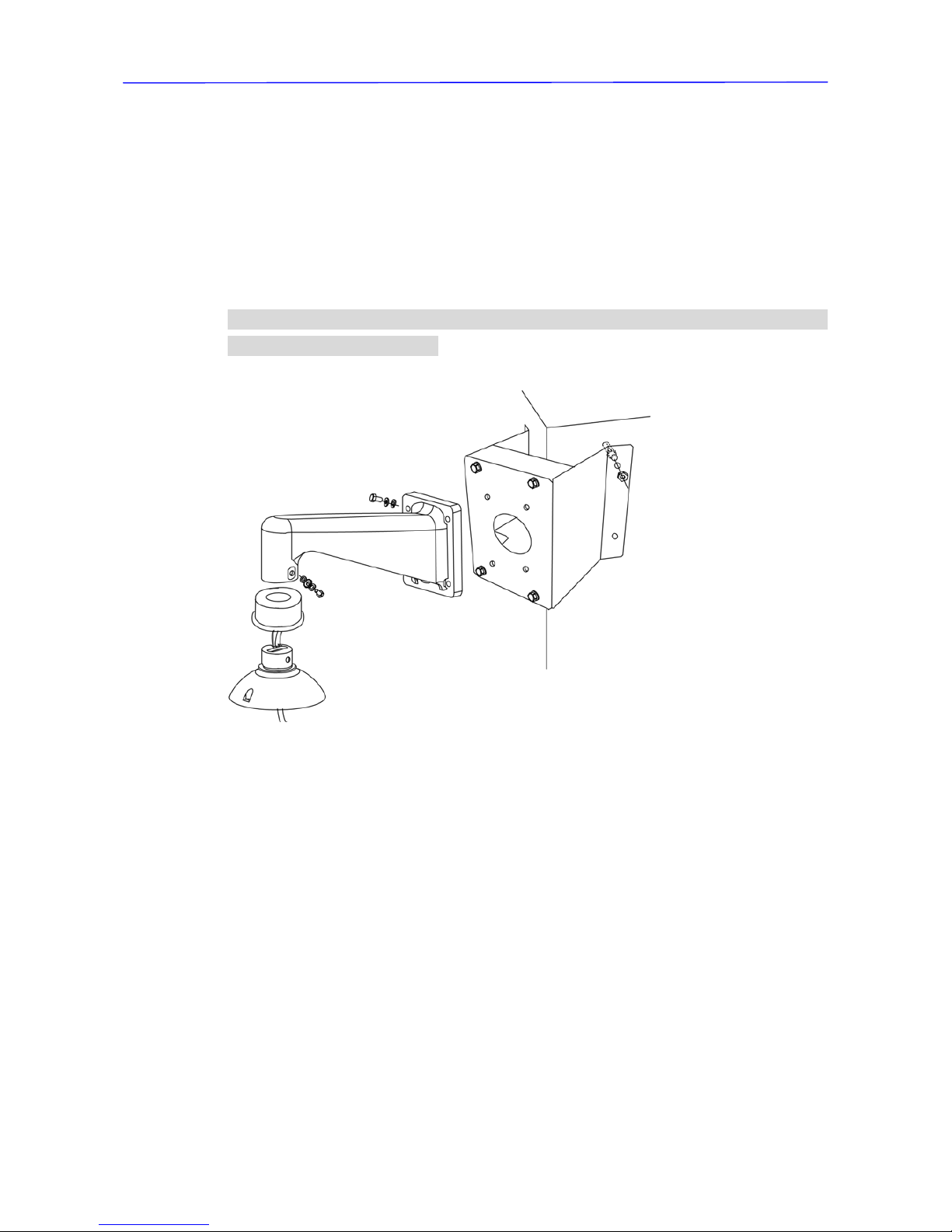

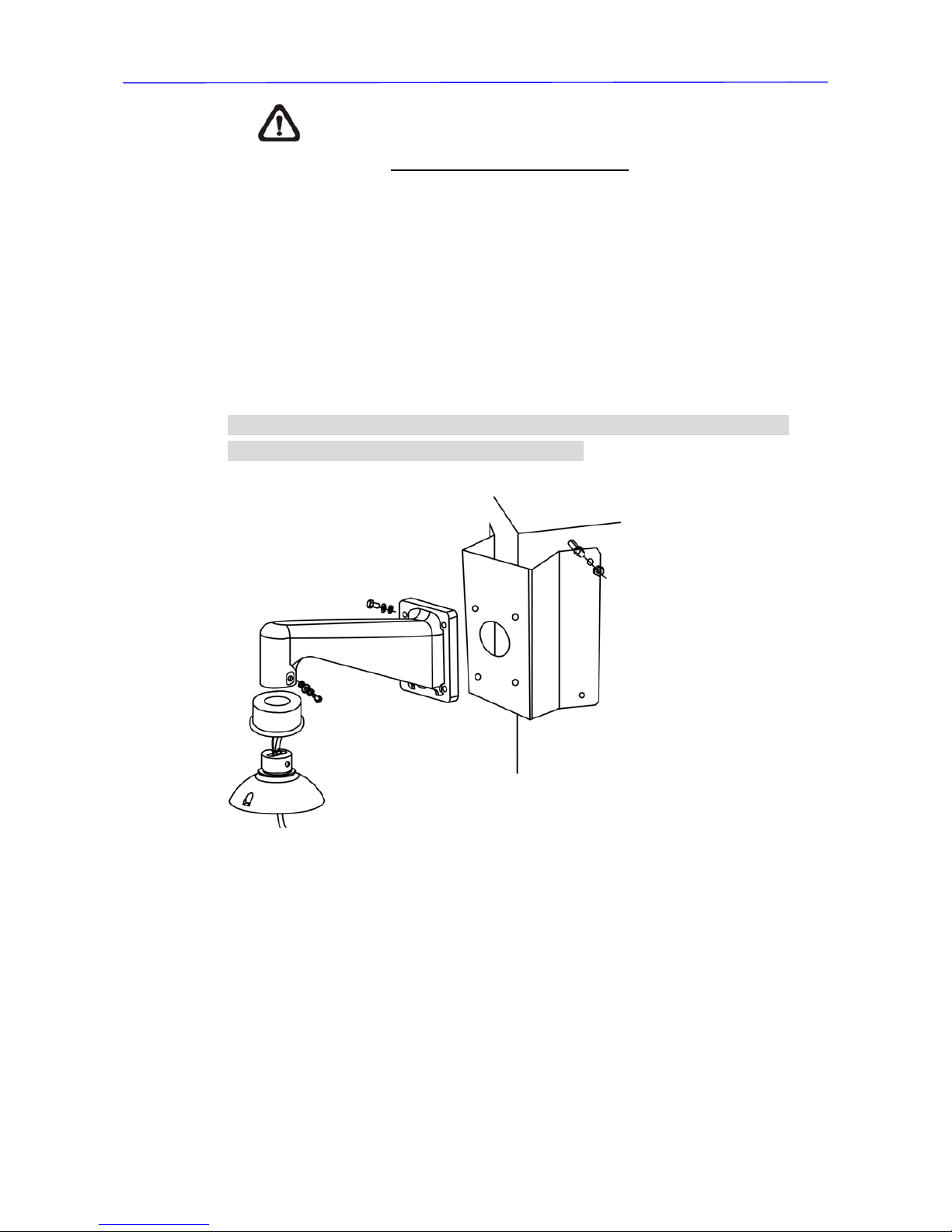

4.5 Corner Mount ................................................................................................................ 38
4.5.1 Corner Standard Mounting Plate/Corner Plate Mini........................................ 38
4.5.2 Corner Thin/Wide Box Mounting..................................................................... 40

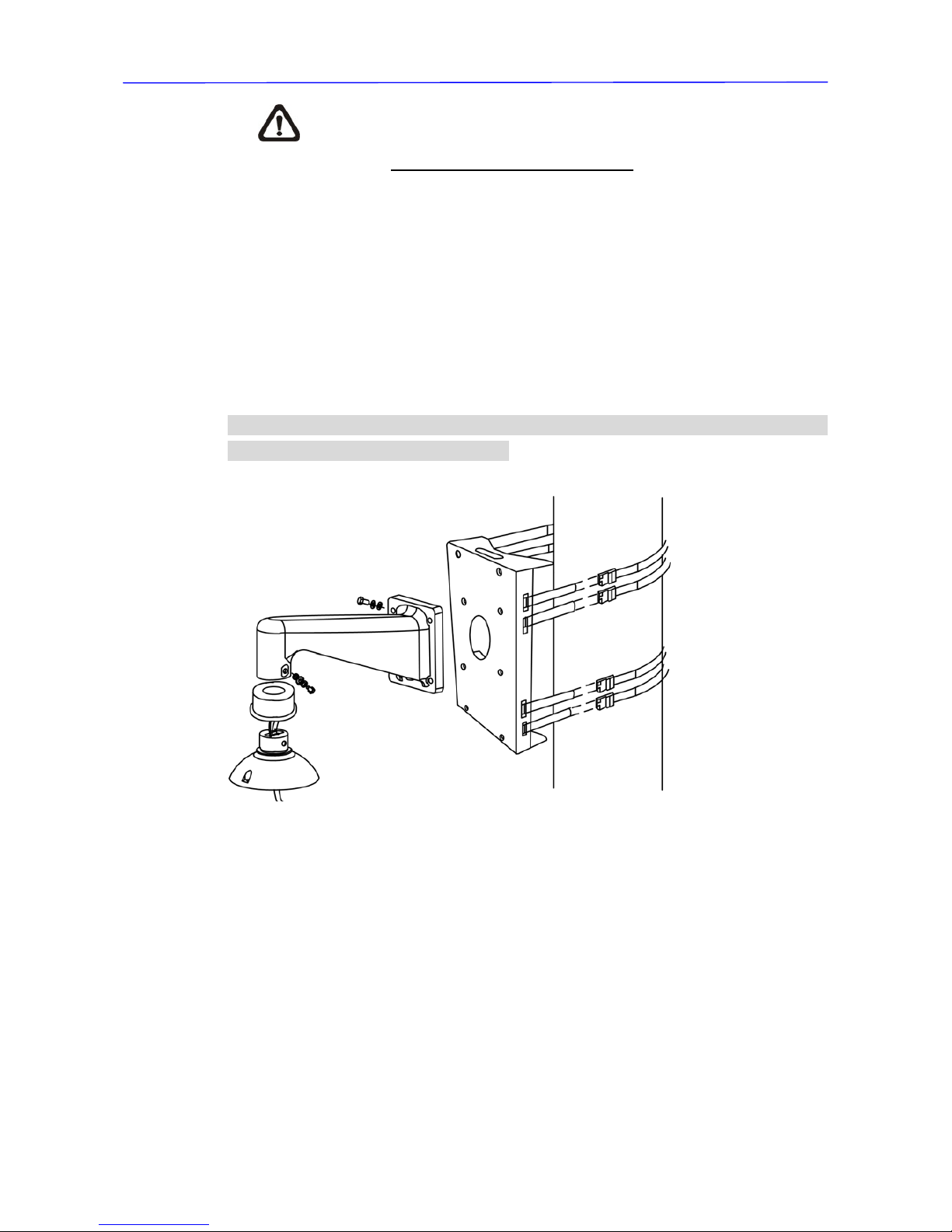

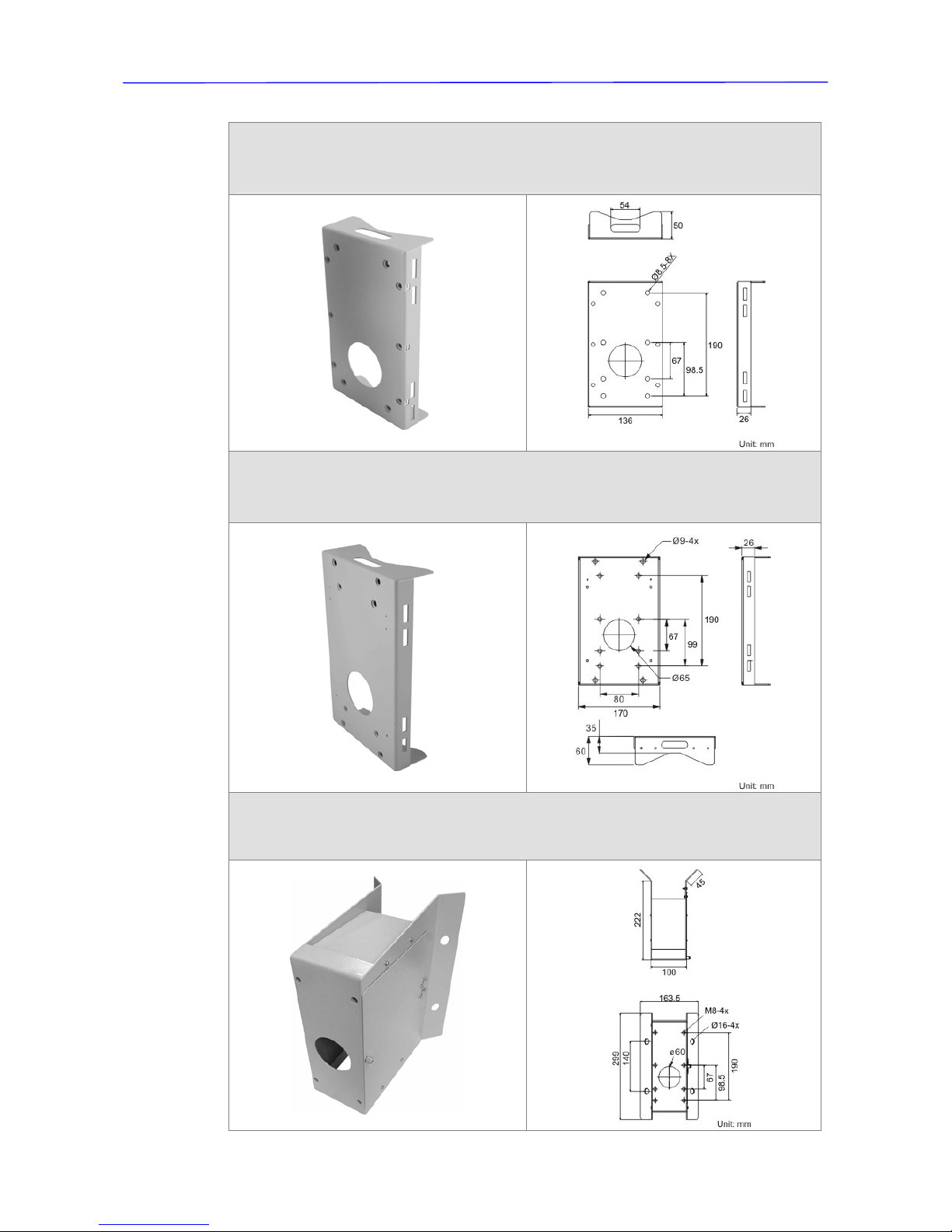

4.6 Pole Mount .................................................................................................................... 42
4.6.1 Pole Thin/Wide Direct Mounting ..................................................................... 42

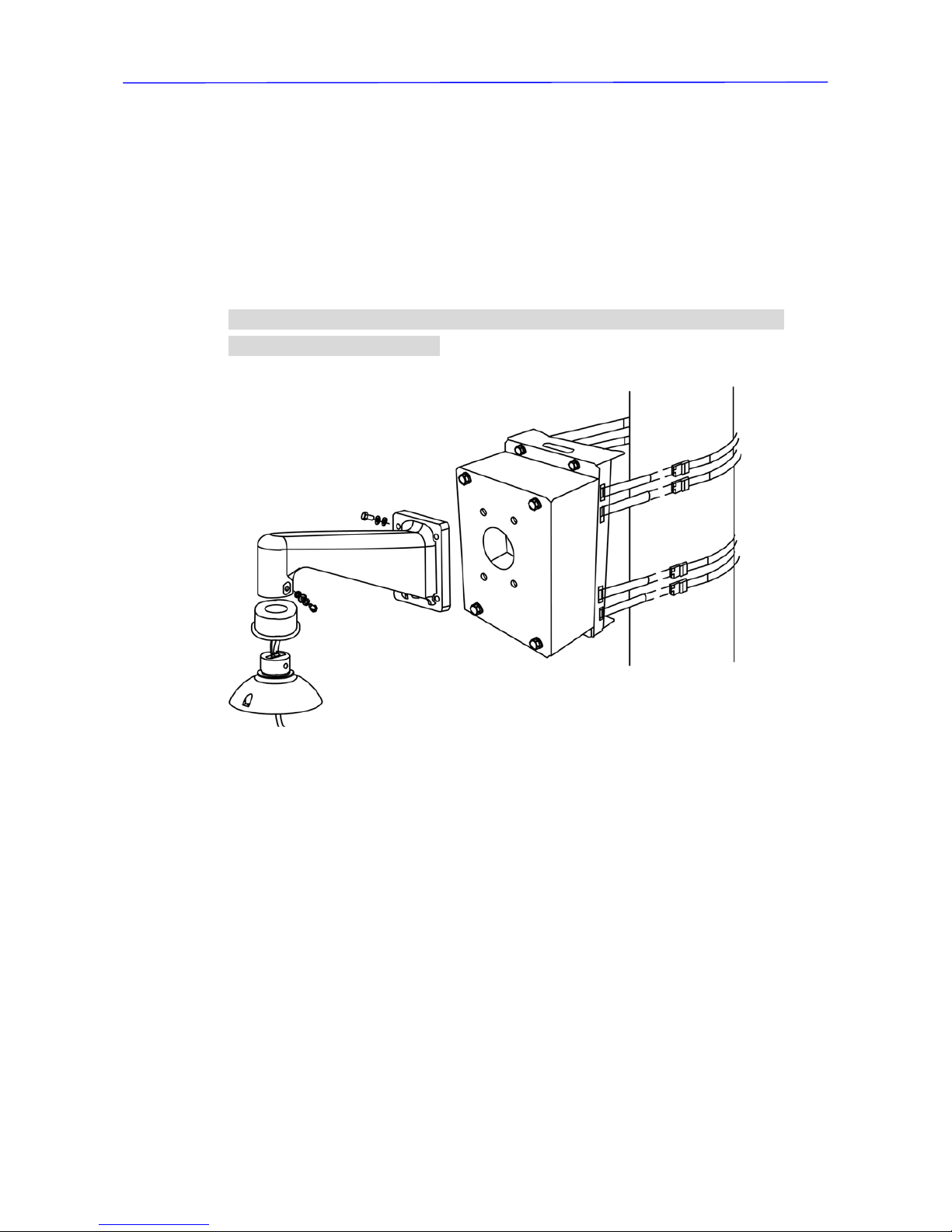

4.6.2 Pole Thin/Wide Box Mounting ........................................................................ 44

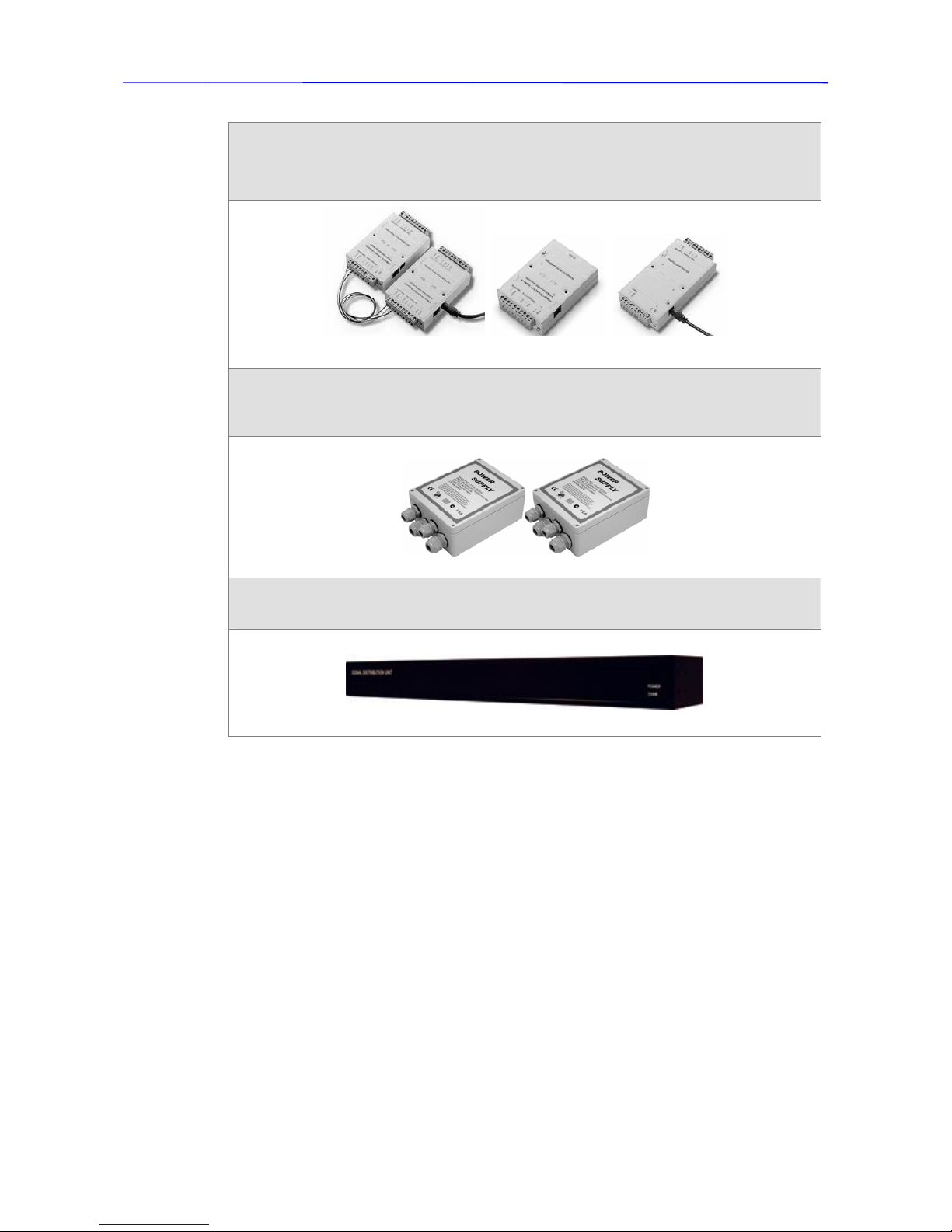

5. System Expansion...................................................................................................46

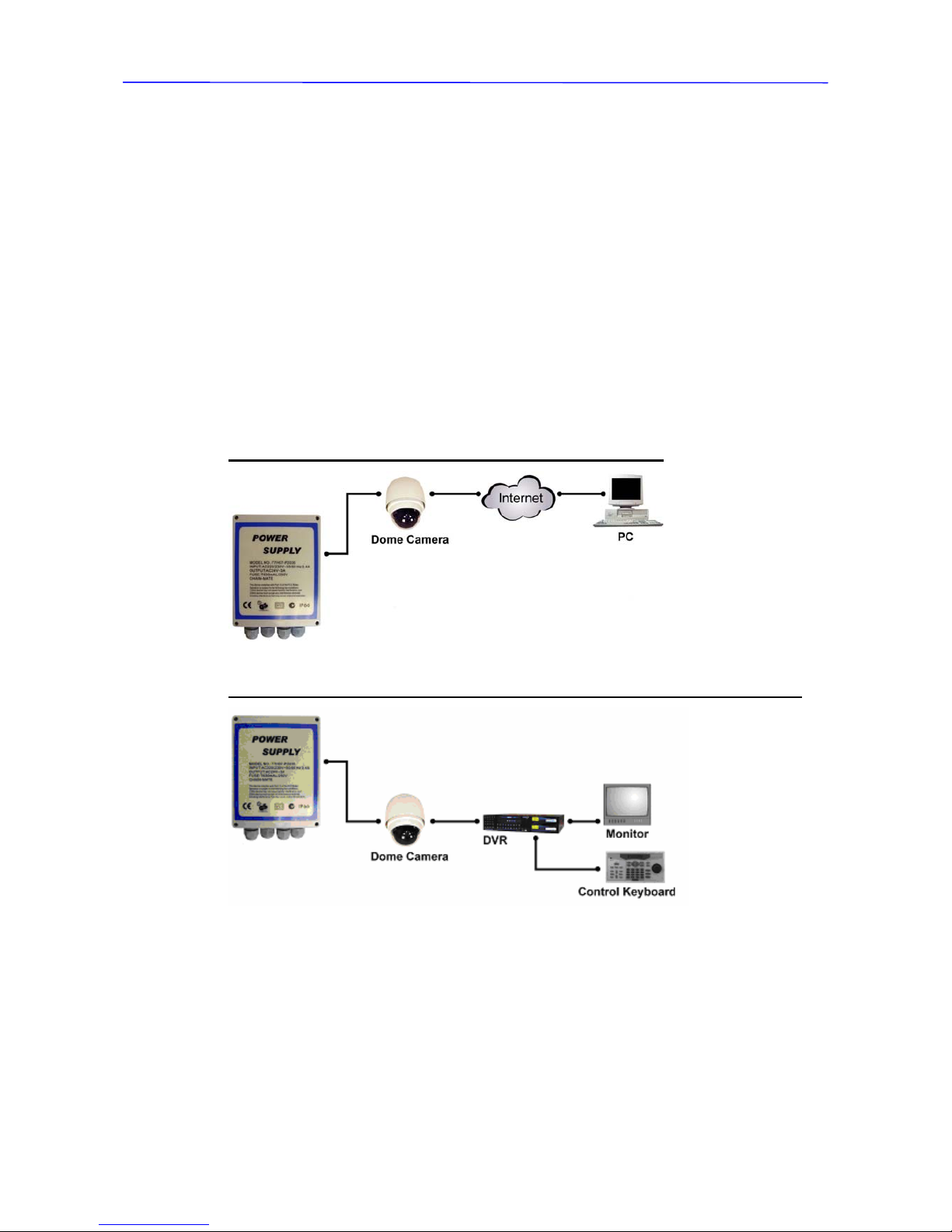

5.1 Connecting with Power Box .......................................................................................... 46
5.2 Data Formats Transforming........................................................................................... 47
Page 6
Installation Guide
5

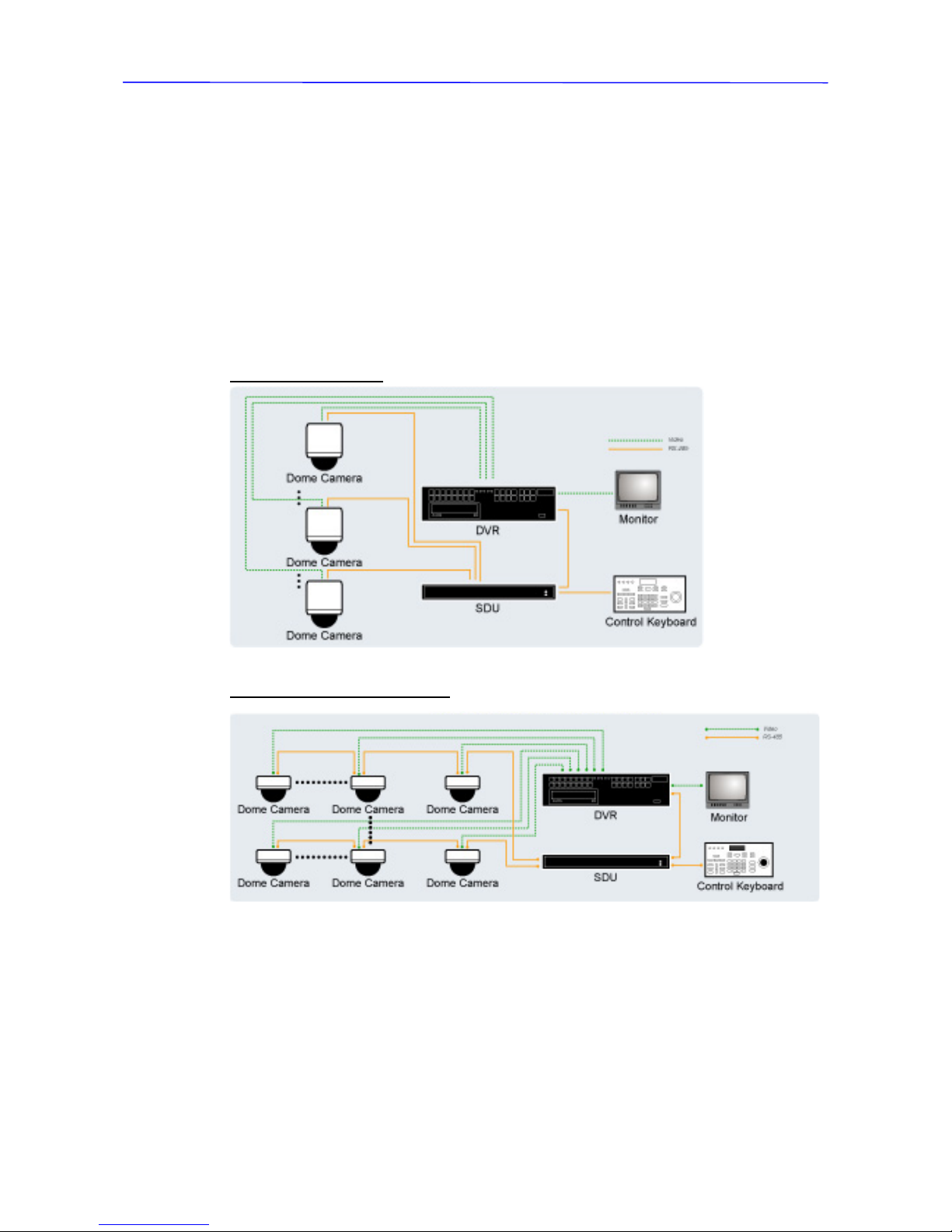

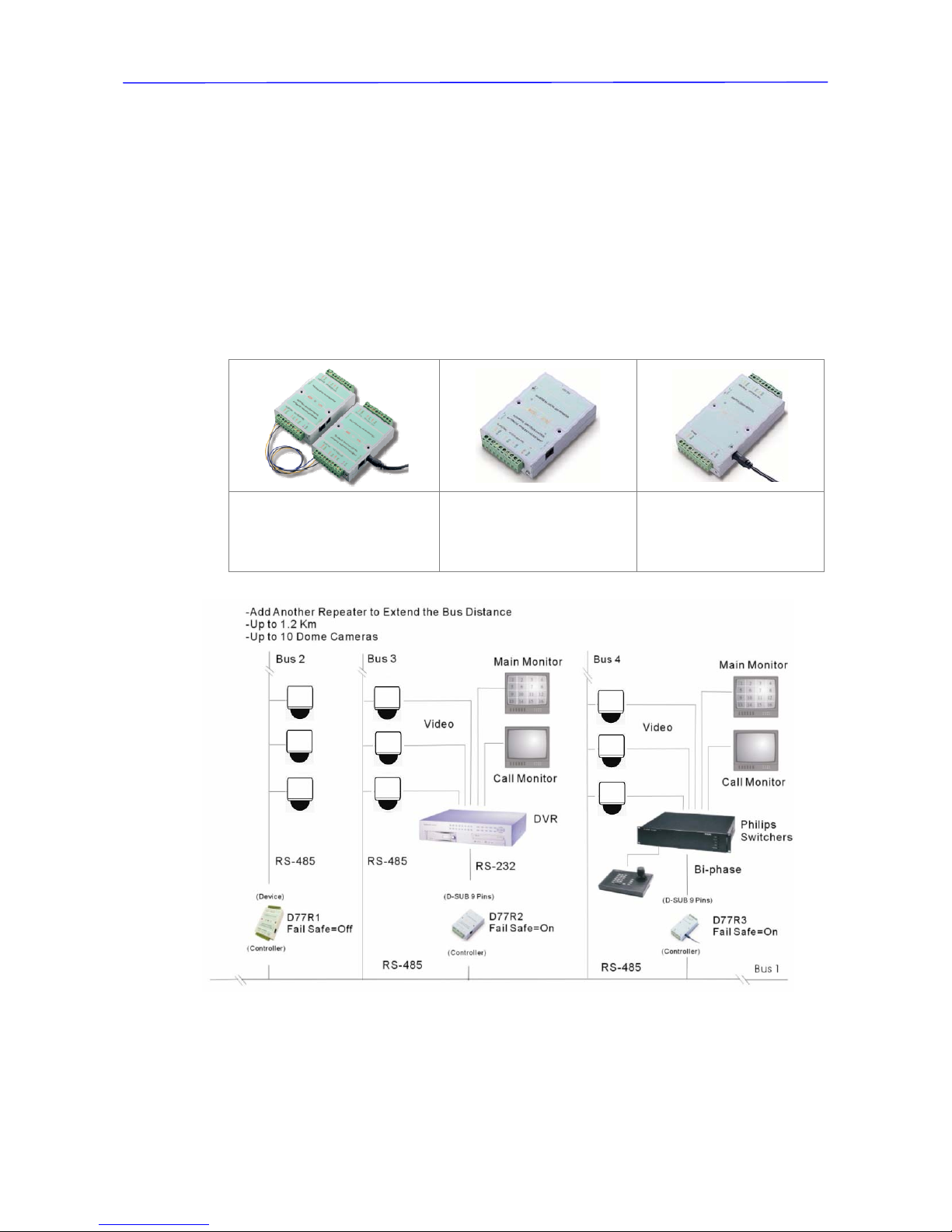

5.3 Signal Distribution ......................................................................................................... 48
6. System Integration ..................................................................................................49
6.1 Using Pelco Keyboard ................................................................................................... 49
6.2 Using Philips Allegiant Keyboard................................................................................... 50
Appendix A: Technical Specification .............................................................................51
Page 7
Installation Guide
6
1. Introduction
With weather resistant feature, the Integrated High Speed Dome Camera is
applicable to outdoor installation. The dome camera supports one cabling for
easy installation, and can be integrated with various digital surveillance
products, such as DVRs, Control Keyboards, and accessories for a total
surveillance solution. In addition, large set of built-in protocols provide
connectivity to other surveillance systems. The built-in protocols include
DynaColor, Pelco, VCL, Philips, AD-422, etc., which allow the Integrated High
Speed Dome Camera to be integrated with other suppliers' surveillance
systems.
General Operation Requirements:
A minimum of one control device is required for operation, such as a control
keyboard, a DVR or a PC. The integrated high speed dome camera contains
a built-in receiver that decodes commands from a control device.
Connect dome cameras to other devices, as shown in the diagram below, to
complete a video surveillance system.
NOTE: To extend the network distance up to 1.2 km (4000 feet) and to
protect the connected devices, it is highly recommended to place a
repeater at the mid-point. However, a repeater may be needed in the network
distance less than 1.2 km if the used cables are not the CAT 5, 24-gauge
cables; also see 3.3.4 RS-485 Connector Definition. Refer to the repeater’s
manual for detailed information.
Page 8
Installation Guide
7
2. Standard Package Contents
Before proceeding, please check the box contains the items listed here. If any
item is missing or has defects, DO NOT install or operate the product and
contact your dealer for assistance.
Analog Model
Dome Camera with
Outdoor Mount Kit
Data Cable for Power Supply, Video, Alarm and RS-485
(AC 24V)
Lubricant
Waterproof Rubber
M3 Standard Screw (x1)
M3 Security Screw (x1)
M5 Standard Screw (x1)
M5 Security Screw (x1)
Security Torx
Optical Cover
Quick Guide
CD: Operation Manuals
Page 9
Installation Guide
8
Network Model
Dome Camera with
Outdoor Mount Kit
Data Cable for Power Supply, Video, Audio and Alarm
(AC 24V)
Lubricant
Waterproof Rubber
M3 Standard Screw (x1)
M3 Security Screw (x1)
M5 Standard Screw (x1)
M5 Security Screw (x1)
Security Torx
Optical Cover
Quick Guide
CD: Operation Manuals
Page 10
Installation Guide
9
3. Camera Setups and Cable Connections
Before installing or connecting the dome camera, please refer to this section
and complete preparations for dome setups and various switch settings.
3.1 Preparations for Dome Camera Setups
The following installation procedure is for the outdoor dome equipped with the
sunshield housing. Please follow the steps below to complete dome housing
installation.
STEP 1
Unpack the Dome Camera’s
package and take out the
Dome Camera unit.
STEP 2
Rotate the Outdoor Mount Kit,
and take it off from the camera
body.
STEP 3
Remove the protective cover
and PE sheet.
Page 11
Installation Guide
10
STEP 4
Attach the dome cover to the
camera body. Before doing
that, apply some lubricant on
the cover’s water-proof rubber
to make the installation
process smoother.
Note that the tiny protrusion on
the dome cover must align with
one of the four holes on the
dome body.
STEP 5
Gently pressure the dome
cover downward with two
hands on the side of it.
DO NOT press the cover, as
shown in the figure; this might
cause damage to the camera
body.
STEP 6
Screw the dome cover and
camera body together.
Page 12
Installation Guide
11
STEP 7
Set the switches located on the
bottom of the dome body.
Refer to section 3.2 Dome
Camera Setups for detailed
information about various
switch setting.
Page 13
Installation Guide
12
3.2 Dome Camera Setups
Before connecting the Dome Camera to other devices of CCTV system,
please complete the Dome Camera’s ID and communication switch settings.
These switches are located on the bottom of the Dome Camera.
3.2.1 Switch/Connector Definition
Please refer to the diagrams and tables accompanied with for use of each
switch/connector.
Analog Model Network Model
A
Camera Control Protocol Switch
A
None
B
Communication Switch
B
Communication Switch (Reserved)
C
None
C
RJ-45 Connector
D
22-Pin Connector
D
22-Pin Connector
E
ID Switch
E
None
F
Reserved F-1 Reboot Button
G
ISP Connector (for FW upgrade)
F
F-2 Factory Reset Button
G
ISP Connector (for FW upgrade)
NOTE: DO NOT change the network Speed Dome Camera’s
Communication Switch factory default settings.
Page 14
Installation Guide
13
3.2.2 Communication Switch Setting
Communication Switch SW 1
SW 2
RS-485 Setting
SW 3
Termination
SW 4
Line Lock
SW 5
Factory Default Reset
SW 6
Reserved
RS-485 is the interface that communicates the dome camera and its control
device; for this reason, the RS-485 setup of the dome and the control device
must be the same. The RS-485 default setting is half-duplex (see the diagram
follows). Please do not change the default setting without qualified specialist
or supplier’s notice. As for the SW 3 and SW 4, they are used for termination
and Line Lock adjustment respectively. The SW 5 is mainly used when users
want to restore the camera to the factory default status; moreover, once
firmware upgrade is carried out, users also need to reset the SW 5 afterward.
RS-485 Setting
Half-duplex
Full-duplex
Page 15
Installation Guide
14
3.2.3 ID Setting
Please change the analog Dome Camera’s ID if there is more than one Dome
Camera on the same installation site. Use the switch to change your Speed
Dome Camera’s ID by turning the arrow to the desired number respectively. For
instance, if the camera’s ID is 123, the ID switch should be set as below.
NOTE: No two Dome Cameras should be given the same ID, or
communication conflict may occur.
Centesimal Digit Decimal Digit Single Digit
NOTE: The number “0” should locate upwards as shown in above
diagram for correct switch definition.
Page 16
Installation Guide
15
3.2.4 Camera Control Protocol Setting
Define the protocol you are going to use basing on the devices of your
surveillance system. Generally, use one protocol even the devices are
provided from different manufacturers. Use the switch to set your camera
control protocol and the baud rate. Refer to the table below and turn the
arrow to choose a protocol for your Dome Camera.
The table below shows various protocols with their matching switch numbers
and baud rate.
Switch No. Protocol Baud Rate
00
VCL 9600
01
Pelco D 2400
02
Pelco P 4800
04
Chiper 9600
05
Philips 9600
07
DSCP 9600
08
AD422 4800
09
DM P 9600
11
Pelco D 4800
12
Pelco D 9600
13
Pelco P 2400
14
Pelco P 9600
15
JVC 9600
21
Kalatel-485 9600
22
Kalatel-422 4800
Select protocol: Pelco D, with switch no. 01 and baud rate 2400, for instance,
the protocol switch should be set as follows:
Decimal Digit Single Digit
NOTE: The number “0” should locate upwards as shown in above
diagram for correct switch definition.
Page 17
Installation Guide
16
3.3 Cables and Connections
The Dome Camera is supplied with one integrated 22-pin Data Cable for
connecting with the power, video, and RS-485/audio input & audio output
cables. Please read the following sections thoroughly before making
connections.
3.3.1 Cable Requirements
For operation, the Integrated High Speed Dome Cameras require video,
RS-485 and power cables as described below:
• The video cable sends video signals to a remote viewing site. Using a
coaxial cable to send video signals is recommended.
• RS-485 cable carries commands from a control device to the Dome
Cameras. A CAT 5, 24 gauge cable is recommended.
• Power supply: DC 12V/AC 24V output voltage
NOTE: Ensure power supply meets the Dome Camera’s power
requirement, or product impairment will occur. If any mistake happens,
please contact with a qualified maintenance engineer.
3.3.2 22-Pin Data Cable
The analog and network Speed Dome Camera’s Data Cables are illustrated
respectively as shown below.
Analog Model
The analog Dome Camera’s Data Cable is illustrated as follows.
Page 18
Installation Guide
17
NOTE: Be careful not to pull the cables improperly during installation.
Additionally, it is suggested to fasten the cables after cable connection
is completed. Furthermore, when wiring the AC 24V power cable,
make sure the Ground wire is inserted into the mid-pin of the terminal
block.

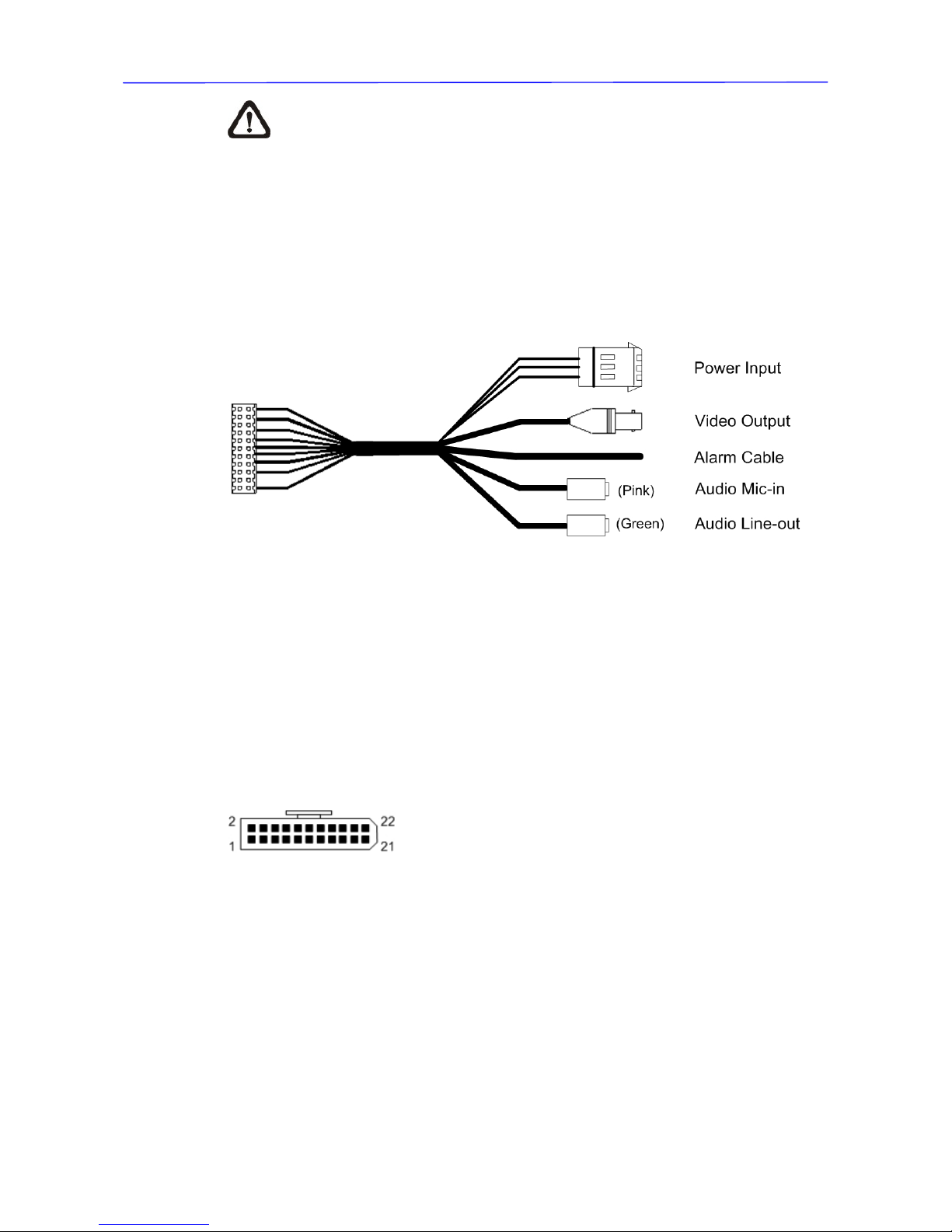

Network Model
The network Speed Dome Camera’s Data Cable is illustrated as follows.
3.3.3 22-Pin Connector Definition
With the 22-pin connector, installers can simply connect the power, video and
RS-485 cables to the Dome Camera at once. Particularly, the alarm pins are
serviceable for connecting alarm input and output devices, such as alarm
sensors, sirens or flashing lights with the surveillance system. The analog and
network Speed Dome Cameras’ 22-pin connector definition will also be
specified as follows.
Page 19
Installation Guide
18
Analog Model
The analog Dome Camera’s 22-pin connector definition is listed as below.
Pin Definition Cable
Pin Definition Cable
1
AC 24-1/DC (＋)
20AWG
12
ALM-1
2
ALM NC
13
ALM-3
3
AC 24-2/DC (－)
20AWG
14
ALM-2
4
ALM NO
15
ALM-4
5
FG 20AWG
16
ALM-5
6
ALM COM
17
ALM-6
7
T+
18
ALM-7
8
R-
19
ALM-8
9
T-
20
ALM GND
10
R+
24AWG
21
VGND
11
ISOG
22
Video
24AWG
Network Model
The network Speed Dome Camera’s 22-pin connector definition is listed as
follows:
Pin Definition Cable
Pin Definition Cable
1
AC 24-1/DC (＋)
20AWG
12
ALM-1
2
ALM NC
13
ALM-3
3
AC 24-2/DC (－)
20AWG
14
ALM-2
4
ALM NO
15
ALM-4
5
FG 20AWG
16
Reserved
6
ALM COM
17
Reserved
7
Audio in
18
Reserved
8
Audio out
19
Reserved
9
Audio GND
20
ALM GND
10
Audio GND
24AWG
21
VGND
11
ISOG
22
Video
24AWG
NOTE: For alarm connection, please refer to section 3.3.5 Cable
Wiring and Connection
.
Page 20
Installation Guide
19
3.3.4 RS-485 Connector Definition
RS-485 is the interface that communicates the Dome Camera and its control
device. Please connect the control keyboard to the Dome Camera through
the terminal block. The recommended cables for RS-485 communication are
CAT 5 cables; maximum cable length for over 24-gauge wire is 4000 feet
(1219 meters). If the total cable length exceeds 4000 feet, using a repeater to
maintain the signals is recommended. Please refer to the figure and table
below for pin defination and wiring.
3.3.5 Cable Wiring and Connection
Users may need to conduct cable wiring when: (1) Connecting self-provided
cords to the connector housing instead of using the equipped data cable or (2)
Connecting alarm input and output devices. The table follows will illustrate the
way to wire cords into the connector housing.
Pin
Corresponding Pins
(22-Pin Connector)
Definition
1 7,10 T+, R+ (D+)
2~4 Reserved
5 8,9 T-, R- (D-)
Page 21
Installation Guide
20
Insert the terminal into the pin
holes on the connector
housing, with the hook
outward, as indicated in the
figure.
To unlock the terminal, press
the hook, as indicated in the
figure, with a proper tool and
pull it out gently.
Connect the 22-pin connector
to the Dome Camera.
3.3.6 Ethernet Cable Connection
Connect one end of the CAT5 Ethernet cable to the RJ-45 connector of the
network Speed Dome Camera, and the other end of the cable to the network
switch or PC.
NOTE: In some cases, you may need use an Ethernet crossover
cable when connecting the network Speed Dome Camera directly to
the PC.
Page 22
Installation Guide
21
4. Dome Camera Installation
Basing on user’s installation environments, the Dome Camera can be
installed on ceiling, on wall or on pole. In the following section, various Dome
Camera’s installation accessories, installation methods and installation
procedures will be described in detail. In addition, the next section will provide
the Dome Camera’s dimensions for your reference before installation.
4.1 Dome Dimensions
The Dome Camera’s dimensions are Ø172 x 302.5 mm (6.7x11.9 Inches) and
Ø190 x 302.5 mm (7.5x11.9 Inches), with sunshield. The diagrams below
show detailed dimensions for the camera’s different parts.
Page 23
Installation Guide
22
4.2 Optional Accessories
Dome Camera Accessories
Sunshield
Height: 129.5 mm (5.05 inches); Diameter: 190 mm (7.48 inches); 0.15 kg (0.33 lbs)
Transparent/Vandal Proof/Smoke Cover
Diameter: 147 mm (5.8 inches)
Security Screw Set (equipped with Vandal Proof Cover)
Power Adapter
77H07-A1030 (Input: 100~115VAC/Output: 24VAC 72VA)
77H07-A2030 (Input: 220~230VAC/Output: 24VAC 72VA)
NOTE: When wiring, make sure the G/Y wire (Ground) inserted into the
mid-pin of the terminal block.
Page 24
Installation Guide
23
Mounting Accessories
Standard Pendent Mount
White; 348×104×138.6 mm (13.7×4.1×5.5 inches); 1.5 kg (3.3 lbs); Diameter: 45 mm (1.8
inches). Supplied with M8x12 screw x1, spring washer-8 x1, pendent tube washer x1,
rubber washer-8 x1 and sponge x2.
Compact Pendent Mount
184×104×115.2 mm (7.24×4.09×4.54 inches); 0.6 kg (1.2 lbs)
Supplied with rubber washer-8 x1, pendent tube washer x1, spring washer-8 x1 and
M8x12 screw x1.
Straight Tube
Iron, Height: 250/500 mm (9.8/19.7 inches), Diameter: 50 mm (2 inches)
1 kg (2.2 lbs) / 1.8 kg (4 lbs), Supplied with M8x12 screw x1, spring washer-8 x1, pendent
tube washer x1, rubber washer-8 x1 and waterproof rubber x1.
Page 25
Installation Guide
24
Swan Tube
For mounting with Swan Tube.
White; Iron, Dimension: 835 x 300 mm (32.9×11.8 inches); Diameter: 45 mm (1.8 inches);
Weight: 3.8 kg (8.4 lbs); Supplied with pendent tube washer x1, rubber washer-8 x1,
waterproof rubber x1, spring washer-8 x1 and M8x12 screw x1.
Corner Plate Mini
For mounting with Compact Pendent Mount.
270(L)×166(W)×95(D) mm (8.7×8×4.6 inches); Supplied with washer-8 x4, spring washer
x4, M8x16 screw x4, M8 nut x4.
Corner Standard Mounting Plate
222(L)×204(W)×117(D) mm (8.7×8×4.6 inches); 2 kg (4.4 lbs); Supplied with washer-8 x4,
spring washer-8 x4, M8x16 screw x4, and M8 nut x4.
Page 26
Installation Guide
25
Pole Thin Direct Mounting
232(L)×136(W)×60(D) mm (9.1×5.4×2.4 inches); Diameter: 112~140 mm (4.4~5.5
inches); 0.7 kg (1.6 lbs). Supplied with stainless steel straps x4, M8x16 screw x4, washer
x4 and spring washer-8 x4.
Pole Wide Direct Mounting
270(L)×170(W)×60(D) mm (10.6×6.7×2.4 inches); Diameter: 112~130 mm (4.4~5
inches); 1 kg (2.2 lbs). Supplied with M8x16 screw x4, washer x4, stainless steel straps x4
and spring washer-8 x4.
Corner Thin Box Mounting
300(L)×164(W)×222(D) mm (11.8×6.5×8.7 inches); 3 kg (6.7 lbs); Supplied with M8x16
screw x4, washer-8 x4, and spring washer-8 x4.
Power Box can be set inside the thin box.
Page 27
Installation Guide
26
Corner Wide Box Mounting
232(L)×234(W)×210(D) mm (9.1×9.2×8.3 inches); 2.7 kg (6 lbs); Supplied with M8x16
screw x4, washer-8 x4, and spring washer-8 x4.
Power Box can be set inside the wide box.

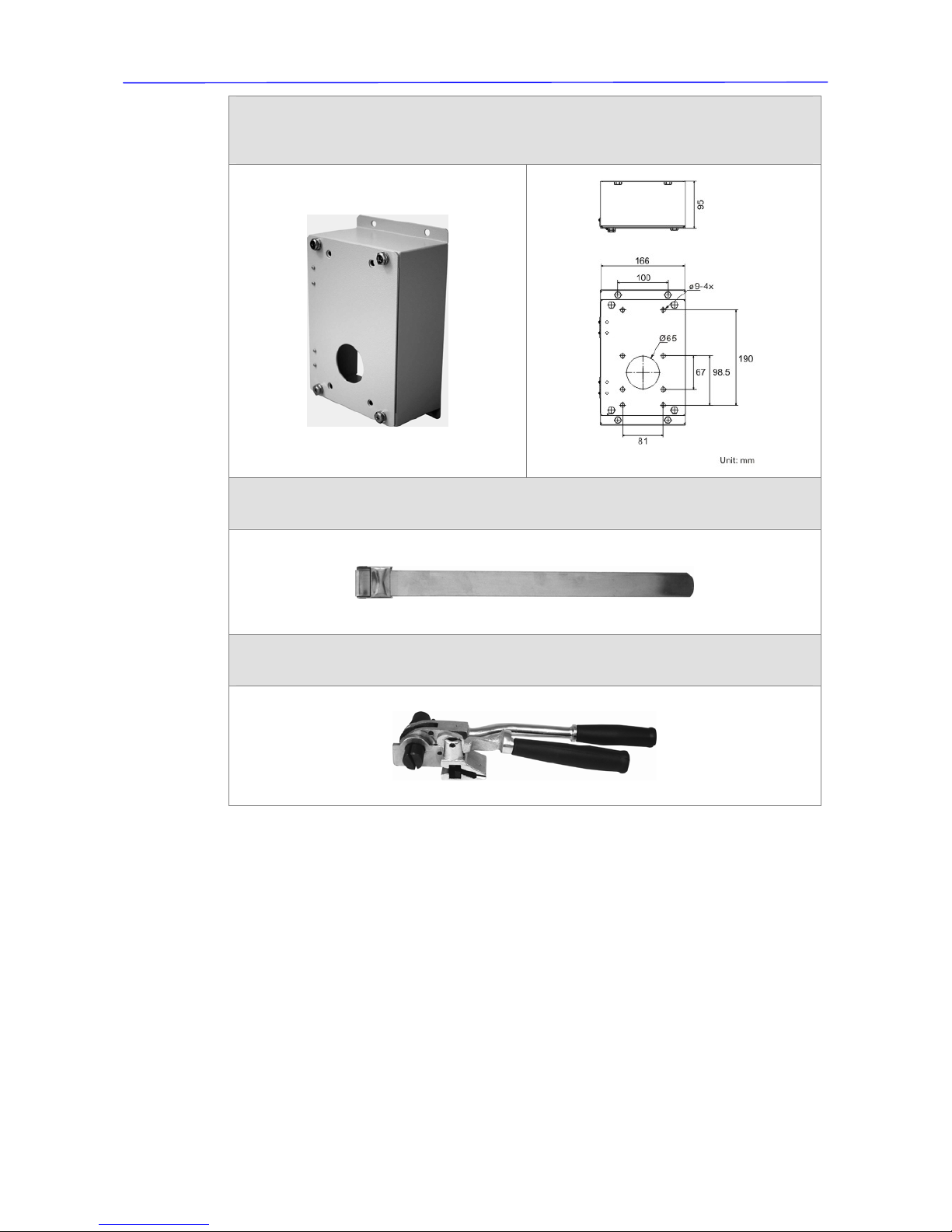

Pole Thin Box Mounting
291(L)×136(W)×242 (D) mm (11.5×5.4×9.5 inches); 3.1 kg (6.9 lbs); Supplied with M8x16
screw x4, washer-8 x4, spring washer x4 and stainless steel straps x4.
Power Box can be set inside the thin box.
Pole Wide Box Mounting
270(L)×166(W)×155(D) mm (10.6×6.5×6.1 inches); 3.2 kg (7.1 lbs); Supplied with
M8x16 screw x4, washer-8 x4, spring washer-8 x4 and stainless steel straps x4.
Power Box can be set inside the wide box.
Page 28
Installation Guide
27
Wall Box Mounting
270(L)×166(W)×95(D) (10.6×6.5×3.7 inches); 2.2 kg (4.84 lbs); Supplied with M8x16
screw x4, washer-8 x4 and spring washer-8 x4.
Power Box can be set inside the wall box.
Stainless Steel Straps
For fixing Pole Direct Mounting/ Pole Box on the pole.
Length: 700 mm (27.5 inches); Width: 0.63”; 0.02 kg (0.04 lbs)
Stainless Strap Cutter
For tension, cut and crimp stainless steel straps. 1.4 kg (3.1 lbs)
Suitable for straps width: 1/2”, 5/8”, 3/4”
Page 29
Installation Guide
28
Other Application Accessories
Repeater/Converter
D77R1: RS-485/RS-232 Converter
D77R2: RS-232 between RS-485/RS-442
D77R3: Bi-phase to RS-485/RS-422
D77R1 D77R2 D77R3
Power Box
186.5×147 mm (7.3×5.8 inches); 2.6 kg (5.8 lbs)
P1030 (Input: 110~115VAC/Output: 24VAC 72VA)
P2030 (Input: 220~230VAC/Output: 24VAC 72VA)
Signal Distribution Unit
Relay control codes to speed dome cameras.
Dimension: 432×44×90 mm (17×17.32×35.43 inches)
All photos of the accessories are subject to change without notice.
Page 30
Installation Guide
29
4.3 Ceiling Mounting with Straight Tube
The Straight Tube is available in different length: 25 cm and 30 cm.
Package Contents:
• M8x12 Screw x1
• Spring Washer-8 x1
• Pendant Tube Washer x1
• Rubber Washer-8 x1
• Waterproof Rubber x1
Items Needed:
• Dome Camera
• Outdoor Mount Kit (supplied)
• Data Cable (supplied)
• Ethernet Cable (network Dome Camera)
• Straight Tube and equipped items (optional accessory)
• Waterproof Rubber (supplied)
• M5 Standard/Security Screw (supplied)
• Screws and Screw Anchors for fixing the Straight Tube onto the ceiling
(not supplied)
Tools Needed:
• Tool for drilling
• Tool for screwing
Follow the steps to mount the Dome Camera with the Straight Tube.
1) Ensure that the ceiling can support the weight of the Dome Camera and
Straight Tube.
2) Make a cable entry hole on the ceiling.
3) Fix the Straight Tube to the ceiling with proper screws and screw anchors.
4) Attach the Waterproof Rubber to the Straight Tube.
5) Run the cable(s) through the Straight Tube with the Data Cable’s 22-pin
cable coming out of the outlet.
NOTE : After running the cable(s) through the Straight Tube,
please block the Tube’s outlet with the supplied sponge to avoid
insects entering the tube.
Page 31
Installation Guide
30
6) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor
Mount Kit to the Straight Tube with the supplied screws and washers.
Then adjust the Waterproof Rubber to the joint.
7) Connect the cable(s) to the Dome Camera.
8) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5
screw and washers.
Ceiling Mount: Straight Tube + Outdoor Mount Kit
Page 32
Installation Guide
31
4.4 Wall Mount
4.4.1 Swan Tube
Package Contents:
• M8x12 Screw x1
• Spring Washer-8 x1
• Pendent Tube Washer x1
• Rubber Washer-8 x1
• Waterproof Rubber x1
Items Needed:
• Dome Camera
• Swan Tube and other equipped items (optional accessory)
• Waterproof Rubber (standard accessory)
• Screws and Screw Anchors for fixing the Swan Tube on the floor (not
supplied).
Tools Needed:
• Tool for drilling
• Tool for screwing
Follow the steps to mount the dome with the Swan Tube.
1) Fix the Swan Tube on the floor with proper screws and screw anchors (not
supplied).
2) Thread the cables through the Swan Tube and the Indoor Mounting Kit.
3) Fix the Indoor Mounting Kit to the Swan Tube with the supplied screws
and washers. Then adjust the waterproof rubber to the junction of Swan
Tube and Indoor Mounting Kit.
4) Connect the cables to the dome camera. Then attach the dome to the
Indoor Mounting Kit and fix them with the supplied screw.
Page 33
Installation Guide
32
Wall Mount: Swan Tube + Indoor Mounting Kit
4.4.2 Compact Pendent Mount
Package Contents:
• Rubber Washer-8 x1
• Pendant Tube Washer x1
• Spring Washer-8 x1
• M8x12 Screw x1
Items Needed:
• Dome Camera
• Outdoor Mount Kit (supplied)
• Data Cable (supplied)
• Ethernet Cable (network Dome Camera)
• Compact Pendent Mount and equipped items (optional accessory)
• Waterproof Rubber (supplied)
• M5 Standard/Security Screw (supplied)
• Screws and Screw Anchors for fixing the Compact Pendent Mount (not
supplied)
Page 34
Installation Guide
33
Tools Needed:
• Tool for drilling
• Tool for screwing

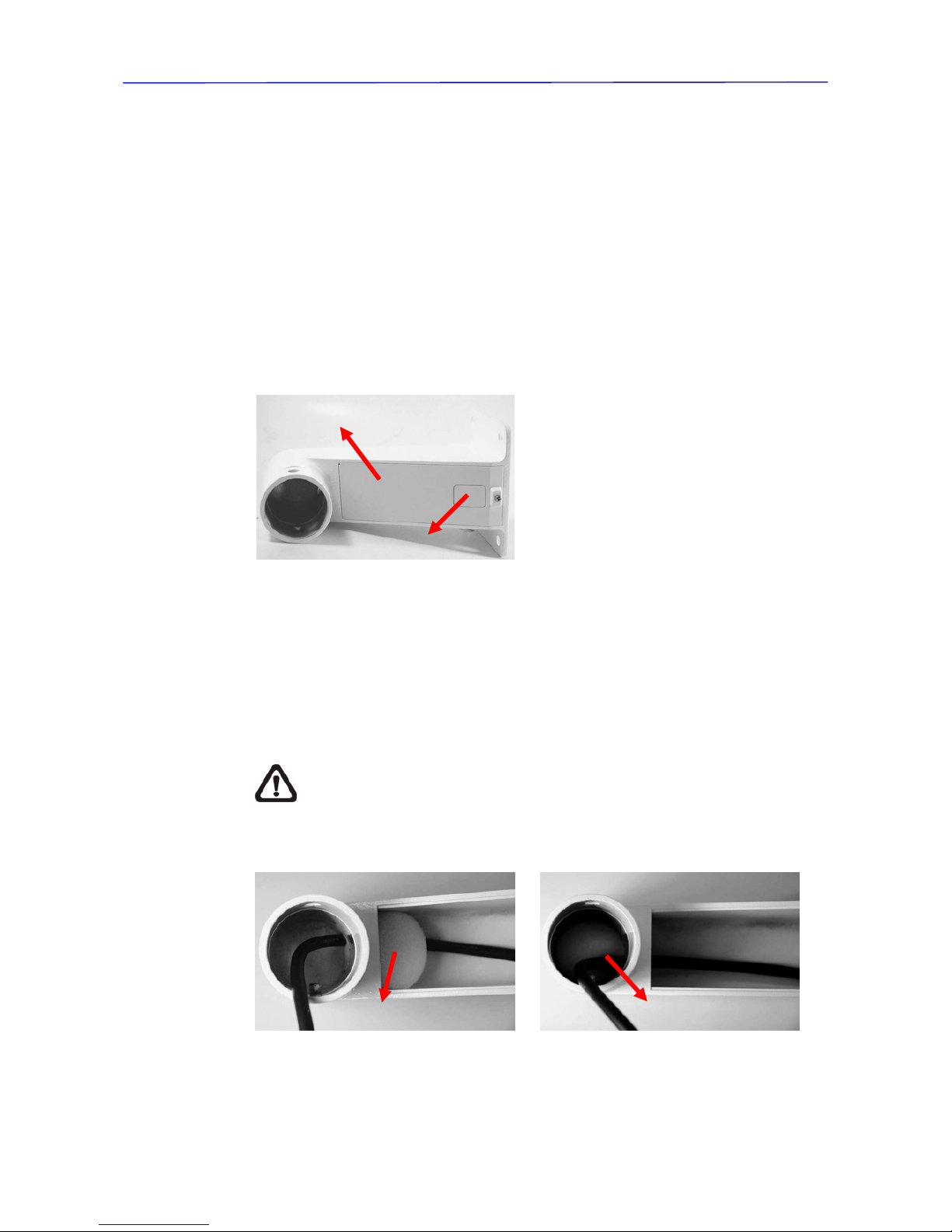

Follow the steps below to mount the Dome Camera with the Compact
Pendent Mount.
1) Make a cable entry hole on the wall to recess the cables. Otherwise, users
could push up the Cable Entry Board on the Compact Pendent Mount’s
Mounting Plate to place the cables, as shown in the photo below.
2) Fix the Compact Pendent Mount on the wall with proper screws and screw
anchors.
3) Attach the Waterproof Rubber to the Compact Pendent Mount.
4) Run the cable(s) through the Compact Pendent Mount with the Data
Cable’s 22-pin cable coming out of the outlet.
NOTE: Please block the cable entry hole with the supplied sponge
to avoid insects entering the Pendent Mount. The sponge can be
placed in two ways as shown in the illustrations below.
5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor
Mount Kit to the Compact Pendent Mount with the supplied screws and
washers. Then adjust the Waterproof Rubber to the joint.
Cable Entry Board
Mounting Plate
Sponge
Sponge
Page 35
Installation Guide
34
6) Connect the cable(s) to the Dome Camera.
7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5
screw and washers.
Wall Mounting: Compact Pendent Mount + Outdoor Mount Kit
4.4.3 Standard Pendent Mount
Package Contents:
• M8x12 Screw x1
• Spring Washer-8 x1
• Pendant Tube Washer x1
• Rubber Washer-8 x1
• Sponge x2
Items Needed:
• Dome Camera
• Outdoor Mount Kit (supplied)
• Data Cable (supplied)
• Ethernet Cable (network Dome Camera)
• Standard Pendent Mount and equipped items (optional accessory)
• Waterproof Rubber (supplied)
• M5 Standard/Security Screw (supplied)
• Screws and Screw Anchors for fixing the Standard Pendent Mount onto
the ceiling (not supplied)
Page 36
Installation Guide
35
Tools Needed:
• Tool for drilling
• Tool for screwing
Follow the steps below to mount the Dome Camera with the Standard
Pendent Mount.
1) Make a cable entry hole on the wall to recess the cables. Otherwise, users
could push up the cable entry board on the Standard Pendent Mount’s
mounting plate to place the cables (see the illustration in section 4.4.2
Compact Pendent Mount > Step 1).
2) Fix the Standard Pendent Mount on the wall with proper screws and screw
anchors.
3) Attach the Waterproof Rubber to the Standard Pendent Mount.
4) Run the cable(s) through the Standard Pendent Mount with the Data
Cable’s 22-pin cable coming out of the outlet.
NOTE: Please block the cable entry hole with the supplied sponge
to avoid insects entering the Pendent Mount. See the illustrations
in section 4.4.2 Compact Pendent Mount > Step 4.
5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor
Mount Kit to the Standard Pendent Mount with the supplied screws and
washers. Then adjust the Waterproof Rubber to the joint.
6) Connect the cable(s) to the Dome Camera.
7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5
screw and washers.
Page 37
Installation Guide
36
Wall Mounting: Standard Pendent Mount + Outdoor Mount Kit
4.4.4 Wall Box Mounting
Package Contents:
• M8x16 Screw x4
• Washer-8 x4
• Spring Washer-8 x4
Items Needed:
• Dome Camera
• Outdoor Mount Kit (supplied)
• Data Cable (supplied)
• Ethernet Cable (network Dome Camera)
• Standard/ Compact Pendent Mount and equipped items (optional
accessory)
• Wall Box Mounting (optional accessory)
• Waterproof Rubber (supplied)
• M5 Standard/Security Screw (supplied)
• Screws and Screw Anchors for fixing the Wall Box Mounting onto the
ceiling (not supplied)
Tools Needed:
• Tool for drilling
• Tool for screwing
Page 38
Installation Guide
37

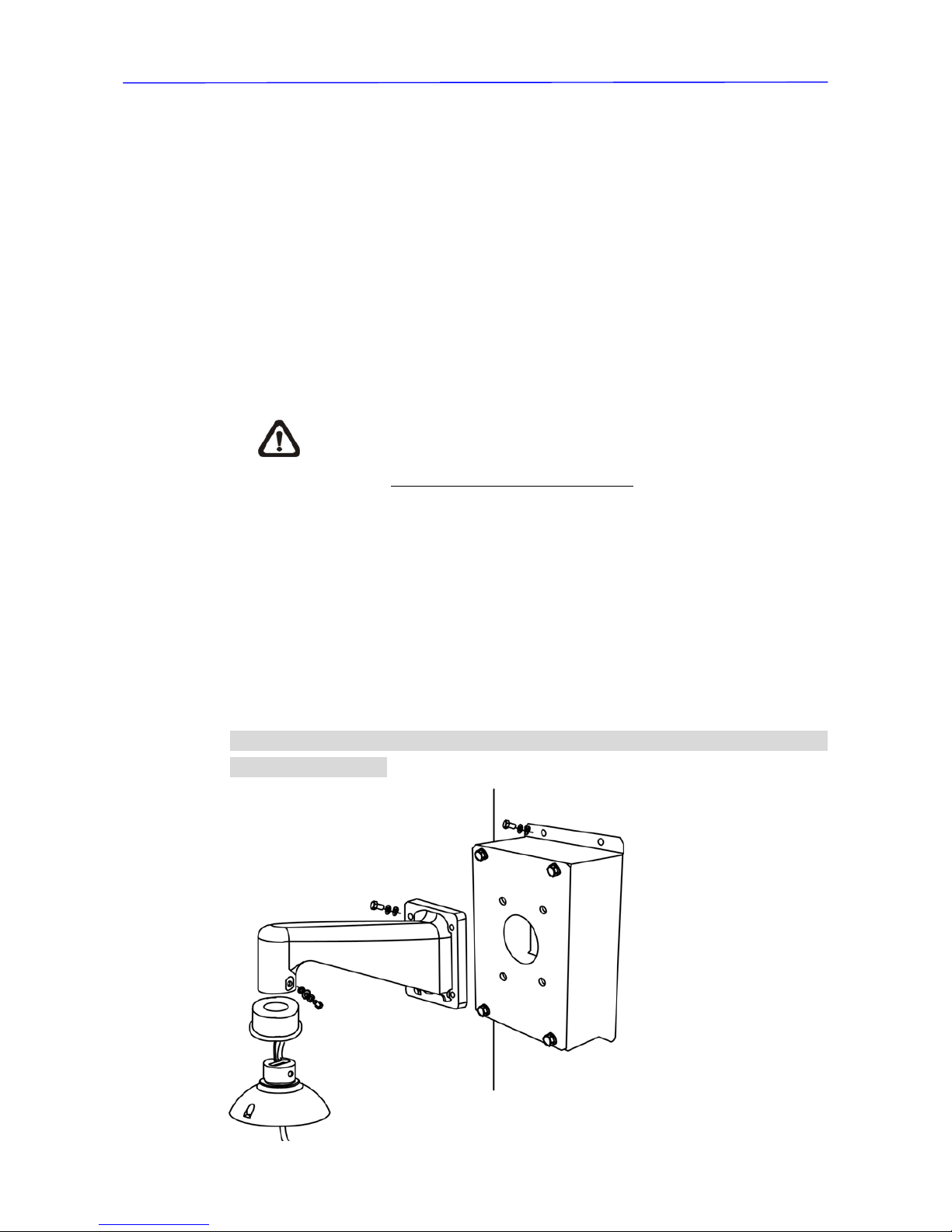

Follow the steps to mount the Dome Camera with the Standard/ Compact
Pendent Mount and Wall Box Mounting.
1) Make a cable entry hole on the wall to recess the cable(s).
2) Fix the Wall Box Mounting on the wall with proper screws and screw
anchors. Then run the cable(s) through the hole on the Wall Box Mounting
with the Data Cable’s 22-pin cable coming out.
3) Fasten the Standard/ Compact Pendent Mount onto the Wall Box
Mounting with the supplied screws and washers. Then thread the cable(s)
through the Standard/ Compact Pendent Mount with the cable(s) coming
out of the Pendent Mount’s outlet.
NOTE: Please block the cable entry hole with the supplied sponge
to avoid insects entering the Pendent Mount. See the illustrations
in section 4.4.2 Compact Pendent Mount > Step 4.
4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount.
5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor
Mount Kit to the Standard/ Compact Pendent Mount with the supplied
screws and washers. Then adjust the Waterproof Rubber to the joint.
6) Connect the cable(s) to the Dome Camera.
7) Join the Dome Camera to the Outdoor Mount Kit with the supplied screw
and washers.
Wall Box Mounting: Wall Box Mounting + Standard/ Compact Pendent Mount
+ Outdoor Mount Kit
Page 39
Installation Guide
38
4.5 Corner Mount
4.5.1 Corner Standard Mounting Plate/Corner Plate Mini
Package Contents:
• Washer-8 x4
• Spring Washer-8 ×4
• M8x16 Screw x4
• M8 Nut x4
Items Needed:
• Dome Camera
• Outdoor Mount Kit (supplied)
• Data Cable (supplied)
• Ethernet Cable (network Dome Camera)
• Standard/ Compact Pendent Mount and equipped items (optional
accessory)
• Corner Standard Mounting Plate/Corner Plate Mini (herein collectively
called “Corner Mounting Plate”; optional accessory)
• Waterproof Rubber (supplied)
• M5 Standard/Security Screw (supplied)
• Screws and Screw Anchors for fixing the Corner Mounting Plate (not
supplied)
Tools Needed:
• Tool for drilling
• Tool for screwing
Follow the steps below to mount the Dome Camera with the Corner mounting
Plate and Standard/ Compact Pendent Mount.
1) Make a cable entry hole on the wall to recess the cable(s).
2) Fix the Corner Mounting Plate on the corner of the wall with proper screws
and screw anchors. Then run the cable(s) through the hole on the Corner
Mounting Plate with the Data Cable’s 22-pin cable coming out.
3) Fasten the Standard/ Compact Pendent Mount onto the Corner Mounting
Plate with the supplied screws and washers. Then thread the cable(s)
through the Standard/ Compact Pendent Mount with the cable(s) coming
out of the Pendent Mount’s outlet.
Page 40
Installation Guide
39
NOTE: Please block the cable entry hole with the supplied sponge
to avoid insects entering the Pendent Mount. See the illustrations
in section 4.4.2 Compact Pendent Mount > Step 4.
4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount.
5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor
Mount Kit to the Standard/ Compact Pendent Mount with the supplied
screws and washers. Then adjust the Waterproof Rubber to the joint.
6) Connect the cable(s) to the Dome Camera.
7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5
screw and washers.
Corner Wall Mounting: Corner Standard/Mini Mounting Plate + Standard/
Compact Pendent Mount + Outdoor Mount Kit
Page 41
Installation Guide
40
4.5.2 Corner Thin/Wide Box Mounting
Package Contents:
• M8x16 Screw x4
• Washer-8 x4
• Spring Washer-8 x4
Items Needed:
• Dome Camera
• Outdoor Mount Kit (supplied)
• Data Cable (supplied)
• Ethernet Cable (network Dome Camera)
• Standard/ Compact Pendent Mount and equipped items (optional
accessory)
• Corner Thin/Wide Box (optional accessory)
• Waterproof Rubber (supplied)
• M5 Standard/Security Screw (supplied)
• Screws and Screw Anchors for fixing the Corner Thin/Wide Box (not
supplied)
Tools Needed:
• Tool for drilling
• Tool for screwing
Follow the steps below to mount the Dome Camera with the Corner
Thin/Wide Box and Standard/ Compact Pendent Mount.
1) Make a cable entry hole on the wall to recess the cable(s).
2) Fix the Corner Thin/Wide Box on the corner of the wall with proper screws
and screw anchors. Then run the cable(s) through the hole on the Corner
Mounting Plate with the Data Cable’s 22-pin cable coming out.
3) Fasten the Standard/ Compact Pendent Mount onto the Corner Thin/Wide
Box with the supplied screws and washers. Then thread the cable(s)
through the Standard/ Compact Pendent Mount with the cable(s) coming
out of the Pendent Mount’s outlet.
NOTE: Please block the cable entry hole with the supplied sponge
to avoid insects entering the Pendent Mount. See the illustrations
in section 4.4.2 Compact Pendent Mount > Step 4.
Page 42
Installation Guide
41
4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount.
5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor
Mount Kit to the Standard/ Compact Pendent Mount with the supplied
screws and washers. Then adjust the Waterproof Rubber to the joint.
6) Connect the cable(s) to the Dome Camera.
7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5
screw and washers.
Corner Box Mounting: Corner Thin/Wide Box + Standard/ Compact Pendent
Mount + Outdoor Mount Kit
Page 43
Installation Guide
42
4.6 Pole Mount
4.6.1 Pole Thin/Wide Direct Mounting
Package Contents:
• Stainless Steel Straps x4
• M8x16 Screw x4
• Washer x4
• Spring Washer-8 x4
Items Needed:
• Dome Camera
• Outdoor Mount Kit (supplied)
• Data Cable (supplied)
• Ethernet Cable (network Dome Camera)
• Standard/ Compact Pendent Mount and equipped items (optional
accessory)
• Pole Thin/Wide Direct Mounting (optional accessory)
• Waterproof Rubber (supplied)
• M5 Standard/Security Screw (supplied)
• Stainless Steel Straps for fixing the Pole Thin/Wide Direct Mounting
(optional accessory)
Tools Needed:
• Stainless Strap Cutter
• Tool for screwing
Follow the steps below to mount the Dome Camera with the Pole Thin/Wide
Direct Mounting and Standard/ Compact Pendent Mount.
1) Fasten the Pole Thin/Wide Direct Mounting on a pole with equipped
stainless straps.
2) Run the cable(s) through the hole on the Pole Thin/Wide Direct Mounting
with the Data Cable’s 22-pin cable coming out.
3) Fasten the Standard/ Compact Pendent Mount onto the Pole Thin/Wide
Direct Mounting with the supplied screws and washers. Then thread the
cable(s) through the Standard/ Compact Pendent Mount with the cable(s)
coming out of the Pendent Mount’s outlet.
Page 44
Installation Guide
43
NOTE: Please block the cable entry hole with the supplied sponge
to avoid insects entering the Pendent Mount. See the illustrations
in section 4.4.2 Compact Pendent Mount > Step 4.
4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount.
5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor
Mount Kit to the Standard/ Compact Pendent Mount with the supplied
screws and washers. Then adjust the Waterproof Rubber to the joint.
6) Connect the cable(s) to the Dome Camera.
7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5
screw and washers.
Pole Direct Mounting: Pole Thin/Wide Direct Mounting + Standard/ Compact
Pendent Mount + Outdoor Mount Kit
Page 45
Installation Guide
44
4.6.2 Pole Thin/Wide Box Mounting
Package Contents:
• M8x16 Screw x4
• Washer-8 x4
• Spring Washer x4,
• Stainless Steel Straps x4
Items Needed:
• Dome Camera
• Outdoor Mount Kit (supplied)
• Data Cable (supplied)
• Ethernet Cable (network Dome Camera)
• Standard/ Compact Pendent Mount and equipped items (optional
accessory)
• Pole Thin/Wide Box Mounting (optional accessory)
• Waterproof Rubber (supplied)
• M5 Standard/Security Screw (supplied)
• Stainless Steel Straps for fixing the Pole Thin/Wide Box Mounting (optional
accessory)
Tools Needed:
• Stainless Strap Cutter
• Tool for screwing
Follow the steps below to mount the Dome Camera with the Pole Thin/Wide
Box and Standard/ Compact Pendent Mount.
1) Fasten the Pole Thin/Wide Box on a pole with equipped stainless straps.
2) Run the cable(s) through the hole on the Pole Thin/Wide Box Mounting
with the Data Cable’s 22-pin cable coming out.
3) Fasten the Standard/ Compact Pendent Mount onto the Pole Thin/Wide
Box Mounting with the supplied screws and washers. Then thread the
cable(s) through the Standard/ Compact Pendent Mount with the cable(s)
coming out of the Pendent Mount’s outlet.
NOTE: Please block the cable entry hole with the supplied sponge
to avoid insects entering the Pendent Mount. See the illustrations
in section 4.4.2 Compact Pendent Mount > Step 4.
Page 46
Installation Guide
45
4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount.
5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor
Mount Kit to the Standard/ Compact Pendent Mount with the supplied
screws and washers. Then adjust the Waterproof Rubber to the joint.
6) Connect the cable(s) to the Dome Camera.
7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5
screw and washers.
Pole Box Mounting: Pole Thin/Wide Box + Standard/ Compact Pendent
Mount + Outdoor Mount Kit
Page 47
Installation Guide
46
5. System Expansion
5.1 Connecting with Power Box
A power box contains a 24V AC adapter, two terminal blocks (for
communication and power) and one alarm board. With an IP66 case, the
Power Box is ideal for outdoor installation environment. Two models are
available: 100~115V AC power input (P1030) and 220~230V AC (P2030).
Additionally, users can either connect one dome camera to one power box
and to Internet or to other control devices (DVR, Control Keyboard and
monitors), as shown in the diagrams below. For more detailed information,
please refer to the power box user’s manual.
Connecting the Dome to the Power Box and Internet
Connecting the Dome to the Power Box and Various Control Devices
Page 48
Installation Guide
47
5.2 Data Formats Transforming
To integrate other surveillance devices with the high speed dome cameras or
to extend the distance of communications, users could employ three kinds of
repeater/converter, as shown below. With the advanced circuit design, these
repeaters/converters offer 1KVrms isolation voltage and surge protection
capability. The exiting network can be protected by the repeaters/converters.
Up to 10 devices are allowed to connect to one repeater/converter. For
detailed information, please refer to the repeater/converter user’s manual.
D77R1
RS-485/RS-422 Repeater
D77R2
RS-232 between
RS-485/RS-422
D77R3
Bi-Phase to
RS-485/RS-422
Page 49
Installation Guide
48
5.3 Signal Distribution
The RS-485 Signal Distribution Unit (SDU) is designed to relay control codes
to speed dome cameras. It is capable of communicating with cameras up to
1.0 kilometers away. Additionally, the SDU can be installed in either “star” or
“daisy chain” configuration with up to 160 cameras (see the diagrams below).
Its versatile installation configuration makes an easy integration into
expanding surveillance systems. For more information, please refer to the
SDU user’s manual.
Star Configuration
Daisy Chain Configuration
Page 50
Installation Guide
49
6. System Integration
The dome camera is allowed to be integrated into other suppliers'
surveillance systems with large set of built-in protocols. Refer to the following
sections for more information.
6.1 Using Pelco Keyboard
The speed dome camera can be controlled through a Pelco keyboard which
built in with D protocol and P protocol. Please follow the instruction to
manipulate our speed dome by a keyboard with D and P protocols.
Function Instruction
Set Preset
Number key + press and hold <Preset > button for three
seonds.
Go Preset
Number key + <Preset> to command a dome camera to go to
a specific preset position.
Display or hide
an OSD menu
7 7 <Preset>
Move the cursor
in OSD menu
Move the cursor up/down/right/left by pushing the joystick
up/down/right/left respectively
<ENTER>
7 7 <Preset>
Reset the dome
camera
7 8 <Preset>
Cable Definition (P Protocol Keyboard to PTZ Camera)
For P Protocol Keyboard
For SpeedDome
1
2
4
5
6
7
8
Tx-
Tx+
+12V
GND
Rx-
Rx+
1
2
3
4
5
6
Tx-
Tx+
+12V
GND
Rx-
Rx+
Page 51
Installation Guide
50
Cable Definition (D Protocol Keyboard to PTZ Camera)
For SpeedDomeFor D Protocol Keyboard
Tx-
Tx+
GND
Rx-
Rx+
1
2
3
4
5
6
Tx Tx+
GND
RxRx+
1
2
3
4
5
6
GND
6.2 Using Philips Allegiant Keyboard
The dome cameras can be integrated into Philips Allegiant systems through
D77R3 repeaters. Please follow the instructions to control dome cameras
through Philips Allegiant systems.
Symbol Definition
<shot> Command dome cameras to go to specific preset position.
<set> Set preset position.
Special Function
7 6 <set> Exit OSD menu directly.
7 7 <set>
1. Display or hide OSD menu.
2. Virtual key to send an ENTER command when OSD is
displayed.
7 8 <set> Reset doma camera.
<Iris Open> Send an ENTER command when OSD is displayed.
Control Dome Camera Using Allegiant Keyboard
• User can move the cursor left/right/up/down through pushing joystick
left /right/up/down.
• Some differences for ENTER command.
User cannot send ENTER command directly. User can send a ENTER
command through “ 7 7 <Set> “.
Page 52
Installation Guide
51
Appendix A: Technical Specification
Items G Model M Model V Model P Model T Model
CAMERA
CCD Sensor
1/4" EXview 1/4" CCD 1/4" EXview 1/4" CCD 1/4" EXview
Progressive Scan
- Yes - Yes -
Optical Zoom
18× 23x 26× 35x 36x
Digital Zoom
1× ~ 12× variable
NTSC 380k
Effective
Pixels
PAL 440k
Horizontal Resolution
530 TVL 540 TVL 530 TVL 540 TVL 530 TVL
Scanning System
NTSC / PAL
Synchronization
Internal / Line Lock
Video Output
1.0 Vp-p / 75 Ω, BNC
S/N Ratio
> 50 dB (AGC Off)
Minimum Illumination
0.07 lux;
0.01 lux (B/W)
0.1 lux;
0.01 lux (B/W)
0.09 lux;
0.01 lux (B/W)
0.1 lux;
0.01 lux (B/W)
0.1 lux;
0.01 lux (B/W)
Focal Length
4.1~73.8 mm 3.6~82.8 mm 3.5~91 mm 3.4~119 mm 3.4~122.4 mm
Focus Mode
Auto / Manual
White Balance
Auto / Manual
Iris Control
Auto / Manual
NTSC 1/1~1/10k sec. 1/2~1/30k sec. 1/1~1/10k sec. 1/1~1/30k sec. 1/1~1/10k sec.
Electronic
Shutter
PAL 1/1~1/10k sec. 1/1.5~1/30k sec. 1/1~1/10k sec. 1/1~1/30k sec. 1/1~1/10k sec.
AGC control
Auto / Manual
Back Light
Compensation
On / Off
OPERATION
Built-in Protocol
DynaColor, Pelco D&P, VCL, Philips, AD-422, JVC, Kalatel, etc
Multi-Language OSD
English, French, German, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese
Pan Travel
360° endless
Tilt Travel
-10° ~ 190°
Manual Speed
0.5° ~ 90°/s
Presets
256
Preset Accuracy
0.225°
Preset Speed
5° ~ 400°/s
Sequence
8
Auto Pan
4
Page 53
Installation Guide
52
Items G Model M Model V Model P Model T Model
Cruise
8
Privacy Mask
24 8 24 8 24
Proportional Pan & Tilt
On / Off (Pan and tilt speed proportional to zoom ratio)
Resume after
Power loss
Ye s
Zone Title
16
Home Function
Preset, Sequence, Auto pan, Cruise
Auto Flip
Digital / Mechanical / Off
Digital Slow
Shutter
On / Off On / Off On / Off On / Off On / Off
Electronic Image
Stabilizer
- - - On / Off -
Motion Detection
On / Off On / Off On / Off On / Off On / Off
Wide Dynamic Range
On / Off On / Off On / Off On / Off On / Off
Day/Night: IR Cut Filter
On / Off On / Off On / Off On / Off On / Off
Image Inverse
On / Off On / Off On / Off On / Off On / Off
Image Freeze
On / Off On / Off On / Off On / Off On / Off
Digital Noise Reduction
- - - On / Off -
Alarm Input
8
Alarm O utput
1
Alarm Reaction
Preset, Sequence, Auto pan, Cruise
GENERAL
Environment
Outdoor
Controller Interface
RS-485
Operating Temperature
-45°C ~ 50°C (-49°F ~ 122°F)
Waterproof Standard
IP66 standard
Dimension
Ø172 x 302.5 mm (6.7 x 11.9 Inches) / Ø190 x 302.5 mm ( 7.5x 11.9 Inches), with sunshield
Weight
2.6 kg (5.7 lbs)
Power Source
AC 24V ± 10%
Power Consumption
65 W (with Heater)
Regulatory
CE, FCC, RoHS
Page 54
Installation Guide
53
Items S3 Model S4 Model S5 Model S6 Model
CAMERA
CCD Sensor
Sony CCD
Optical Zoom
30× 36×
Digital Zoom
1~12x variable
NTSC 380k 480k 380k 480k
Effective Pixels
PAL 440k 570k 440k 570k
Horizontal Resolution
540 TVL 650 TVL 540 TVL 650 TVL
Scanning System
NTSC / PAL
Synchronization
Internal / Line Lock
Video Output
1.0 Vp-p / 75 Ω, BNC
S/N Ratio
> 50 dB (AGC Off)
Minimum Illumination
0.1 lux; 0.01 lux (B/W) 0.1 lux; 0.01 lux (B/W)
Focal Length
3.4 ~ 102 mm 3.4 ~ 122.4 mm
Focus Mode
Auto / Manual
White Balance
Auto / Manual
Iris Control
Auto / Manual
Electronic Shutter
1/1~1/10k sec.
AGC control
Auto / Manual
Back Light Compensation
On / Off
OPERATION
Built-in Protocol
DynaColor, Pelco D&P, VCL, Philips, AD-422, JVC, Kalatel, etc.
Multi-Language OSD
English, French, German, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese
Pan Travel
360° endless
Tilt Travel
-10° ~ 190°
Manual Speed
0.5° ~ 90°/s
Presets
256
Preset Accuracy
0.225°
Preset Speed
5° ~ 400°/s
Sequence
8
Auto Pan
4
Cruise
8
Privacy Mask
16
Proportional Pan & Tilt
On / Off (Pan and tilt speed proportional to zoom ratio)
Resume after Power loss
Ye s
Zone Title
16
Home Function
Preset, Sequence, Auto pan, Cruise
Page 55
Installation Guide
54
Items S3 Model S4 Model S5 Model S6 Model
Auto Flip
Mechanical / Digital / Off
Digital Slow Shutter
On / Off
Motion Detection
On / Off
Wide Dynamic Range
On / Off
Day/Night: IR Cut Filter
Auto / Manual
Image Freeze
On / Off
Image Inverse
On / Off
2D
On / Off
Noise Reduction
3D
On / Off
Alarm Input
8
Alarm O utput
1
Alarm Reaction
Preset, Sequence, Auto pan, Cruise
GENERAL
Environment
Outdoor
Controller Interface
RS-485
Operating Temperature
-45°C ~ 50°C (-49°F ~ 122°F)
Waterproof Standard
IP66 standard
Dimension
Ø172 x 302.5 mm (6.7 x 11.9 Inches)/ Ø190 x 302.5 mm (7.5 x 11.9 Inches), with sunshield
Weight
2.6 kg (5.7 lbs)
Power Source
AC 24V ± 10%
Power Consumption
65 W (with Heater)
Regulatory
CE, FCC, RoHS, IP66
**All Specifications are subject to change without notice.
Loading...
