Page 1



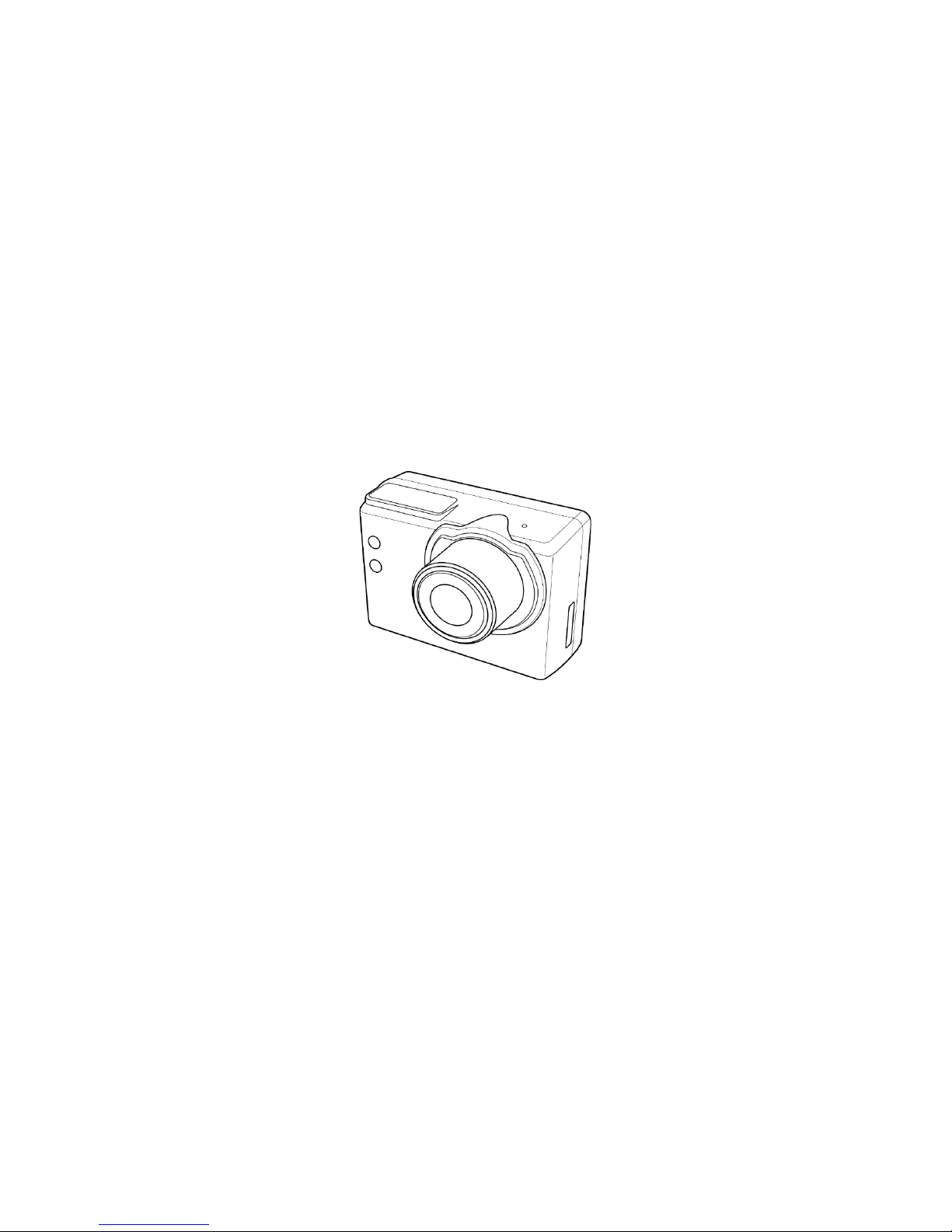

User’s Manual

HD Action Camera

Page 2

Table of Contents

About this manual ............................................................ iv

Precautions ....................................................................... v

Operating conditions .............................................. vi

Notes on Waterproof Case .............................................. vii

Before You Start ................................................................ x

1 Introducing the Camera ............................ 1

1.1 System Requirements ............................................. 1

1.2 Features .................................................................. 1

1.3 Unpacking the Camera .......................................... 2

1.4 About the Camera ................................................... 4

1.4.1 Camera Views ............................................ 4

1.4.2 Button Functions ........................................ 5

1.4.3 LED Indicators ........................................... 6

2 Getting Started ........................................... 7

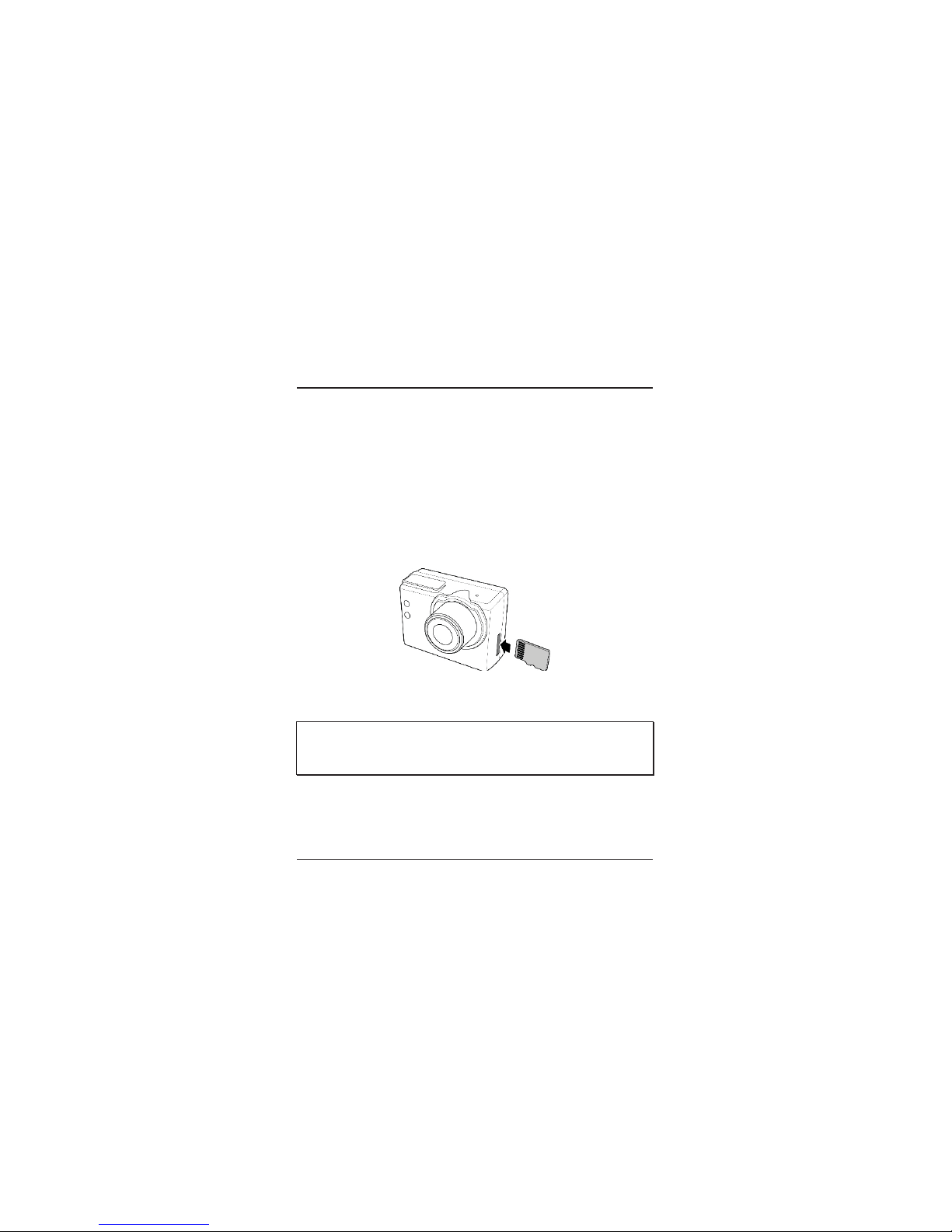

2.1 Installing the Micro SD Card ................................. 7

2.1.1 Removing the Micro SD card ................... 8

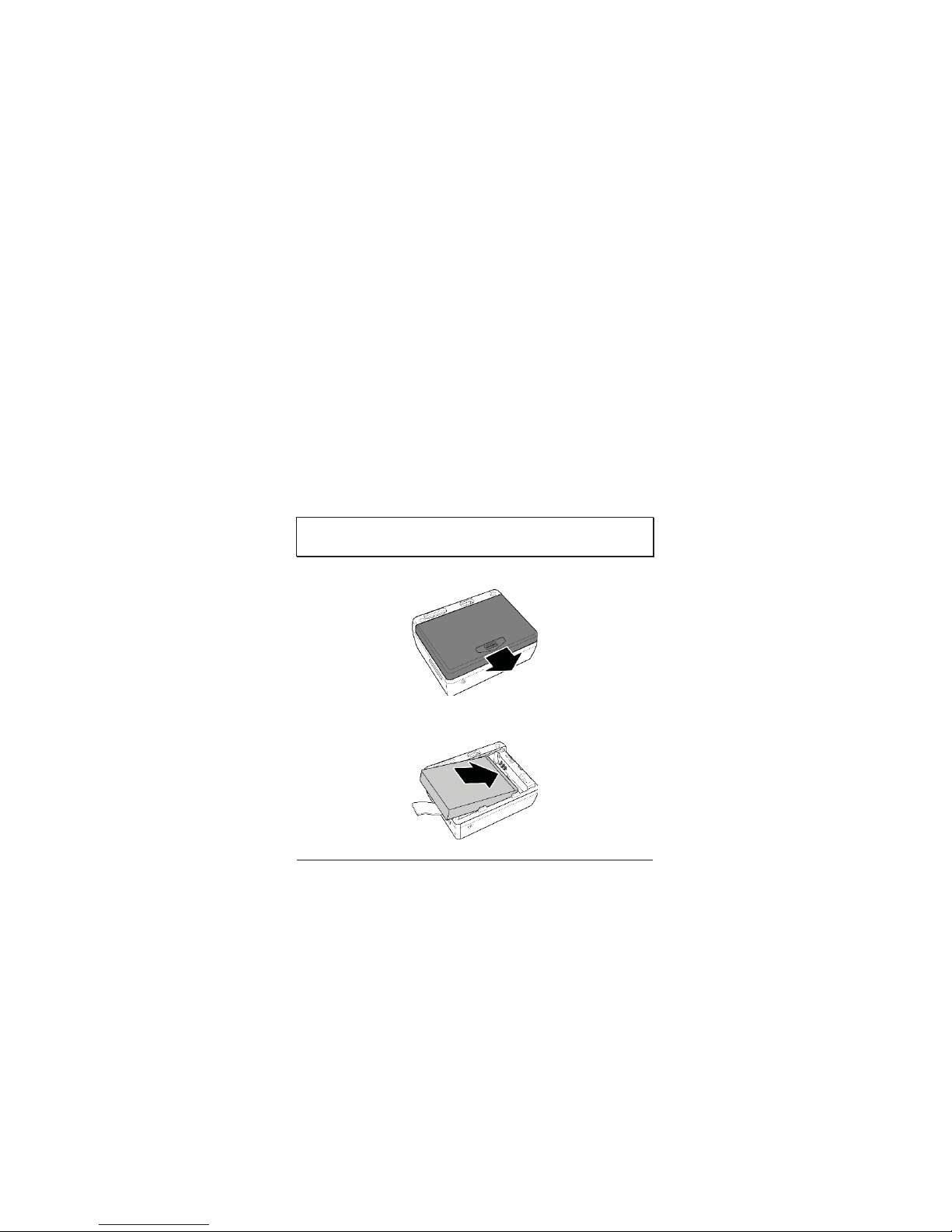

2.2 Installing the Battery .............................................. 8

2.2.1 Removing the battery ................................ 9

2.3 Charging the Battery ............................................ 10

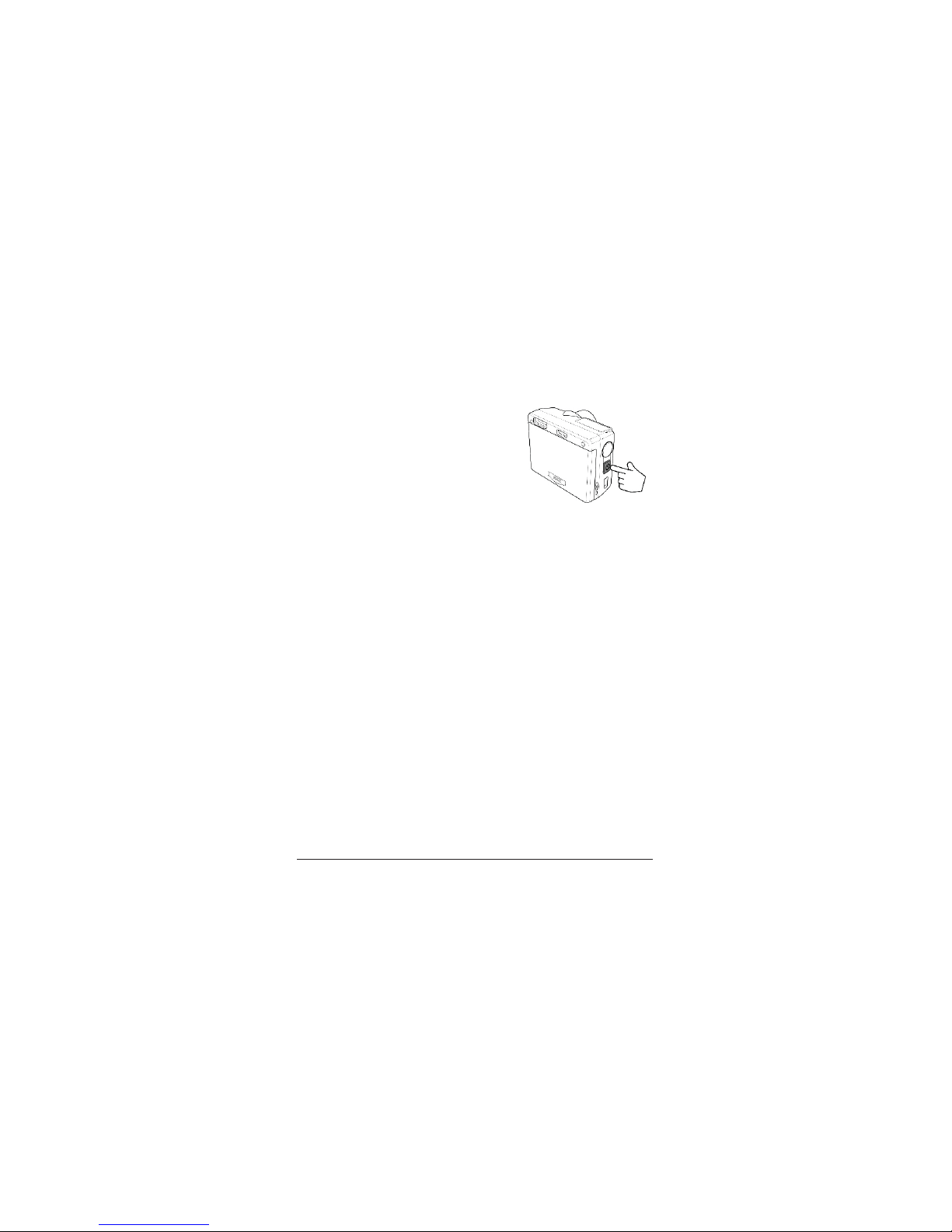

2.4 Turning ON/ OFF the Camera ............................ 11

2.5 OLED Screen ....................................................... 12

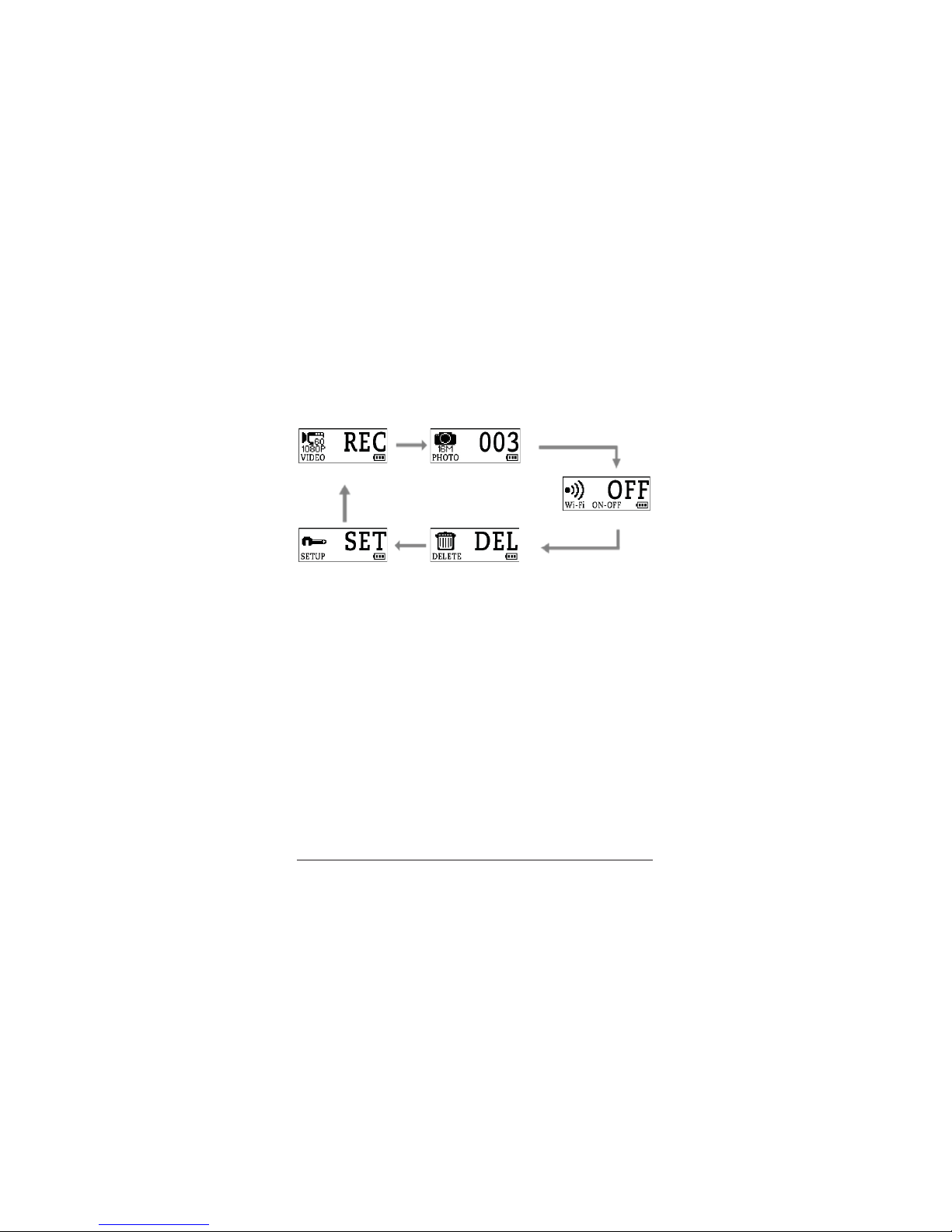

2.6 Changing Modes .................................................. 14

2.7 Connecting to TV (Mini HDMI Cable) ................ 15

Page 3

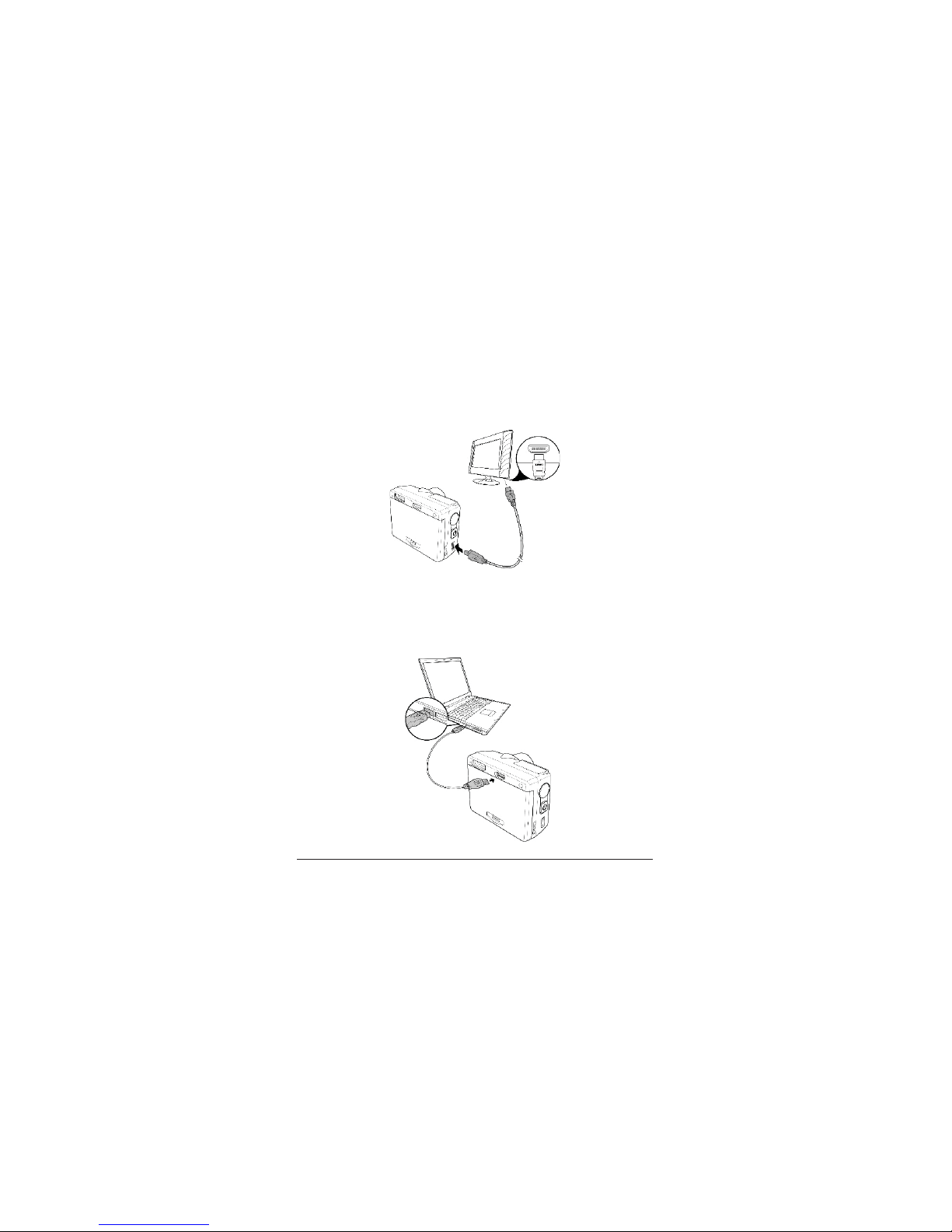

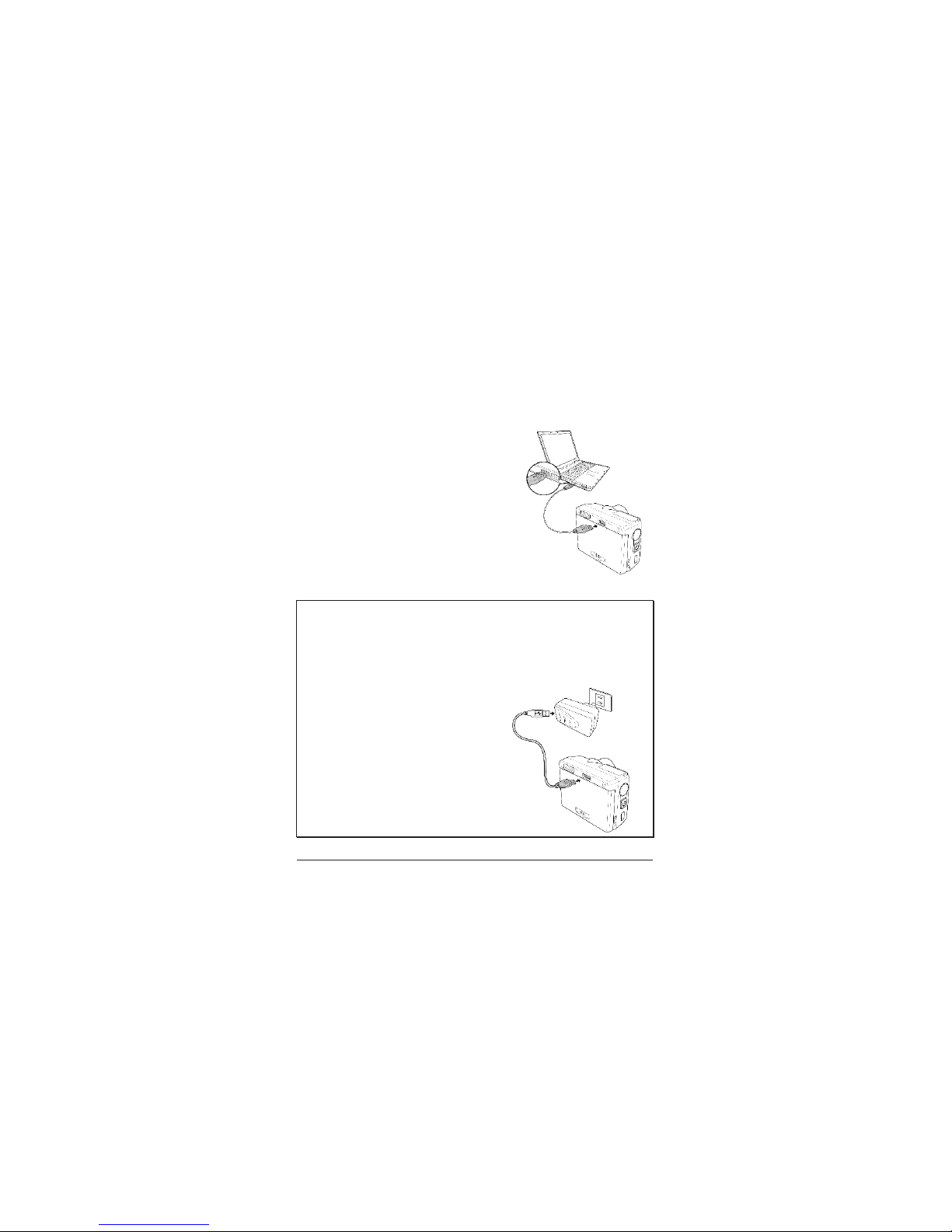

2.8 Connecting to PC (Micro USB Cable) ................. 15

2.9 Connecting to Detachable Panel (Mini HDMI) .. 16

3 Capturing Videos and Photos .................. 17

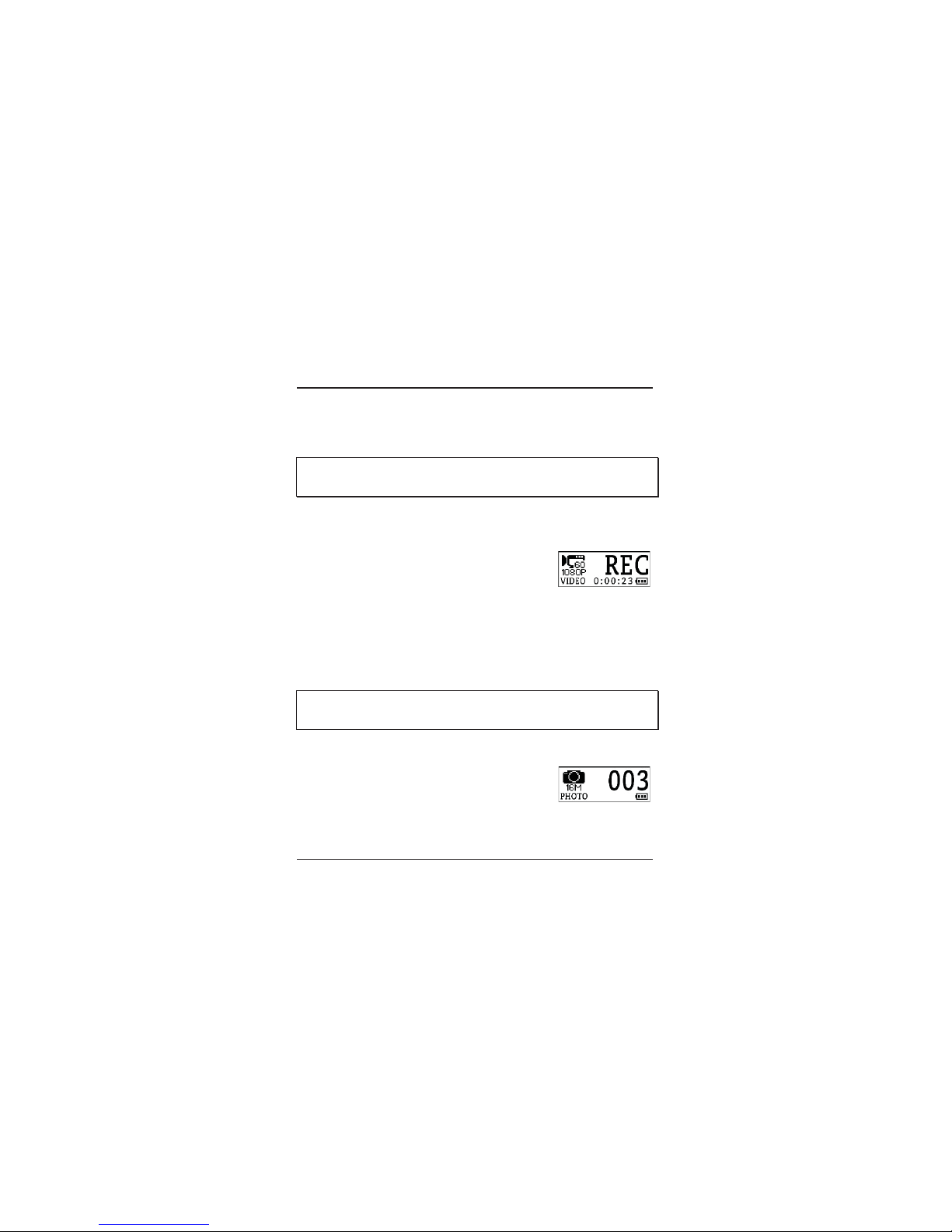

3.1 Recording Videos .................................................. 17

3.2 Taking Photos ....................................................... 17

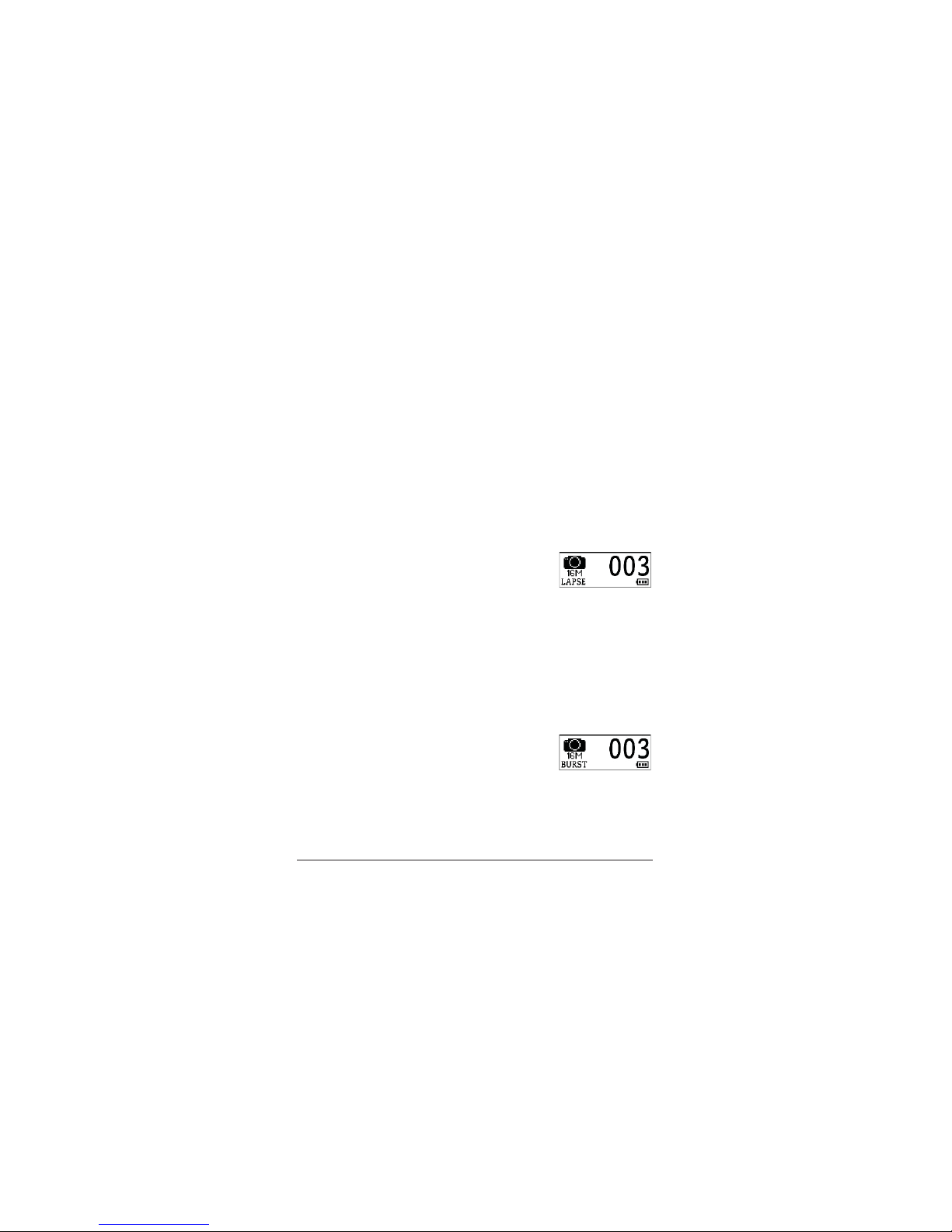

3.2.1 Lapse Shooting ......................................... 18

3.2.2 Burst Shooting .......................................... 18

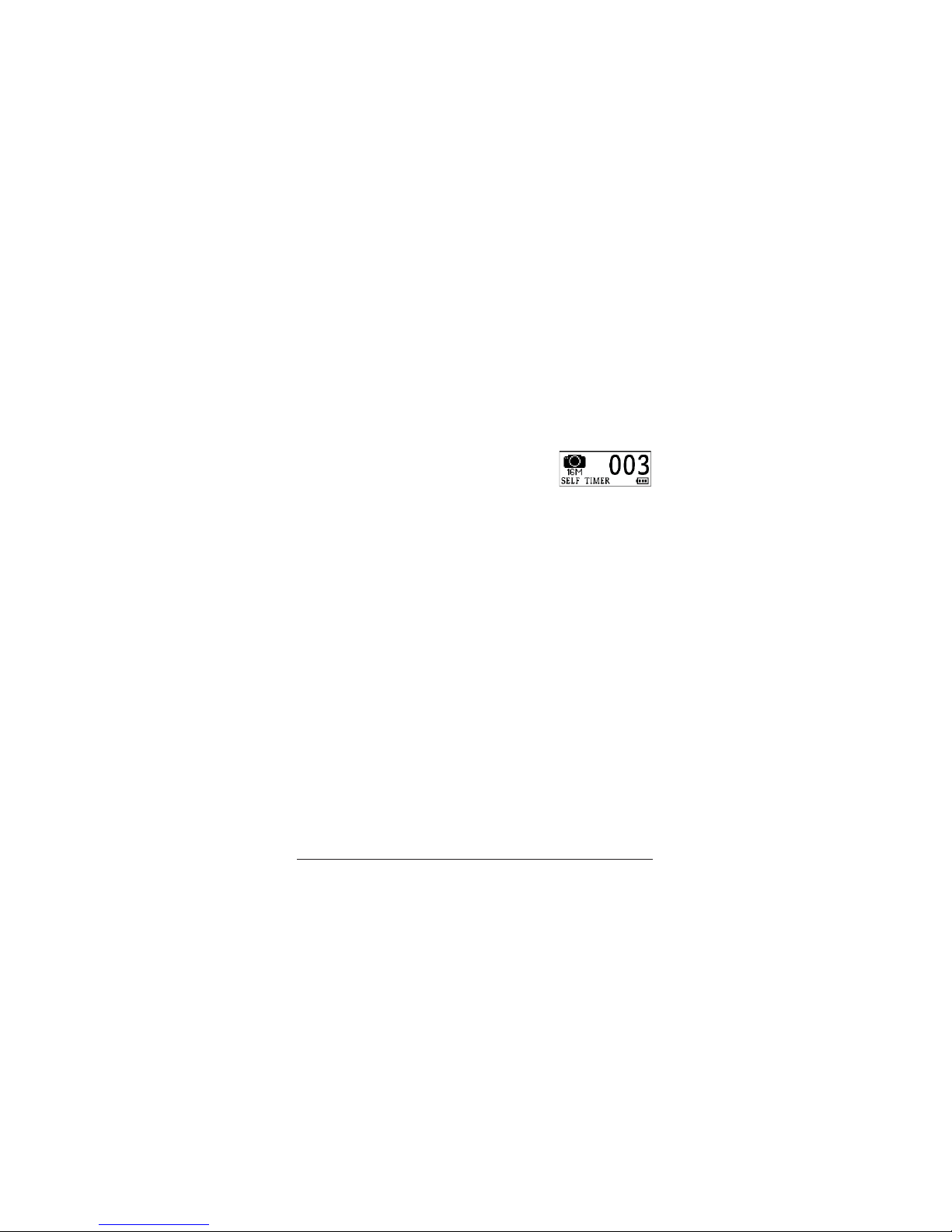

3.2.3 Self-Timer .................................................. 19

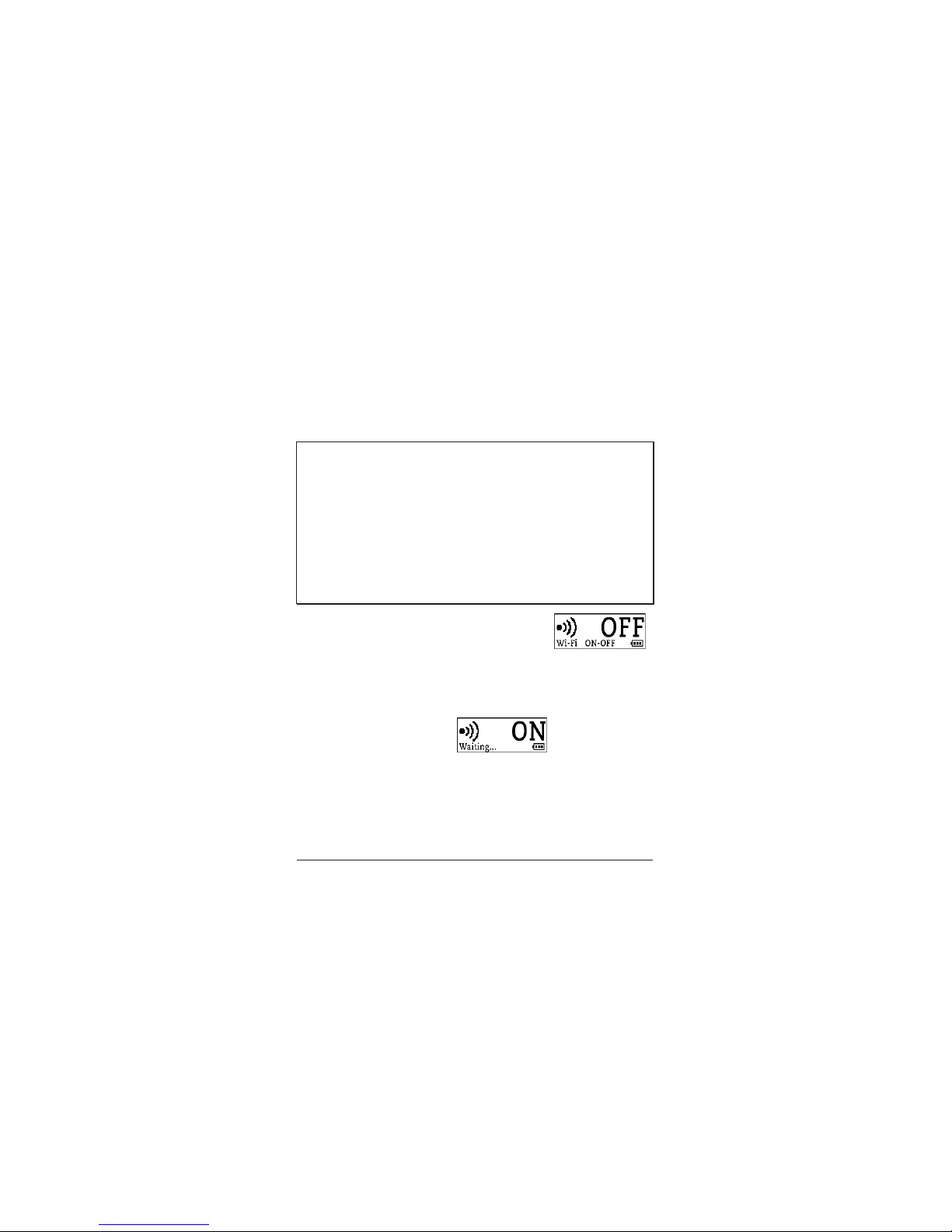

3.3 Wi-Fi ..................................................................... 20

3.4 Delete .................................................................... 22

4 Adjusting the Settings .............................. 23

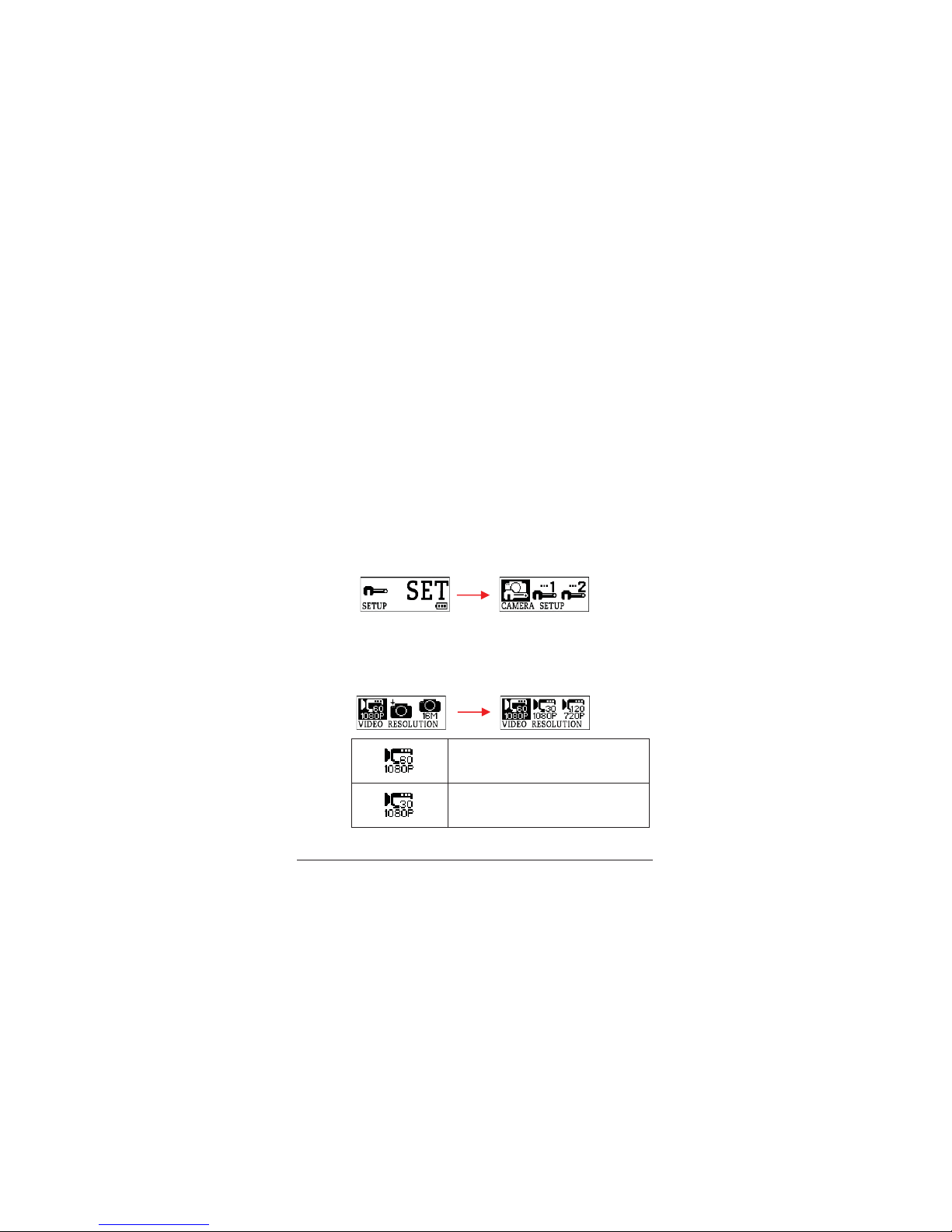

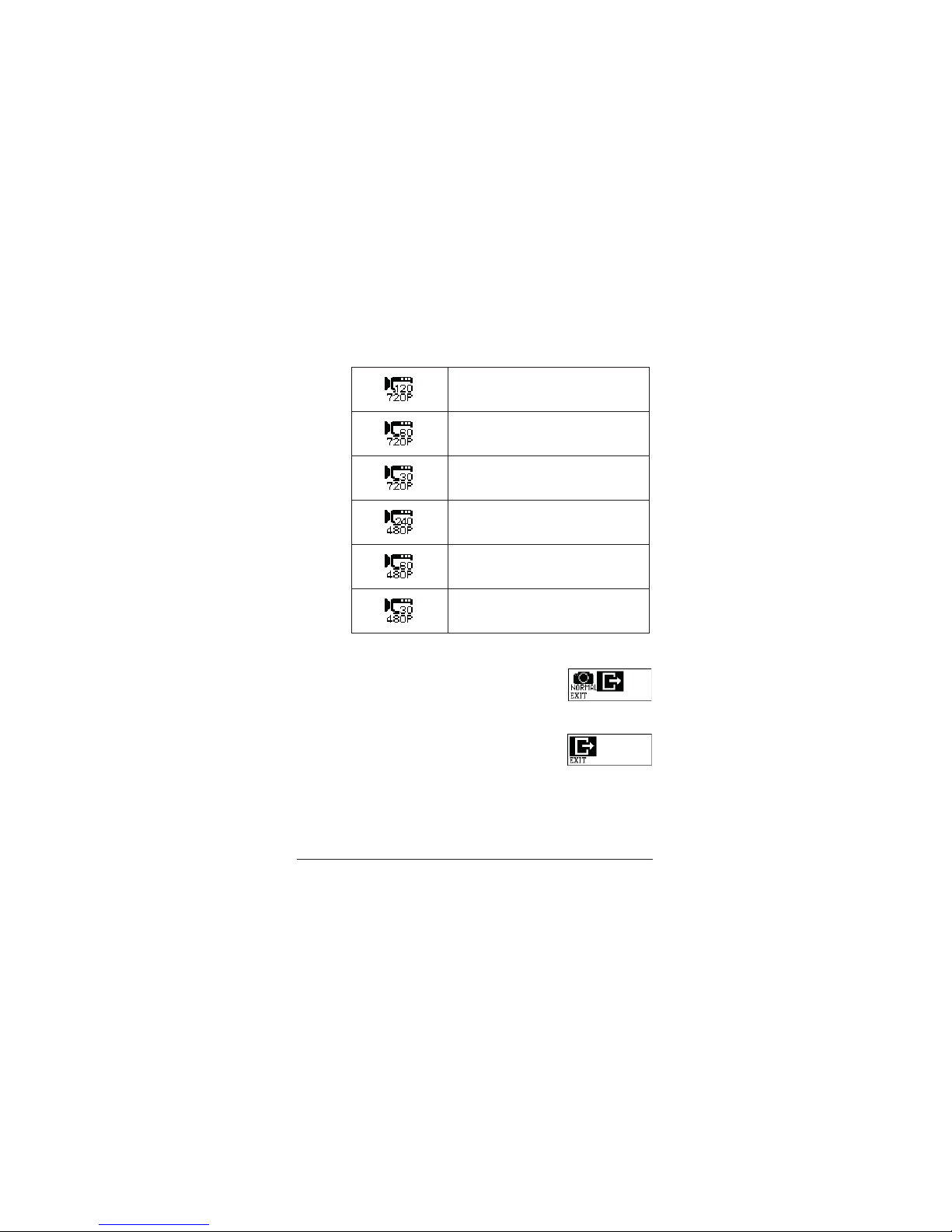

4.1 Video Resolution ................................................... 26

4.2 Photo Mode ........................................................... 29

4.2.1 Lapse .......................................................... 29

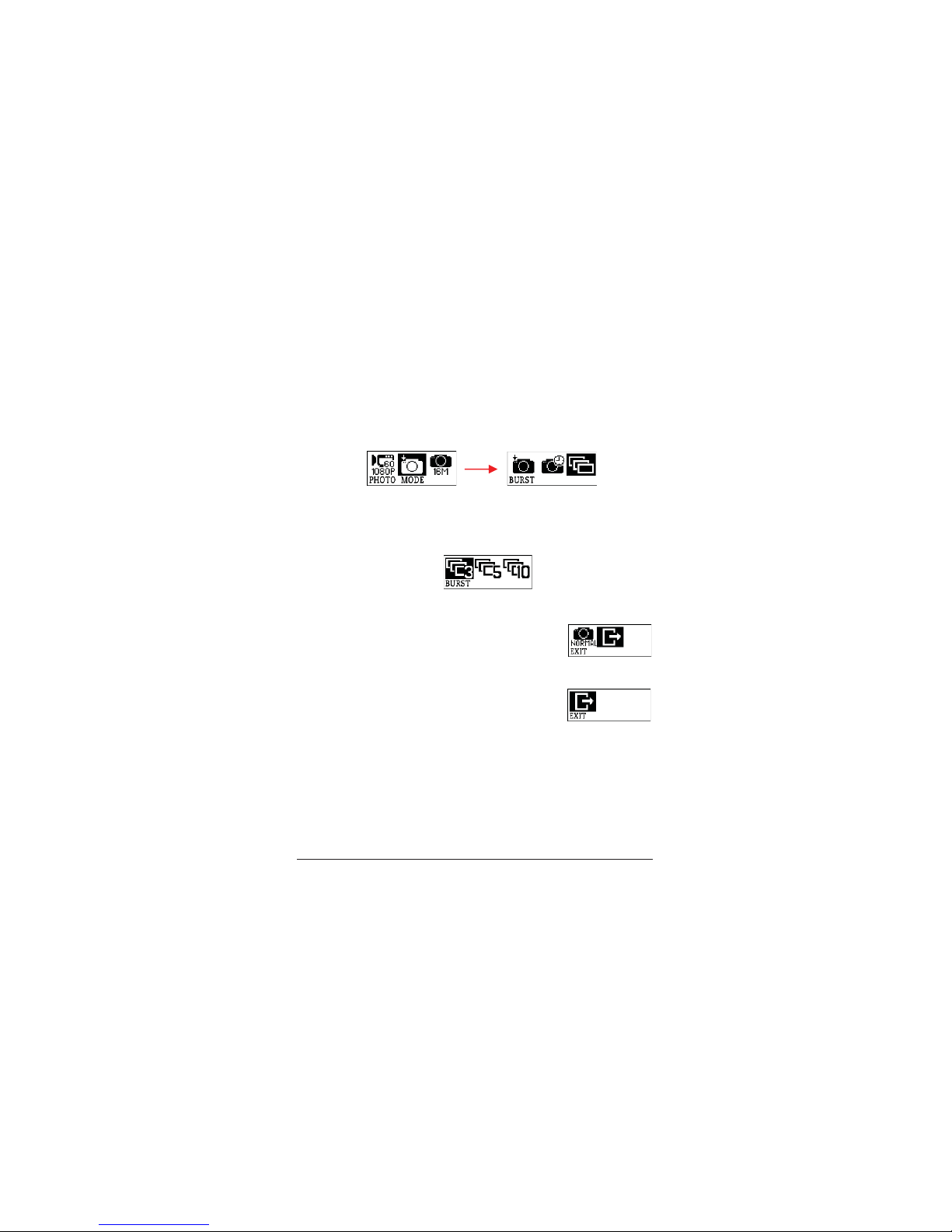

4.2.2 Burst Shooting .......................................... 30

4.2.3 Self-Timer .................................................. 32

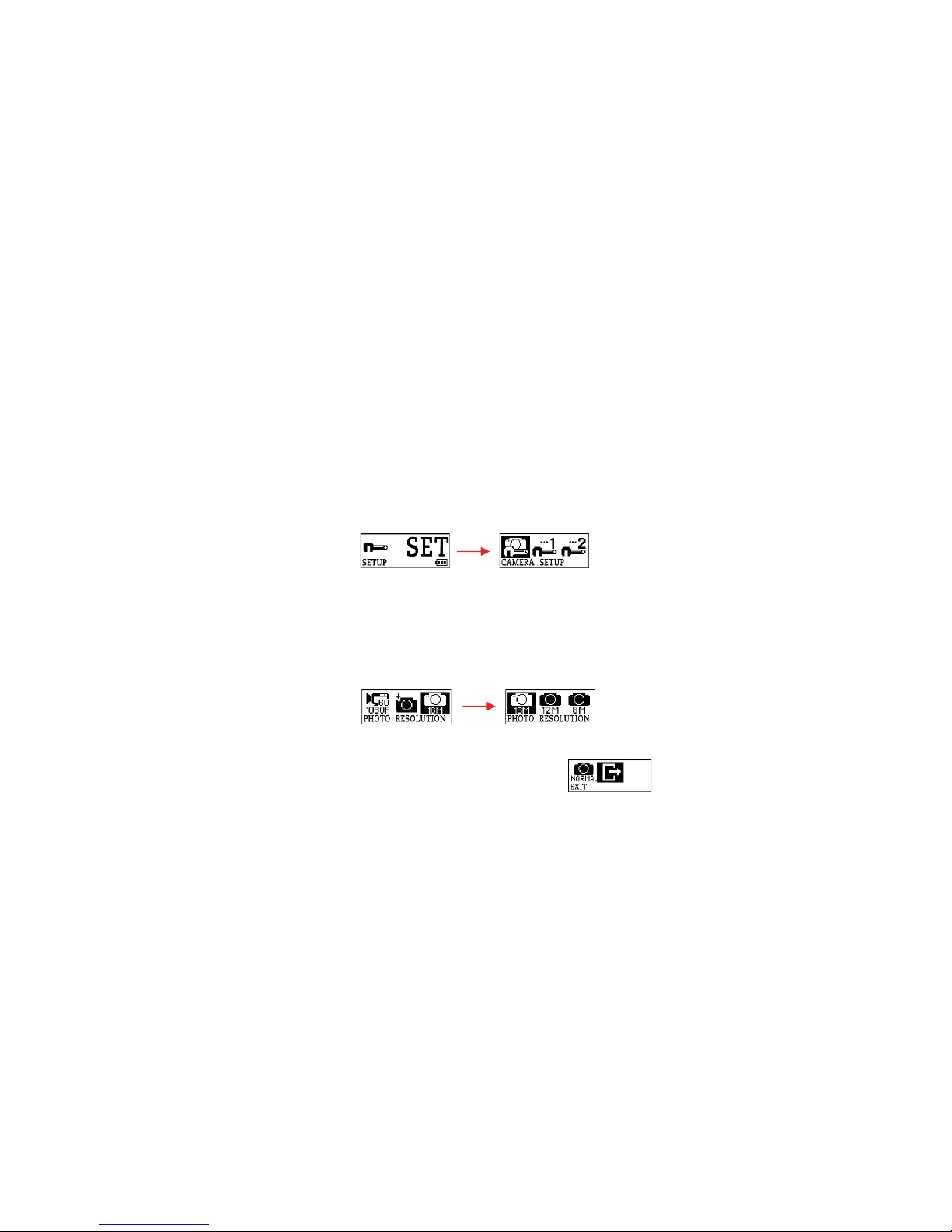

4.3 Photo Resolution .................................................. 34

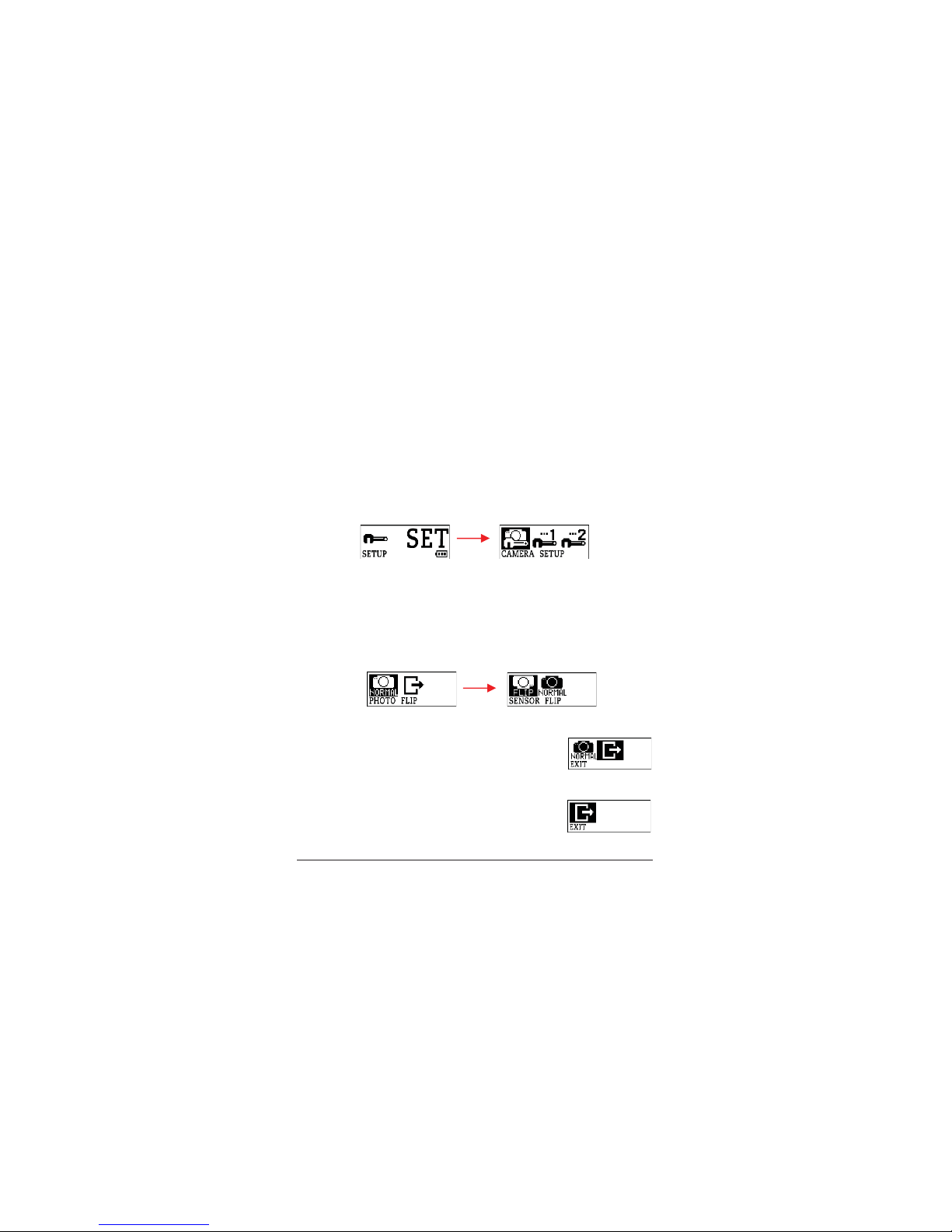

4.4 Sensor Flip ........................................................... 36

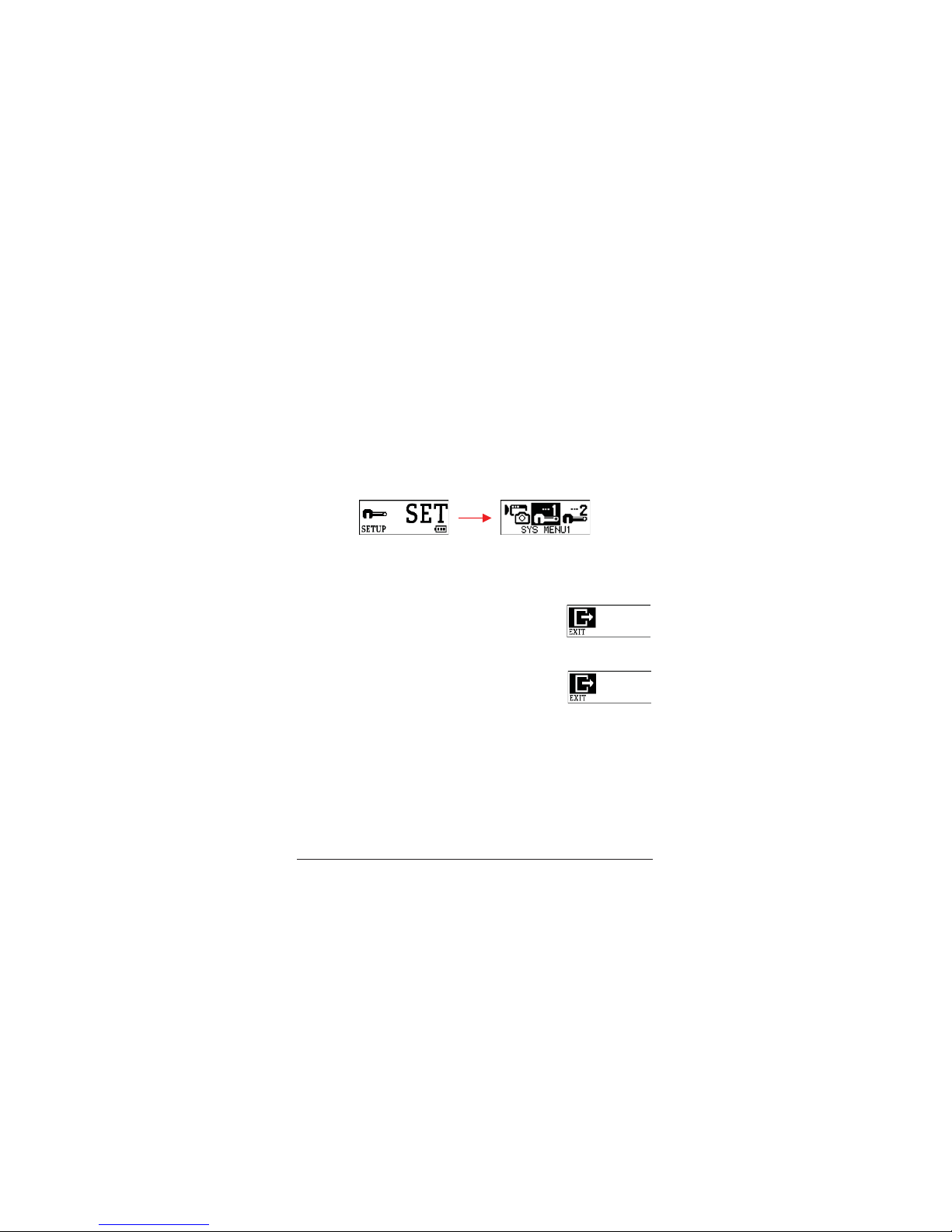

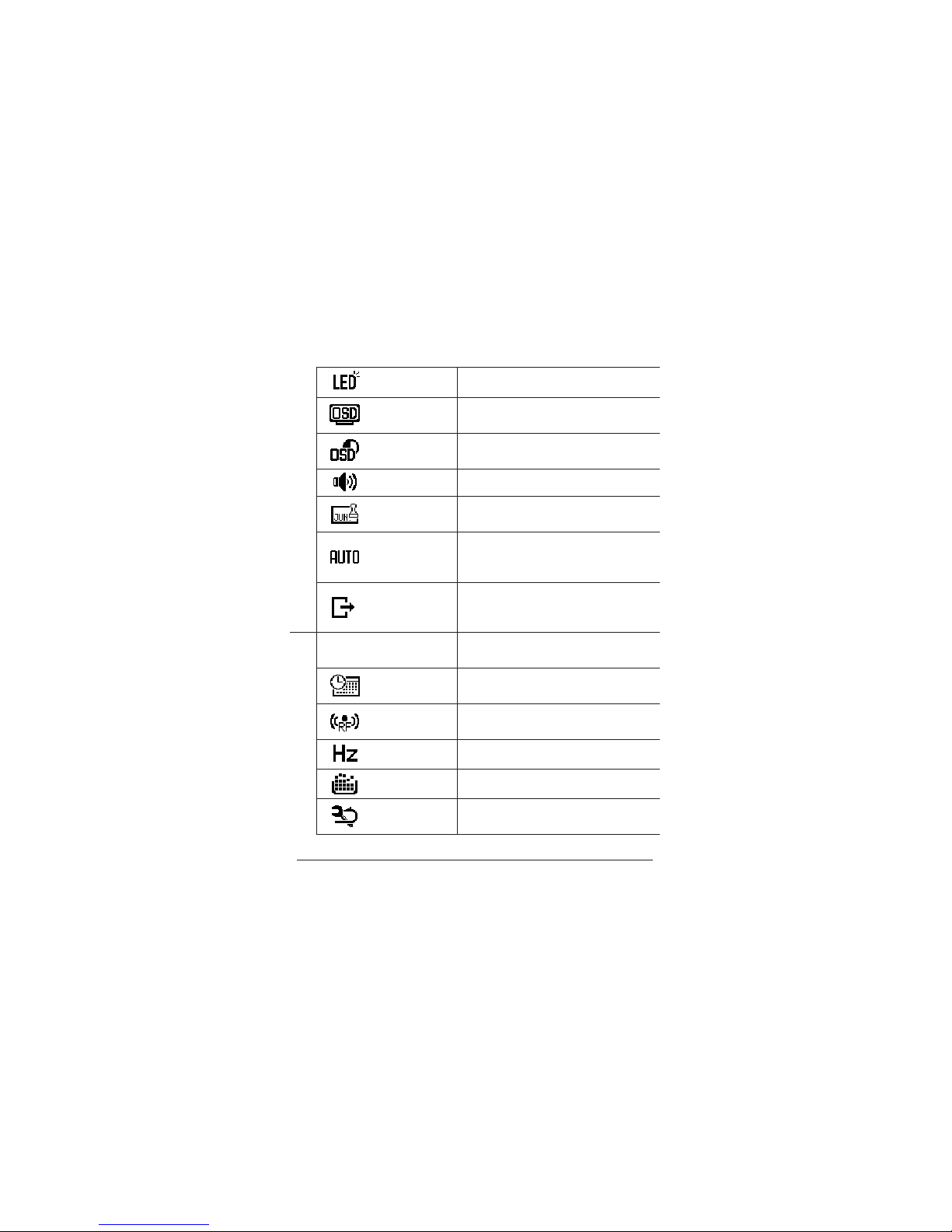

4.5 System Menu 1 ..................................................... 37

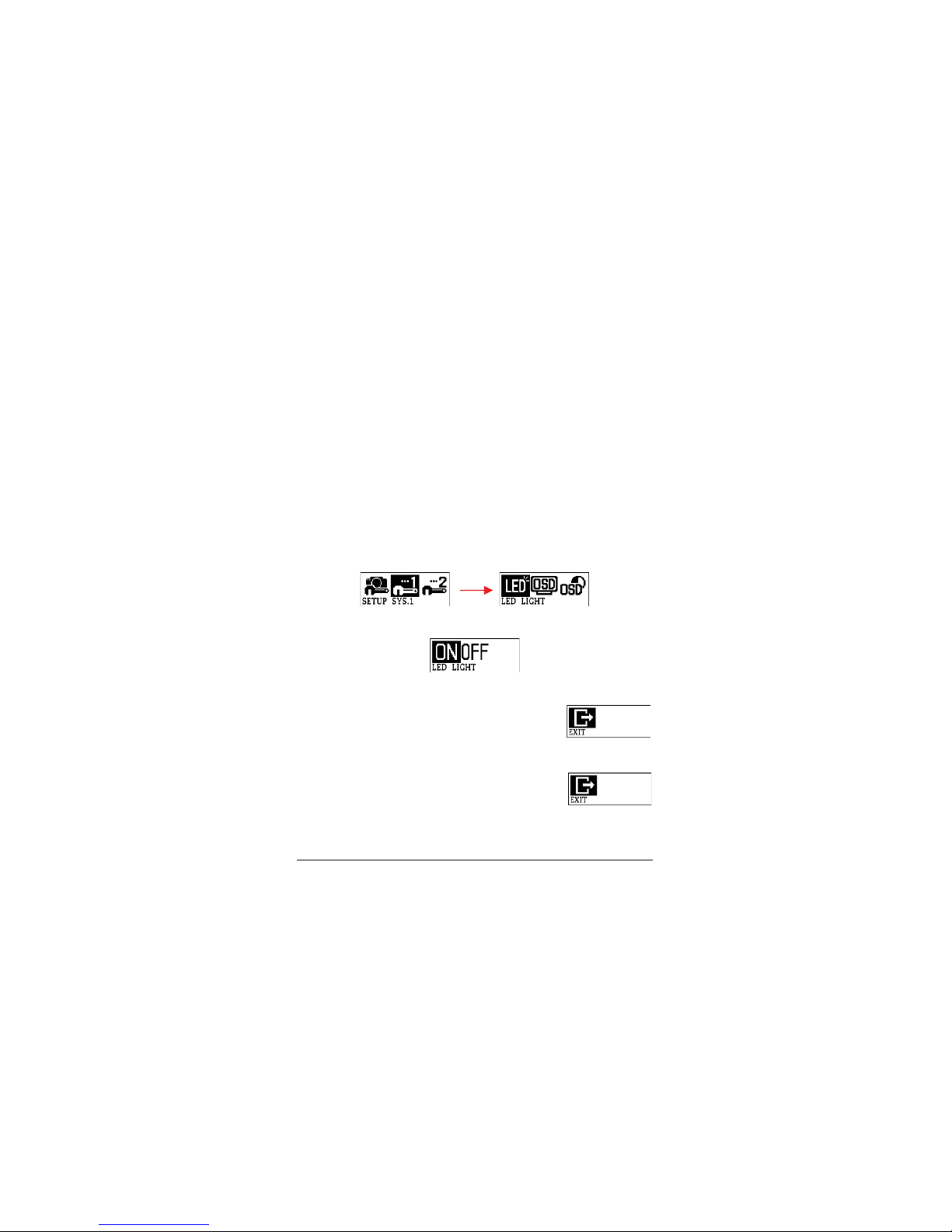

4.5.1 LED Light .................................................. 38

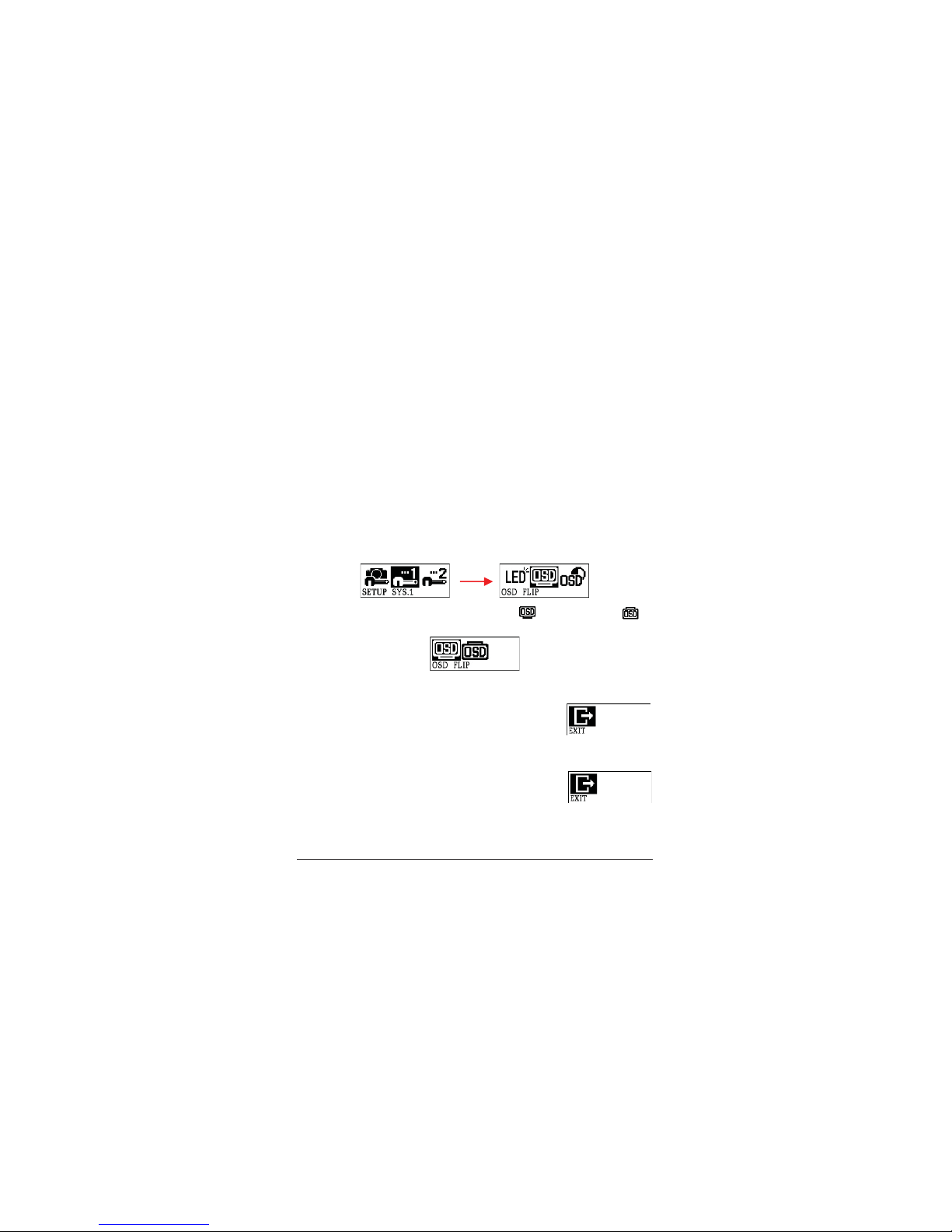

4.5.2 OSD Flip .................................................... 39

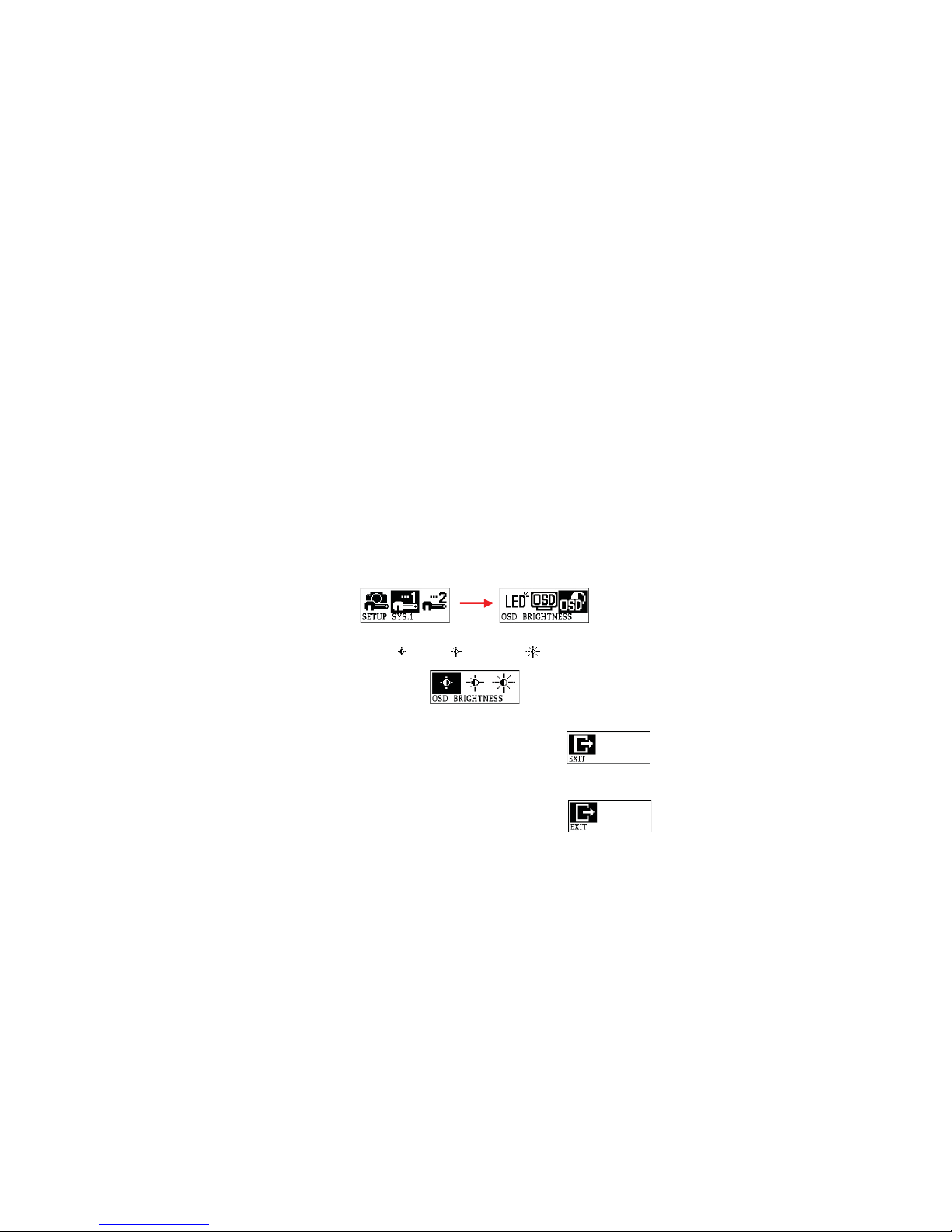

4.5.3 Brightness ................................................. 40

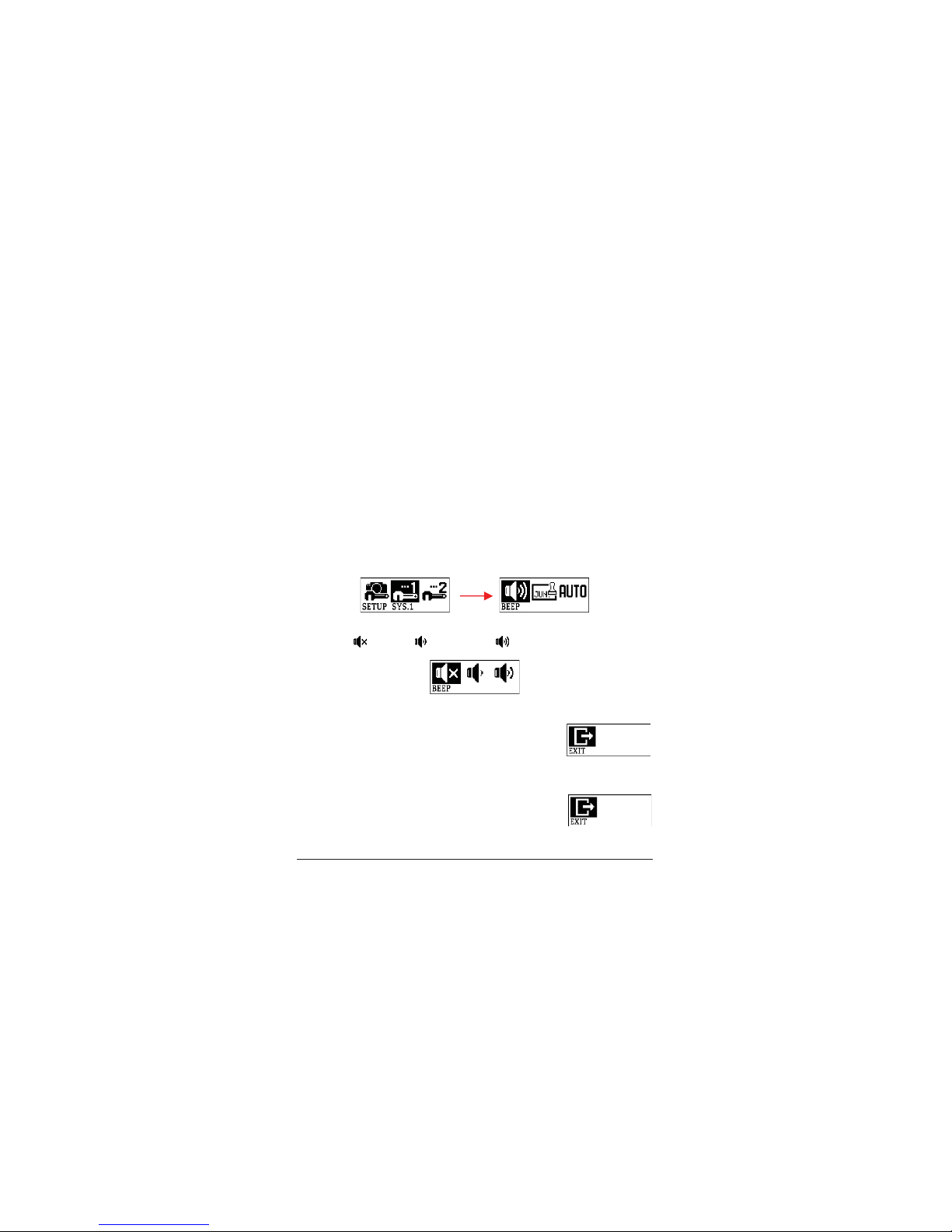

4.5.4 Beep ........................................................... 41

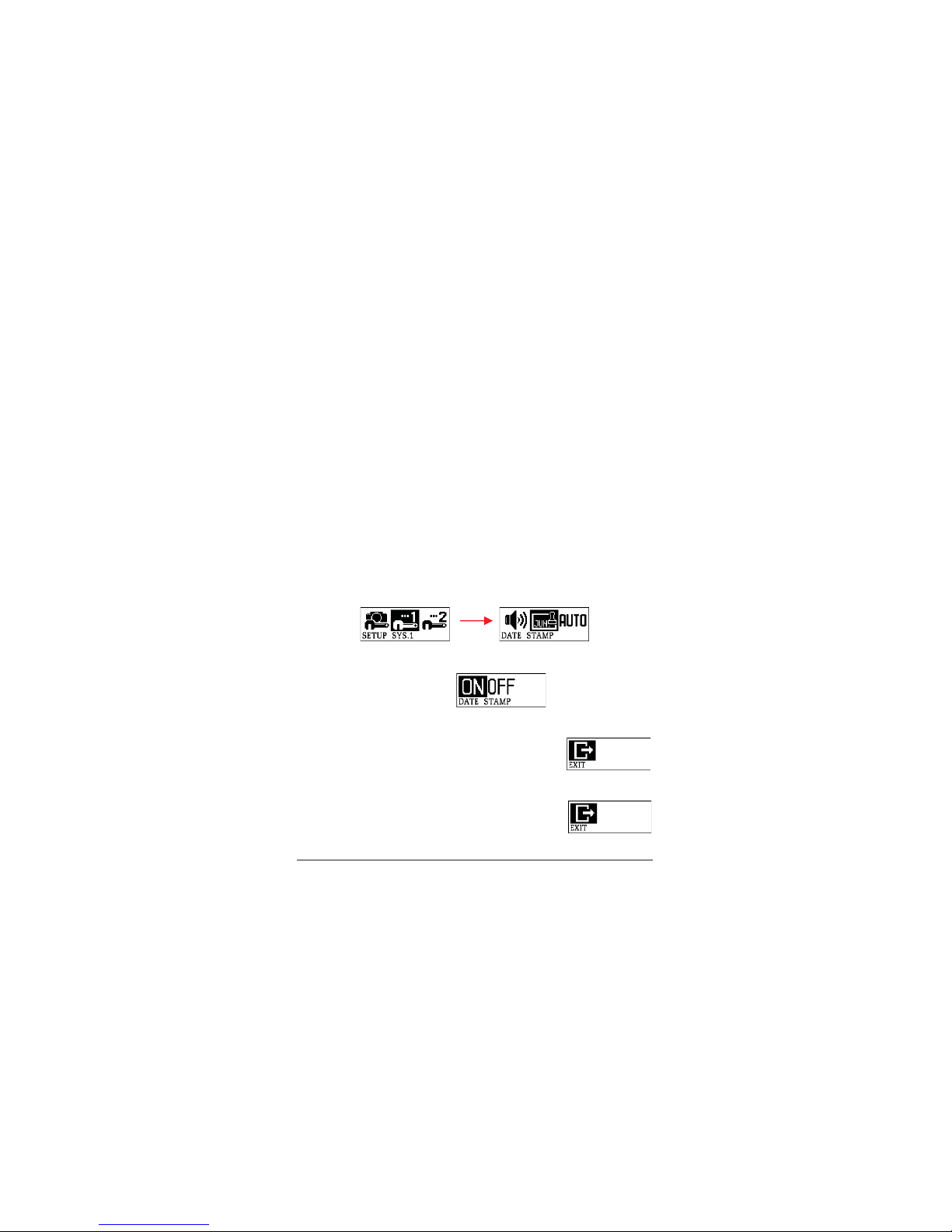

4.5.5 Date Stamp ............................................... 42

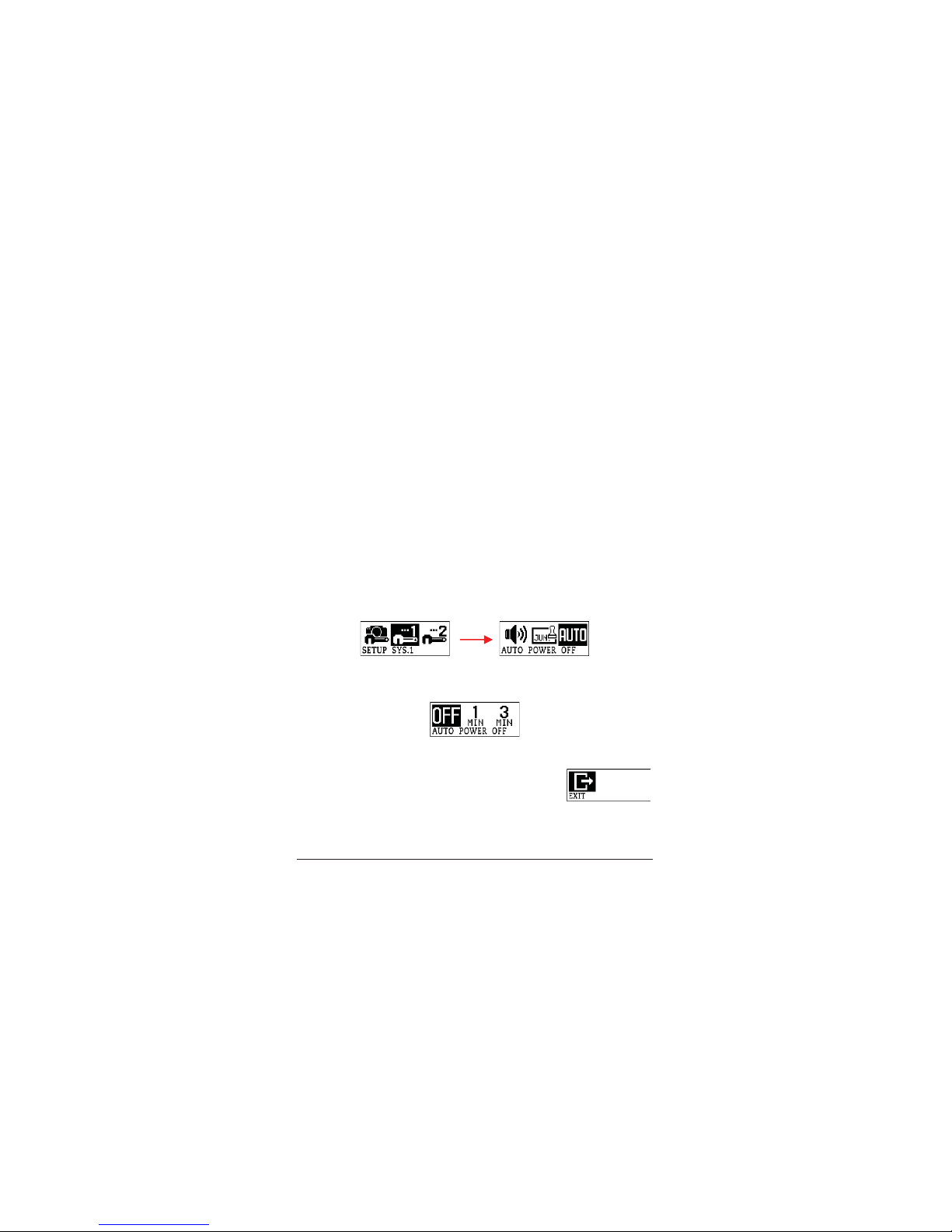

4.5.6 Auto Power Off ........................................ 43

Page 4

iii

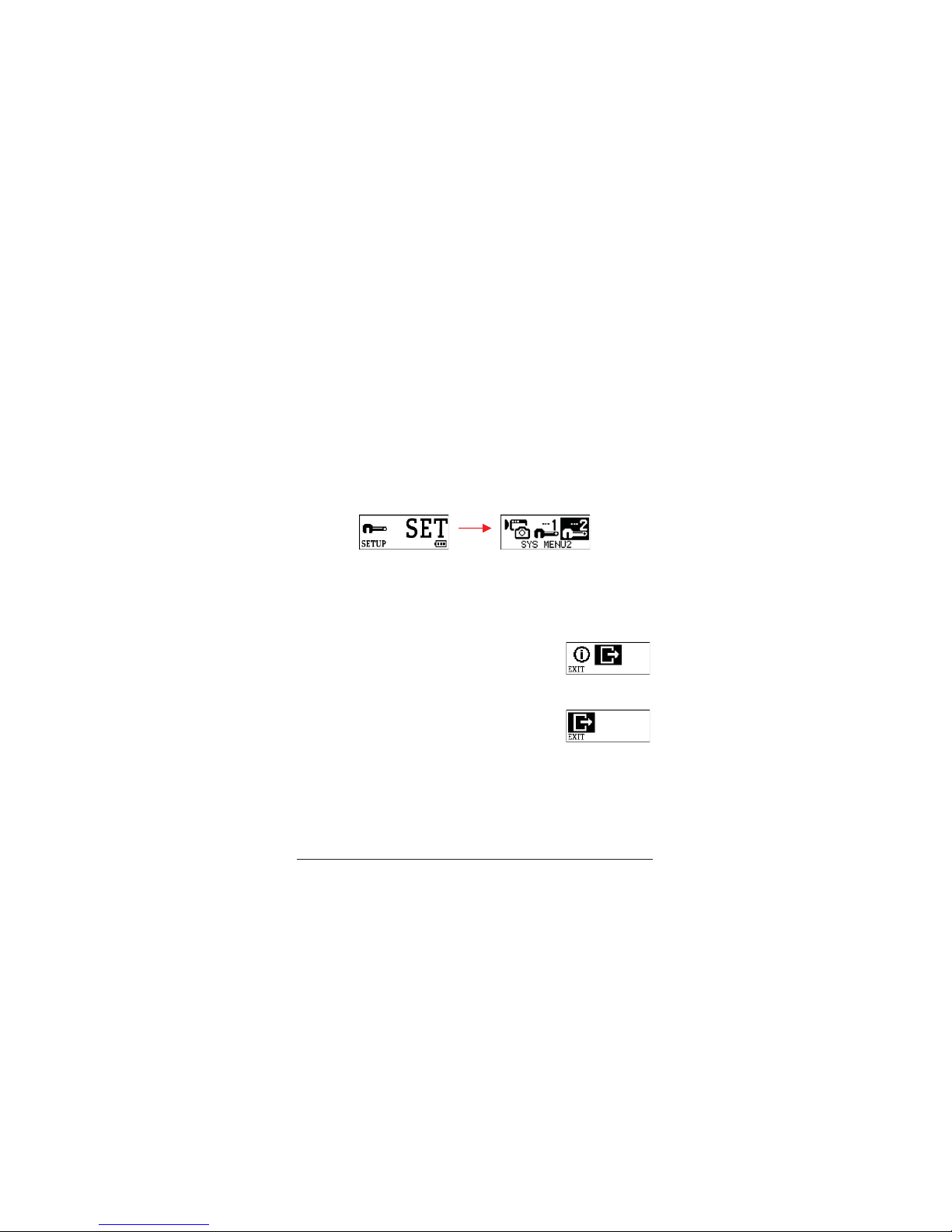

4.6 System Menu 2 ..................................................... 45

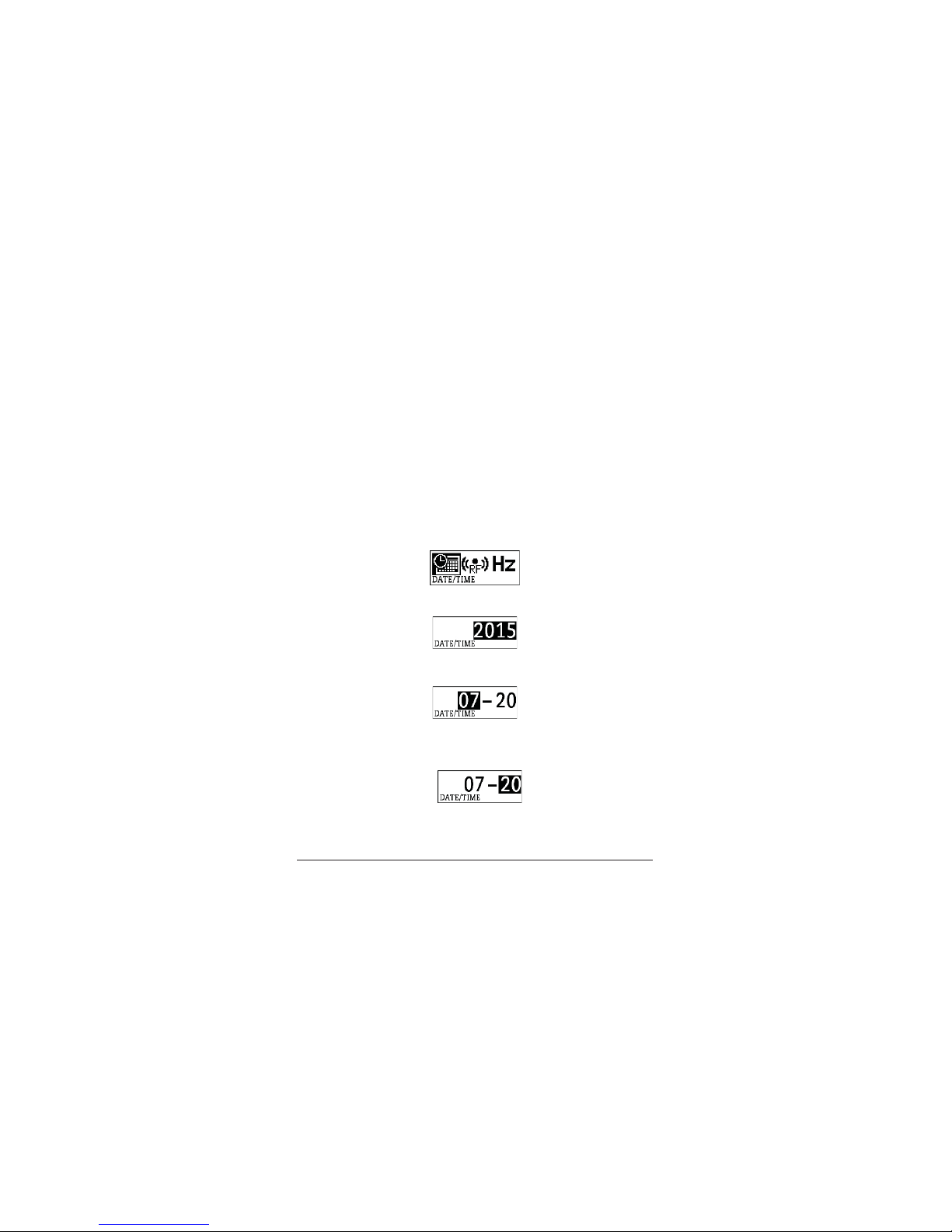

4.6.1 Date and Time .......................................... 46

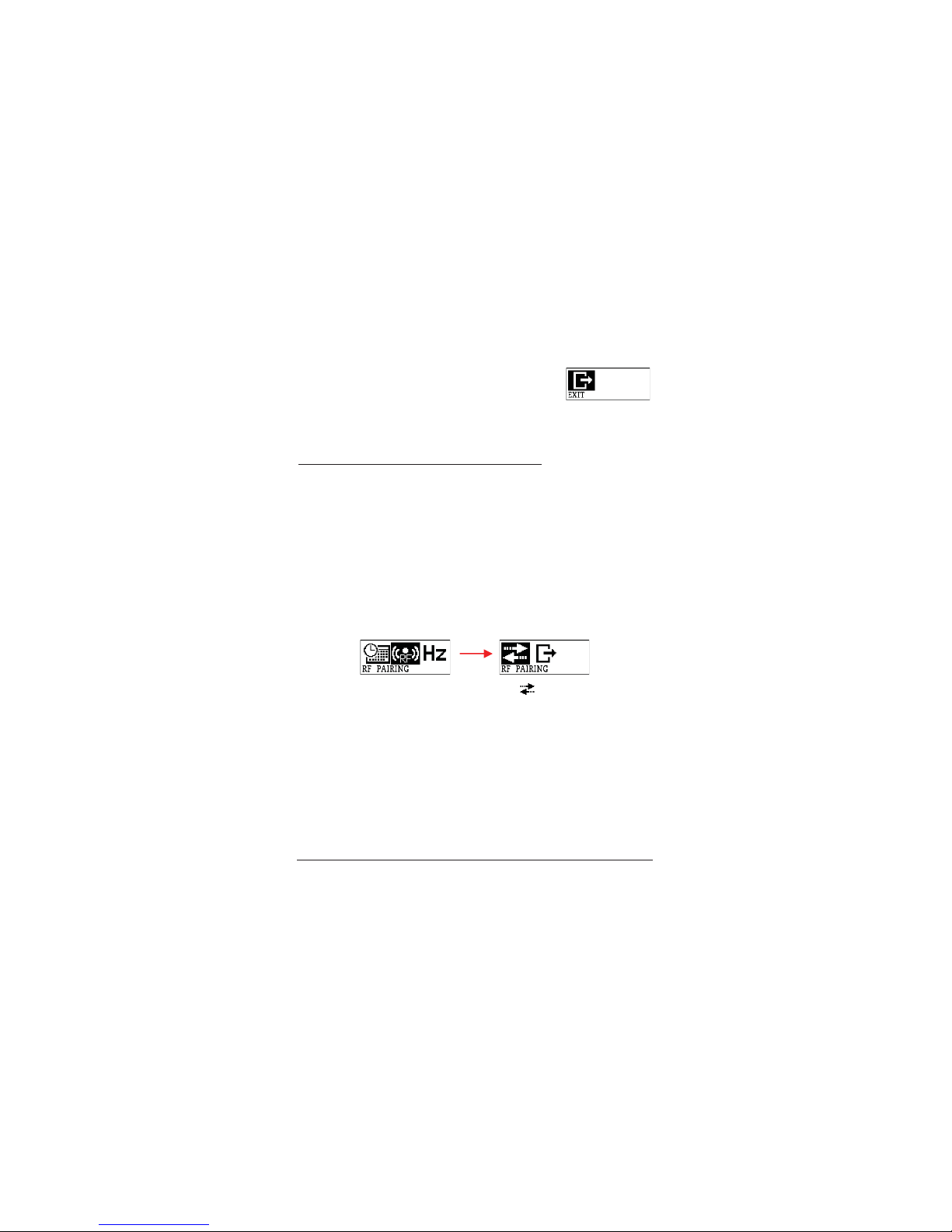

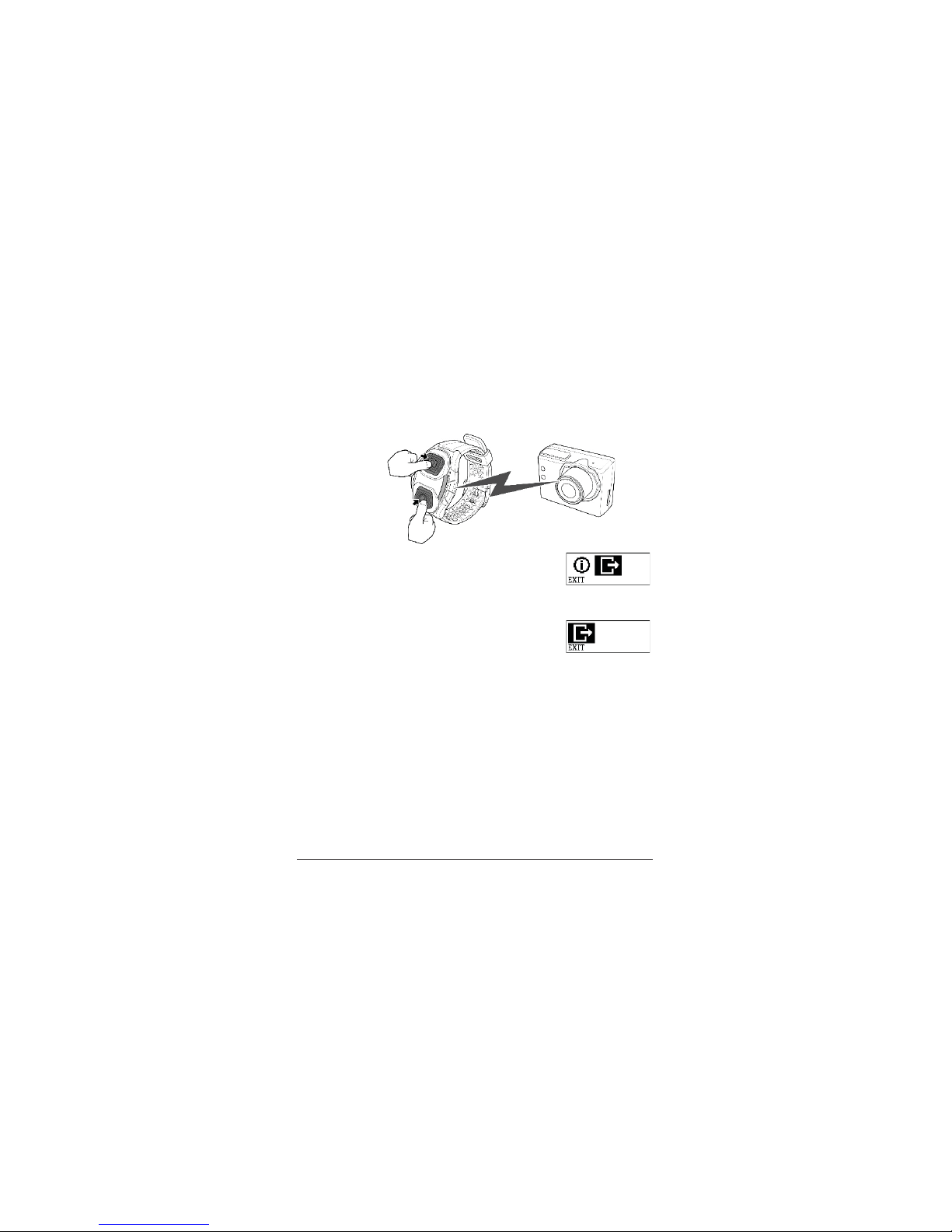

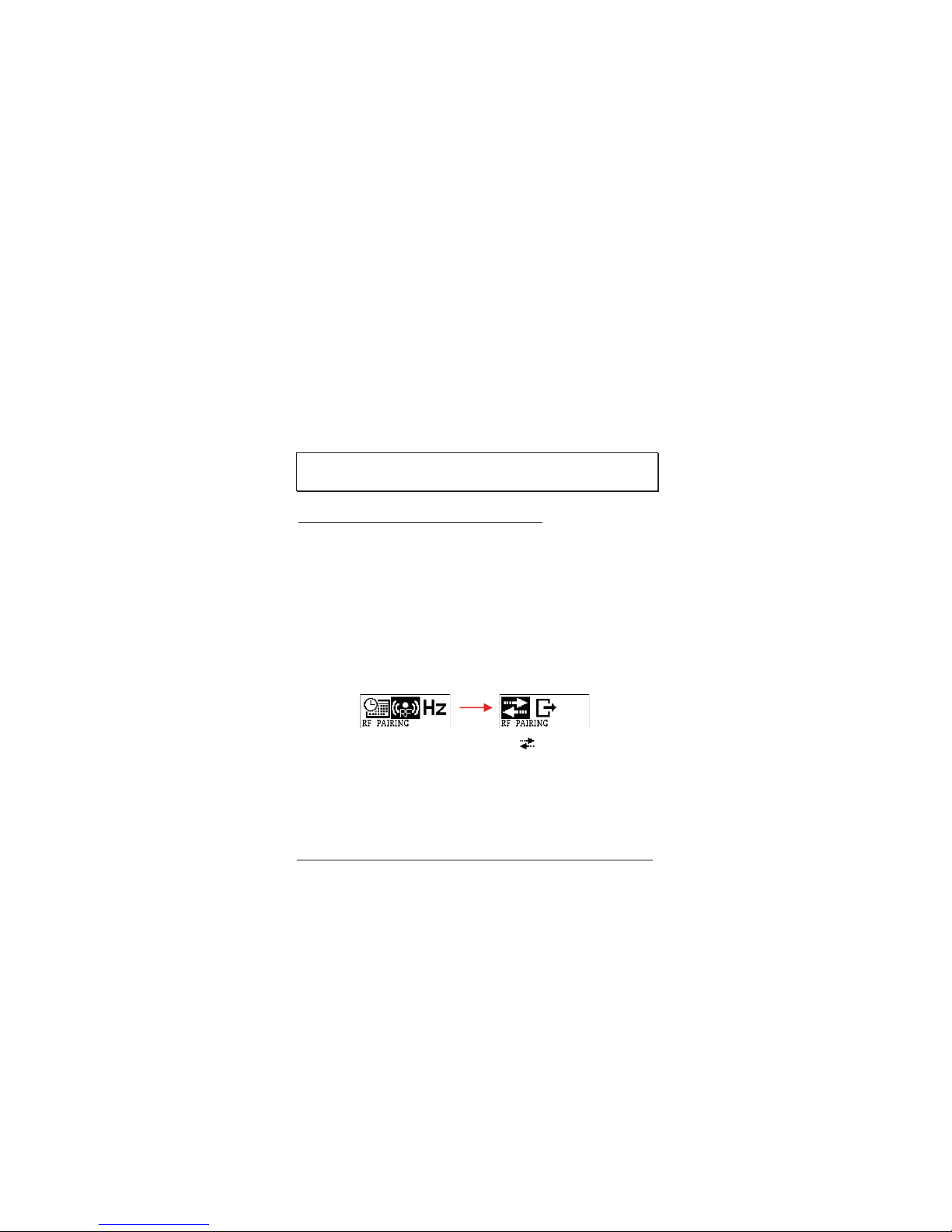

4.6.2 RF Pairing ................................................. 48

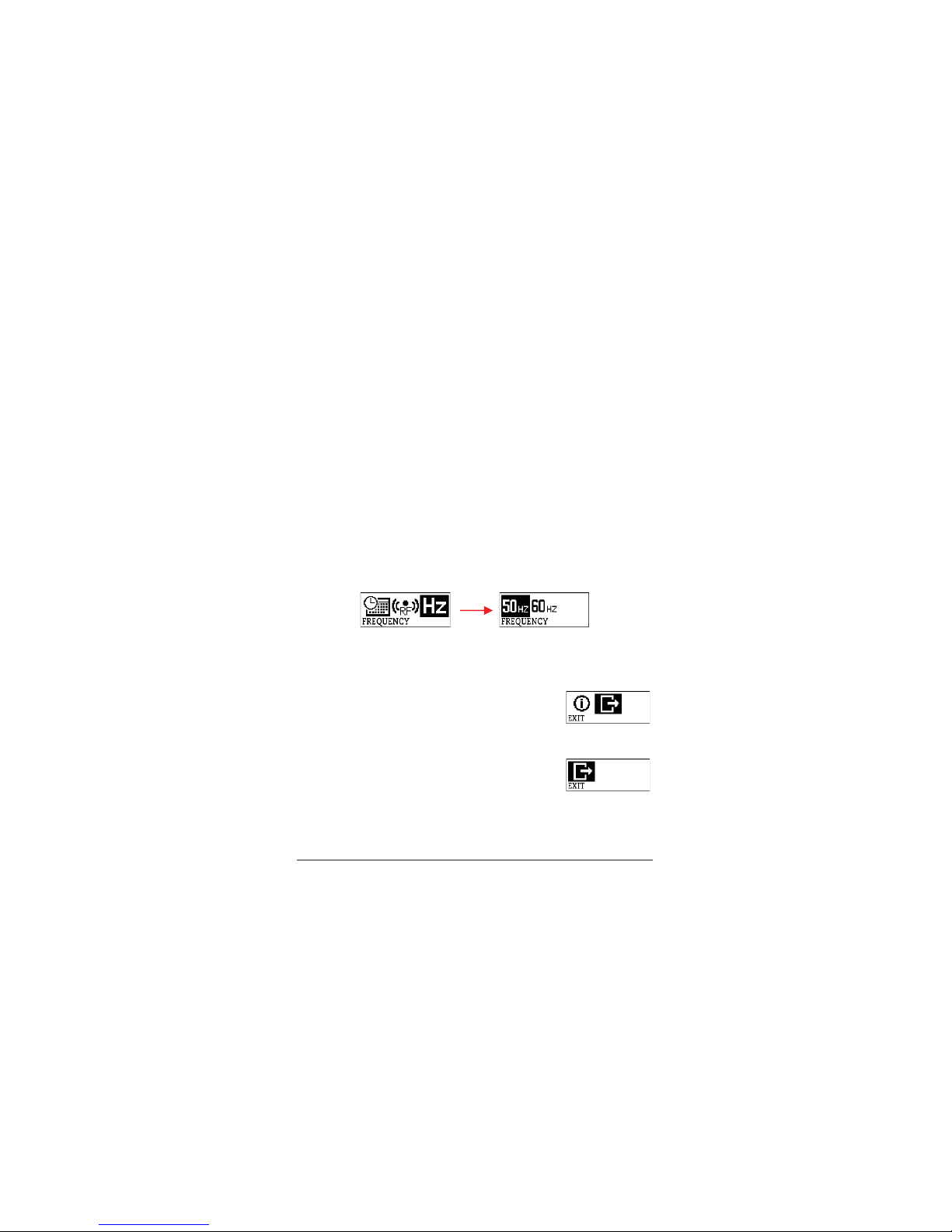

4.6.3 Frequency.................................................. 52

4.6.4 Format ....................................................... 53

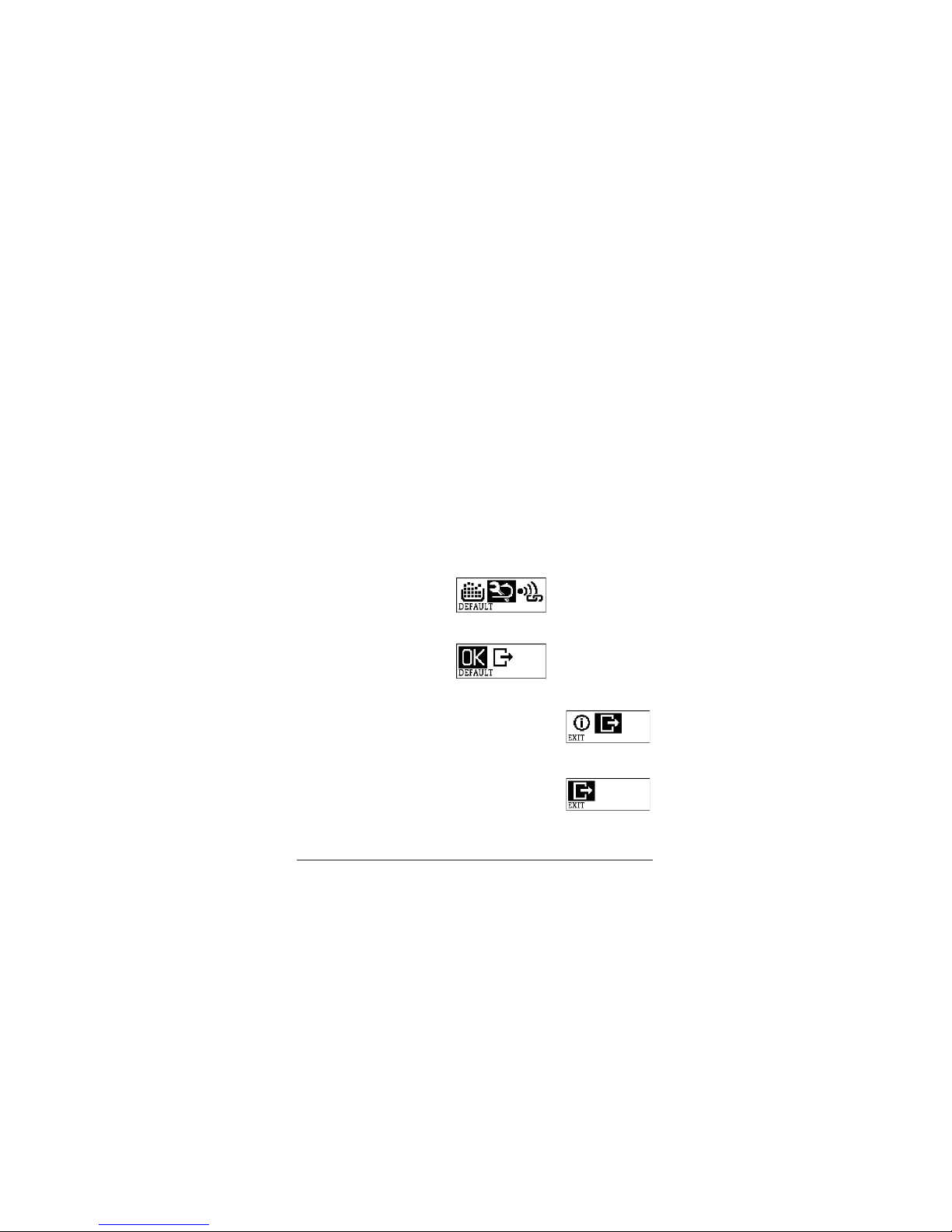

4.6.5 Factory Default ......................................... 54

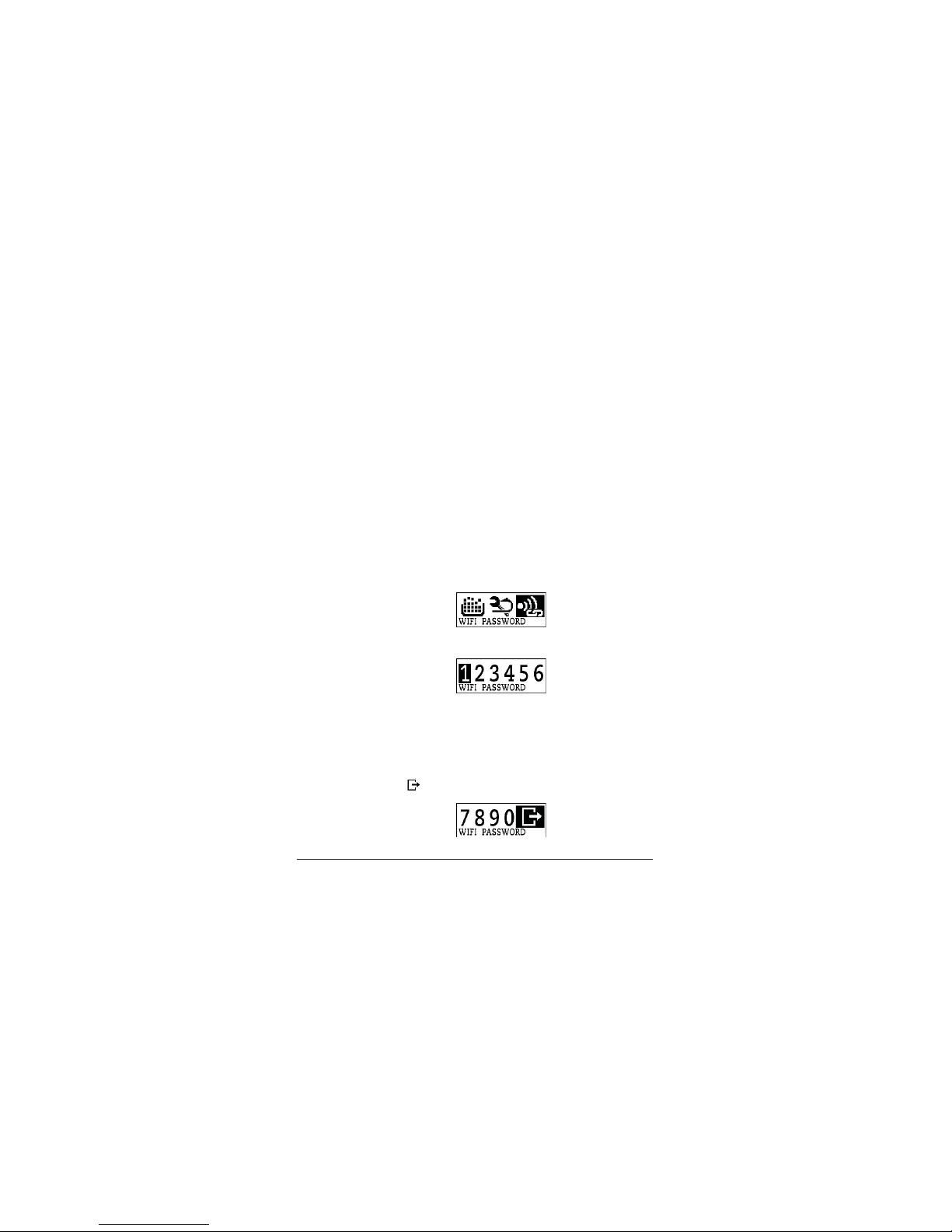

4.6.6 Wi-Fi Password ........................................ 55

4.6.7 Version Number ....................................... 56

5 Using the Accessories ............................... 58

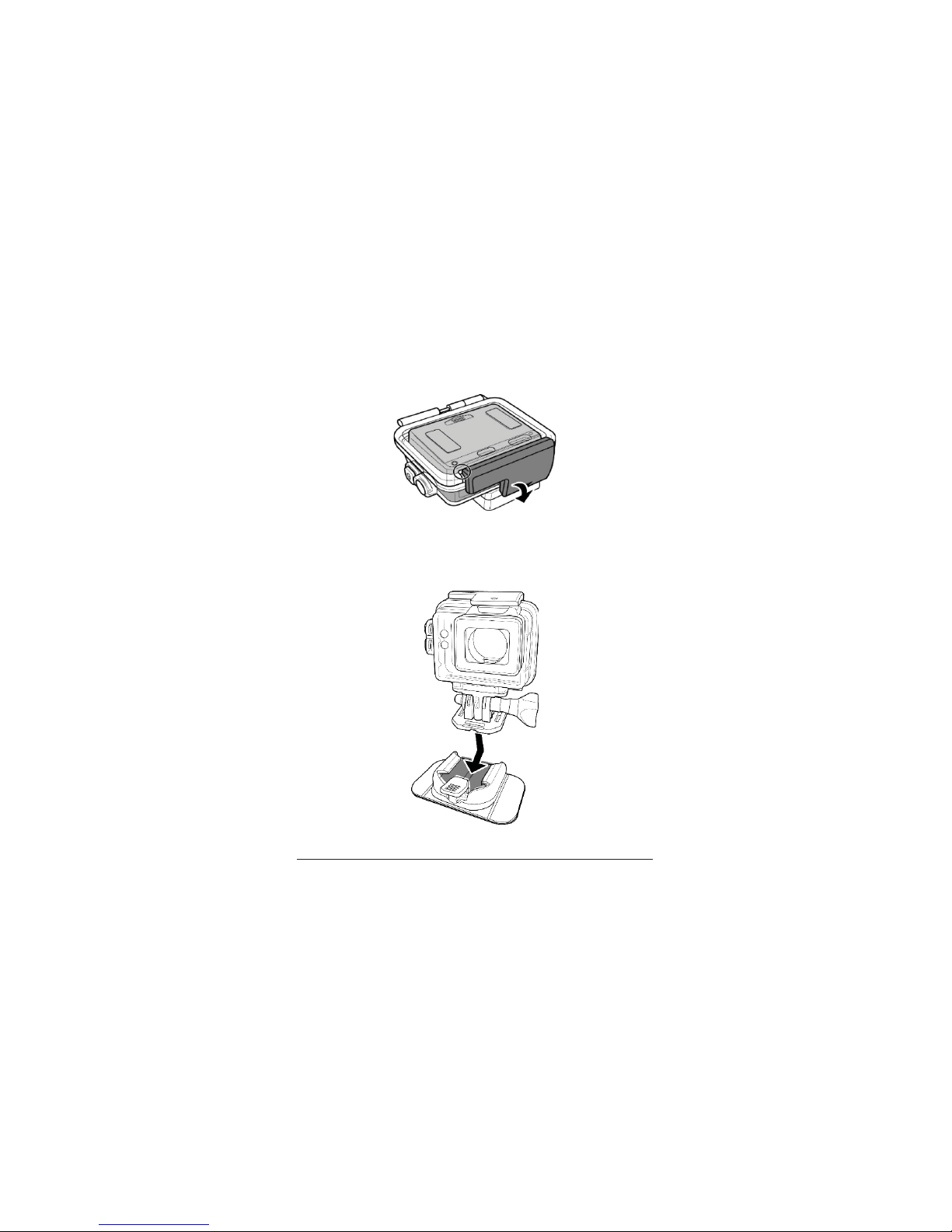

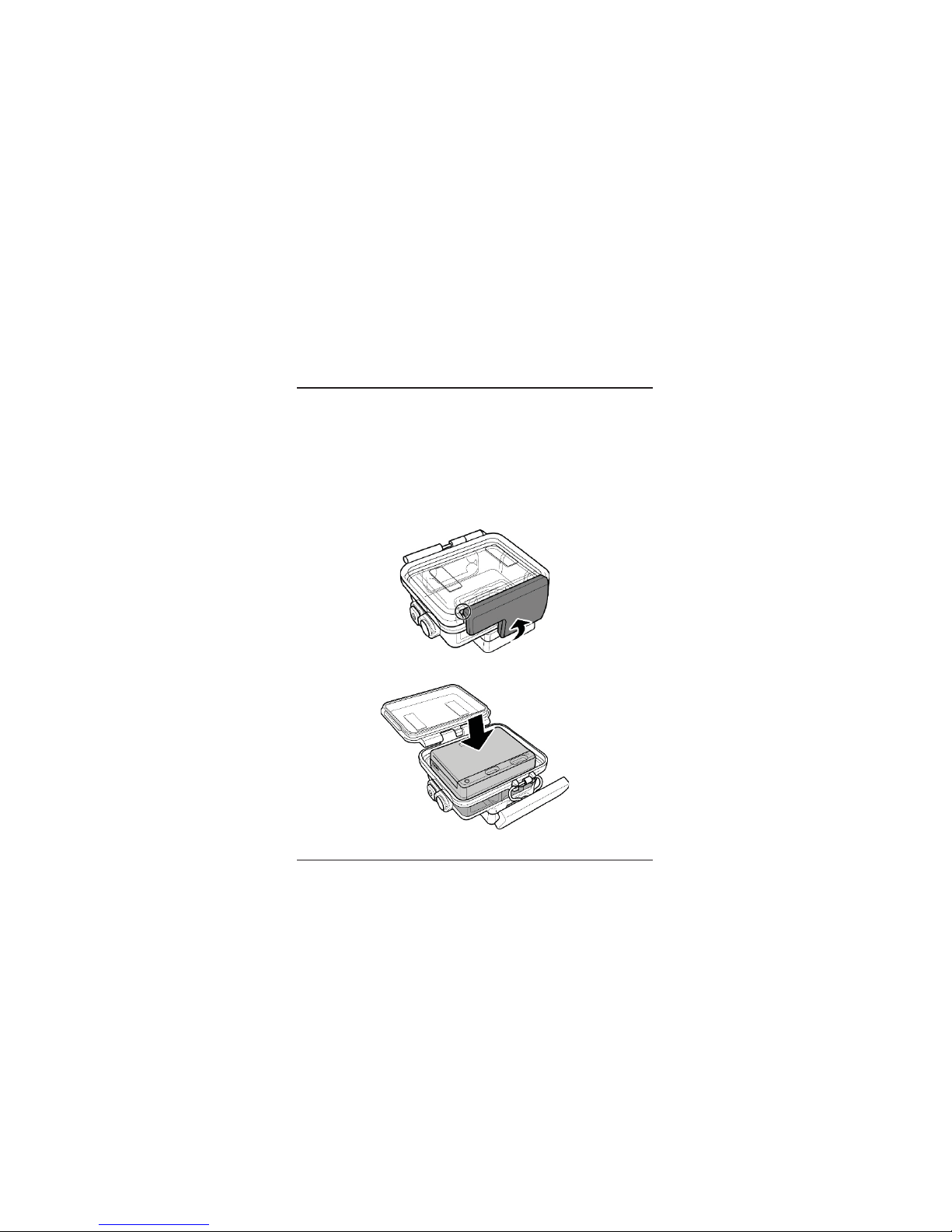

5.1 Waterproof Case ................................................... 58

5.2 Assembling the Camera Accessories .................... 59

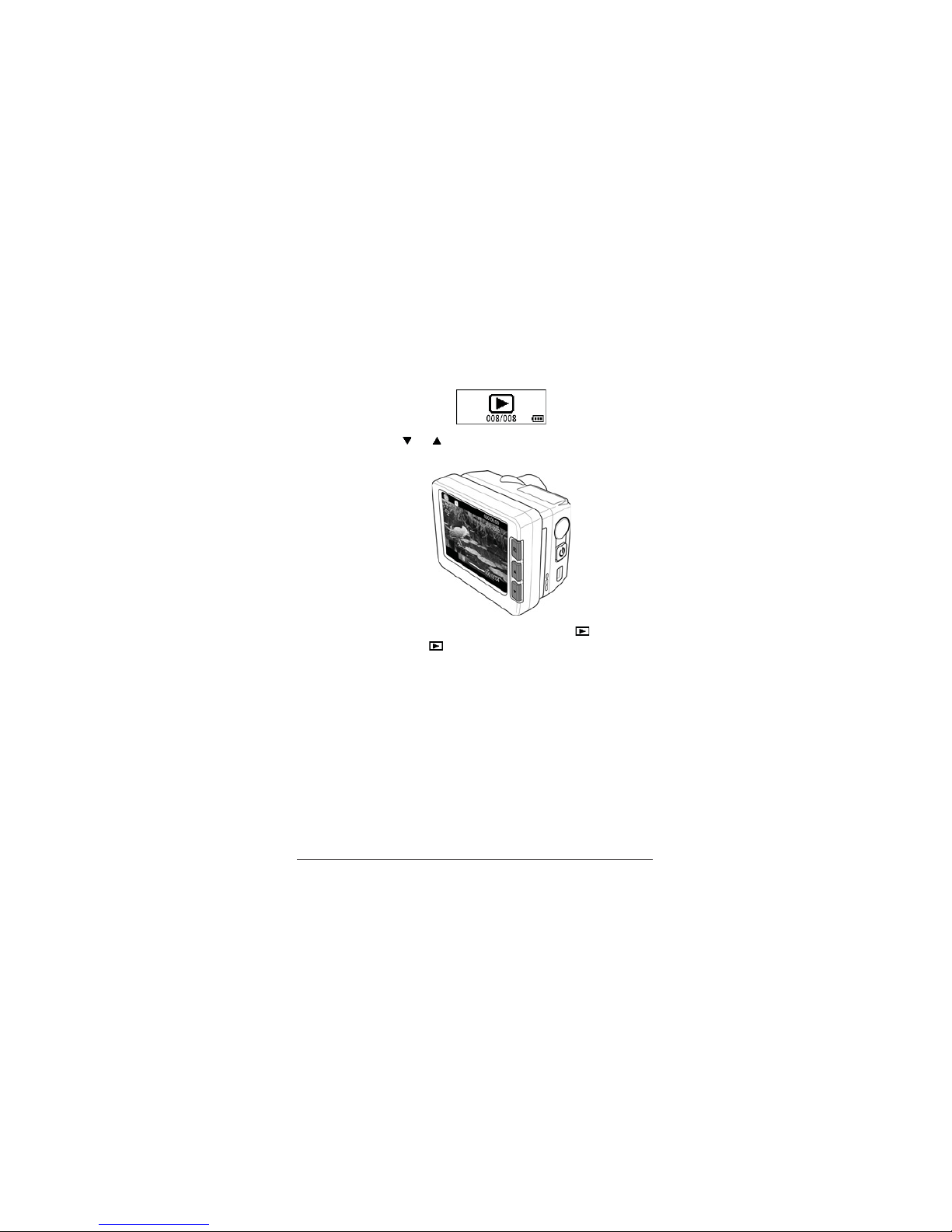

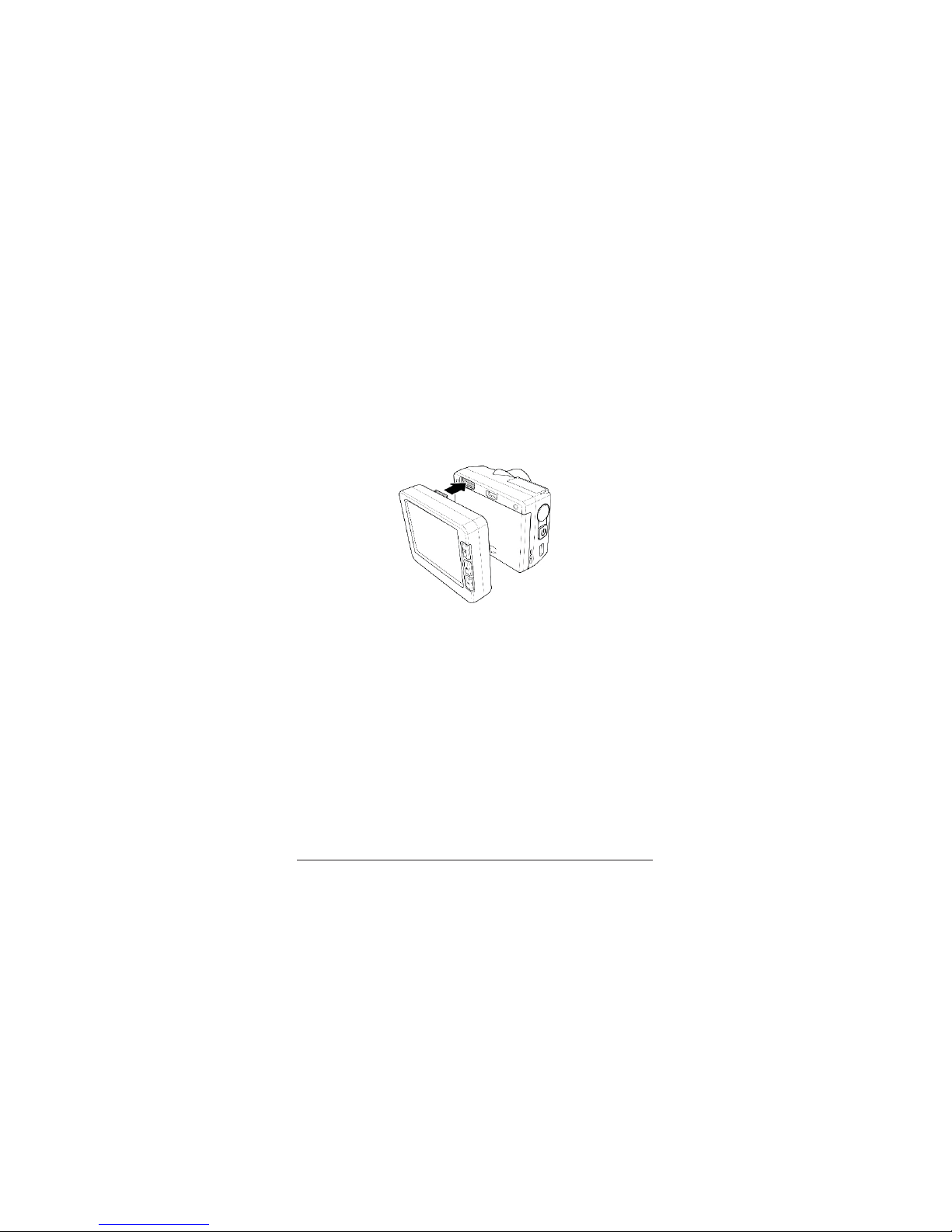

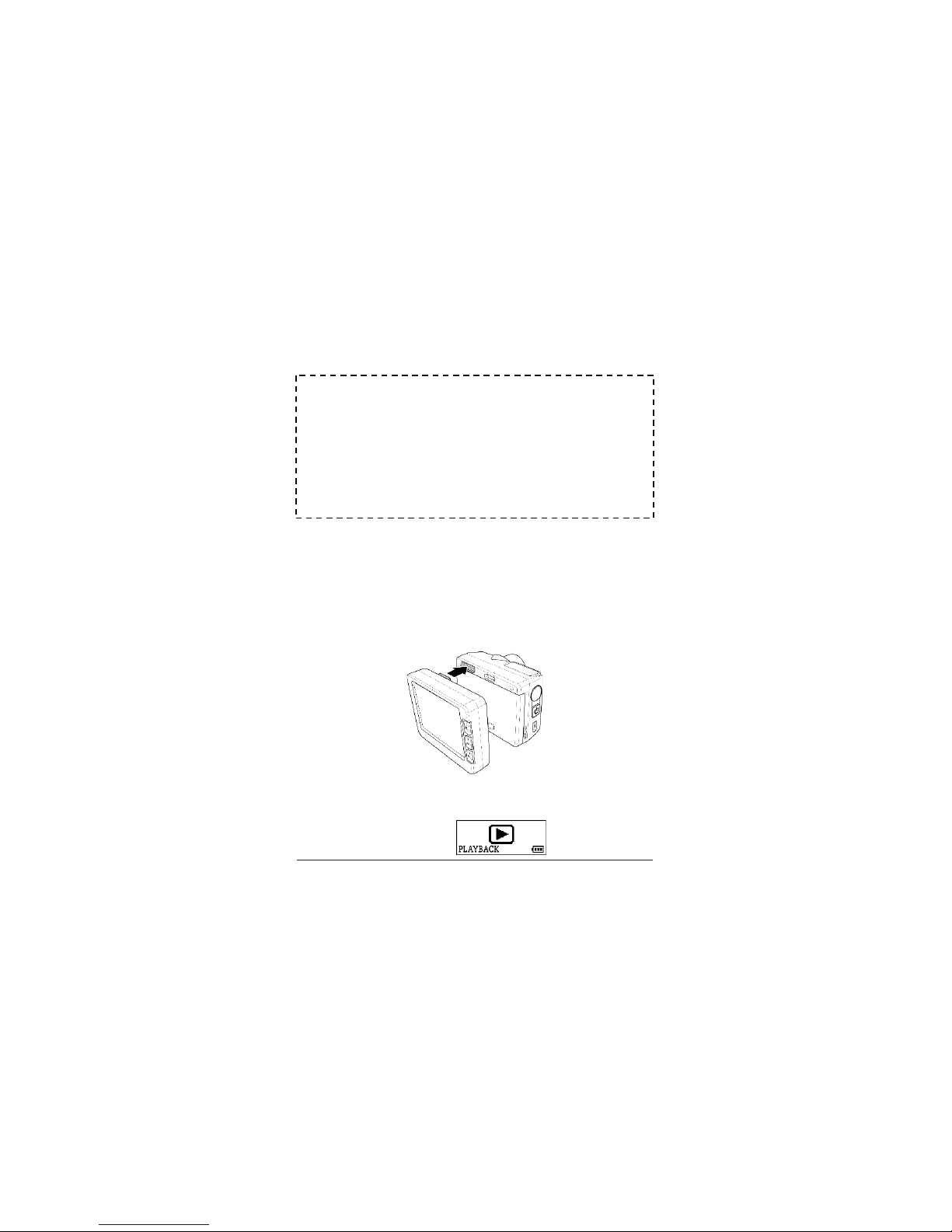

5.3 Detachable Panel .................................................. 60

Appendix ............................................................ 62

Specifications .................................................................. 62

Troubleshooting .............................................................. 64

FCC Statement ................................................................ 65

Radiation Exposure Statement ....................................... 65

Page 5

Preface

Congratulations on your purchase of this advanced camera. Ensure that you read this manual carefully and keep it in a safe place for future reference.

About this manual

Every effort has been made to ensure that the contents of this manual are correct and up to date. However, no guarantee is made regarding the accuracy of the contents. The manufacturer reserves the right to change the contents, technology, and specifications without notice.

All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, manual or otherwise, without the prior written permission of the manufacturer.

Page 6

Precautions

General precautions

• Do not store the product in dusty, dirty, or sandy areas, as its components may be damaged.

• Do not store the product in a hot environment. High temperatures can shorten the life of electronic devices, damage batteries and warp or melt certain plastics.

• Do not store the product in cold areas. When the product warms up to its normal temperature, moisture can form inside, which may damage the electronic circuits.

• Do not attempt to open the casing or attempt your own repairs. High-voltage internal components create the risk of electric shock when exposed.

• Do not drop or knock the product. Rough handling may damage the internal components.

• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the product. Wipe the product with a slightly damp soft cloth.

• Do not open the battery cover while an image is being recorded. Doing so will not only make storage of the current image impossible, it can also corrupt other image data already stored on file.

• If the product or any of its accessories are not working properly, take them to your nearest qualified service center. The personnel there will assist you and if necessary, arrange for the product to be repaired.

• Test for proper operation before using the camera.

Page 7

Operating conditions

• This camera is designed for use in temperatures ranging from 0°C to 40°C (32°F to 104°F).

• Do not use or keep the camera in the following areas:

- In areas subject to direct sunlight

- In areas subject to high humidity or dust

- Near air conditioners, heaters, or other areas subject to temperature extremes

- Inside of a closed vehicle, especially one parked in the sun.

- In areas subject to strong vibration

Power supply

• Use only the type of battery that came with your camera. Using any other type of battery may damage the equipment and invalidate the warranty.

• Do not short the battery terminals. The battery could overheat.

• Do not attempt to split or peel the outer casing.

• Remove the battery if the camera is not going to be used for a

long time. If the battery is left unused for more than 3 months, you need to charge the battery before use.

Page 8

vii

Notes on Waterproof Case

Waterproof Case performance

• The waterproof case performance is equivalent to IPX8 (60m/1hr).

• Underwater time limit: Do not use the waterproof case underwater for more than 60 minutes and 60 meters to ensure water resistance.

• The waterproof case is not dust-proof.

• The camera and other accessories are not waterproof unless

enclosed by the waterproof case.

• When using the camera in cold or humid environments or when going underwater, use the anti-fog insert to prevent fogging. The anti-fog insert only provides a certain degree of prevention, results vary depending on the actual environment. The anti-fog insert is not for long-term use, it must be replaced regularly.

Notes before going underwater:

(Do the following actions indoors. Do not do these actions on sandy or dusty environment or near the water’s edge.)

• Check if the area surrounding the waterproof case lock is clean, do not allow dirt or sand or foreign objects around it.

• Ensure that the waterproof case is closed.

• Ensure that the waterproof case has no cracks or scratches. If

the waterproof case has been dropped, contact your dealer for a replacement.

Page 9

viii

Notes for general use:

• Avoid opening or closing the waterproof case near the water’s edge (sea, lake, beach, lake, etc.). Do not open or close the waterproof case lock with wet hands, or hands with sand or dust.

• The accessories (batteries, etc.) used with the camera are not water resistant, be careful in using them.

• Do not drop the waterproof case to ensure waterproof durability.

• Do not place the waterproof case in temperatures above 40°C or below 0°C to ensure waterproof durability.

• Do not attempt to make alterations on the waterproof case or seal the vents yourself, doing so may damage its ability to maintain the camera waterproof.

When using the camera

• The waterproof properties of the waterproof case apply to fresh water and saltwater only; they do not apply to cleaning substances, chemicals, or water from spas, etc. Any such liquids should be wiped off immediately.

• Do not immerse the waterproof case in water at a depth greater than 60 meters.

• Do not subject the waterproof case to highly pressurized water.

• Do not immerse in water for longer than 60 minutes. After 60

minutes of use in water, allow the waterproof case to dry for at least 10 minutes.

• Do not immerse in water warmer than 40°C (104°F).

• Do not open or close the waterproof case lock with wet hands.

• Do not open the waterproof case lock next to water or a pool.

• The waterproof case is not dust-proof.

• Do not bump or knock the waterproof case underwater,

otherwise the lock may open.

Page 10

Notes on waterproof case maintenance

• The waterproof of sealing material is replaceable for a fee. The material should be replaced once a year to maintain its water resistance.

After using the waterproof case

• Be sure to come ashore within 60 minutes after going underwater, this will maintain the appearance, quality and water resistance of the waterproof case.

• After taking pictures underwater, clean the waterproof case with running tap water. Do not use any soapy water, mild detergents, alcohol or similar liquids to clean the case.

• Wipe off water drops on the waterproof case with a soft lint-free cloth (avoid fiber). Be sure to wait until the waterproof case is completely dry before opening the waterproof case lock.

• After removing the camera from the waterproof case, soak the waterproof case in a bucket of clean water for about 10 minutes. After 10 minutes, wipe the waterproof case dry with a lint-free cloth. Place the waterproof case in a well ventilated cool place to dry naturally (do not place under direct sunlight).

Other notes

• If water accidentally enters the camera or any problem occurs when it is in water, please get it out of the water immediately and take proper actions. Dry the camera and send it for repair, if required.

• Information is subject to change without notice. Refer to the important notes in the manual supplied with the camera.

Page 11

Before You Start

Take some test shots before you use your camera.

Before taking pictures with this camera, test the camera beforehand to ensure that it functions properly. Any additional loss caused by the malfunction of this product (such as costs of photography or any loss of benefit generated by the photography) is not the responsibility of the manufacturer and no compensation will be given for it.

Take care to observe "No Photography" notices in certain locations. In these cases, you cannot record any live performance, improvisation or exhibits, even for personal purposes. Any transfer of pictures or memory card data must be conducted under the constraints of copyright law.

Page 12

1 Introducing the Camera

Read this section to learn about the features and functions of the camera. This chapter also covers system requirements, package contents, and descriptions of the hardware components.

1.1 System Requirements

The camera requires a PC with the following specifications for full HD 1080p 30fps and 720p 60fps playback:

• Windows

8 /Windows® 7 /Vista / XP (SP2) / MAC OS X 10.5

and later

• Intel

/ AMD Dual-Core CPU and later

• At least 2 GB of RAM or higher

• At least DirectX 9 video card, DirectX 10 is recommended

• Standard USB 1.1 port and later

• At least 2GB or greater available hard disk space

1.2 Features

The camera offers a variety of features and functions including:

• Full HD 1080p (60fps)

• H.264 Video Clip

• 145° Wide Angle Lens

• Burst, Self Timer, Lapse

• 16 Megapixel Photos

• Action Camera functionality

• Li-ion Rechargeable Battery

• External Waterproof Case / Standard Mounts

z Note:

A USB 1.1 port will enable you to transfer files to and from your host PC, but transfer speeds will be faster with a USB 2.0 port.

Page 13

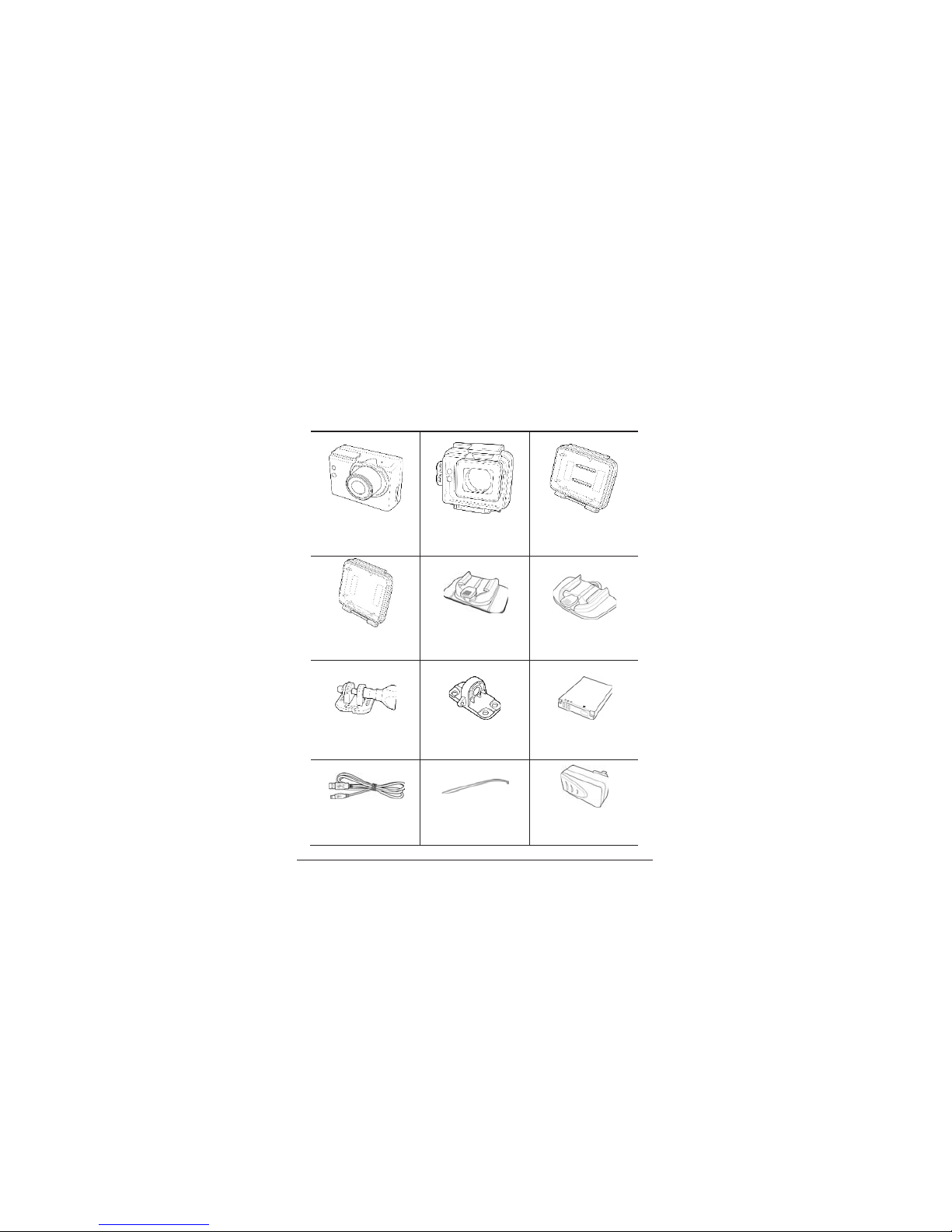

1.3 Unpacking the Camera

The following items should be present in the package. If any item is missing or appears damaged, contact your dealer immediately.

Camera Waterproof Case Waterproof

Housing Backdoor

Vented Housing

Backdoor

Flat Adhesive

Socket

Curved Adhesive

Socket

Swivel Mount Swivel Mount

Adapter

Li-ion Battery

Micro USB Cable Secure Tether USB Adapter

(optional)

Page 14

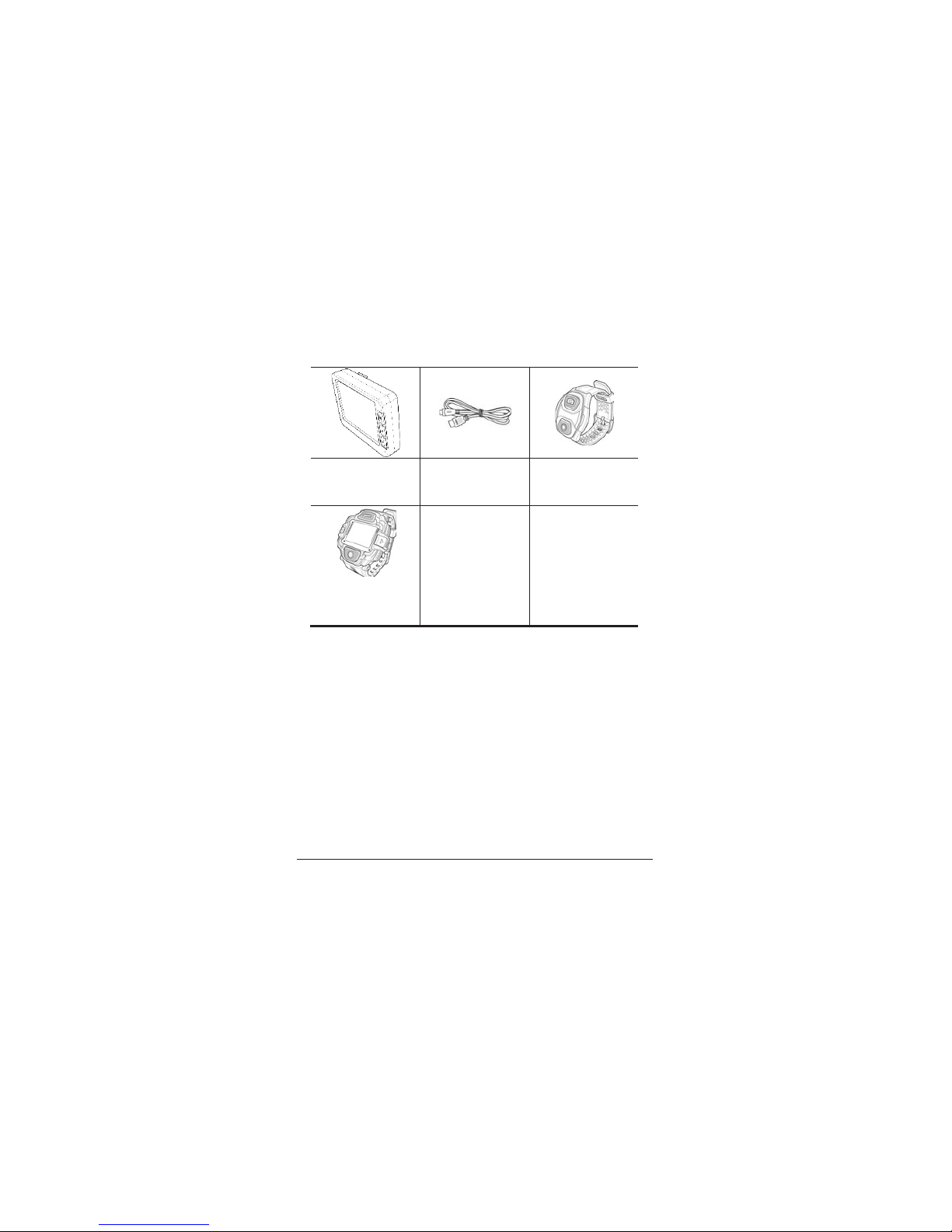

Detachable Panel

(optional)

HDMI Cable

(optional)

Wrist Strap Remote Control – RCW5K8

(optional)

Wrist Strap Remote Control – RCWD01

(optional)

Page 15

1.4 About the Camera

Refer to the following illustrations to familiarize yourself with the buttons and controls of this camera.

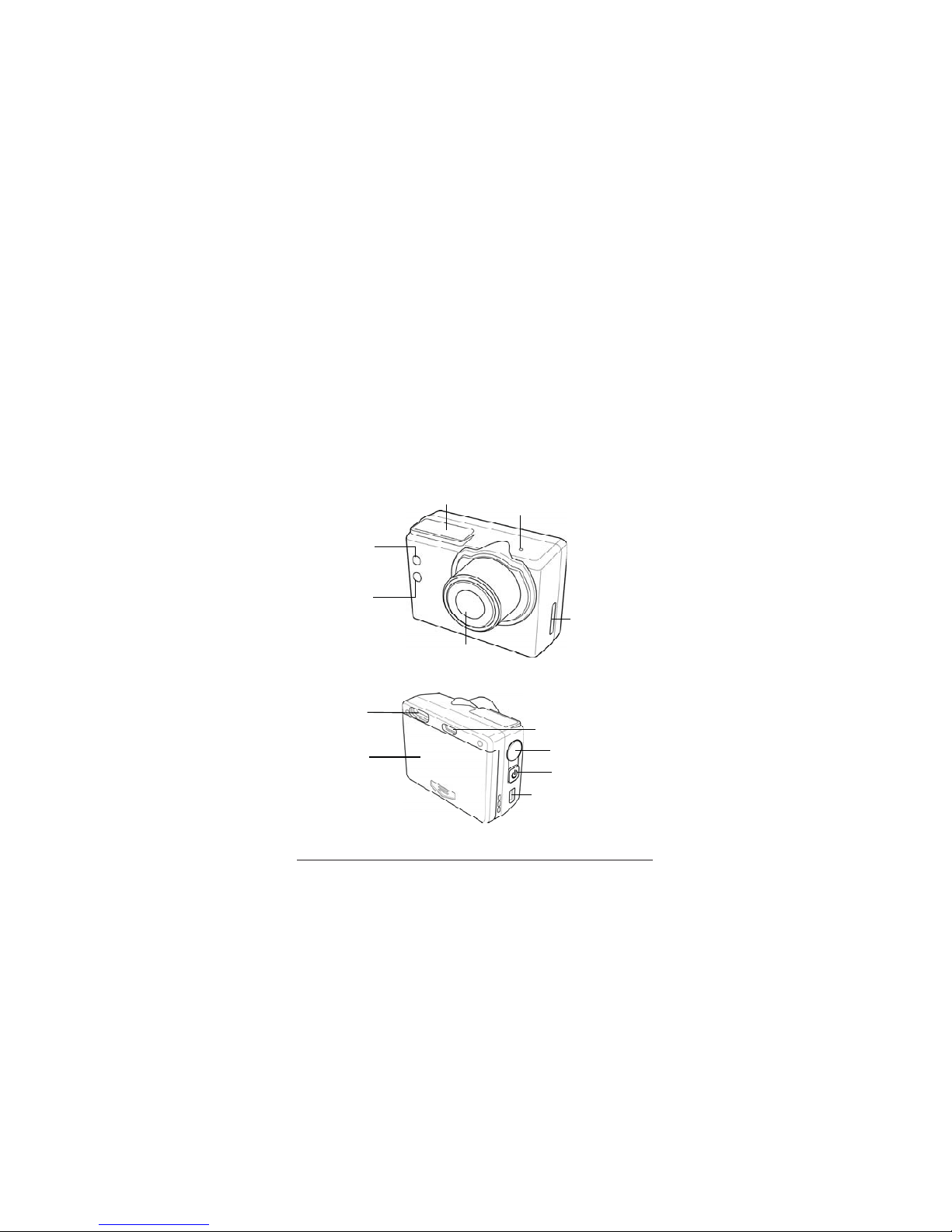

1.4.1 Camera Views

Microphone

Micro SD card slot

Power

Status LED 1

Power

Status LED 2

Battery LED

Lens

OLED screen

Shutter button

Micro HDMI port

Mini HDMI

port

Battery

compartment

cover

Power / Mode button

Micro USB port

Page 16

1.4.2 Button Functions

Power / Mode

Button

• Press and hold for 3 seconds to turn the camera on or off.

• Press to switch to different modes: Video, Photo, Wi-Fi, Delete and Setup mode.

• In Setup mode, press to scroll through menu items.

Shutter Button

• In Video mode, press to start/stop video

recording.

• In Photo mode, press to take a photo.

• In Setup mode, press to select an item.

Page 17

1.4.3 LED Indicators

These LEDs are designed for users to see the status of the camera whichever way the camera is held or mounted.

LED Color Description

Power / Status LED

Green During startup

Green Blinking Taking photos

Red Blinking Video recording in progress

Red Blinking Rapidly

Self-timer

Battery LED

Red Blinking

Battery is charging

Off Full charge

Page 18

2 Getting Started

Read this section to learn how to start using the camera. This section covers basic functions such as switching on, installing the battery and micro SD card, and configuring preliminary settings. See later chapters for advanced functions.

2.1 Installing the Micro SD Card

A micro SD card is required to capture photos and videos. The camera supports micro SDHC cards up to 32GB.

1. Insert the micro SD card into the card slot with the gold contacts facing the front of the device.

2. Push the micro SD card until it clicks into place.

 Warning: Do not remove the micro SD card while data is being

recorded. Doing so may corrupt the saved data and damage the card.

Page 19

2.1.1 Removing the Micro SD card

1. Turn off the camera.

2. With a fingertip, push the micro SD card to eject it from the slot.

3. Remove the micro SD card.

2.2 Installing the Battery

 Warning: Use only the supplied battery or a similar battery

recommended by the manufacturer or the dealer.

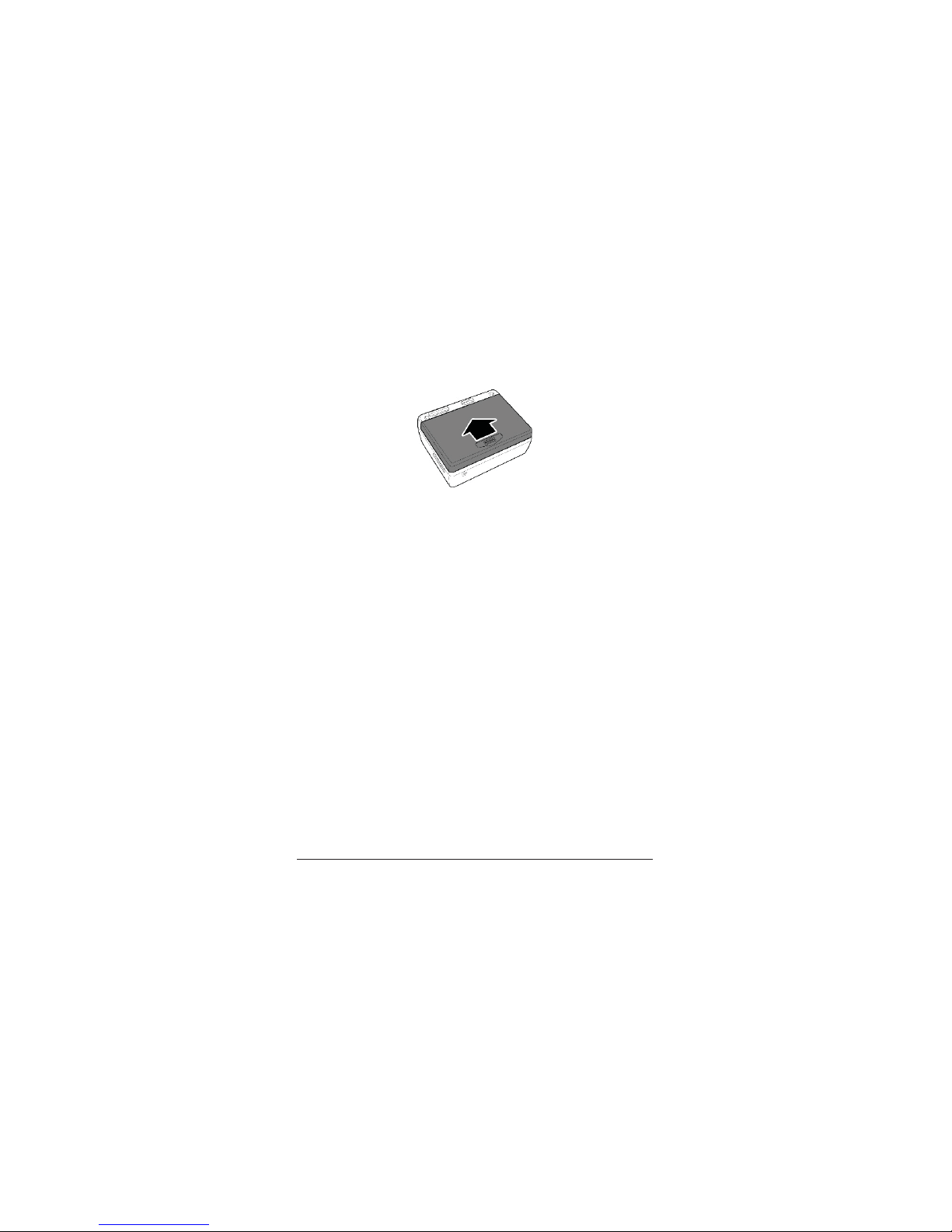

1. Push down the battery compartment cover to open it.

2. Align the battery contacts and then insert the battery into the compartment with the ribbon underneath the battery.

Page 20

3. Close the battery compartment cover.

2.2.1 Removing the battery

1. Open the battery compartment cover.

2. Pull the ribbon to remove the battery.

Page 21

2.3 Charging the Battery

You can charge the battery using the micro USB cable that came with the camera. Follow the steps below to charge the battery.

1. Install the battery into the battery compartment.

2. Plug the micro-USB connector to the USB port of your device.

3. Plug the other end of the USB cable to a computer.

Note:

 The battery LED blinks red. After a full charge, the LED turns

off.

 Approximate charging time is 240 minutes with a USB

connection. Actual charging time depends on current battery capacity and charging conditions.

 You may also use the supplied

AC adapter to charge your camera battery.

Page 22

2.4 Turning ON/ OFF the Camera

• To turn on the camera, press the

Power button. The Power/Status LED indicator lights green for 3 seconds.

• To turn off the camera, press and

hold the Power button for 3 seconds.

Page 23

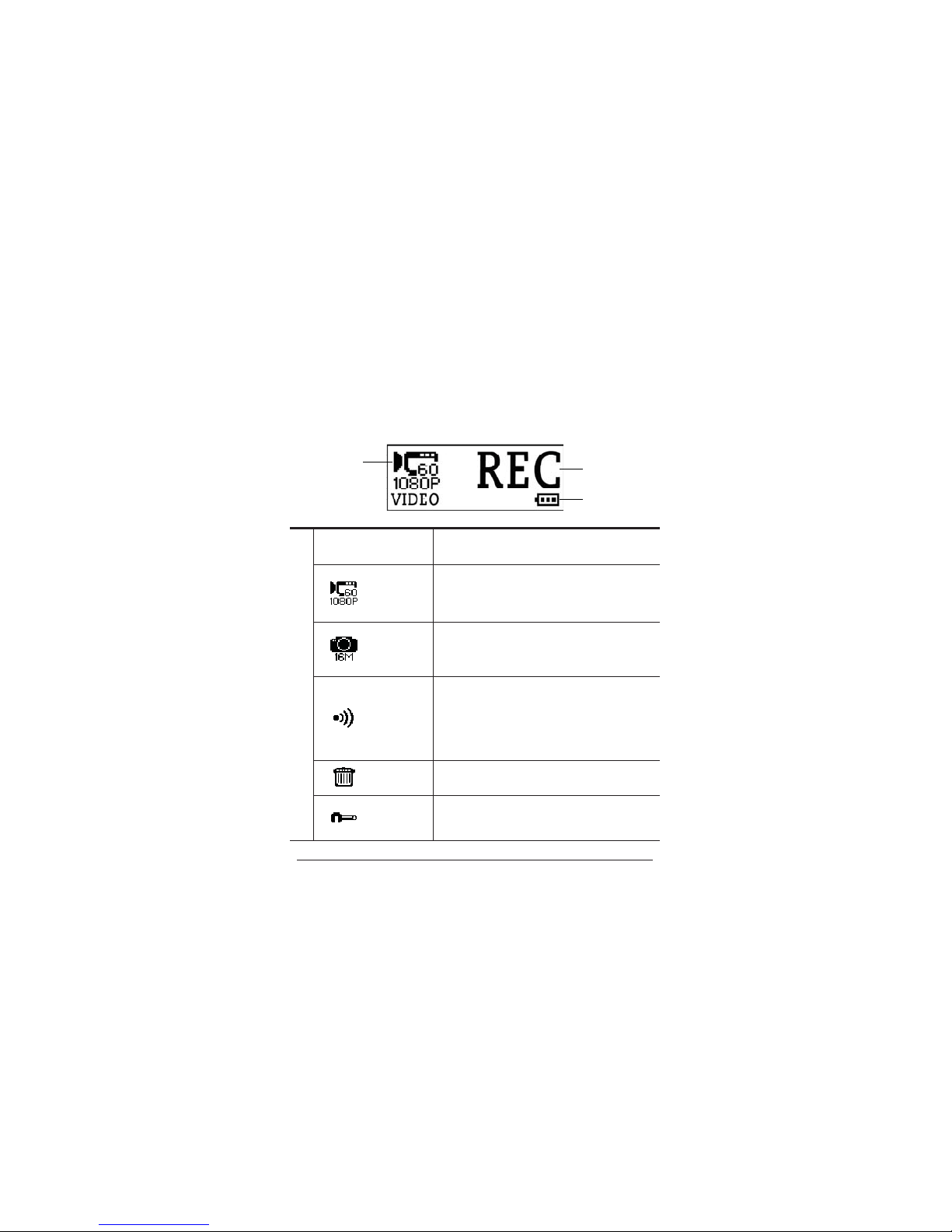

2.5 OLED Screen

When the camera is turned on, the OLED screen displays the following information:

Current Mode

Displays the current mode of the camera.

Video mode

Use this mode to record videos. The icon also indicates the current video recording settings.

Photo mode

Use this mode to capture photos. The icon also indicates the current capture settings.

Wi-Fi mode

Select to connect the camera to a smartphone using Wi-Fi connection. With this feature, videos and photos recorded from the camera can be viewed on the smartphone.

Delete mode

Use this mode to delete one or all files stored in the memory card.

Setup mode

Use this mode to adjust the settings of your camera.

Page 24

Recording Status

/Number of

Files/Wi-Fi

Connection status

• In Video mode, this indicates the recording status.

• In Photo mode, this indicates the total number of files.

• In Wi-Fi mode, this indicates the Wi-Fi connection status.

Battery Indicates the battery capacity.

Page 25

2.6 Changing Modes

Press the Mode button repeatedly to switch modes.

Video Mode

Photo Mode

Wi-Fi Mode

Setup Mode

Delete Mode

Page 26

2.7 Connecting to TV (Mini HDMI Cable)

You can also connect the camera to a TV using the mini HDMI cable (optional).

2.8 Connecting to PC (Micro USB Cable)

Connect the camera to a computer with the micro USB cable provided as shown.

Page 27

2.9 Connecting to Detachable Panel (Mini HDMI)

Connect the camera to a detachable panel via the mini HDMI connection as shown. Using this panel, you can view photos and play video clips directly on this camera.

Page 28

3 Capturing Videos and Photos

3.1 Recording Videos

When a video is recorded, the video is automatically saved in the memory card. By default, the camera is in Video mode.

 Note: Make sure you have properly installed the micro SD card

(Class 6 or above) before recording a video.

1. Turn on the camera. By default, the camera

automatically opens to Video mode.

2. Press the Shutter button to start

recording.

3. Press the Shutter button to stop recording.

3.2 Taking Photos

Note: Make sure you have properly installed the memory card

before capturing a photo.

 Note: Make sure you have properly installed the micro SD card

(Class 6 or above) before capturing a photo.

1. Turn on the camera.

2. Press the Mode button to switch to Photo mode.

3. Press the Shutter button to capture a photo.

Page 29

3.2.1 Lapse Shooting

This feature allows you to continuously capture photos with one press of the Shutter button at the preset interval time (1/3/5/10/30/60 seconds). Shooting only stops when the Shutter button is pressed again. Those continuous shots are combined and saved into one video automatically. The recorded video is played back in fast motion (faster than the normal playback speed). You can use this feature to record videos such as evolution of a construction project, weather changes, or flower blossom.

To switch to this mode, you must set the camera to LAPSE mode, see Lapse on page 29 for more information.

Once the camera is in LAPSE mode, press the Shutter button to start capturing photos. Press the Shutter button again to stop capturing photos.

3.2.2 Burst Shooting

This feature allows you to capture 3, 5, or 10 photos with one press of the Shutter button.

To switch to this mode, you must set the camera to BURST mode, see Burst Shooting on page 30 for more information.

Once the camera is in BURST mode, press the Shutter button to start capturing photos.

Page 30

3.2.3 Self-Timer

This feature allows you to capture a photo after a short delay.

To switch to this mode, you must set the camera to SELF TIMER mode, see Self-Timer on page 32 for more information.

Once the camera is in SELF TIMER mode, press the Shutter button to start capturing photos.

Page 31

3.3 Wi-Fi

This menu allows you to connect your camera to a smartphone using Wi-Fi connection and view the videos and photos recorded from your camera on the smartphone.

Note:

 Before using this feature, download the ActionCamUp app from

AppStore (iOS) or Google Play (Android OS) on your smartphone.

 Make sure you have properly installed the micro SD card (Class

6 or above) before recording a video.

 The ActionCamUp app (installed on your smartphone) does not

support video playback streaming.

 When Wi-Fi function is enabled, you cannot use the RF function

to take photos or record videos.

1. Press the Mode button repeatedly to change to Wi-Fi mode.

2. Press the Shutter button to toggle Wi-Fi ON or OFF.

3. Once the “Waiting…” appears on the screen and the LED flashes, this indicates Wi-Fi connection is established.

4. On your smartphone, enable Wi-Fi connection, then search and connect to the Wi-Fi network DVSD03_XXXXXX.

5. When prompted for a password, enter the default password “1234567890”.

Page 32

6. Use the ActionCamUp app to view videos and photos from your camera.

Page 33

3.4 Delete

This menu allows you to delete one or all files in the Micro SD card.

Do the following to delete files:

1. Press the Mode button repeatedly to change to DELETE mode.

2. Press the Shutter button to enter DELETE mode.

3. Press the Mode button repeatedly to scroll through the delete options.

To delete the last captured video or photo.

To delete all files in the micro SD card.

To exit the DELETE menu.

4. Press the Shutter button to confirm.

Page 34

4 Adjusting the Settings

To adjust the camera settings, press the Mode button repeatedly to switch to Setup mode and then press the Shutter button to confirm. The screen below is displayed:

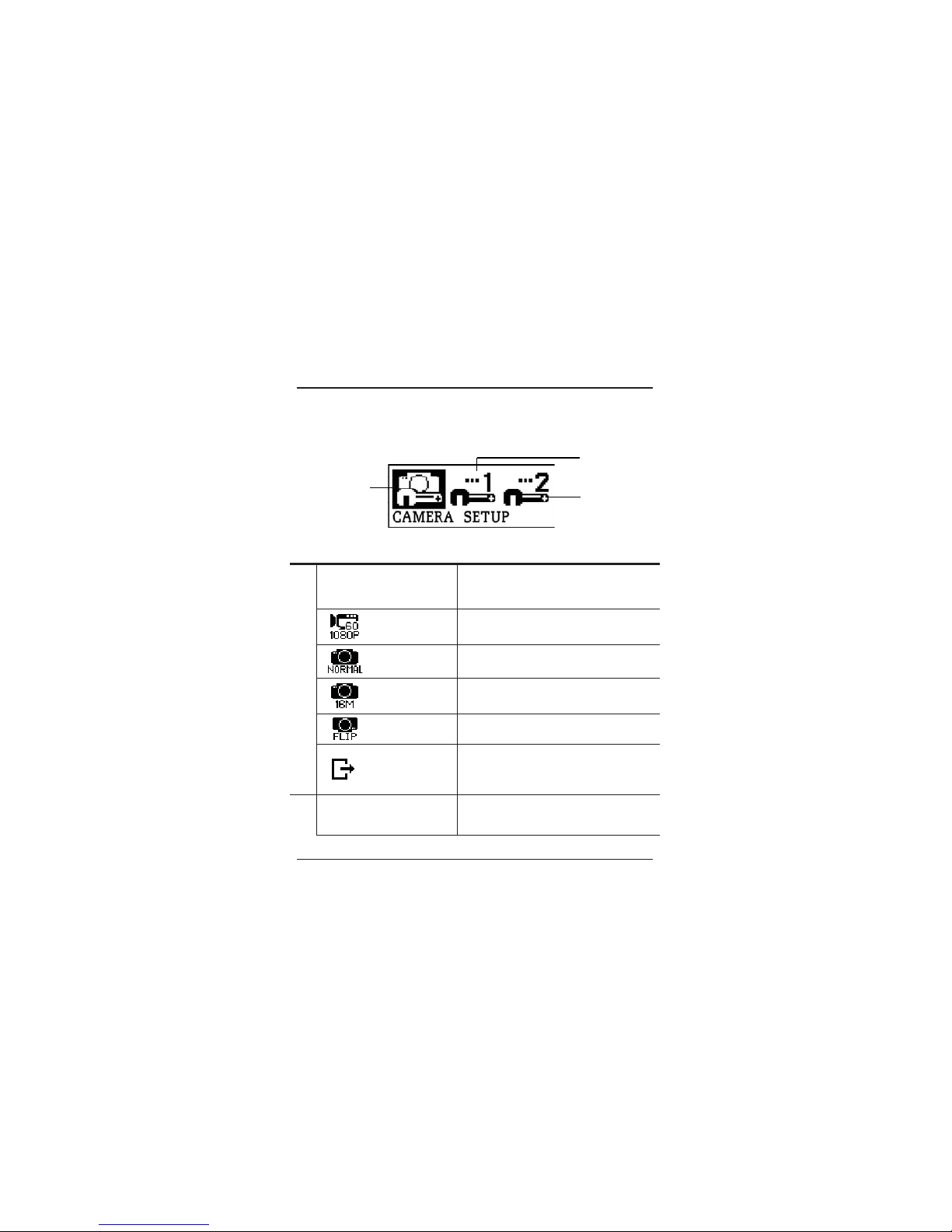

Camera Menu

Select CAMERA SETUP to adjust capture settings.

Video Resolution

Select to select the video resolution.

Photo Mode Select to set the photo mode.

Photo Resolution

Select to select the image resolution.

Sensor Flip Select to turn sensor flip on or off.

Exit

Select to close the CAMERA SETUP menu and return to the previous menu screen.

SYSTEM Menu 1

Select SETUP SYS. 1 to adjust the display and OSD settings.

Page 35

LED Light Select to turn the LED on or off.

OSD Flip

Select to set the direction of the OSD screen display.

Brightness

Select to adjust the screen brightness.

Beep Select to adjust the beep volume.

Date Stamp

Select to set the date stamp on or off.

Auto-Off

Select to set the time for the camera to automatically turn off when not in use.

Exit

Select to close the SETUP SYS. 1 menu and return to the previous menu screen.

SYSTEM Menu 2

Select SETUP SYS. 2 to adjust basic camera settings.

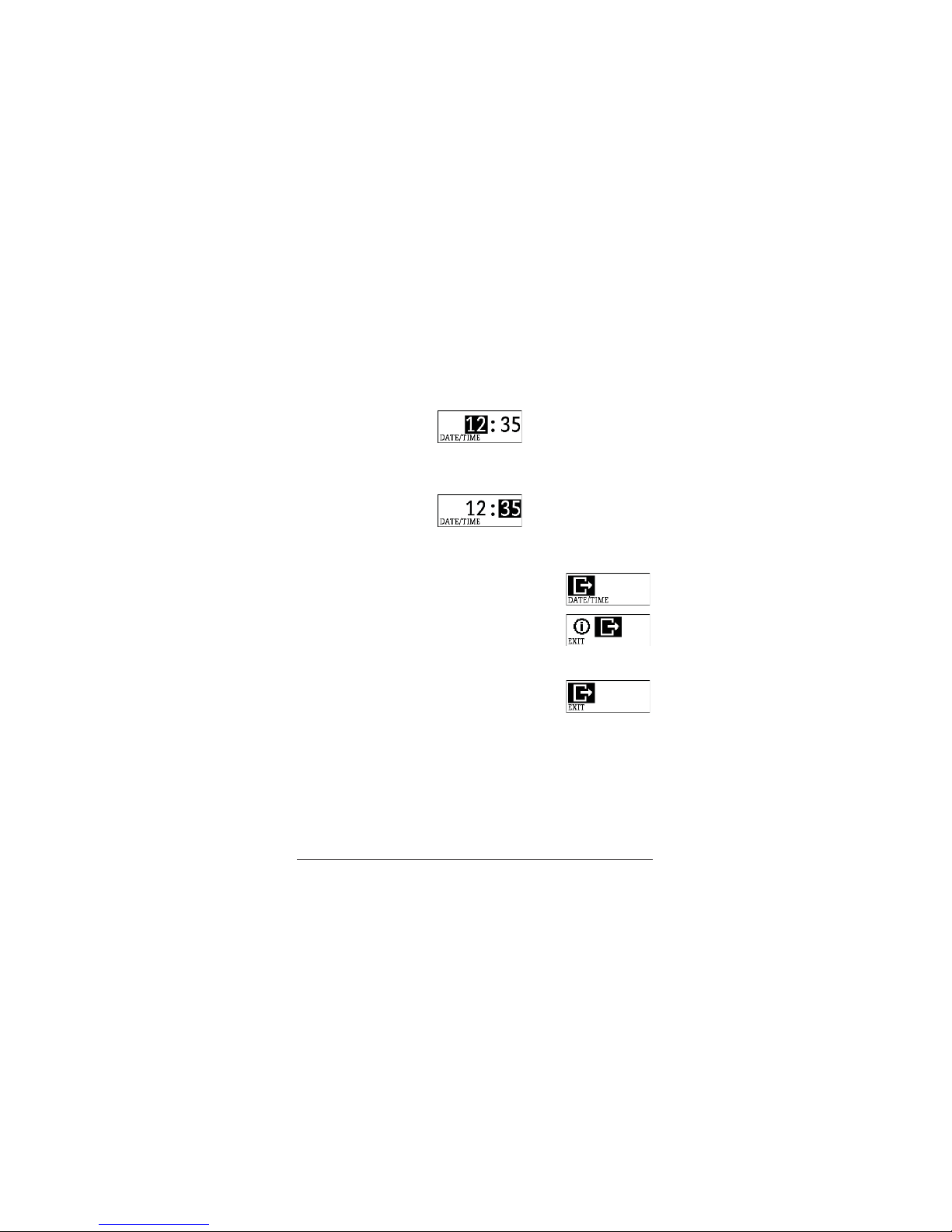

Date/Time

Select to set the camera date and time.

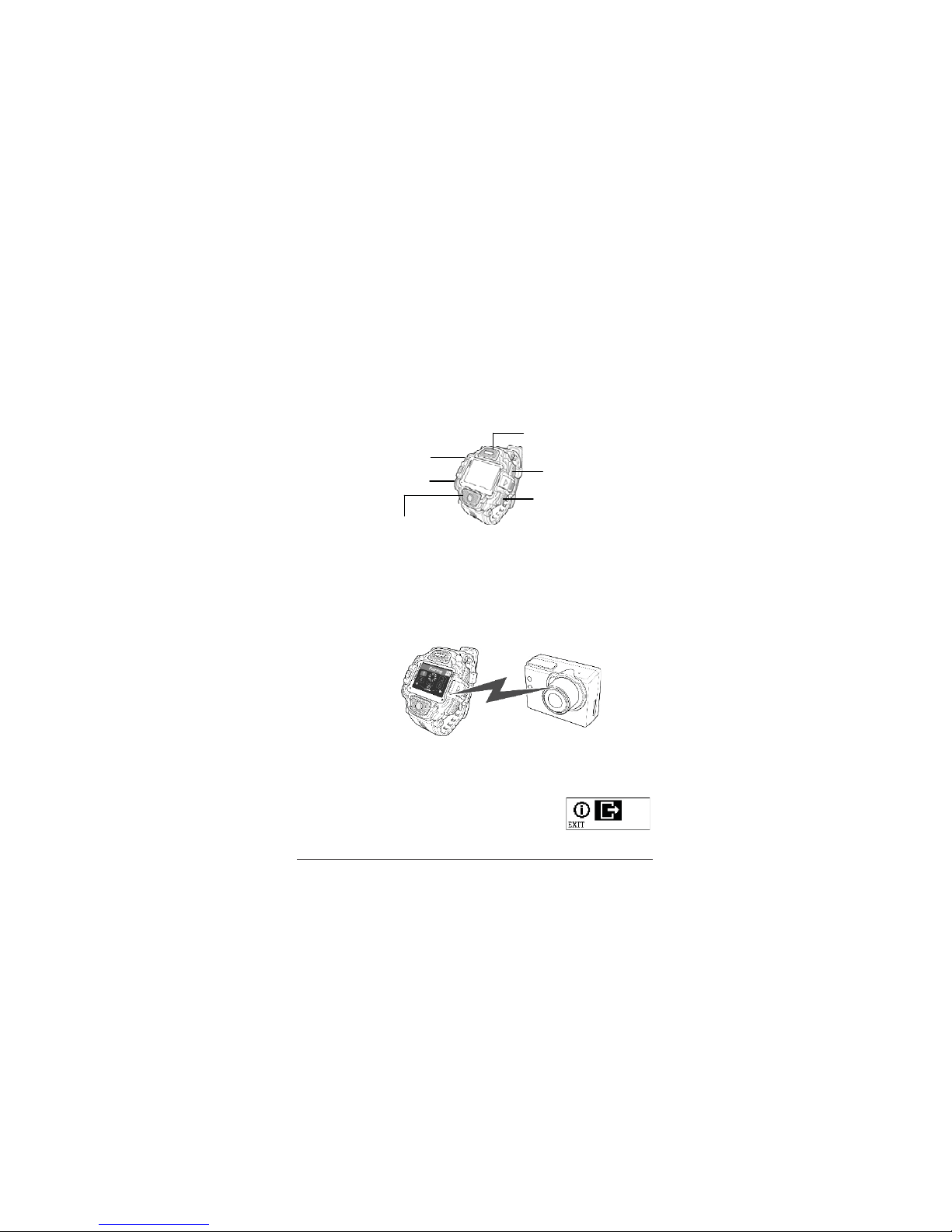

RF Pairing

Select to pair with the RF remote control.

Frequency Select to set the frequency.

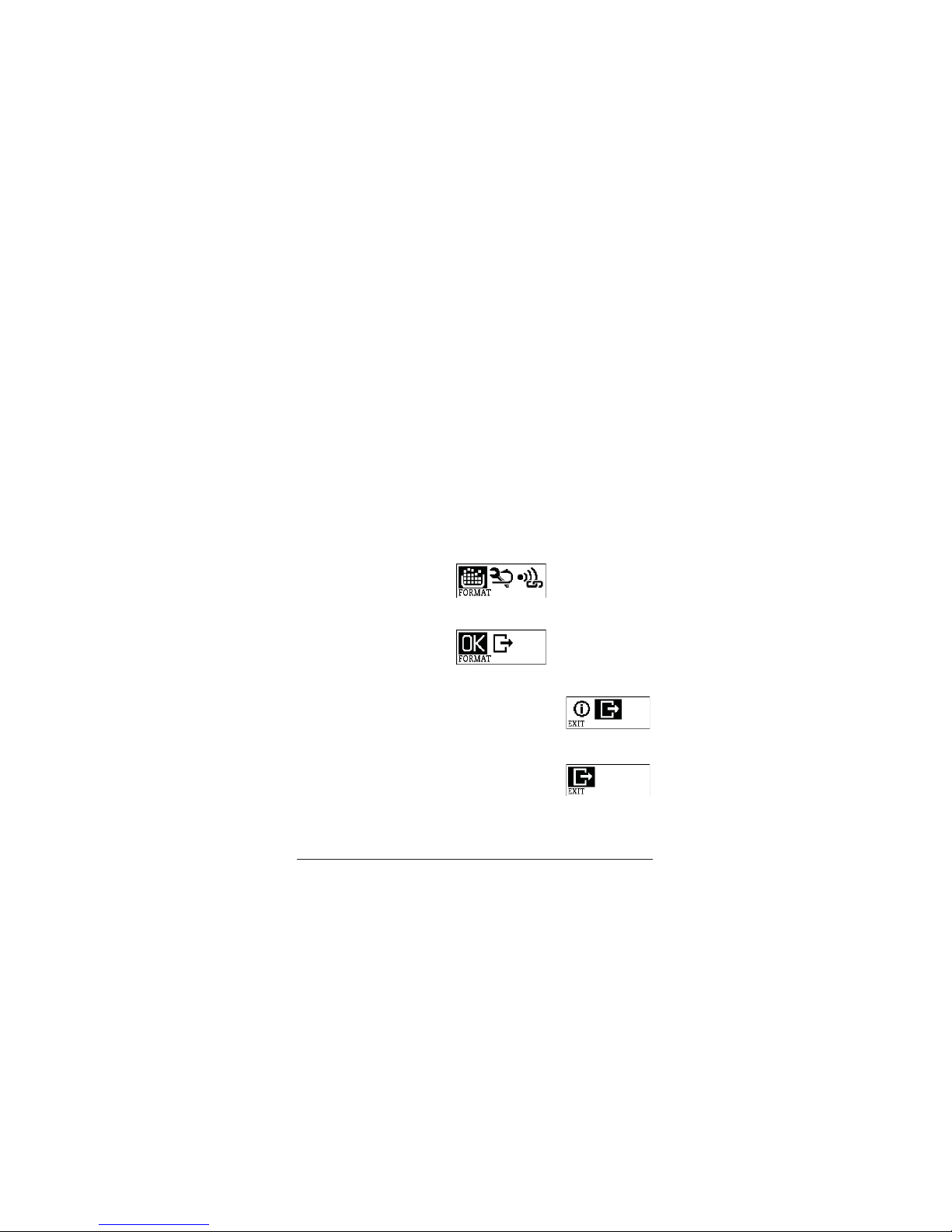

Format Select to format the memory card.

Default

Select to set the camera to default factory settings.

Page 36

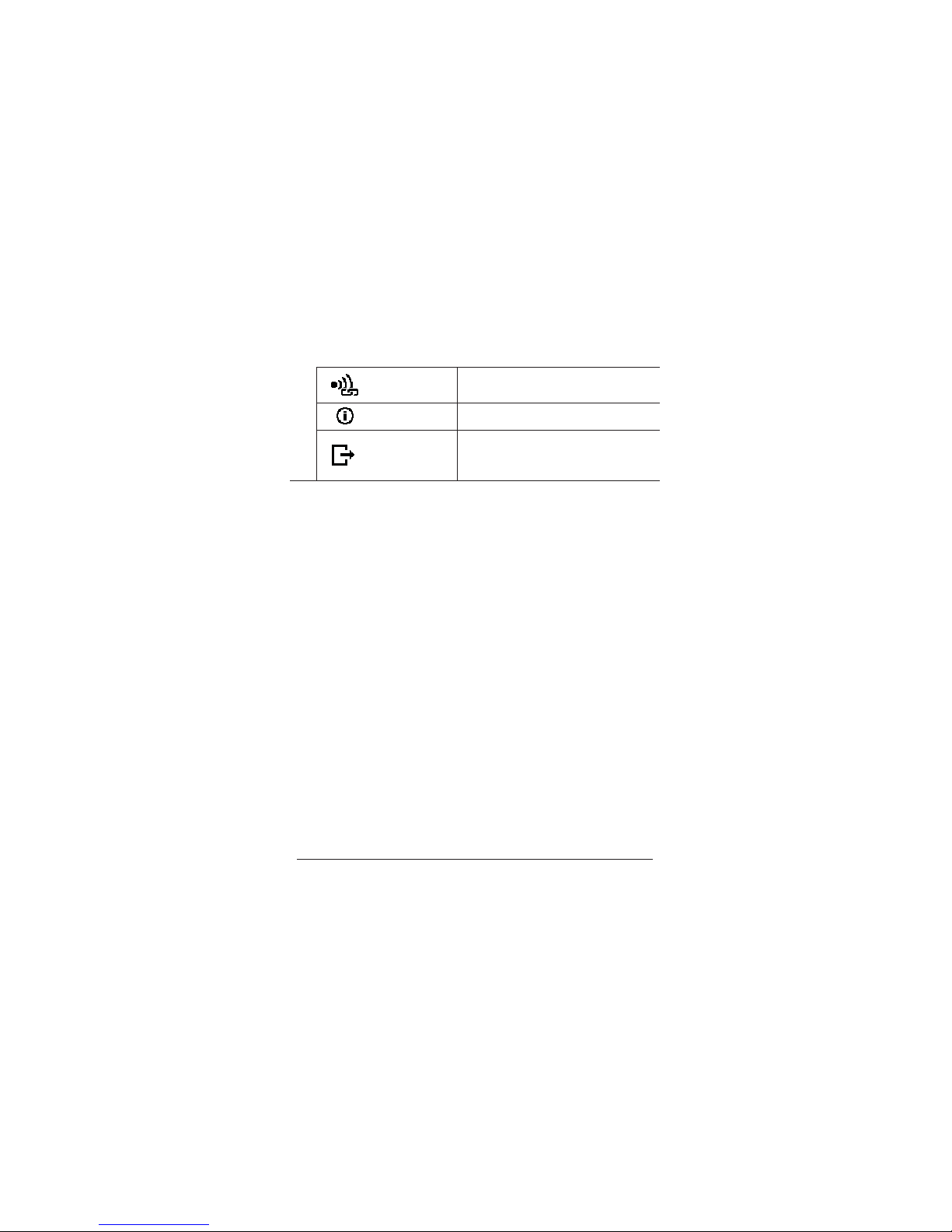

WiFi Password

Select to change the Wi-Fi password.

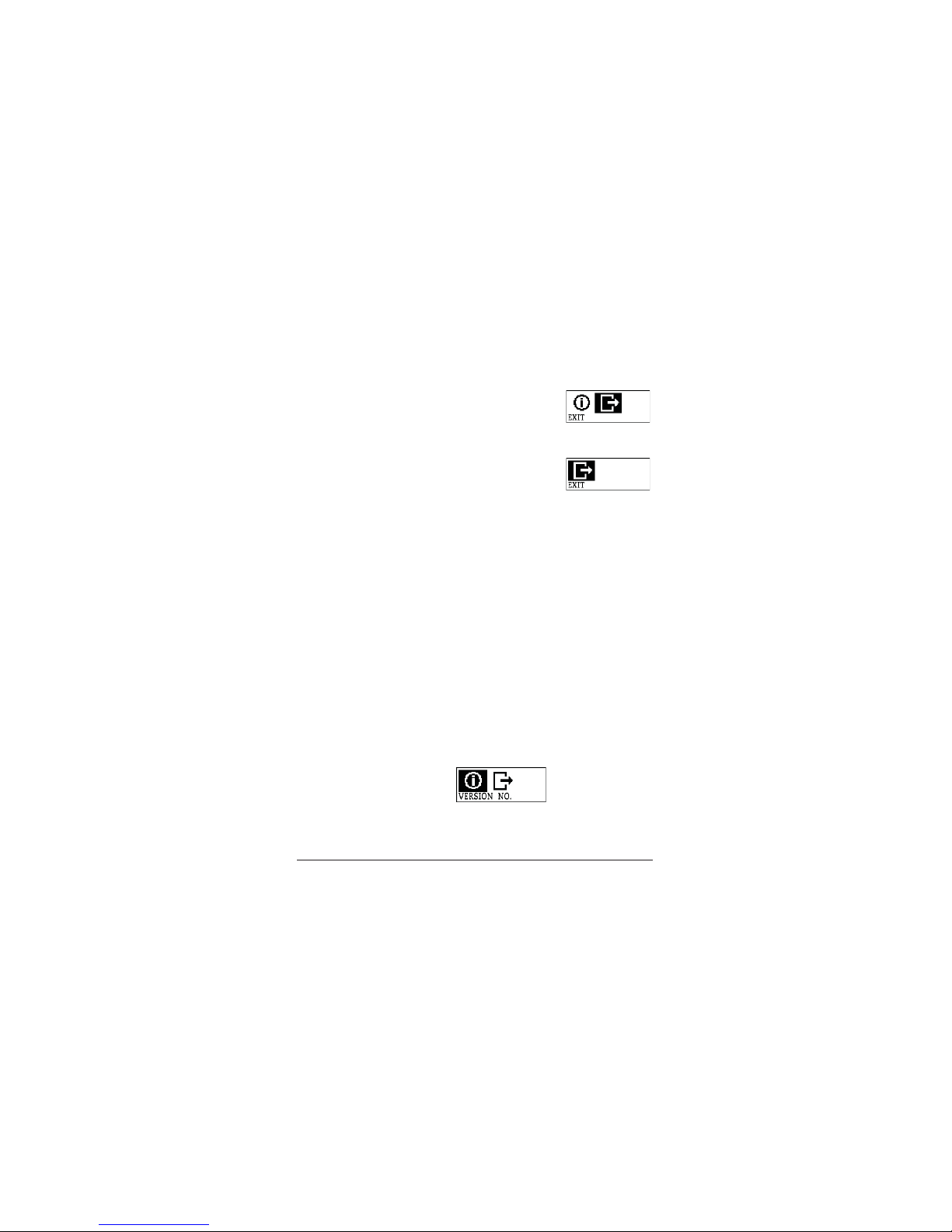

Version No. Select to view the firmware version.

Exit

Select to close the SETUP SYS. 2 menu and return to the previous menu screen.

Page 37

4.1 Video Resolution

When a video is recorded, the video file is automatically saved in the memory card. The camera supports several resolution options for videos. Set the video resolution before you start recording a video.

Do the following to select the video resolution:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Shutter button to enter the CAMERA SETUP menu.

4. Press the Shutter button to enter the VIDEO RESOLUTION submenu.

5. Press the Mode button repeatedly to scroll through the resolution options.

16:9, 1080P (1920x1080, 60fps)

16:9, 1080P (1920x1080, 30fps)

Page 38

16:9, 720P (1280x720, 120fps)

16:9, 720P (1280x720, 60fps)

16:9, 720P (1280x720, 30fps)

16:9, 480P (848x480, 240fps)

16:9, 480P (848x480, 60fps)

16:9, 480P (848x480, 30fps)

6. Press the Shutter button to confirm.

7. To exit the CAMERA SETUP menu, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

8. To exit the SETUP mode, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

Page 39

Note: The FOV of every resolution is different.

Resolution Resolution Field of view

1080p30 1080p * 30F 133°

1080p60 1080p * 60F 132°

720p30 720P * 30F 132°

720p60 720P * 60F 132°

720p120 720P * 120F 131°

WVGA 480P * 30F 132°

WVGA 480P * 60F 132°

WVGA 480P * 240F 131°

Page 40

4.2 Photo Mode

This menu allows you to change the capture mode into lapse, burst or self-timer mode.

4.2.1 Lapse

This menu allows you to select the interval options when capturing photos using Lapse mode.

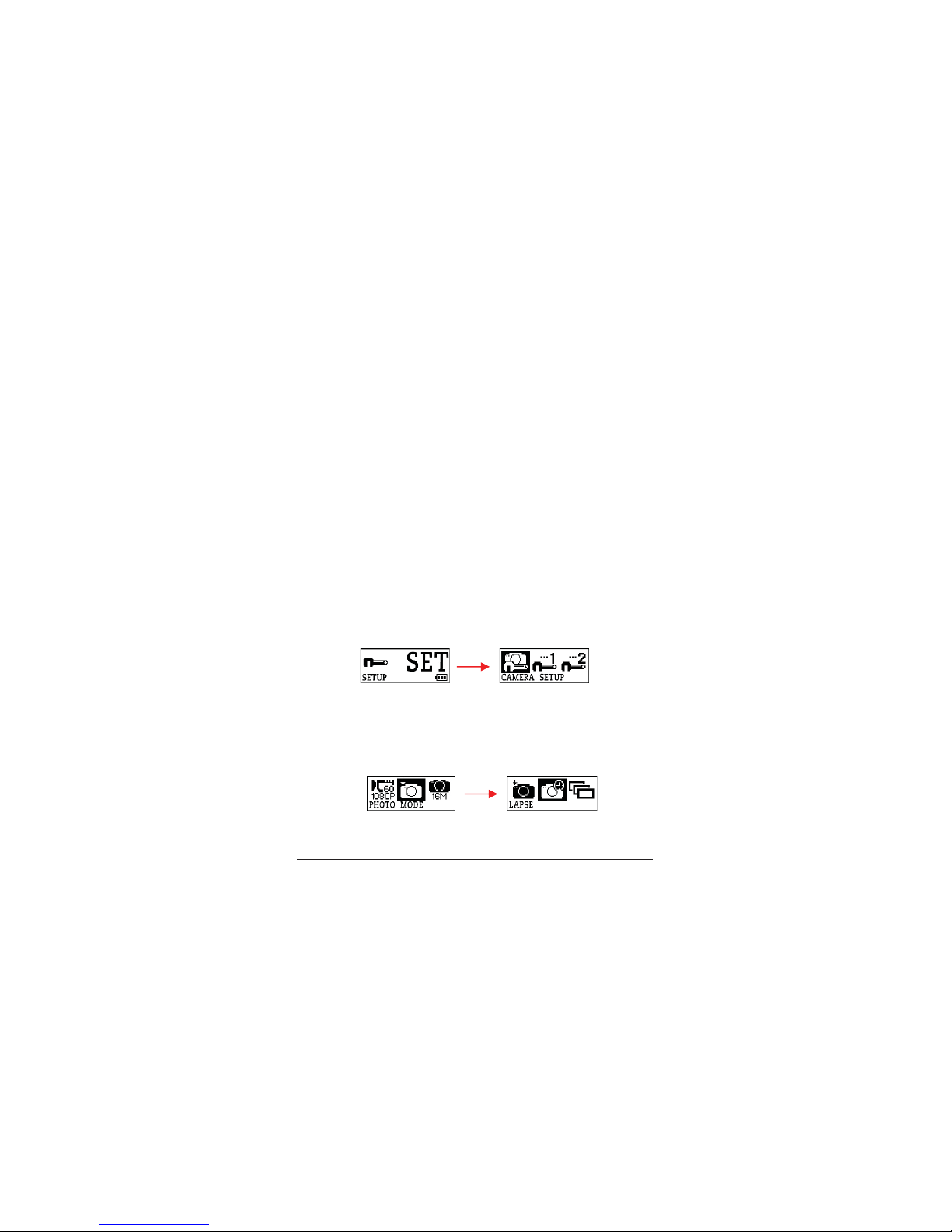

Do the following to select the shooting interval:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Shutter button to enter the CAMERA SETUP menu.

4. Press the Mode button repeatedly to highlight PHOTO MODE.

5. Press the Shutter button to enter PHOTO MODE.

6. Press the Mode button repeatedly to highlight LAPSE.

7. Press the Shutter button to enter LAPSE.

Page 41

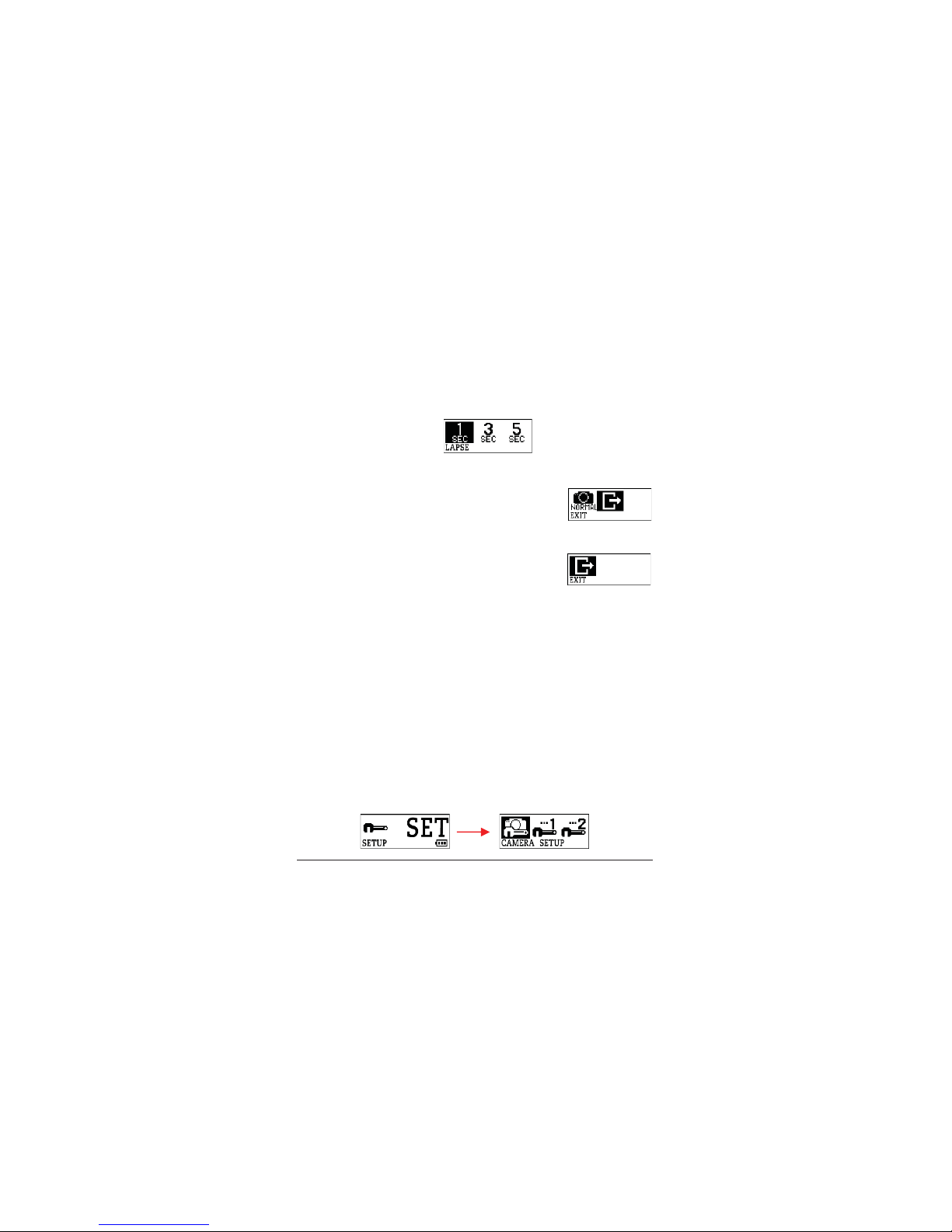

8. Press the Mode button repeatedly to scroll through the lapse options: 1 SEC, 3 SEC, 5 SEC, 10 SEC, 30 SEC, and 60 SEC.

9. Press the Shutter button to confirm.

10. To exit the CAMERA SETUP menu, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

11. To exit the SETUP mode, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

4.2.2 Burst Shooting

This menu allows you to enable burst shooting and set the number of photos to capture with one press of the Shutter button.

Do the following to set the burst shooting mode.

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Shutter button to enter the CAMERA SETUP menu.

Page 42

4. Press the Mode button repeatedly to highlight PHOTO MODE.

5. Press the Shutter button to enter PHOTO MODE.

6. Press the Mode button repeatedly to highlight BURST.

7. Press the Shutter button to enter BURST.

8. Press the Mode button repeatedly to scroll through the burst shooting options: 3, 5, and 10.

9. Press the Shutter button to confirm.

10. To exit the CAMERA SETUP menu, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

11. To exit the SETUP mode, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

Page 43

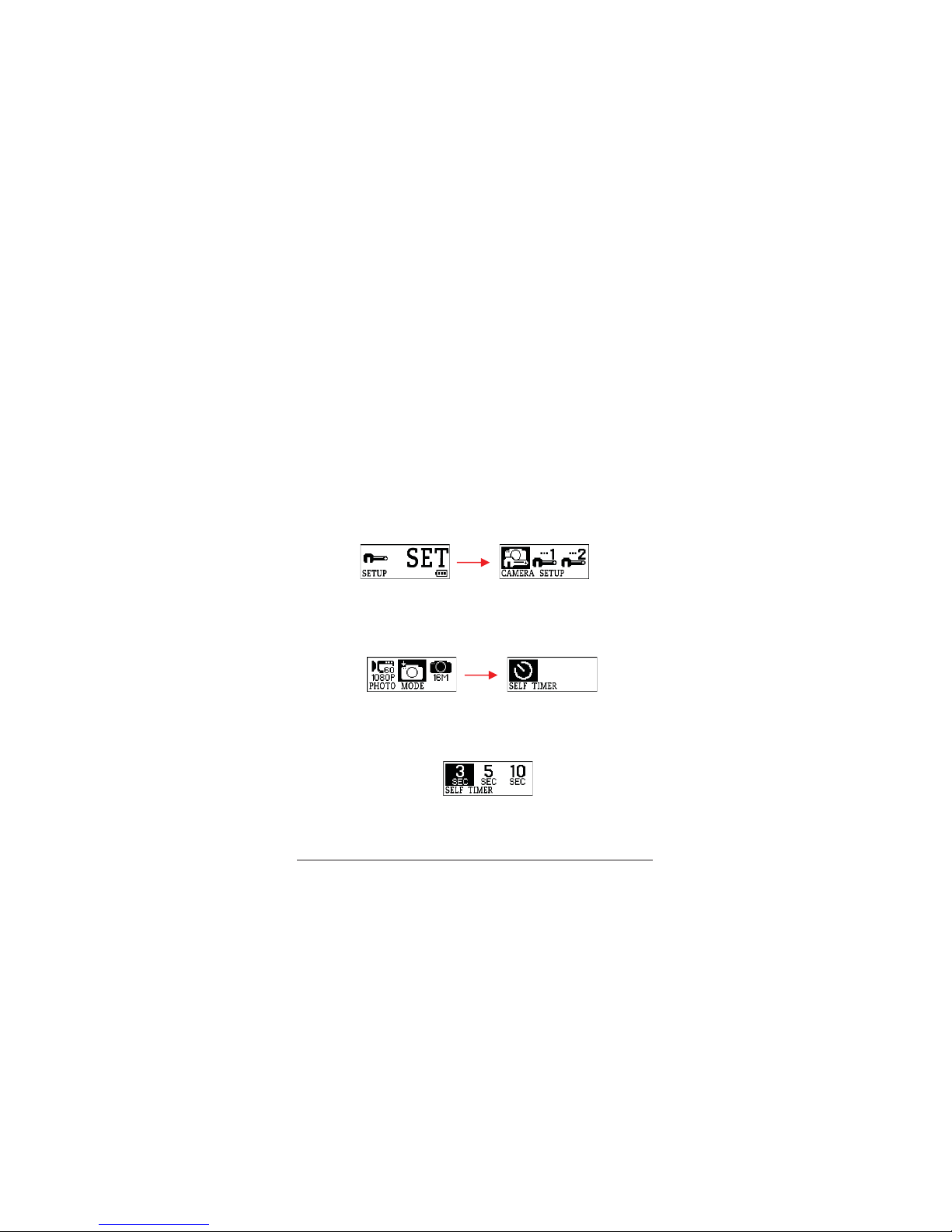

4.2.3 Self-Timer

This menu allows you to enable the self-timer mode and set the delay of capturing the photo after the Shutter button is pressed.

Do the following to set self-timer:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Shutter button to enter the CAMERA SETUP menu.

4. Press the Mode button to highlight PHOTO MODE.

5. Press the Shutter button to enter PHOTO MODE.

6. Press the Mode button to highlight SELF TIMER.

7. Press the Shutter button to enter SELF TIMER.

8. Press the Mode button repeatedly to scroll through the self-timer options: 3 SEC, 5 SEC, and 10 SEC.

9. Press the Shutter button to confirm.

Page 44

10. To exit the CAMERA SETUP menu, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

11. To exit the SETUP mode, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

Page 45

4.3 Photo Resolution

This menu allows you to select the image resolution.

Do the following to select the image resolution:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Shutter button to enter the CAMERA SETUP menu.

4. Press the Mode button repeatedly to select PHOTO RESOLUTION.

5. Press the Shutter button to enter the PHOTO RESOLUTION submenu.

9. Press the Mode button repeatedly to scroll through the image resolution options: 16M, 12M, 8M, and 5M.

6. Press the Shutter button to confirm.

7. To exit the CAMERA SETUP menu, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

Page 46

8. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Note: The FOV of every resolution is different.

Resolution Resolution Field of view

Still image 16M 4608 x 3456 146°

Still image 12M 4000 x 3000 140°

Still image 8M 3264 x 2448 132°

Still image 5M 2592 x 1944 145°

Page 47

4.4 Sensor Flip

This menu allows you to set the sensor flip to FLIP or NORMAL.

Do the following to set sensor flip:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Shutter button to enter the CAMERA SETUP menu.

4. Press the Mode button repeatedly to select SENSOR FLIP.

5. Press the Shutter button to enter the SENSOR FLIP submenu.

6. Press the Mode button repeatedly to scroll through the options: FLIP and NORMAL.

7. Press the Shutter button to confirm.

8. To exit the CAMERA SETUP menu, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

9. To exit the SETUP mode, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

Page 48

4.5 System Menu 1

This menu allows you to adjust the display and OSD settings.

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.1.

4. Press the Shutter button to enter the SETUP SYS.1 menu.

5. Press the Mode button repeatedly to scroll through the submenu options.

6. To exit the SETUP SYS.1 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

7. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 49

4.5.1 LED Light

This menu allows you to turn the LED indicator on or off.

Do the following to enable or disable this feature:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.1.

4. Press the Shutter button to enter the SETUP SYS.1 menu.

5. Press the Shutter button to enter the LED LIGHT submenu.

6. Press the Mode button to select ON or OFF.

7. Press the Shutter button to confirm.

8. To exit the SETUP SYS.1 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

9. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 50

4.5.2 OSD Flip

This menu allows you to display the OLED screen upside down.

Do the following to set the OLED screen orientation:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.1.

4. Press the Shutter button to enter the SETUP SYS.1 menu.

5. Press the Mode button repeatedly to highlight OSD FLIP.

6. Press the Shutter button to enter the OSD FLIP submenu.

7. Press the Mode button to select (NORMAL) or (FLIP).

8. Press the Shutter button to confirm.

9. To exit the SETUP SYS.1 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

10. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 51

4.5.3 Brightness

This menu allows you to adjust the OLED screen brightness.

Do the following to adjust the OLED screen brightness:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.1.

4. Press the Shutter button to enter the SETUP SYS.1 menu.

5. Press the Mode button repeatedly to highlight OSD BRIGHTNESS.

6. Press the Shutter button to enter the OSD BRIGHTNESS submenu.

7. Press the Mode button to scroll through the brightness options: (30%), (60%), and (100%).

8. Press the Shutter button to confirm.

9. To exit the SETUP SYS.1 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

10. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 52

4.5.4 Beep

This menu allows you to enable or disable the beep sound when you press the Power / Mode or Shutter buttons.

Do the following to enable or disable the beep sound:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.1.

4. Press the Shutter button to enter the SETUP SYS.1 menu.

5. Press the Mode button repeatedly to highlight BEEP.

6. Press the Shutter button to enter the BEEP submenu.

7. Press the Mode button to scroll through the beep options:

(OFF), (60%), and (100%).

8. Press the Shutter button to confirm.

9. To exit the SETUP SYS.1 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

10. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 53

4.5.5 Date Stamp

This menu allows you to enable the date when the photo/video is taken to be shown on the photo/video.

Do the following to enable or disable this feature:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.1.

4. Press the Shutter button to enter the SETUP SYS.1 menu.

5. Press the Mode button repeatedly to highlight DATE STAMP.

6. Press the Shutter button to enter the DATE STAMP submenu.

7. Press the Mode button to select ON or OFF.

8. Press the Shutter button to confirm.

9. To exit the SETUP SYS.1 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

10. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 54

4.5.6 Auto Power Off

This menu allows you to program the camera to automatically turn off after being idle for a specific period of time, or you can set the setting to OFF to keep the camera on until you manually turn it off.

Do the following to select the auto power off option:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.1.

4. Press the Shutter button to enter the SETUP SYS.1 menu.

5. Press the Mode button repeatedly to highlight AUTO POWER OFF.

6. Press the Shutter button to enter the AUTO POWER OFF submenu.

7. Press the Mode button to scroll through the auto power off options: OFF, 1 MIN, 3 MIN, and 10 MIN.

8. Press the Shutter button to confirm.

9. To exit the SETUP SYS.1 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

Page 55

10. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 56

4.6 System Menu 2

This menu allows you to adjust the basic camera settings such as date and time, frequency, etc.

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Mode button repeatedly to scroll through the submenu options.

6. Press the Shutter button to confirm.

7. To exit the SETUP SYS.2 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

8. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 57

4.6.1 Date and Time

This menu allows you to set the camera date and time settings.

Do the following to set the camera date and time:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Shutter button to enter the DATE/ TIME submenu.

6. Press the Shutter button repeatedly to adjust the year.

7. When done, press the Mode button to go to the month field.

8. Press the Shutter button repeatedly to adjust the month value, and then press the Mode button to go to the day field.

Page 58

9. Press the Shutter button repeatedly to adjust the day value, and then press the Mode button to go to the hour field.

10. Press the Shutter button repeatedly to adjust the hour value, and then press the Mode button to go to the minute field.

11. Press the Shutter button repeatedly to adjust the minute value, then press the Mode button to save the setting.

12. Press the Shutter button to complete the date and time setting.

13. To exit the SETUP SYS.2 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

14. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 59

4.6.2 RF Pairing

This menu allows you to pair your camera with the RF wrist strap remote control (optional accessory). When the devices are paired, you can record videos or capture photos by pressing the corresponding buttons on the RF wrist strap remote control.

 Note: When Wi-Fi function is enabled, you cannot use the RF

function to take photos or record videos.

Using Wrist Strap Remote Control (RCWD01)

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Mode button repeatedly to highlight RF PAIRING.

6. Press the Shutter button to enter the RF PAIRING submenu.

7. Press the Mode button to select (SCANNING).

8. The camera RF antenna is enabled and ready to be paired with the RF wrist strap remote control.

Page 60

9. On your RF watch remote control, press the MODE button to switch to Preview mode. Then press and hold the SET button to enter to SET mode.

MODE butto

LEFT butto

VIDEO button

SET button

RIGHT button

PHOTO button

10. Use the LEFT or RIGHT button to select Pairing and press the VIDEO button to enter Pairing menu.

11. Use the LEFT or RIGHT button to select the preview window that you want to pair with your camera and press the VIDEO button to start pairing.

12. When pairing is complete, press the SET button to return to SET mode. Then press the SET button to switch to Preview mode.

13. On your camera, to exit the SETUP SYS.2 menu, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

Page 61

14. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Using Wrist Strap Remote Control (RCW5K8)

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Mode button repeatedly to highlight RF PAIRING.

6. Press the Shutter button to enter the RF PAIRING submenu.

7. Press the Mode button to select (SCANNING).

8. The camera RF antenna is enabled and ready to be paired with the RF wrist strap remote control.

Page 62

9. On your RF watch remote control, press both the video and photo buttons to process pairing. When the red LED on the RF wrist strap remote control flash once, this indicates the pairing is complete.

10. On your camera, to exit the SETUP SYS.2 menu, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

11. To exit the SETUP mode, press the Mode button repeatedly until the EXIT screen appears. Then press the Shutter button to confirm.

Page 63

4.6.3 Frequency

This menu allows you to change the camera frequency.

Do the following to set the camera frequency:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Mode button repeatedly to highlight FREQUENCY.

6. Press the Shutter button to enter the FREQUENCY submenu.

7. Press the Mode button to select: 50 Hz or 60 Hz.

8. Press the Shutter button to confirm.

9. To exit the SETUP SYS.2 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

10. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 64

4.6.4 Format

This menu allows you to format the memory card.

Do the following to format the memory card:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Mode button repeatedly to highlight FORMAT.

6. Press the Shutter button to enter the FORMAT submenu.

7. Press the Mode button to select OK.

8. Press the Shutter button to confirm.

9. To exit the SETUP SYS.2 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

10. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 65

4.6.5 Factory Default

This menu allows you to restore the default factory settings of your camera.

Do the following to restore the factory default settings:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Mode button repeatedly to highlight DEFAULT.

6. Press the Shutter button to enter the DEFAULT submenu.

7. Press the Mode button to select OK.

8. Press the Shutter button to confirm.

9. To exit the SETUP SYS.2 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

10. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 66

4.6.6 Wi-Fi Password

This menu allows you to change the Wi-Fi password.

Do the following to change the password:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Mode button repeatedly to highlight WIFI PASSWORD.

6. Press the Shutter button to enter the WIFI PASSWORD submenu.

7. Change the password.

• Press the Shutter button repeatedly to change the

value.

• Press the Mode button to switch to next field.

8. When done, press the Mode button repeatedly to highlight (EXIT).

Page 67

9. Press the Shutter button to confirm.

10. To exit the SETUP SYS.2 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

11. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

4.6.7 Version Number

This menu allows you to view the current firmware version.

Do the following to view the firmware version:

1. Press the Mode button repeatedly to change to SETUP mode.

2. Press the Shutter button to enter the SETUP mode.

3. Press the Mode button repeatedly to select SETUP SYS.2.

4. Press the Shutter button to enter the SETUP SYS.2 menu.

5. Press the Mode button repeatedly to highlight VERSION NO..

6. Press the Shutter button to enter the VERSION NO. submenu.

7. The firmware version appears on the screen. Press the Shutter button to exit the submenu.

Page 68

8. To exit the SETUP SYS.2 menu, press the Mode button repeatedly until the

EXIT screen appears. Then press the Shutter button to confirm.

9. To exit the SETUP mode, press the Mode button repeatedly until the EXIT

screen appears. Then press the Shutter button to confirm.

Page 69

5 Using the Accessories

The camera comes with rugged accessories for all your sporting needs.

5.1 Waterproof Case

The waterproof case allows you to take underwater shots or use it with the surface mount.

1. Release the case lock and flip open the waterproof case.

2. Install the camera inside the waterproof case.

Page 70

3. Secure the waterproof case lock.

5.2 Assembling the Camera Accessories

Lock the swivel T tip to the adhesive socket to adjoin the accessories.

Page 71

Tips on attaching adhesive mounts

• Apply to clean surfaces - wax, dust, and oily essence free.

• Attach the mount at room temperature.

• Mount only on smooth surfaces. To obtain optimum

adhesion, firmly press into place when installing the mount.

• It is highly recommended to attach the mount a minimum of 24 hours before its initial usage.

5.3 Detachable Panel

Using this panel, you can view photos and play video clips directly on this camera.

1. Connect the camera to a detachable panel via the mini HDMI connection as shown.

2. Press the Mode button repeatedly to change to PLAYBACK mode.

Page 72

3. Press the Shutter button to enter the PLAYBACK mode.

4. Press the or button to select the desired photo or video to view.

• To start the video playback, press the button.

Press the button again to stop.

Page 73

Appendix

Specifications

General

OLED Screen Display

0.83”

Storage (Memory) Micro SD, up to 32GB SDHC Class 6

Image Quality Optics: Ultra-sharp F/no=2.8, f=3.34mm

Focus range: 0.75m ~ infinity Field of view: Ultra Wide, Wide, Narrow

Video 1080p (16:9): 60fps, 30fps (Ultra Wide, Wide,

Narrow) 720p (16:9): 120, 60, 30 fps WVGA (16:9): 240, 60, 30 fps Time lapse: 1, 3, 5, 10, 30, 60 seconds Video format: H.264 (mp4)

Still Image Resolution: 16MP, 12MP, 8MP, 5MP

Burst: 3, 5, 10 Self-timer: 3, 5, 10 seconds Photo format: JPEG (exif 2.2), DCF

White Balance Auto

Average Record Time

Video (1080p30): about 90 minutes, Photo (16MP): about 250 photos

Auto Power Off 1, 3, 10 minutes

Inputs/Outputs Micro USB, Micro HDMI, Mini HDMI

Battery 1130mAh rechargeable Li-ion

Page 74

General

Dimensions 54.8 (H) x 42.2 (W) x 36.2 (D) mm

(without lens)

Weight

Approx.

74±3g (without waterproof case)

Page 75

Troubleshooting

Problem Possible Cause Solution

The battery LED is flashing red.

The battery is almost used up.

Replace with a new battery or charge the battery.

Nothing happens when the Shutter button is pressed.

The Micro SD card is full. You cannot take photos or record videos at this point.

Transfer the Micro SD card files to the computer or delete the files in the Micro SD card.

Nothing happens when the Shutter button is pressed. “000” appears on the screen.

The Micro SD card may have compatibility issues.

Format the Micro SD card first using the camera (Delete menu). If it still does not work, format the Micro SD card using the PC.

Nothing happens when the Shutter button is pressed. “000” appears on the screen.

The Micro SD card is not inserted.

Insert the Micro SD card.

Page 76

FCC Statement

Modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off.

The user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the

receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement

The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&UXOHVVWDQGDUG2SHUDWLRQLV

VXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV

7KLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG

7KLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJ

LQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQ

7KHGHYLFHLVGHVLJQHGWRPHHWWKHUHTXLUHPHQWV

RUH[SRVXUHWRUDGLR

ZDYHVHVWDEOLVKHGE\WKH)HGHUDO&RPPXQLFDWLRQV&RPPLVVLRQ86$

7KHVHUHTXLUHPHQWVVHWD6$5OLPLWRI:NJDYHUDJHGRYHURQHJUDP

RIWLVVXH

7KH)&&KLJKHVW6$5YDOXHVUHSRUWHGXQGHUWKLVVWDQGDUGGXULQJ

3URGXFWFHUWLILFDWLRQIRUXVHDWWKHERG\PPJDSLV:NJ

Page 77

Trademarks and licenses

SDHC Logo is a trademark of SD-3C, L
