DX Engineering DXE-TB-5P Instructions manual

Reversible Beverage Antenna
Add-On Tilt Base

DXE-TB-5P

DXE-TB-5P-INS-Revision 0a

This custom made Add-On Tilt Base makes accessing the connections on the
DXE-RBSA-1P Two Direction Reversible Beverage Antenna System easy
and convenient. Allows the user to tilt the Reversible Beverage Antenna unit
90 degrees providing easy access to the Ladder Line connections and
F-Connectors.

Included in the kit:

Custom Made Tilt Bracket
Stainless Steel Hardware

Easy to install. Mount the
Tilt Base on your post.
Mount the Reversible
Beverage Antenna unit to
the tilt base using the supplied

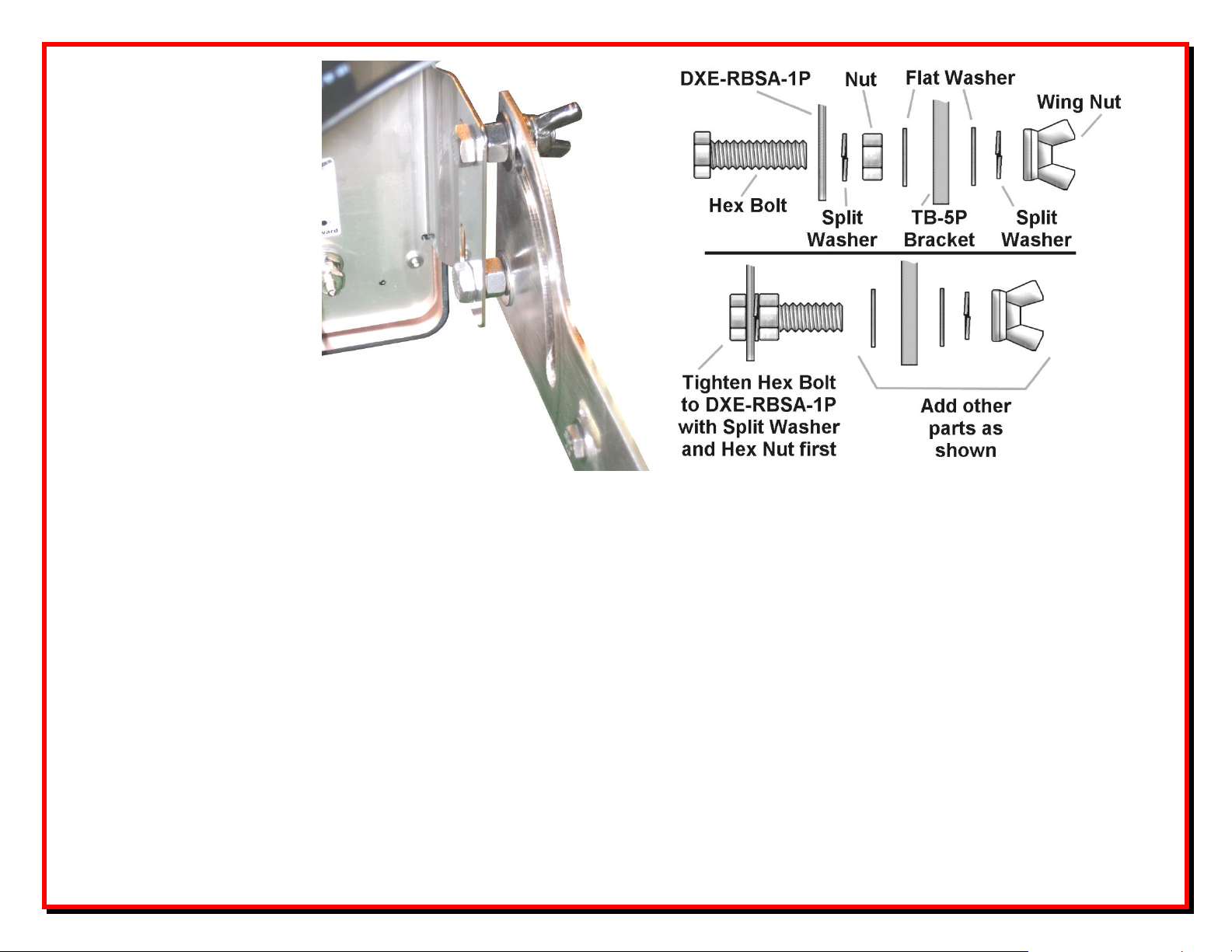

hardware. Use Never-Seez
or Anti-Seize on all stainless
steel hardware to avoid parts
seizing up.

Loosen the wing nuts, and tilt.

DXE-TB-5P Tilt Base shown mounted with optional DXE-RBSA-1P Two
Direction Reversible Beverage System, DXE-SSVC-1PG Stainless Steel V­Clamp with Grounding Tab, DXE-LL450-5C Ladder Line, DXE-LL-INS
Ladder Line Support, user supplied mounting pole and ground rod.

Use Never-Seez or Anti-Seize
on all stainless steel hardware
to avoid parts seizing up.
