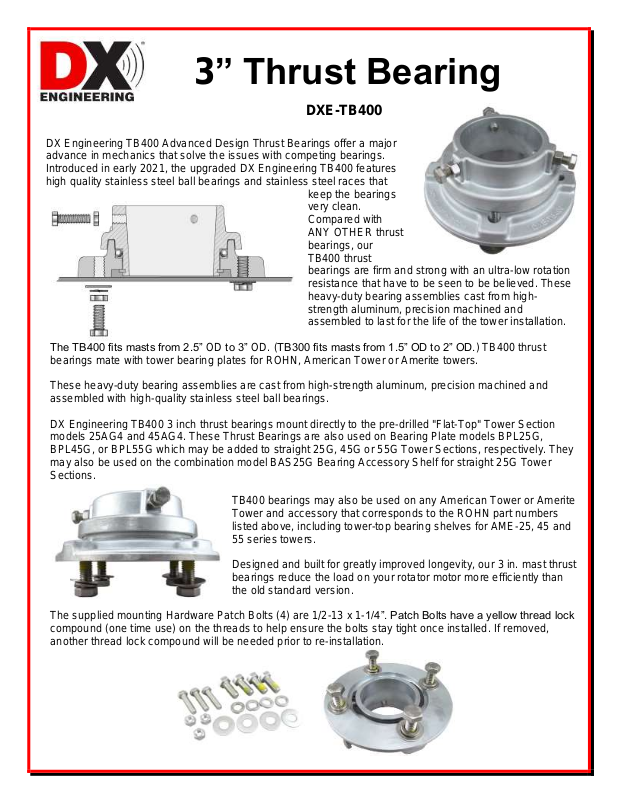

DX Engineering DXE-TB400 Instructions Rev

3” Thrust Bearing

DXE-TB400

DX Engineering TB400 Advanced Design Thrust Bearings offer a major
advance in mechanics that solve the issues with competing bearings.
Introduced in early 2021, the upgraded DX Engineering TB400 features
high quality stainless steel ball bearings and stainless steel races that

keep the bearings
very clean.
Compared with
ANY OTHER thrust
bearings, our
TB400 thrust
bearings are firm and strong with an ultra-low rotation
resistance that have to be seen to be believed. These
heavy-duty bearing assemblies cast from high­strength aluminum, precision machined and
assembled to last for the life of the tower installation.

The TB400 fits masts from 2.5” OD to 3” OD. (TB300 fits masts from 1.5” OD to 2” OD.) TB400 thrust
bearings mate with tower bearing plates for ROHN, American Tower or Amerite towers.

These heavy-duty bearing assemblies are cast from high-strength aluminum, precision machined and
assembled with high-quality stainless steel ball bearings.

DX Engineering TB400 3 inch thrust bearings mount directly to the pre-drilled "Flat-Top" Tower Section
models 25AG4 and 45AG4. These Thrust Bearings are also used on Bearing Plate models BPL25G,
BPL45G, or BPL55G which may be added to straight 25G, 45G or 55G Tower Sections, respectively. They
may also be used on the combination model BAS25G Bearing Accessory Shelf for straight 25G Tower
Sections.

TB400 bearings may also be used on any American Tower or Amerite
Tower and accessory that corresponds to the ROHN part numbers
listed above, including tower-top bearing shelves for AME-25, 45 and
55 series towers.

Designed and built for greatly improved longevity, our 3 in. mast thrust
bearings reduce the load on your rotator motor more efficiently than
the old standard version.

The supplied mounting Hardware Patch Bolts (4) are 1/2-13 x 1-1/4”. Patch Bolts have a yellow thread lock
compound (one time use) on the threads to help ensure the bolts stay tight once installed. If removed,
another thread lock compound will be needed prior to re-installation.

DXE-TB400 3” Thrust Bearing Drill Template

Drawing is scaled to the rulers shown

Information and Instruction Sheet Updates

Every effort is made to supply the latest information or instruction sheet revision with each product. Occasionally an information or instruction sheet will be updated between the time your DX Engineering product is shipped and when you receive it. Please check the DX Engineering web site
(www.dxengineering.com) for the latest revision information or instruction sheet.
