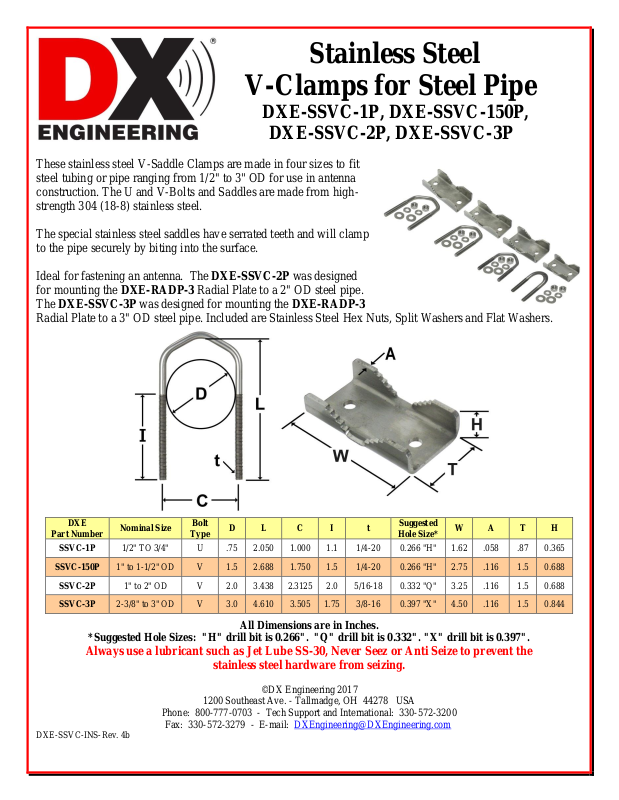

DX Engineering DXE-SSVC-1P Selection Chart

Stainless Steel

DXE

Part Number

Nominal Size

Bolt

Type

D L C I t

Suggested

Hole Size*

W A T

H

SSVC-1P

1/2" TO 3/4"

U

.75

2.050

1.000

1.1

1/4-20

0.266 "H"

1.62

.058

.87

0.365

SSVC-150P

1" to 1-1/2" OD

V

1.5

2.688

1.750

1.5

1/4-20

0.266 "H"

2.75

.116

1.5

0.688

SSVC-2P

1" to 2" OD

V

2.0

3.438

2.3125

2.0

5/16-18

0.332 "Q"

3.25

.116

1.5

0.688

SSVC-3P

2-3/8" to 3" OD

V

3.0

4.610

3.505

1.75

3/8-16

0.397 "X"

4.50

.116

1.5

0.844

V-Clamps for Steel Pipe

DXE-SSVC-1P, DXE-SSVC-150P,

DXE-SSVC-2P, DXE-SSVC-3P

These stainless steel V-Saddle Clamps are made in four sizes to fit
steel tubing or pipe ranging from 1/2" to 3'' OD for use in antenna
construction. The U and V-Bolts and Saddles are made from high­strength 304 (18-8) stainless steel.

The special stainless steel saddles have serrated teeth and will clamp
to the pipe securely by biting into the surface.

Ideal for fastening an antenna. The DXE-SSVC-2P was designed
for mounting the DXE-RADP-3 Radial Plate to a 2" OD steel pipe.
The DXE-SSVC-3P was designed for mounting the DXE-RADP-3
Radial Plate to a 3" OD steel pipe. Included are Stainless Steel Hex Nuts, Split Washers and Flat Washers.

Fax: [phone] - E-mail: [e-mail]

DXE-SSVC-INS-Rev. 4b

All Dimensions are in Inches.

*Suggested Hole Sizes: "H" drill bit is 0.266". "Q" drill bit is 0.332". "X" drill bit is 0.397".

Always use a lubricant such as Jet Lube SS-30, Never Seez or Anti Seize to prevent the

stainless steel hardware from seizing.

©DX Engineering 2017

1200 Southeast Ave. - Tallmadge, OH 44278 USA

Phone: [phone] - Tech Support and International: 330-572-3200
