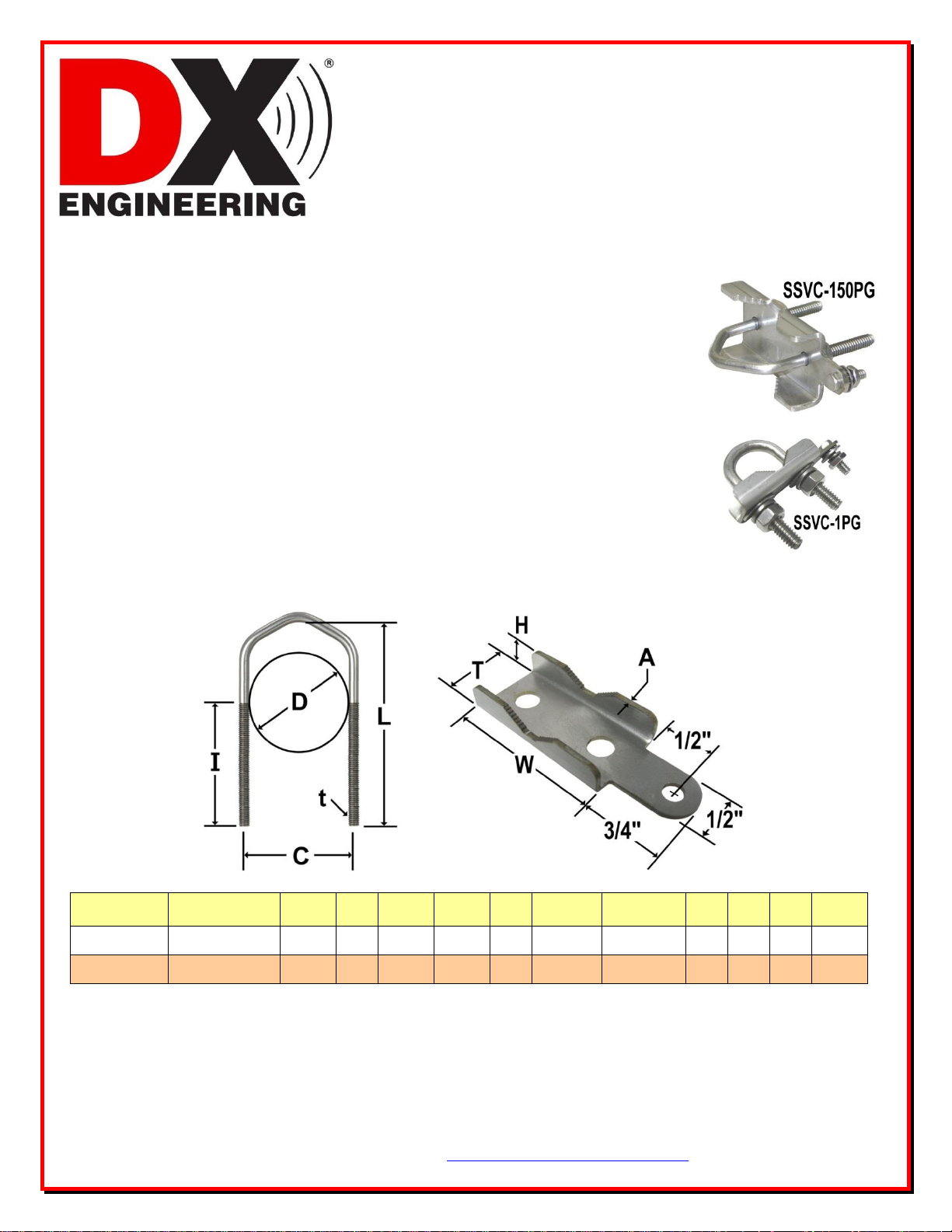

DX Engineering DXE-SSVC-150PG Selection Chart

Stainless Steel

DXE

Part Number

Nominal Size

Bolt

Type

D L C I t

Suggested

Hole Size*

A W T

H

SSVC-1PG

1/2" to 3/4" OD

U

.75

2.050

1.00

1.1

1/4-20

0.266 "H"

.058

1.62

.87

0.365

SSVC-150PG

1" to 1-1/2" OD

V

1.5

2.688

1.750

1.5

1/4-20

0.266 "H"

.116

2.75

1.5

0.688

V-Clamps with Tab

for Steel Pipe

DXE-SSVC-1PG and DXE-SSVC-150PG

These stainless steel V-Clamps with special tabs are made in two sizes to fit
ground rods, steel tubing or pipe ranging from 1/2" to 1-1/2'' OD for use in
antenna construction.

The V-Bolts, U-Bolt and Saddles are made from high-strength 304 (18-8)
stainless steel. The special stainless steel saddles have serrated teeth and will
clamp to the pipe securely by biting into the surface.

Continuing on the popular DXE-SSVC series of clamps, the "G" models have a
special tab for connecting an optional ground braid or wire. Also included for
connection to the tab: #10 Stainless Steel Hex Nut, #10 Split Washer, #10 Star
Washer, #10 Flat Washer and #10 x 5/8” long Hex bolt.

1/4-20 Stainless Steel Hex Nuts, Flat Washers and, Split Washers are included for
the U or V Bolt (depending on the model you order).

DXE-SSVCG-INS-Rev. 0c Fax: [phone] - E-mail: [e-mail]

All Dimensions are in Inches.

*Suggested Hole Sizes: "H" drill bit is 0.266"

Always use a lubricant such as Never Seez or Anti Seize to prevent the

stainless steel hardware from seizing.
