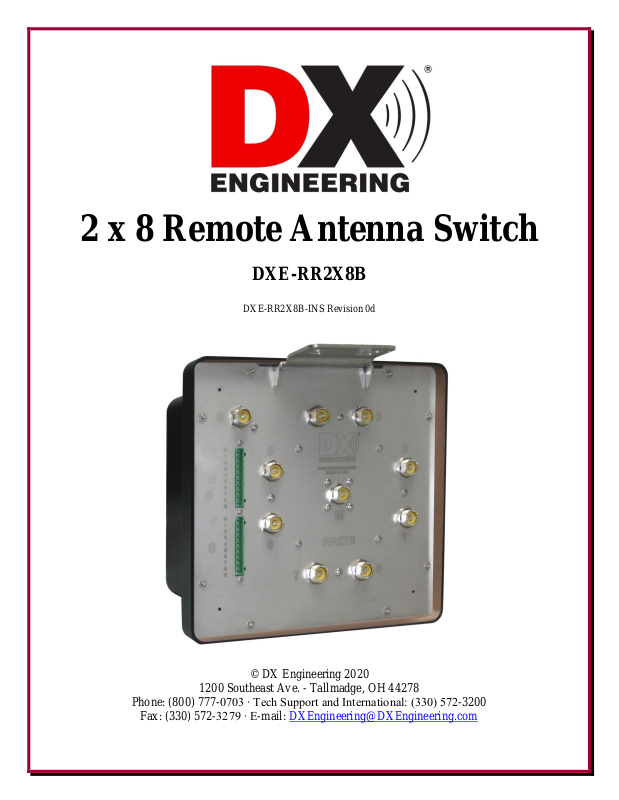

DX Engineering DXE-RR2X8B Instructions manual

2 x 8 Remote Antenna Switch

DXE-RR2X8B

DXE-RR2X8B-INS Revision 0d

© DX Engineering 2020

1200 Southeast Ave. - Tallmadge, OH 44278

Phone: [phone] ∙ Tech Support and International: [phone]

Fax: [phone] ∙ E-mail: [e-mail]

Introduction

When selecting the various switch positions, the Main has precedence. This means if the Main selects

output port #3, the Secondary cannot use port #3 at the same time.

Secondary will then be transmitting to an open

Another example would be if the Secondary has selected port 5 and you are transmitting, and the Main

then selects port 5, the Main takes port 5 and Secondary will then be transmitting into an open.

The DXE-RR2X8B is a dual 8-port switch designed to switch coaxial lines in low to medium­power RF systems typically used in a Single Operator - Two Radio (SO2R) environment.

The DXE-RR2X8B allows the user to switch inputs from either Main or Secondary radio to two of
the eight output ports using 1 of 8 logic inputs. The logic high required for switching is +12 Vdc at
100 mA. A switching time of less than 15 ms is normal.

The DXE-RR2X8B is intended to be interfaced with a customer supplied logical switching unit.
The logical switching unit used should provide for protection against hot switching and to prevent
attempts at the Main or Secondary from selecting the same output port at the same time. The DXE-

RR2X8B contains no internal logic or T/R switch sensing for transmit protection.

Features

Enclosed relays provide exceptional performance and are moisture resistant. The RR2X8B can be
used to simultaneously select multiple output ports as well as conventional one-of-eight antenna
switching. This allows the RR2X8B to be used in complex antenna systems as well as traditional
switching arrangements. Ports that are not selected are grounded.

The RR2X8B also uses removable screw terminals for the control cables. The removable plugs
greatly simplify installation by eliminating the need for soldering. Disassembly is not required for
control wiring access.

The RR2X8B also offers the following features:

 RF Shielded Weatherproof Housing - unique protection
 Excellent Port-to-Port Isolation; greater than 70 dB at 30 MHz, worst case.
 Ports not selected are grounded
 High-RF tolerant UHF connectors
 Enclosed 16-ampere RF relays
 Safe 12-volt relay operation
 16 MOVs for surge protection on control lines
 16 RF bypass capacitors
 Includes one DXE-SSVC-2P Stainless Steel V-Clamp for mounting

2

Specifications

Power Rating: 6 kW ICAS all modes, under 2:1 SWR, 4 kW CCS all modes, under 2:1 SWR
Control Voltage: +10-14 Vdc at 100 mA per port
Port-to-Port Isolation: >70 dB below 30 MHz, >60 dB below 60 MHz

Ports Not Selected: Are Grounded
Loss: <0.3 dBm below at 52 MHz
Impedance: 50 ohms
Dimensions: 10.375" x 9.875" x 4.375" and the mounting flange hangs down 2.25"
Control Line: Dual 8-wire line larger than #24 for runs up to 500 ft. (or 9-conductor for

dedicated ground). When using 8-conductor wire the feedline serves as a ground return. Use
of two DXE-CW9 CAT-5 or standard low voltage control wiring, such as telephone wire, is
acceptable.

General Information

The DXE-RR2X8B uses a dual star arrangement of 24 relays to select one or more of eight output
ports when voltage is applied from two 8-wire control lines.

The 24 relays provide greatly improved power handling, port-to-port isolation and SWR over
conventional switches and allow connection between any of the eight antenna output ports from
either the Main or Secondary input ports.

The system offers virtually no loss at HF and excellent low-loss performance (less than 0.16 dB loss
on six meters).

Installation

1. Secure the RR2X8B switching unit using the included DXE­SSVC-2P stainless steel V-Saddle Clamp. For outdoor
installations or in moist environments, connectors must face
downward. Use Jet-Lube SS-30, Never-Seez® or Anti-Seize on
all stainless steel hardware to prevent galling.

2. Fasten all cables to the mounting mast or tower to relieve strain,
and gently droop the cables to form a drip loop (do not use tight
bends with coaxial cable). Install the RR2X8B with the
connectors facing down and use gradual bends or loops in heavy
wires. If the RR2X8B is mounted to a wooden pole or building,
a wide copper flashing or heavy wire or strap should be
connected from the mounting bracket to a good ground.

3

3. Wire the two plugs making a note of wire colors at each pin. Write them in the Connector Wire

M = MAIN Connector Wire Reference Table

G 1 2 3 4 5 6 7 8

G

S = SECONDARY Connector Wire Reference Table

G 1 2 3 4 5 6 7 8

G

Reference Table below. Either "G" is ground.

The green connectors are in two parts and the tops part can be removed by

pulling it straight off. This will allow easier wire replacement or servicing as
needed. When pushing a connector back in place, ensure you press straight
inward.

M = Main S = Secondary

DXE-CW9 Shielded CAT5 cable can be used. The shield is used as the signal ground return.
Adhering to a logical standard allows people unfamiliar with a system to troubleshoot with minimal
difficulty.

For DXE-CW9 shielded CAT5 cable we suggest working your way up through the pairs by
ascending color: brown, brown/white, orange, orange/white, green, green/white, blue, and
blue/white.

The ground wire can be omitted if the DXE-EC-8 control console or the DXE-CC-8A control
console or other switching voltage source is grounded to the feedline. The feedline shield and
equipment grounds provide the ground path. Note: The total loop resistance of the control cable

path must be under 30 ohms for reliable operation. .

Note: Do not seal the green connectors! The green connectors are recessed inside

a drip edge that prevents water from getting into connectors. The cover-to-

connector plate junction is not sealed so the unit can "breathe” and

eliminate condensation.

4

Control

When selecting the various switch positions, the Main has precedence. This means if the Main selects

output port #3, the Secondary cannot use port #3 at the same time.

Secondary will then be transmitting to an open

Another example would be if the Secondary has selected port 5 and you are transmitting, and the Main

then selects port 5, the Main takes port 5 and Secondary will then be transmitting into an open.

The DXE-RR2X8B allows the user to switch inputs from either Main or Secondary to the eight
output ports using 1 of 8 logic inputs. The logic high required for switching is +12 Vdc.

A very simplified schematic is shown:

Main selection always takes precedence.
Main and Secondary can never use the same
output port at the same time (See notes above).
(Ports not selected are grounded)

Caution: Never switch antennas while transmitting. Hot switching with power will create a sustained arc
that damages relay contacts. When switching ports, allow 15 ms before transmitting to avoid damaging the

switch. This type of damage is NOT covered under warranty.

5

Notes:

6

Optional Items

*JTL-12555

Jet-Lube SS-30

*PTX-81343

Anti-Seize, 1 oz. Squeeze Tube

*PTX-81464

Anti-Seize, 8.5 oz. Aerosol Can

*DXE-NSBT8

Never-Seez, 8 oz. Brush Top

*DXE-NMBT8

Never-Seez, 8 oz. Brush Top, Marine Grade

DXE-CW9S - Shielded Control Wire, 9 conductor stranded, per foot

DXE-CW9S is a high quality shielded outdoor cable. It features 9 #24 AWG stranded conductors with aluminum
foil shielding plus a #24 stranded tinned copper drain wire. This gives you 8 switch positions plus common ground ­ plus the separate shield. It has a gray PVC jacket. This cable is ideal for DX Engineering Remote Antenna Switches
and Four Square arrays, and should be considered for any low-current custom remote switching application you have

- such as receiving antenna arrays. Order by the foot in the length you require. Price shown is per foot.

A nice feature is the "rip cord", which allows for easy stripping of the heavy jacket without worry about nicking or accidentally
cutting the conductors.

DXE-CW9-1K - Shielded Control Wire, 9 conductor, 1000 ft reel
DXE-CW9 - Shielded Control Wire, 9 conductor, per foot

DXE-CW9-1K is a 1000 foot box of high quality shielded outdoor FTP (Foil Twisted Pair) Cat5e cable. It features 4 twisted
pairs of 24 AWG solid wires with Al foil shielding plus a solid tinned copper drain wire - providing a total of 9 conductors
for DC switching applications. It has a polyethylene jacket and is rated for direct burial. This cable is ideal for DX
Engineering Remote Antenna Switches and Four Square arrays, and should be considered for any low-current custom remote
switching application you have - such as receiving antenna arrays. A nice feature is the "rip cord", which allows for easy stripping of
the heavy jacket without worry about nicking or accidentally cutting the conductors. Excellent for use in all outdoor
applications of switching, networking, data transfer and phone lines. As a data transfer line, it supports 10/100/1000Mbps.

Jet Lube AA-30, Anti-Seize & Never-Seez

An Anti-seize compound MUST be used on any Stainless Steel nuts, bolts, clamps or other hardware to prevent galling
and thread seizure. Any of these products can be used for this purpose.

* These products are limited to domestic UPS Ground shipping only

SUM-900031 - Automatic Wire Stripper/Crimper/Cutter, 24-10 Ga.

Our DX Engineering wire stripper uses a spring-loaded design to make quick work of wires ranging

from 24 to 10 gauge. Just insert the wire, squeeze the handle, and listen for the click. That’s the

sound of another perfect wire stripping job performed in about 2 seconds- a fraction of the time it
takes your pocket knife to do the same job. An adjustable wire length guide helps you make uniform
strips, and a built-in wire cutter and crimper helps you complete your wiring job.
Spring-loaded design

 Strips wires ranging from 24 to 10 gauge
 built-in wire cutter and crimper

KLE-11055 - Klein-Kurve Wire Stripper / Cutter 11055, 18-22 AWG

Klein Tools Klein-Kurve wire strippers are ideal for stripping solid (10-18 AWG) and stranded (12-20 AWG) wire
cleanly and easily. The 7-1/8 in. strippers also have precise shear-type blades to cut copper wire nicely, easy-to­read markings on both sides, and extra-soft grips and curved handles for comfort.

7
