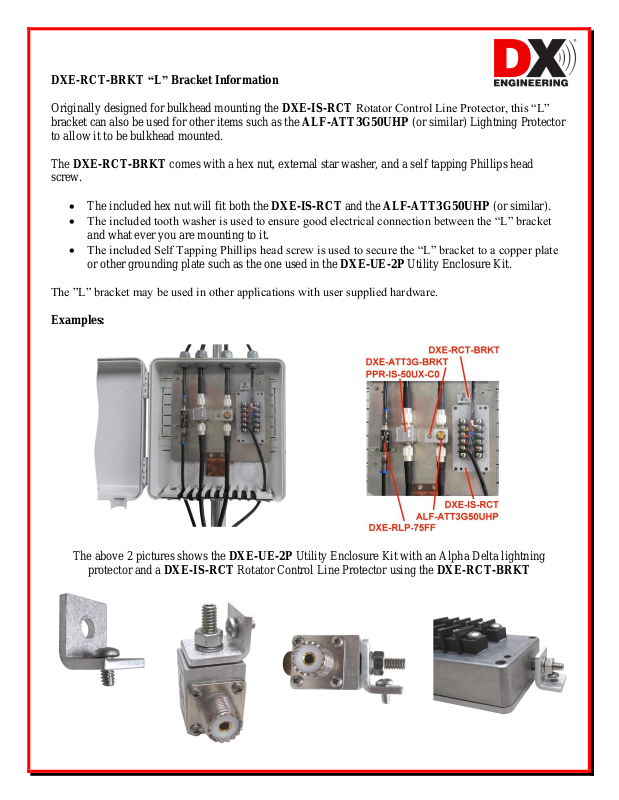

DXE-RCT-BRKT “L” Bracket Information
Originally designed for bulkhead mounting the DXE-IS-RCT Rotator Control Line Protector, this “L”
bracket can also be used for other items such as the ALF-ATT3G50UHP (or similar) Lightning Protector
to allow it to be bulkhead mounted.
The DXE-RCT-BRKT comes with a hex nut, external star washer, and a self tapping Phillips head
screw.
The included hex nut will fit both the DXE-IS-RCT and the ALF-ATT3G50UHP (or similar).
The included tooth washer is used to ensure good electrical connection between the “L” bracket
and what ever you are mounting to it.
The included Self Tapping Phillips head screw is used to secure the “L” bracket to a copper plate
or other grounding plate such as the one used in the DXE-UE-2P Utility Enclosure Kit.
The ”L” bracket may be used in other applications with user supplied hardware.
Examples:
The above 2 pictures shows the DXE-UE-2P Utility Enclosure Kit with an Alpha Delta lightning
protector and a DXE-IS-RCT Rotator Control Line Protector using the DXE-RCT-BRKT
