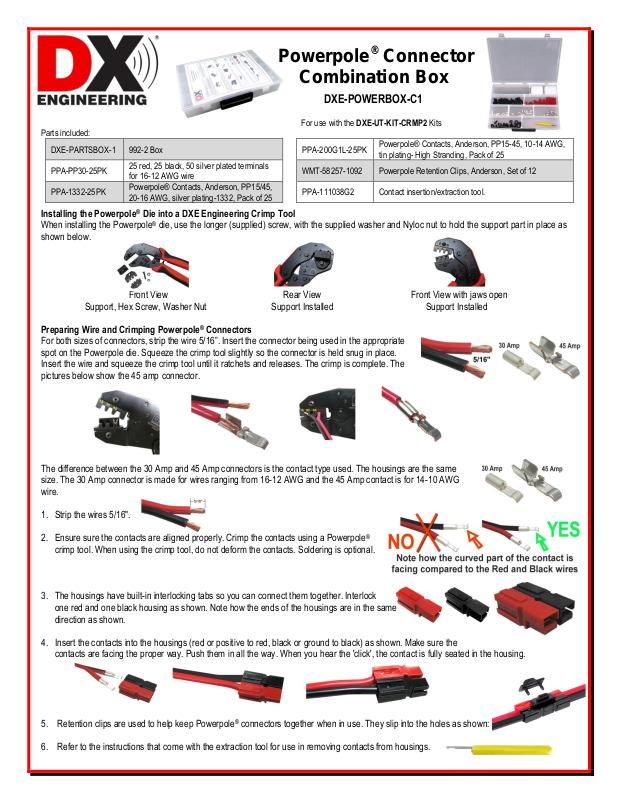

DX Engineering DXE-POWERBOX-C1 Instructions manual

Powerpole® Connector

DXE-PARTSBOX-1

992-2 Box

PPA-200G1L-25PK

Powerpole® Contacts, Anderson, PP15-45, 10-14 AWG,
tin plating- High Stranding, Pack of 25

PPA-PP30-25PK

25 red, 25 black, 50 silver plated terminals
for 16-12 AWG wire

WMT-58257-1092

Powerpole Retention Clips, Anderson, Set of 12

PPA-1332-25PK

Powerpole® Contacts, Anderson, PP15/45,
20-16 AWG, silver plating-1332, Pack of 25

PPA-111038G2

Contact insertion/extraction tool.

Combination Box

DXE-POWERBOX-C1

For use with the DXE-UT-KIT-CRMP2 Kits

Parts included:

Installing the Powerpole® Die into a DXE Engineering Crimp Tool
When installing the Powerpole® die, use the longer (supplied) screw, with the supplied washer and Nyloc nut to hold the support part in place as
shown below.

Front View Rear View Front View with jaws open
Support, Hex Screw, Washer Nut Support Installed Support Installed

Preparing Wire and Crimping Powerpole® Connectors

For both sizes of connectors, strip the wire 5/16”. Insert the connector being used in the appropriate

spot on the Powerpole die. Squeeze the crimp tool slightly so the connector is held snug in place.
Insert the wire and squeeze the crimp tool until it ratchets and releases. The crimp is complete. The
pictures below show the 45 amp connector.

The difference between the 30 Amp and 45 Amp connectors is the contact type used. The housings are the same
size. The 30 Amp connector is made for wires ranging from 16-12 AWG and the 45 Amp contact is for 14-10 AWG
wire.

1. Strip the wires 5/16".

2. Ensure sure the contacts are aligned properly. Crimp the contacts using a Powerpole®
crimp tool. When using the crimp tool, do not deform the contacts. Soldering is optional.

3. The housings have built-in interlocking tabs so you can connect them together. Interlock

one red and one black housing as shown. Note how the ends of the housings are in the same
direction as shown.

4. Insert the contacts into the housings (red or positive to red, black or ground to black) as shown. Make sure the
contacts are facing the proper way. Push them in all the way. When you hear the 'click', the contact is fully seated in the housing.

5. Retention clips are used to help keep Powerpole® connectors together when in use. They slip into the holes as shown:

6. Refer to the instructions that come with the extraction tool for use in removing contacts from housings.

DXE-PW-10
DXE-PW-12
DXE-PW-14
DXE-PW-16
DXE-PW-18

10/12/14/16/18 gauge power cable sold by the foot.
PPA-PCLIP-25PK

Powerpole® Retention Clips, Anderson, 25 pack

PPA-PP15-10PK
PPA-PP30-10PK
PPA-PP30-25PK
PPA-PP30-50PK
PPA-PP45-10PK
PPA-PP45-25PK
PPA-PP45-50PK

Powerpole® Connectors, Anderson, PP15, 10 red, 10 black, 20 silver plated terminals for 16 AWG & smaller wire
Powerpole® Connectors, Anderson, PP30, 10 red, 10 black, 20 silver plated terminals for 16-12 AWG wire
Powerpole® Connectors, Anderson, PP30, 25 red, 25 black, 50 silver plated terminals for 16-12 AWG wire
Powerpole® Connectors, Anderson, PP30, 50 red, 50 black, 100 silver plated terminals for 16-12 AWG wire
Powerpole® Connectors, Anderson, PP45, 10 red, 10 black, 20 tin plated terminals for 14-10 AWG wire
Powerpole® Connectors, Anderson, PP45, 25 red, 25 black, 50 tin plated terminals for 14-10 AWG wire
Powerpole® Connectors, Anderson, PP45, 50 red, 50 black, 100 tin plated terminals for 14-10 AWG wire

PPA-STDHSG-11PK

Powerpole® Standard Housing, Anderson, PP15-45, Variety Pack, 1 of each color, 11 pack

PPA-WP30-40PK

Powerpole® Connectors, WP30, 40 Ultrasonically welded housings, 80 silver plated terminals for 16-12 AWG wire

DXE-225RT-20

Ring Terminals, 14-16 gauge Wire Range, 0.250 in. Hole Diameter, Set of 20

DXE-UT-DIE-UNIS

Die Set for DXE-UT Crimpers, for uninsulated wire connectors

VEL-VT5021

Universal stripper

DXE-UT-KIT-CRMP2 Complete Kit includes:

DXE-UT-CRMP2 Ultra-Grip-2 Crimp Connector Hand Tool
DXE-UT-DIE-8U Crimp Die for RG-8U/213/LMR-400 size cable
DXE-UT-DIE-8X Crimp Die for RG-8X/LMR-240 size cable
DXE-UT-DIE-PP Crimp Die for Powerpole® 15, 30, 45A contact
DXE-UT-DIE-INS for insulated crimp style terminals 22-18/15-14/12-10 AWG
DXE-UT-DIE-UNIS for uninsulated crimp style terminals 20-28/26-24/12-10 AWG
CNL-911 Coaxial Cable Shears
DXE-170M Precision Braid Trimmer

2.5 mm Allen Wrench

DXE-CRIMP-CASE Custom Hard Plastic Carry Case with Custom Cut Foam Insert

Suggested Items to include in the DXE-POWERBOX-C1:

Suggested Tool Kit:

1200 Southeast Ave. - Tallmadge, OH 44278 USA

Phone: [phone] - Tech Support and International - [phone]

Fax: [phone] - E-mail: [e-mail]

© DX Engineering 2017

DXE-POWERBOX-C1-INS Rev 0
