Tube Size
Band
Width
Nut
Driver
DX Engineering
Part Number
Description
DX Engineering strongly suggests you choose your
element clamp based on the tube size as listed.
This actual size restricts the amount of clamp being
outside the worm drive to help prevent the user from
being accidently cut by sharp edges.
©DX Engineering 2016
1200 Southeast Ave., Tallmadge, OH 44278 USA
Phone: 800-777-0703 Tech Support and International: 330-
572-3200
e-mail: DXEngineering@DXEngineering.com
DXE-ECL-INS Rev. 3
0.500”
0.313”
1/4”
DXE-ECL-0500-10P
Element Clamp, 10 pack
.625”
0.313”
1/4”
DXE-ECL-0625-10P
Element Clamp, 10 pack
.750”
0.500”
5/16”
DXE-ECL-0750-10P
Element Clamp, 10 pack
0.875”
0.500”
5/16”
DXE-ECL-0875-10P
Element Clamp, 10 pack
1.000”
0.500”
5/16”
DXE-ECL-1000-10P
Element Clamp, 10 pack
1.125 to 1.250”
0.500”
5/16”
DXE-ECL-1250-10P
Element Clamp, 10 pack
1.375 to 1.500”
0.500”
5/16”
DXE-ECL-1500-10P
Element Clamp, 10 pack
1.625 to 1.750”
0.500”
5/16”
DXE-ECL-1750-10P
Element Clamp, 10 pack
Also used as a Hustler
BTV Replacement Part
1.875 to 2.000”
0.500”
5/16”
DXE-ECL-2000-10P
Element Clamp, 10 pack
2.125 to 2.250”
0.500”
5/16”
DXE-ECL-2250-5P
Element Clamp, 5 pack
2.375 to 2.500”
0.500”
5/16”
DXE-ECL-2500-5P
Element Clamp, 5 pack
2.625 to 2.750”
0.500”
5/16”
DXE-ECL-2750-5P
Element Clamp, 5 pack
2.875 to 3.000”
0.500”
5/16”
DXE-ECL-3000-5P
Element Clamp, 5 pack
3.125 to 3.250”
0.500”
5/16”
DXE-ECL-3250-5P
Element Clamp, 5 pack
Part Number
Size Range
Multi-Pack Contents
DXE-ECL-MP1
0.500 to 1.500”
0500, 0625, 0750, 0875, 1000, 1250, 1500 (Two each of Clamps - total of 14)
DXE-ECL-MP2
1.000 to 2.250”
1000, 1250, 1500, 1750, 2000, 2250 (Two each of Clamps - total of 12)
DXE-ECL-MP3
2.125 to 3.250”
2250, 2500, 2750, 3000, 3250 (Two each of Clamps - total of 10)

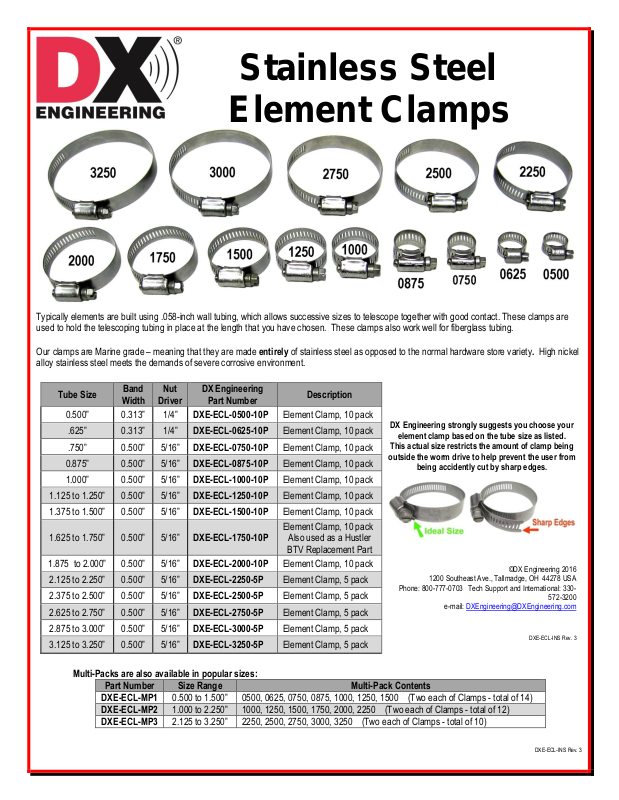

Stainless Steel
Element Clamps
Typically elements are built using .058-inch wall tubing, which allows successive sizes to telescope together with good contact. These clamps are
used to hold the telescoping tubing in place at the length that you have chosen. These clamps also work well for fiberglass tubing.
Our clamps are Marine grade – meaning that they are made entirely of stainless steel as opposed to the normal hardware store variety. High nickel
alloy stainless steel meets the demands of severe corrosive environment.
Multi-Packs are also available in popular sizes:
