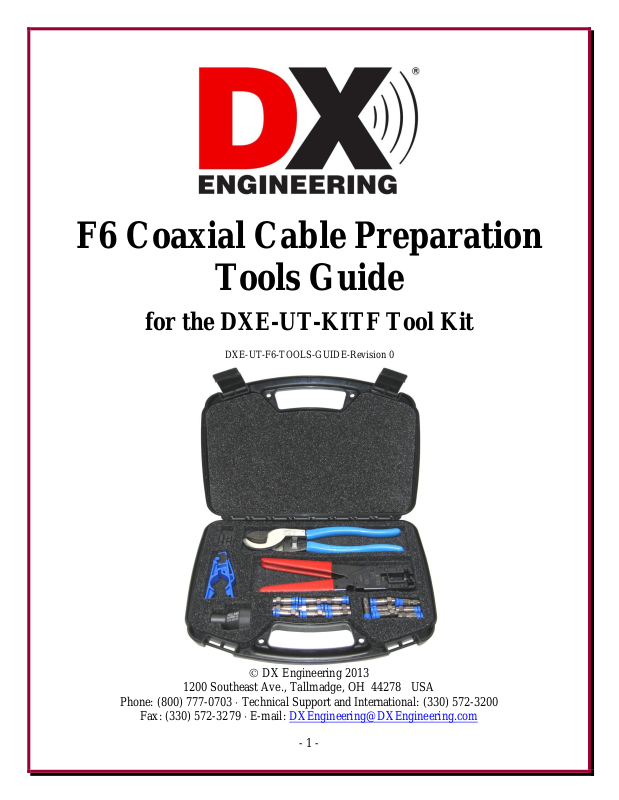

F6 Coaxial Cable Preparation

Tools Guide

for the DXE-UT-KITF Tool Kit

DXE-UT-F6-TOOLS-GUIDE-Revision 0

 DX Engineering 2013

1200 Southeast Ave., Tallmadge, OH 44278 USA

Phone: [phone]  Technical Support and International: [phone]

Fax: [phone]  E-mail: [e-mail]

- 1 -

Table of Contents

Introduction

2

General Information

2

Preparing F6 Coaxial Cable and Installing a Snap-N-Seal® Connector

4

Using the F connector Tightening Tool

7

Weatherproofing

8

On-Line Instructional Videos

9

F Connector Tool Kit, Tools, Supplies and F6 Coaxial Cable from DX Engineering

10

Guide Updates

12

Technical Support and Warranty Information

12

Introduction

This guide will explain the preparation of F6, flooded, 75 ohm coaxial cable and the installation of
Snap-N-Seal® connectors using DXE-UT-KITF F-Connector Coaxial Cable Prep Tool Kit with
the various specialized tools supplied by DX Engineering. These tools were specifically selected to
make the task of preparing F6 coaxial cable easy, fast and safer then older methods. The tools
included in DXE-UT-KITF include:

1 - Custom Made Case with custom pre-cut High Density Foam
1 - CNL-911 Cable Cutter
1 - DXE-SNS-CT1 Snap-N-Seal® Compression Tool
1 - DXE-CPT-659 F6 Coax Prep Tool w/Spare Blade
1 - DXE-UT-SNS6-25 1 package of 25 Snap-N-Seal® Connectors
1 - DXE-CIT-1 F Connector Tightening Tool

General Information

The DXE-UT-KITF DX Engineering F6 Coaxial Cable Preparation Tool Kit provides all the
tools you need in one convenient custom made case to prepare F6 coaxial cable using Snap-N-Seal®
F connectors.

DX Engineering F6 coaxial cable (DXE-F-1000 sold in a 1000 spool or DXE-F6-CTL sold by the
foot) is a high quality 75 ohm ‘flooded” coaxial cable ideal for amateur radio receive systems.
Flooded-style feedlines have the distinct advantage of automatically sealing small incidental cuts or
lacerations on the jacket. Flooding also prevents shield contamination and allows the coaxial cable
to be direct-buried. This low-loss cable features dual shields and an 85 percent velocity factor. The
waterproof polyethylene jacket is perfectly suited for direct bury, in conduit or above ground
applications.

- 2 -

DXE-SNS6-25 - Snap-N-Seal® connectors (25 per package) are recognized as the best F­Connectors and are used not only in Amateur Radio, but world-wide in the CCTV and Cable TV
industries. Snap-N-Seal® “F” series Male one-Piece compression connectors feature a user-friendly,
pre-positioned and detachably coupled plastic sleeve, incorporating time-proven advantages for a
reliable connection. Snap-N-Seal® One Piece Connectors use a proven 360º compression design. To
reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachably
coupled to the connector body. True 360º compression onto cable ensures superior RF shielding
performance, -90 dB effective shielding (typical on 60% bonded foil cable). Installation requires
one-step 1/4” - 1/4” cable preparation and standard compression tool. Quad-sealed system prevents
moisture migration. Incorporates a Nickel Tin finish plus UV resistant plastic and O-rings to
provide a reliable, environmentally sealed product. Superb return loss performance of -30 dB to 1
GHz. Cable retention exceeds 40 lb. minimum as specified by the SCTE. Snap-N-Seal® connectors
cannot be properly crimped using standard pliers. A special Snap-N-Seal® crimper (DXE-SNS-
CT1) must be used to ensure reliable, weatherproof crimps.

Snap-N-Seal® connectors Physical Properties:

• Nut, Post and Collar: Brass

• Nut and Collar Finish: Nickel Tin

• Post Finish: Tin Plated

• O-Rings: Ethylene Propylene electrical Properties

• Return Loss: ≥-30 dB up to 1 GHz Typical

• Insertion Loss: ≤-0.18 dB up to 1 GHz Typical

• RFI Shielding: -90 dB Typical (60% Bonded Foil) Mechanical Properties

• Cable Retention: 40 lbs min. Complies to SCTE IPS-SP-401

• Cable Insertion Force: <20 lbs environmental properties

• Temperature Rating: -40°F (-40°C) to 140°F (60°C)

• Moisture Migration: Passes ANSI/SCTE 60 2004

Dielectric Grease is recommended to be used on F6 Connectors exposed to the outside environment.
DX Engineering offers two types of dielectric grease:

UMI-22058 - Permatex Dielectric Grease and LCT-37534 - Loctite Dielectric Grease
Dielectric grease may be used in RF connectors to prevent moisture ingress. Feedlines and
connectors will last longer, providing peak performance for many more years with the use of
dielectric grease on the threads of RF connectors.

Preventing the effects of moisture is critical in RF feedline connections. Untreated connector
threads will oxidize, corrode and seize more quickly if water vapor can enter and collect inside RF
connectors. Ultimately, moisture will enter the coaxial cable, promoting contamination and
corrosion, resulting in elevated noise levels and increased signal loss.

Dielectric Grease, placed into the air space of RF connectors and their threads, will stop the adverse
effects of water vapor and water ingress. Avoiding direct application on mating surfaces of
connector center pins, dielectric grease is safe to use in the air spaces and threads of RF connectors.

- 3 -

Preparing F6 Coaxial Cable and Installing a Snap-N-Seal® Connector

Tools required:

CNL-911 Cable Cutter
DXE-SNS-CT1 Snap-N-Seal® Compression Tool
DXE-CPT-659 F6 Coax Stripping Tool
DXE-UT-SNS6-25 Snap-N-Seal® Connectors

A. Use the CNL-911 to cut the coaxial cable. The CNL-911 cutters make a clean cut unlike regular

diagonal cutters.

B. Using the DXE-CPT-659 Cable Stripper,

press the tool to open, place the end of the
F6 coaxial cable in the tool. The end of
the coaxial cable will rest against the
built-in cable stop on the tool.

Release the tool so it grips the coaxial

cable.
