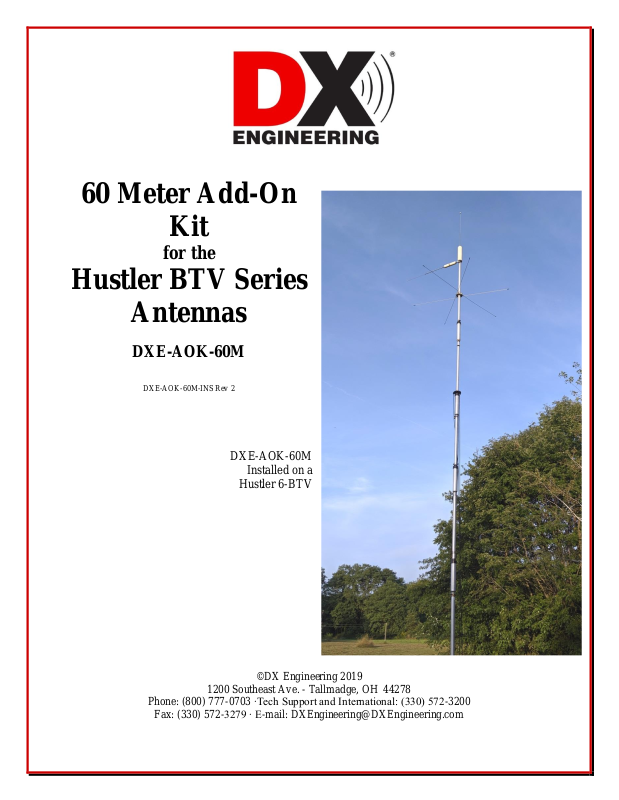

DX Engineering DXE-AOK-60M Instructions manual

60 Meter Add-On

Kit

for the

Hustler BTV Series

Antennas

DXE-AOK-60M

DXE-AOK-60M-INS Rev 2

DXE-AOK-60M

Installed on a

Hustler 6-BTV

©DX Engineering 2019

1200 Southeast Ave. - Tallmadge, OH 44278

Phone: [phone] ∙Tech Support and International: [phone]

Fax: [phone] ∙ E-mail: [e-mail]

A Word About Power Levels

This kit uses parts that are designed to accept power levels as high as 400 watts or less in SSB
mode, with an SWR of 1.5:1 or less without the use of an antenna tuner. As of March 5, 2012, the
maximum legal power for the 60 meter band for Amateurs in the United States and it possessions

is 100 Watts Effective Radiated Power (ERP), as stipulated by the FCC. It is the user’s

responsibility to operate in a legal manner. One can expect that a coil loaded shortened vertical
antenna would have close to unity gain at 5 MHz. In most directions, this vertical antenna has
about the same maximum gain as a low dipole operated on the same frequency.

Qty

Description

6

Hot Rodz, Stainless Steel, 0.125” Dia x 24” long

6

Black End Cap, 0.110” x 1” long

1

Multi-Purpose Hub, cast, DX Engineering

6

1/4-20, Hex Nut, Stainless Steel

3

1/4-20, Square Nut, Stainless Steel

3

1/4-20 x 1” long, Hex Head Bolt, Stainless Steel

3

1/4-20 x 1-1/4” long, Socket Head Cap Screw, Stainless Steel

3

1/4”, 18-8, Flat Washer, Stainless Steel

6

1/4”, Split Washer, Stainless Steel

3

1/4”, Fender Washer, 1” OD x 0.05” thick

1

Resonator Bracket, machined

1

3/8-24, Threaded Stud

2

3/8-24, Hex Jam Nut

1

3/8-24 x 3/4” long, Hex Head Bolt

2

3/8”, External Tooth Lock Washer, Stainless Steel

1

60 meter Resonator, Hustler, 400w PEP

Note: Jet-Lube™ SS-30 Anti-Oxidant should be used between all antenna element sections. Jet-Lube™ SS-

30 is an electrical joint compound to affect a substantial electrical connection between metal parts
such as telescoping aluminum tubing or other antenna pieces. It ensures high conductivity at all
voltage levels by displacing moisture and preventing corrosion or oxidation.

Jet-Lube™ SS-30 should also be used on all coil clamps, element clamps, bolts and stainless steel

threaded hardware to provide good electrical contact, prevent galling, allow easier disassembly and
to ensure proper tightening.

Introduction

The DX Engineering DXE-AOK-60M kit adds 60 meter coverage to the Hustler BTV series of vertical
antennas without interfering with or giving up any existing band coverage. This kit will operate across the
entire 60 meter band, on all 5 channels of operation, with an SWR of 1.5:1 or less. It adds a small amount of
wind loading to the antenna that may require attention to the need for guying the antenna.

No disassembly of the existing antenna is required. Simply attach the 60 meter resonator and the capacity hat
assembly to the top of the antenna with the included hardware. Then make some minimal tuning adjustments to
the vertical and you're on the air with an additional band. If your BTV is installed on the roof or in an elevated
position, a minimum of two more quarter-wave resonant radials for 60 meters should be added for best results.

Parts List

- 2 -

Assembly Instructions

Assemble DX Engineering Hub and Rods as shown in Figure 1 and slide the assembly over the
uppermost tubing section of the Hustler Antenna. Snug the hub onto the top tube about 18 inches
below the top of the antenna on the 4-BTV, the bottom junction of the 80 meter trap on the 5 and 6
BTV. The final positioning will be adjusted during tuning.

Figure 1

The 60 meter Hustler Resonator is installed at the top of the antenna if you have a 4BTV.
On the 5BTV or a 6BTV antenna, it is installed in conjunction with the 80 meter resonator.

Figure 2

- 3 -

5BTV and 6BTV Antennas - Assemble the Resonator Attachment Bracket to top of the BTV

antenna, as shown in Figure 2, using the longer stud and one of the 3/8-24 SS nuts supplied in the DX
Engineering kit. Leave approximately 5/16” of stud above the nut to allow room to thread on the 80
meter resonator.

Place a 3/8” external tooth lock washer on the 3/8-24 x 3/4” bolt and push through the other hole in
the Resonator Attachment Bracket. Add an additional 3/8” external tooth lock washer, 3/8-24 nut as
shown above and tighten assembly.

Attach the 60 meter and 80 meter resonators as shown.

4BTV Antenna – The Resonator Attachment Bracket is not used with this antenna since it does not
have an 80M resonator. Thread one of the 3/8-24 SS nuts supplied in the DX Engineering kit on to the
stud supplied with the Hustler antenna. Adjust the position of the stud inside the antenna to leave
approximately 5/16” of stud above the nut to allow room to thread on the resonator. Attach the 60
meter resonator to the stud similar to the way in which the 80 meter resonator is attached in Figure 2
and Figure 3.

Adjustment of the antenna for resonance

Figure 3: Positioning the Hub and Rod assembly for 40 meter resonance

Setting the resonance of the antenna will require a series of adjustments. Each time an adjustment is
made, the antenna must be raised into the normal vertical position in order to make accurate RF
measurements.

- 4 -

1

6

3.4 3.5 3.6 3.7 3.8 3.9 4 4.1

80 Meters

SWR Before SWR After

1

21

41

5.32 5.34 5.36 5.38 5.4 5.42

60 Meters

SWR Before SWR After

1

3

5

7

9

6.9 7 7.1 7.2 7.3 7.4

40 Meters

SWR Before SWR After

1

1.5

2

10.09 10.1 10.11 10.12 10.13 10.14 10.15 10.16

30 Meters

SWR Before SWR After

First adjust the length of the whip on the 60 meter resonator, and then adjust the whip of the 80 meter
resonator if you have one, to obtain the desired resonant frequencies.

Then adjust the vertical position of the DX Engineering Capacity Hat, as shown in Figure 3, to obtain
the desired 40 meter resonant frequency. Loosening the 1/4-20 x 1-1/4 inch Socket Head Cap Screws
to move the Capacity Hat assembly on the tubing and retighten them to secure the assembly in a new
position. Positioning it higher on the tube will lower the 40 meter resonant frequency. Positioning it
lower on the tube will raise the 40 meter resonant frequency.

There may be some interaction between the 60 meter resonance and the 40 meter adjustment. In that
case, just repeat the adjustment of the 60 meter resonator.

Typical SWR Scans following installation and tuning

(the following scans are from a 6-BTV)

- 5 -

1

1.2

1.4

1.6

1.8

2

13.9 14 14.1 14.2 14.3 14.4

20 Meters

SWR Before SWR After

1

1.5

2

20.9 21 21.1 21.2 21.3 21.4 21.5

15 Meters

SWR Before SWR After

1

1.2

1.4

1.6

1.8

2

27.5 28 28.5 29 29.5 30

10 Meters

SWR Before SWR After

- 6 -

Accessories

You will find that the DX Engineering Tilt Bases make the job of raising and lowering the antenna for
adjustment much easier.

The addition of the DX Engineering 60 Meter Add-On Kit will increase the wind load of the antenna.
Hence the antenna will have increased susceptibility to damage by strong winds. The DX Engineering
Guying Kit is highly recommended.

Close-up view The 60

Meter Add-On Kit,

DXE-AOK-60M

Shown on Hustler 5-

BTV Antenna,

which is not included.

- 7 -

Technical Support

If you have questions about this product, or if you experience difficulties during the installation, contact DX
Engineering at [phone]. You can also e-mail us at:

[e-mail]

For best service, please take a few minutes to review this manual before you call.

Warranty

All products manufactured by DX Engineering are warranted to be free from defects in material and
workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under
these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other
than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts,
adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
If DX Engineering’s products are claimed to be defective in material or workmanship, DX Engineering shall,
upon prompt notice thereof, issue shipping instructions for return to DX Engineering (transportation-charges
prepaid by Buyer). Every such claim for breach of these warranties shall be deemed to be waived by Buyer
unless made in writing. The above warranties shall not extend to any products or parts thereof which have
been subjected to any misuse or neglect, damaged by accident, rendered defective by reason of improper
installation, damaged from severe weather including floods, or abnormal environmental conditions such as
prolonged exposure to corrosives or power surges, or by the performance of repairs or alterations outside of
our plant, and shall not apply to any goods or parts thereof furnished by Buyer or acquired from others at

Buyer’s specifications. In addition, DX Engineering’s warranties do not extend to other equipment and parts

manufactured by others except to the extent of the original manufacturer’s warranty to DX Engineering. The

obligations under the foregoing warranties are limited to the precise terms thereof. These warranties provide
exclusive remedies, expressly in lieu of all other remedies including claims for special or consequential
damages. SELLER NEITHER MAKES NOR ASSUMES ANY OTHER WARRANTY WHATSOEVER,
WHETHER EXPRESS, STATUTORY, OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS, AND NO PERSON IS AUTHORIZED TO ASSUME FOR DX
ENGINEERING ANY OBLIGATION OR LIABILITY NOT STRICTLY IN ACCORDANCE WITH THE
FOREGOING.
