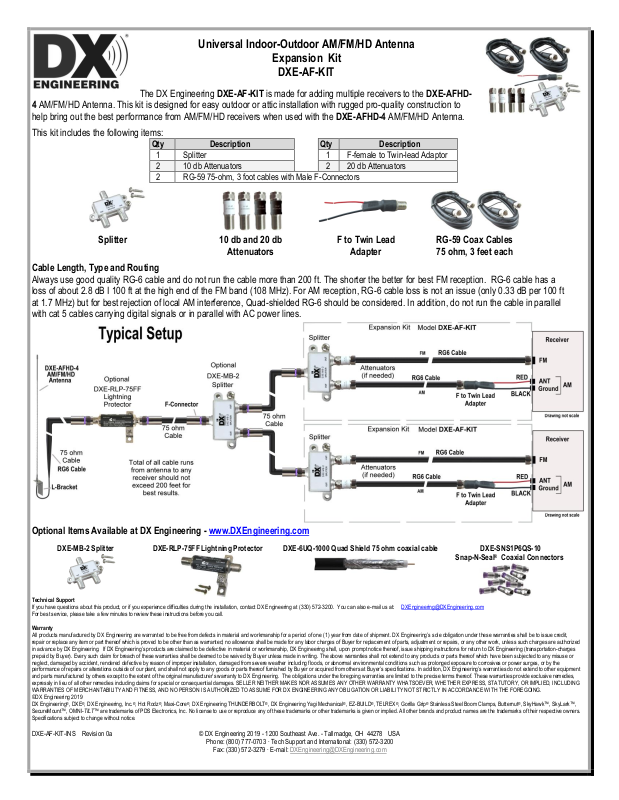

DX Engineering DXE-AF-KIT Instructions manual

Universal Indoor-Outdoor AM/FM/HD Antenna

Qty

Description

Description

1

Splitter

1

F-female to Twin-lead Adaptor

2

10 db Attenuators

2

20 db Attenuators

2

RG-59 75-ohm, 3 foot cables with Male F-Connectors

Expansion Kit

DXE-AF-KIT

The DX Engineering DXE-AF-KIT is made for adding multiple receivers to the DXE-AFHD-

4 AM/FM/HD Antenna. This kit is designed for easy outdoor or attic installation with rugged pro-quality construction to

help bring out the best performance from AM/FM/HD receivers when used with the DXE-AFHD-4 AM/FM/HD Antenna.

This kit includes the following items:

Splitter 10 db and 20 db F to Twin Lead RG-59 Coax Cables
Attenuators Adapter 75 ohm, 3 feet each

Cable Length, Type and Routing

Always use good quality RG-6 cable and do not run the cable more than 200 ft. The shorter the better for best FM reception. RG-6 cable has a
loss of about 2.8 dB I 100 ft at the high end of the FM band (108 MHz). For AM reception, RG-6 cable loss is not an issue (only 0.33 dB per 100 ft
at 1.7 MHz) but for best rejection of local AM interference, Quad-shielded RG-6 should be considered. In addition, do not run the cable in parallel
with cat 5 cables carrying digital signals or in parallel with AC power lines.

Optional Items Available at DX Engineering - www.DXEngineering.com

DXE-MB-2 Splitter DXE-RLP-75FF Lightning Protector DXE-6UQ-1000 Quad Shield 75 ohm coaxial cable DXE-SNS1P6QS-10
Snap-N-Seal® Coaxial Connectors

Technical Support

If you have questions about this product, or if you experience difficulties during the installation, contact DX Engineering at [phone]. You can also e-mail us at: [e-mail]
For best service, please take a few minutes to review these instructions before you call.
