SERIES RPMC | STABILISENSE™ CRITICAL ROOM PRESSURE MONITOR
FEATURES/BENEFITS
• Long term stable pressure measurement
• 2 SPDT relays allow for local alarming and alarming to control system
• Automatic or manual alarm reset
• Visual LED alarms provide immediate local alert allowing corrective action to be taken quicker to eliminate the problem from
becoming widespread
• Stores peak and valley process readings
• Same installation diameter as Magnehelic® gage which simplies eld upgrade to RPMC StabiliSENSE™ critical room
pressure monitor
• Password protected setup menu ensures no errors by untrained personnel
• Clean manufacturing areas
• Semiconductor manufacturing
• Pharmaceutical
• Clean rooms
• Research labs
• Vivariums
DESCRIPTIONAPPLICATIONS
The Series RPMC StabiliSENSE™ Critical Room Pressure Monitor
is designed for critical low differential pressure applications that require
stringent pressure monitoring and alarming. The Series RPMC can
be congured to monitor positive or negative pressure in protected
environments and clean manufacturing areas. The RPMC is a complete
system with a xed segment LCD which enables access to pressure,
security, calibration, and alarm setup. The StabiliSENSE™ critical room
pressure monitor has a brushed stainless steel bezel that allows for easy
cleaning.
The RPMC StabiliSENSE™ critical room pressure monitor has built-in
status indication LEDs that will appear green when within the user-dened
pressure set range and will appear orange when outside of the pressure set
range. 2 SPDT independent control relays with adjustable deadbands are
also provided along with a 4-20 mA process output.
Service Air and non-combustible, compatible gases.
1/8 FEMALE
NPT
SURFACE MOUNTING
Measurement Technology Capacitance cell.
Wetted Materials Consult factory.
Housing Material Die cast aluminum case and SS bezel.
Accuracy ±0.25% RSS (includes non-linearity: ±0.24%, hysteresis: ±0.05% and non-repeatability: ±0.05%), or ±0.5%
RSS (includes non-linearity: ±0.49%, hysteresis: ±0.05% and non-repeatability: ±0.05%).
Pressure Limits 2 psig.
Temperature Limits 32 to 140°F (0 to 60°C).
Compensated Temperature Limits 32 to 140°F (0 to 60°C).
Thermal Effects 0.030%/°F (0.050/°C) from 77°F (25°C).
Power Requirements 12-28 VDC, 12-28 VAC 50 to 400 Hz.
Power Consumption 3 VA max.
Output Signal 4-20 mA DC into 900 Ω max.
Zero and Span Adjustments Accessible via menus.
Response Time 8 ms.
Display Backlit 4 digit LCD 0.4˝ height LED indicators for set point and alarm status.
Electrical Connections 15 pin male high density D-sub connection. 18˝ (46 cm) cable with 10 conductors included.
Process Connections 1/8˝ female NPT. Side or back connections.
Mounting Orientation Mount unit in vertical plane. Size: 4-3/4˝ (120.7 mm) OD x 2-21/32 (67.5 mm).
Weight 1.90 lb (794 g).
Agency Approvals CE.
SWITCH SPECIFICATIONS
Switch Type 2 SPDT relays.
Electrical Rating 1 A @ 30 VAC/VDC.
Set Point Adjustment Adjustable via keypad on face.

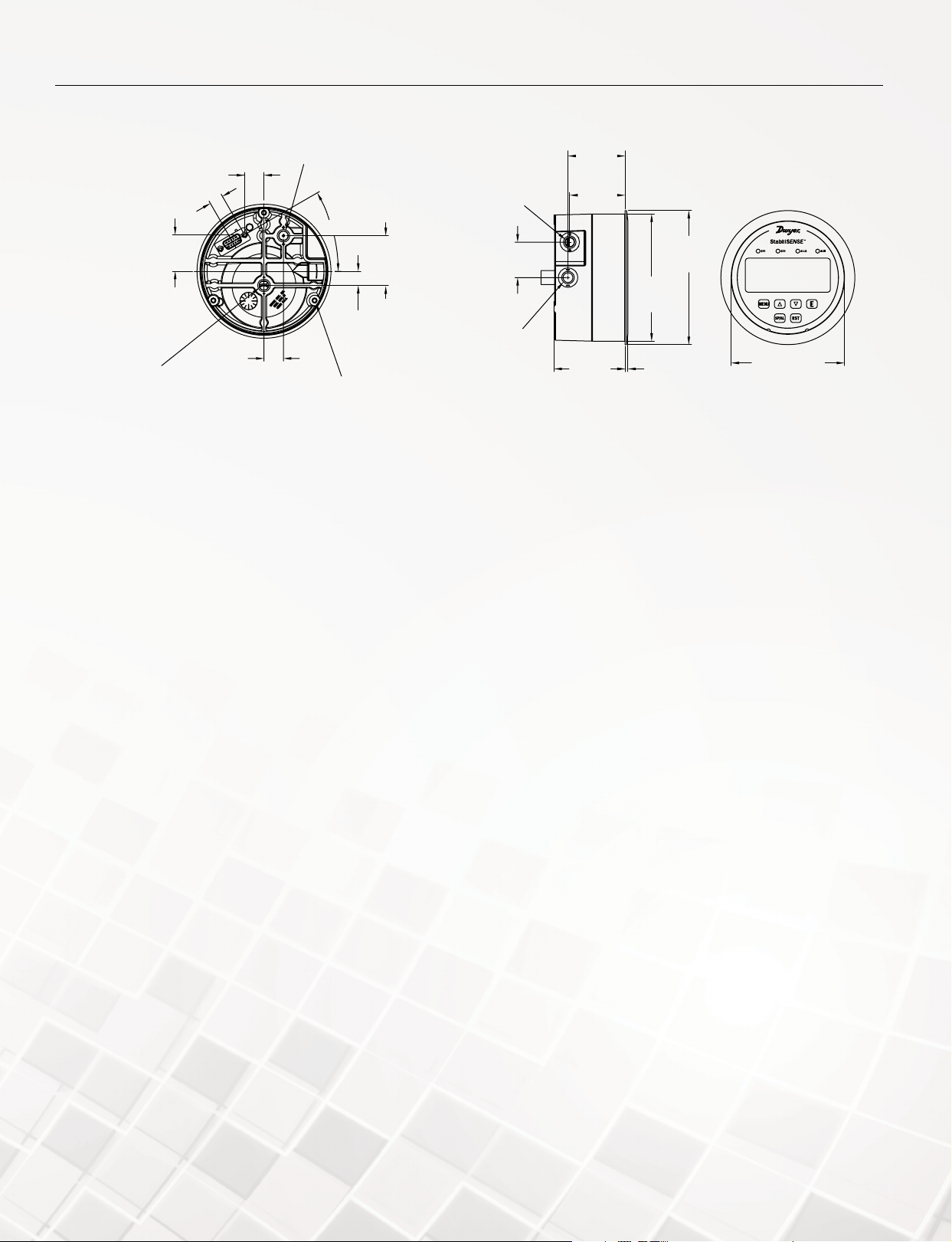

DIMENSIONSSPECIFICATIONS
1/8 FEMALE
NPT
SURFACE MOUNTING
1-9/32
[32.54]
1/8 FEMALE
LOW PRESSURE
CONNECTION
1/2 [12.70]
11/16
[17.46]
NPT HIGH PRESSURE
11/16
[17.46]
CONNECTION
30Ø
1-3/4
[44.45]
1/2
[12.70]
[3]Ø3/16 [4.77] HOLES EQUALLY
SPACED ON A 4-1/8 [104.78] B.C.
1/8 FEMALE
NPT HIGH PRESSURE
CONNECTION
1.250
[31.75]
1/8 FEMALE
NPT LOW PRESSURE
CONNECTION
2-1/16
[52.39]
[50.80]
2-1/2
[63.50]
2
4-47/64
[120.14]
4-31/64
[113.79]
1/8
[3.18]
Ø4 [101.60]
FACE
®
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
RPMC -A -002 -COO
SERIES
RPMC: StabiliSENSE™ critical room pressure monitor
STYLE
-A: ±0.25% RSS accuracy
-B: ±0.5% RSS accuracy
ACCESSORIES
Model Description
A-220
A-285
A-299
A-300
A-418A
A-465
A-471A
Clear exible vinyl tubing is easily inspected, and is therefore best for test applications where a possibility of uid entering the tubing exists.
3/16˝ ID x 5/16˝ OD, lengths to 500´; 45 psi maximum pressure @ 73°F
Remote alarm annunciator with visible/audible alarm and acknowledge switch
Mounting bracket ush mount Magnehelic
6.3˝ x 7.7˝ x 4.0˝, 1.30 lb
Flat aluminum bracket for ush mounting
Static pressure pickup. Room mount with delta style plastic enclosure ts 2˝ x 4˝ electrical box. Fine mesh screen hides static pressure
pickup port. Clean connection to 1/8˝ to 3/16˝ I.D. tubing and pressure sensor. Sealed with foam gasket, screws included.
Flush mount space pressure sensor, white plastic
Static pressure pickup. For use in clean rooms, 60 micron lter picks up static pressure. Stainless steel wall plate ts 2˝ x 4˝ electrical box.
Sealed with foam gasket, screws included. Barbed brass tting holds 1/8˝ to 3/16˝ ID tubing
OPTIONS
-COO: Certicate of US origin
-NIST: NIST traceable calibration certicate
-FC: Factory test report
RANGE
-002: 0 to 0.25 in w.c.
-003: 0 to 0.5 in w.c.
-004: 0 to 1 in w.c.
-013: -0.25 to 0 to 0.25 in w.c.
-014: -0.5 to 0 to 0.5 in w.c.
-015: -1 to 0 to 1 in w.c.
®
gage in bracket. Bracket is then surface mounted. Steel with gray hammertone epoxy nish
DWYER INSTRUMENTS, INC.
©Copyright 2020 Dwyer Instruments, Inc.
Printed in U.S.A. 8/20 DS-RPMC Rev. 1
Important Notice: Dwyer Instruments, Inc. reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the
latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
