Dwyer Instruments DCT1022-WPPS, DCT1010, DCT1022, DCT1110, DCT1122 User manual

...
Series DCT1000 Dust Collector Timer Controller
Specifications – Installation and Operating Instructions
Bulletin E-97
Thank you for purchasing the DCT1000 Dust Collector Timer Controller. You have selected a state of the art dust collector timer control that will provide years of dependable operation and service.
The DCT1000 Dust Collector Timer Controller was designed to be used with pulse-jet type dust collectors for on-demand or continu­ous cleaning applications.
Continuous cleaning applications do not require external inputs and can be used for time based “on-demand” cleaning through use of the cycle delay feature.
For on-demand applications, the plug-in pressure modules (DCP100A/200A) can be used to take full advantage of all the fea­tures the DCT1000 offers, or an external pressure switch (such as the Dwyer Photohelic
As with traditional Dwyer products, the Dwyer DCT1000 was designed so that it is easy to use, thus allowing for a quick and easy start up for your dust control applications. The contents inside this installation and operating manual will guide you through the features of the DCT1000 and how they can be applied to get the most out of your dust control requirements.
®
) can be used for High/Low limit control.
SPECIFICATIONS
DCT1000 Timer Controller: Output Channels: 6, 10, & 22 channels. Expandable to 255
channels using DCT1122 & DCT1110 channel expander boards.
Power Requirements: 85 to 270 VAC, 50 or 60 Hz. Solenoid Supply: 3A maximum per channel. Fuse: 3A @ 250 VAC. Low voltage control circuitry is isolated from
the line voltage for system safety.
Temperature Limits: -40 to 140°F (-40 to 60°C). Storage Temperature Limits: -40 to 176°F (-40 to 80°C). On Time: 10 msec to 600 msec, 10 msec steps. On Time Accuracy: ±10 msec. Off Time: 1 second to 255 seconds, 1 second steps. Off Time Accuracy: ±1% of the value or ±50 msec, whichever is
greater.
Weight: 1 lb 3.0 oz (538.6 g). Agency Approvals: UL, cUL.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
6-1/4
[158.75]
2-3/4
[69.85]
6-7/8
[174.62]
8-1/4
[209.55]
8-3/4
[222.25]
Figure 1 – Dimensional Specifications for the DCT1000
(shown with optional module DCP100A)
The DCP100A or DCP200A pressure modules are designed exclu­sively for use with the Dwyer DCT1000 Dust Collector Timer Controller boards for on-demand cleaning requirements. These series of modules are available in 10˝ w.c. [2.49 kPa] or 20 ˝ w.c. [4.98 kPa] ranges, which allow for differential process pressure measurement as indicated on the display of the master controller. An isolated 4-20 mA readout channel is provided for remote pres­sure display. The 4-20 mA output may be wired either for use with an external power supply and indicator or using the isolated on­board 24 volt power supply to power the loop.
1/16
[1.59]
2-7/16
[61.91]
1-11/16 [42.86]
1/2
[12.70]
1-13/16
[46.04]
1-13/16 [46.04]
1
[25.40]
SPECIFICATIONS
Pressure Ranges: 10˝ w.c. or 20˝ w.c. Temperature Limits: -40 to 140°F (-40 to 60°C). Pressure Limit: 10 psi (68.95 kPa). Pressure Limit (differential): 10 psi (68.95 kPa). Accuracy: ±1.5% F.S. @ 73°F (22.8°C). Output Signal: 4-20 mA. Alarm Contacts: 1.5A inductive load, 3A resistive load @ 30 VAC
or 40 VDC. Process Connections: Two barbed connections for use with 1/8˝ (3.18 mm) or 3/16˝ (4.76 mm) I.D. tubing. Weight: 5.5 oz (155.9 g).
2
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Table of Contents Page No.
Figure 1 Dimensional Specifications . . . . . . . . . . . . . . . .2
1.0 Installing the DCT1000 . . . . . . . . . . . . . . . .3
1.1 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.2 DCT1000 Terminal Connections . . . . . . . . . . . . . . . . . .3
1.2.1 External Pressure Connection . . . . . . . . . . . . . . . . . . . .3
1.2.2 Manual Override Switch Connection . . . . . . . . . . . . . . .4
1.2.3 Down Time Clean Connection . . . . . . . . . . . . . . . . . . . .4
1.2.4 Connecting Multiple Timer Boards . . . . . . . . . . . . . . . . .4
1.2.5 Continuous Cycle Mode . . . . . . . . . . . . . . . . . . . . . . . .4
Figure 2 Wiring Connections . . . . . . . . . . . . . . . . . . . . .4
1.3 DCP Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Figure 3 DCP Installation . . . . . . . . . . . . . . . . . . . . . . . .5
1.3.1 Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.3.2 Connecting DCP to Master Controller . . . . . . . . . . . . . .5
1.3.3 Pressure Model Locking Pins . . . . . . . . . . . . . . . . . . . . .5
1.3.4 DCP Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.3.5 DCP Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.4 Alarm Mode Switch Connection . . . . . . . . . . . . . . . . . .5
1.4.1 Alarm Reset Switch Connection . . . . . . . . . . . . . . . . . .5
1.4.2 Connecting the 4-20 mA Loop . . . . . . . . . . . . . . . . . . .5
1.4.3 Connecting the Alarm Relay . . . . . . . . . . . . . . . . . . . . . .6
1.5 Three Position Selection Switch Wiring . . . . . . . . . . . . .6
2.0 Programming the DCT1000 Master
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.1 Last Output Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.2 Time Off Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.3 Time On Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.4 High Limit Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.5 Low Limit Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.6 High Alarm Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.7 Low Alarm Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.8 Cycle Delay Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.9 Down Time Cycles Setup . . . . . . . . . . . . . . . . . . . . . . .7
2.10 Auto Alarm Reset Setup . . . . . . . . . . . . . . . . . . . . . . . .7
3.0 Maintenance Support and Diagnostics . .7
3.1 Restoring Factory Defaults . . . . . . . . . . . . . . . . . . . . . . .7
3.2 Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.3 Active Channel Indicator . . . . . . . . . . . . . . . . . . . . . . . .7
3.4 Comm Check Indicator . . . . . . . . . . . . . . . . . . . . . . . . .7
3.5 Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.0 Glossary of Terms . . . . . . . . . . . . . . . . . . . .8
1.0 Installing the DCT1000
Warning: Always install and service this device with the
power off and a lockout installed if required. Line volt-
ages will be exposed at the power/output connector
and at the fuse. For this reason, we have installed a plastic guard to protect the user from accidentally contacting line voltages.
Please note that the power guard serves as a safety feature and should not be removed under any circumstances.
For ease of installation and maintenance, the connectors and fuse have been left unprotected. The open frame design of the DCT1000 will require an enclosure that meets appropriate safety and local code requirements. For optimal performance, the enclosure should also protect the controller from dirt, water and direct sunlight. There are no special orientation requirements, and the controller mounts easily using the mounting holes on the factory installed base plate.
Caution: Do not run control wires, communication cables,
or other class 2 wiring in the same conduit as power
leads. The system may malfunction if class 2 wiring is run together with power conductors.
1.1 Power Requirements
The controller has a “universal” power supply that will allow opera­tion on 120 VAC to 240 VAC power lines. The input voltage must be between 85 VAC and 270VAC either 50 or 60 Hz. No circuit changes are required when switching between these voltages. The solenoid loads, however, must be sized to accommodate the line voltage selected.
1.2 DCT1000 Terminal Connections
The line and solenoid connections are located at the lower edge of the board below the plastic guard. The terminal block is a “Euro” style connector system that clamps the wire within the connector body . The connector will accept wir e sizes fr om 14 to 22 AWG. The wire should be stripped to no more than 0.25 inches to avoid shorts or expose line voltages creating a potential safety hazard. To assist you in determining the proper wire gauge required, a strip gauge is provided at the lower right corner of the board. The connector sys­tem used on the DCT1000 is specified for single connection but you can piggyback to a single lug provided that local codes allow for this and good workmanship practices are followed. To power up the master controller and the channel expander, connect line power to L1 and L2 (see Dimensional Specifications, Figure 1). Connect the solenoids between the selected output and the solenoid common. Solenoid common and L2 are internally connected. Switches con­nected to the control inputs at the top of the board must be isolat­ed contacts connected only to the relevant terminal and to the com­mon terminals. The following subparagraphs describe the external switch connections. Refer to figure 2 for switch connection illustra­tion.
1.2.1 External Pressure Connection
The controller may be used with an external pressure limit switch or sensor to provide demand-cleaning operation. The high limit and low limit inputs may be used for this purpose. A simple on-off sys­tem can be established with a single pressure switch connected to the high limit input. Better control can be achieved with a high and low limit switch/gage such as the Dwyer Photohelic demand mode, time on, time off, and cycle delay may be pro­grammed to define the cleaning cycle. A three pin terminal block (TB3) provides connection for external high and low limit switches (see Figure 2 on the next page). These switches must be isolated contacts. The common line must not be connected to equipment ground or protective ground, since these may introduce electrical noise and cause improper operation or possible damage to the con­trol board. The operation of these inputs are summarized as follows (see next page):
Current Low Limit High Limit Next
Operation Switch Switch Operation
Hold Open Open Hold
Hold or Run X Closed Run
Hold Ø Open Hold Hold Closed Ø Run
Run Closed Run
Hold Closed Ø Run
Run Open Hold
Ø Transition from open to closed
Transition closed to open X Either open or closed
Note: If a DCP100A or DCP200A pressure module is installed in the master controller, the switching functions are ignored.
®
. In this on-
3
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
4-20 mA CONNECTIONS
RECEIVER USING DCT1000
24V SUPPLY
RECEIVER
OPTIONAL CONNECTION
SUPPLY
USING EXTERNAL POWER SUPPLY
SUPPLY
ALARM
LOAD
4-20 MA OUTPUT
4-20 MA
SOURCE
EXTERNAL
INTERNAL ALARM
CONTACTS
NORMALLY OPEN CONTRACTS
MAN
ALARM
LOW
HIGH
LIMIT
COM
LIMIT
TB4
TB5
D1
ALARM
OVR
MODE
CLN
RESET
COM
TB3
COM
TB2
OUT
DAISY
CHAIN
MASTER CONTROLLER
IN
INPUT MUST NOT BE
DAISY
CHAIN
CONNECTED
MASTER CONTROLLER
C3Ø4
(INTERNALLY CONNECTED)
F1
TB1
L1 L2
INPUT
12
SOL
COM
LINE
5
34
SOLENOIDS
(10 CHANNEL SHOWN)
6
789 10

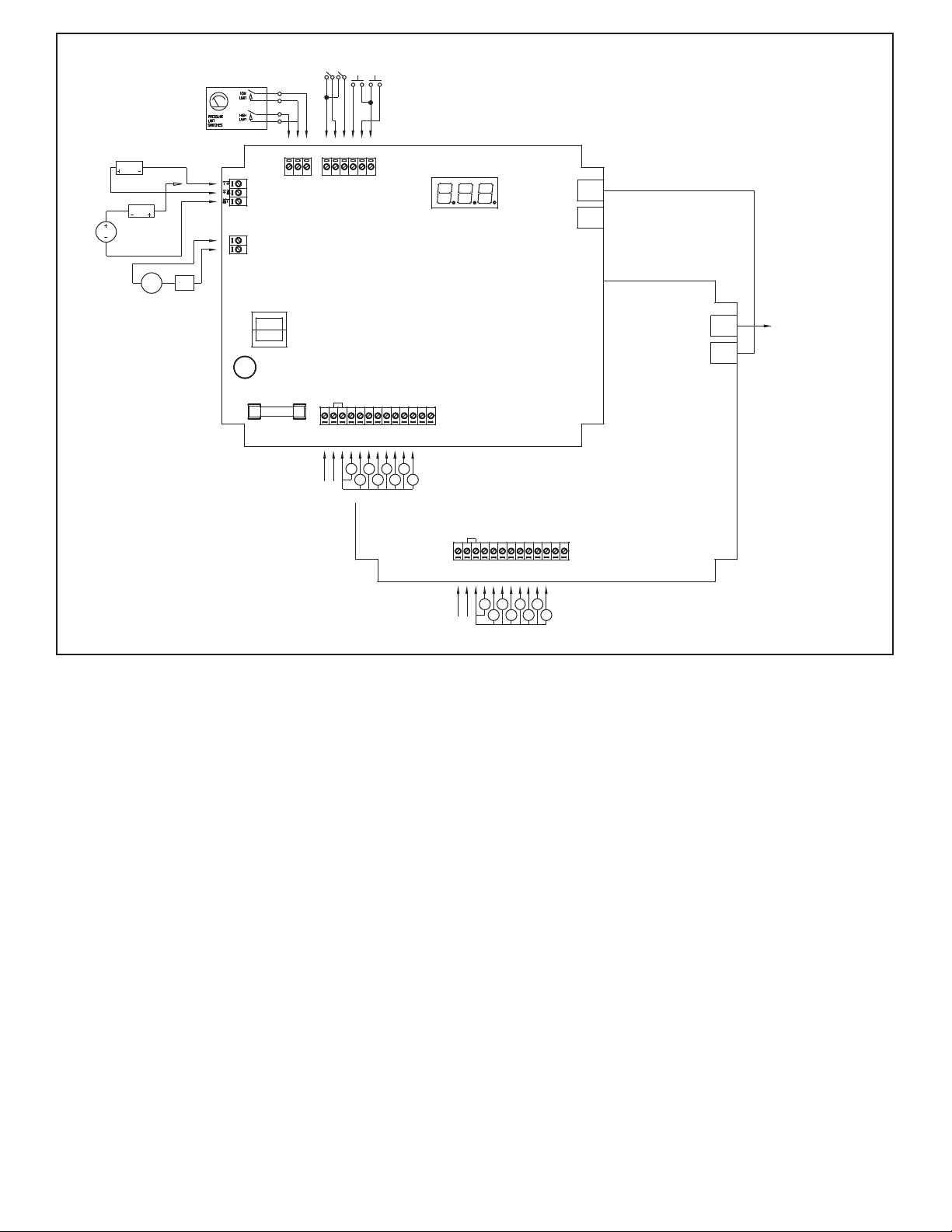

Figure 2
Wiring Connections
1.2.2 Manual Override Switch Connection
The manual override function allows the system to be set to the run mode regardless of other conditions. This mode is enabled when the manual override terminal and common are connected. It is dis­abled when they are disconnected. If the controller is to be run in continuous mode, a jumper wire may be wired across these termi­nals. When manual override is needed on a periodic basis, wire a SPST toggle switch between the manual override terminal and the common terminal.
1.2.3 Down Time Clean Connection
The down time clean operation forces the system into a run cycle for a programmed length of time between 0 – 255 minutes. The operation is initiated by connecting the down time clean terminal to a common terminal. This function is best accomplished through use of an external normally open switch.
1.2.4 Connecting Multiple Timer Boards
Both master controller boards and slave boards can have up to a maximum of 22 channels each. The system may be expanded up to 255 channels using master controller boards and slave boards. The DCT1000 will automatically detect the total number of channels involved and make their outputs available. You will note that both the master controllers and slave boards have a telephone style con­nector mounted on the upper right hand side of the board. These connectors are for use in systems requiring slave boards that must be daisy chained together to provide additional channel capability. For systems that require the slave boards, the master controller must not have any connection made to its daisy chain input unless it is designated as a slave control itself. (For larger systems requir-
OUT
DAISY
CHAIN
IN
DAISY
CHAIN
TO ADDITIONAL EXPANDER MODULES
SLAVE CHANNEL EXPANDER
(INTERNALLY CONNECTED)
TB1
SOL
L1 L2
COM
LINE
INPUT
12
5
34
SOLENOIDS
(10 CHANNEL SHOWN)
6
789 10
ing more than three slave boards, a master controller must be used as the fourth slave board to satisfy power requirements.) This sequence would repeat itself until the limit of 255 channels has been reached. The cables used are not ordinary telephone style cables.
Caution: Do not use telephone jumper cables. These
have a “twist” in the connection and may damage the controllers. Cables designed for use with the DCT1000 are available from Dwyer Instruments (Model DCAC02-2
ft., DCAC04-4 ft., etc.).
1.2.5 Continuous Cycle Mode
The master controller has several operating modes available for dif­ferent applications. Starting with the most basic mode, it is capable of operating in a continuous cleaning cycle. This can be initiated by either placing a jumper between the high limit input and the com­mon, or the manual override input to the common connection. Controlling this cycle are three setup parameters: time off, time on, and cycle delay. Time on and time off specifically deal with the sole­noid on time and the time interval between the end of the on pulse and the start of the next. The cycle delay allows a delay of up to 255 minutes to be programmed between the end of one complete cleaning cycle and the beginning of the next. This allows additional options for defining a cleaning profile.
4
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1.3 DCP Installation
Caution: Prior to installing the DCP100A/200A please
review the operating specifications carefully.
Some operating systems, especially in pneumatic con-
veying applications, may see static pressure or vacuum
conditions that exceed the capability of the DCP100A/200A pres­sure module. For these conditions there are a number of alter
nate Dwyer pressure products that can be used to meet your applica­tion requirements, all of which can be terminated to the Dwyer DCT1000 Dust Collector Timer Controller. For more information on these and other Dwyer products, please call us
1.3.1 Location
The system should be located in an enclosure that meets relevant safety standards and electrical codes. There are no other special orientation requirements as the pressure module is not orientation sensitive. Care should be observed when routing the air hoses to ensure that any potential condensation or moisture will not drain into the sensor. Where heavy condensation is present, a drip loop or an in-line filter should be installed to ensure long term operation.
PRESSURE
ALIGNMENT PINS
MODULE
LOCKING PINS INSERTED FROM UNDERNEATH MODULE ONLY
CIRCUIT BOARD
INSERT LOCKING PINS UNTIL THEY SNAP FIRMLY IN PLACE
LOCKING PINS INSERTED ALL THE WAY INTO THE CHANNEL
Figure 3
DCP Installation
1.3.2 Connecting DCP to Master Controller
The pressure module is attached to the Master Controller using integral connectors on both units. The insertion ports for the pres­sure module are located in the upper left quadrant of the DCT1000 Master Controller. The pressure module can be removed by com­pressing the retaining clips on each end of the module, then gently pulling the module out of the master controller board. When inserting the module, the following procedure should be adhered to insure proper installation:
• Examine the bottom of the pressure module and note the orien­tation of the connectors.
• Align the module so that these connectors match the connector receptacles on the controller board.
• Orient the module with the four alignment pins over their respec­tive mounting holes.
• Gently press the module into the connectors and snap the retain­ing clips on either end of the module into their slots.
• Always install and service this device with the power off and a lockout installed if required. “Hot” plugging the pressure module into an operating system may damage the system or cause the cal­ibration parameters to be erased.
When installing or removing the module make sure to orient the module straight with board. Installing or removing the module at any angle may break the alignment pins.
1.3.3 Pressure Model Locking Pins
The DCP100A and DCP200A are supplied with locking pins to secure the module. In normal operation these are not required since the latching tabs are sufficient to secure the module even in a high vibration environment. However if the unit is to be shipped or used where severe mechanical shock could be encountered the locking pins ensure the module will not snap out of the board.
To install the locking pins, from underneath the module insert one pin behind each of the two latching tabs. Press these all the way into the channel. The ends of the tabs will extend through the slots at the top of these channels. Next insert the module in the board as described above, making sure it is properly aligned and snaps firmly in place. Press the exposed locking tabs down until the tab is seated behind the latch in the board. To remove the module, slide the locking tabs up using a small screw driver then remove the module as described above. See Figure 3.
1.3.4 DCP Connections
When a pressure module is installed, the 4-20 mA process signal and the alarm relay contacts are available. The 4-20 mA circuit is isolated from ground and other signals. The alarm relay contacts are isolated, normally open contacts. Pressure connections may be made to the stepped hose barbs with either 1/8˝ or 3/16˝ I.D. tubing.
Caution: Do not force the module into the connectors.
Forcing the insertion may damage the connectors. Properly aligned, the module should snap into place.
1.3.5 DCP Maintenance
The pressure module should require very little maintenance under normal operational conditions. However, periodic calibration may be desirable to assure accuracy of the readings. The module may be removed and returned to the factory for calibration.
1.4 Alarm Mode Switch Connection
The auto alarm reset is controlled by the alarm mode switch con­nection. To enable the auto alarm reset the alarm mode input must be connected to a common connection. A jumper may be used when auto alarm reset is always active. A switch may be used if there are times that the auto alarm reset must be disabled. The switch must be an isolated contact and wired such that no con­nection is made between either of the wires and ground. See Figure 2 Wiring Connections.
1.4.1 Alarm Reset Switch Connection
The alarm may be reset either by pressing the Alarm Reset button on the control panel or by an external switch connected between the alarm-reset terminal and one of the common terminals. The alarm reset will only operate if the pressure module is installed and the pressure has returned to a normal condition. See Figure 2 Wiring Connections.
1.4.2 Connecting the 4-20 mA Loop
The pressure module provides an isolated 4-20 mA output, which may be used to remotely monitor the differential pressure across the dust bags or cartridges. The connection is made on the mas­ter control module at the terminal block designated for this signal. The connection is a 2-wire configuration with the option of using either an external 15 to 35 VDC power source or using the internal 24 VDC source. See Figure 2 Wiring Connections.
5
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
4-20 MA OUTPUT
4-20 MA
SOURCE
EXTERNAL
INTERNAL ALARM
CONTACTS
ALARM
MAN
ALARM
HIGH
LOW
COM
LIMIT
LIMIT
TB4
TB5
DT
COM
TB3
MODE
OVR
RESET
CLN
COM
TB2
MASTER CONTROLLER
DAISY
DAISY
CHAIN
CHAIN
MODE SELECTION SWITCH
OUT
IN
REAR
SECTION
FRONT
SECTION
CONTINUOUS
OFF
ON DEMAND
LINE
(INTERNALLY CONNECTED)
TB1
L2
L1
L1
L2 INPUT
(10 CHANNEL SHOWN)
12
34
5
6
789 10
OUTPUTS (3A MAX)
SOL COM
1.4.3 Connecting the Alarm Relay
With the pressure module installed, a relay contact is provided for controlling an external alarm. This relay is a single form-A contact. It is activated when either the high alarm threshold is exceeded, or the pressure drops below the low alarm threshold. The connection is made at the two-pin connector TB5. See Figure 2 Wiring Connections
1.5 Three Position Selection Switch Wiring
An optional mode selection switch is available with the weather­proof enclosure. With this switch the user may select either contin­uous cleaning, on-demand cleaning, or off. This switch is supplied factory wired as shown in Figure 4. The switch has a front and rear section. The front section, consisting of two independant contacts, controls the power to the board. These contacts must be wired in parallel as shown in the diagram. The rear section controls the manual override, which when closed will force the system into a continuousmuct be reconneccted, follow the wiring diagram.
Caution: Do not interconnect the low voltage manual over-
ride leads with the power leads. This will destroy the con-
trol board as well as pose a serious shock hazard
2.0 Programming the DCT1000
Master Controller
We’ve made it easy to navigate the DCT1000. Menu items can be accessed simply by pressing the “SELECT” button. The menu item that you are currently accessing is indicated by the illumination of an LED. To change menu items, all you have to do is push “UP” to increase a value or push “DOWN” to decrease a value. There are no keystrokes that you need to memorize, special combinations, or passwords that are required.
The master controller is equipped with an on board display and programming information center. The controller will power-up with the process indicator illuminated. If a pressure module is installed, the display will indicate the measured pressure in inches of water (w.c.); otherwise it will normally be blank.
Figure 4
Three Position Selection Switch Wiring
2.1 • Last Output
The Last Output setup selects the last channel to be activated. When first selected, the display will flash the last output available in the system. With single board installations, this will be the number of channels installed, typically 6, 10 or 22. This value becomes more important when multiple modules ar put value flashed will be the sum of all channels available in the sys­tem.
After the last available channel indication has completed, the cur­rently programmed last channel value is displayed. This value may be changed using the “UP” and “DOWN” buttons. The minimum value is one while the maximum value is the maximum number of installed channels, including all expansion modules. The default value is the maximum number of channels. Pressing “SELECT” will change the setup mode to Time Off Setup.
2.2 • Time Off (Sec.)
Time off defines the period of time between solenoid activations when no channels are enabled. This may be set between one sec­ond and 255 seconds. The factory default is 10 seconds. The dis­play will show the current time off setting when the time off setup mode is entered. The value may be changed using the Up and Down buttons. Pressing both “UP” and “DOWN” simultaneously and holding for approximately four seconds will restore the default value of 10.
2.3 • Time On (msec)
Time On Setup sets the solenoid on time. The display will indicate the currently programmed time on setting. This is measured in mil­liseconds. Using the “UP” and “DOWN” buttons, the value may be changed. The value may be set between 10 msec and 600 msec in 10 msec increments. Pressing the “UP” and “DOWN” buttons simultaneously for approximately four seconds will restore the fac­tory default value of 100 msec. Pressing the “SELECT’ button will advance the setup mode to the High Limit setup if the pressure module is installed. With no pressure module, it will step to Cycle Delay Setup.
e installed. The last out-
6
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
2.4 • High Limit [Only available when DCP connected]
The High Limit Setup, available only with a pressure module installed, sets the pressure at which the cleaning cycle will begin. This value may be between zero and the pressure module full scale pressure. Normally, the High Limit should be above the Low Limit. If, however, the High Limit pressure is set below the Low Limit, the cleaning cycle will begin when the High Limit is exceeded and stop when the pressure falls below the High Limit. The Low Limit in this case will have no effect. Pressing “SELECT” will change the system to the Low Limit Setup mode.
2.5 • Low Limit [Only available when DCP installed]
The operation of the Low Limit, available only with a pressure mod­ule installed, is identical to the High Limit except this value sets the pressure where the cleaning cycle will end. The upper settable value is the calibration pressure of the pressure module and the lower limit is zero. Pressing “SELECT” will change the system to the High Alarm Setup mode.
2.6 • High Alarm [Only available when DCP installed]
The operation of the High Alarm Setup is identical to the High and Low Limit Setup and is only available when a pressure module is installed. The High Alarm default is 0. The upper settable value is the full scale pressure of the pressure module and the lower limit is zer o. Pressing “SELECT” will change the system to the Low Alarm Setup mode.
2.7 • Low Alarm [Only available when DCP installed]
The operation of the Low Alarm Setup is identical to the High and Low Limit Setup. The Low Alarm default is 0. The upper settable value is the full scale pressure of the pressure module and the lower limit is zero. Pressing “SELECT” will change the system to the Cycle Delay Setup mode.
2.8 • Cycle Delay (min)
The cycle delay inserts a delay time between the end of the last channel and the beginning of the first channel. This may be set to between zero and 255 minutes. The factory default is zero. Setting the value to zero will disable the delay. Pressing “SELECT” will change the system to the Down Time Cycles Setup mode.
2.9 • Down Time Cycles (min)
The Down Time Cycles setup will select a value between zero and 255 minutes. The factory default is one minute. Selecting zero will disable the operation. When the down time cycles is activated by shorting the down time cycles input to the common terminal, (see figure 2) the system will enter a forced cleaning mode for the pro­grammed duration. NOTE: The cycle delay, if one is programmed, will not be inserted in the timing cycle. Pressing “SELECT” will change the system to the Auto Alarm Reset Setup mode, if a pres­sure module is installed, or to Process when no pressure module is available.
2.10 • Auto Alarm Reset (sec) [Only available when DCP installed]
The Auto Alarm Reset Setup, available only when a pressure mod­ule is installed, allows the auto alarm reset time to be selected. This value may be set between zero and 255 seconds. The factory default value is five seconds. When the auto alarm reset is enabled by shorting the auto alarm reset terminal to a common terminal, (See Figure 1) the alarm will be reset after the pressure r eturns to the normal range and the timeout has expired. Pressing “SELECT” will change the system to Process mode.
3.0 Maintenance Support and Diagnostics
We have also included a number of features that will aid mainte­nance personnel in diagnosing problems or verifying that the system is operating.
3.1 Restoring Factory Defaults
The DCT1000 has been programmed with factory default values that meet most industry operating conditions. In the event that you want to restore all of the parameters to the original factory default values:
(1) Return the master controller to the process mode.
(2) Press and hold both “UP” and “DOWN” buttons. The display will indicate a 10-second countdown, at the end of which all parameters will be restored to factory defaults. Releasing the switches prior to the end of the count will stop the process and no modification will be made. Likewise, in each of the parameter setup modes, pressing and holding the “UP” and “DOWN” buttons simultaneously will reset the individual default value, leaving other settings unchanged.
3.2 Power Indicator
A power on LED indicator is provided at the center left edge of the board. This will be illuminated when the power supply is operating properly. If the power LED is not illuminated, the primary power may be off or there is a fault in the power circuit.
3.3 Active Channel Indicator
Located just above the solenoid terminations, you will find that each channel is provided with an LED that is illuminated when the triac switch is on. This allows a visual correlation between the channel being pulsed and the operation of the solenoid.
3.4 Comm Check Indicator
The comm check indicator can be found in the upper right hand corner of the slave and master controller board (just above the “out” terminal, a telephone style connector). This indicator is used for two purposes. First, on a master controller a brief flash once per sec­ond is produced to indicate that the system is operating. Second, this indicator is used to show when the communication check oper­ation is performed on slave boards. The master controller will check each of the slave boards at a rate of about one inquiry per second, starting with the slave board connected directly to the master con­troller and ending with the last slave board in the chain. The mas­ter controller will flash its Comm Check LED for about 250 msec each time it makes a communication check. The external module selected for test will also flash its Comm Check LED for about the same time each time it is interrogated. Observing this test sequence will indicate that the communication between boards is operational. When a slave board powers up, the Comm Check LED will be illu­minated continuously. It will be extinguished when the master con­troller has initialized its communication channel. This indicator then shows that a master controller is operating and that each slave board is responding properly on the daisy chain.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
7
3.5 Error Codes
Error codes will be displayed on the three-digit display when cer­tain faults occur. Most of these indicators are associated with the daisy chain communication, but certain error codes pertain to sin­gle board operation also. These codes are:
Bulletin E-97
4.0 Glossary of Terms
• Run Mode: The term used when the timer board is firing the sole-
noids.
Display Meaning Action Required
Make sure all electrical con­nections are appropriately shielded so the master controller is not disrupted by noise.
The master controller will try to recover from the fault. If unsuccessful, replace the pressure module.
Make sure the control cable used in the daisy chain interface is properly shield­ed from noise.
Reinstall all modules in accordance with the instructions in the factory IOM.
Reinstall all modules. Contact factory if the prob­lem persists.
Err 1
Err 2
Err 3
Err 4
Err 5
This is a “watchdog” reset that is enabled when the master controller isn’t able to cycle through its opera­tion.
The pressure module has failed to respond to the request of the master controller.
Communication error in the daisy chain interface. This will only appear when the master con­troller is used in conjunc­tion with a slave board.
The master controller has detected a change in module configuration or a fault in one of the mod­ules.
If the fault described in “Err 4” is not corrected, the master controller will reconfigure the modules that are responding prop­erly and operate at a degraded condition.
• Pressure Module: The pressure measurement subsystem that includes the software and hardware for on-demand cleaning, alarms and signal retransmission of the process variable (i.e., the differential pressure across the dust bags).
• Master Controller: The primary timer board that contains all of the major features, connections for external inputs and power to drive the DCT1000 Dust Collector Timer Controller system.
• Power Guard: A plastic shield that covers the output triacs and other line voltage circuitry.
• Demand Cycle Mode: A process in which the run mode is enabled through the on-board pressure module or an external switch such as the Dwyer Photohelic
• Euro Connector: A “caged” connection used to terminate sole­noids, incoming power, or external switches on the DCT1000.
• Continuous Cycle Mode: A time based cycling mode dependent on solenoid time on/off settings and time set between complete cycles.
• Manual Override: Allows the user to override the DCT1000 remote­ly or from the master controller panel through use of a switch or a wire jumper.
• Slave Board: A channel expander that is used in conjunction with the master controller to accommodate additional solenoids on larger dust collection systems. It can be recognized easily as it does not have the on-board display panel or the power supply present. A master con­troller may also be used as a slave board.
®
.
Err 6
Err 7
Err 8 Err 9
A message error affecting the software of the mas­ter controller or one of its modules.
Indicates that one of the triac drivers are not func­tioning.
Internal Error. Unassigned message
code.
Check the integrity of all connecting cables used to drive slave boards for addi­tional solenoids. Also check the electrical ground­ing of the system installa­tion.
Return to factory for evalu­ation and repair.
Contact the factory. Contact the factory.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Loading...
