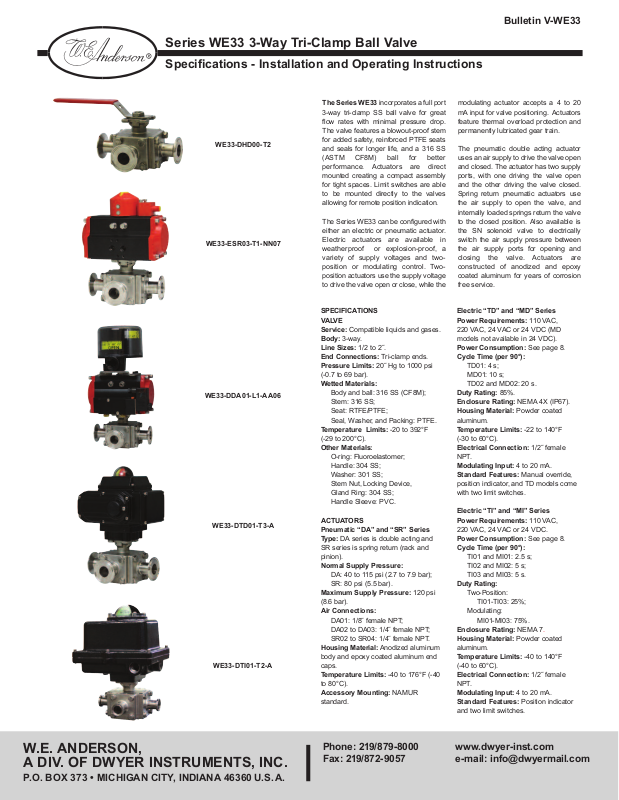

Dwyer WE33 User Manual
Series WE33 3-Way Tri-Clamp Ball Valve
Specifications - Installation and Operating Instructions
odulating actuator accepts a 4 to 20
m
A input for valve positioning. Actuators
m
feature thermal overload protection and
permanently lubricated gear train.
he pneumatic double acting actuator
T
ses an air supply to drive the valve open
u
nd closed. The actuator has two supply
a
orts, with one driving the valve open
p
and the other driving the valve closed.
Spring return pneumatic actuators use
the air supply to open the valve, and
nternally loaded springs return the valve
i
o the closed position. Also available is
t
the SN solenoid valve to electrically
switch the air supply pressure between
the air supply ports for opening and
closing the valve. Actuators are
onstructed of anodized and epoxy
c
oated aluminum for years of corrosion
c
free service.
WE33-DHD00-T2
E33-ESR03-T1-NN07
W
he Series WE33 incorporates a full port
T
-way tri-clamp SS ball valve for great
3
flow rates with minimal pressure drop.
The valve features a blowout-proof stem
for added safety, reinforced PTFE seats
nd seals for longer life, and a 316 SS
a
ASTM CF8M) ball for better
(
erformance. Actuators are direct
p
ounted creating a compact assembly
m
for tight spaces. Limit switches are able
to be mounted directly to the valves
allowing for remote position indication.
he Series WE33 can be configured with
T
either an electric or pneumatic actuator.
Electric actuators are available in
weatherproof or explosion-proof, a
variety of supply voltages and two-
osition or modulating control. Two-
p
osition actuators use the supply voltage
p
to drive the valve open or close, while the
Bulletin V-WE33
WE33-DDA01-L1-AA06
WE33-DTD01-T3-A
WE33-DTI01-T2-A
SPECIFICATIONS
VALVE
Service: Compatible liquids and gases.
Body: 3-way.
Line Sizes: 1/2 to 2˝.
End Connections: Tri-clamp ends.
Pressure Limits: 20˝ Hg to 1000 psi
(-0.7 to 69 bar).
Wetted Materials:
Body and ball: 316 SS (CF8M);
Stem: 316 SS;
Seat: RTFE/PTFE;
Seal, Washer, and Packing: PTFE.
Temperature Limits: -20 to 392°F
(-29 to 200°C).
Other Materials:
O-ring: Fluoroelastomer;
Handle: 304 SS;
Washer: 301 SS;
Stem Nut, Locking Device,
Gland Ring: 304 SS;
Handle Sleeve: PVC.
ACTUATORS
Pneumatic “DA” and “SR” Series
Type: DA series is double acting and
SR series is spring return (rack and
pinion).
Normal Supply Pressure:
DA: 40 to 115 psi (2.7 to 7.9 bar);
SR: 80 psi (5.5 bar).
Maximum Supply Pressure: 120 psi
(8.6 bar).
Air Connections:
DA01: 1/8˝ female NPT;
DA02 to DA03: 1/4˝ female NPT;
SR02 to SR04: 1/4˝ female NPT.
Housing Material: Anodized aluminum
body and epoxy coated aluminum end
caps.
Temperature Limits: -40 to 176°F (-40
to 80°C).
Accessory Mounting: NAMUR
standard.
Electric “TD” and “MD” Series
Power Requirements: 110 VAC,
220 VAC, 24 VAC or 24 VDC (MD
models not available in 24 VDC).
Power Consumption: See page 8.
Cycle Time (per 90°):
TD01: 4 s;
MD01: 10 s;
TD02 and MD02: 20 s.
Duty Rating: 85%.
Enclosure Rating: NEMA 4X (IP67).
Housing Material: Powder coated
aluminum.
Temperature Limits: -22 to 140°F
(-30 to 60°C).
Electrical Connection: 1/2˝ female
NPT.
Modulating Input: 4 to 20 mA.
Standard Features: Manual override,
position indicator, and TD models come
with two limit switches.
Electric “TI” and “MI” Series
Power Requirements: 110 VAC,
220 VAC, 24 VAC or 24 VDC.
Power Consumption: See page 8.
Cycle Time (per 90°):
TI01 and MI01: 2.5 s;
TI02 and MI02: 5 s;
TI03 and MI03: 5 s.
Duty Rating:
Two-Position:
TI01-TI03: 25%;
Modulating:
MI01-MI03: 75%.
Enclosure Rating: NEMA 7
Housing Material: Powder coated
aluminum.
Temperature Limits: -40 to 140°F
(-40 to 60°C).
Electrical Connection: 1/2˝ female
NPT.
Modulating Input: 4 to 20 mA.
Standard Features: Position indicator
and two limit switches.
.
W.E. ANDERSON,
A DIV. OF DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360 U.S.A.
Phone: 219/879-8000 www.dwyer-inst.com
Fax: 219/872-9057 e-mail: info@dwyermail.com
