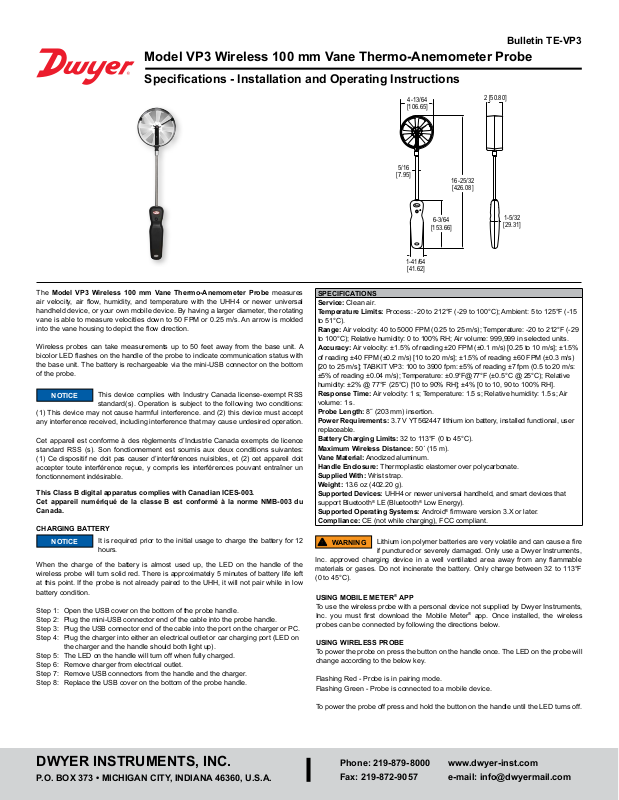

Bulletin TE-VP3
Model VP3 Wireless 100 mm Vane Thermo-Anemometer Probe
Specications - Installation and Operating Instructions

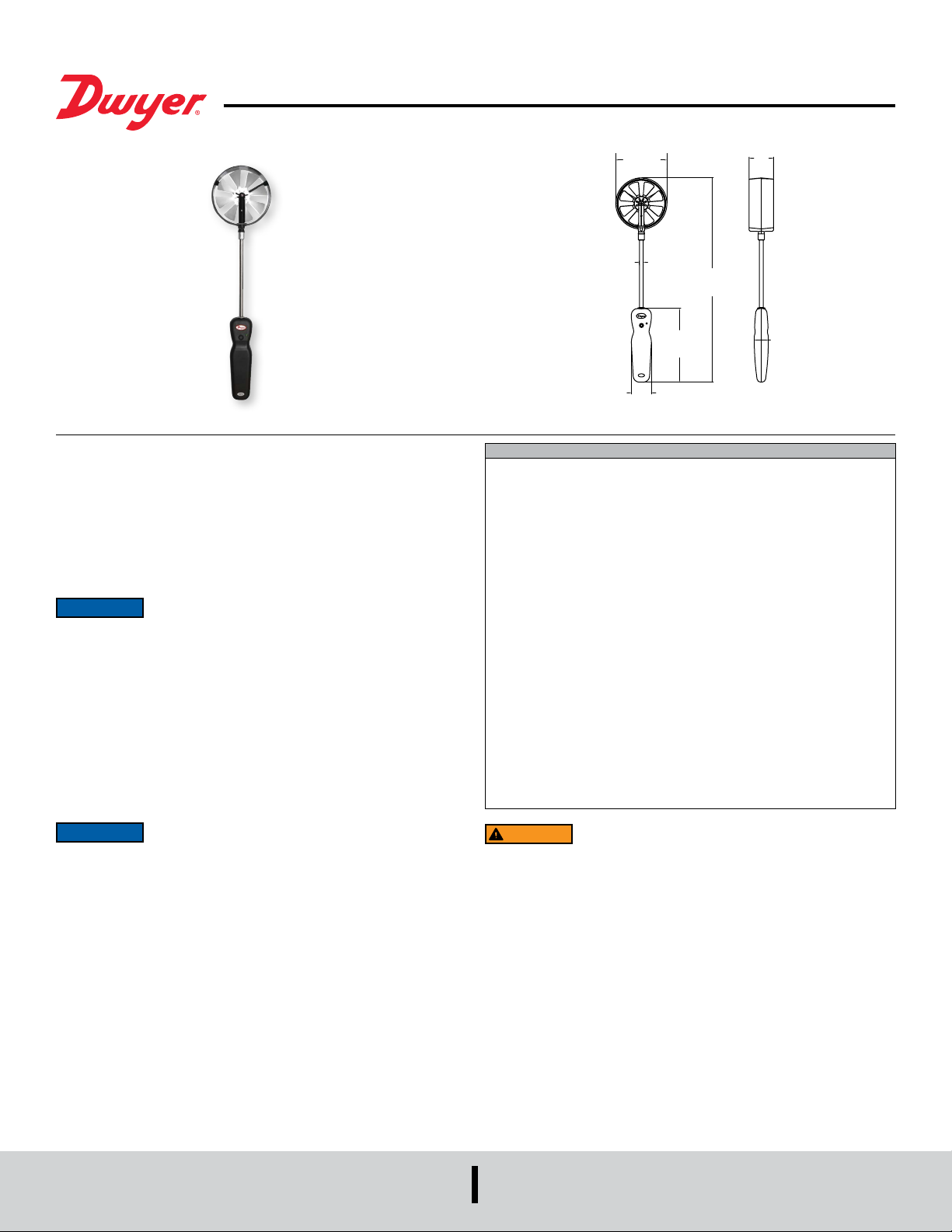

2 [50.80]
5/16
[7.95]
4-13/64
[106.65]
16-25/32
[426.08]
The Model VP3 Wireless 100 mm Vane Thermo-Anemometer Probe measures
air velocity, air ow, humidity, and temperature with the UHH4 or newer universal
handheld device, or your own mobile device. By having a larger diameter, the rotating
vane is able to measure velocities down to 50 FPM or 0.25 m/s. An arrow is molded
into the vane housing to depict the ow direction.
Wireless probes can take measurements up to 50 feet away from the base unit. A
bicolor LED ashes on the handle of the probe to indicate communication status with
the base unit. The battery is rechargeable via the mini-USB connector on the bottom
of the probe.
NOTICE
(1) This device may not cause harmful interference. and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à des règlements d’Industrie Canada exempts de licence
standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes:
(1) Ce dispositif ne doit pas causer d’interférences nuisibles, et (2) cet appareil doit
accepter toute interférence reçue, y compris les interférences pouvant entraîner un
fonctionnement indésirable.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du
Canada.
CHARGING BATTERY
NOTICE
When the charge of the battery is almost used up, the LED on the handle of the
wireless probe will turn solid red. There is approximately 5 minutes of battery life left
at this point. If the probe is not already paired to the UHH, it will not pair while in low
battery condition.
Step 1: Open the USB cover on the bottom of the probe handle.
Step 2: Plug the mini-USB connector end of the cable into the probe handle.
Step 3: Plug the USB connector end of the cable into the port on the charger or PC.
Step 4: Plug the charger into either an electrical outlet or car charging port (LED on
the charger and the handle should both light up).
Step 5: The LED on the handle will turn off when fully charged.
Step 6: Remove charger from electrical outlet.
Step 7: Remove USB connectors from the handle and the charger.
Step 8: Replace the USB cover on the bottom of the probe handle.
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
It is required prior to the initial usage to charge the battery for 12
hours.
6-3/64
[153.66]
1-41/64
[41.62]
SPECIFICATIONS
Service: Clean air.
Temperature Limits: Process: -20 to 212°F (-29 to 100°C); Ambient: 5 to 125°F (-15
to 51°C).
Range: Air velocity: 40 to 5000 FPM (0.25 to 25 m/s); Temperature: -20 to 212°F (-29
to 100°C); Relative humidity: 0 to 100% RH; Air volume: 999,999 in selected units.
Accuracy: Air velocity: ±1.5% of reading ±20 FPM (±0.1 m/s) [0.25 to 10 m/s]; ±1.5%
of reading ±40 FPM (±0.2 m/s) [10 to 20 m/s]; ±1.5% of reading ±60 FPM (±0.3 m/s)
[20 to 25 m/s]; TABKIT VP3: 100 to 3900 fpm: ±5% of reading ±7 fpm (0.5 to 20 m/s:
±5% of reading ±0.04 m/s); Temperature: ±0.9°F@77°F (±0.5°C @ 25°C); Relative
humidity: ±2% @ 77°F (25°C) [10 to 90% RH]; ±4% [0 to 10, 90 to 100% RH].
Response Time: Air velocity: 1 s; Temperature: 1.5 s; Relative humidity: 1.5 s; Air
volume: 1 s.
Probe Length: 8˝ (203 mm) insertion.
Power Requirements: 3.7 V YT562447 lithium ion battery, installed functional, user
replaceable.
Battery Charging Limits: 32 to 113°F (0 to 45°C).
Maximum Wireless Distance: 50´ (15 m).
Vane Material: Anodized aluminum.
Handle Enclosure: Thermoplastic elastomer over polycarbonate.
Supplied With: Wrist strap.
Weight: 13.6 oz (402.20 g).
Supported Devices: UHH4 or newer universal handheld, and smart devices that
support Bluetooth
Supported Operating Systems: Android
Compliance: CE (not while charging), FCC compliant.
WARNING
Inc. approved charging device in a well ventilated area away from any ammable
materials or gases. Do not incinerate the battery. Only charge between 32 to 113°F
(0 to 45°C).
USING MOBILE METER
To use the wireless probe with a personal device not supplied by Dwyer Instruments,
Inc. you must rst download the Mobile Meter
probes can be connected by following the directions below.
USING WIRELESS PROBE
To power the probe on press the button on the handle once. The LED on the probe will
change according to the below key.
Flashing Red - Probe is in pairing mode.
Flashing Green - Probe is connected to a mobile device.
®
LE (Bluetooth® Low Energy).
Lithium ion polymer batteries are very volatile and can cause a re
if punctured or severely damaged. Only use a Dwyer Instruments,
®
APP
®
rmware version 3.X or later.
®
app. Once installed, the wireless
1-5/32
[29.31]
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
To power the probe off press and hold the button on the handle until the LED turns off.
Phone: 219-879-8000
Fax: 219-872-9057
www.dwyer-inst.com
e-mail: [email protected]
Page 2
CONNECTING TO WIRELESS PROBES
1. Verify that the universal handheld, UHH4 or newer, or device has Bluetooth
technology turned on and is within range. Open the Mobile Meter
on the icon.
2. Press “Without Mobile Gateway”.
3. Power on wireless probe.
4. Once discovered, the probe name will appear on the device screen.
5. Select the check box next to the desired probe name(s).
6. Press the back arrow to return to probe list, selected probes will connect
automatically.
NOTICE
ACCESSORIES

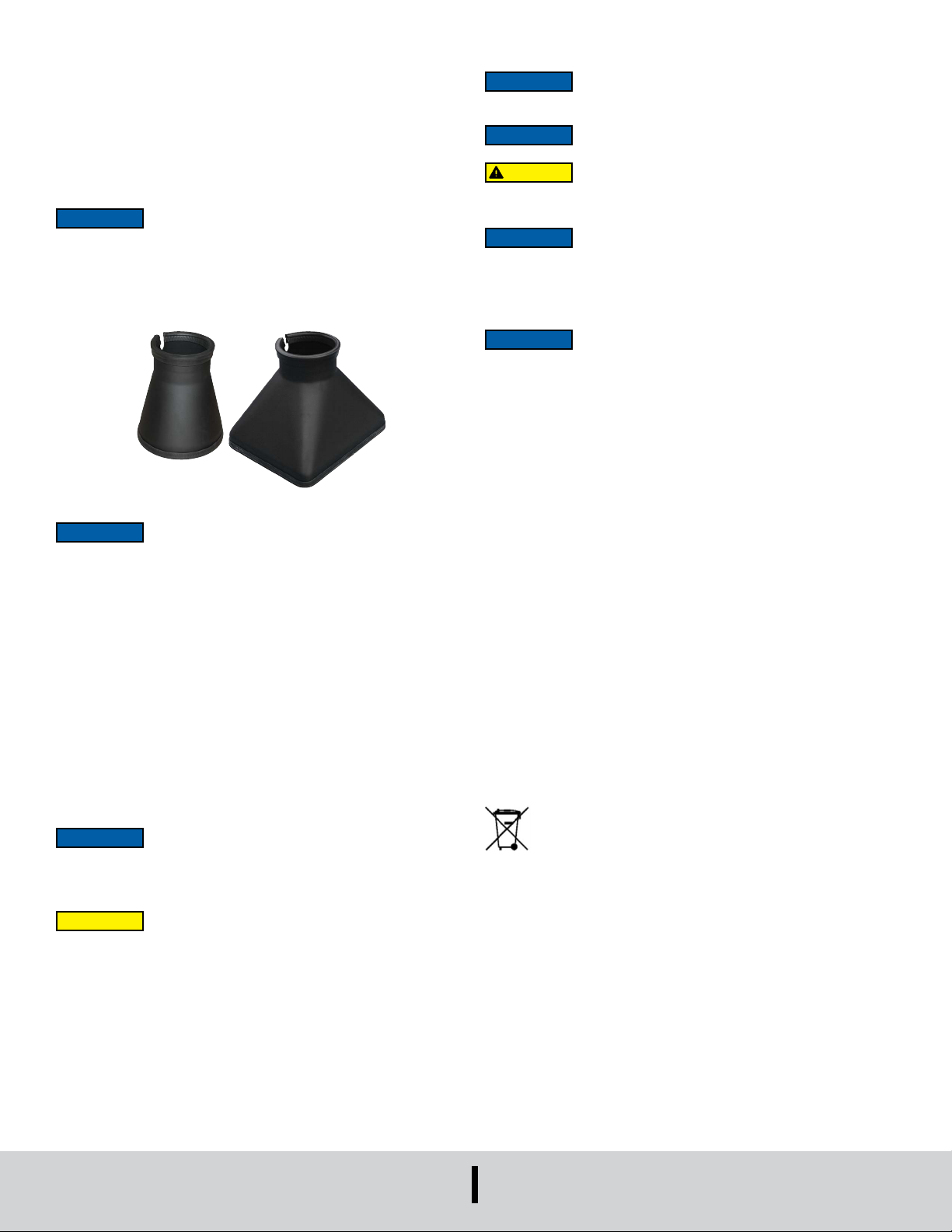

To maximize the usefulness of the VP3, an optional cone kit (A-VPX-CKIT) is available.
A round 7.2 in (183 mm) diameter hood and a rectangular 10.9 x 8.9 in (277 x 226 mm)
hood are included in the kit. The cones are able to convert the VP3 into an air volume
ow balancing tool for use with small grilles and diffusers.
It is recommended that only four probes be selected due to the
bandwidth limitations.
®
®
app by clicking
RF NOTICE
NOTICE
uncontrolled environment.
NOTICE
CAUTION
operating in conjunction with any other antenna or transmitter.
AVIS
deux conditions suivantes:
1. Cet appareil ne doit pas provoquer d’interférences,
2. Cet appareil doit accepter toute interférence reçue, y compris les interférences
pouvant provoquer un fonctionnement indésirable de l’appareil.
This product complies with FCC OED Bulletin 65 and Industry
Canada’s RSS-102 radiation exposure limits set forth for an
This Class B digital apparatus complies with Canadian ICES-003.
The antenna used for this transmitter must maintain a separation
of at least 20 cm from all persons and must not be co-located or
Cet appareil est conforme á Industrie Canada une license
standard RSS exonérés (s). Son fonctionnement est soumis aux
FCC/INDUSTRY CANADA NOTICE
NOTICE
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular use case. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTICE
1. This device may not cause harmful interference;
2. This device must accept any interference received, including interference that may
cause undesired operation of the device.
CAUTION
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
Pursuant to FCC 15.21 of the FCC rules, changes or modications
not expressly approved by Dwyer Instruments, Inc. may void the
AVIS
Bulletin 65 FCC OET et RSS-102 Industry Canada.
INFORMATION TO THE USER
Power Output: 6 mW
Operating Frequency: 2.4 GHz
Operating Mode: IEEE 802.15.4, BLE, Direct Sequence Spread Spectrum
Data Rate: Up to 250 kbps
Intended Use: Industrial/commercial HVAC
Antenna Connection: Internal only, non-tunable
BATTERY REMOVAL
If, for some reason, the wireless probe needs to be returned to Dwyer Instruments, Inc.
for maintenance or repair, the rechargeable lithium ion battery needs to be removed
prior to shipping the unit. Before attempting to remove the battery ensure the probe
has been powered down. To remove the battery, set the wireless probe face down
on a non-abrasive surface. There are four Phillips head screws that secure the two
halves of the handle together. Two are located under the serial number label at the
top of the probe and two are located at the bottom of the unit. When lifting the ends of
the serial label to access the screws be careful to not damage the label such that the
serial number cannot be read. Remove the four screws with a suitable Phillips screw
driver and set aside the back half of the housing. Remove the battery by grasping the
black plastic connector on the battery wire harness and pull straight out while securing
the black plastic connector on the circuit board with the other hand. Be careful to not
puncture the battery as this may cause a re. Remove the battery and set aside.
Securely replace the four screws to hold the handle of the probe together. The unit
may now be packaged for shipping back to Dwyer Instruments, Inc.
MAINTENANCE/REPAIR
Upon nal installation of the Model VP3, no routine maintenance is required. The
Model VP3 is not eld serviceable and should be returned if repair is needed. Field
repair should not be attempted and may void warranty.
WARRANTY/RETURN
Refer to “Terms and Conditions of Sales” in our catalog and on our website. Contact
customer service to receive a Return Goods Authorization number before shipping the
product back for repair. Be sure to include a brief description of the problem, plus any
additional application notes.
Ce produit est conforme aux limites d’expositions aux
rayonnements dénies pour un environnement non contrôlé du
This symbol indicates waste electrical products should not be disposed
of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
