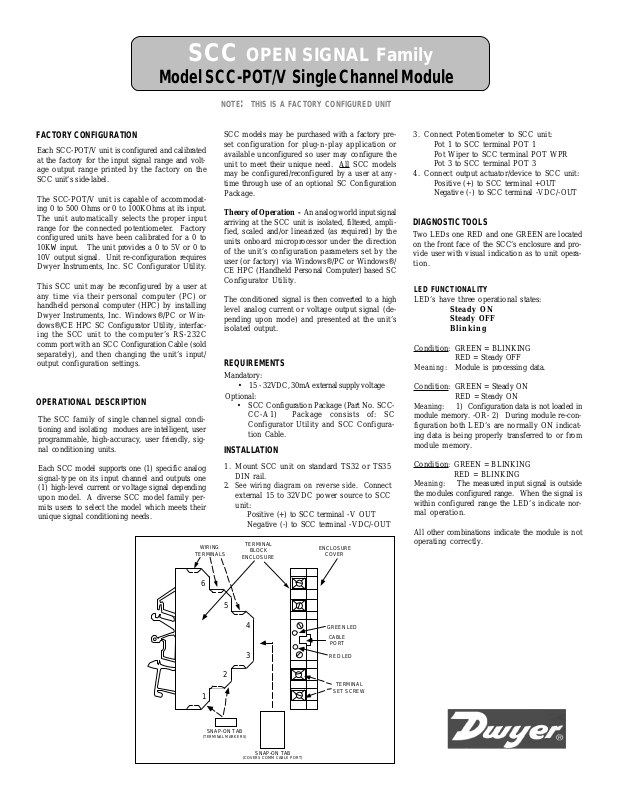

Dwyer SCC-POT-V User Manual
SCC OPEN SIGNAL Family
Model SCC-POT/V Single Channel Module
NOTE: THIS IS A FACTORY CONFIGURED UNIT
FACTORY CONFIGURATION
Each SCC-POT/V unit is configured and calibrated
at the factory for the input signal range and voltage output range printed by the factory on the
SCC unit’s side-label.
The SCC-POT/V unit is capable of accommodating 0 to 500 Ohms or 0 to 100KOhms at its input.
The unit automatically selects the proper input
range for the connected potentiometer. Factory
configured units have been calibrated for a 0 to
10KW input. The unit provides a 0 to 5V or 0 to
10V output signal. Unit re-configuration requires
Dwyer Instruments, Inc. SC Configurator Utility.
This SCC unit may be reconfigured by a user at
any time via their personal computer (PC) or
handheld personal computer (HPC) by installing
Dwyer Instruments, Inc. Windows®/PC or Windows®/CE HPC SC Configurator Utility, interfacing the SCC unit to the computer’s RS-232C
comm port with an SCC Configuration Cable (sold
separately), and then changing the unit’s input/
output configuration settings.
OPERATIONAL DESCRIPTION
The SCC family of single channel signal conditioning and isolating modues are intelligent, user
programmable, high-accuracy, user friendly, signal conditioning units.
Each SCC model supports one (1) specific analog
signal-type on its input channel and outputs one
(1) high-level current or voltage signal depending
upon model. A diverse SCC model family permits users to select the model which meets their
unique signal conditioning needs.
TERMINALS
SCC models may be purchased with a factory preset configuration for plug-n-play application or
available unconfigured so user may configure the
unit to meet their unique need. All SCC models
may be configured/reconfigured by a user at anytime through use of an optional SC Configuration
Package.
Theory of Operation - An analog world input signal
arriving at the SCC unit is isolated, filtered, amplified, scaled and/or linearized (as required) by the
units onboard microprocessor under the direction
of the unit’s configuration parameters set by the
user (or factory) via Windows®/PC or Windows®/
CE HPC (Handheld Personal Computer) based SC
Configurator Utility.
The conditioned signal is then converted to a high
level analog current or voltage output signal (depending upon mode) and presented at the unit’s
isolated output.
REQUIREMENTS
Mandatory:
• 15 - 32VDC, 30mA external supply voltage
Optional:
• SCC Configuration Package (Part No. SCCCC-A1) Package consists of: SC
Configurator Utility and SCC Configuration Cable.
INSTALLATION
1. Mount SCC unit on standard TS32 or TS35
DIN rail.
2. See wiring diagram on reverse side. Connect
external 15 to 32VDC power source to SCC
unit:
Positive (+) to SCC terminal -V OUT
Negative (-) to SCC terminal -VDC/-OUT
WIRING
TERMINAL
BLOCK
ENCLOSURE
ENCLOSURE
COVER
3. Connect Potentiometer to SCC unit:
Pot 1 to SCC terminal POT 1
Pot Wiper to SCC terminal POT WPR
Pot 3 to SCC terminal POT 3
4. Connect output actuator/device to SCC unit:
Positive (+) to SCC terminal +OUT
Negative (-) to SCC terminal -VDC/-OUT
DIAGNOSTIC TOOLS
Two LEDs one RED and one GREEN are located
on the front face of the SCC’s enclosure and provide user with visual indication as to unit operation.
LED FUNCTIONALITY
LED’s have three operational states:
Steady ON
Steady OFF
Blinking
Condition: GREEN = BLINKING
RED = Steady OFF
Meaning: Module is processing data.
Condition: GREEN = Steady ON
RED = Steady ON
Meaning: 1) Configuration data is not loaded in
module memory. -OR- 2) During module re-configuration both LED’s are normally ON indicating data is being properly transferred to or from
module memory.
Condition: GREEN = BLINKING
RED = BLINKING
Meaning: The measured input signal is outside
the modules configured range. When the signal is
within configured range the LED’s indicate normal operation.
All other combinations indicate the module is not
operating correctly.
6
5
2
1
SNAP-ON TAB
(TERMINAL MARKERS)
4
3
SNAP-ON TAB
(COVERS COMM CABLE PORT)
GREEN LED
CABLE
PORT
RED LED
TERMINAL
SET SCREW
15 to 32 VDC
Power Source
+VDC
-VDC/-OUT
ANALOG
+OUT
ACTUATOR
or
DEVICE
POT 1
POT W PR
POT 3
A = Pot 1
B = Pot Wiper
C = Pot 3
AB
C
SCC-POT/V Wiring Diagram
CONFIGURATION CHANGE
An SCC’s configuration can only be changed
through use of a personal computer running our
Windows® based SC Configurator Utility and a
special configuration communication cable to
interface the SCC unit and personal computer
together. (See Requirements - on reverse side for
purchasing information.)
Instructions on how to accomplish configuration
change are included with SC Configuration
Package and not covered here.
SPECIFICATIONS
Input Power: 15-32VDC
Isolation: 2 way input to power/output 1500V peak
Over Voltage: 240VRMS continuous
Step Response to 99%: 0.3 seconds
Operating Temp.: -40 to +75°C
Storage Temp.: -40 to +85°C
Mounting: 32 and 35mm DIN Rail & G Rail
Dimensions: 75mm H X 12.2mm W X 60 mm D
(2.95” X 0.485” X 2.5”), 24 modules can be installed
per linear foot of DIN Rail
Diagnostics LEDs: Active and alarm indications
Maximum Wire Size: 14 AWG
Input Type: Potentiometer
Input Range: 0 to 500 Ohms or 0 to 100K Ohm
Accuracy: ±0.05%
Output:
Voltage -- 0 to 5 Volts or 0 to 10 Volts
Warning: This unit is protected against ab-
normally high and low voltages. Marginally low
voltages, marginally high voltages and power fluctuations for extended periods of time can cause permanent damage.
Caution: When installing the unit’s wiring
do not over-tighten the wiring terminal set screws.
Turn set screw until wire’s resistance is encountered and wire is securely captured. Over tightening will cause damage to the unit.
Recommended torque: 1.0 in/lbs
