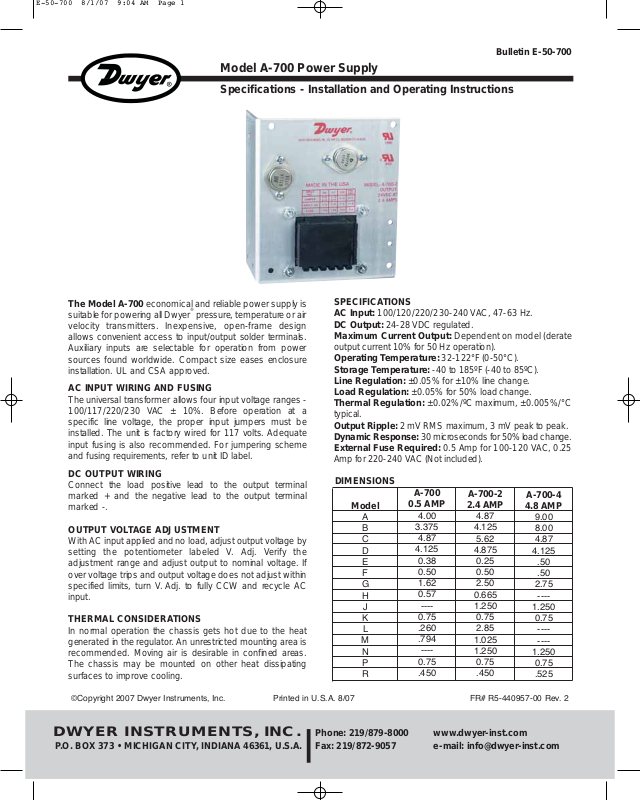

Bulletin E-50-700
Model A-700 Power Supply
Specifications - Installation and Operating Instructions
The Model A-700 economical and reliable power supply is
suitable for powering all Dwyer®pressure, temperature or air
velocity transmitters. Inexpensive, open-frame design
allows convenient access to input/output solder terminals.
Auxiliary inputs are selectable for operation from power
sources found worldwide. Compact size eases enclosure
installation. UL and CSA approved.
AC INPUT WIRING AND FUSING
The universal transformer allows four input voltage ranges 100/117/220/230 VAC ± 10%. Before operation at a
specific line voltage, the proper input jumpers must be
installed. The unit is factory wired for 117 volts. Adequate
input fusing is also recommended. For jumpering scheme
and fusing requirements, refer to unit ID label.
DC OUTPUT WIRING
Connect the load positive lead to the output terminal
marked + and the negative lead to the output terminal
marked -.
OUTPUT VOLTAGE ADJUSTMENT
With AC input applied and no load, adjust output voltage by
setting the potentiometer labeled V. Adj. Verify the
adjustment range and adjust output to nominal voltage. If
over voltage trips and output voltage does not adjust within
specified limits, turn V. Adj. to fully CCW and recycle AC
input.
THERMAL CONSIDERATIONS
In normal operation the chassis gets hot due to the heat
generated in the regulator. An unrestricted mounting area is
recommended. Moving air is desirable in confined areas.
The chassis may be mounted on other heat dissipating
surfaces to improve cooling.
SPECIFICATIONS
AC Input: 100/120/220/230-240 V AC, 47-63 Hz.
DC Output: 24-28 VDC regulated.
Maximum Current Output: Dependent on model (derate
output current 10% for 50 Hz operation).
Operating Temperature: 32-122°F (0-50°C).
Storage Temperature: -40 to 185ºF (-40 to 85ºC).
Line Regulation: ±0.05% for ±10% line change.
Load Regulation: ±0.05% for 50% load change.
Thermal Regulation: ±0.02%/ºC maximum, ±0.005%/°C
typical.
Output Ripple: 2 mV RMS maximum, 3 mV peak to peak.
Dynamic Response: 30 microseconds for 50% load change.
External Fuse Required: 0.5 Amp for 100-120 VAC, 0.25
Amp for 220-240 VAC (Not included).
DIMENSIONS
Model
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
A-700
0.5 AMP
4.00
3.375
4.87
4.125
0.38
0.50
1.62
0.57
----
0.75
.260
.794
----
0.75
.450
A-700-2
2.4 AMP
4.87
4.125
5.62
4.875
0.25
0.50
2.50
0.665
1.250
0.75
2.85
1.025
1.250
0.75
.450
A-700-4
4.8 AMP
9.00
8.00
4.87
4.125
.50
.50
2.75
----
1.250
0.75
----
----
1.250
0.75
.525
