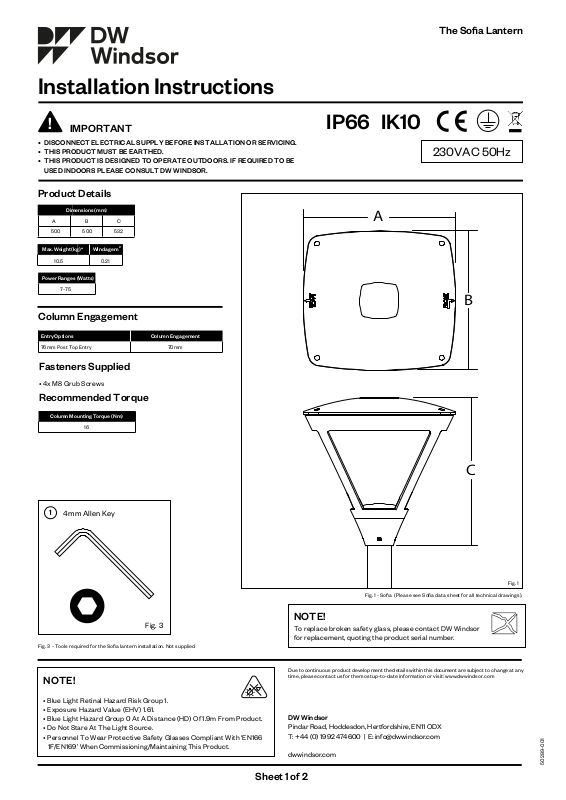

Installation Instructions
The Sofia Lantern
!
IMPORTANT
• DISCONNECT ELECTRICAL SUPPLY BEFORE INSTALLATION OR SERVICING.
• THIS PRODUCT MUST BE EARTHED.
• THIS PRODUCT IS DESIGNED TO OPERATE OUTDOORS. IF REQUIRED TO BE
USED INDOORS PLEASE CONSULT DW WINDSOR.
Product Details
Dimensions (mm)
A B C
500 500 532
Max. Weight (kg)* Windage m
10.5 0.21
Power Ranges (Watts)
7-75
2
Column Engagement
Column EngagementEntry Options
76mm Post Top Entry 70mm
Fasteners Supplied
• 4x M8 Grub Screws
Recommended Torque
IP66
IK10
230VAC 50Hz
A
B
Column Mounting Torque (Nm)
16
1
4mm Allen Key
Fig. 3
Fig. 3 - Tools required for the Sofia lantern installation. Not supplied
NOTE!
C
Fig. 1
Fig. 1 - Sofia (Please see Sofia data sheet for all technical drawings).
NOTE!
To replace broken safety glass, please contact DW Windsor
for replacement, quoting the product serial number.
Due to continuou s product development the detai ls within this document are subject to cha nge at any
time, plea se contact us for the mos t up-to-date information o r visit: www.dw windsor.com
• Blue Light Retinal Hazard Risk Group 1.
• Exposure Hazard Value (EHV) 1.61.
• Blue Light Hazard Group 0 At A Distance (HD) Of 1.9m From Product.
• Do Not Stare At The Light Source.
• Personnel To Wear Protective Safety Glasses Compliant With ‘EN166
1F/EN169’ When Commissioning/Maintaining This Product.
Sheet 1 of 2
DW Windsor
Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX
T: +44 (0) 1992 474600 | E: [email protected]
dwwindsor.com
50289-001
Page 2

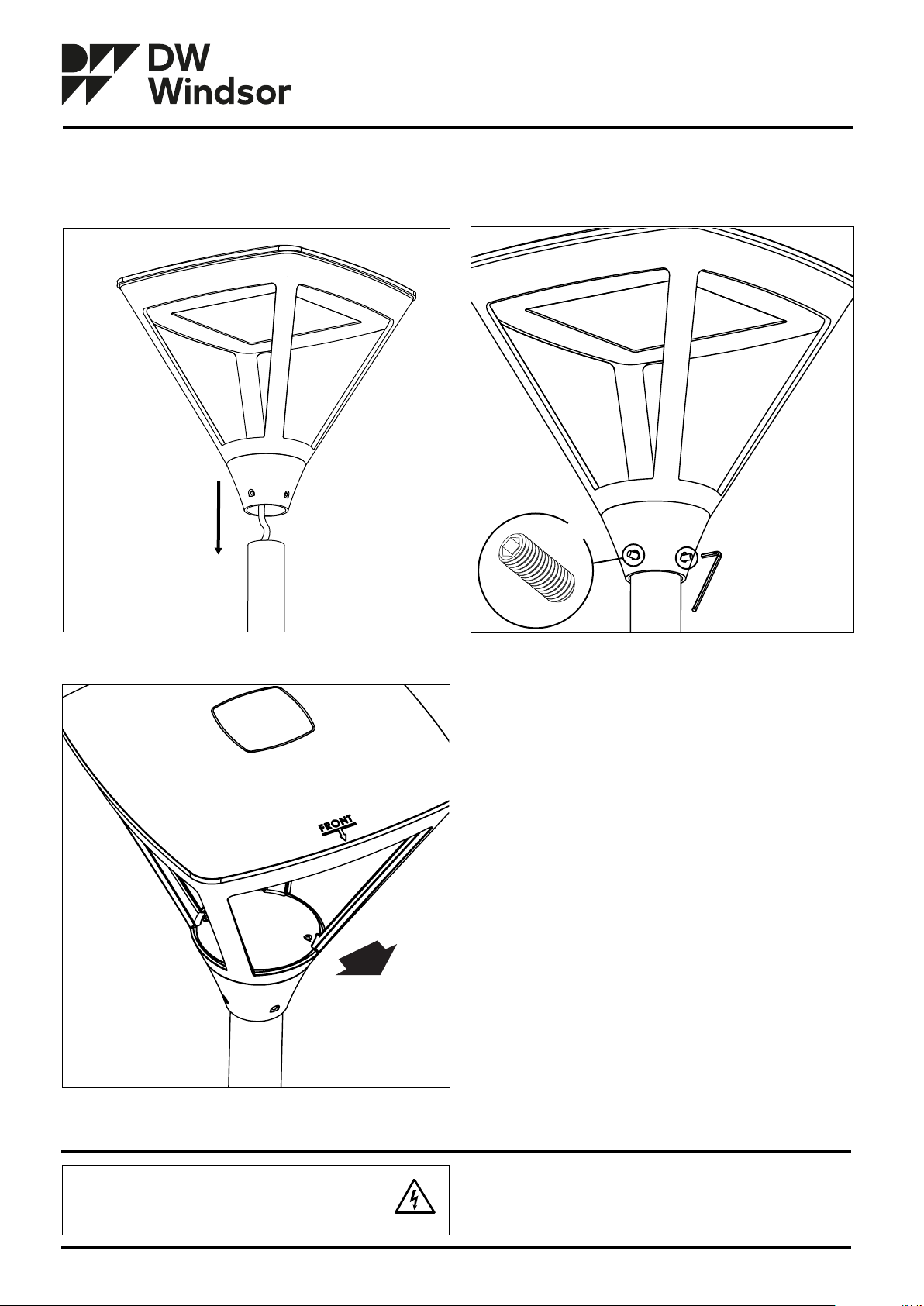

Sofia Installation Steps | Post Top
The Sofia Lantern
Step 1
Place lantern on top of post. Ensure cable is not trapped between lantern
and post.
Step 2
Tighten all four grub screws and ensure that lantern is straight.
4x
Step 3
Ensure lantern is facing correct direction using indication markers on top.
ROADSIDE
LEDs contained within this luminaire shall only be replaced
by the manufacturer, their service agent or similar qualified
person.
DW Windsor
Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX
T: +44 (0) 1992 474600 | E: [email protected]
dwwindsor.com
50289-001
Sheet 2 of 2
