Page 1
Orbit
Converting to Sofa
Standing at the side of the unit (from bed position), lift backrest to the desired position and secure in
place by releasing to the sound of a click.

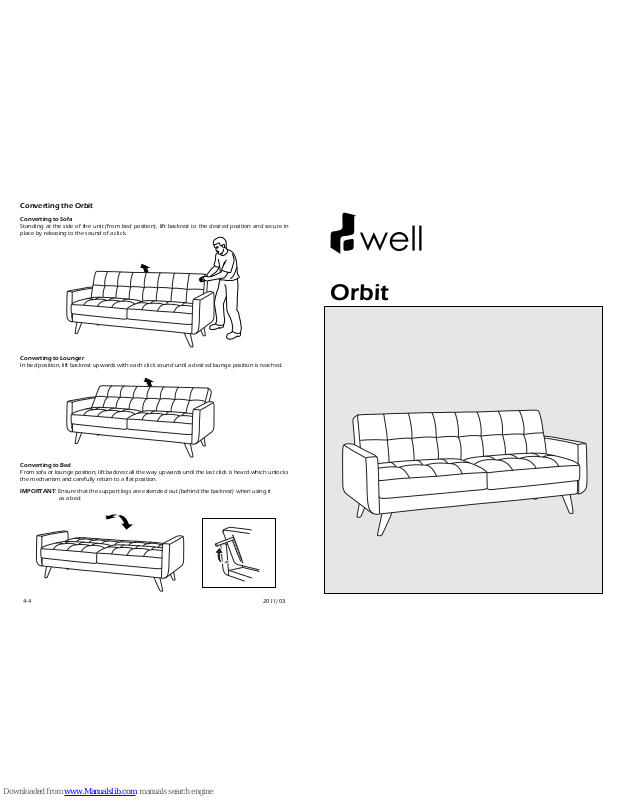

Converting the Orbit
Converting to Lounger
In bed position, lift backrest upwards with each click sound until a desired lounge position is reached.
2011/03
4-4
Converting to Bed
From sofa or lounge position, lift backrest all the way upwards until the last click is heard which unlocks
the mechanism and carefully return to a flat position.
IMPORTANT: Ensure that the support legs are extended out (behind the backrest) when using it
as a bed.
Page 2
Washer
Locate the pre-drilled holes inside. Align armrest into position (see above) and secure with
four long bolts and washers for each armrest from sofa body with the Allen key.
Repeat step for other armrest, ensuring both are fully secured and zipped shut.
2
1
Carefully unpack and place sofa body unit upright on a clean flat surface to show the base as
shown.
3-42-4
Assembling the Orbit
Parts and Hardware
Sofa Body
Armrest
Allen Key Leg
Short Bolt Long Bolt
Finally, carefully lift and turn assembled unit onto its legs. Two persons required to avoid
personal injury.
4
Align all four legs onto the designated plates in correct orientation (see below) and secure
two short bolts each legs using the Allen key.
3
