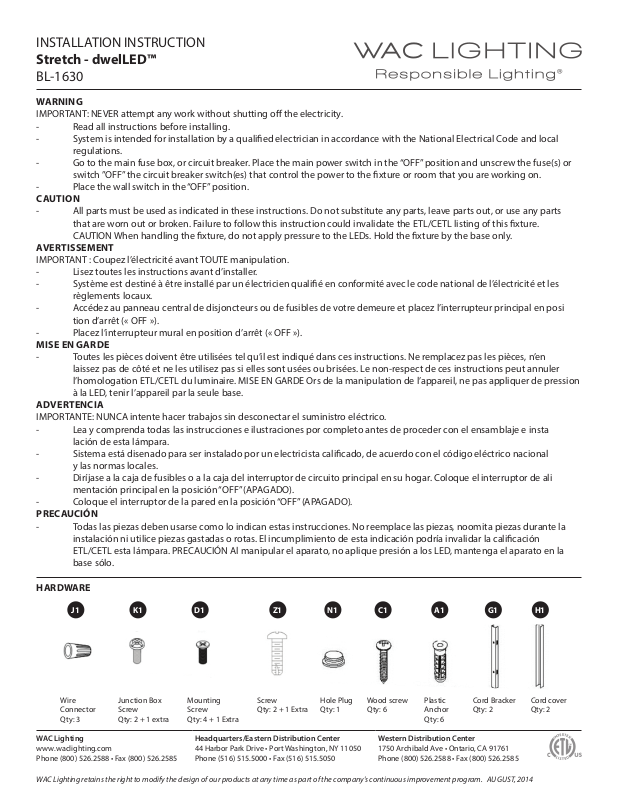

INSTALLATION INSTRUCTION
Stretch - dwelLED™
BL-1630
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local
regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts
that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en posi
tion d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en
laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler
l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression
à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta
lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional
y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali
mentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la
instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la
base sólo.
HARDWARE
J1 K1 D1 Z1 N1 C1 A1 G1 H1
Wire
Connector
Qty: 3
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUGUST, 2014
Junction Box
Screw
Qty: 2 + 1 extra
Mounting
Screw
Qty: 4 + 1 Extra
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Screw
Qty: 2 + 1 Extra
Hole Plug
Qty: 1
Wood screw
Qty: 6
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Plastic
Anchor
Qty: 6
Cord Bracker
Qty: 2
Cord cover
Qty: 2
INSTALLATION INSTRUCTION
Stretch - dwelLED™
BL-1630
PREPARAION
1. Carefully unpack your new xture, lay out all the parts
on a clear area. Be careful not to lose any small parts
necessary for installation.
2. Remove the mounting screws (D1) from the xture.
PORTABLE INSTALLATION (Fig. 1)
3. Drill holes in the wall aligned with the key-hole
location in the mounting plate (B1).
4. Insert the plastic anchors (A1). Insert the wood screws
(C1) into the plastic anchors (A1) leaving enough length
to hang the mounting plate (B1).
5. Hang the mounting plate (B1) and tighten the wood
screws (C1) until the mounting plate (B1) is secured to
the wall.
6. Place the xture over the mounting plate (B1) and secure
it with the mounting screws (D1).
7. Install optional cord cover if desired. Drill holes in the wall
aligned with the hole locations in the cord bracket (G1).
Insert the plastic anchors (A1) into wall. Secure the bracket (G1)
to the wall with the wood screws (C1).
anchors
bracket
A1
mounting
plate
B1
G1
wood
screws
C1
E1
FIG.1
Fixture
D1
mounting
screws
H1
cord cover
8. Place the cord into the bracket (G1).
Snap the cord cover (H1) over the cord bracket.
9. Plug into outlet.
10. This lamp features has a dimmer switch. Press and release
to turn on / o. When xture is on, press and hold the switch
to cycle from dim to bright and release when desired brightness is reached.
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUGUST, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
INSTALLATION INSTRUCTION
Stretch - dwelLED™
BL-1630
IMPORTANT SAFETY INSTRUCTIONS
This portable lamp has a polarized plug (one blade is wider than the
other) as a safety feature to reduce the risk of electric shock. This
plug will t a polarized outlet only one way. If the plug does not t
fully in the outlet, reverse the plug. If it still does not t, contact a
qualied electrician. Never use with an extension cord unless the
plug can be fully inserted. Do not change or alter the plug.
PERMANENT INSTALLATION
1. Shut o power at circuit breaker. If necessary, remove old xture,
including mounting hardware.
2. Unscrew the screw (M1) and take out the metal plate (I1) from
inside the xture back plate.
3. Cut power cord to 7” length (from center of the xture back
plate). Pull cord through grommet hole in order to connect to main
power. (CAUTION: FIXTURE CANNOT REVERT TO PLUG-IN VERSION
ONCE THE CORD AND PLUG ARE CUT OFF.)
Remove grommet from base and insert hole plug (N1) provided to
cover hole
FOR SWITCH BOX MOUNTING (Fig. 2)
1. Secure mounting plate (B1) to the switch box (P1) using screws
(K1). The side of the mounting plate marked “GND” (B1)
must face out.
screw
switch
box
metal
plate
M1
wire
connector
P1
I1
J1
mounting
plate
B1
Box
screw
K1
E1
xture
FIG.2
For Switch Box
screws
D1
N1
base
screw
FOR JUNCTION BOX MOUNTING (optional Fig. 3)
2. Secure the mounting ring (Y1) to the junction box (F1) using
junction box screws (K1). Make sure the two holes (spacing 2-3/4”)
are vertically aligned as shown in Fig, 3.
3. Put the mounting plate (B1) and the conversion plate (Q1) onto
the mounting ring (K1). Make sure the two holes on the mounting
plate (B1) are aligned with the two slots on the conversion plate
(Q1) and the two holes on the mounting ring (Y1).
Fasten them using the long screws (Z1).
CONNECTING THE WIRES (Fig. 4)
4. Connect the electrical wires as shown in Fig, 3, making sure that
all wire connectors (J1) are secured. If your outlet box has a green
or bare copper ground wire, connect the xture’s ground wire to it.
Otherwise, connect the xture’s ground wire directly to the
mounting plate (B1) using the green screw provided. After wires are
connected, tuck them carefully inside the junction box.
5. Place the xture back plate (E1) over the mounting
plate (B1) and secure with screws (D1).
FIG.4
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare Copper
(Ground)
Junction
box
Mounting
plate
F1
Mounting
screw
FIG.3
For Junction Box
Y1
K1
Q1
Mounting
plate
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Conversion
plate
B1
Z1
Long
screw
