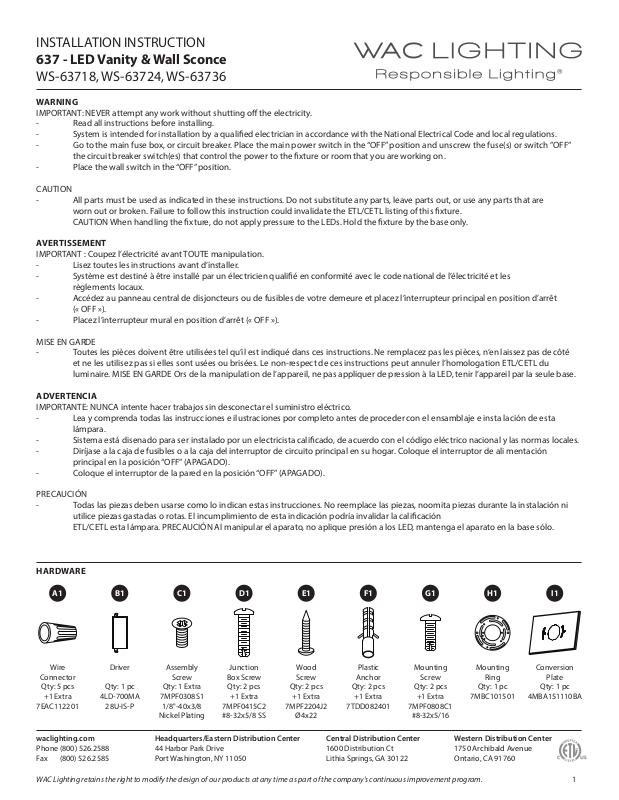

INSTALLATION INSTRUCTION
637 - LED Vanity & Wall Sconce
WS-63718, WS-63724, WS-63736
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF”
the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt
(« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté
et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du
luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta
lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación
principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni
utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
HARDWARE
A1 B1 C1 D1 E1 F1 G1 H1 I1
Wire
Connector
Qty: 5 pcs
+1 Extra
7EAC112201
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
4LD-700MA
Driver
Qty: 1 pc
28U-IS-P
Assembly
Screw
Qty: 1 Extra
7MPF0308S1
1/8"-40x3/8
Nickel Plating
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Junction
Box Screw
Qty: 2 pcs
+1 Extra
7MPF0415C2
#8-32x5/8 SS
Qty: 2 pcs
7MPF2204J2
Wood
Screw
+1 Extra
Ø4x22
Plastic
Anchor
Qty: 2 pcs
+1 Extra
7TDD082401
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
7MPF0808C1
#8-32x5/16
Mounting
Screw
Qty: 2 pcs
+1 Extra
Mounting
Ring
Qty: 1 pc
7MBC101501
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Conversion
Plate
Qty: 1 pc
4MBA151110BA
1WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
INSTALLATION INSTRUCTION
637 - LED Vanity & Wall Sconce
WS-63718, WS-63724, WS-63736
FIG. 1 MOUNT ON SWITCH
Acrylic Shade
Fixture
D1
Junction Box Screw
B1
Driver
A1
Wire Connector
Switch Box
C1
E1
F1
Plastic Anchor
Assembly Screw
Cover Plate
Wood Screw
FIG. 2 MOUNT ON JUNCTION BOX
Acrylic Shade
Fixture
C1
E1
F1
G1
Mounting Screw
D1
Junction Box Screw
I1
Conversion Plate
H1
Mounting Ring
B1
Driver
A1
Assembly Screw
Cover Plate
Wood Screw
Plastic Anchor
Wire Connector
Junction Box
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
2WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
INSTALLATION INSTRUCTION
637 - LED Vanity & Wall Sconce
WS-63718, WS-63724, WS-63736
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
INSTALLATION
MOUNT ON SWITCH BOX (Fig. 1)
3. Remove the assembly screws (C1) and one of the cover plates from the xture, take down the acrylic shade.
4. Drill holes in the wall aligned with the key holes located in the xture back plate, insert the plastic anchors (F1).
5. Connect the driver (B1) input wires to switch wires, output wire to xture wire as shown in Fig. 3, making sure that all wire connectors (A1)
are secured. If your outlet box has a green or bare copper ground wire, connect the xture's ground wire to it. Otherwise, connect the
xture's ground wire directly to the back plate using the green screw provided. After wires are connected, tuck them carefully inside
the switch box.
*Requires Driver to be recessed within the junction box
6. Secure the xture back plate to the switch box using the junction box screws (D1), fasten it to the wall using wood screws (E1). The side of
the mounting plate marked "GND" must face out.
7. Insert the acrylic shade into the xture; secure it with cover plate using assembly screws (C1).
OR
MOUNT ON JUNCTION BOX (Fig. 2)
3. Remove the assembly screws (C1) and one of the cover plates from the xture, take down the acrylic shade.
4. Connect the driver (B1) input wires to switch wires as shown in Fig. 3, making sure that all wire connectors (A1) are secured. If your outlet
box has a green or bare copper ground wire, connect the xture's ground wire to it. Otherwise, connect the xture's ground wire directly to
the back plate using the green screw provided. After wires are connected, tuck them carefully inside the switch box.
*Requires Driver to be recessed within the junction box
5. Secure the mounting ring to the junction box using the junction box screws (D1). Make sure the two holes (Spacing 2-3/4") are horizontal
as shown in Fig. 2. The side of the mounting plate marked "GND" must face out.
6. Drill holes in the wall aligned with the key hole located in the xture back plate, insert the plastic anchors (F1).
7. Connect the driver (B1) output wire to the xture wire as shown in Fig 3, making sure that all wire connectors (A1) are secured. After wires
are connected, tuck them carefully inside the junction box.
8. Secure the xture back plate and conversion plate (I1) to the mounting ring with mounting screws (G1), secure the xture back plate to the
wall using wood screws (E1).
9. Insert the acrylic shade into the xture; secure it with cover plate using assembly screws (C1).
Fig. 3 Wiring
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
Mounting Ring Dimensions
Ø
4"
1 3/4"
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
1 3/8"
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Back Plate Dimensions
WS-63718: 18 1/4"
WS-63724: 24 1/4"
WS-63736: 36 1/4"
3/8"
1
WS-63718: 14 1/8"
WS-63724: 17 5/8"
WS-63736: 30 1/4"
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
3"
1 5/8"
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
3WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
