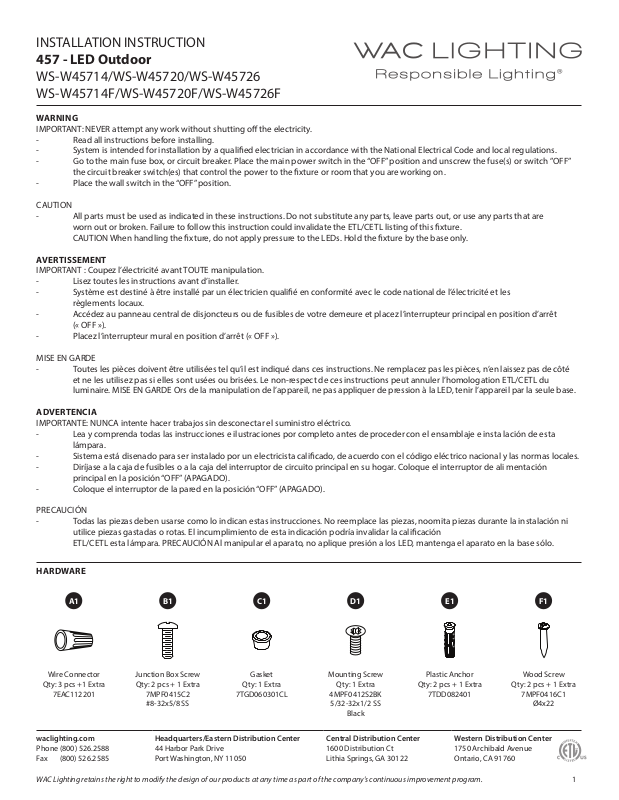

INSTALLATION INSTRUCTION
457 - LED Outdoor
WS-W45714/WS-W45720/WS-W45726
WS-W45714F/WS-W45720F/WS-W45726F
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF”
the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt
(« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté
et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du
luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta
lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación
principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni
utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
HARDWARE
A1 B1 C1 D1 E1 F1
Wire Connector
Qty: 3 pcs +1 Extra
7EAC112201
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Junction Box Screw
Qty: 2 pcs + 1 Extra
7MPF0415C2
#8-32x5/8 SS
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Gasket
Qty: 1 Extra
7TGD060301CL
Mounting Screw
Qty: 1 Extra
4MPF0412S2BK
5/32-32x1/2 SS
Black
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Plastic Anchor
Qty: 2 pcs + 1 Extra
7TDD082401
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Wood Screw
Qty: 2 pcs + 1 Extra
7MPF0416C1
Ø4x22
1WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.

INSTALLATION INSTRUCTION
457 - LED Outdoor
WS-W45714/WS-W45720/WS-W45726
WS-W45714F/WS-W45720F/WS-W45726F
FIG. 1
Wood Screw
F1
Mounting Back Plate
Junction Box
Glass
(RPL-GLA-45714)
(RPL-GLA-45720)
(RPL-GLA-45726)
Junction
B1
Box Screw
A1
E1
Plastic
Anchor
Wire
Connector
Back Plate Dimensions
WS-W45714: 11"
WS-W45720: 15"
WS-W47526: 15"
1
"
3/4
1
"
3/8
4
C1
Fixture
Gasket
PREPARATION
1.
Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
D1
Mounting Screw
WS-W45714: 9"
WS-W45720: 11 4/5"
WS-W47526: 11 4/5"
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
1/8
"
MOUNTING THE FIXTURE (Fig. 1)
Remove the mounting screws (D1) and the gaskets (C1) from the mounting back plate.
3.
4. Drill holes in the wall aligned with the key holes located in the junction box, insert the plastic anchors (E1).
5. Secure the mounting back plate to the junction box using junction box screws (B1), fasten it to the wall using wood screws (F1).
The side of the mounting back plate marked "GND" must face out.
CONNECTING THE WIRES (Fig. 2)
6. Connect the xture's wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A1) are secured. If your outlet box
has a green or bare copper ground wire, connect the xture's ground wire to it. Otherwise, connect the xture's ground wire directly to the
back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
7. Secure the xture to the mounting back plate using the mounting screws (D1) and the rubber gaskets (C1).
8. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to outline the
outside of the xture back plate where it meets the wall. Leave a space at the bottom to allow moisture to escape (Fig. 3).
Fig. 2 Wiring
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Fixture Wires House Wires
Black or Black
Smooth (Hot)
Fixture Wires House Wires
White or White
Ribbed (Neutral)
Fixture Wires House Wires
Bare wire Green or Bare Copper
(Ground) (Ground)
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Fig. 3 Sealing
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Junction Box
Caulking
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
