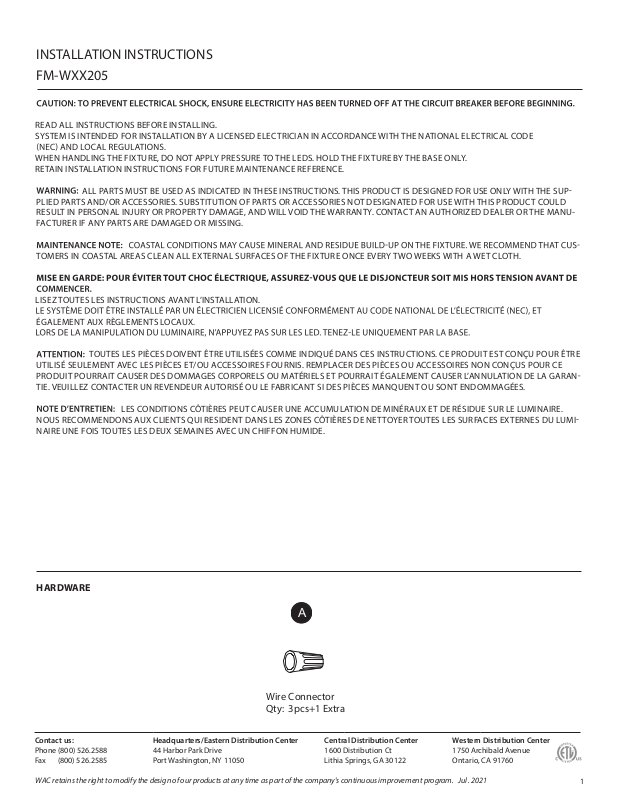

INSTALLATION INSTRUCTIONS
FM-WXX205
READ ALL INSTRUCTIONS BEFORE INSTALLING.
SYSTEM IS INTENDED FOR INSTALLATION BY A LICENSED ELECTRICIAN IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE
WHEN HANDLING THE FIXTURE, DO NOT APPLY PRESSURE TO THE LEDS. HOLD THE FIXTURE BY THE BASE ONLY.
RETAIN INSTALLATION INSTRUCTIONS FOR FUTURE MAINTENANCE REFERENCE.
ALL PARTS MUST BE USED AS INDICATED IN THESE INSTRUCTIONS. THIS PRODUCT IS DESIGNED FOR USE ONLY WITH THE SUP
PLIED PARTS AND/OR ACCESSORIES. SUBSTITUTION OF PARTS OR ACCESSORIES NOT DESIGNATED FOR USE WITH THIS PRODUCT COULD
RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE, AND WILL VOID THE WARRANTY. CONTACT AN AUTHORIZED DEALER OR THE MANU
FACTURER IF ANY PARTS ARE DAMAGED OR MISSING.
TOMERS IN COASTAL AREAS CLEAN ALL EXTERNAL SURFACES OF THE FIXTURE ONCE EVERY TWO WEEKS WITH A WET CLOTH.
LISEZ TOUTES LES INSTRUCTIONS AVANT L’INSTALLATION.
ÉGALEMENT AUX RÈGLEMENTS LOCAUX.
TOUTES LES PIÈCES DOIVENT ÊTRE UTILISÉES COMME INDIQUÉ DANS CES INSTRUCTIONS. CE PRODUIT EST CONÇU POUR ÊTRE
UTILISÉ SEULEMENT AVEC LES PIÈCES ET/OU ACCESSOIRES FOURNIS. REMPLACER DES PIÈCES OU ACCESSOIRES NON CONÇUS POUR CE
PRODUIT POURRAIT CAUSER DES DOMMAGES CORPORELS OU MATÉRIELS ET POURRAIT ÉGALEMENT CAUSER L’ANNULATION DE LA GARAN
TIE. VEUILLEZ CONTACTER UN REVENDEUR AUTORISÉ OU LE FABRICANT SI DES PIÈCES MANQUENT OU SONT ENDOMMAGÉES.
LES CONDITIONS CÔTIÈRES PEUT CAUSER UNE ACCUMULATION DE MINÉRAUX ET DE RÉSIDUE SUR LE LUMINAIRE.
NOUS RECOMMENDONS AUX CLIENTS QUI RESIDENT DANS LES ZONES CÔTIÈRES DE NETTOYER TOUTES LES SURFACES EXTERNES DU LUMI
NAIRE UNE FOIS TOUTES LES DEUX SEMAINES AVEC UN CHIFFON HUMIDE.
HARDWARE
A
Contact us:
Phone (800) 526.2588
Fax (800) 526.2585
WAC retains the right
Wire Connector
Qty: 3pcs+1 Extra
Headquarters/Eastern Distribution Center
to modify the design of our products at any time as part of the company's continuous improvement progr
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Jul . 2021
1
modernforms.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
INSTALLATION INSTRUCTIONS
FM-WXX205
FIG.1
Mouting Plate
Junction Box
A
Wire Connector
Ground Wire
Junction Box Screw
Mounting Plate Dimensions
4 3/8”
1 3/4”
Switch
Fixture
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Rotate the xture and take out the mounting plate.
4. The lamp can switch between three color temperatures (3000K-3500K-4000K), which can be adjusted to your preference with the
switch in the xture (Fig.3).
5. Secure the mounting plate to the junction box using standard junction box screws that comes with the junction box.
Note: (i) using any other non-original-manufacturer provided junction box screw may result in safety issue;
(ii) The side of the mounting back plate marked “GND” must face out.
CONNECTING THE WIRES (Fig. 2)
6. Connect the xture’s wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A) are secured. If your outlet
box has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly
to the mounting plate using the screw provided. After wires are connected, tuck them carefully inside the junction box.
1 3/8”
4 3/4”
COMPLETING THE INSTALLATION (Fig. 1)
7. Place the xture over the mounting plate and tighten it by clockwise rotation.
8. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to outline the
outside of xture back plate where it meets the wall (Fig.4).
Fig. 2 Wiring
Contact us:
Phone (800) 526.2588
Fax (800) 526.2585
WAC retains the right
FIG. 3 Switch
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
to modify the design of our products at any time as part of the company's continuous improvement program.
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
3500K4000K
3000K
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
FIG. 4 Sealing
Junction Box
Caulking
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Jul . 2021
