INSTALLATION INSTRUCTION
652-LED Pendant
PD-65244
CAUTION: To prevent electrical shock, ensure electricity has been turned o at the circuit breaker before beginning.
• Read all instructions before installing.
• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
• When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
• Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result in
personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or
missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the xture. We recommend that customers in coastal
areas clean all external surfaces of the xture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
• Lisez toutes les instructions avant l’installation.
• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement
avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce
produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez
contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons
aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un
chion humide.

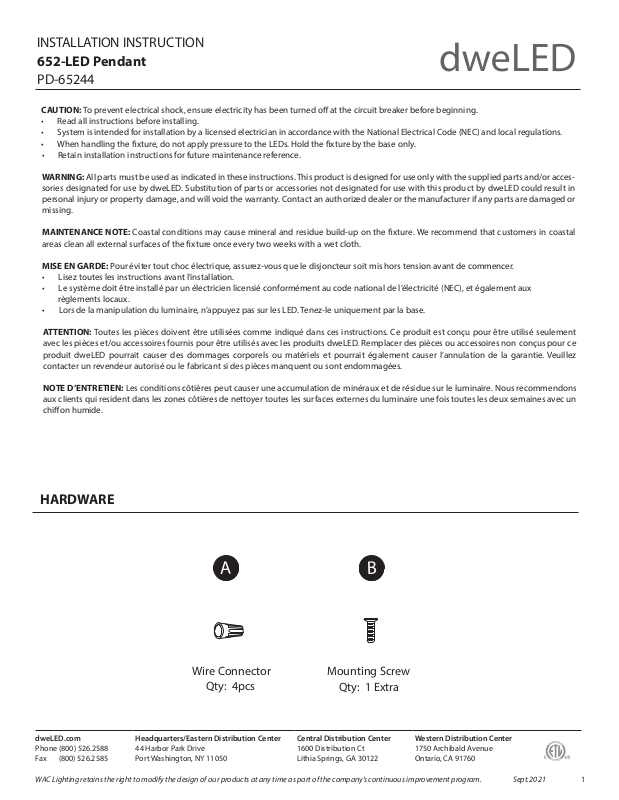

HARDWARE
A
Wire Connector
Qty: 4pcs
Mounting Screw
B
Qty: 1 Extra
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Sept.2021
1
INSTALLATION INSTRUCTION
652-LED Pendant
PD-65244
Fig. 1
Junction Box
A
Ground Wire
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
Wire Connector
Junction Box Screw
B
Mounting Screw
Push up
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the mounting screw (B) from the mounting back plate.
4. Secure the mounting back plate to the junction box using standard junction box screw that provided with the junction box.
Note: (i)Using any other non-original-manufacturer provided junction box screw may result in safety issue;
(ii)The side of the mounting plate marked “GND” must face out.
5. Adjust the xture wire length by pushing the cable gripper on the canopy and pulling the wire as desired.
a. Retract the wires close to a desireable length and tuck within the canopy before securing the xture in place.
Note: retracting or extending excessive cable length through the cable gripper is not recommended.
b. Warning: Shortening these cables without professional helps or electronic background is not advisable. Any modications
to the xture may result in voiding the warranty of the product.
6. Please follow these recommendations if shortening the wire. Note or take a picture of how the wires are being connected and lable each
wire clearly. Using the Fig.3 as given below as reference.
CONNECTING THE WIRES (Fig. 2)
7. Connect the driver’s input wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A) are secured. If your
outlet box has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground
wire directly to the back plate using the “GND” screw provided. After wires are connected, tuck them carefully inside the junction box.
Mounting Back plateFig. 2
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
13”
13/4”
4 1/4”
13/8”
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Sept. 2021
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
2
INSTALLATION INSTRUCTION
652-LED Pendant
PD-65244
Fig. 3
White - Neutral
Black - Hot
Input
Driver
Output
Center - To Driver+(Red)
Bare - To Driver-(Black)
8
Center +
Bare -
Red +
Black -
30
Center - To Driver+(Red)
Bare - To Driver-(Black)
COMPLETING THE INSTALLATION
8. Secure the xture by mounting the canopy to the mounting back plate.Slide the canopy in the direction of the notch until
it latches in place. Secure the xture to the mounting back plate using the mounting screw (B).
NOTE: DIMMING WIRING INFORMATION(Fig. 4)
9. This xture features electronic low voltage (ELV or TRAIC) or 0-10V dimming capabilities. See notes below for specic dimming wires
information.
10. To utilize ELV or TRAIC dimming: use wires black (Hot), white (neutral) and bare copper ground wire (ground).
11. To utilize 0-10V dimming: use wire purple (dim+), gray (dim-), black (hot), white (neutral) and bare copper ground wire (ground)
NOTE: Make sure to connect 0-10V prior to power-up the xture in order to allow the 0-10V dimming to function properly.
Green - Ground
Black - Hot
White - Neutral
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Sept. 2021
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Purple - Dim+
Pink Or Gray - Dim-
Red
+
Black-
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
3
