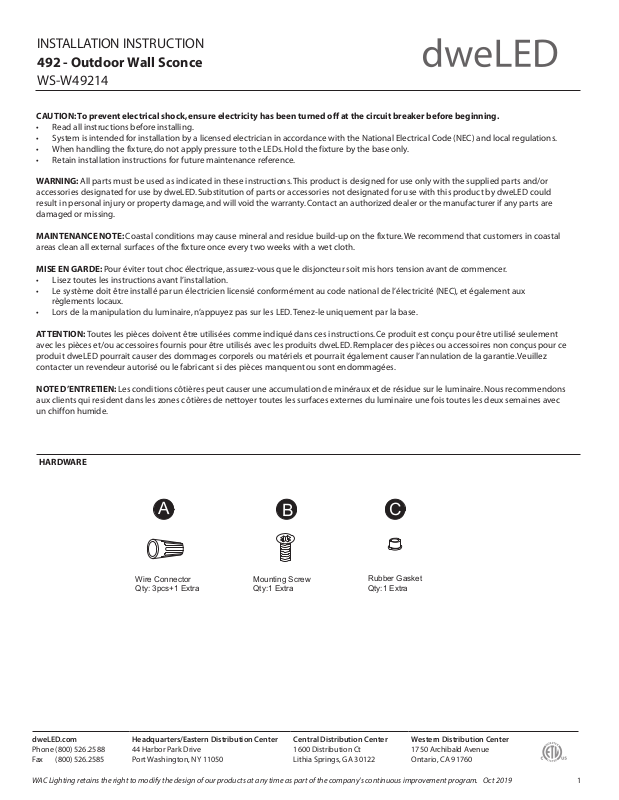

INSTALLATION INSTRUCTION
492 - Outdoor Wall Sconce
WS-W49214
CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning.
• Read all instructions before installing.
• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
• When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.
• Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or
accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could
result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are
damaged or missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in coastal
areas clean all external surfaces of the fixture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de c
• Lisez toutes les instructions avant l’installation.
• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement
avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce
produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez
contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons
aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec
un chiffon humide.
HARDWARE
A
B
C
ommencer.
Wire Connector
Qty: 3pcs+1 Extra
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Oct 2019
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Mounting Screw
Qty:1 Extra
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Rubber Gasket
Qty:1 Extra
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
1
INSTALLATION INSTRUCTION
492 - Outdoor Wall Sconce
WS-W49214
Fig. 1
Junction Box Screw
Backplate
Wire Connector
A
White Wire
Black Wire
Junction Box
Ground Wire
3CCT Switch
GND Screw
Rubber Gasket
C
Mounting Screw
B
PREPARATION
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the mounting screw (B) and the rubber gasket (C) from the backplate.
4. Secure the backplate to the junction box using junction box screws. The side of the mounting back plate marked “GND” must face out.
5. The lamp can switch between three color temperatures (3000K-3500K-4000K), which can be adjusted to your preference with the switch in
the canopy (Fig.4).Set to desired color temperature.
CONNECTING THE WIRES (Fig. 2)
6. Connect the fixture’s wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A) are secured. If your outlet box
has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the
backplate using the “GND” screw provided. After wires are connected, tuck them carefully inside the junction box.
COMPLETING THE INSTALLATION
7. Secure the fixture to the backplate using the mounting screw (B) and the rubber gasket (C).
8. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to outline the
outside of fixture backplate where it meets the wall. Leave a space at the bottom to allow moisture to escape Fig.3.
Black
(Hot)
White
(Neutral)
Green or Bare Copper
(Ground)
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
3500K4000K
3000K
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
Black or
Smooth
White or
Ribbed
Bare wire
(Ground)
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Oct 2019
