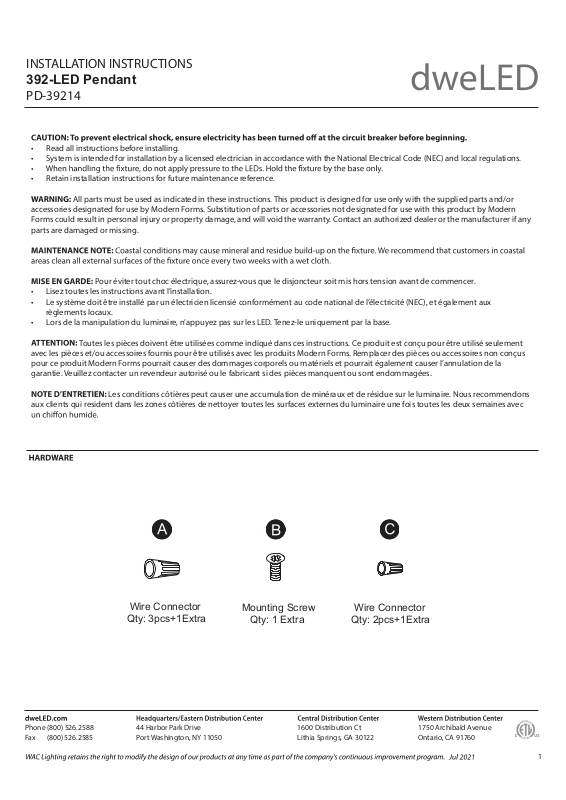

INSTALLATION INSTRUCTIONS
392-LED Pendant
PD-39214
• Read all instructions before installing.
• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
• Retain installation instructions for future maintenance reference.
All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or
accessories designated for use by Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern
Forms could result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any
parts are damaged or missing.
Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
• Lisez toutes les instructions avant l’installation.
• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement
avec les pièces et/ou accessoires fournis pour être utilisés avec les produits Modern Forms. Remplacer des pièces ou accessoires non conçus
pour ce produit Modern Forms pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la
garantie. Veuillez contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons
aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec
Wire Connector
Qty: 3pcs+1Extra
Mounting Screw
Qty: 1 Extra
Wire Connector
Qty: 2pcs+1Extra
Phone (800) 526.2588
Fax (800) 526.2585
44 Harbor Park Drive
Port Washington, NY 11050
1600 Distribution Ct
Lithia Springs, GA 30122
1750 Archibald Avenue
Ontario, CA 91760
1
INSTALLATION INSTRUCTIONS
392-LED Pendant
PD-39214
1. Shut off the power at the circuit breaker and remove existing xture,
including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear
area. Be careful not to lose any small parts necessary for installation.
Loosen the mounting screw (B) from the xture, and remove the mounting plate.
Secure the mounting back plate to the junction box using standard junction
box screws that comes with the junction box.
Note: (i) using any other non-original-manufacturer provided junction box
screw may result in safety issue;
(ii) The side of the mounting plate marked “GND” must face out.
Adjust the xture wire length by pushing the cable gripper on the canopy
and pulling the wire as desired.
a) Before securing the canopy in place, it is recommended to retract or
extend the wire within the canopy to a desirable length.
b) Due to limited space within the canopy, shorten the cable as necessary
to make the installation easier. Make sure to identify and label all the
wiring properly before any trimming/shortening (Fig. 3).
Connect the driver’s output wires to center cable as shown in Fig. 3, red to the center, and black
to the bare, make sure that wire connectors (C) are secured. Then tuck them inside the canopy.
7. Connect the driver’s input wires to junction box wires as shown in Fig. 2, make sure that all wire
connectors (A) are secured. If your outlet box has a green or bare copper ground wire, connect
the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to the
mounting plate using the screw provided. After wires are connected, tuck them carefully inside
the junction box.
Secure the xture by mounting the canopy to the ring of the mounting plate. Turn and rotate the
canopy in the direction of the arrow until it stops. Fasten the canopy to the mounting plate using
the mounting screw (B).
Black or
Smooth
White or
Ribbed
Bare wire
(Ground)
Black
(Hot)
White
(Neutral)
Green or Bare Copper
(Ground)
Red +
Black -
White - Neutral
Black - Hot
Red +
Black -
Canopy
Input
Output
Driver
RPL-GLA-39214
PD-30206
Phone (800) 526.2588
Fax (800) 526.2585
44 Harbor Park Drive
Port Washington, NY 11050
1600 Distribution Ct
Lithia Springs, GA 30122
1750 Archibald Avenue
Ontario, CA 91760
2
