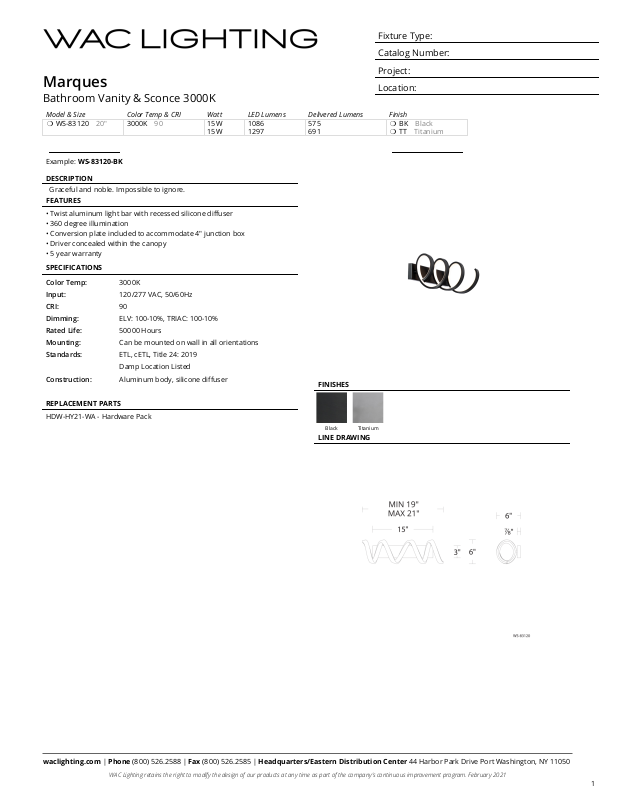

Marques
❍❍❍
Bathroom Vanity & Sconce 3000K
Model & Size
WS-83120
Example: WS-83120-BK
20" 3000K 90 15W 1086 575 BK Black
DESCRIPTION
Graceful and noble. Impossible to ignore.
FEATURES
• Twist aluminum light bar with recessed silicone diffuser
• 360 degree illumination
• Conversion plate included to accommodate 4" junction box
• Driver concealed within the canopy
• 5 year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Mounting:
Standards:
Construction:
Color Temp & CRI
Watt
15W 1297 691 TT Titanium
3000K
120/277 VAC, 50/60Hz
90
ELV: 100-10%, TRIAC: 100-10%
50000 Hours
Can be mounted on wall in all orientations
ETL, cETL, Title 24: 2019
Damp Location Listed
Aluminum body, silicone diffuser
LED Lumens
Delivered Lumens
FINISHES
Fixture Type:
Catalog Number:
Project:
Location:
Finish
REPLACEMENT PARTS
HDW-HY21-WA - Hardware Pack
Black Titanium
LINE DRAWING
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. February 2021
1
Marques
❍❍❍
Bathroom Vanity & Sconce 3000K
Model & Size
WS-83129
Example: WS-83129-BK
29" 3000K 90 29W 1874 1059 BK Black
DESCRIPTION
Graceful and noble. Impossible to ignore.
FEATURES
• Twist aluminum light bar with recessed silicone diffuser
• 360 degree illumination
• Conversion plate included to accommodate 4" junction box
• Driver concealed within the canopy
• 5 year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Mounting:
Standards:
Construction:
Color Temp & CRI
Watt
29W 2389 1271 TT Titanium
3000K
120/277 VAC, 50/60Hz
90
ELV: 100-10%, TRIAC: 100-10%
50000 Hours
Can be mounted on wall in all orientations
ETL, cETL, Title 24: 2019
Damp Location Listed
Aluminum body, silicone diffuser
LED Lumens
Delivered Lumens
FINISHES
Fixture Type:
Catalog Number:
Project:
Location:
Finish
REPLACEMENT PARTS
HDW-HY21-WA - Hardware Pack
Black Titanium
LINE DRAWING
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. February 2021
2
Marques
❍❍❍
Bathroom Vanity & Sconce 3000K
Model & Size
WS-83139
Example: WS-83139-BK
39" 3000K 90 32W 2136 1203 BK Black
DESCRIPTION
Graceful and noble. Impossible to ignore.
FEATURES
• Twist aluminum light bar with recessed silicone diffuser
• 360 degree illumination
• Conversion plate included to accommodate 4" junction box
• Driver concealed within the canopy
• 5 year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Mounting:
Standards:
Construction:
Color Temp & CRI
Watt
32W 2714 1444 TT Titanium
3000K
120/277 VAC, 50/60Hz
90
ELV: 100-10%, TRIAC: 100-10%
50000 Hours
Can be mounted on wall in all orientations
ETL, cETL, Title 24: 2019
Damp Location Listed
Aluminum body, silicone diffuser
LED Lumens
Delivered Lumens
FINISHES
Fixture Type:
Catalog Number:
Project:
Location:
Finish
REPLACEMENT PARTS
HDW-HY21-WA - Hardware Pack
Black Titanium
LINE DRAWING
Powered by TCPDF (www.tcpdf.org)
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. February 2021
3
