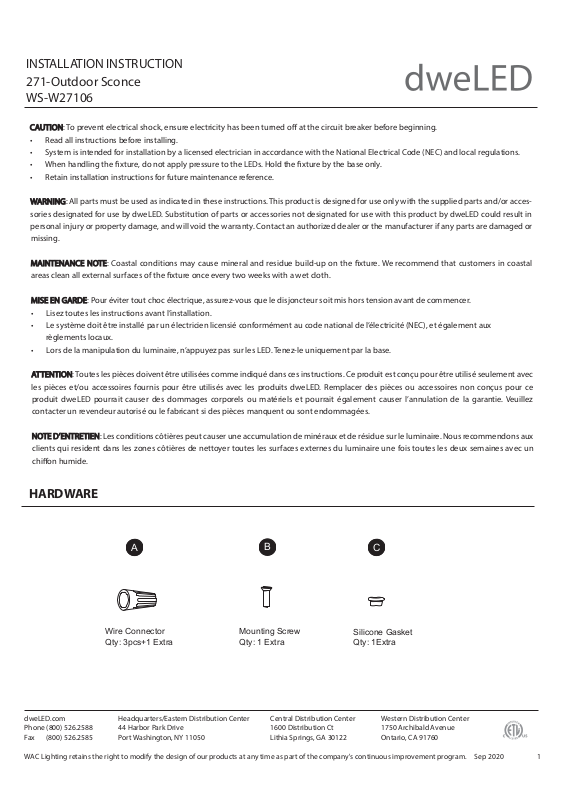

INSTALLATION INSTRUCTION
271-Outdoor Sconce
WS-W27106
CAUTION
• Read all instructions before installing.
• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
• When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
• Retain installation instructions for future maintenance reference.
WARNING
sories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result in
personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or
missing.
MAINTENANCE NOTE
areas clean all external surfaces of the xture once every two weeks with a wet cloth.
MISE EN GARDE
• Lisez toutes les instructions avant l’installation.
• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION
les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce
produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez
contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
: To prevent electrical shock, ensure electricity has been turned o at the circuit breaker before beginning.
: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or acces-
: Coastal conditions may cause mineral and residue build-up on the xture. We recommend that customers in coastal
: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement avec
NOTE D’ENTRETIEN
clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un
chion humide.
: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons aux
A
Wire Connector
Qty: 3pcs+1 Extra
B
Mounting Screw
Qty: 1 Extra
C
Silicone Gasket
Qty: 1Extra
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Sep 2020
1
Page 2
INSTALLATION INSTRUCTION
271-Outdoor Sconce
WS-W27106
PREPARATION
1. Shut o the power at the circuit breaker and remove
existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the
parts on a clear area. Be careful not to lose any small parts
necessary for installation.

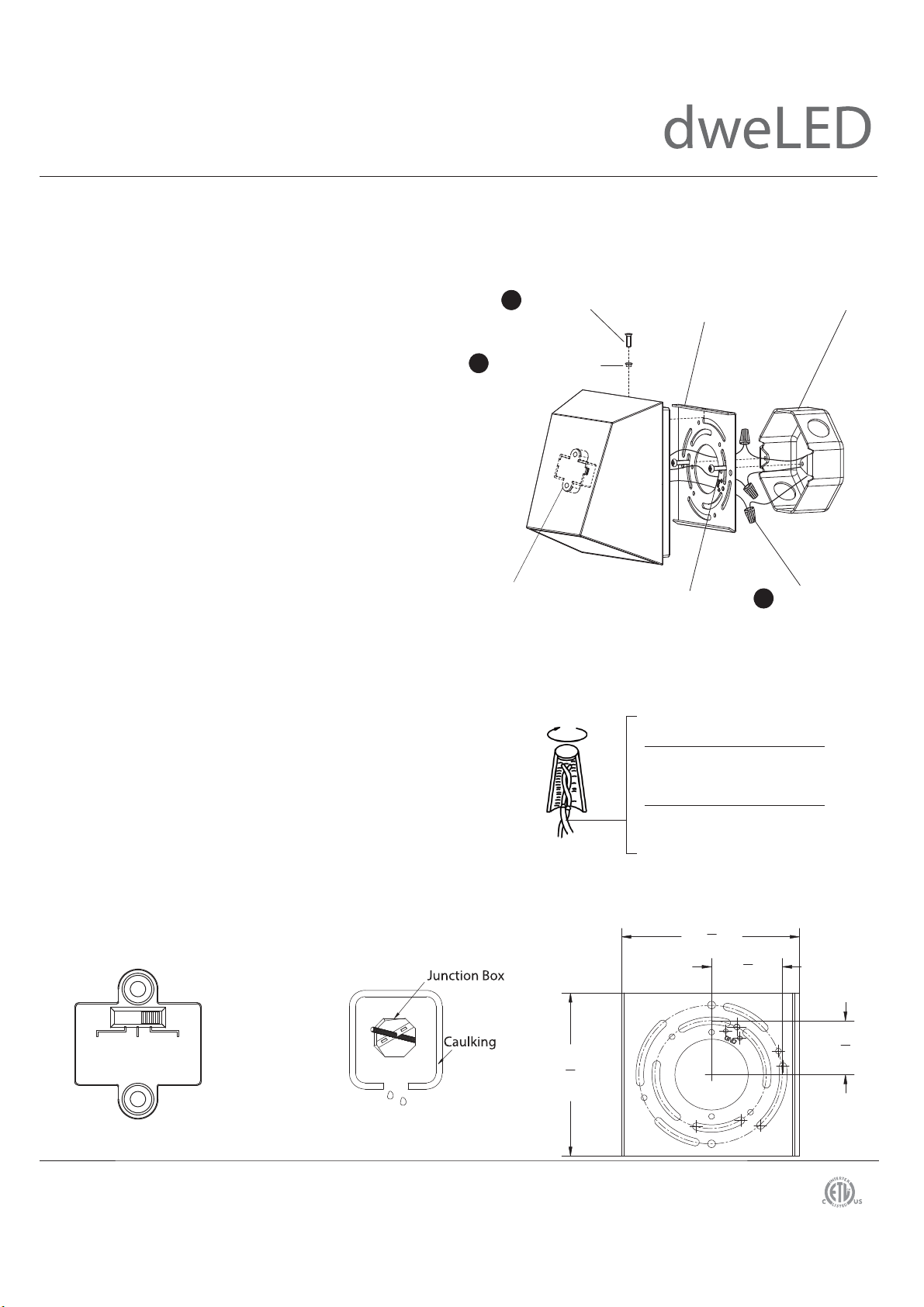

MOUNTING THE FIXTURE (Fig. 1)
3. Remove the mounting screw (B) and siliconce gasket(C)
from the xture.
4. Secure the mounting back plate to the junction box
using the screws provided with the junction box.
Note: (i) using any other non-original-manufacturer
provided junction box screw may result in safety issue;
(ii) The side of the mounting plate marked
“GND” must face out.
5. The lamp can switch between three color temperatures
(3000k-3500k-4000k),which can be adjusted to your preference
with the switch in the lamp body (Fig.3). Set to desired
color temperature.
CONNECTING THE WIRES (Fig. 2)
6. Connect the input wires to junction box wires
as shown (Fig. 2). Make sure that all wire connectors (A) are
secure. If your outlet box has a green or bare copper
ground wire, connect the xture’s ground wire to it. Otherwise,
connect the xture’s ground wire directly to the back plate using
the GND screw provided. After wires are connected, tuck them
carefully inside the junction box.
COMPLETING THE INSTALLATION
7. Secure the xture to the mounting back plate using
the mounting screw (B) and siliconce gasket(C).
8. To prevent the moisture from entering the outlet box and causing
a short, use clear caulking(i.e. indoor/outdoor silicone sealant) to
outline the outside of xture back plate(Fig.4).
Fig. 4 SealingFig. 3
Fig. 1
B
Mounting Screw
C
Silicone Gasket
3CCT Switch
Fig. 2 Wiring
Mounting Back Plate
Junction Box Screw
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
Mounting Back Plate Dimensions
3
"
4
8
3
1
4
Junction Box
A
Wire Connector
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
"
3500K4000K
3000K
1
"
4
8
