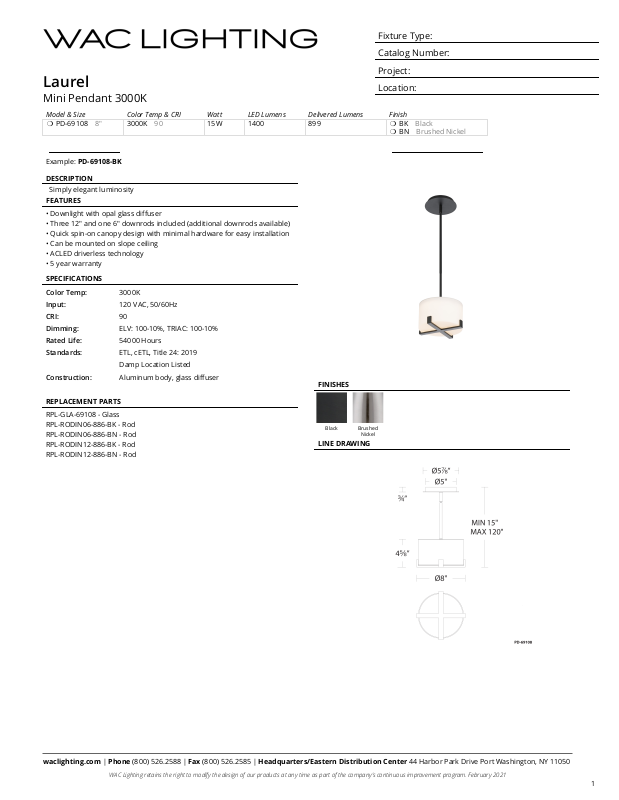

Laurel
❍❍❍
Mini Pendant 3000K
Model & Size
PD-69108
Example: PD-69108-BK
8" 3000K 90 15W 1400 899 BK Black
DESCRIPTION
Simply elegant luminosity
FEATURES
• Downlight with opal glass diffuser
• Three 12" and one 6" downrods included (additional downrods available)
• Quick spin-on canopy design with minimal hardware for easy installation
• Can be mounted on slope ceiling
• ACLED driverless technology
• 5 year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Standards:
Construction:
REPLACEMENT PARTS
RPL-GLA-69108 - Glass
RPL-RODIN06-886-BK - Rod
RPL-RODIN06-886-BN - Rod
RPL-RODIN12-886-BK - Rod
RPL-RODIN12-886-BN - Rod
Color Temp & CRI
3000K
120 VAC, 50/60Hz
90
ELV: 100-10%, TRIAC: 100-10%
54000 Hours
ETL, cETL, Title 24: 2019
Damp Location Listed
Aluminum body, glass diffuser
Watt
LED Lumens
Delivered Lumens
FINISHES
Black Brushed
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
Finish
BN Brushed Nickel
Nickel
Powered by TCPDF (www.tcpdf.org)
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. February 2021
