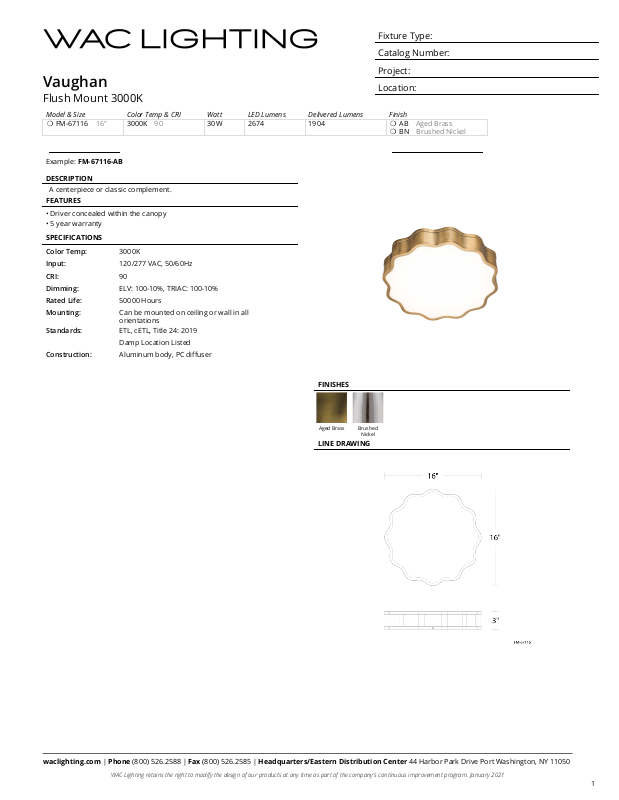

Page 1
Fixture Type:
❍
❍
❍
Catalog Number:
Project:
Vaughan
Flush Mount 3000K
Model & Size
FM-67116 16" 3000K 90 30W 2674 1904 AB Aged Brass
Example: FM-67116-AB
Color Temp & CRI
Watt
LED Lumens
Delivered Lumens
Location:
Finish
BN Brushed Nickel
DESCRIPTION
A centerpiece or classic complement.
FEATURES
• Driver concealed within the canopy
• 5 year warranty
SPECIFICATIONS
Color Temp:
Input:
CRI:
Dimming:
Rated Life:
Mounting:
Standards:
Construction:
3000K
120/277 VAC, 50/60Hz
90
ELV: 100-10%, TRIAC: 100-10%
50000 Hours
Can be mounted on ceiling or wall in all
orientations
ETL, cETL, Title 24: 2019
Damp Location Listed
Aluminum body, PC diffuser
FINISHES
Aged Brass Brushed
Nickel
LINE DRAWING
Powered by TCPDF (www.tcpdf.org)
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. January 2021
