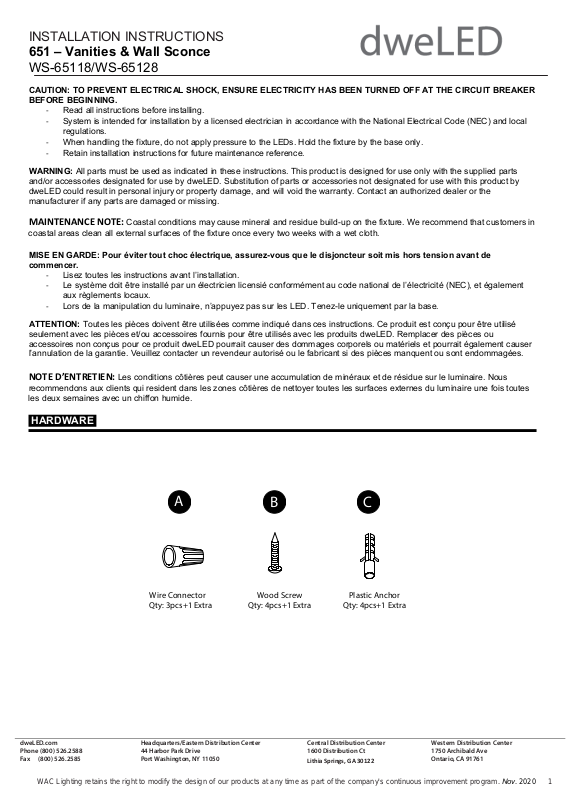

INSTALLATION INSTRUCTIONS
651 – Vanities & Wall Sconce
WS-65118/WS-65128
CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER
BEFORE BEGINNING.
‐ Read all instructions before installing.
‐ System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local
regulations.
‐ When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.
‐ Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts
and/or accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by
dweLED could result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the
manufacturer if any parts are damaged or missing.
MAINTENANCENOTE:Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in
coastal areas clean all external surfaces of the fixture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de
commencer.
‐ Lisez toutes les instructions avant l’installation.
‐ Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également
aux règlements locaux.
‐ Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé
seulement avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou
accessoires non conçus pour ce produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer
l’annulation de la garantie. Veuillez contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTED’ENTRETIEN:
recommendons aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes
les deux semaines avec un chiffon humide.
Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous
HARDWARE
A
Wire Connector
Qty: 3pcs+1 Extra
B C
Wood Screw
Qty: 4pcs+1 Extra
Plastic Anchor
Qty: 4pcs+1 Extra
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Nov. 2020 1
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
LithiaSprings,GA30122
Western Distribution Center
1750 Archibald Ave
Ontario, CA 91761
INSTALLATION INSTRUCTIONS
651 – Vanities & Wall Sconce
WS-65118/WS-65128
Fig. 1
Fig. 3
Fixture
Junction Box Screw
Safety Cord
Junction Bo
A
x
Wire Connector
C
Plastic Anchor
Spring
Slot
Mounting Back Plate
Wood Screw
B
Mo unting Back Plate
Driver
Alabaster shade
(RPL-SHA-65118)
(RPL-SHA-65128)
PREPARATION
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for
installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Drill holes in the wall aligned with the key holes located on the back plate. Insert the plastic anchor (C).
4. Secure the mounting back plate to the junction box using the screws provided with the junction box. Fasten the back plate to the wall with
the plastic anchors using the wood screws (B) provided.
Note: (i) Using any other non-original-manufacturer provided junction box screw may result in safety issue;
(ii) The side of the mounting plate marked "GND" must face out.
5. Connect the driver’s input wires to junction box wires as shown (Fig. 2). Make sure that all wire connectors (A) are secure. If your outlet
box has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire
directly to the back plate using the GND screw provided. After wires are connected, tuck them carefully inside the junction
box.
COMPLETING THE INSTALLATION (Fig. 3)
7. Properly secure the safety cord to mounting back plate to temporary hang the fixture in place.
8. Secure the fixture to the mounting back plate by pressing the spring on the fixture into the slot of the mounting plate.
WS-65118/65128
Fig. 2 Wiring
MOUNTING BACK PLATE
WS-65118 15 3/4"
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
1 1/4"
3 1/8"
WS-65128 25 1/4"
1 3/4"
WS-65118 16 1/2"
WS-65128 26 3/8"
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
LithiaSprings,GA30122
Western Distribution Center
1750 Archibald Ave
Ontario, CA 91761
1 3/8"
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Nov. 2020 2
