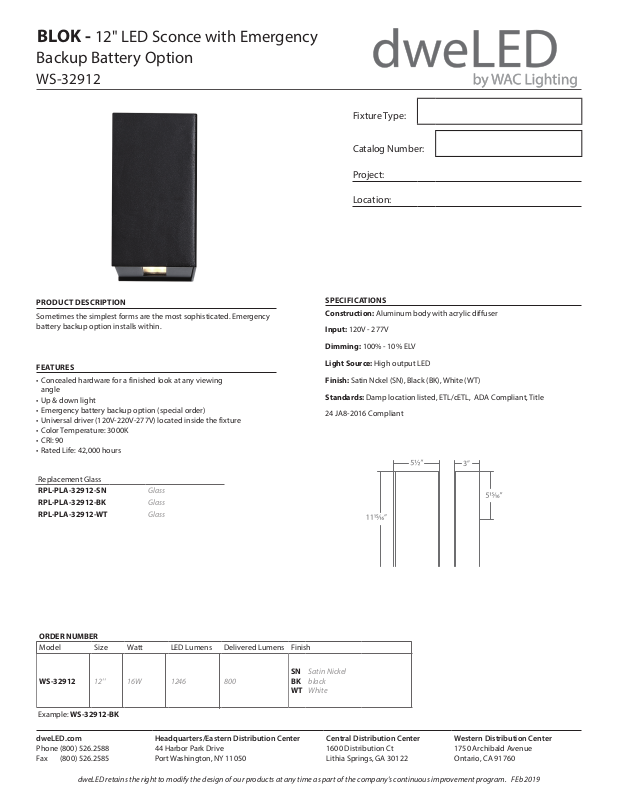

BLOK - 12" LED Sconce with Emergency
Backup Battery Option
WS-32912
PRODUCT DESCRIPTION
Sometimes the simplest forms are the most sophisticated. Emergency
battery backup option installs within.
FEATURES
• Concealed hardware for a finished look at any viewing
angle
• Up & down light
• Emergency battery backup option (special order)
• Universal driver (120V-220V-277V) located inside the fixture
• Color Temperature: 3000K
• CRI: 90
• Rated Life: 42,000 hours
Replacement Glass
RPL-PLA-32912-SN
RPL-PLA-32912-BK
RPL-PLA-32912-WT
Glass
Glass
Glass
SPECIFICATIONS
Construction: Aluminum body with acrylic diffuser
Input: 120V - 277V
Dimming: 100% - 10% ELV
Light Source: High output LED
Finish: Satin Nckel (SN), Black (BK), White (WT)
Standards: Damp location listed, ETL/cETL, ADA Compliant, Title
24 JA8-2016 Compliant
3”
ORDER NUMBER
Model Size Watt LED Lumens Delivered Lumens Finish
WS-32912 12'' 16W 1246 800
Example: WS-32912-BK
SN
Satin Nickel
BK
black
WT
White
dweLED retains the right to modify the design of our products at any time as part of the company's continuous improvement program. FEb 2019
