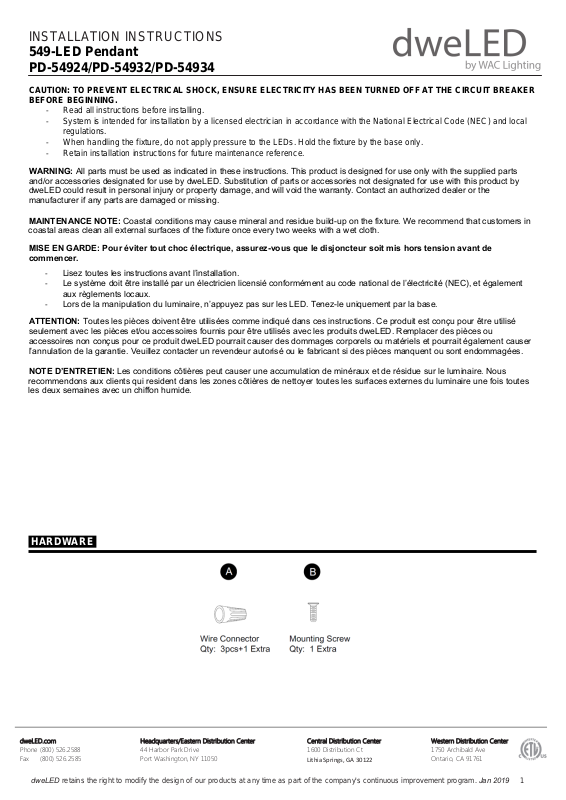

Page 1
INSTALLATION INSTRUCTIONS
549-LED Pendant
PD-54924/PD-54932/PD-54934
CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER
BEFORE BEGINNING.
‐ Read all instructions before installing.
‐ System is intended for installation by a licensed electrician in accordance with the National Electric al Code (NEC) and local
regulations.
‐ When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.
‐ Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts
and/or accessories des
dweLED could result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the
manufacturer if any parts are damaged or missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in
coastal areas clean all external surfaces of the fixture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de
commencer.
‐ Lisez toutes les
‐ Le s
ystème doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également
aux règlements locaux.
‐ Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ignated for use by dweLED. Substitution of parts or accessories not designated for use with this product by
instructions avant l’installation.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé
seulement avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou
accessoires non conçus pour ce produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer
l’annulation de la garantie. Veuillez contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous
recommendons aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes
les deux semaines avec un chiffon humide.

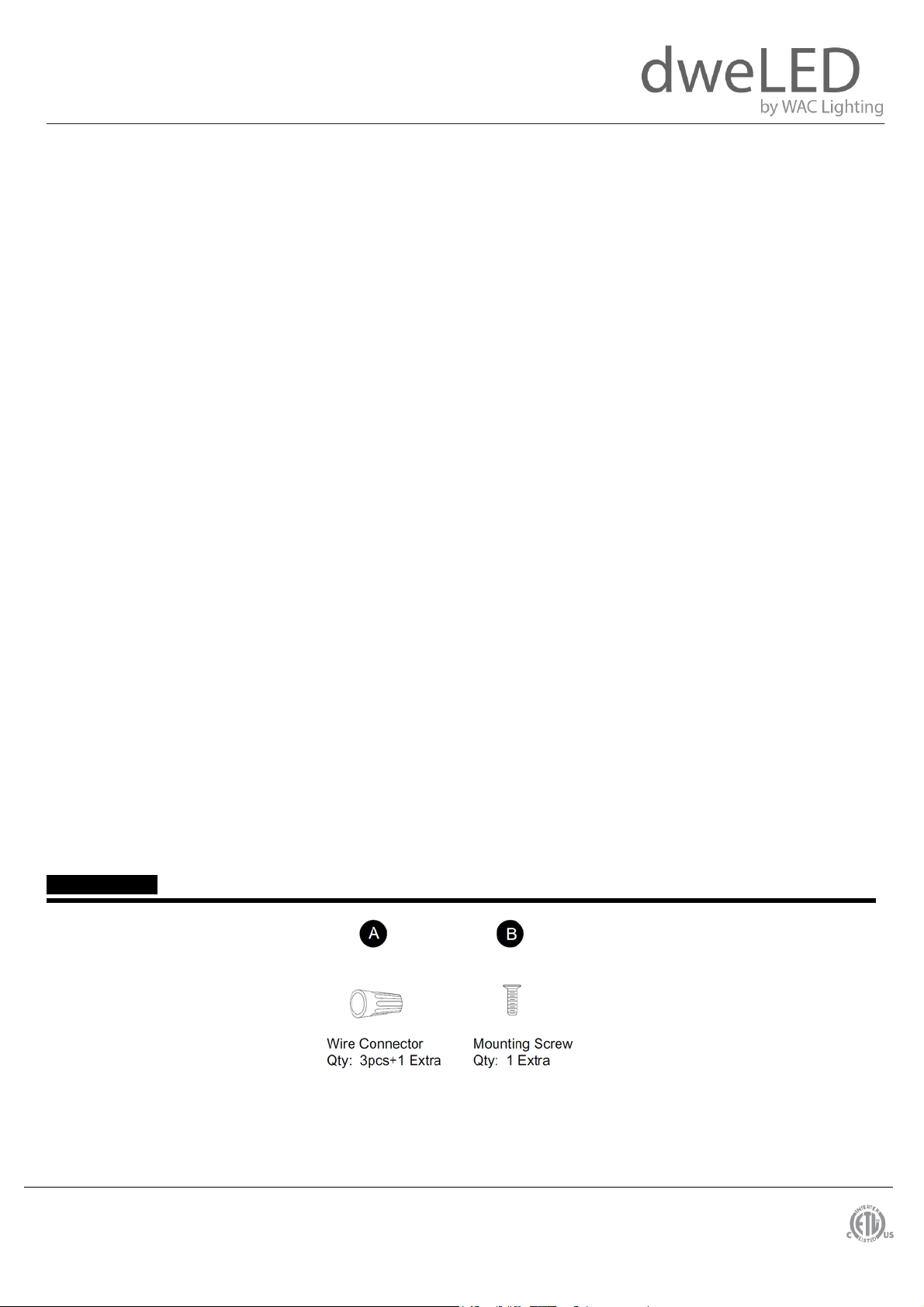

HARDWARE
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
dweLED retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Jan 2019 1
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
LithiaSprings,GA30122
Western Distribution Center
1750 Archibald Ave
Ontario, CA 91761
Page 2
INSTALLATION INSTRUCTIONS
549-LED Pendant
PD-54924/PD-54932/PD-54934

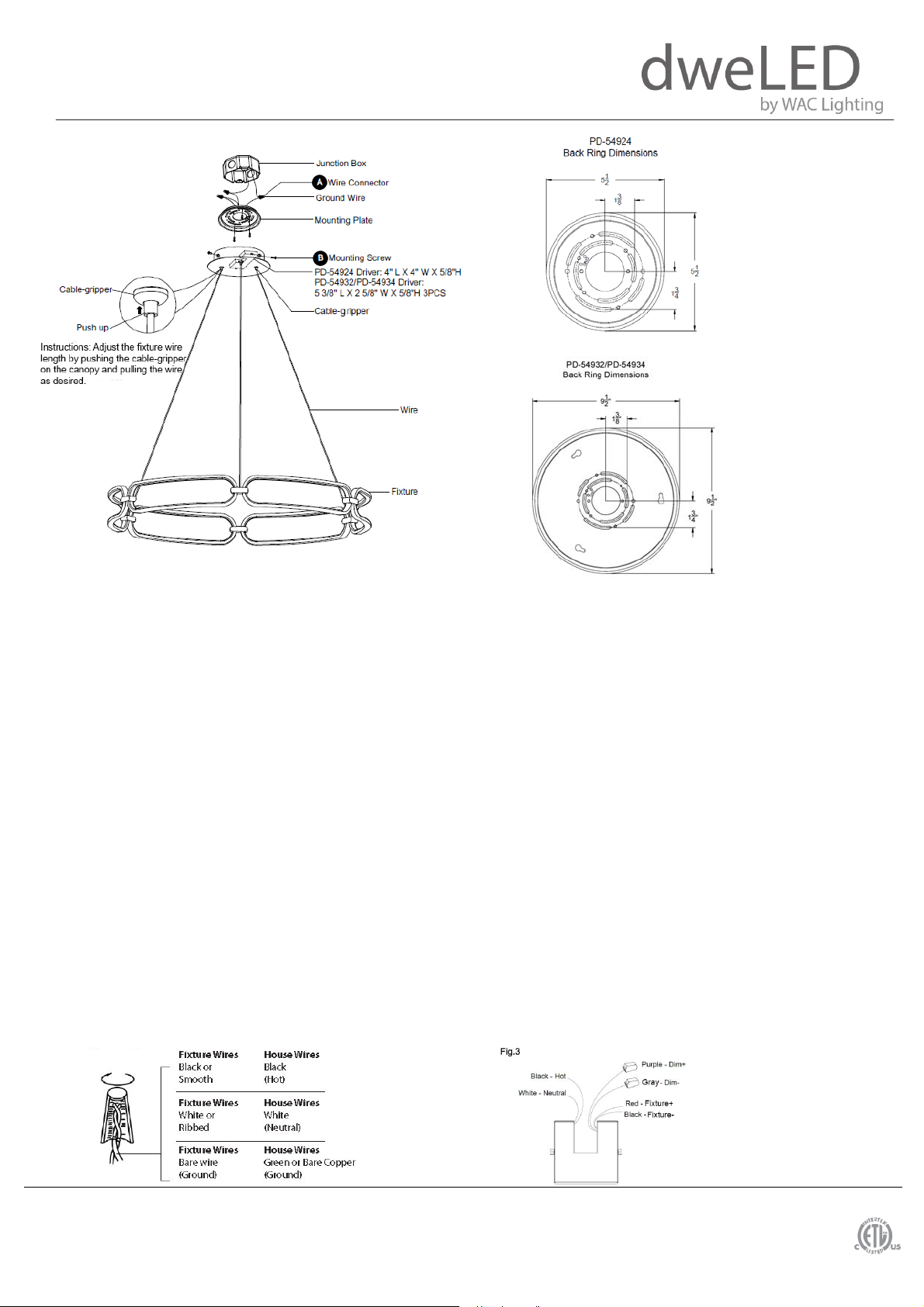

Fig.1
PREPARATION
1. Shut off the power at the circuit breaker and remove ex
2. Carefully
unpack your new
fixture and lay out all the parts on a c
isting fixture, including the crossbar.
lear area. Be careful not to lose any
small parts necessary
for installation.
OUNTING THE FIXTURE (Fig. 1 & Fig. 2)
M
3. Remove the mounting screw (B) and back plate from the fixture.
4. Adjust fixture wire length by pushing the cable-gripper on the canopy and pulling the wire as desired. Make sure the wires are all
the same length.
a. Retract the wires close to the desired length within the canopy before securing the fixture in place.
NOTE: Using the cable-gripper to adjust more than 18" of wire length is not recommended.
WARNING: Shortening the cables without professional help or electronic background is not advisable. Any modifications to
the fixture will result in voiding the warranty of the product.
5. Secure the mounting back plate to the junction box using the screws provided with the junction box.
NOTE: The side of the mounting plate marked “GND” must face out.
6. Secure the driver's input wires as shown (Fig.2). Make sure that all wire connectors (A) are secure. If your outlet box has a green
or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the
mounting plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
NOTE: This fixture features electronic low voltage (ELV or TRAIC) or 0-10V dimming capabilities. See notes below for specific
dimming wiring information.
7. Place the fixture over the mounting plate and secure it with mounting screws (B)
NOTE: DIMMING WIRING INSTRUCTIONS (Fig. 3)
8. To utilize ELV or TRAIC dimming: use black (hot), white (neutral) and bare copper ground wires (ground).
9. To utilize 0-10V dimming: use purple (dim+), gray (dim-), black (hot), white (neutral) and bare copper ground wires (ground).
NOTE: Make sure to connect 0-10V prior to powering up fixture in order to allow the 0-10V dimmer to function properly.
Fig.2
