INSTALLATION INSTRUCTIONS
689-LED Pendant
PD-68909
• Read all instructions before installing.
• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
•
• Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or acces-
sories designated for use by WAC Lighting/dweLED/Modern Forms. Substitution of parts or accessories not designated for use with this product
by WAC Lighting/dweLED/Modern Forms could result in personal injury or property damage, and will void the warranty. Contact an authorized
dealer or the manufacturer if any parts are damaged or missing.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
• Lisez toutes les instructions avant l’installation.
• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux règlements
locaux.
• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement
avec les pièces et/ou accessoires fournis pour être utilisés avec les produits WAC Lighting/dweLED/Modern Forms. Remplacer des pièces ou
accessoires non conçus pour ce produit WAC Lighting/dweLED/Modern Forms pourrait causer des dommages cor
également causer l’annulation de la garantie. Veuillez contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
porels ou matériels et pourrait

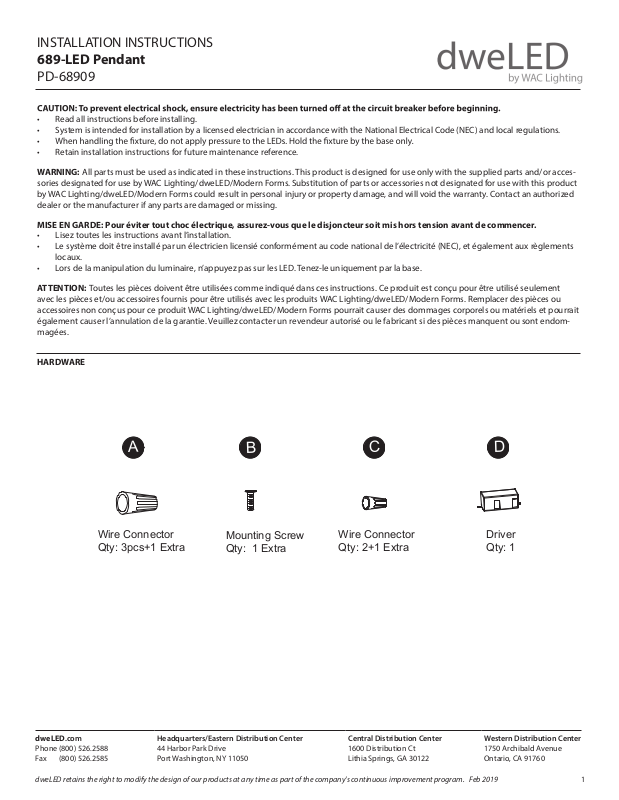

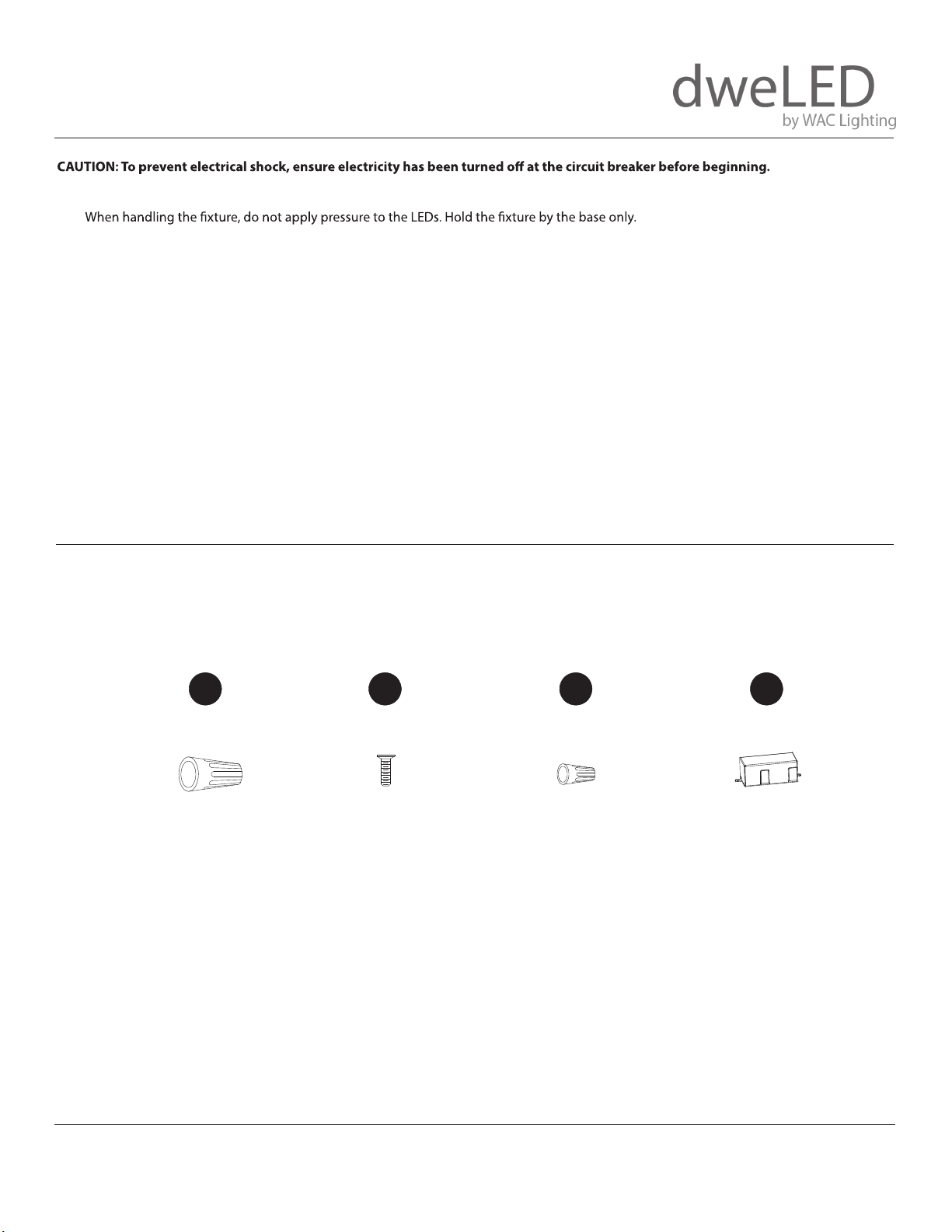

HARDWARE
A
Wire Connector
Qty: 3pcs+1 Extra
B
Mounting Screw
Qty: 1 Extra
C
Wire Connector
Qty: 2+1 Extra
D
Driver
Qty: 1
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
dweLED retains the right to modify the design of our products at any time as part of the company's continuous impro
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
vement program. Feb 2019 1
Page 2
INSTALLATION INSTRUCTIONS
689-LED Pendant
PD-68909
PREPARATION
1. Shut off the power at the circuit breaker and remove existing
fixture, including the crossbar.
2. Carefully unpack your new fixture and lay out all the parts on
a clear area. Be careful not to lose any small parts necessary
for installation.
MOUNTING THE FIXTURE (Fig.1)
3. Place the bottom glass into the lamp body, securing the glass
by clockwise rotation, and secure the stop screw on the lamp
body with a screwdriver.
4. Place the top glass into the lamp body, securing the glass by
counter-clockwise rotation.
CONNECTING THE WIRES (Fig.2、3)
5. Remove the mounting screw (B) from the fixture.
6. Adjust the fixture wire length by pushing the cable-gripper on
the canopy and pulling the wire as desired.
a. Retract the wires close to the desired length within the
canopy before securing the fixture in place.
CAUTION: Shortening the cables without professionalhelps or electronic
background is not advisable. Any modifications to the fixture may result
in voiding the warranty of the product.
NOTE
: Retracting or extending excessive cable length through the cable gripper
is not recommended.
7. Connect the driver (D) input/output wires with junction box wires as
shown
(Fig.2). Make sure that all wire connectors (A) (C) are secure. If
your outlet box has a green or bare copper ground wire, connect the
fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire
directly to the mounting plate using the green screw provided. After
wires are connected, tuck them carefully inside the junction box.
NOTE
:This fixture requires the driver to be recessed within the junction box.
the hole mounting extensions on the driver aretrimmable/foldable for
tighter junction box fitment

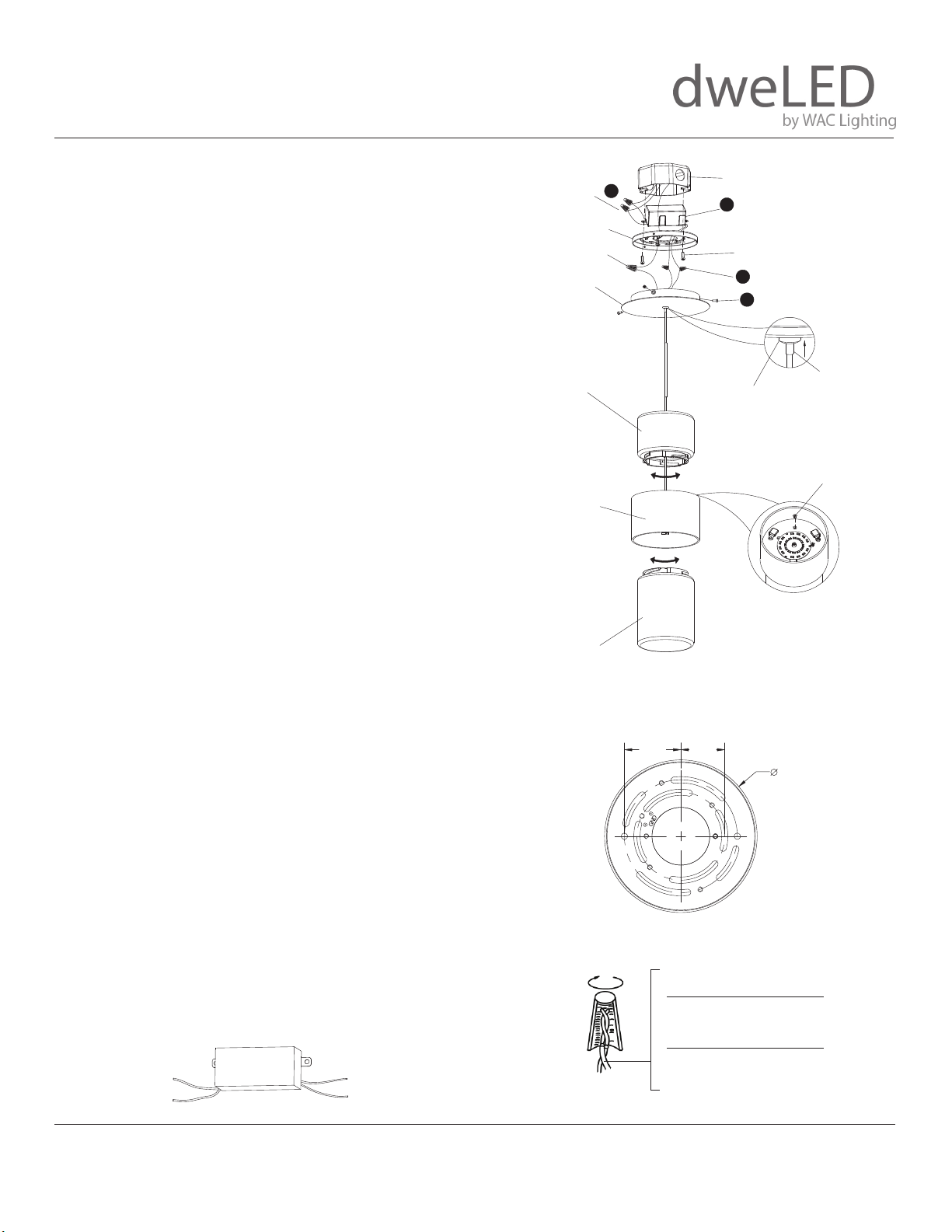

Fig. 1
Wire Connector
Mounting Plate
Ground Wire
C
anopy
Top Glass
(RPL-GLA-68909-TOP)
Lamp Body
Bottom Glass
(RPL-GLA-68909-BOT)
A
Lock
Unl
ock
Junction Box
Driver:
D
2 7/8" to 3 1/2"[L]x
1 3/8"[W]x1 1/8"[H]
Junction Box Screw
C
Wire Connector
B
Mounting Screw
Cable-gripper
Instruction: Adjust the fixture
wire length by pushing the
cable-gripper on the canopy
and pulling the
ock
Unl
L
ock
Fixed Bottom Glass Instruction:
Align the lamp body rotation of
the bottom glass,then lock the
stop
screws
Back Plate Dimensions
1 w "
1 a "
Push up
wire as desired.
S
top
4 w "
S
crew
COMPLETING THE INSTALLATION (Fig. 1)
8. Secure mounting plate to the junction box using the screws provided
with the junction box.
NOTE: The side of the mounting plate marked “GND” must face out.
9. Place the fixture over the mounting plate and secure with mounting
screws (B) .
10. Make final adjustment
Fig. 3
Black - Hot
White - Neutral
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
dweLED retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Feb 2019
s to the desired cable length.
Red - Fixture+
Black - Fixture-
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Fig. 2 Wiring
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
