INSTALLATION INSTRUCTIONS
829- Wall Sconce
WS-82919/WS-82925/WS-82937/WS-82950/WS-82962/WS-82974/WS-82998
CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER
BEFORE BEGINNING.
• Read all instructions before installing.
• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local
regulations.
• When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.
• Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/
or acces-sories designated for use by WAC Lighting/dweLED/Modern Forms. Substitution of parts or accessories not designated for
use with this product by
warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de
commencer.
• Lisez toutes les instructions avant l’installation.
• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé
seulement avec les pièces et/ou accessoires fournis pour être utilisés avec les produits WAC Lighting/dweLED/Modern Forms.
Remplacer des pièces ou accessoires non conçus pour ce produit WAC Lighting/dweLED/Modern Forms pourrait causer des
dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez contacter un revendeur autorisé ou
le fabricant si des pièces manquent ou sont endom-magées.
WAC Lighting/dweLED/Modern Forms could result in personal injury or property damage, and will void the

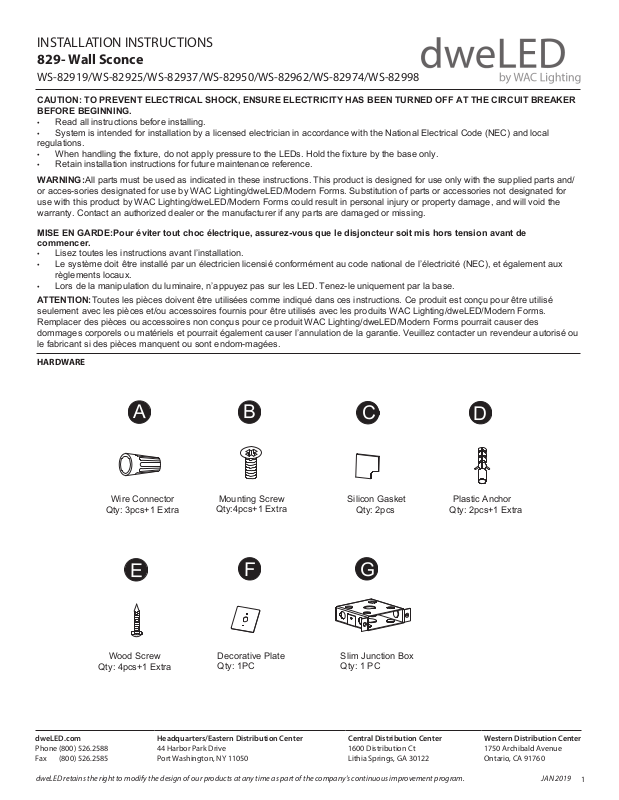

HARDWARE
A
Wire Connector
Qty: 3pcs+1 Extra
E
B
Mounting Screw
Qty:4pcs+1 Extra
F
C
Silicon Gasket
Qty: 2pcs
G
D
Plastic Anchor
Qty: 2pcs+1 Extra
Wood Screw
Qty: 4pcs+1 Extra
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
dweLED retains the right to modify the design of our products at any time as part of the company's continuous impro
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Decorative Plate
Qty: 1PC
Slim Junction Box
Qty: 1 PC
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
vement program.
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
JAN 2019
1
INSTALLATION INSTRUCTIONS
829- Wall Sconce
WS-82919/WS-82925/WS-82937/WS-82950/WS-82962/WS-82974/WS-82998
FIG.1
A
Wire Connector
D
Plastic Anchor
FIG.2
D
Plastic Anchor
E
Wood Screw
E
Wood Screw
A
Wire Connector
Acrylic Diffuser
3
"
3
4
Acrylic Diffuser
Ground Wire
1
"
3
2
Wood Screw
Ground Wire
PC
Wall Hole
PC
strip
1
"
1
8
G
strip
Mounting Screw
B
End Cap
Slim Junction Box
Mounting Screw
B
End Cap
~1/8"
~
FIG.3
Mounting Screw
A
Wire Connector
Decorative
Plate
Ground Wire
Acrylic Diffuser
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
PC
strip
Junction Box
End Cap
Silicon Gasket
C
Mounting Screw
B
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
Plastic Anchor
D
E
Wood Screw
F
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
dweLED retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2019
2
INSTALLATION INSTRUCTIONS
829- Wall Sconce
WS-82919/WS-82925/WS-82937/WS-82950/WS-82962/WS-82974/WS-82998
PREPARATION
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for
installation.
MOUNT WITHOUT A JUNCTION BOX (Fig. 1)
1. Drill a fixture mounting hole according to installation location (Fig. 5), insert plastic anchor (D).
2. Remove the mounting screw (B) and the end cap from the fixture.
3. Drill a small access hole in the wall behind the fixture and pull the house wires through the wall.
4. Connect the fixture’s wires to house wires as shown (Fig.4). Make sure that all wire connectors (A) are secure. If your outlet box has
a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, tuck the fixture’s ground wire directly to the
fixture. After wires are connected, tuck them carefully inside the wall hole.
5. Slide acrylic diffuser and PC strip slightly out of the way to review the plastic anchor location on the back, then fasten the fixture to
the wall using wood screw (E).
6. Secure the end cap to the fixture using mounting screw (B) to seal the acrylic diffuser.
MOUNT ON SLIM JUNCTION BOX (Fig. 2 )
1. Replace or install new slim junction box if needed. Use the two wood screws (E) provided to secure the slim junction box (G) to wall.
NOTE: The junction box must be recessed about 1/8" into the surface of the wall.
2. Follow steps 2-5 from "MOUNT WITHOUT A JUNCTION BOX" to complete installation.
NOTE: It is not necessary to drill access hole in the wall.
MOUNT ON JUNCTION BOX (Fig. 3 )
1. Secure the mounting screw and decorative plate (F) to the fixture, then replace the existing silicon gasket with the supplied silicon
gasket (C).
2. Drill fixture mounting hole according to installation locations (Fig. 5), insert plastic anchor (D).
3. Remove the mounting screw (B) and the end cap from the fixture.
4. Connect the fixture’s wires to house wires as shown in Fig.4, making sure that all wire connectors (A) are secure. If your outlet box
has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, tuck the fixture’s ground wire directly to
the fixture. After wires are connected, tuck them carefully inside the junction box.
5. Slide acrylic diffuser and PC strip slightly out of the way to review the plastic anchor location on the back, then fasten the fixture to
the wall using wood screw (E), make sure to align the decorative plate to adequately cover the junction box wall opening.
6. Secure the end cap to the fixture using mounting screw (B) to seal the acrylic diffuser.
FIG. 4 Wiring
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
Fig. 5
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Installation Location
WS-82919: 18 5/8"
WS-82925: 24 5/8"
WS-82937: 36 /8"
WS-829: /8"
WS-8296: 6
WS-8297: 7"
WS-8299: 9"
Junction Box / Wall Hole
"
