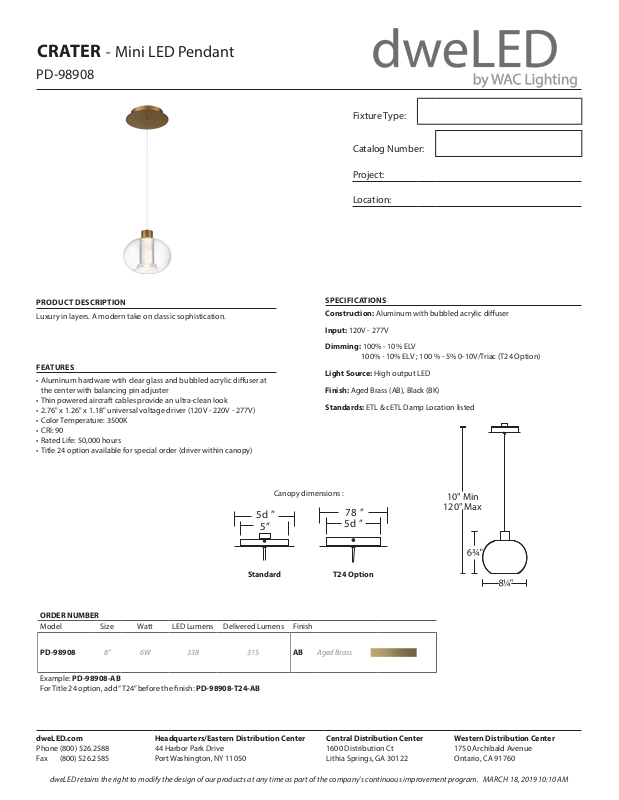

CRATER - Mini LED Pendant
PD-98908
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Luxury in layers. A modern take on classic sophistication.
FEATURES
• Aluminum hardware wtih clear glass and bubbled acrylic diuser at
the center with balancing pin adjuster
• Thin powered aircraft cables provide an ultra-clean look
• 2.76" x 1.26" x 1.18" universal voltage driver (120V - 220V - 277V)
• Color Temperature: 3500K
• CRI: 90
• Rated Life: 50,000 hours
• Title 24 option available for special order (driver within canopy)
5d ”
5”
Standard T24 Option
SPECIFICATIONS
Construction: Aluminum with bubbled acrylic diuser
Input: 120V - 277V
Dimming: 100% - 10% ELV
Light Source: High output LED
Finish: Aged Brass (AB), Black (BK)
Standards: ETL & cETL Damp Location listed
Canopy dimensions :
100% - 10% ELV ; 100 % - 5% 0-10V/Triac (T24 Option)
10" Min
78 ”
120" Max
5d ”
ORDER NUMBER
Model Size Watt LED Lumens Delivered Lumens Finish
PD-98908 8" 6W 338 315 AB
Example: PD-98908-AB
For Title 24 option, add “T24” before the nish: PD-98908-T24-AB
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
dweLED retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MARCH 18, 2019 10:10 AM
