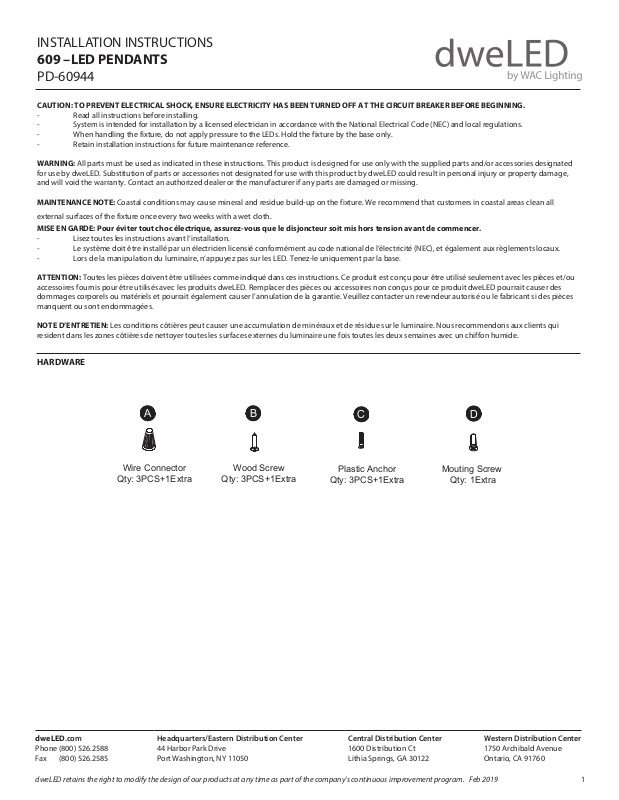

Page 1
INSTALLATION INSTRUCTIONS
609 –LED PENDANTS
PD-60944
CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER BEFORE BEGINNING.
Read all instructions before installing.
-
- System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
- When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.
- Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or accessories designated
for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result in personal injury or property damage,
and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in coastal areas clean all
external surfaces of the fixture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
- Lisez toutes les instructions avant l’installation.
- Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux règlements locaux.
- Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement avec les pièces et/ou
accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce produit dweLED pourrait causer des
dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez contacter un revendeur autorisé ou le fabricant si des pièces
manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons aux clients qui
resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un chiffon humide.

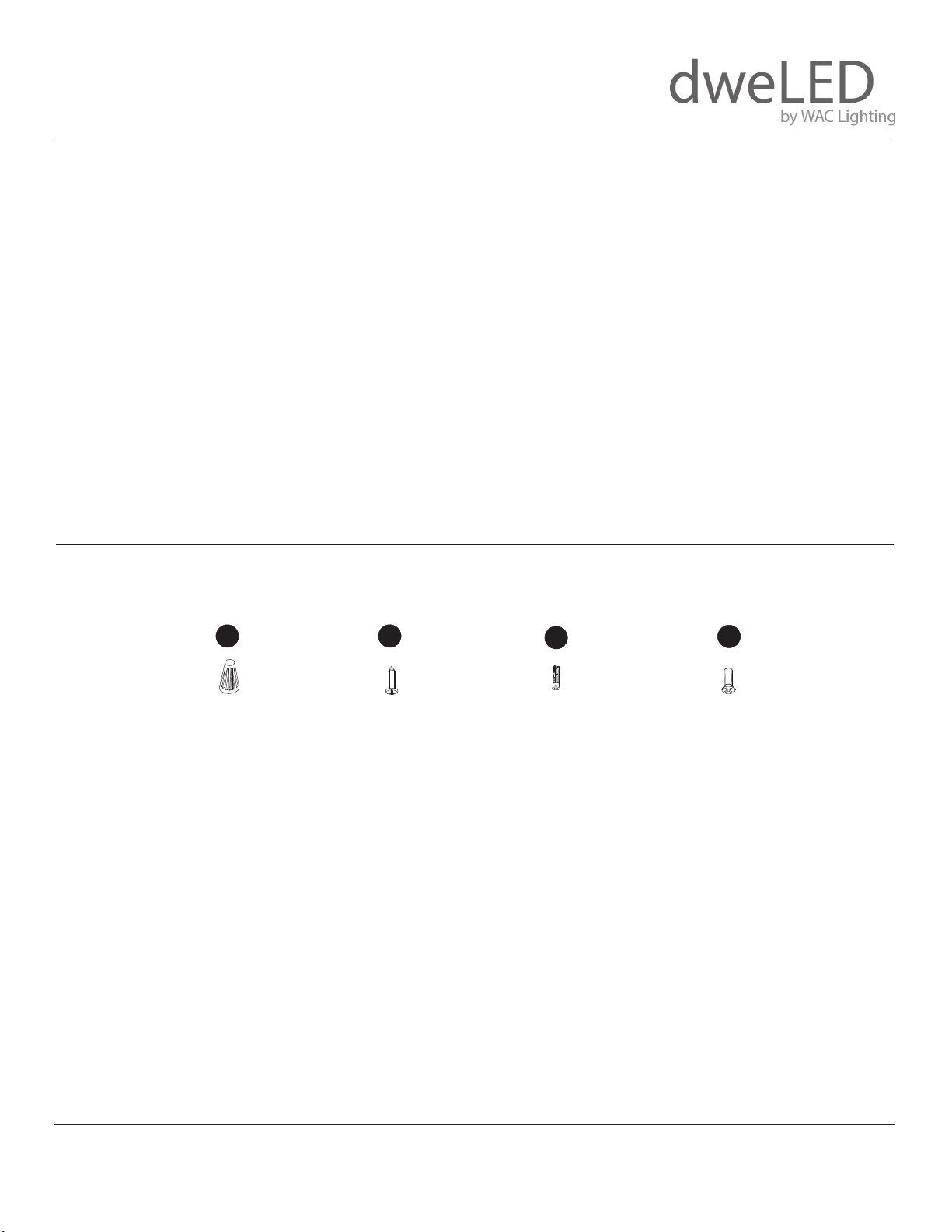

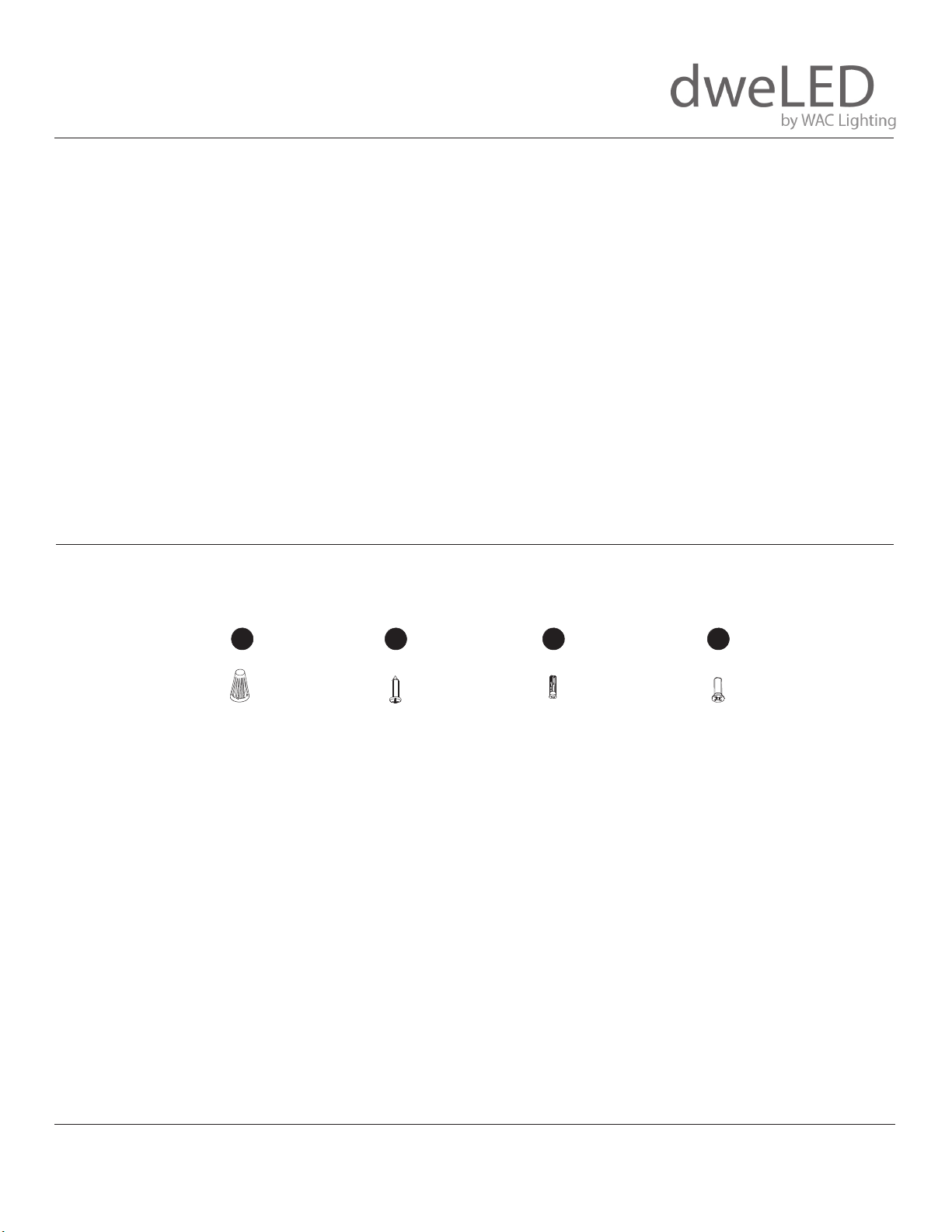

HARDWARE
A
Wire Connector
Qty: 3PCS+1Extra
B
Wood Screw
Qty: 3PCS+1Extra
C
Plastic Anchor
Qty: 3PCS+1Extra
D
Mouting Screw
Qty: 1Extra
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
dweLED retains the right to modify the design of our products at any time as part of the company's continuous impro
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
vement program. Feb 2019 1
Page 2
INSTALLATION INSTRUCTIONS
609 –LED PENDANTS
PD-60944

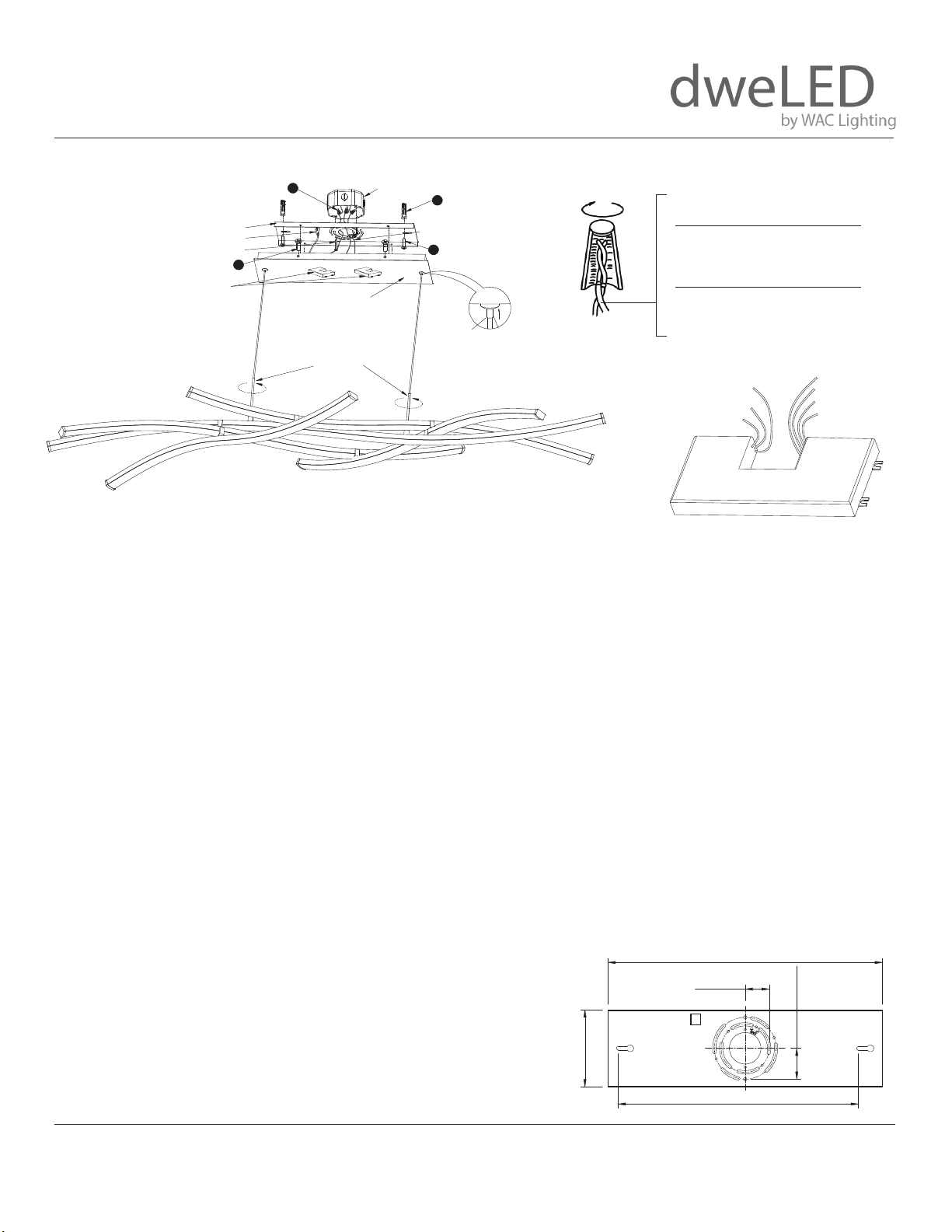

Wire Connector
Junction Box
Screw
Junction Box
A
C
Plastic Anchor
Safet
y Cord
FIG. 1 WiringFIG. 3
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Mounting Screw
D
Wood Screw
Ribbed
B
Fixture Wires
Driver
Cable-gripper
Adjust the fixture wire length by
pushing the cable-gripper on
the canopy and pulling the wire
as desired.
Push up
1 3/4″
Bare wire
(Ground)
Back Plate Dimensions
PREPARATION
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts
necessary for installation.
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
8″
/
3
8
Ø
Ø
6 7
/
8
″
1 3/8″
MOUNTING THE FIXTURE (Fig. 3)
3. Remove the mounting screw (D) from the fixture.
4. Drill holes in the wall aligned with the key holes located on the mounting plate. Insert the plastic anchor (C).
5. Secure the mounting mounting plate to the junction box using the screws provided with the junction box. Fasten the mounting plate to
the wall with the plastic anchors using the wood screws (B) provided.
NOTE: The side of the mounting plate marked “GND” must face out.
CAUTION: Hooking the safety cord to the mounting plate is recommended.
6. Adjust the fixture wire length by pushing the cable-gripper on the canopy and pulling the wire as desired.
a. Retract the wires close to the
desired length within the canopy before securing the fixture in place.
NOTE: Retracting or extending excessive cable length through the cable-gripper is not recommended.
WARNING: Shortening the cables without professional helps or electronic background is not advisable. Any modifications to the fixture
s
may result in voiding the warranty of the product.
CONNECTING THE WIRES (Fig. 1)
7. Connect the driver’s input wires to junction box wires as shown (Fig. 1). Make sure that all wire connectors (A) are secure. If your outlet box
has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the
mounting plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
NOTE: This fixture features electronic low voltage (ELV or TRAIC) dimming capabilities. See notes below for specific dimming wiring
information.
COMPLETING THE INSTALLATION
9. Secure the fixture to the mounting plate using the mounting screw (B).
NOTE: DIMMING WIRING INSTRUCTIONS (Fig. 2)
To utilize ELV or TRAIC dimming: use black (hot), white (neutral)
10.
and bare copper ground wires
(ground)
FIG. 2
Red +
Black
-
White - Neutral
Black - Hot
Blue - Ground
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
dweLED retains the right to modify the design of our products at any time as part of the company's continuous impro
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
vement program. Feb 2019 2
Page 3
INSTALLATION INSTRUCTIONS
609 –LED PENDANTS
PD-60964
CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER BEFORE BEGINNING.
- Read all instructions before installing.
- System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
- When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.
- Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or accessories designated
for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result in personal injury or property damage,
and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in coastal areas clean all
external surfaces of the fixture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
- Lisez toutes les instructions avant l’installation.
- Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux règlements locaux.
- Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement avec les pièces et/ou
accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce produit dweLED pourrait causer des
dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez contacter un revendeur autorisé ou le fabricant si des pièces
manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons aux clients qui
resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un chiffon humide.
HARDWARE
A
Wire Connector
Qty: 3PCS+1Extra
B
Wood Screw
Qty: 2PCS+1Extra
C
Plastic Anchor
Qty: 2PCS+1Extra
D
Mouting Screw
Qty: 1Extra
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
dweLED retains the right to modify the design of our products at any time as part of the company's continuous impro
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
vement program. Feb 2019 1
Page 4
INSTALLATION INSTRUCTIONS
609 –LED PENDANTS
PD-60964

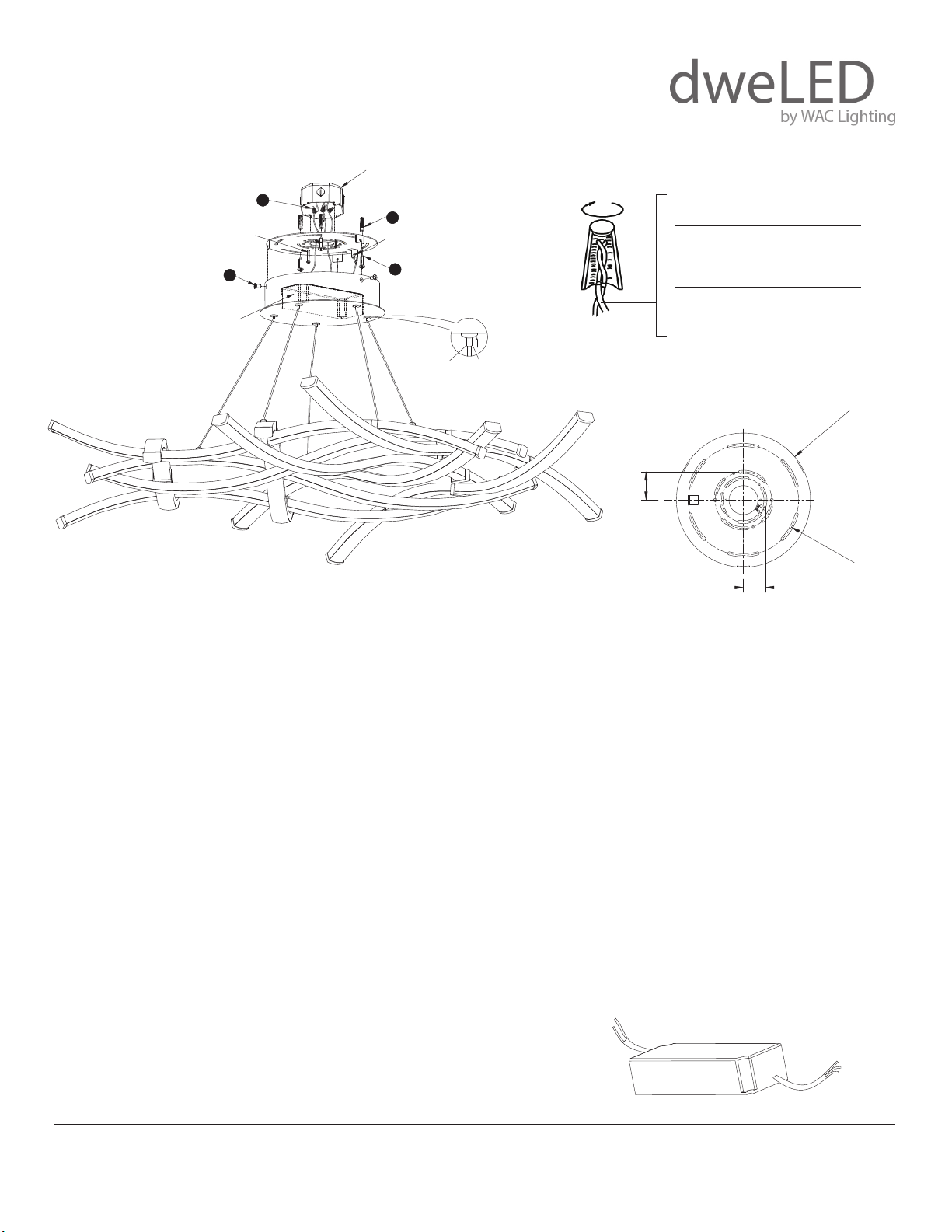

Wire Connector
Mounting Plate
Safety Cord
Junction Box Screw
Mounting Screw
Driver
A
D
Fixture
Junction Box
C
Plastic Anchor
Ground Wire
B
Wood Screw
FIG. 1 WiringFIG. 3
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
M
etal Sleeve
Cable-gripper
Adjust the fixture wire le ngth by
pushing the cable gripper on
the canopy and p ulling the wire
as desired.
Push up
(Ground)
FIG. 2
Blue - Ground
Black - Hot
White - Neutral
PREPARATION
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts
necessary for installation.
MOUNTING THE FIXTURE (Fig. 3)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Purple - Dim+
Gray - Dim-
+
Red
Black-
3. Remove the mounting screw (D) from the fixture.
4. Drill holes in the wall aligned with the key holes located on the mounting plate. Insert the plastic anchor (C).
5. Secure the mounting plate to the junction box using the screws provided with the junction box. Fasten the mounting plate to the wall with
the plastic anchors using the wood screws (B) provided.
NOTE: The side of the mounting plate marked “GND” must face out. Properly secure the safety cord to the bracket on mounting back plate
to temporary hang the fixture in place
6. Adjust the fixture wire length by pushing the cable-gripper on the canopy and pulling the wire as desired.
a. Retract the wires close to the desired length within the canopy before securing the fixture in place.
NOTE: Retracting or extending excessive cable length through the cable-
WARNING: Shortening the cables without professional helps or electronic background is not advisable. Any modifications to the fixture
s
gripper is not recommended.
may result in voiding the warranty of the product.
CONNECTING THE WIRES (Fig. 1)
8. Connect the driver’s input wires to junction box wires as shown (Fig.1). Make sure that all wire connectors (A) are secure. If your outlet box
has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the
mounting plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
This fixture features electronic low voltage (ELV or TRAIC) or 0-10V dimming capabilities. See notes below for specific dimming
NOTE:
wiring information.
PD-60964 Mounting Plate
COMPLETING THE INSTALLATION
10. Thread the metal sleeve into the fixture.
11. Secure the fixture to the mounting plate using the mounting screw (B).
15 3/4″
1 3/8″
1 3/4″
NOTE: DIMMING WIRING INSTRUCTIONS (Fig. 2)
12. To utilize ELV or TRAIC dimming: use black (hot), white (neutral) and
bare copper ground wires
(ground).
13. To utilize 0-10V dimming: use purple (dim+), gray (dim-), black (hot),
white (neutral) and bare copper ground wires (ground)
4 3/8″
13 3/4″
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
dweLED retains the right to modify the design of our products at any time as part of the company's continuous impro
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
vement program. Feb 2019 2
