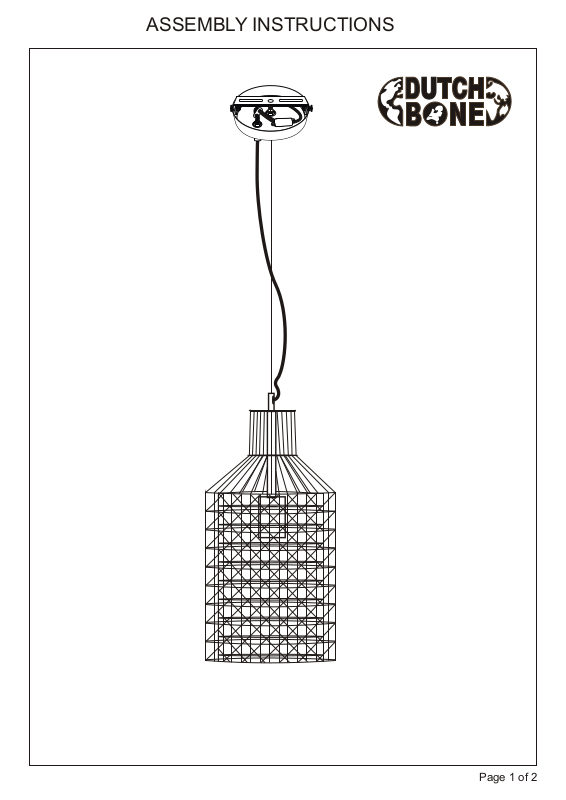

ASSEMBLY INSTRUCTIONS
NNNNNNNNNNNN
EEEEEEEEEEEE
LLLLLLLLLLLL
Page 1 of 2
Page 2

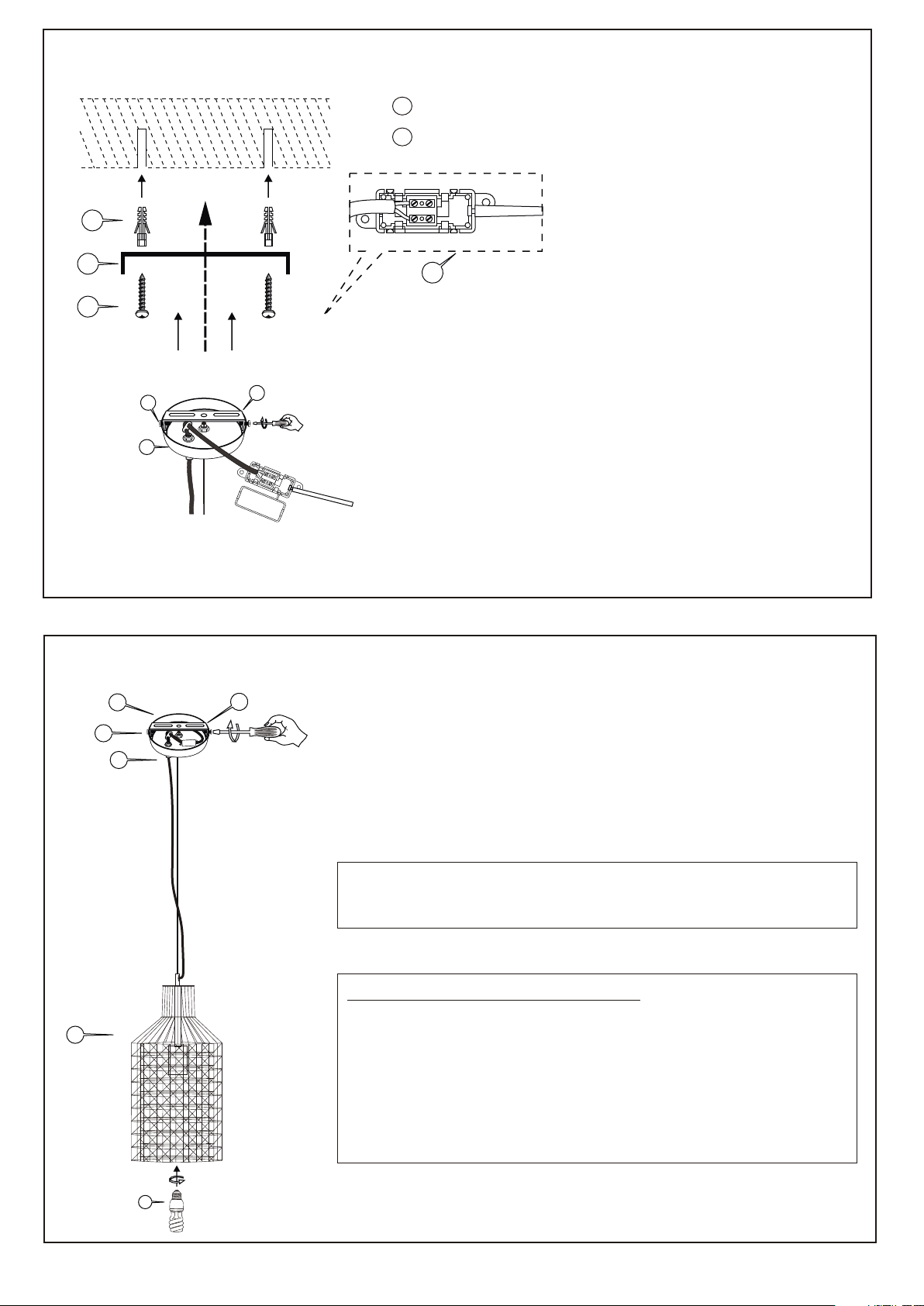

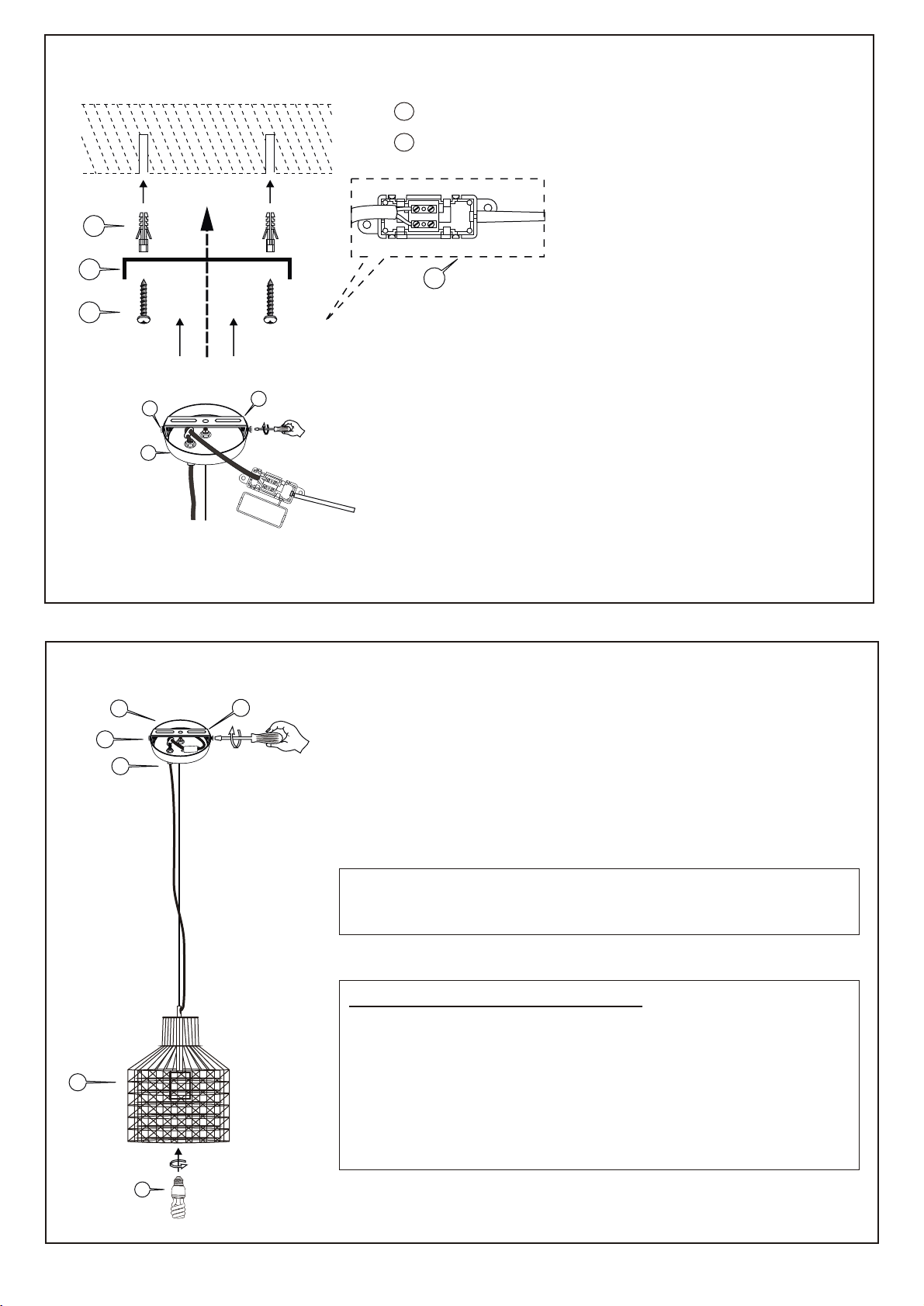

STEP 1STEP 1
BB
L
Live (Brown)
Neutral (Blue)
N
LLL NNN
CC
DD
STEP 2
E
F
G
A
F
E
C
LLLLL
NNNNN
Secure the mounting plate (C) with screw (D) in the
Plastic Ceiling Mounts (B).
After secure the mounting plate, Connect the two
power wires coming out from the ceiling to the
White Plastic Connector (A).
C
NNNNNNNNNNNNNNNNNNN
EEEEEEEEEEEE
LLLLLLLLLLLL
Tighten the canopy (E) with side Screw (F) to the mounting
plate (C) and tighten the screw on plastic cord grip (G)
Secure the Light Bulb (H) / E27 into the Plastic Lamp Holder (I)
To prevent the risk of fire, do not use bulb with wattage
greater than 23W CFL, 25W LED & 40W Regular Bulb.
MOUNTING INSTRUCTIONS:
I
H
* THIS LUMINAIRE SHOULD BE ASSEMBLED AND MOUNTED BY A
QUALIFIED ELECTRICIAN ONLY
* IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS
LUMINAIRE NEEDS TO BE CHANGED IT SHOULD BE REPLACED
BY A QUALIFIED ELECTRICIAN.
Page 2 of 2
Page 3
ASSEMBLY INSTRUCTIONS
NNNNNNNNNNNN
EEEEEEEEEEEE
LLLLLLLLLLLL
Page 1 of 2
Page 4
STEP 1STEP 1
BB
L
Live (Brown)
Neutral (Blue)
N
LLL NNN
CC
DD
STEP 2
E
F
G
A
F
E
C
Secure the mounting plate (C) with screw (D) in the
LL
NN
Plastic Ceiling Mounts (B).
After secure the mounting plate, Connect the two
power wires coming out from the ceiling to the
White Plastic Connector (A).
C
NNNNNNNNNNNNNNNNNNN
EEEEEEEEEEEE
LLLLLLLLLLLL
Tighten the canopy (E) with side Screw (F) to the mounting
plate (C) and tighten the screw on plastic cord grip (G)
Secure the Light Bulb (H) / E27 into the Plastic Lamp Holder (I)
To prevent the risk of fire, do not use bulb with wattage
greater than 23W CFL, 25W LED & 40W Regular Bulb.
MOUNTING INSTRUCTIONS:
* THIS LUMINAIRE SHOULD BE ASSEMBLED AND MOUNTED BY A
QUALIFIED ELECTRICIAN ONLY
I
* IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS
LUMINAIRE NEEDS TO BE CHANGED IT SHOULD BE REPLACED
BY A QUALIFIED ELECTRICIAN.
H
Page 2 of 2
