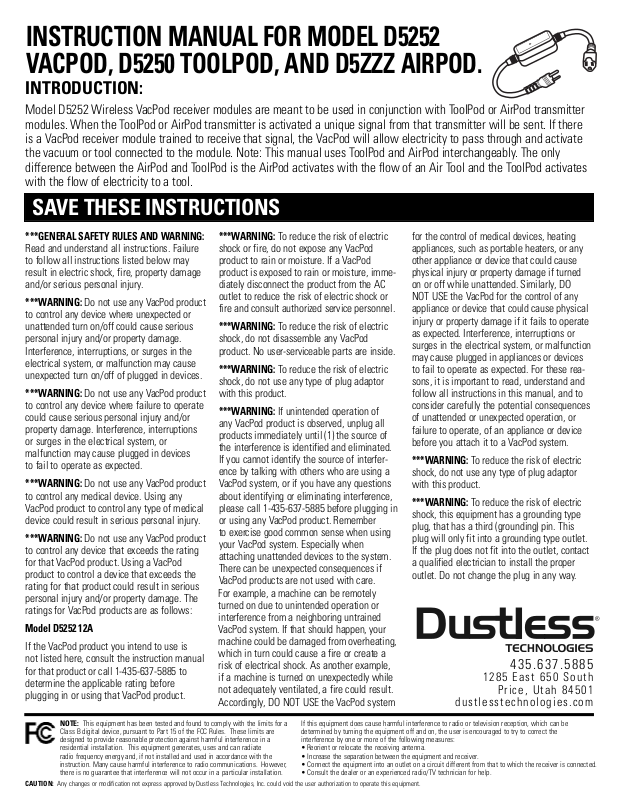

INSTRUCTION MANUAL FOR MODEL D5252
VACPOD, D5250 TOOLPOD, AND D5ZZZ AIRPOD.
INTRODUCTION:
Model D5252 Wireless VacPod receiver modules are meant to be used in conjunction with ToolPod or AirPod transmitter
modules. When the ToolPod or AirPod transmitter is activated a unique signal from that transmitter will be sent. If there
is a VacPod receiver module trained to receive that signal, the VacPod will allow electricity to pass through and activate
the vacuum or tool connected to the module. Note: This manual uses ToolPod and AirPod interchangeably. The only
difference between the AirPod and ToolPod is the AirPod activates with the flow of an Air Tool and the ToolPod activates
with the flow of electricity to a tool.
SAVE THESE INSTRUCTIONS
***GENERAL SAFETY RULES AND WARNING:
Read and understand all instructions. Failure
to follow all instructions listed below may
result in electric shock, fire, property damage
and/or serious personal injury.
***WARNING:
to control any device where unexpected or
unattended turn on/off could cause serious
personal injury and/or property damage.
Interference, interruptions, or surges in the
electrical system, or malfunction may cause
unexpected turn on/off of plugged in devices.
***WARNING:
to control any device where failure to operate
could cause serious personal injury and/or
property damage. Interference, interruptions
or surges in the electrical system, or
malfunction may cause plugged in devices
to fail to operate as expected.
***WARNING:
to control any medical device. Using any
VacPod product to control any type of medical
device could result in serious personal injury.
***WARNING:
to control any device that exceeds the rating
for that VacPod product. Using a VacPod
product to control a device that exceeds the
rating for that product could result in serious
personal injury and/or property damage. The
ratings for VacPod products are as follows:
Model D5252 12A
If the VacPod product you intend to use is
not listed here, consult the instruction manual
for that product or call 1-435-637-5885 to
determine the applicable rating before
plugging in or using that VacPod product.
Do not use any VacPod product
Do not use any VacPod product
Do not use any VacPod product
Do not use any VacPod product
***WARNING:
shock or fire, do not expose any VacPod
product to rain or moisture. If a VacPod
product is exposed to rain or moisture, immediately disconnect the product from the AC
outlet to reduce the risk of electric shock or
fire and consult authorized service personnel.
***WARNING:
shock, do not disassemble any VacPod
product. No user-serviceable parts are inside.
***WARNING:
shock, do not use any type of plug adaptor
with this product.
***WARNING:
any VacPod product is observed, unplug all
products immediately until (1) the source of
the interference is identified and eliminated.
If you cannot identify the source of interference by talking with others who are using a
VacPod system, or if you have any questions
about identifying or eliminating interference,
please call 1-435-637-5885 before plugging in
or using any VacPod product. Remember
to exercise good common sense when using
your VacPod system. Especially when
attaching unattended devices to the system.
There can be unexpected consequences if
VacPod products are not used with care.
For example, a machine can be remotely
turned on due to unintended operation or
interference from a neighboring untrained
VacPod system. If that should happen, your
machine could be damaged from overheating,
which in turn could cause a fire or create a
risk of electrical shock. As another example,
if a machine is turned on unexpectedly while
not adequately ventilated, a fire could result.
Accordingly, DO NOT USE the VacPod system
To reduce the risk of electric
To reduce the risk of electric
To reduce the risk of electric
If unintended operation of
for the control of medical devices, heating
appliances, such as portable heaters, or any
other appliance or device that could cause
physical injury or property damage if turned
on or off while unattended. Similarly, DO
NOT USE the VacPod for the control of any
appliance or device that could cause physical
injury or property damage if it fails to operate
as expected. Interference, interruptions or
surges in the electrical system, or malfunction
may cause plugged in appliances or devices
to fail to operate as expected. For these reasons, it is important to read, understand and
follow all instructions in this manual, and to
consider carefully the potential consequences
of unattended or unexpected operation, or
failure to operate, of an appliance or device
before you attach it to a VacPod system.
***WARNING:
shock, do not use any type of plug adaptor
with this product.
***WARNING:
shock, this equipment has a grounding type
plug, that has a third (grounding) pin. This
plug will only fit into a grounding type outlet.
If the plug does not fit into the outlet, contact
a qualified electrician to install the proper
outlet. Do not change the plug in any way.
To reduce the risk of electric
To reduce the risk of electric
435.637.5885
1285 E a st 650 So u th
Price , Utah 845 0 1
dustl e sstech n ologie s .com
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction. Many cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
CAUTION: Any changes or modification not express approved by Dustless Technologies, Inc. could void the user authorization to operate this equipment.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Plug the VacPod module into a wall outlet with the
V
ACPOD
TOO
LPO
D
Recognized Devices:
1. ToolPod A
2. ToolPod B
TOOLPOD A
TOOLPOD B
VACPOD
TOOLPOD
VACPOD VACPOD
Recognized Devices:
1. ToolPod A
2. ToolPod B
3. ToolPod D
T
OOLPOD A
T
OOLPOD B
VACPOD
Recognized Devices:
1. ToolPod D
TOOLPOD C
TOOLPOD D
VACPOD
Recognized Devices:
1. ToolPod B
2. ToolPod C
3. ToolPod D
VACPOD
proper rating. Plug the vacuum you would like to
ctivate into the VacPod outlet.
a
Plug the ToolPod module into a different wall
utlet than the one with the VacPod to avoid too
o
much current being drawn on one circuit. Plug the
tool that will wirelessly activate the VacPod into
the ToolPod outlet. When current flow is sensed
through the ToolPod, a signal will be sent to the
VacPod to power the attached vacuum. Make sure
the plug has the proper rating for the tool used.
If you would like
more than one
ToolPod to
activate a single
VacPod, see the
training instructions below. One
ToolPod can also
activate multiple
VacPods.
Multiple ToolPod (or AirPod) modules
controlling one VacPod:
After the VacPod has been reset, the first time it
receives a wireless signal from a ToolPod, it will
automatically recognize that and only that ToolPod
that sent the signal. Each VacPod has the ability to
learn to operate with a specific set of wireless
ToolPod transmitters (up to 16).
For a VacPod to recognize multiple wireless
ToolPod transmitters, the following training
procedure must be followed. The training/reset
button is found on the face of the VacPod module
and must be depressed as instructed below.
Wireless training procedure:
1. Plug the VacPod module into the wall.
2. Press the training/reset button until a small
detent is felt. Hold the switch in the depressed
position for the next step.
INSTRUCTIONS:
3. Send a wireless signal to the unit from a
remote ToolPod transmitter by activating an
ttached tool.
a
4. Once the VacPod is activated by allowing
lectricity to pass, it is permanently trained to
e
that transmitting ToolPod. Note: A small click
should be heard when the VacPod activates.
5. As long as the button on the VacPod is
pressed, up to 16 transmitting ToolPods can be
associated with the VacPod. Release the training/reset button when training is completed.
Resetting VacPod:
The VacPod can be reset back to factory defaults
by executing the following reset procedure. In
factory default mode, the VacPod does not
recognize any wireless start modules. The first
time the VacPod receives a wireless signal, it
will automatically recognize that and only that
transmitting ToolPod.
Wireless reset procedure:
1. Without plugging the VacPod in, press in
the reset/training button until a small detent
is felt.
2. While still pressing in on the reset button,
plug the VacPod into the wall outlet.
3. The VacPod will now be in the factory shipped
state with no training, all previously recognized
devices will need to be retrained according to
the above training procedure.
One Wireless transmitter (ToolPod or AirPod)
controlling multiple VacPod modules:
It is possible for one ToolPod to control multiple
VacPods. To do this, reset all VacPods then
activate the ToolPod so it starts transmitting.
When the VacPods are plugged in, they will both
be trained to the first wireless signal received. In
this case, all VacPods will be trained to the single
oolPod. If this condition is not desired, reset all
T
VacPods and train them to individual ToolPods.
ultiple transmitters (ToolPods and AirPods)
M
and Multiple VacPods:
It is possible for each VacPod to recognize 16
unique Transmitters (ToolPods and AirPods). This
can be achieved by systematically training one
VacPod with associated ToolPods, then moving on
to the next VacPod. Care must be taken while
training multiple VacPods to ensure that only one
module is being trained at a time along with only
one wireless transmitting module (ToolPod or
AirPod) being activated at a time.
Special instruction for an AirPod:
Installation:
Attach air hoses such that
air will flow from the in to
the out port as labeled.
Battery replacement:
The AirPod has 2 AAA
batteries installed. These batteries will need to be
replaced occasionally. The time between battery
changes will depend on actual use but normally
they should last at least 6 months to a year. When
air flows through the AirPod, the transmit light on
the face of the box will light up. This shows that
the device is transmitting. When this light stops
blinking when air is flowing, remove the 4 screws
on the face of the box and carefully replace the
batteries. Take care to not pull too hard on the
wires connected to the controller board.
TOOLSYNCTMTROUBLE SHOOTING GUIDE
Problem Possible Cause Possible Solution
Machine connected to VacPod will not start
when the wireless tool module starts
ToolPod module will not activate
VacPod Receiver
ToolPod lights are not blinking when
tool activates
2
Tool draws too little current
Wireless ToolPod module has not been trained
for this VacPod.
Tool drawing too little current.
Drawing plenty of current but still
not transmitting
Make contract with work surface to draw more
current to get remote start module to transmit.
Go through training procedure.
Make contract with work surface to draw
more current.
Try another tool, if unsuccessful contact
customer support
Manual060210
Loading...
