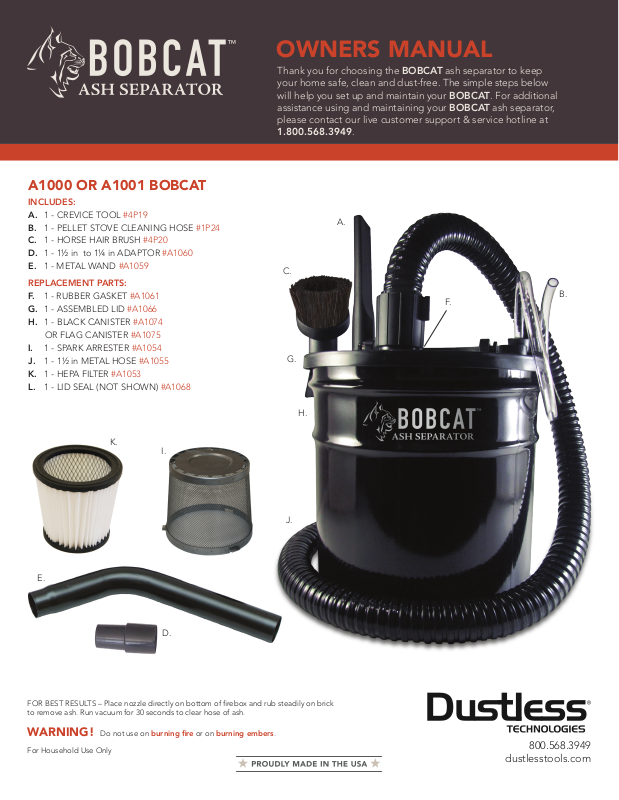

Page 1
A1000 OR A1001 BOBCAT
INCLUDES:
A. 1 - CREVICE TOOL #4P19
B. 1 - PELLET STOVE CLEANING HOSE #1P24
C. 1 - HORSE HAIR BRUSH #4P20
D. 1 - 1½ in to 1¼ in ADAPTOR #A1060
E. 1 - METAL WAND #A1059
REPLACEMENT PARTS:
F. 1 - RUBBER GASKET #A1061
G. 1 - ASSEMBLED LID #A1066
H. 1 - BLACK CANISTER #A1074
OR FLAG CANISTER #A1075
I. 1 - SPARK ARRESTER #A1054
J. 1 - 1½ in METAL HOSE #A1055
K. 1 - HEPA FILTER #A1053
L. 1 - LID SEAL (NOT SHOWN) #A1068
OWNERS MANUAL
Thank you for choosing the BOBCAT ash separator to keep
your home safe, clean and dust-free. The simple steps below
will help you set up and maintain your BOBCAT. For additional
assistance using and maintaining your BOBCAT ash separator,
please contact our live customer support & service hotline at
1.800.568.3949.
A.
C.
F.
G.
B.
H.
K.
E.
FOR BEST RESULTS – Place nozzle directly on bottom of rebox and rub steadily on brick
to remove ash. Run vacuum for 30 seconds to clear hose of ash.
I.
J.
D.
WARNING! Do not use on burning re or on burning embers.
For Household Use Only
800.568.3949
dustlesstools.com
Page 2
SETUP STEPS
Insert HEPA lter into spark
1.
arrester.
Push home vacuum hose into
5.
opening in middle of lid until
secure.
Install HEPA lter and spark
2.
arrester to underside of lid.
Twist clock-wise ensuring all 3
latches “lock” into place.
Insert brush and crevice tool into storage
6.
holes on either side at back of lid. Press
pellet stove cleaning hose to hose tting
on front left side. Slide adaptor on
storage hole on front right of lid.
FILTER CLEANING STEPS
Use both hands and press
3.
rmly to attach lid to
canister.
Fit metal wand
7.
securely into metal
hose.
Push BOBCAT metal
4.
hose into opening
on outter-edge of lid
until secure.
To use accessories,
8.
press the adaptor
on the metal hose or
metal wand.
Keep BOBCAT lid on canis-
1.
ter while cleaning lter. Lift
and release the instant lter
cleaning handle 5 times.
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER
HOW DO I AVOID CLOGGING THE
NOZZLE?
WHY IS THERE POOR SUCTION?
WHY IS THE HOSE HOT?
DUST ESCAPING
0M055_0613
Place nozzle directly on rebrick and rub to move the large particles out of the way, maintain air
ow and to crush larger particles.
Be sure the nozzle is not in backwards. Put the large end in the hose and the crimped end out.
Filter may be coated. Clean lter. See instructions on Filter Cleaning above.
Check vacuum source lter (house vacuum).
Clogged nozzle/hose. See clogged nozzle above.
Cleaning TOO WARM of ash. Let ash cool down. NEVER use gloves to compensate for a HOT
hose.
Do not use gloves when vacuuming ash.
Check lter for holes, and if necessary replace. (#A1053).
Check all 3 latches on the spark arrester are locked in place.
Check that hoses are secure. Re-secure hose in lid.
To empty canister, remove
2.
BOBCAT lid by pulling the
tabs away from canister
and lift.
