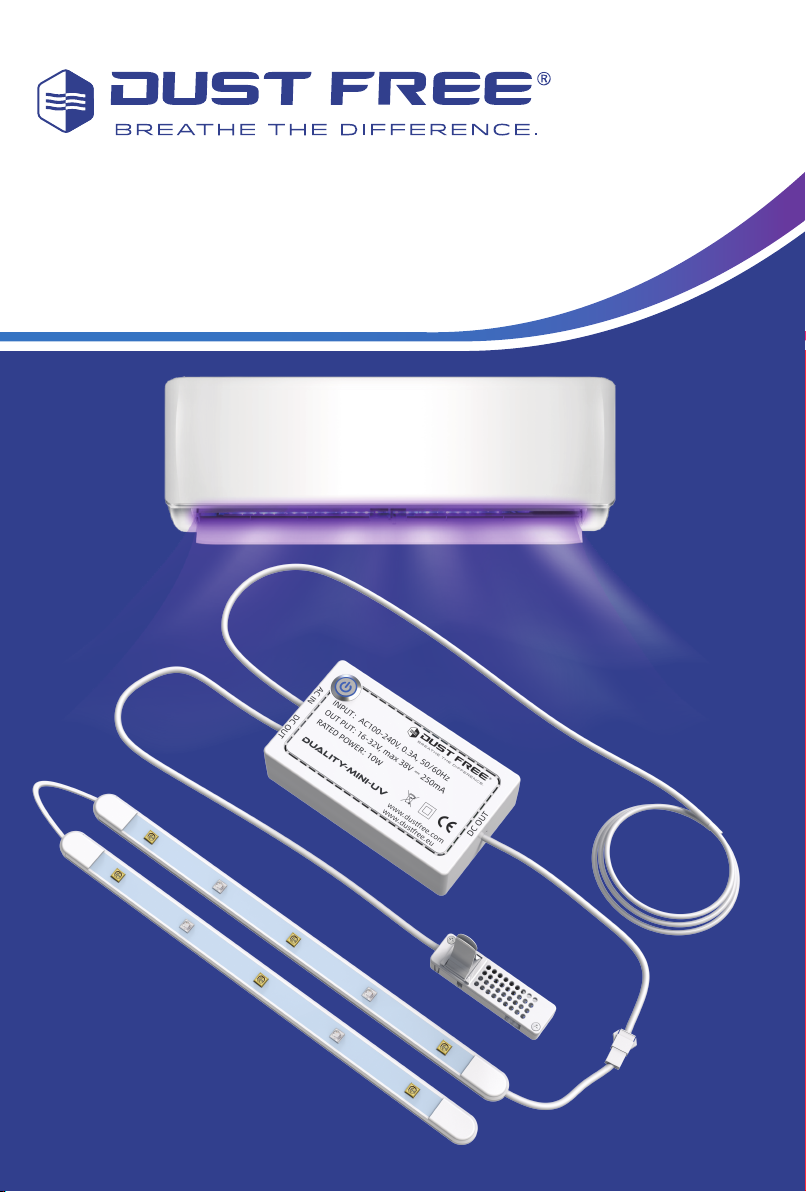

Page 1
Duality-Mini-UV
Installation & Operation Manual
DF Duality – Mini UV - #19200
Page 2
GENERAL
Duality - Mini UV is designed to fit and function in compact areas of
HVAC components. Germicidal ultraviolet (UVGI) helps inactivate
viruses and bacteria* on damp surfaces ensuring the optimal efficiency of your system.
Based on results from the testing of SARS CoV-2, MS2, Bacillus Thuringiensis,
*
Staphylococcus Epidermis, Aspergillus Niger, and Serratia Marcescens. See more
at dustfree.com/support/testing.
BEFORE INSTALLING
Read all instructions carefully. Failure to do so could damage the
equipment or cause harm to yourself or others.
• Acknowledge all warnings.
• Only qualified technicians should perform the installation.
INCLUDED INSIDE BOX
• 90-240V LED driver with airflow sensor
• UV LED strips (2)
• VOC filters (2)
• Vent clip for airflow sensor
• Nylon cable tie (8)
• 3M tape (8)
• Filter clips (10)
• Installation & operation manual
• UV warning label
Page 3
SAFETY INFORMATION
UV WARNING
High intensity ultraviolet light.
Exposure to direct LED UV light may be harmful.
Always protect eyes and skin from UV LEDs.
Never look directly into UV LEDs during operation.
Disconnect before servicing.
After installation, all UV light should remain internal within the
installed unit.
Ensure no UV light is visible from outside the installed unit.
LED lifespan can vary. For optimization, replace LEDs every 12
months.
ELECTRICAL WARNING
The appliance must be installed in accordance with national wiring
regulations.
Main power supply must be isolated prior to carrying out any
electrical work.
The supply cord cannot be replaced. If damaged the appliance must
be replaced.
The external accessories must be used only with the appliance
provided by the manufacturer.
The power supply's main system must be provided with an all-pole
terminal that provides a full disconnection under overvoltage
category III.
Page 4
SPECIFICATIONS
SPECIFICATIONS
Dimensions
Power Module
LED Strip
VOC filters
Electrical
Weight
LED Strip Life
Warranty
4''L x 2.3''W x 1''H,
102.4mm L x 60mm W x 27mm H
8.8''L x 0.4''W, 224mm L x 10.5mm W
7.87''L x 2.3''W x 0.1''H,
200mm L x 60mm W x 2.5mm H
90-240V.
1.1lb, 0.5kg
8,000- 10,000 hours.
2-year on power module. 6 months on
UV LED strips.
UV INSTALLATION NOTES
This device is typically mounted within mini split systems and
other limited space applications that are susceptible to the build
up of molds and bacteria.
For optimal VOC efficacy, mount the UV lights inside the supply
vent panel facing the blower wheel and ensure the UV light is
directed through the provided VOC filter.
For applications where VOC filters are not deemed necessary,
direct the UV light onto the rear side coils where moisture build up
is most prevalent.
Ensure the mounting of the UV strips do not direct light immediately out of the unit and into the living space.
Page 5

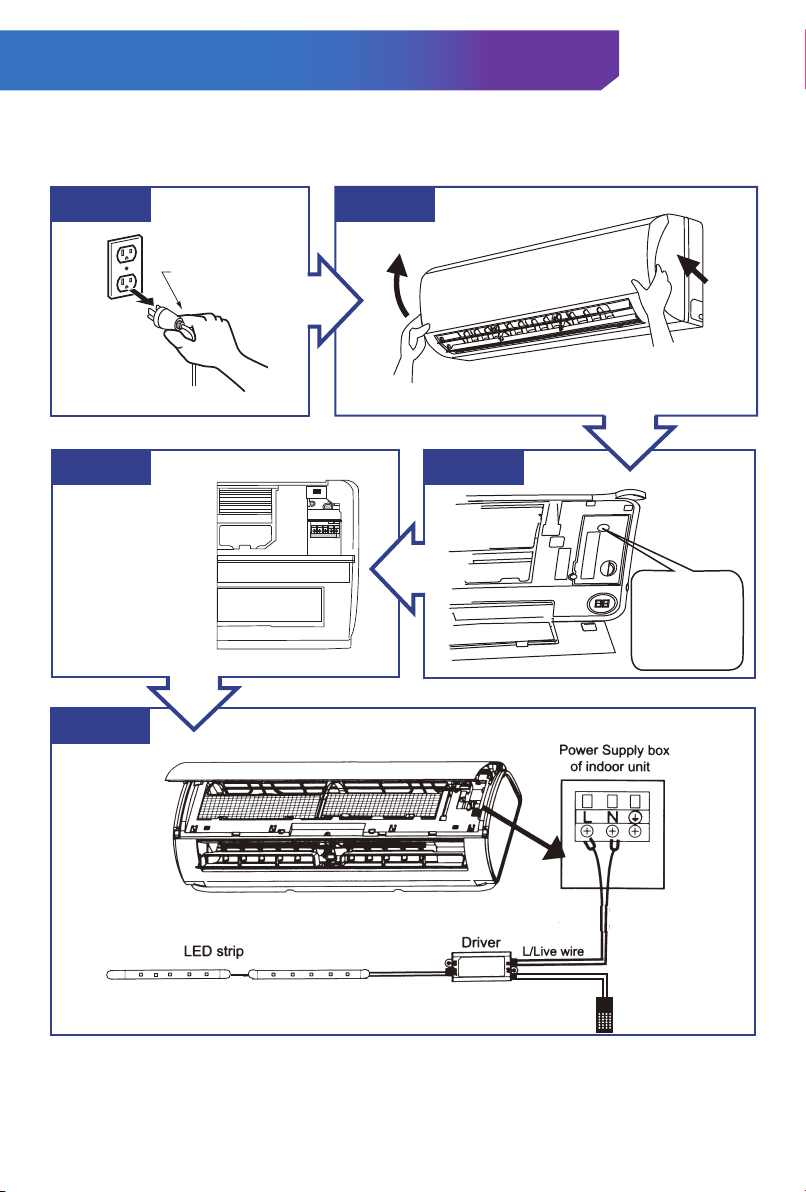

INSTALLATION
Power connection
STEP 1
STEP 1 STEP 2
Power
plug
Disconnect power
from your system.
L N
Connect the power
line from the UV
driver into the
power supply feed
of the system.
Remove the Cover
STEP 3STEP 4
Have a
qualified
electrician
remove the
electric panel
cover.
STEP 5
Airflow sensor
Page 6

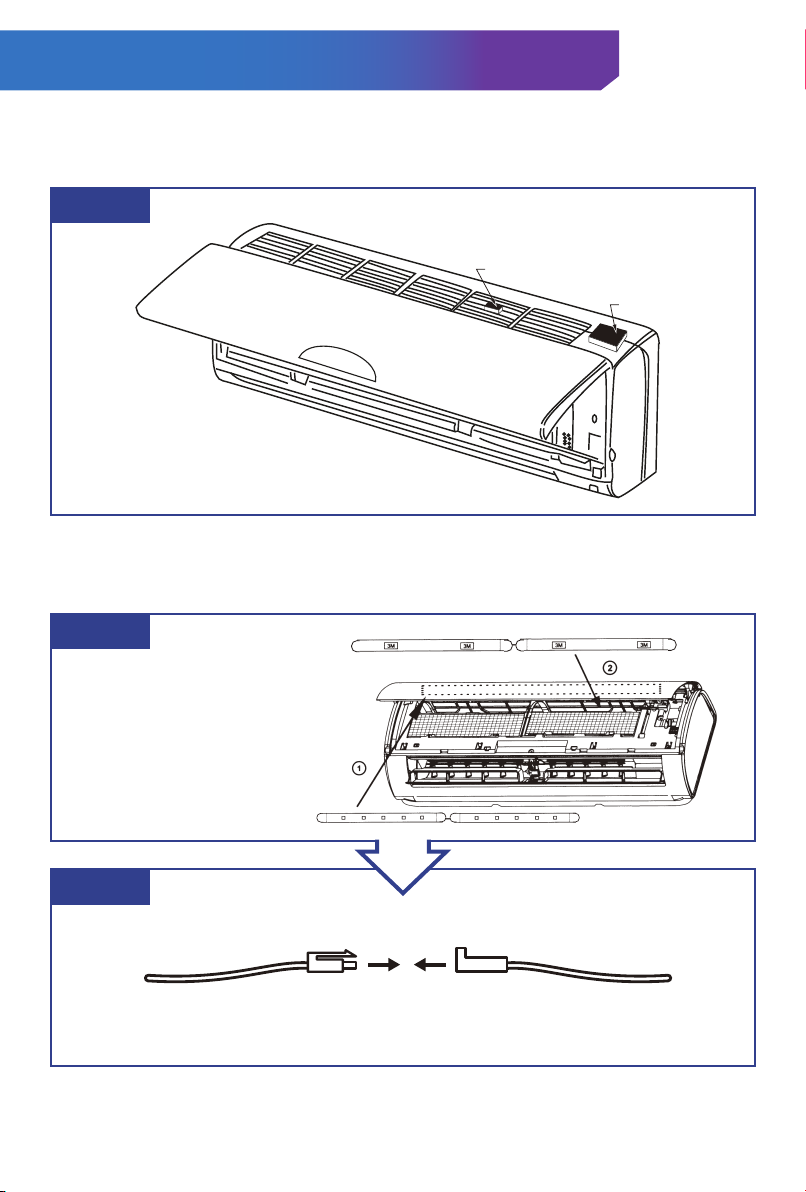

INSTALLATION
LED Driver and Airflow Sensor
STEP 1
Mount the LED Driver and airflow
sensor above air conditioner.
UV LED Strips
STEP 1
Airflow sensor
LED driver
Determine the best location
for the UV LEDs (see UV
Installation Notes). To ensure
proper adhesion of 3M tape,
thoroughly clean and dry area
before mounting UV LEDs.
STEP 2
DRIVER C ABLE
LED C ABLE
Connect the LED driver with UV LED strips
Page 7

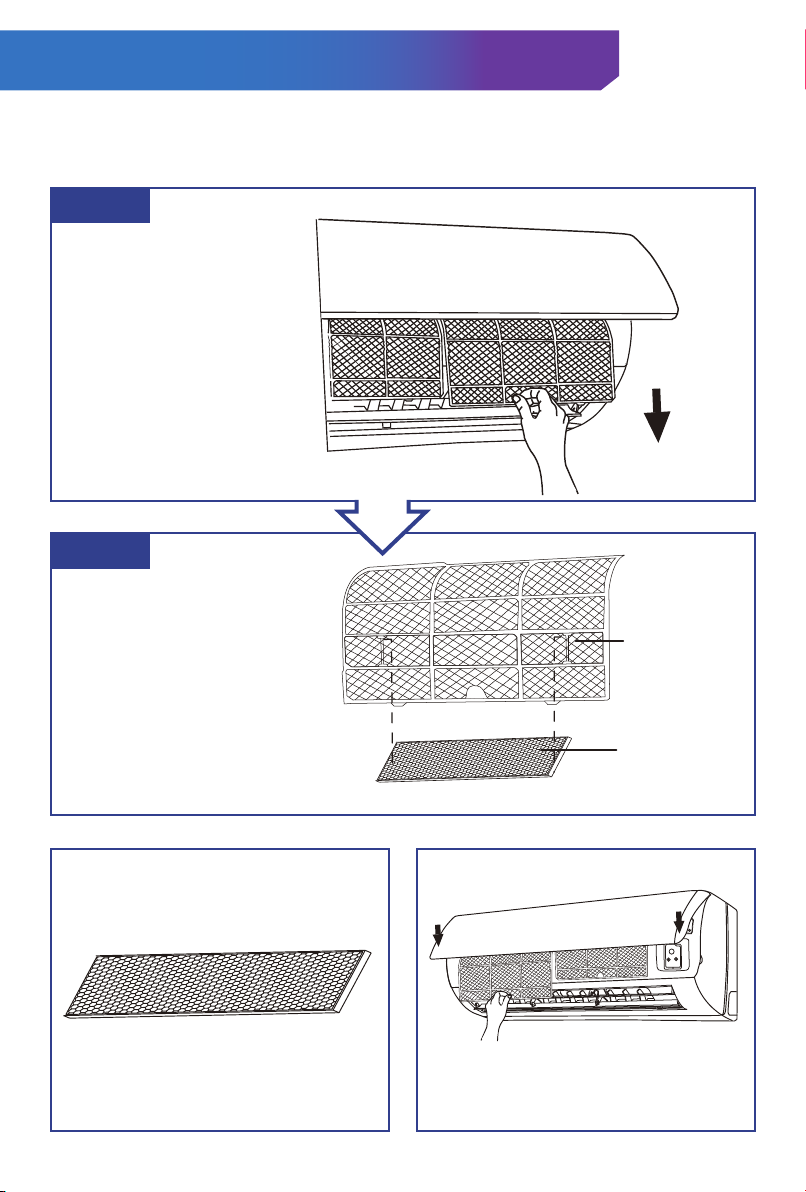

INSTALLATION
VOC filters
STEP 1
Take out the AC filters and
clean with a dry cloth.
STEP 2
Determine the best location for
the VOC filters and fix it with
provided filter clips. (Make sure
the light coming off of the UV
LEDs will shine directly through
VOC filter. )
Air filter
VOC filter
Mount the VOC filter onto
the air filter.
Replace filter screens and electric panel
covers before shutting the cover.
Page 8
INSTALLATION
Warning label
To ensure safe maintenance in the future, apply the provided UV
warning label in a convenient location on your AC system. To
track the lifetime of your UV lamps, use a pen to note the date of
installation on the warning label.
UV radiation hazard.
Use only with shielding in place.
Protect eyes & skin from exposure to UV light.
Date of Install:
EPA Device Manufacturer Establishment No. 73316-TX-1.
The product and technologies described are not medical devices,
and are not intended to diagnose, treat, cure, or prevent any
disease or illness.
For replacement UV LED arrays contact Dust Free, LP.
Replacement Duality UV Array: Part # 19201
Page 9
Dust Free USA
PO Box 519, 1112 Industrial Park Drive
Royse City, TX 75189
1-972-635-9564
www.dustfree.com
www.dustfree.eu
