Mobile Instructions
This Document is intended to be a condensed version of the
DC AirCube 500 manual. This is not intended to replace the
full manual for the DC AirCube 500.
1
Page 2
Disclaimer
Dustcontrol reserves the right to change specifications
without notice and is under no obligation to alter previously
delivered products. Dustcontrol is not responsible for errors
or omissions in this catalogue.
2
Page 3
Content
Table of Contents
Safety Considerations ............................................................. 4
Technical Data ........................................................................ 8
Operation ................................................................................ 9
Service ..................................................................................... 9
Accessories............................................................................ 12
Warranty ............................................................................... 13
Trouble Shooting .................................................................. 14
Spare Parts ............................................................................ 15
3
Page 4
Safety Considerations
Read all instructions before attempting to operate this
machine and save these instructions. Warning! When using
electric machines, basic safety precautions should always be
followed to reduce the risk of fire, electric shock and
personal injury, including the following:
1. Important!
Neither hot particles nor ignition sources are allowed to be
sucked into the unit. The machine should not be used for
explosives, unstable or pyrophoric particles or dust.
– WARNING Operators shall be adequately instructed on the
use of these machines.
– WARNING This machine is for dry use only.
– CAUTION This machine is for indoor use only.
– CAUTION This machine shall be stored indoors only.
2. Work area environment
Don´t expose the machine for rain. Don´t use it in damp or
wet locations or in presence of flammable liquids or gases.
4
Page 5
3. Overload
Never let the machine operate fully throttled. Always follow
the regulations pertinent to the material you are working
with i.e. asbestos. Don´t use the machine for purposes that it
isn´t intended for.
4. Body injuries
Never let the suction come in contact with parts of the body.
The strong suction effect can hurt the blood-vessels in the
skin. Don´t repair the electric components yourself. The
machine should be serviced by qualified personnel only.
Faults may cause injury. See also below under warnings.
5. Don´t abuse cord
Never pull the machine by the cord. Keep the cord from heat
and sharp edges. Check the electric cable regularly for
damage.
6. Important measure
With cleaning and maintenance on the machine, the power
cable should be dis-connected from the supply. The machine
must not be washed or cleaned with water.
5
Page 6
7. Maintain the machine with care
Keep the machine clean and check that the hose is
undamaged and that all gaskets are tight. Follow
instructions. Keep handles dry and free from oil and grease.
8. Checking for damage
Before further use of the machine it should be carefully
checked that the machine is undamaged. If there are any
damaged parts these should be repaired by a Dustcontrol
authorized service center. If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
9. Warning
Use only accessories and replaceable parts which are
available in the Dustcontrol catalogue.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
6
Page 7
Children should
be supervised to ensure that they do not
play with the appliance.
This machine is intended for commercial use only, for
example in hotels, schools, hospitals, factories, shops, offices
and rental businesses.
7
Page 8
Technical Data
DC AirCube 500
HxWxL (mm/in) 380x340x495 / 15x13.3x19.5
Weight (kg/lb) 13/29
Outlet Ø (mm) 125
Max, Flow (m³/h /cfm)
500/294
Neg. Pressure (Pa/inwg) 400/1.6
Power Consumption (W) 145
Degree of Separation
99.995%
(EN 60335-2-69, Class H)
Pre-Filter “cartridge” G3
HEPA Degree of Separation
(EN 1822-1)
HEPA H13
99.995%
*Sound Level (Speed 1/Speed 2) 45dB(A)/65dB(A)
* Sound level at 1.6 m height and 1 m distance according to DIN
EN ISO 3744 in free space and at maximum airflow.
8
Page 9
Operation
Connect machine to suitable power source. If extension cord
is to be used only waterproof is acceptable.
DC Canada recommends cleaning it before the machine is
shut down. Machine must be running to preform filter
cleaning. To preform filter cleaning first loosen end cuff off
tool. Block the end cuff by pressing it onto the cylindrical
protrusion on the outlet channel. Push the side flap open
and release it quickly to pulse the filter. Repeat this 3-6
times. Below is a pictorial showing the correct procedure.
Service
During cleaning disconnect unit from power. The DC AirCube
500 is equipped with a filter indication lamp alerting you
when the filter requires changing. Generally when the unit is
experiencing low suction the pre-filter should be changed. If
low suction persists then a HEPA filter change may be
required. When changing either filter ensure that proper
breathing protection is in place for both the direct vicinity
and surrounding areas. Changing the HEPA filter of the DC
AirCube 500 required that you un-clamp the pre-filter and
9
Page 10
remove it. Once removed slide a bag over the open end of
the unit (if required) remove the old HEPA filter and replace
with a new one in the same orientation. Re-clamp on the
pre-filter and the process is complete. These simple steps are
outlined below.

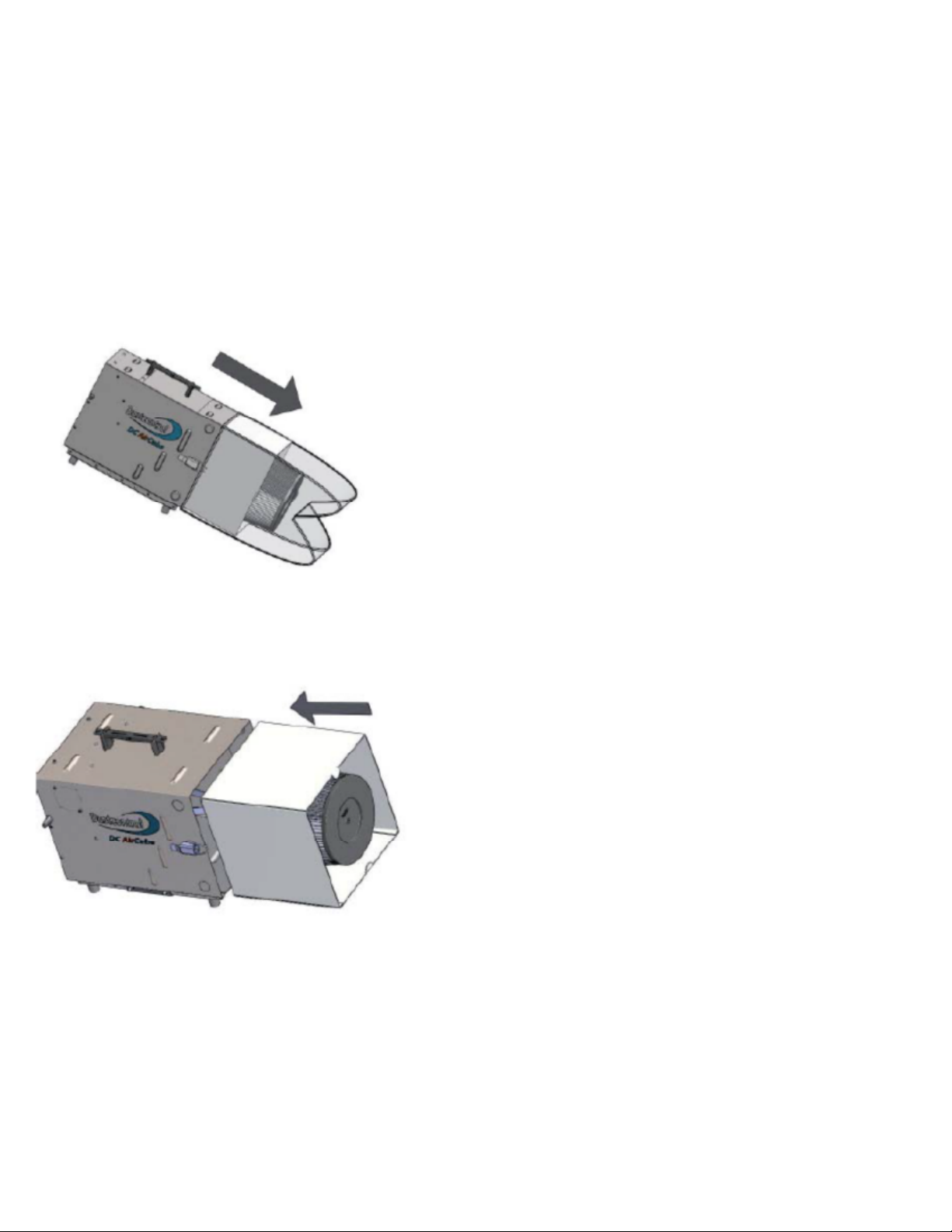

Step 1- Pull filter out after removing the pre-filter
Step 2- Install new filter in same orientation
Changing the pre-filter of the DC AirCube 500 involves sliding
a bag over the rear of the machine (if required) and
removing the pre-filter. Removing the pre-filter is done by
gently pulling the cloth filter from the plastic case. Next Re-
10
Page 11
Install a new cloth filter with the spines pointing vertic
ally, by
tucking the edges under the plastic lip of the filter. These
steps are outlined below.
Step 1- Remove Dirty Filter
Step 2- Reinstall new clean filter

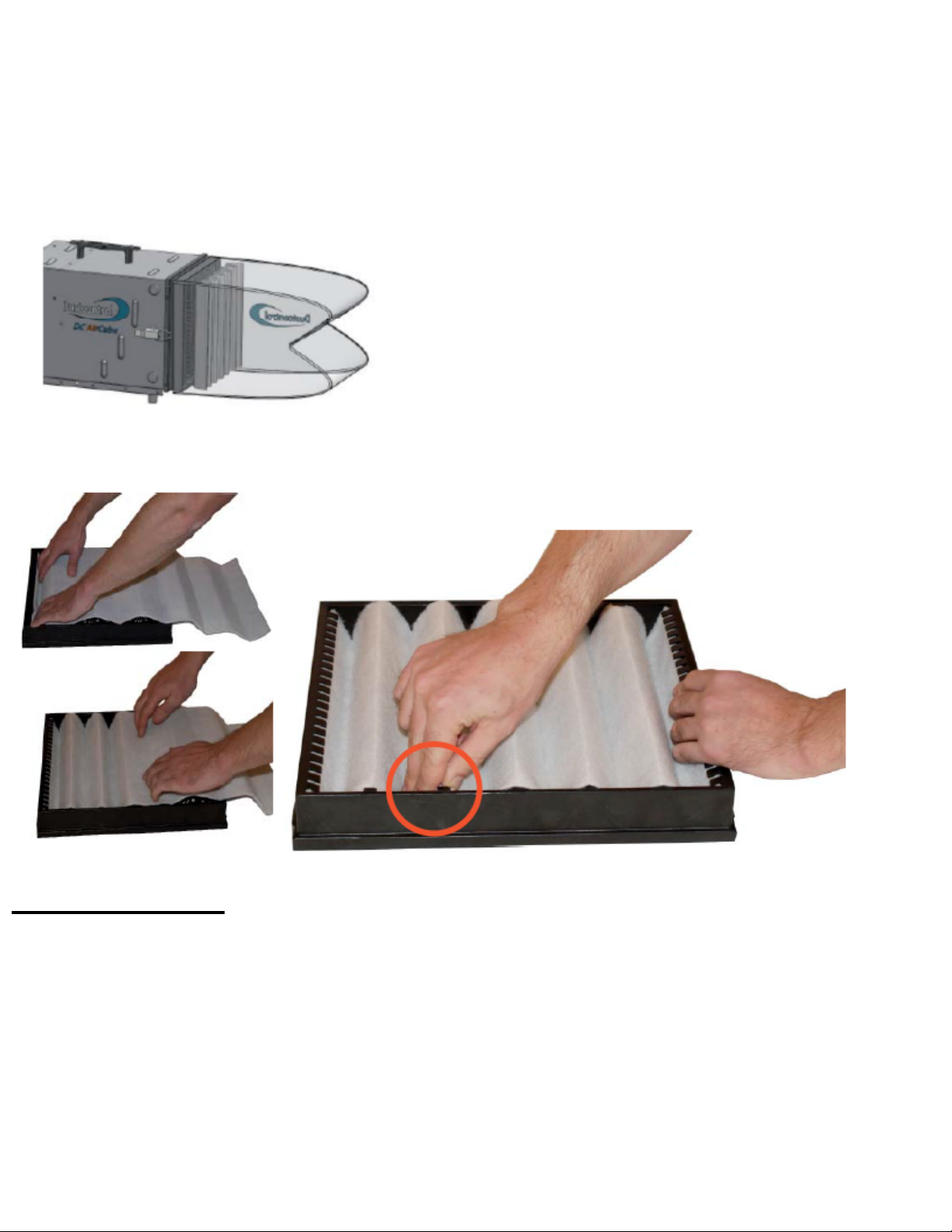

Motor Service
The fan motor on the DC AirCube 500 requires no service.
11
Page 12

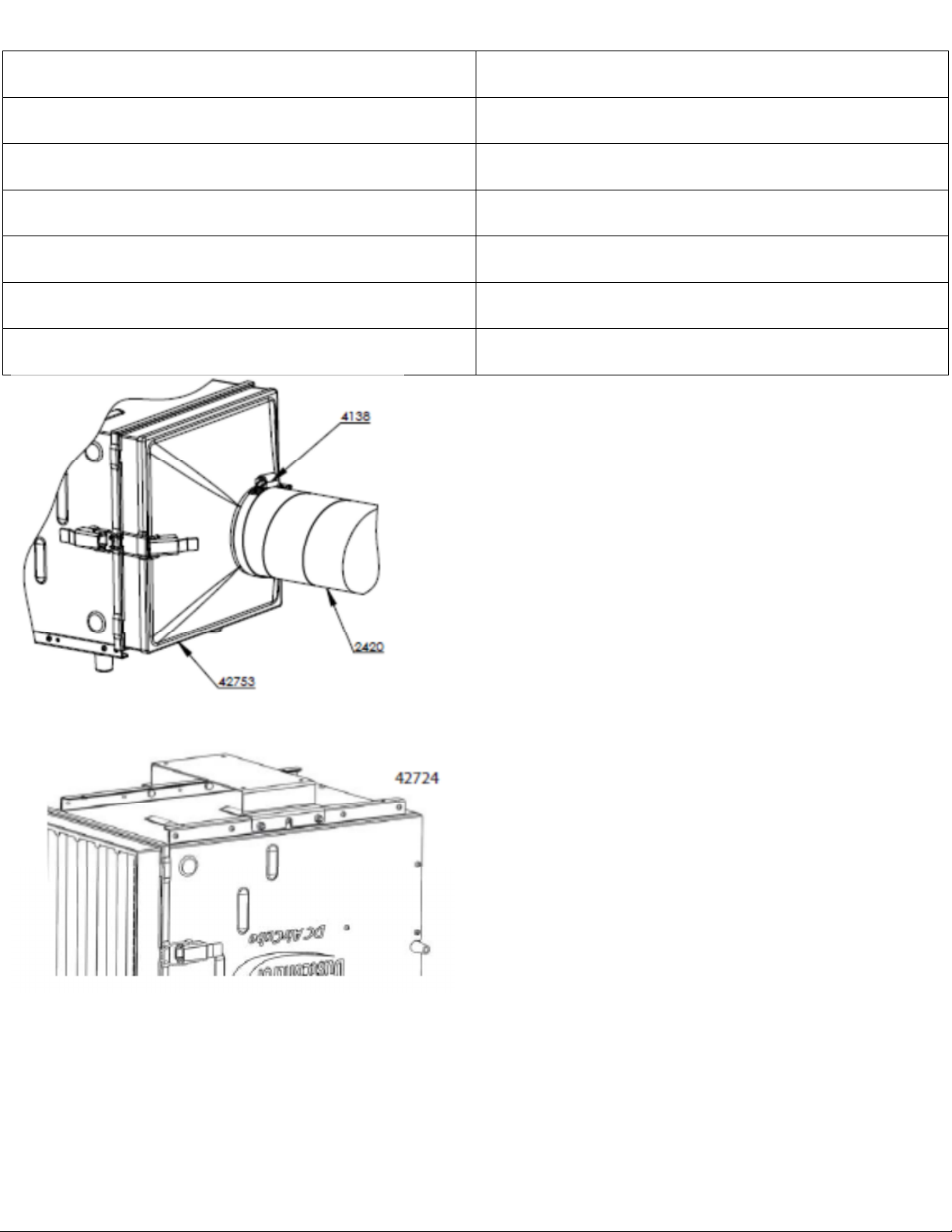

Accessories
Description Part No.
Hose Ø 125 mm 2420
Hose clamp 4138
Pre-filter 42690
HEPA Microfilter 42692
Funnel 42753
Bracket 42724
12
Page 13
Warranty
The warranty period for this machine is two years and covers
manufacturer’s faults. The warranty is valid under the
condition that the machine is used under normal conditions
on the task for which it was designed and is maintained
properly.
Normal wear is not covered by this warranty. Service
performed by other than Dustcontrol or its authorized agent
voids automatically the warranty. No other warranty express
or implied is applicable.
13
Page 14
Trouble Shooting
Problem
Fault
Solution
Machine blows dust.
Damaged filter or
Change filter.
Machine runs only on
Turni
ng power meter is
Change
power meter.
Reduction in airflow at
Filler filter.
Change filter.
Fan does not start.
No power.
Check power source
Below is a list of common problems of the machine. If your problem is
not found below contact your local Dustcontrol dealer.
gasket.
max speed.
exhaust.
faulty.
and connection.
14
Page 15
Spare Parts

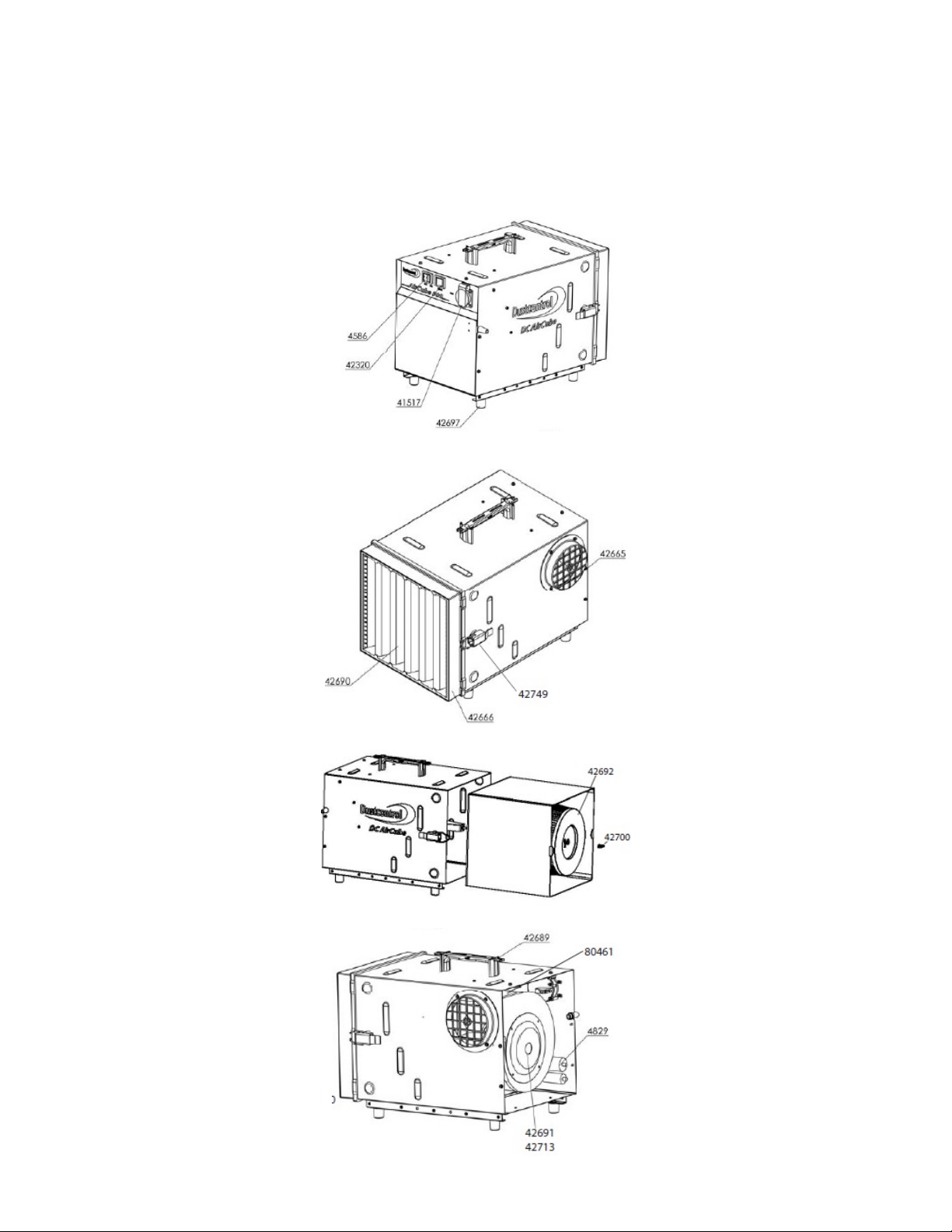

Below is a simplified parts breakdown of the DC AirCube 500 on
the preceding page is a table outlining the parts. Contact your
local Dustcontrol dealer or full manual for further spare parts.
15
Page 16
Art No.
Description
4
2320
Switch
4
2665
Exhaust Flange
4
2666
Protection Grill
42686
Handle
42690
Pre
-
Filter
42692
HEPA Filter
42
697
Housing Foot
42
700
M6 Wing Nut
42
713
115V Fan
42
749
Fastener
4
586
Switch, Speed
4829
400V 4
μ
F Capacitor
80461
Micro Switch
94156
Original Manual
16
