Dustbane Hurricane 700 XTT Quick Manual

Hurricane 700 XTT

CT105 Quick guide

PREPARATION & OPERATION

2 3

CT105 Quick guide

PREPARATION & OPERATION

5

2 3

6

ON

CHEM

H2O

+

P

CT105 Quick guide

PREPARATION & OPERATION

5

2 3

6

ON

CHEM

H2O

+

P

6

ON

P

6

ON

P

ON

ON

Quick Guide

This guide is intended for quick consultation only and does not replace the user and maintenance
manual. Before using this machine, read the user maintenance manual contained in the machine’s
packaging and follow all the instructions.

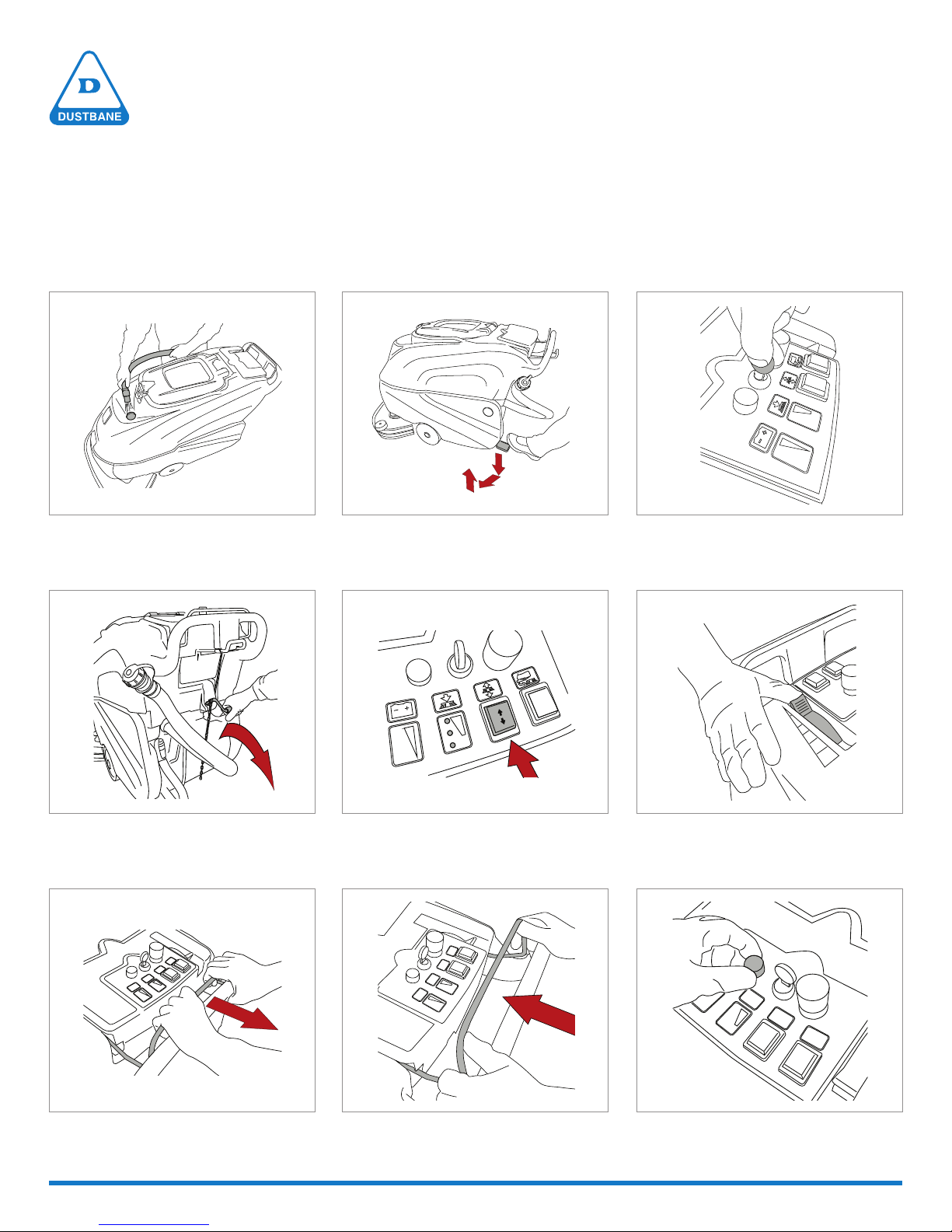

PREPARATION AND OPERATION

1

Add water and chemical to tank.

4

2

Release parking brake.

5

3

Power on.

6

Pull squeegee lever.

7

Go in forward direction.

Dustbane Products Ltd., 25 Pickering Pl., Ottawa, ON K1G 5P4 • Tel: [phone] Fax: [phone] www.dustbane.ca

Adjust brush pressure.

8

Go in reverse direction.

Adjust water level.

9

Adjust speed.

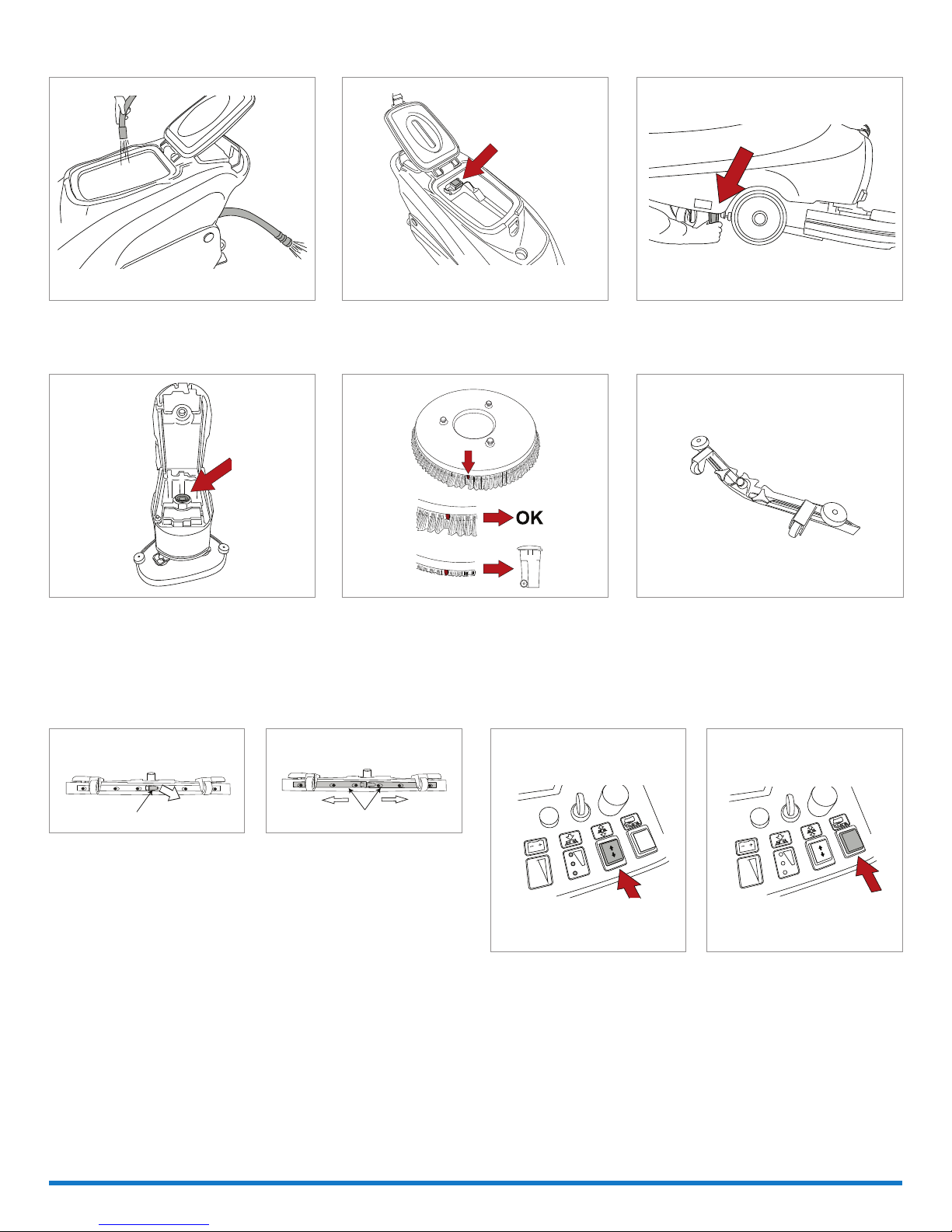

DAILY MAINTENANCE

FILTER

DAILY MAINTENANCE

FILTER

DAILY MAINTENANCE

DAILY MAINTENANCE

Clean the dirty

water tank.

Check the suction lter is

undamaged and clean.

Check that the

detergent outlet lter

is clean.

FILTER

BATTERY CHARGER
STAND ALONE

24V

DAILY MAINTENANCE

Check the suction lter is

undamaged and clean.

Check that the

detergent outlet lter

is clean.

FILTER

BATTERY CHARGER
STAND ALONE

24V

Check that the

detergent outlet lter

is clean.

FILTER

BATTERY CHARGER
STAND ALONE

24V

1

2

Check that the

detergent outlet lter

is clean.

1

2

FILTER

BATTERY CHARGER
STAND ALONE

24V

Check that the

detergent outlet lter

is clean.

Check that the

detergent outlet lter

is clean.

1

2

Clean the dirty water tank.

FILTER

Make sure suction lter is undamaged
andclean.

Make sure detergent outlet lter isclean.

Make sure the detergent tank ll lter
isundamaged and clean.

REPLACING THE SQUEEGEE BLADES ATTACHING/RELEASING THEDRIVE

Ref. 1

Open the clip (Ref. 1).

Remove the two blade retainers (Ref. 2) by pushing them
outwards then extracting them.

Remove the blade.

Reuse the same blade by reversing the edge in contact with the
oor until all four edges are worn out, or replace with a new blade,
tting it onto the screws on the bodyofthesqueegee.

Reposition the two blade pressing devices by centering the wider
part of the slots onthesqueegee body fastening pins, then push
the blade pressing devices inwards.

Close the hook again.

Replace the squeegee on its support, following the instructions
described previously.

1

Make sure the brushes are clean and not
worn. Replace ifnecessary.

Ref. 2

Make sure the squeegee is clean and the
blades are not worn.

Ref. 1 Ref. 2

Attaching:

Insert the drive under the head, making sure it rests against
the aligners. Hold the button down to lower the head (Ref. 1)
untilthedrive is engaged.

Releasing:

Lift the head using the lift button (Ref. 1), then press the release
button (Ref. 2).

Dustbane Products Ltd., 25 Pickering Pl., Ottawa, ON K1G 5P4 • Tel: [phone] Fax: [phone] www.dustbane.ca
