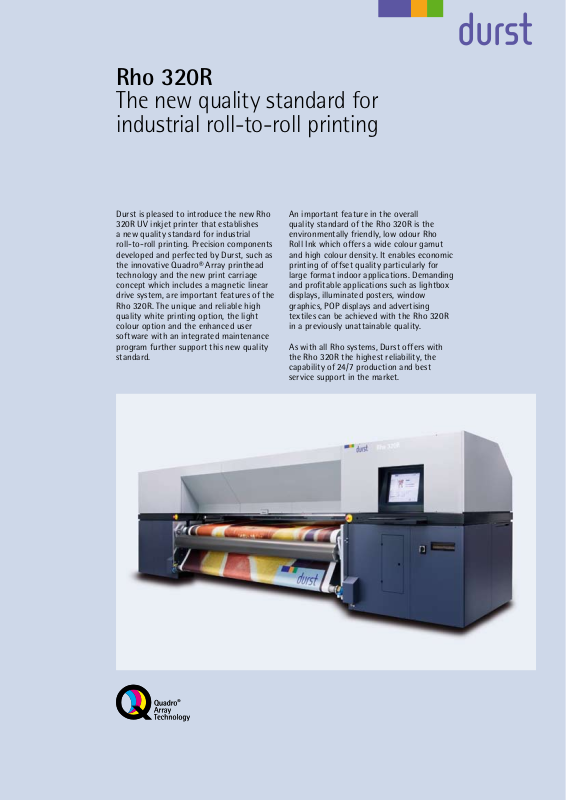

Rho 320R

The new quality standard for
industrial roll-to-roll printing

Durst is pleased to introduce the new Rho
320R UV inkjet printer that establishes
a new quality standard for industrial
roll-to-roll printing. Precision components
developed and perfected by Durst, such as
the innovative Quadro® Array printhead
technology and the new print carriage
concept which includes a magnetic linear
drive system, are important features of the
Rho 320R. The unique and reliable high
quality white printing option, the light
colour option and the enhanced user
software with an integrated maintenance
program further support this new quality
standard.

An important feature in the overall
quality standard of the Rho 320R is the
environmentally friendly, low odour Rho
Roll Ink which offers a wide colour gamut
and high colour density. It enables economic
printing of offset quality particularly for
large format indoor applications. Demanding
and profitable applications such as lightbox
displays, illuminated posters, window
graphics, POP displays and advertising
textiles can be achieved with the Rho 320R
in a previously unattainable quality.

As with all Rho systems, Durst offers with
the Rho 320R the highest reliability, the
capability of 24/7 production and best
service support in the market.

Technical Data

General specifications

Dimensions:

Width: 680 cm (22.30 ft.)
Depth: 167 cm (5.47 ft.)
Height: 198 cm (6.49 ft.)

Weight:

approx. 4500 kg (9900 lb.)

Safety standards:

Complies with currently valid
guidelines

P r i n t i n g s p e c i fi c a t i o n s

Printing system:

Roll to Roll transport system with
Quadro® Array Technology

Resolution:

600 dpi

Colours

Standard: CMYK
Optional: Light Cyan and Light
Magenta, White, clear varnish,
selected spot colours (on request)

Inks:

Rho Roll Ink - UV-curable pigment
inks for indoor and outdoor
applications. The Rho Roll Ink,
pigments classified at Blue Wool
scale 8. The inks are VOC free.

Ink supply:

Integrated ink tanks with 10 litre
capacity per colour, refillable
during the printing process.
The refill inks are in 5 litre,
non-returnable containers, easily
disposed in collapsed condition,
thus avoiding pollution to the
machine and the environment.

Software/RIP:

Durst Rho Touch Screen Linux
Software for very fast processing
with minimum storage capacity on
the hard disk. External Caldera RIP
Server with GrandRip+ Software

Media specifications

Media types:

Wide range of uncoated and
coated roll media types like
bannermedia, Vinyl, tarpaulin,
truck-banner, polyester, textiles,
canvas, paper, self-adhesive PVC,
PVC/PA-transparent media types,
Mesh etc.

Maximum printing width:

320 cm (10.5 ft.)

Max. printing length:

Only restricted by media length

Maximum thickness:

2 mm (depending on media)

Max. roll diameter:

450 mm (17.7 in.) outside diameter

Max. roll weight:

approx. 300 kg (661 lb.)

Ambient conditions:

Space requirement:

approx. 9 x 9 m (30 x 30 ft.)

Max. sea level of installation:

2400 m above sea level (8000 ft.)

Max. ambient temperature:

+15 °C to +30 °C (+59°F to 86°F)

Max. humidity:

25 - 80 %, not condensing

Durst Phototechnik
AG
Large Format Division

Vittorio-Veneto-Straße 59
I-39042 Brixen, Italy
Telefon [phone]
Telefax [phone]
www.durst-online.com
[e-mail]

Productivity:

Up to 130m
(1400 sq.ft./hour) - continuous
printing

2

/hour

Durst Phototechnik
Digital Technology
GmbH

Julius-Durst-Straße 11
A-9900 Lienz, Austria
Telefon [phone]
Telefax [phone]
www.durst-online.com
[e-mail]

The latest technical developments
are constantly being incorporated
into Durst products. Illustrations and
descriptions are therefore subject to
modification. All rights reserved on
images and illustrations.

Durst Phototechnik AG, 05/2008

©

IX 26015
