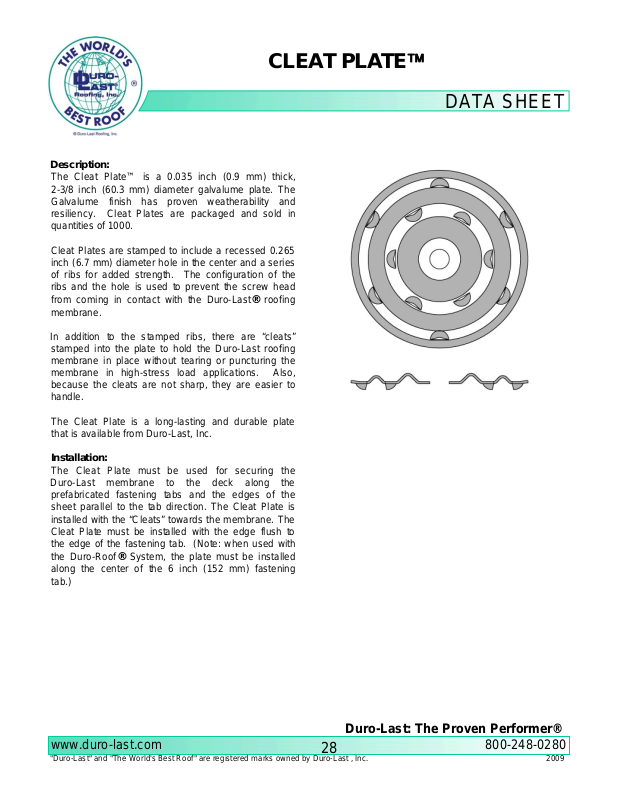

Duro-Last Cleat Plate User Manual
CLEAT PLATE™
Description:
The Cleat Plate™ is a 0.035 inch (0.9 mm) thick,
2-3/8 inch (60.3 mm) diameter galvalume plate. The
Galvalume finish has proven weatherability and
resiliency. Cleat Plates are packaged and sold in
quantities of 1000.
Cleat Plates are stamped to incl ude a rece ssed 0.265
inch (6.7 mm) diameter hole in the center and a ser ies
of ribs for added strength. The configuration of the
ribs and the hole is used to prevent the screw head
from coming in contact with the Duro-Last
membrane.
In addition to the stamped ribs, there are “cleats”
stamped into the plate to hold the Duro-Last roofing
membrane in place without tearing or puncturing the
membrane in high-stress load applications. Also,
because the cleats are not sharp, they are easier to
handle.
® roofing
DATA SHEET
The Cleat Plate is a long-lasting and durable plate
that is available from Duro-Last, Inc.
Installation:
The Cleat Plate must be used for securing the
Duro-Last membrane to the deck along the
prefabricated fastening tabs and the edges of the
sheet parallel to the tab direction. The Cleat Plate is
installed with the “ Cleats” towards the m embrane. The
Cleat Plate must be installed with the edge flush to
the edge of the fastening tab. (Note: when used with
the Duro-Roof
along the center of the 6 inch (152 mm) fastening
tab.)
® System, the plate must be installed
Duro-Last: The Proven Performer®
www.duro-last.com
