Page 1
®
ai r re g u l at i o n
co n t r o l
eq u i P m e n t
Pr o d u c t
cata l o g
®
Page 2
TABLE OF CONTENTS
UNIVERSAL STANDOFF REGULATORS............................................2
DURO-TWIST™ REGULATORS.............................................................3
DYNA-CLICK™ REGULATORS..............................................................3
STANDOFF REGULATORS.............................................................2-4
QUADLINE™ REGULATORS............................................................4-5
SPEC-SEAL® UNIVERSAL REGULATOR..........................................5
UNIVERSAL REGULATOR.................................................................5
SPEC SEAL END BEARING SUPPORT KITS.......................................5
STAMPLINE REGULATORS...............................................................6
SPECLINE REGULATORS & DAMPER PARTS..............................7-8
END BEARINGS................................................................................9
JIFFY DAMPERS................................................................................9
HAMMER ON DAMPER HARDWARE & ACCESSORIES...............10
MULTI-BLADE DAMPER HARDWARE............................................11
BLADE EDGING..............................................................................12
SIDE SEALS....................................................................................12
MULTI-BLADE DAMPER PARTS...............................................12-13
ACCESS DOORS.............................................................................14
ACCESS DOOR LOCKING DEVICES...............................................15
GASKETING....................................................................................15
INSTRUMENT TEST PORTS..............................................................16
HINGES...........................................................................................16
FIRE DAMPER HARDWARE..............................................................16
HANGING STRAP.............................................................................16
DYN-O-TIES®.....................................................................................17
DYN-O-TIE GUN...............................................................................17
STAINLESS STEEL DYNA-CLAMPS™............................................18
STAINLESS STEEL PARTS........................................................18-19
UNIVERSAL STANDOFF REGULATORS
The Universal Economy Standoff Regulator from Duro Dyne is a hand operated elevated regulator designed for use with 1/4” or 3/8” square rod on externally insulated duct. The unique 10 degree foot allows the same regulator to be used on both square or round ductwork, alleviating the need to stock multiple regulators. It is offered in four standoff heights: 1’’, 1-1/2’’, 2’’ & 3’’. The handle is locked in place with a heavy duty high torque stamped wing nut and clearly shows damper position with embossed designations for open and closed. Reinforcing gussets in four locations add to the rigidity of this regulator. An optional score and Heto Notch allows the UESO to work for multiple damper fitting applications including Hetos.
UESO - UNIVERSAL ESO
Heavy duty, ergonomic
rolled handle
Gussets for strength & rigidity
10° universal bend for
square & round duct
Heto cut-away
score line
Heto notch
ITEM# CODE SHAFT SIZE STAND HEIGHT
6369 UESO-14-100 1/4” sq. 1”
6370 UESO-14-150 1/4” sq. 1-1/2”
6371 UESO-14-200 1/4” sq. 2”
6372 UESO-14-300 1/4” sq. 3”
6373 UESO-38-100 3/8” sq. 1”
6374 UESO-38-150 3/8” sq. 1-1/2”
6375 UESO-38-200 3/8” sq. 2”
6376 UESO-38-300 3/8” sq. 3”
6377 UESO-12-100 1/2” sq. 1”
6378 UESO-12-150 1/2” sq. 1-1/2”
6379 UESO-12-200 1/2” sq. 2”
6380 UESO-12-300 1/2” sq. 3”
Seal Kits Sold Separately.
SEAL FOR STANDOFF WITH ECONOMY HANDLE
ITEM# CODE FOR USE WITH STAND HEIGHT
7245 SESO-38-214 2”
Seal is always 1/4” larger for tighter seal.
SESO-38-214
ESO SEAL
Page 3
DURO-TWIST™ REGULATORS
The Duro-Twist is a hand operated elevated regulator designed for use with square rod on both square and round externally insulated duct. It is offered in four standoff heights: 1’’, 1-1/2’’, 2’’ & 3’’. The Duro-Twist is engineered with a strong friction resistance so it stays set without any need to lock it in place. The high visibility yellow handle allows it to be easily found in the field on wrapped duct. The handle position illustrates damper blade position on the outside of the ductwork.
Manual operation
(no tools)
The wing nut has a locking feature molded into
the nut. This secure locked t eliminates any
movement from duct system vibration.
DURO-TWIST
ITEM# CODE SHAFT SIZE STAND HEIGHT
6324 DT38150 3/8” sq. 1-1/2” 6325 DT38200 3/8” sq. 2”
10° angled stand to
accomodates both square
and round duct
Rubber ‘O’ Ring
immobilizes the handle
to eliminate rattling
DYNA-CLICK™ REGULATORS
Dyna-Click is the latest in self-locking regulators offered by Duro Dyne. This 15 position indexing regulator features a triggerless ¾’’ twist locking nut that fixes the regulator in place once set. Designed for use with square rod on both square and round externally insulated duct, it is offered in two standoff heights, 1-1/2’’ & 2’’. The Dyna-Click is engineered with a heavy duty spring so it stays set once clicked into place. The high visibility yellow handle allows it to be easily found in the field on wrapped duct.
Set screw to secure 3/8”
rod in place
Marking on regulator easily show the open-
close positions
15 position
settings
ITEM# CODE SHAFT SIZE STAND HEIGHT
6320 DC38150 3/8” sq. 1-1/2” 6321 DC38200 3/8” sq. 2”
DYNA-CLICK
10° angled stand to
accomodates both square
and round duct
STANDOFF REGULATORS
STANDOFF WITH SPECLINE® REGULATOR
ITEM# CODE SHAFT SIZE STAND HEIGHT
SQUARE
ROUND
8184 SRST 1-148 w/SRHS-148 1/4” sq. 1” 8318 SRST 1-1/2-148 w/SRHS-148 1/4” sq. 1-1/2” 8196 SRST 2-148 w/SRHS-148 1/4” sq. 2”
8019 SRST 1-388 w/SRHS-388 3/8” sq. 1” 8020 8021 SRST 2-388 w/SRHS-388 3/8” sq. 2”
Packed 10 Per Carton.
ITEM# CODE SHAFT SIZE STAND HEIGHT
7353 SRST1R-148 w/SRHS-148 1/4” sq. 1” 7354 SRST1-1/2R-148 w/SRHS-148 1/4” sq. 1-1/2” 7355 SRST2R-148 w/SRHS-148 1/4” sq. 2”
7350 SRST1R-388 w/SRHS-388 3/8” sq. 1” 7351 SRST1 1/2R-388 7352 SRST2R-388 w/SRHS-388 3/8” sq. 2”
Packed 10 Per Carton.
Pre-notched feet for use with
heto application. Simply cut to
the notch with a snip.
SRST SERIES FOR SQUARE DUCT
SRST 1-1/2-388 w/SRHS-388
SRST SERIES FOR ROUND DUCT
w/SRHS-388
3/8” sq. 1-1/2”
3/8” sq. 1-1/2”
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 3
Page 4
STANDOFF REGULATORS
(CONTINUED)
STANDOFF WITH STAMPLINE™ 1/4’’ DIAL REGULATOR (FOR DAMPERS UP TO 10”)
K2 SERIES FOR SQUARE DUCT
SQUARE
ROUND
ITEM# CODE SHAFT SIZE STAND HEIGHT
7364 K2-1 1/4” sq. 1” 7365 K2-150 1/4” sq. 1-1/2” 7366 K2-2 1/4” sq. 2”
Packed 10 Per Carton.
K2 SERIES FOR ROUND DUCT
ITEM# CODE SHAFT SIZE STAND HEIGHT
7362 K2-1R 1/4” sq. 1” 8197 K2-150R 1/4” sq. 1-1/2” 7363 K2-2R 1/4” sq. 2”
Packed 10 Per Carton.
STANDOFF WITH STAMPLINE™ 3/8’’ DIAL REGULATOR (FOR DAMPERS UP TO 20”)
KR Series available in stainless steel. See page 18.
SQUARE
ROUND
QUADLINE™ REGULATORS
These heavy gauge plated steel quadrants are designed with excellent handle action as well as quick wing nut adjustment and locking of the damper. The frame is marked to show the exact position of the damper. For use on square or round ducts.
ITEM# CODE SHAFT SIZE STAND HEIGHT
8304 KR3-1 3/8” sq. 1” 8310 KR3-150 3/8” sq. 1-1/2” 7360 KR3-2 3/8” sq. 2”
Packed 10 Per Carton.
ITEM# CODE SHAFT SIZE STAND HEIGHT
7361 KR3-1R 3/8” sq. 1” 8366 KR3-150R 3/8” sq. 1-1/2” 7359 KR3-2R 3/8” sq. 2”
Packed 10 Per Carton.
SETS AND PARTS
KR SERIES FOR SQUARE DUCT
KR SERIES FOR ROUND DUCT
3/8” QUADRANT SETS (FOR DAMPERS UP TO 20”)
3/8’’ QUADRANT SETS
ITEM# CODE SET CONSISTS OF:
8050 KS38 K-4 quadrant; KP-9R round end bearing; KP-9S square end bearing 8051 KS385 K-4 quadrant; KP-7 spring loc bearing; KP-9S long square end bearing 8049 KS385L K-4 quadrant; KP-7L long spring loc bearing; KP-9L long square end bearing
Packed 1 Set Per Carton
8059 K4 3/8” quadrant only
Packed 100 per Carton
1/2” QUADRANT SETS (FOR DAMPERS UP TO 30”)
1/2’’ QUADRANT SETS
ITEM# CODE SET CONSISTS OF:
8052 KS12 K-5 quadrant; KP-10R round end bearing; KP-10S square end bearing
Packed 1 Set Per Carton
8060 K5 1/2” quadrant only
Packed 100 per Carton
Page 5
QUADLINE™ REGULATORS
SETS AND PARTS (CONTINUED)
1/2” SHAFT LOC QUADRANT SETS (FOR DAMPERS UP TO 30”)
“Shaft Loc” Quadrants are stamped of heavy gauge steel and clearly indicate the position of the damper. The quadrant handle (available for either 1/2” square or round shafts) is unique in that it locks the shaft of the damper to it by means of a powerful friction holding device strong enough to cut into the damper shaft eliminating damper rattle. The shaft is easily locked with 1/2” open end wrench. Available for square or round ducts.
1/2’’ SHAFT LOC QUADRANT SETS
ITEM# CODE SHAFT DESCRIPTION
8063 KL7 1/2” square Shaft loc quadrant 8064 KL7R 1/2” round Shaft loc quadrant
Packed 100 Per Carton
ROUND
SQUARE
SPEC-SEAL UNIVERSAL REGULATOR & SET
™
The Spec-Seal Universal Regulator Set utilizes a special rubber seal for applica­tions up to 500oF constant temperature. It eliminates leakage and rattle via the Shaft Loc Mechanism in high pressure systems. The handle’s unique design utilizes a highly-visible orange plastic cover showing the damper position. This unit, made of heavy-gauge, zinc-plated steel, ac­commodates four styles of end bearings: 3/8” and 1/2” with both round or square bearing shafts. It is also available in stainless steel. Individual parts available upon request.
Each Set Consists of:
• Regulator
• 2 Rubber Seals
• 2 Metal Washers
• 2 End Bearings
• End Bearing Support
1
/2’’ Round
3
/8’’ Square
Patent #
7,472,699
3
/8’’ Round
Stands Off Duct 7/8”
™
Select items available in stainless steel. See page 18.
SPEC-SEAL™
ITEM# CODE BEARING TYPE
8153 AL38 3/8’’ Square
8154 AL38R 3/8’’ Round
8158 AL38L 3/8’’
8152 AL12R 1/2’’ Round
Quantity per carton: 10 sets
UNIVERSAL REGULATOR
•
Universal - one regulator for 3/8’’ and 1/2’’; round or square rods.
•
Clamp on handle for snug and rattle free fit to bearing or rod.
•
Unique “quick set up” handle allows shift from 1/2” to 3/8” without disassembling the regulator.
•
Shaft loc mechanism to eliminate rattle
• High visibility handle; shows damper direction.
• Heavy gauge, zinc plated steel.
• Optional Seal Kit - available for low leakage applications.
• Also available in Stainless Steel - Please see page 19.
ITEM# CODE DESCRIPTION
8270 MSR03812 3/8 & 1/2” Multisize Regulator Only
Quantity per carton: 10
UNIVERSAL REGULATOR
Square Long
Patent #
7,472,699
1
/2’’ Square
1
/2’’ Round
3
/8’’ Square
3
/8’’ Round
™
SPEC-SEAL END BEARING SUPPORT KITS
SPEC-SEAL™ END BEARING SUPPORT KITS
ITEM# CODE BEARING TYPE
8162 EB12R 1/2” Round Bearing Support Housing
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 5
Page 6
STAMPLINE REGULATORS
FOR CONTROLLING SMALL DAMPERS
1/4” “JIFFY” REGULATOR SETS (FOR DAMPERS UP TO 10”)
These efficient, low cost, heavy gauge, plated steel regulators install in a “jiffy” by slipping the washer and handle over the threaded
ITEM# CODE SET CONSISTS OF
8039 KS7 KP5 1/4” threaded bearing, handle; KP-6 spring
square end bearing. The wing nut locks the damper in position. The position of the handle indicates the position of the damper in the duct. For use on round or square ducts.
8046 KS7L KP5L 1/4” long threaded bearing, handle; KP-6L
Packed 10 Per Carton; 10 cartons per box.
8102 JB1 KP5 1/4” threaded bearing, handle; wingnut &
8220 JB1L KP5L 1/4” long threaded bearing, handle; wingnut
8295 JB1XL KP5XL 1/4” extra long threaded bearing, handle;
Packed 100 Per Carton.
1/4” DIAL REGULATOR SETS AND BEARINGS (FOR DAMPERS UP TO 10”)
These heavy gauge plated steel regulators are among the most popular on the market. They minimize air leakage and reduce rattle. A wing nut locks the damper in position, yet permits quick readjustment. The dial shows the damper position at a glance. The regulator mounts easily on round or square ducts.
ITEM# CODE SET CONSISTS OF
8040 KS14 K-2 regulator; KP-8S square end bearing;
8041 KS145 K-2 regulator; KP-6 spring loc bearing;
8047 KS145L K-2 regulator; KP-6L long spring loc bearing;
7384 KS145XLS K-2 regulator; KP-6 spring loc bearing;
Packed 10 Per Carton; 10 cartons per box.
8056 K2 1/4” regulator only
Packed 100 Per Carton.
1/4’’ “JIFFY” REGULATOR SETS
loc bearing, bevelled wingnut & washer
long spring loc bearing, bevelled wingnut & washer
washer
& washer
wingnut & washer
1/4’’ DIAL REGULATOR SETS
KP-8R round end bearing
KP-8S square end bearing
KP-8L long square end bearing
KP-8XL extra long square end bearing
FOR CONTROLLING LARGER DAMPERS
3/8” DIAL REGULATOR SETS AND END BEARINGS (FOR DAMPERS UP TO 20”)
The following sets and parts are the same as the 1/4” size shown above except designed for larger dampers. The 3/8” bearings and regulator are suitable to use on round as well as square duct. Clear markings on the regulator indicate the damper position which can be locked securely by a wing nut. The regulator only is also available in stainless steel - see page 18.
3/8” dial regulator available in stainless steel. See page 18.
3/8’’ DIAL REGULATOR SETS
ITEM# CODE SET CONSISTS OF
8044 KSR19 KR-3 regulator; KP-9R round end bearing;
KP-9S square end bearing
8045 KSR195 KR-3 regulator; KP-7 spring loc bearing;
KP-9S square end bearing
8139 KSR195L KR-3 regulator; KP-7L long spring loc bearing;
KP-9L long square end bearing
7383 KSR195XLS KR-3 regulator; KP-7 spring loc bearing;
KP-9XL extra long square end bearing
Packed 1 Set Per Carton
8058 KR3 3/8” dial regulator only
Packed 100 Per Carton
3/8” “WEDGE-LOC®” REGULATOR SETS (FOR DAMPERS UP TO 20”)
This attractive rectangular regulator features ex­clusive “Wedge Loc” action which firmly locks the bearing to the regulator handle when the damper is set – preventing rattling. Heavy construction, minimum air leakage and easy adjustability make this ideal for large dampers in round or square ducts.
ITEM# CODE SET CONSISTS OF
8042 KS19 K3 regulator; KP-9S spring end bearing; KP-
8043 KS195 K-3 regulator; KP-7 spring loc bearing;
8048 KS195L K-3 regulator; KP-7L long spring loc bearing;
Packed 1 Set Per Carton
3/8’’ WEDGE ‘LOC’ REGULATOR SETS
9R round end bearing
KP-9S square end bearing
KP-9L long square end bearing
SPECLINE - STAMPLINE REGULATOR SET
3/8” OPEN-CLOSED REGULATOR SET
ITEM# CODE SET CONSISTS OF
6338 SBKS385L K4 Quadrant, KP9L Long Square End Bearing, KP7L Long Spring Loc Bearing,
SB138 3/8” Open End Bearing, SB338 3/8” Closed End Bearing
Page 7
®

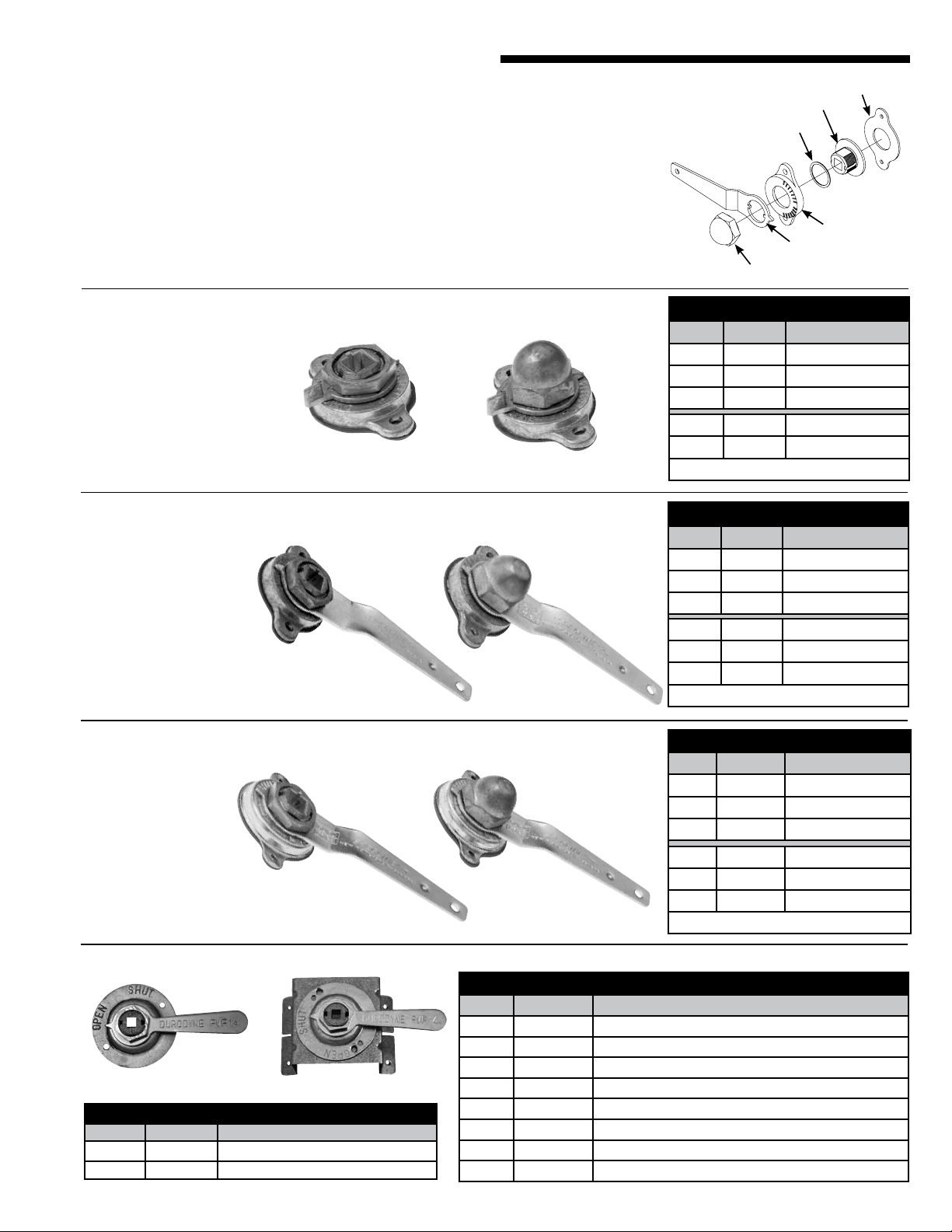

SPECLINE
REGULATORS
MINIMUM LEAKAGE DAMPER REGULATORS
Specline Regulators are designed for minimum leakage applications. Each regulator is comprised of a frame, an indicator handle, a serrated cast alloy core and a cast alloy nut. Serrations on the cast alloy core mesh with serrations in the frame to firmly lock the regulator in position. A spring washer situated between the core and the cast frame allows for smooth non-binding adjustment.
•All SR and SRH type regulators include a cast alloy frame and a neoprene frame gasket.
•The SRHS and SRS utilize a stamped frame and include a neoprene frame gasket.
CAST ALLOY
CAP NUT
SERRATED
CAST ALLOY
SPRING
WASHER
INDICATOR
HANDLE
CORE
CAST
FRAME
NEOPRENE
FRAME
GASKET
INDICATOR STYLE REGULATOR WITH HEX NUT AND ACORN NUT
Regulator Height 5/8” Regulator Height 1-3/8”
•Cast Alloy Frame and Body
•Heavy Mounting Gasket
•Heavy Cast Indicator Dial
•Hex Nut
SRH Series
SR Series
HANDLE REGULATOR WITH HEX NUT AND ACORN NUT
Regulator Height 5/8” Regulator Height 1-3/8”
•Cast Alloy Body
•Heavy Stamped Handle
•Hex Nut
•Solid Die Cast Core
SRH Series
SR Series
HANDLE STYLE (STAMPED) REGULATOR WITH HEX NUT & ACORN NUT
Regulator Height 5/8”
•Stamped Frame
•Heavy Stamped Handle
•Solid Die Cast Core
•Hex Nut
SRHS Series
Regulator Height 1-3/8”
SRS Series
INDICATOR STYLE CAST
ITEM# CODE SHAFT SIZE & NUT
8010 SRH240 1/4” Hex Nut
8012 SRH280 3/8” Hex Nut
8014 SRH220 1/2” Hex Nut
8003 SR380 3/8” Acorn Nut
8005 SR120 1/2” Acorn Nut
Packed 10 Per Carton
HANDLE SET CAST
ITEM# CODE SHAFT SIZE & NUT
8011 SRH248 1/4” Hex Nut
8013 SRH288 3/8” Hex Nut
8015 SRH228 1/2” Hex Nut
8002 SR148 1/4” Acorn Nut
8004 SR388 3/8” Acorn Nut
8006 SR128 1/2” Acorn Nut
Packed 10 Per Carton
HANDLE SET (STAMPED)
ITEM# CODE SHAFT SIZE & NUT
8016 SRHS148 1/4” Hex Nut
8017 SRHS388 3/8” Hex Nut
8018 SRHS128 1/2” Hex Nut
8022 SRS148 1/4” Acorn Nut
8023 SRS388 3/8” Acorn Nut
8024 SRS128 1/2” Acorn Nut
Packed 10 Per Carton
WIDE BASE HEX NUT REGULATOR
FVF SERIES WITH STANDOFF
ITEM# CODE DESCRIPTION
6309 SFVF14-1 1/4” Universal 1” Standoff Wide Base Dial Regulator
6310 SFVF14-1.5 1/4” Universal 1-1/2” Standoff Wide Base Dial Regulator
6311 SFVF14-2 1/4” Universal 2” Standoff Wide Base Dial Regulator
FVFSeries SFVFSeries
FVF SERIES
ITEM# CODE DESCRIPTION
6336 FVF14 1/4” Wide Base Hex Nut Regulator
6337 FVF38 3/8” Wide Base Hex Nut Regulator
6312 SFVF14-3 1/4” Universal 3” Standoff Wide Base Dial Regulator
6313 SFVF38-1 3/8” Universal 1i” Standoff Wide Base Dial Regulator
6314 SFVF38-1.5 3/8” Universal 1-1/2” Standoff Wide Base Dial Regulator
6315 SFVF38-2 3/8” Universal 2” Standoff Wide Base Dial Regulator
6316 SFVF38-3 3/8” Universal 3” Standoff Wide Base Dial Regulator
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 7
Page 8
®
SPECLINE
REGULATORS

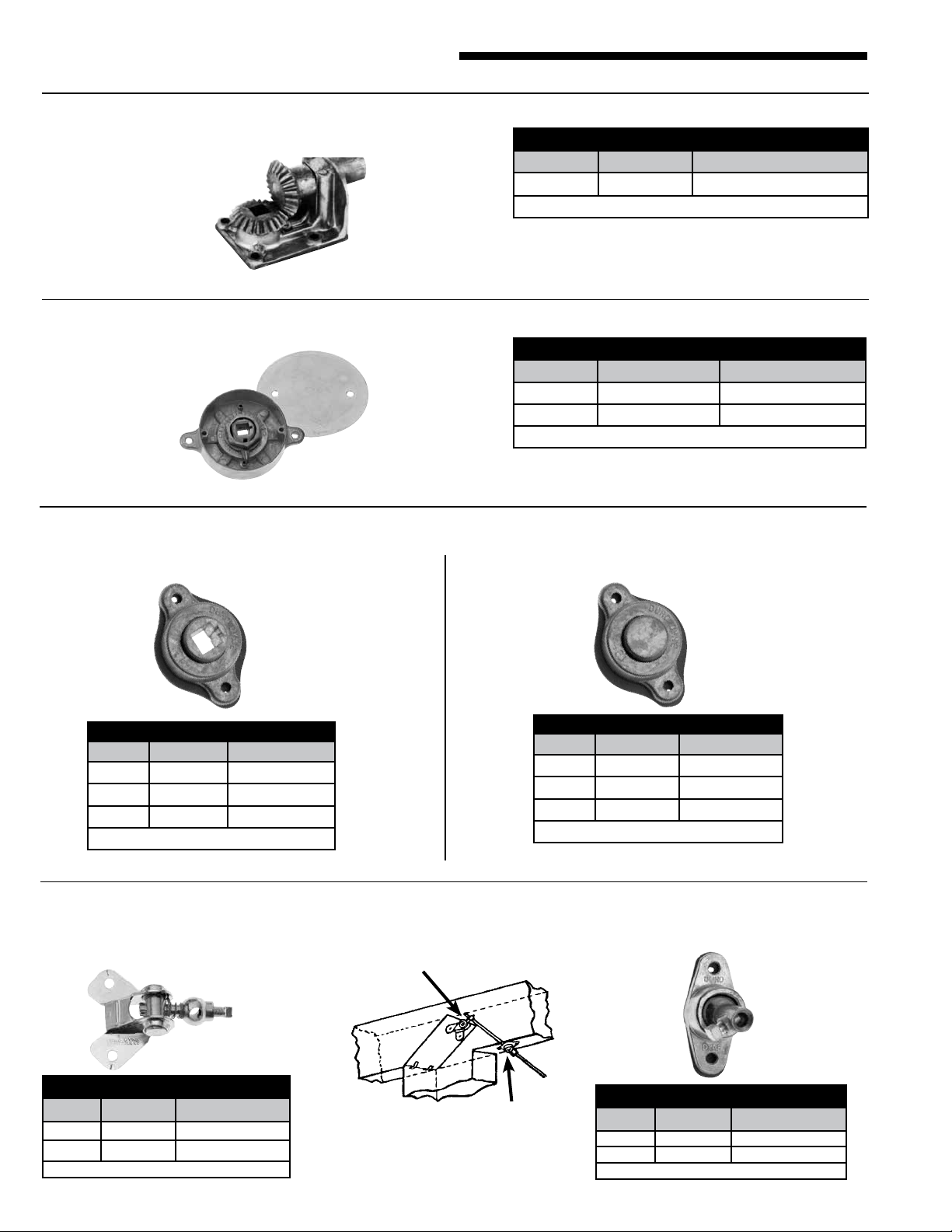

90º ANGLE DRIVE DIE CAST MITRE GEAR ASSEMBLY
Will accommodate 3/8” square rod from duct
CONCEALED STYLE REGULATOR SET WITH HEX NUT
Attractive cast alloy housing with a corrosion resistant plated cover
(CONTINUED)
Packed 5 Per Carton
Packed 5 Per Carton
90º ANGLE DRIVE
ITEM# CODE DESCRIPTION
8135 AD38
CONCEALED
ITEM# CODE SHAFT SIZE
8007 SRC140 1/4” sq.
8008 SRC380 3/8” sq.
Mitre Gear Assembly
SPECLINE PARTS AND ACCESSORIES
OPEN END BEARING CAST ALLOY
OPEN END
ITEM# CODE SHAFT SIZE
8025 SB114 1/4” sq.
8027 SB138 3/8” sq.
8029 SB112 1/2” sq.
Packed 25 Per Carton
SPLITTER DAMPER HARDWARE
SPLITTER DAMPER BRACKET
Steel Bracket, Brass Pivot
Splitter Damper Bracket
CLOSED END BEARING CAST ALLOY
CLOSED END
ITEM# CODE SHAFT SIZE
8026 SB314 1/4” sq.
8028 SB338 3/8” sq.
8030 SB312 1/2” sq.
Packed 25 Per Carton
BALL JOINT DAMPER CASTING
Cast Alloy
SPLITTER DAMPER
ITEM# CODE SHAFT SIZE
8034 SRP40 1/4”
8035 SRP50 5/16”
Packed 25 Per Carton
Ball Joint
Damper Casting
BALL JOINT
ITEM# CODE SHAFT SIZE
8032 SRP14 1/4” 8033 SRP516 5/16”
Packed 25 Per Carton
Page 9

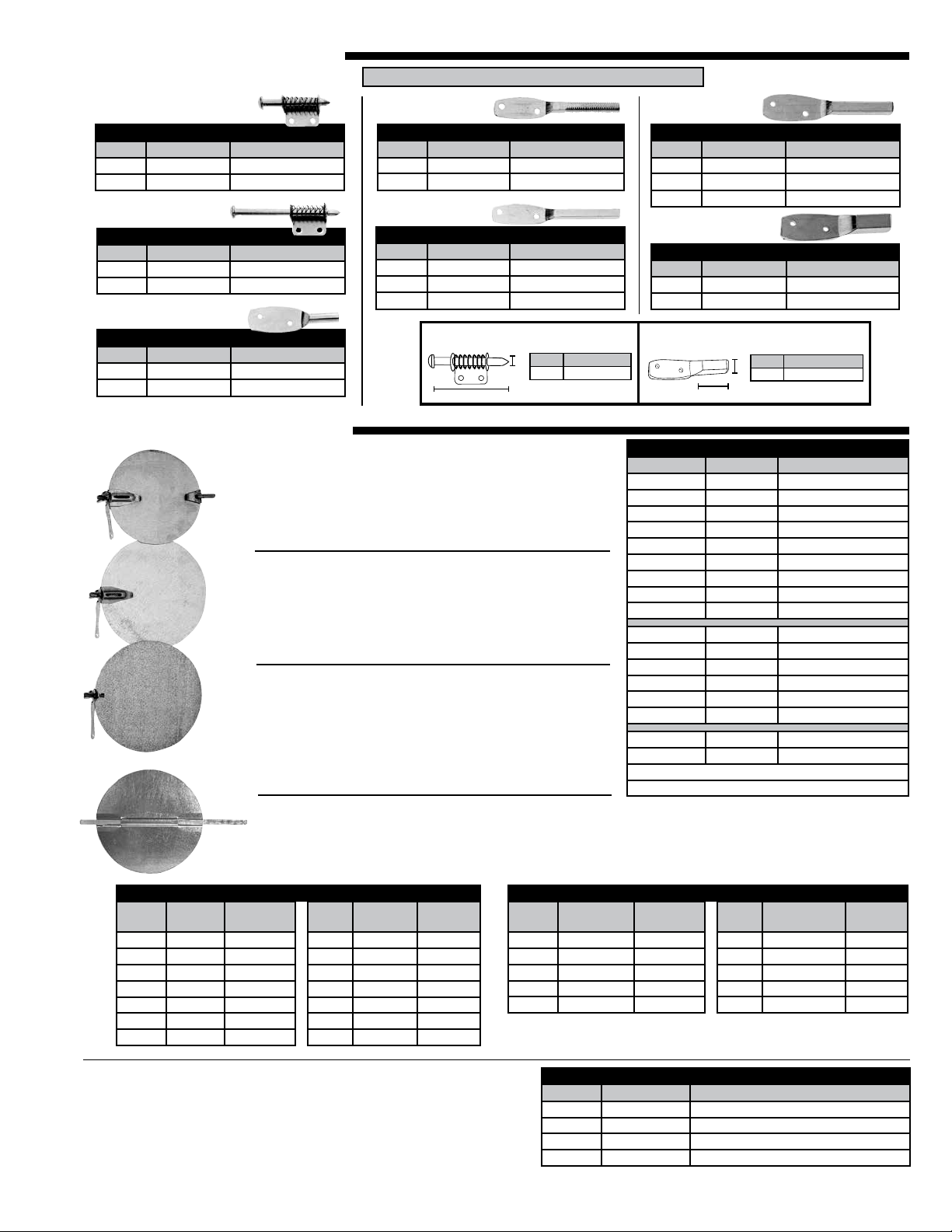

END BEARINGS
(PACKED 100 PER CARTON)
Select items available in stainless steel. See page 19.
SPRING LOC
ITEM# CODE APPROX. DIM.
8065 KP6 1/4’’ x 2’’ 8066 KP7
3/8’’ x 2-11/16’
’
SPRING LOC LONG
ITEM# CODE APPROX. DIM.
8241 KP6L 1/4’’ x 3-1/4’’ 8242 KP7L 3/8’’ x 3-3/4’’
ROUND
ITEM# CODE APPROX. DIM.
8070 KP9R 3/8’’ x 1-1/8’’ 8073 KP10R 1/2’’ x 1-1/4’’
JIFFY DAMPERS
The “JDS” Series Jiffy Damper offers the contractor a quality round damper at a cost lower than most shop-made dampers.
JDS
JD
JDEH
The Duro Dyne JDS series utilizes quality Rapit Spring and Rapit Solid End Bearing sets. (Packed 10 per carton only.)
The “JD” Series Jiffy Damper offers added economy in those applications where a supporting solid tail bearing is not required on the damper. The Duro Dyne JD Damper utilizes one Rapit Spring End Bearing. (Packed 10 per carton only.)
The “JDEH & JDE” Series Jiffy Damper offers an inexpensive alternative for low pressure applications. The Duro Dyne Economy Damper utilizes one threaded stud as a support bearing. Available with handle (JDEH) or without (JDE). (Packed 100 per carton only.)
1/4” SQUARE THREADED
ITEM# CODE APPROX. DIM.
8075 KP5 1/4’’ x 1-1/8’’ 8079 KP5XL 1/4’’ x 3-1/8’’
1/4” SQUARE
ITEM# CODE APPROX. DIM.
8068 KP8S 1/4’’ x 1-1/8’’ 8069 KP8L 1/4’’ x 2-1/8’’ 8077 KP8XL 1/4’’ x 3-1/8’’
Spring Loc Example KP6 #8065:
B
ITEM# APPROX. DIM.
A
8065 1/4’’(A) x 2’’(B)
3/8” SQUARE
ITEM# CODE APPROX. DIM.
8071 KP9S 3/8’’ x 1-1/8’’ 8072 KP9L 3/8’’ x 2-1/8’’ 8247 KP9XL 3/8’’ x 3-1/8’’
1/2” SQUARE
ITEM# CODE APPROX. DIM.
8074 KP10S 1/2’’ x 1-1/4’’ 8179 KP10L 1/2’’ x 2-1/4’’
Square Example KP8S #8068:
ITEM# APPROX. DIM.
A
8068 1/4’’(A) x 1-1/8’’(B)
B
JIFFY DAMPERS
ITEM# CODE
8092 JDS4 4” 8093 JDS5 5” 8094 JDS6 6” 8095 JDS7 7” 8096 JDS8 8” 8097 JDS9 9” 8137 JDS10 10” 7188 JDS12 12” 7189 JDS14 14”
8098 JD4 4” 8099 JD5 5” 8100 JD6 6” 8101 JD7 7” 8146 JD8 8” 8140 JD10 10”
7111 *JDE6 6”
7120 **JDE6H 6” *JDE and JDEH series dampers available in other sizes **JDEH series dampers contain handles
FOR DUCT SIZE DIA.
The Heavy Duty Jiffy Damper (HDJD) offers an economical alternative to in shop damper fabrication. It is manufactured of 22 gauge galvanized steel blades and comes pre-assembled. The 3/8’’ square rod extends 3
HDJD
inches beyond the blade. The HDJD is compatible with Duro Dyne’s ESO damper regulator assembly. (Packed 10 per carton only.)
HDJD DAMPERS
ITEM# CODE
7077 HDJD4 4” 7168 HDJD12 12” 7078 HDJD5 5” 7169 HDJD14 14” 7163 HDJD6 6” 7170 HDJD16 16” 7164 HDJD7 7” 7273 HDJD18 18” 7165 HDJD8 8” 7274 HDJD20 20” 7166 HDJD9 9” 7275 HDJD22 22” 7167 HDJD10 10” 7276 HDJD24 24”
FOR DUCT
SIZE DIA.
ITEM# CODE
FOR DUCT
SIZE DIA.
ITEM# CODE
6357 HDJD4UA 4” 6362 HDJD9UA 9” 6358 HDJD5UA 5” 6363 HDJD10UA 10” 6359 HDJD6UA 6” 6364 HDJD12UA 12” 6360 HDJD7UA 7” 6365 HDJD14UA 14” 6361 HDJD8UA 8” 6366 HDJD16UA 16”
HDJD DAMPER / UESO38-200 REGULATOR / BKPRB83 BUSHING KITS
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 9
ITEM# CODE
6327 HDJD6S 3/8” Shaft w/ 6” Diameter Damper Kit 6328 HDJD8S 3/8” Shaft w/ 8” Diameter Damper Kit 6329 HDJD10S 3/8” Shaft w/ 10” Diameter Damper Kit 6330 HDJD12S 3/8” Shaft w/ 12” Diameter Damper Kit
HDJD DAMPERS - UNASSEMBLED
FOR DUCT
SIZE DIA.
ITEM# CODE
HDJD / UESO / BUSHING KITS
FOR DUCT SIZE DIA.
FOR DUCT
SIZE DIA.
Page 10
HAMMER ON DAMPER HARDWARE & ACCESSORIES

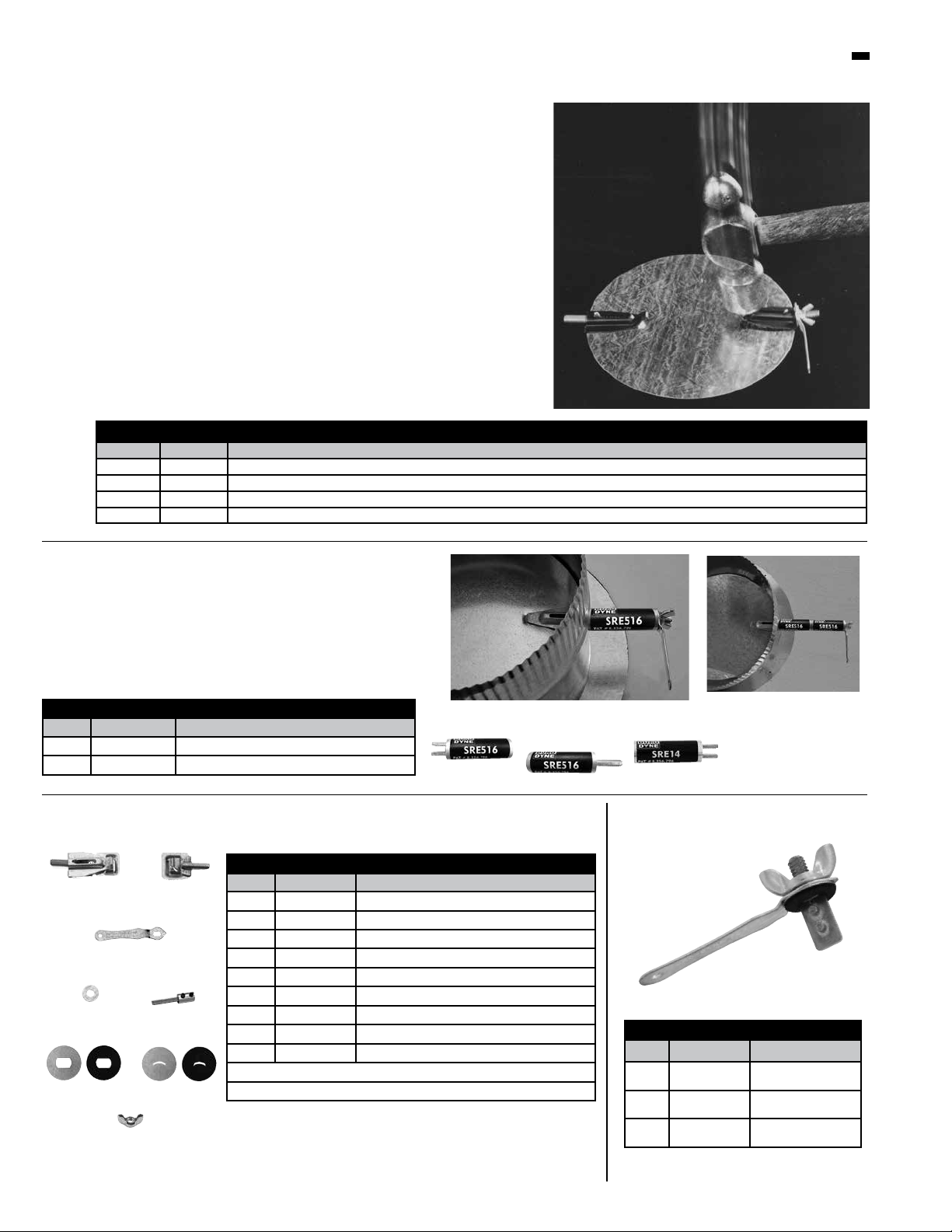

‘RAPIT’® DAMPER REGULATOR
The RAPIT is an inexpensive, rattle-free regulator for quick installation on balance or splitter dampers. It is formed from rust-resistant, heavy gauge, galvanized steel and installs in seconds. The Rapit will penetrate and secure to round or rectangular damper blades up to 24 gauge steel. It has a fully retractable bearing of zinc alloy, threaded to accept a 5/16-18 wing nut and a handle that
indicates the damper position. It’s as easy to use as 1-2-3.
1. Slip the bearing over the edge of the damper at the bearing line.
2. Lay the assembly on any firm surface and rap the prong with a hammer.
One blow drives the prong through the damper blade, holding it securely to the damper.
3. When hit with a hammer, the prong will automatically form up tight by
the anvil, which is built into the bottom of the “Rapit” Bearing.
RAPIT REGULATOR SETS
ITEM# CODE CONSISTS OF:
8087 RB56 1 RB-50 Rapit spring bearing; 1 RP-3 washer; 1 RP-2 wing nut 8086 RS156 1 RB-50 Rapit spring bearing; 1 RP-3 washer; 1 RP-1 handle; 1 RP-2 wing nut 8085 RS256 2 RB-50 Rapit spring bearings; 1 RP-3 washer; 1 RP-1 handle; 1 RP-2 wing nut 8233 RS356 1 RB-50 Rapit spring bearing; 1 RB-2 5T threaded Rapit solid bearing; 1 RP-3 washer; 1 RP-1 handle; 1 RP-2 wing nut
Note: Not recommended for use
in systems over 300
o
F.
SLIDE RAPIT® EXTENSION
The Slide Rapit Extension provides a fast method for extending the length of a rapit spring end bearing 2’’. There is no need for tools; just twist the extension fork over the threaded bearing and slip the sleeve over the joint. Slide Rapit Extensions can also be combined to accommodate liner thicker than 2’’.
Patent #
8,356,796
SLIDE RAPIT EXTENSION
ITEM# CODE DESCRIPTION
7378 SRE516-516 5/16” Slide Rapit Extension
7308 SRE14-14 1/4” Slide Rapit Extension
RAPIT® REGULATOR PARTS
RAPIT REGULATOR PARTS
RB50
Bearing
RP3
Washer
RP3-50NEO
Wing Nut
RB25T
Bearing
RP1
Handle
REC14
RP3-25NEO
RP2E
ITEM# CODE DESCRIPTION
8088 RB50 Rapit spring bearing
8201 RB25T Threaded Rapit solid bearing
8089 RP1 Rapit handle
8090 RP2 Rapit wing nut
8091 RP3 Rapit washer
7190 RP3-50NEO RB50 washer with neoprene
7191 RP3-25NEO RB25 washer with neoprene
7388 REC14 1/4” Square Rapit Extension 2-3/4” long
7349 RP2E 5/16-18 Stamped Wing Nut
Packed 100 per carton* (*7388 packed 10 per carton)
Bulk packing also available
2” extension
Two combined Slide
Rapit extensions
ECONO-STUD - ECONOMY DAMPER HARDWARE
ECONOMY DAMPER HARDWARE
ITEM# CODE DESCRIPTION
7031 ES14 1/4”
Econo-Stud
7033 ES14W 1/4-20 Stamped
Wing Nut
7035 ES14NW-NEO 1/4” Washer with
Neoprene
Page 11

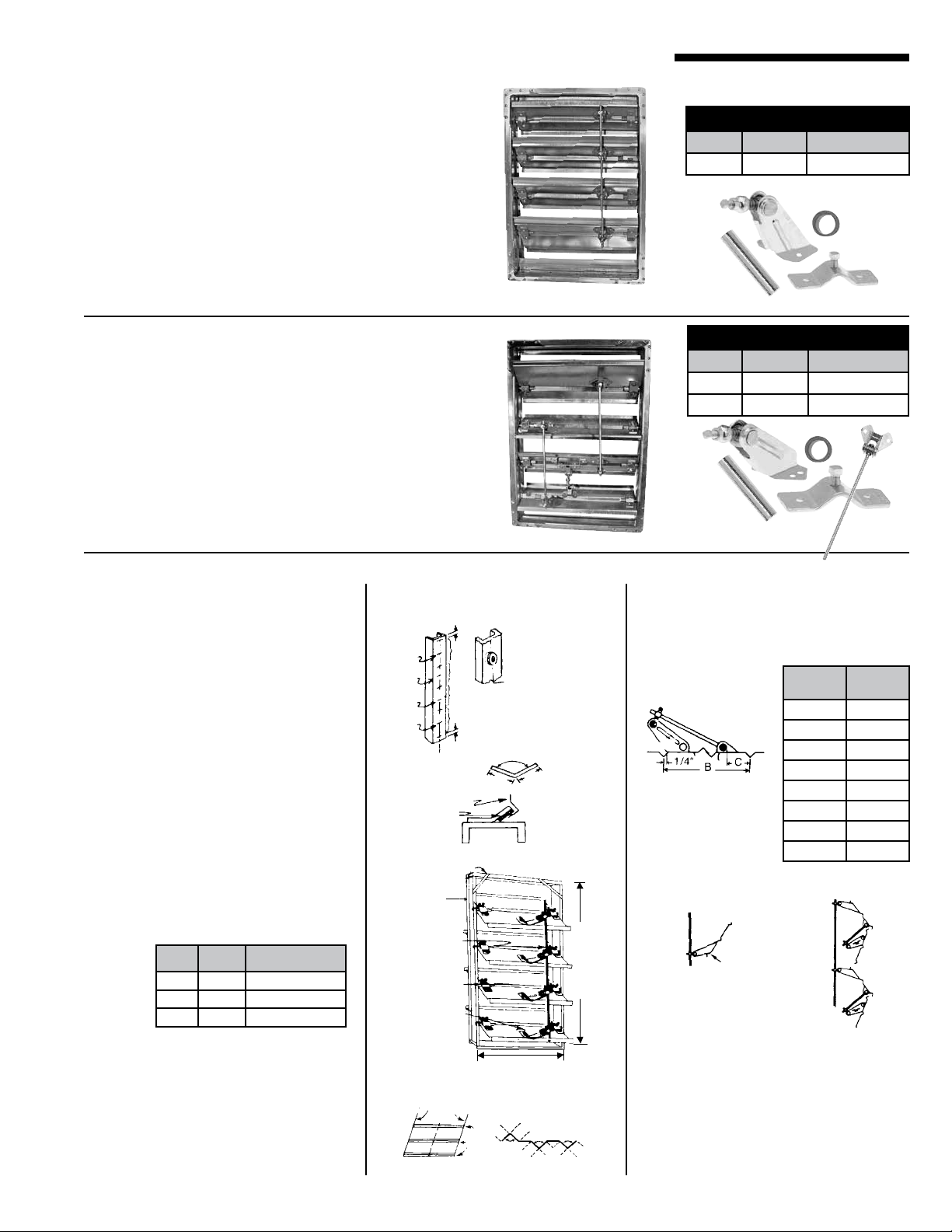

MULTI-BLADE DAMPER HARDWARE
NEVA-BIND™ DURO BLADE KIT
FOR PARALLEL DAMPERS
Duro Dyne’s “NEVA-BIND” Linkage Bracket will always align itself to assure smooth, non-binding operation even on the heaviest damper blades. Above, or at unequal distance from the blade axis, it is capable of adjusting itself all four ways, in-out, up-down, sideways and rotation. Each carton contains all necessary hardware for one blade of a parallel multi-blade damper.
PARALLEL
ITEM# CODE BEARING SIZE
2002 BK2 1/2” ID.
OPAX® BLADE KIT
FOR OPPOSED ACTION DAMPERS
Opposed Action Dampers minimize turbulence and the control of the air is more linear. Neva-Bind, 4 way self-adjustability which Duro Dyne “OPAX” kits feature, automatically compensates for any construction inaccuracies as well as maintaining linear operation
ITEM# CODE BEARING SIZE
2003 BKO3 7/16” ID.
2004 BKO4 1/2” ID.
OPPOSED
and critical dimensions between linkage points. “OPAX” provides opposed action of damper blades and holds the blades rigidly in position eliminating rattle or flutter. These linkage kits contain all the necessary hardware for two opposed action damper blades.
DAMPER ASSEMBLY UTILIZING SHOP MATERIALS
A. MAKING THE FRAME
(Same for both parallel and opposed dampers)
1. Cut a piece of channel for the frame 1/4” less
than the duct size, for clearance.
2. SIDE FRAME: a. Mark off 5/16” from each end. b. Divide the section inside these marks into as
many parts as there are blades required.
c. Mark for each pivot at the center of each
blade section (b).
c
c
c
c
d. Drill or punch a 5/8” hole at each pivot (c).
Insert self-oiling bushings (tap fit).
3. Weld the sides and bottoms of the frames. Be
sure to keep them square. On large frames weld on corner braces to keep
4.
the frame square. Place any braces on the side of the frame which will not interfere with blade movement. Attach top and bottom end stops, if required. Cement felt, if required, with insulation adhesive.
Channel
1/2” x 1/2” x 1-1/2” x 1/8”
B. MAKING THE BLADES
Same for both parallel and opposed dampers
1. Material:
Gauge Blade
Width
Activating Brackets
Required per blade
1/2” x 1/2” x 1” x 1/8”
7/16” x 2-1/2” x BKP-1
1/2” x 2-1/2” BKP-5
20 to 36’’ 1
16 to 48’’ 1 or 2
12 to 52’’ 2
DURO-BRACKET
2. CUT:
a. “WIDTH” dimension 3/16” less than the
inside of frame.
b. “HEIGHT” dimension: Allow for approxi-
mately 7/8” “shrinkage” due to forming; ap­proximately 1/4” blade overlap; approximately
3/16” less than
3/16” end clearance to frame.
3. MARK:
Mark the blades as shown and bend on the scribe lines.
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 11
a
3/16”
b
b
b
b
a
3/16”
C
L
Blade
Felt
PARALLEL DAMPER
Corner Braces
or
C Pin
or
Strap
BKP-13
DAMPER BLADE
“Width”
inside of frame
SIDE FRAME
7/16” I.D.– BKP-9
1/2” I.D.– BKP-10
135
1/2”
END STOP
1/4” less than duct
1/2”
1/2” Spaces
90
O
1/2”
o
Bushing
or
1/2”
90
1/2”
1/2”
o
1/ 2 ”
1/4” less than duct
o
90
1/2”
C. MOUNTING THE HARDWARE
“OPAX” HARDWARE
Attach the brackets as shown in drawing “B”. (Al­ways drive a “lo” blade, never a “hi” blade.)
DImension
“B”
Distance
“C”
5” 1’’
Hi
Lo
6” 1-3/16”
7” 1-1/4”
Distance C from center of “V” in blade to center of mounting holes on LO bracket. (Scribe mark on bracket).
8” 1-5/16”
9” 1-3/8”
10” 1-3/8”
11” 1-7/16”
12’’ 1-1/2”
Attach the brackets
at the center of
blade.
PARALLEL HARDWARE
Lean bracket here, against the edge of the “V”
OPPOSED DAMPER “B”
DURO-BRACKET
“lo”
“lo”
D. ASSEMBLING THE DAMPER
1. Lay the damper frame flat on the bench.
2. Place the blades inside the frame in the approxi­mate required position (correct overlap, etc.)
3. Place 2 bearing pins in each center blade groove.
4. Slide the pins under the straps (loosen the set­screws) and into the frame. Tighten the strap set-screws.
5. Attach all linkage rods.
Page 12

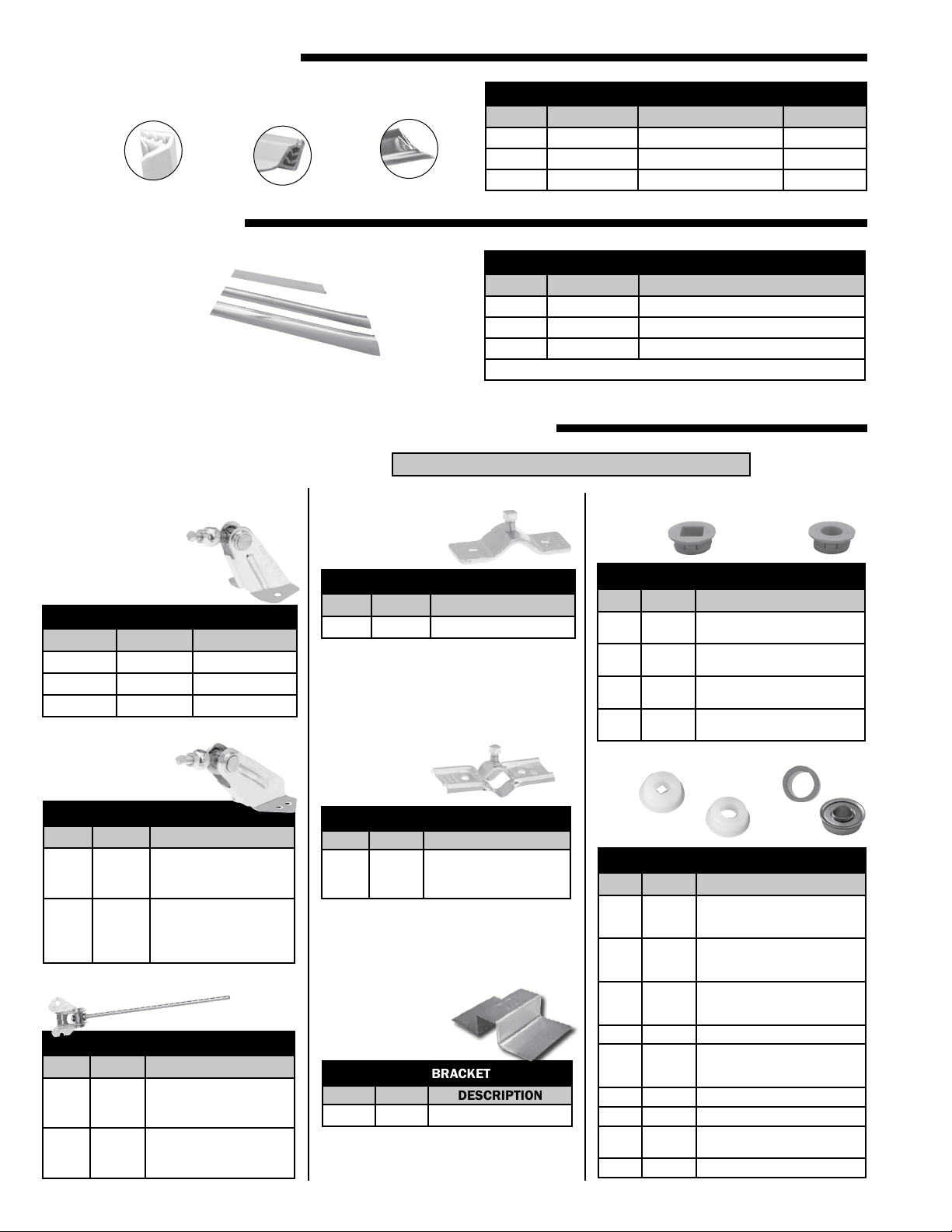

BLADE EDGING
White
Vinyl
Grey Vinyl
SIDE SEALS
Stainless
Steel
DAMPER BLADE EDGINGS
ITEM# CODE DESCRIPTION LENGTH
2151 BKDBE2 White Vinyl 6 ft.
2156 BKDBE3 Grey Vinyl 6 ft.
2153 BKDBE-SSE Stainless Steel 12 ft.
BKSS
BKDSE-SSN
BKDSE-SSW
ITEM# CODE DESCRIPTION
2077 BKSS Side Seal
2154 BKDSE-SSN Side Edging 1-1/2”
2155 BKDSE-SSW Side Edging 2.59”
*For large runs, custom punched designs available upon request

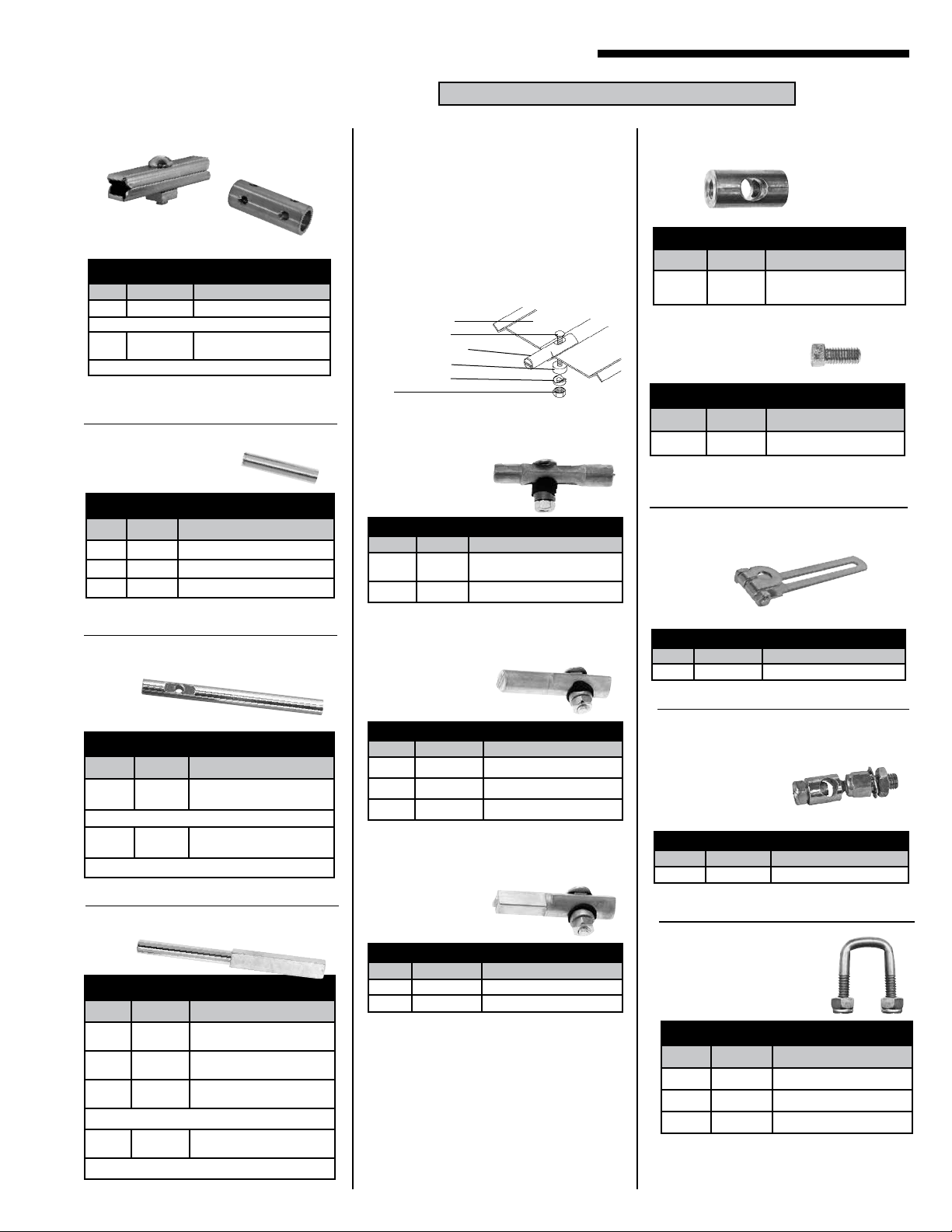

MULTI-BLADE DAMPER PARTS
(All steel parts are Zinc or Cadmium Plated) ALL PACKED 100 PER CARTON UNLESS NOTED
BLADE BRACKETS
Standard Bracket as supplied in BK-1 and BK-2 Parallel Kits.
STANDARD BRACKETS
ITEM# CODE ROD SIZE
2005 BKP814 1/4”
2006 BKP856 5/16”
2007 BKP838 3/8”
HIGH BRACKETS
ITEM# CODE DESCRIPTION
2008 BKP22 High Bracket as supplied
2011 BKP25 High Bracket (not Neva-
LOW BRACKETS
ITEM# CODE DESCRIPTION
2009 BKP23 Low Bracket and Linkage
2010 BKP24
BKP814
BKP22
in Opax Blade Kits BKO-3 and BKO-4
Bind) with Brass Pivot & Steel Set Screw (Not Shown)
BKP23
Rod as supplied in Opax Blade Kits
Low Bracket (not Neva-Bind) with Brass Pivot & Steel Set Screw (Not Shown)
STRAPS
ITEM# CODE DESCRIPTION
2016 BKP13 Strap and set screws
ITEM# CODE DESCRIPTION
2025 BKP71 Self-aligning strap and set
ITEM# CODE DESCRIPTION
2075 BKHS38 3/8” Hat Bracket 22ga
Select items available in stainless steel. See page 19.
BKP13
STANDARD & SET SCREW
BKP71
SELF ALIGN & SET SCREW
screws. “V” groove does not deform blade.
BKHS38
HAT BRACKET
STAINLESS STEEL SIDE SEALS
BUSHINGS
BKPRB81
RUBBER BUSHINGS
ITEM# CODE DESCRIPTION
2266 BK-
PRB80
2267 BK-
PRB81
2268 BK-
PRB82
2269 BK-
PRB83
BKP81
1/4” Square ID rubber bushings
3/8” Square ID rubber bushings
BKP82
BUSHINGS
ITEM# CODE DESCRIPTION
2012 BKP9
2013 BKP10
2240 BKP80
2241 BKP81 Plastic Bushing 1/4” sq. ID.
2242 BKP82 Plastic Bushing 3/8” dia. ID.
2079 BKP64 Plastic Bushing 1/2” dia. ID.
2244 BKP84 Plastic Bushing 1/2” sq. ID.
2261 BKP30P
2277 BKP83T
Bronze Bushings 7/16” dia. ID. as supplied in BK-1 Parallel Blade Kits and BKO-3 Opax Kits.
Bronze Bushings 1/2” dia. ID. as supplied in BK-2 Parallel Blade Kits and BKO-4 Opax Kits.
Plastic Bushing 1/4” dia. ID. is designed for use with KP6 & KP6L Spring Loc Bearings Only.
designed for use with KP7 & KP7L Spring Loc Bearings Only.
BKPRB82
1/4” Round ID rubber bushings
3/8” Round ID rubber bushings
BKP10
BKP30P
Closed flanged ball bearing
bushing 1/2” ID
3/8” Square Loc Bushing
is
Page 13
MULTI-BLADE DAMPER PARTS
(All steel parts are Zinc or Cadmium Plated) ALL PACKED 100 PER CARTON UNLESS NOTED
Select items available in stainless steel. See page 19.
(CONTINUED)
ROD COUPLINGS
SRP10
BKP3812
ROD COUPLING
ITEM# CODE DESCRIPTION
8031 SRP10 3/8” Rod Coupling
Sold 12 Per Carton
2239 BKP3812
Sold 50 Per Carton
3/8” Square to 1/2’’ Round Rod Coupling
STANDARD PINS
BKP1
STANDARD PINS
ITEM# CODE DESCRIPTION
2017 BKP1
2019 BKP5
2020 BKP6 1/2” diameter
7/16” diameter pin 2-1/2” long
1/2” diameter pin 2-1/2” long
pin
6” long
SLIDE PINS
With Duro Dyne’s complete line of Damper Slide Pins, nearly every configuration requirement can be satisfied. Duro Dyne’s Damper Blade Slide Pin selection provides a low cost alternative to damper hardware such as straps, set screws and solid pins. Installation is as easy as 1-2-3.
1. Punch a hole in the Damper Blade
2. Position a Pin on the Blade
3. Lock the pin in position by tightening 1/4”
hex nut after sliding the pin into the damper bushing.
Damper Blade Carriage Bolt Slip-In Blade Pin Foam Gasket Lock Washer Nut
DBP1A
SLIDE PINS
ITEM# CODE APPROX. PIN SIZE
2094 DBP1A
2067 DBP1 Damper Blade Pin only
7/16” diameter and 1/2” diam-
eter slide pin, 5/8” Length.
PIVOT & SET SCREW
BKP36
PIVOT
ITEM# CODE DESCRIPTION
2135 BKP36 1/4-28 Brass Pivot
BKP35
Fully Tapped
SET SCREW
ITEM# CODE DESCRIPTION
2134 BKP35 1/4-28x1/2” Set Screw
CRANK ARM
CAC212L
MILLED & DRILLED PINS
BKP116
MILLED & DRILLED PINS
ITEM# CODE DESCRIPTION
2076 BKP116
Sold 50 Per Ctn.
2115 BKP113
Sold 100 Per Ctn.
1/2” diameter, milled and drilled pin
1/2” diameter, 3 1/2” long, milled and drilled pin
6” long,
ROUND TO SQUARE PINS
BKP7
ROUND TO SQUARE PINS
ITEM# CODE DESCRIPTION
2022 BKP4 7/16” diameter to 1/2”
2023 BKP7 1/2” diameter to 1/2”
2024 BKP70 7/16” diameter to 3/8”
Sold 50 Per Ctn.
2063 BKP8 1/2” diameter to 3/8”
Sold 100 Per Ctn.
square, 6” long
square, 6” long
square, 6” long
square, 4” long
RDBP
SLIDE PINS
ITEM# CODE APPROX. PIN SIZE
2221 RDBP100A 1/2” Round Pin 1” Long
2222 RDBP150A 1/2” Round Pin 1½” Long
2223 RDBP200A 1/2” Round Pin 2” Long
SDBP
SLIDE PINS
ITEM# CODE APPROX. PIN SIZE
2215 SDBP100A 3/8” Sq. Pin 1” Long 2217 SDBP200A 3/8” Sq. Pin 2” Long
CRANK ARM
ITEM# CODE DESCRIPTION
8185 CAC212L 1/2” long shaft
CONTROL SWIVEL
DSC516
CONTROL SWIVEL
ITEM# CODE DESCRIPTION
8186 DSC516 Fits 1/4’’ & 5/16’’ Rods
ROD CLIPS
KP25
ROD CLIPS (U-BOLTS)
ITEM# CODE DESCRIPTION
8053 KP25 3/8” Damper Rod Clips
8054 KP26 1/2” Damper Rod Clips
8055 KP27 5/8” Damper Rod Clips
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 13
Page 14

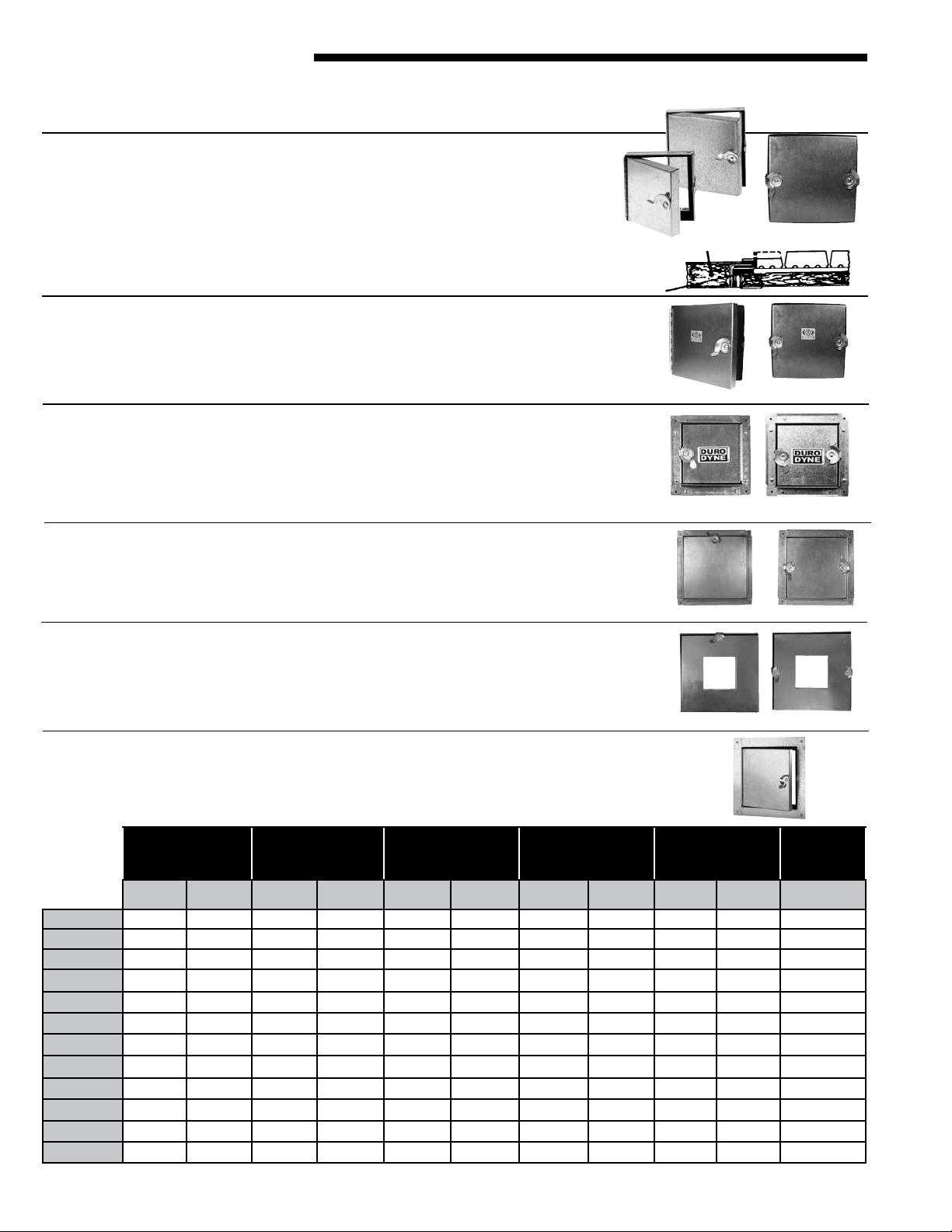

ACCESS DOORS
Duro Dyne Access Doors provide convenient access to the inside of ductwork for testing and cleaning purposes. All doors are manufactured with an integral frame for minimal leakage. They are offered in a variety of sizes and styles for multiple applications including high pressure, ductboard applications and more.
INSULATED ACCESS DOORS TAB STYLE
The IAD Door has been designed to create an airtight seal utilizing a moisture, oil and grease resistant neoprene gasketing between the door to the frame and the frame to the duct. The door panel is constructed out of 24 gauge galvanized steel and is filled with a 1” 1-1/2 lb. fiberglass insulation (K factor .26+.03@75°F). The frame is 24 gauge galvanized steel with punched steel tabs along each side, which locks the frame into the ductwork. Smaller frame corner tabs make installation easy. Double camlock latches are used on doors 14” and larger. 12” and smaller have one camlock. Special sizes can be fabricated with multiple walls of steel or see-through panels or Cam-Lock only style.
Standard Sizes: Installation Note: All holes should be cut 1-1/8” smaller than the door.
YELLOW LABEL INSULATED ACCESS DOORS TAB STYLE
The YIAD Access Door is similar in specifications to the standard Insulated Access Door but is manufactured by industrial workers in the sheet metal union.
Duct Insulation - Outside
Gasket
IAD
IADC
YIAD
INSULATED ACCESS DOORS SELF STICK STYLE
Duro Dyne HSAD & CSAD access doors feature a self stick frame for easy application. Simply size and cut the hole, peel the release paper off the frame, press the door onto the ductwork and secure with screws. They are easy to position with no frame ‘dove tails’ to align and bend. Self Stick Access Doors are manufactured of 24 ga galvanized steel and feature a one inch wide gasketed frame, 1’’ thick fiberglass insulation. They have been tested to 10’’SP with minimal leakage when properly installed.
NHSAD
YELLOW LABEL INSULATED ACCESS DOORS SELF STICK STYLE
The YHSAD & YCSADAccess Doors are similar in specifications to the standard Self Stick Insulated Access Doors but are manufactured by industrial workers in the sheet metal union.
YHSAD
VISION PANEL INSULATED ACCESS DOORS
Manufactured of 24 ga galvanized steel, a 1” 1-1/2 lb. fiberglass insulation and door to frame and frame to door gasket Duro Dyne IADVP’s provide an airtight seal with the added convenience of a vision panel. Square tabs make for an easier and safer installation process. A clear vision panel allows visual duct inspection effortlessly!
IADVP
DUCT BOARD ACCESS DOORS
Duro Dyne’s DBD Series Door is an insulated access door specifically designed for quick and easy installation onto ductboard. Simply cut the appropriate size hole in the duct, remove the release paper from the adhesive strip on the door, and press the door into position. Complete the installation by pushing the nails provided through the eight holes in the frame and capping them with the speed nuts, also provided, on the inside of the duct.
INSULATED ACCESS
DOORS TAB STYLE
Hinged
(IAD)
4x4 • • • • • • 7271 7272 • • •
6x6 8230 8385 7082 7091 7046 7056 7310 7320 6381 6390 •
8x8 8168 8386 7083 7092 7047 7057 7311 7321 6382 6391 36066
10x10 8169 8387 7084 7093 7048 7058 7312 7322 6383 6392 36067
12x12 8170 8388 7085 7094 7049 7059 7313 7323 6384 6393 •
14x10 8171 8390 • • • • • • • • •
14x14 8167 8389 7086 7095 7050 7060 7314 7324 6385 6394 •
16x16 8172 8391 7087 7096 7051 7061 7315 7325 6386 6395 •
18x12 • • • • 7052 7062 7316 7326 • • •
18x18 8173 8392 7088 7097 7053 7063 7317 7327 6387 6396 •
20x20 8174 8393 7089 7098 7054 7064 7318 7328 6388 6397 •
24x24 8175 8394 7090 7099 7055 7065
Cam Only
(IADC)
Clamshell style access doors are available in the Dyn-O-Mate Catalog.
YELLOW LABEL
INSULATED ACCESS
DOORS TAB STYLE
Hinged
(YIAD)
Cam Only
(YIADC)
INSULATED ACCESS
DOORS SELF STICK
STYLE
Hinged
(NHSAD)
Cam Only
(NCSAD)
YELLOW LABEL
INSULATED
ACCESS DOORS
SELF STICK STYLE
Hinged
(YHSAD)
7319
Cam Only
(YCSAD)
7329 6389 6398 •
VISION PANEL
INSULATED ACCESS
DOORS
Hinged
(IADVP)
Cam Only
(IADCVP)
YIADC
NCSAD
YCSAD
IADCVP
DBD
DUCT BOARD
ACCESS
DOORS
(DBD)
Page 15

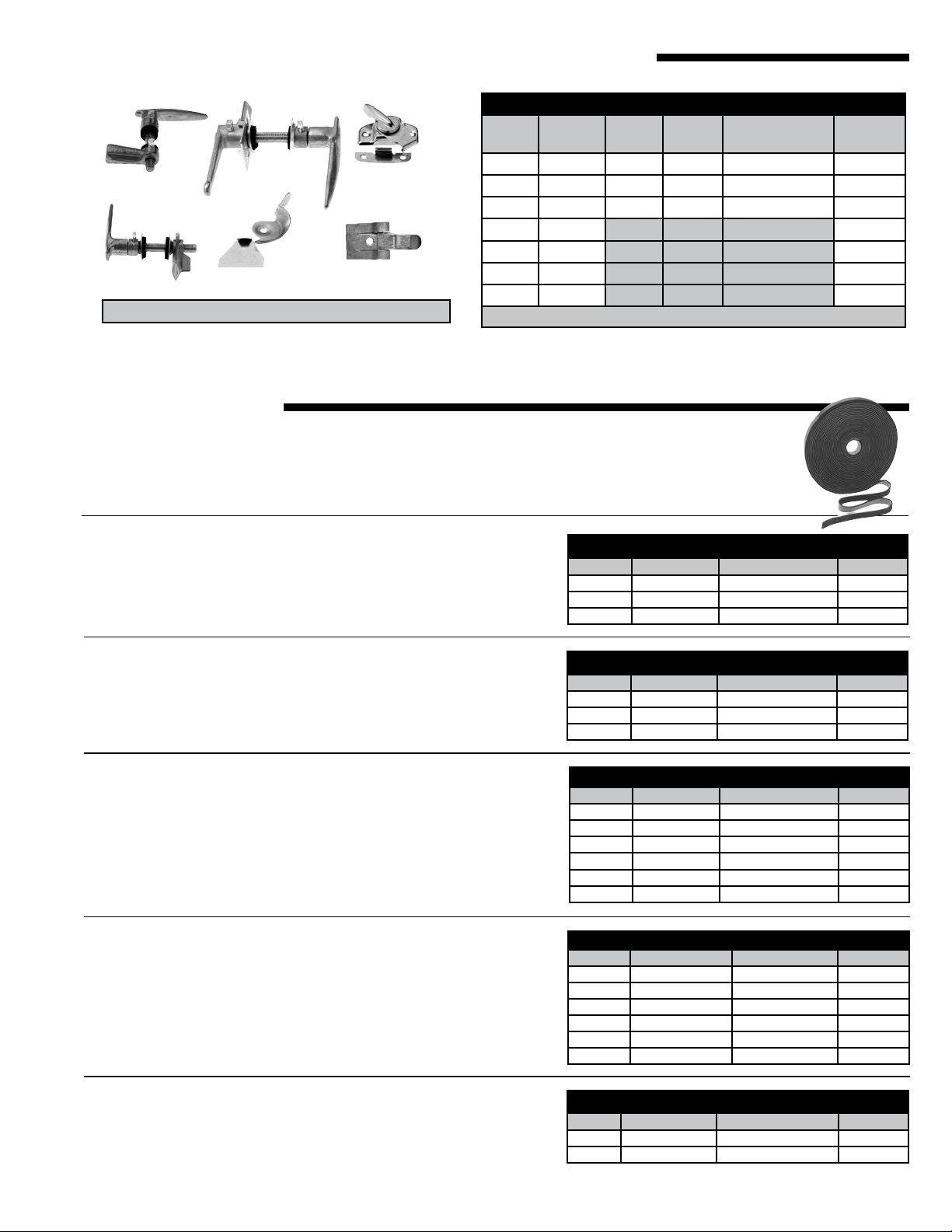

ACCESS DOOR LOCKING DEVICES
ACCESS DOORS LOCKING DEVICES
SP-5
SP-10
Cam Lock available in stainless steel. See page 18.
SP-20
CAM-LOCK
SL-1
A1SF
ITEM#
8105 SP5 2’’ 1/4” dia. 1 3/8’’ 25
8106 SP10 3’’ 3/8” dia. 1 1/2’’ 10
8107 SP20 4’’ 1/2” dia. 2’’ 10
8138
8108 SL1 25
8397 SL2 50
8182 A1SF 100
THE DIMENSIONS SHOWN ARE NORMAL AND SUBJECT TO STANDARD MANUFACTURING TOLERANCES.
CODE
CAM-LOCK
SHAFT
LENGTH
100
SHAFT
SIZE
MAXIMUM
THICKNESS
GASKETING
Wherever flanges are used in connecting parts of a duct system, the potential for air leakage exists. Besides contributing to energy waste, leaks can also create noise. Sealing of ductwork can be accomplished with the use of gasket which adheres to flanged surfaces. When this material is attached to a flange, which is then assembled to a second flange, the material is compressed and fills gaps and irregularities creating a seal.
DOOR
QTY.
PER CTN.
VINYL FOAM (PVC)
Vinyl Foam is a low density PVC Foam. When this material is attached to a flange which is then assembled to a second flange, the material is compressed and fills gaps and irregularities creating a seal.
URETHANE
Urethane Gasket is a 2 lb. Polyester Urethane. When this material is attached to a flange which is then assembled to a second flange, the material is compressed and fills gaps and irregularities creating a seal.
NEOPRENE
Neoperene Gasket is a black, continuous, closed cell, medium density rubber product that has excellent resistance to oil and fuel.
NEOPRENE UL LISTED
Neoperene Gasket is a black, continuous, closed cell, medium density rubber product that has excellent resistance to oil and fuel. UL Listed #723
VINYL FOAM (PVC)
ITEM# CODE DESCRIPTION LENGTH
8123 PVC 1812 1/8” x 1/2” 50’/RL 8124 PVC 1434 1/4” x 3/4” 50’/RL 8125 PVC 3834 3/8” x 3/4” 50’/RL
URETHANE
ITEM# CODE DESCRIPTION LENGTH
8126 UF 312 3/16” x 1/2 50’/RL 8127 UF 1434 1/4” x 3/4” 50’/RL 8128 UF 3834 3/8” x 3/4” 25’/RL
NEOPRENE
ITEM# CODE DESCRIPTION LENGTH
8129 BN 1812 1/8” x 1/2” 50’/RL 8130 BN 1434 1/4” x 3/4” 50’/RL 8131 BN 3834 3/8” x 3/4” 25’/RL 8261 BN 31634 3/16” x 3/4” 50’/RL 8151 BN 51634 5/16”x 3/4” 50’/RL 8149 BN3161 3/16” x 1” 50’/RL
NEOPRENE UL LISTED
ITEM# CODE DESCRIPTION LENGTH
6339 BN1812UL723 1/8” x 1/2” 50’/RL 6340 BN1434UL723 1/4” x 3/4” 50’/RL 6341 BN3834UL723 3/8” x 3/4” 25’/RL 6342 BN31634UL723 3/16” x 3/4” 50’/RL 6343 BN51634UL723 5/16” x 3/4” 50’/RL 6344 BN3161UL723 3/16” x 1” 50’/RL
DOUBLE SIDED BLACK FOAM TAPE
BF2S18 is a 1/8” thick black closed cell, crosslinked polyethylene foam coated on both sides with a high performance acrylic based adhesive with a white kraft liner. Typical applications: circular duct connectors and rectangular duct connectors.
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 15
ITEM# CODE DESCRIPTION LENGTH
7197 BF2S18-100 1/8” x 1” 108’/CTN 7199 BF2S18-112 1/8” x 1-1/2” 108’/CTN
DOUBLE SIDED BLACK FOAM TAPE
Page 16

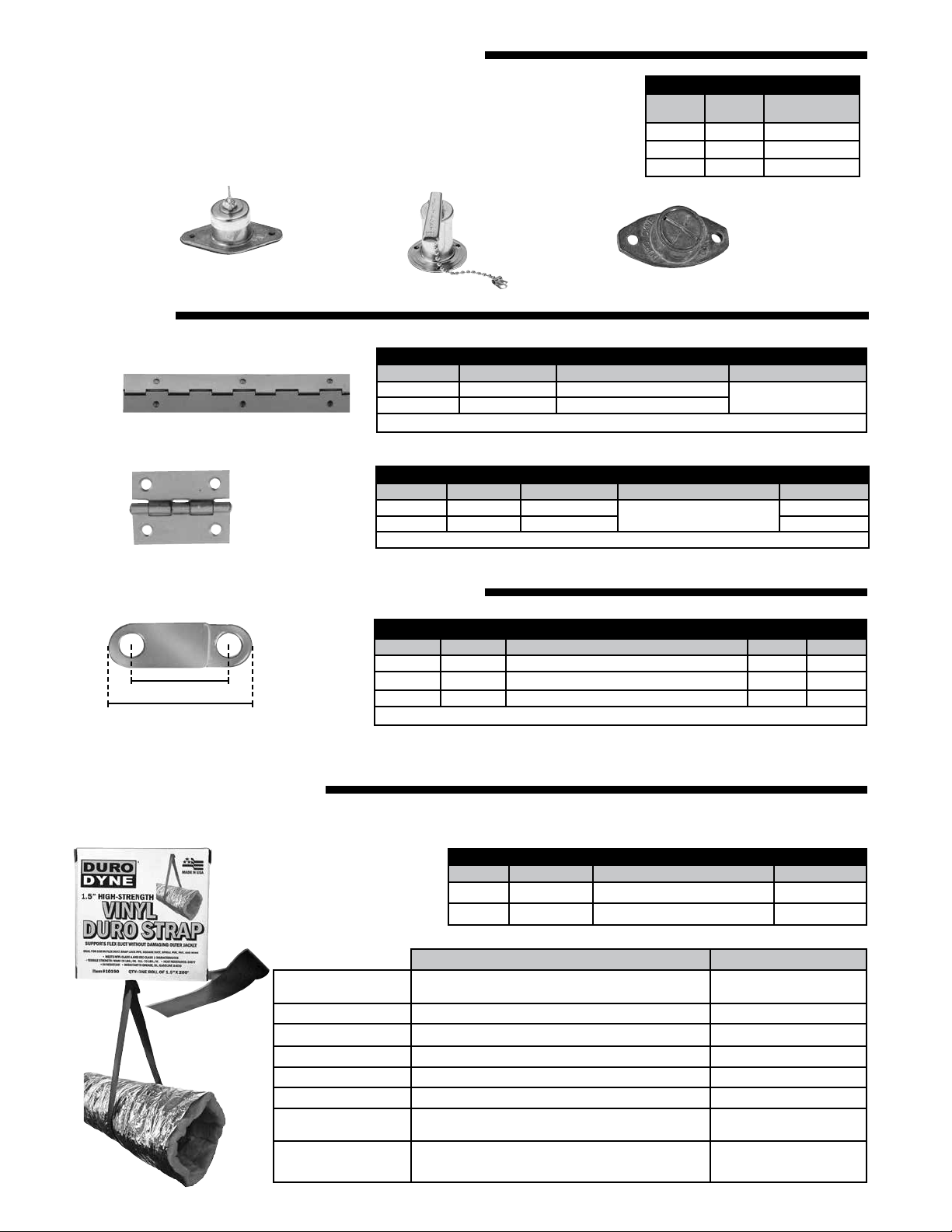

INSTRUMENT TEST PORTS
The Instrument Test Port has a durable cast zinc alloy construction with a heavy gauge zinc plated cap. Its Neoprene Expansion Plug can withstand up to 180°F and has resisted pressures up to 90 PSI when installed. The TH-1 accommodates 1” of insulating materials and has an inside diameter of 1-1/16”. The IP-2 accommodates 2” of insulation material and has an inside diameter of 1-1/8”. The IP-4 offers a 3/4’’ diameter access to the air stream. All are designed for high velocity systems. A flat neoprene mounting gasket is supplied. However, for maximum protection against leakage, we recommend using Quad Seal.
IP-2 IP-4TH-1
HINGES
INSTRUMENT TEST PORT
ITEM# CODE QTY PER
CARTON
8036 TH1 25
8398 IP2 25
8340 IP4 25
PIANO HINGES
HPH116 HPH112
ITEM# CODE SIZE DESCRIPTION
8120 HPH116 1-1/16” x 3’ 8121 HPH112 1-1/2” x 3’
Packed 25 Per Carton - Special sizes available upon request
PIANO HINGES
Piano hinge, with holes,
zinc plated
BUTT HINGES
BUTT HINGES
HH2 HH3
ITEM# CODE SIZE DESCRIPTION FINISH
8109 HH2 2” x 1 - 9/16” 8110 HH3 3” X 2” Zinc plated
Packed 24 Per Carton - Special sizes available upon request
Light, narrow butt hinge,
fast pin, w/ screw holes.
Zinc plated
FIRE DAMPER HARDWARE
FIRE DAMPER HARDWARE
A
B
All fusible links are listed by
ITEM#
2032 FLS39 temperature rating 165O 10 pound load 1” 1-1/2” 2033 FL43 temperature rating 165 2034 FL41 temperature rating 212
Packed 100 Per Carton
CODE
DESCRIPTION DIM. A DIM. B
O
30 pound load 1-3/4” 2-9/16”
O
30 pound load 1-3/4” 2-9/16”
Underwriter’s Laboratories, Inc.
HANGING STRAP
Duro Dyne provides Hanging Strap fabrics that are waterproof, grease, oil & acid resistant, and have low smoke & flame development.
Designed for hanging:
• Flexible Duct
• PVC Vent Duct
• Duct Board Systems
• Light Weight Steel
ITEM# CODE DESCRIPTION SIZE
10190 VDS200 Vinyl Duro Strap 1-1/2” x 200’
10180 NS300 Nova Strap 1-3/4” x 300’
• Duct Applications
VINYL DURO STRAP NOVA STRAP
FLAME SPREAD & SMOKE DEVELOPMENT:
TENSILE STRENGTH:
HEAT RESISTANCE:
TEAR STRENGTH:
FABRIC:
TOTAL FABRIC THICKNESS:
QUANTITY PER CARTON:
ADDITIONAL INFO:
10 rolls (Conveniently packaged in a dispenser box with cutting blade)
*Product Meets NFPA Class A and UBC Class 1 characteristics of flame spread less than 25 and smoke development less than 50
when utilizing test method ASTM E-84.
NFPA Class A
UBC Class 1
Warp-70 lbs./In. Fill-70 lbs./In Warp-70 lbs./In.; Fill-70 lbs./In
Warp- 8 lbs./In. Fill-11 lbs./In N/A
Black vinyl coated polyester fill
.022” Approx. .025” Approx.
*
*
O
F 200
200
HANGING STRAP
Less Than 25 / Less Than 50
O
F
Black Woven Polypropylene
24 rolls per box
Resistant to Grease, Oil,
Gasoline and Acid.
Page 17
®

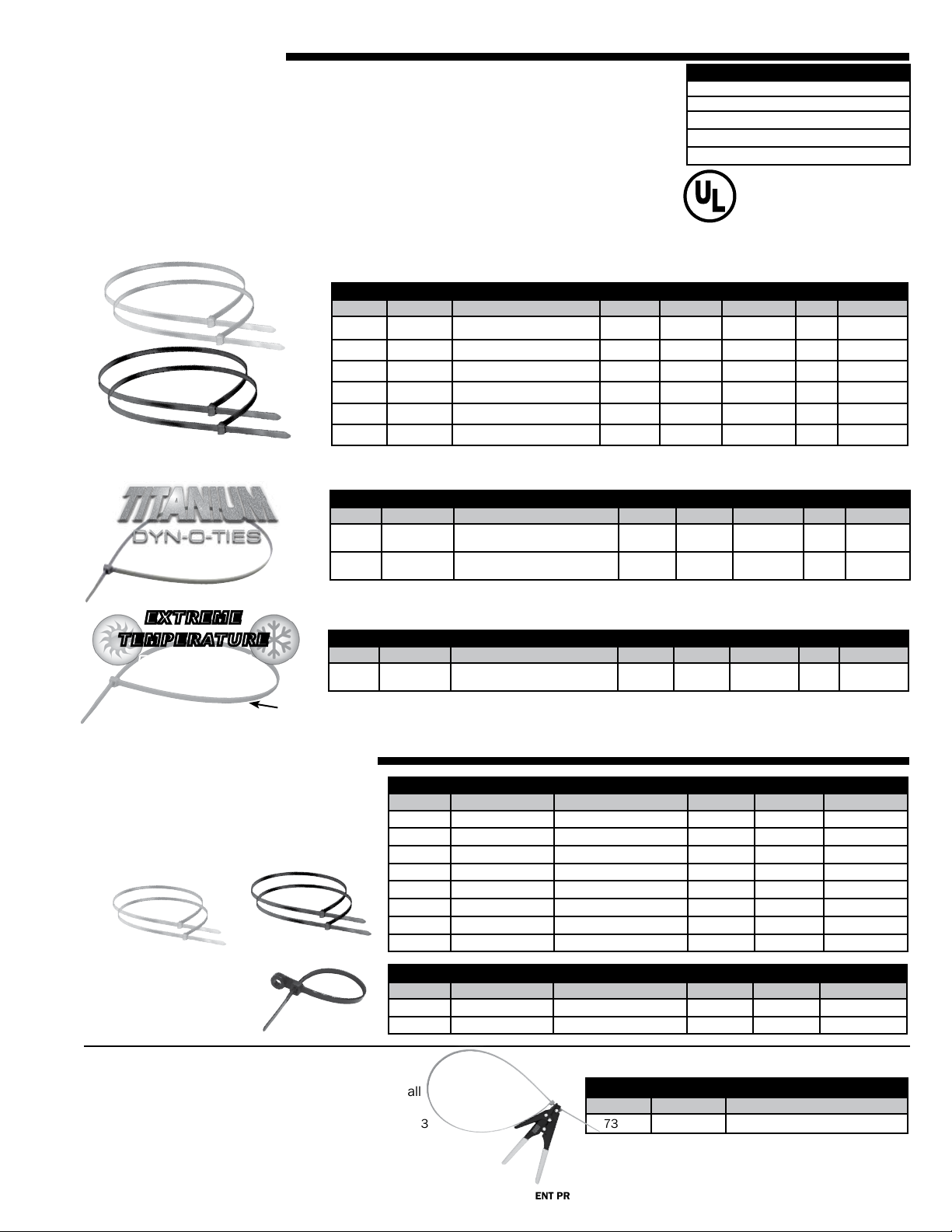

DYN-O-TIES
Whenever your job calls for securing round flexible duct to outlets, pipes or fittings, you can do the job better, faster, and at a lower cost using DYN-O-TIES®, flexible duct ties.
No tapes, no screws, no clamps. Position the flexible duct and slip a DYN-O-TIE around the flexible duct over the joint. Draw the DYN-O-TIE tight with our ratchet action hand tool. A push with the thumb completes the job by clipping off the excess nylon tab for the neatest and most secure connection you could want. Duro Dyne UV DYN-O-TIES are made to resist Ultraviolet rays and adverse weather conditions when used in outdoor applications.
DYN-O-TIES, when properly installed, provide secure, self-extinguishing joints when connecting certain types of flexible duct listed by Underwriters Laboratories Inc., class 1.
NYLON DYN-O-TIES
ITEM # CODE DESCRIPTION COLOR LENGTH MAX. DIA. PKG.
7002 UVDN48 UV Resistant Nylon Black 48” 14” 50 10
7003 UVDN36 UV Resistant Nylon Black 36” 11” 50 10
7004 DN36N Nylon - Imported Natural 36” 11” 50 10
7005 DN48N Nylon - Imported Natural 48” 14” 50 10
6298 DDN36 Nylon Dyn-o-tie USA Made Natural 36” 11” 50 10
6299 DDN48 Nylon Dyn-o-tie USA Made Natural 48” 14” 50 10
NYLON
6/6 V2 – available in five sizes
Self-extinguishing
Fungus inert
Normal service temp. range: – 40
Test Results*: Nylon-175 lbs
Non-Metallic Mechanical Fastener
181B-C 13ER
MH19757
For use with UL nonmetallic airducts and air connectors
*Test Method: Tie is se-
cured at both ends forming a loop. A weight is suspended from the bottom of loop to determine tensile strength of DYN-O-TIE strap.
o
F to 185o F
.
PKG./CTN
ITEM # CODE DESCRIPTION COLOR LENGTH MAX. DIA. PKG.
7116 DN36HDG
7117 DNC36HDG
EXTREME
TEMPERATURE
DYN-O-TIES
®
HI-VIZ YELLOW
ITEM # CODE DESCRIPTION COLOR LENGTH MAX. DIA. PKG.
6317 AWT36USA
®
MINI DYN-O-TIES
MINI DYN-O-TIES are available in natural nylon or black to resist ultraviolet rays and adverse weather conditions when used in outdoor applications. The 8’’ length is also available with a mouting hole.
TITANIUM DYN-O-TIES
PKG./CTN
Heavy Duty Titanium Nylon -
USA Made
Heavy Duty Titanium Nylon -
USA Made
Gray 36” 11” 50 10
Gray 36” 11” 100 5
EXTREME TEMPERATURE DYN-O-TIES
PKG./CTN
High Visability Extreme Temp.
Dyn-O-Tie - USA Made
Yellow 36” 11” 50 10
MINI DYN-O-TIES
ITEM # CODE DESCRIPTION COLOR LENGTH MAX. DIA.
7043 7042 7018 7020 7022 7024 7026 7028
DNM05M Nylon Natural 5” 1.38”
DNM05UVM UV Resistant Nylon Black 5” 1.38”
DNM08M Nylon Natural 8” 1.97”
DNM08UVM UV Resistant Nylon Black 8” 1.97”
DNM11M Nylon Natural 11” 2.76”
DNM11UVM UV Resistant Nylon Black 11” 2.76”
DNM14M Nylon Natural 14” 4.02”
DNM14UVM UV Resistant Nylon Black 14” 4.02”
ITEM # CODE DESCRIPTION COLOR LENGTH MAX. DIA.
MINI DYN-O-TIES WITH MOUNTING HOLE
6367
6368
DYN-O-TIE GUN INSTALLATION TOOL
The DIT3 gun is light weight and commonly used to install most makes of nylon duct ties.
DIT3
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 17
DNMH08M Nylon Natural 8” 1.97”
DNMH08UVM UV Resistant Nylon Black 8” 1.97”
DYN-O-TIE GUN
ITEM # CODE DESCRIPTION
7343 DIT3 For use with nylon ties
Page 18
™

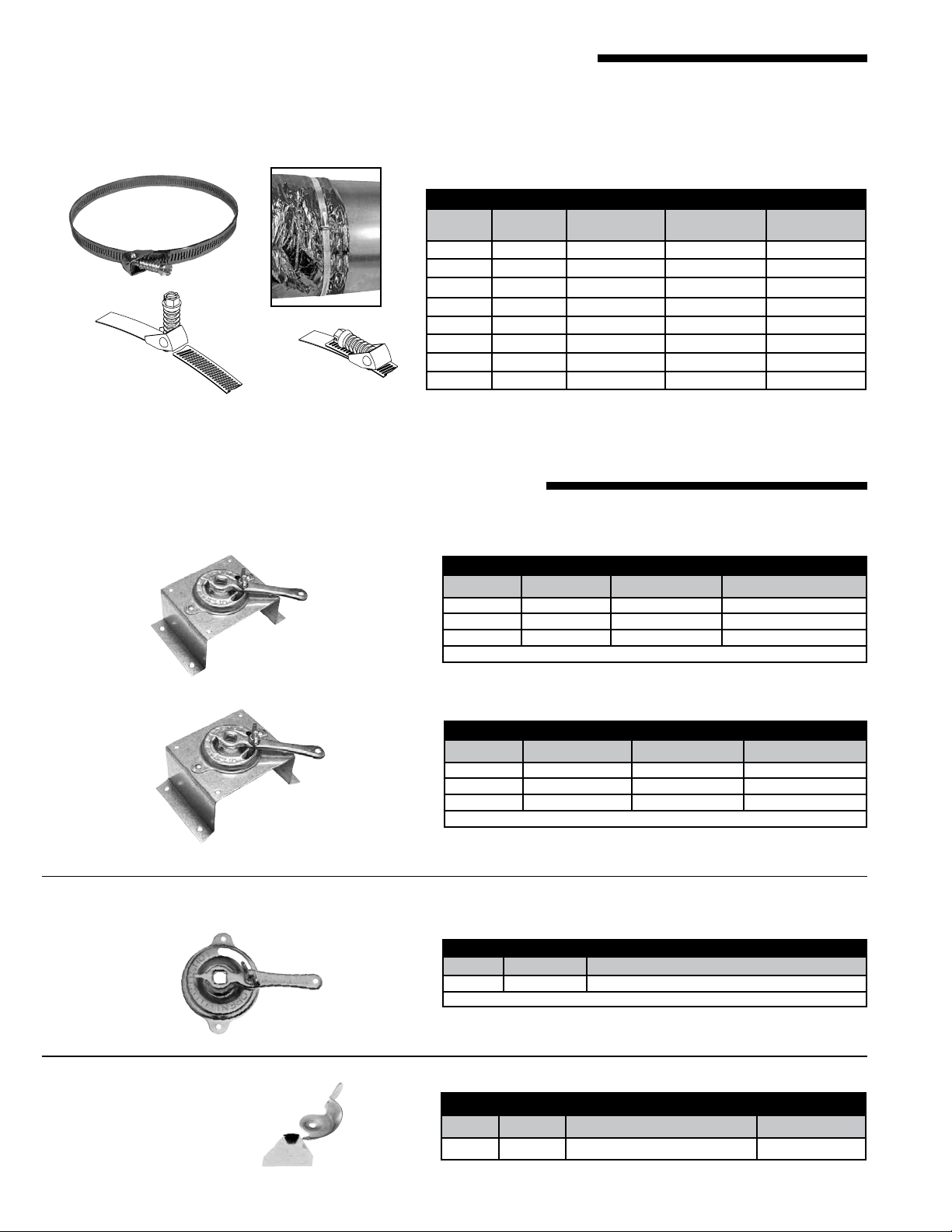

STAINLESS STEEL DYNA-CLAMPS
The Dyna-Clamp is an efficient way to secure flex or rigid round duct connections. The stainless steel band can withstand up to 60 PSI, as well as extreme temperature conditions. The band is secured in place at the bridge by a slotted hex head screw. This zinc plated carbon steel screw can be flipped up away from the band to offer a quick release when adjustments are needed. Dyna-Clamps are available in stock sizes ranging from a 7’’ diameter to 20’’. Two or more clamps can also be connected together to accommodate duct diameters over 20’’.
DYNA-CLAMPS
Quick Release
Feature
Secured
at Bridge
ITEM # CODE MAXIMUM
DIAMETER
7012 DT7WD 7” 1.75” 23.5”
7007 DT8WD 8” 1.75” 28.25”
7008 DT10WD 10” 1.75” 33”
7009 DT12WD 12” 1.75” 40”
7010 DT15WD 15” 1.75” 48.75”
7011 DT16WD 16” 1.75” 52.5”
7013 DT18WD 18” 1.75” 57.31”
7044 DT20WD 20” 1.75” 63.58”
MINIMUM
DIAMETER
OVERALL
LENGTH
STAINLESS STEEL HARDWARE
STANDOFF 3/8” DIAL REGULATOR (FOR DAMPERS UP TO 20”)
ITEM# CODE SHAFT SIZE STAND HEIGHT
7290 KR3SS-100 3/8” sq. 1”
SQUARE
ROUND
7292 KR3SS-150 3/8” sq. 1-1/2” 7294 KR3SS-200 3/8” sq. 2”
Packed 10 Per Carton.
ITEM# CODE SHAFT SIZE STAND HEIGHT
7291 KR3SS-100R 3/8” sq. 1” 7293 KR3SS-150R 3/8” sq. 1-1/2” 7295 KR3SS-200R 3/8” sq. 2”
Packed 10 Per Carton.
3/8” DIAL REGULATOR (FOR DAMPERS UP TO 20”)
ITEM# CODE DESCRIPTION
8272 KR3SS 3/8” Stainless Steel dial regulator only
Packed 10 Per Carton
300 SERIES FOR SQUARE DUCT
300 SERIES FOR ROUND DUCT
300 SERIES 3/8’’ DIAL REGULATOR
ACCESS DOORS LOCKING DEVICE
ACCESS DOORS LOCKING DEVICES
ITEM#
8396 CMLK-SS Stainless Steel Cam-Lock 100
CODE
DESCRIPTION QTY. PER CTN.
Page 19

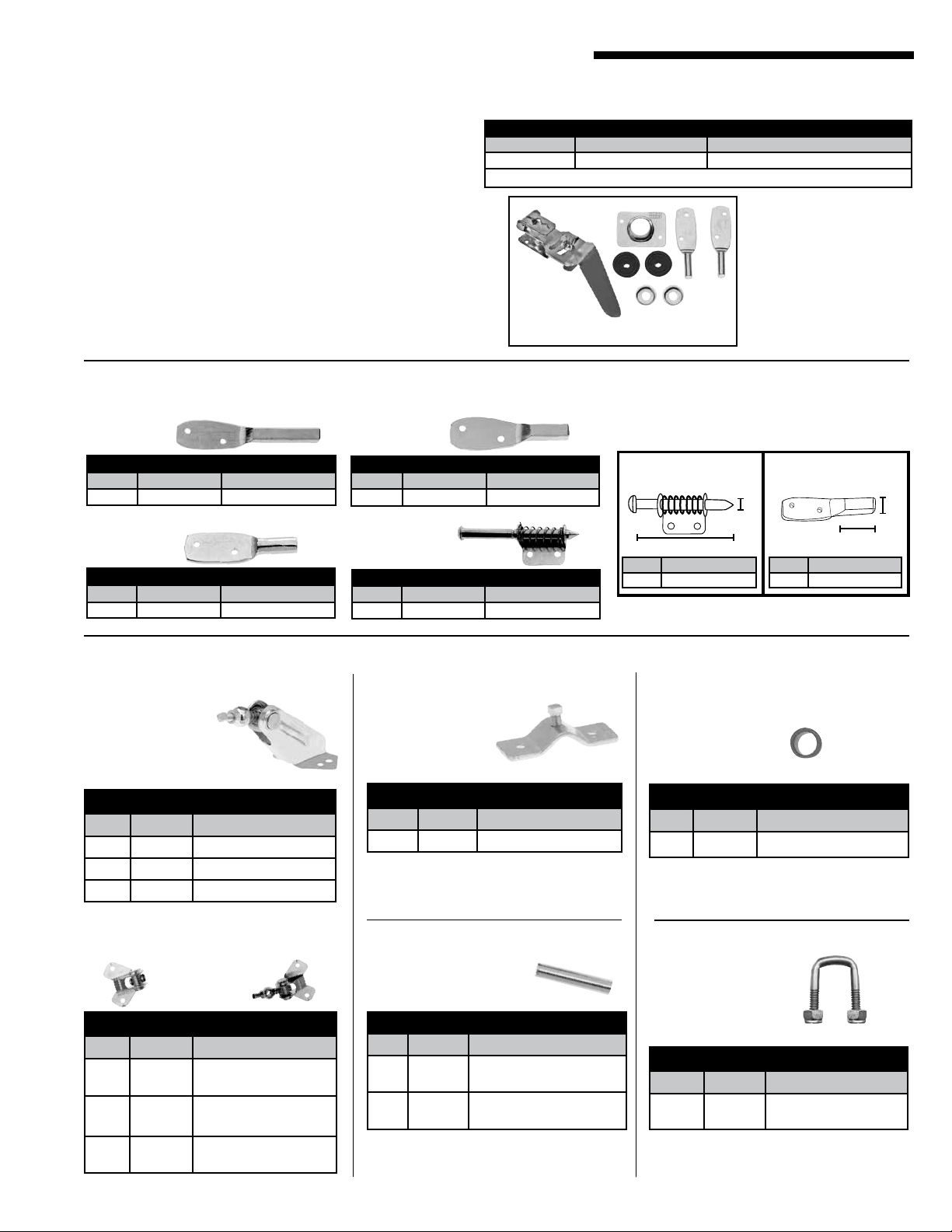

STAINLESS STEEL HARDWARE
(CONTINUED)
1/2” SPEC SEAL™ UNIVERSAL REGULATOR SET (FOR DAMPERS UP TO 30”)
The Spec-Seal Regulator Set utilizes a special rubber seal for applications up to 500
o
F constant temperature. It eliminates leakage and rattle via the Shaft Loc Mechanism in high pressure systems. The handle’s unique design utilizes a highly-visible orange plastic cover showing the damper position. This kit includes 1/2” square bearing shafts. Individual parts available upon request.
Set Consists of:
• Regulator
• 2 Rubber Seals
• 2 Metal Washers
• 2 End Bearings
• End Bearing Support
ITEM# CODE BEARING TYPE
8301 AL12SS 1/2’’ Square Stainless
Quantity per carton: 10 sets
Patent #
7,472,699
300 SERIES SPEC-SEAL™
Stands Off Duct 7/8”
END BEARINGS - 300 SERIES
(PACKED 10 PER CARTON)
KP9XL-SS
KP10S-SS
3/8” SQUARE
ITEM# CODE APPROX. DIM.
7393 KP9XL-SS 3/8” x 3-1/8”
KP10R-SS
ITEM# CODE APPROX. DIM.
7395 KP10S-SS 1/2” x 1-1/4”
KP7LSS
1/2” ROUND
ITEM# CODE APPROX. DIM.
7394 KP10R-SS 1/2” x 1-1/4”
ITEM# CODE APPROX. DIM.
7396 KP7LSS 3/8” x 3-3/4”
MULTI-BLADE DAMPER KITS AND PARTS
BLADE BRACKETS
BKP52SS
HIGH BRACKETS - 300 SERIES
ITEM# CODE DESCRIPTION
2049 BKP52SS Stainless BKP-22
2047 BKP50SS Stainless BKP-25
2048 BKP51SS Stainless Hi Bracket Only
STRAPS
STRAP & SET SCREW - 300 SERIES
ITEM# CODE DESCRIPTION
2052 BKP56SS Stainless Strap/Screw
1/2” SQUARE
SPRING LOC
BKP56SS
Spring Loc Example KP7LSS #7396:
B
ITEM# APPROX. DIM.
7396 3/8”(A) x 3-3/4’’(B)
Square Example KP10S-SS #7395:
A
ITEM# APPROX. DIM.
7395 1/2’’(A) x 1-1/4’’(B)
BUSHINGS
BKP49SS
BUSHINGS - 300 SERIES
ITEM# CODE DESCRIPTION
2085 BKP49SS Stainless 1/2” Bushing
A
B
BKP54SS
BKP62SS
LOW BRACKETS - 300 SERIES
ITEM# CODE DESCRIPTION
2058 BKP54SS Stainless Low Bracket/
2050 BKP53SS Stainless Low Bracket
2062 BKP62SS Stainless Low Bracket/
AIR REGULATION CONTROL EQUIPMENT PRODUCT CATALOG PAGE 19
Pivot/Screw
Only
Pivot/Lollypop
STANDARD PINS
BKP63SS
STANDARD PINS - 300 SERIES
ITEM# CODE DESCRIPTION
2051 BKP55SS Stainless 1/2” diameter pin
2-1/2” long
2068 BKP63SS Stainless 1/2” diameter pin
6” long
ROD CLIPS
KP25SS
ROD CLIPS (U-BOLTS) - 300 SERIES
ITEM# CODE DESCRIPTION
7397 KP25SS 3/8” Stainless Damper
Rod Clips w/ Nyloc Nut
Page 20
Please Visit Our Website
www.durodyne.com
for the most current product information.
© Duro Dyne Corp.
Printed in USA 8/20/18
BB008402
Duro Dyne East Division, Bay Shore, NY 631-249-9000 Fax: 631-249-8346 Duro Dyne Midwest Division, Hamilton, OH 513-870-6000 Fax: 513-870-6005 Duro Dyne West Division, Fontana, CA 562-926-1774 Fax: 562-926-5778 Duro Dyne Canada, Lachine, Quebec, Canada 514-422-9760 Fax: 514-636-0328 www.durodyne.com E-mail: [email protected]
®
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
